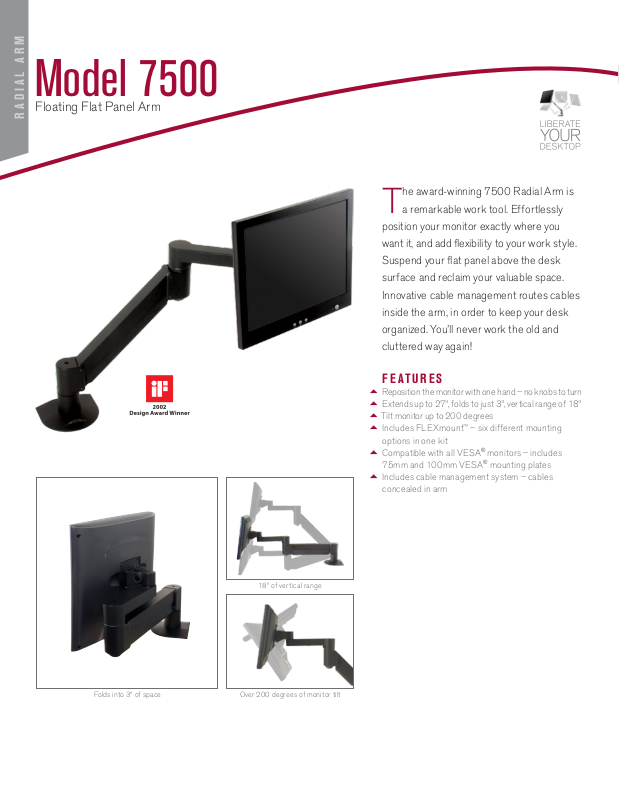

Model 7500
Floating Flat Panel Arm
R A D I A L A R M
he award-winning 7500 Radial Arm is
T
a remarkable work tool. Effortlessly
position your monitor exactly where you
want it, and add flexibility to your work style.
Suspend your flat panel above the desk
surface and reclaim your valuable space.
Innovative cable management routes cables
inside the arm, in order to keep your desk
organized. You’ll never work the old and
cluttered way again!
F E A T URES
5 Reposition the monitor with one hand – no knobs to turn
5 Extends up to 27", folds to just 3", vertical range of 18"
5Tilt monitor up to 200 degrees
5 Includes FLEXmount
options in one kit
5 Compatible with all VESA
75mm and 100mm VESA® mounting plates
5 Includes cable management system – cables
concealed in arm
™
– six different mounting
®
monitors – includes
18" of vertical range
Folds into 3" of space Over 200 degrees of monitor tilt
6.18"
-.13"
8.88"
Max
vertical
range
17.90"
SIDE VIEW
Vertical Range
7.69"
15.25"
Max
horizontal
range
27"
3.125"
TOP VIEW
Horizontal Range
4.5"
17.25"
TOP VIEW
Arm Folded
Model 7500
Specifications
FLEXMOUNT™ CONFIGURATIONS
CAPABILITIES
Vertical range .............................................18" (+/- 9" from horizontal)
Horizontal range
Rotation
Monitor tilt
Monitor pivot
Monitor compatibility
Cable management
Mounting options
Monitor weight/model number .
6 - 21 lbs / 7500-800
8 - 27 lbs / 7500-1000
13.5 - 44 lbs / 7500-HD-1500
......................................................360 degrees at three joints
........................................27"
.................................................200 degrees
............................................Landscape to portrait
...............................VESA® 75mm and 100mm
..................................Cables are concealed in arm
.....................................FLEXmount™, Slatwall, Wall, Thru-Desk
..............2 - 13 lbs / 7500-500
Desk Clamp Thru-Desk Wall
Grommet Hole Side Bolt Reverse Wall
