Argos ZVK500WU-W-AR ASSEMBLY INSTRUCTIONS

MADE IN

BRITAIN

Dimensions

Width - 50cm

Depth - 29cm

Height - 70cm

Athina - 500 Wall Unit

Assembly Instructions - Please keep for future reference

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Issue 3 - 03/02/14

Important - Please read these instructions fully before starting assembly

608/0835

608/0952

608/0897

608/3007

608/1016

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Warning: This unit weighs approximately 14kgs. Please lift with care.

• Check you have all the components and tools listed on pages 2 and 3.

• Remove all fittings from the plastic bags and separate them into their groups.

• Keep children and animals away from the work area, small parts could choke if swallowed.

• Make sure you have enough space to layout the parts before starting.

• Do not stand or put weight on the product, this could cause damage.

• Assemble the item as close to its final position (in the same room) as possible.

• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).

1

Care and maintenance

• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.

• From time to time check that there are no loose screws on this unit.

• This product should not be discarded with household waste. Take to your local authority waste disposal centre.

Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.

• We do not recommend the use of power drill/drivers for

inserting screws, as this could damage the unit. Only use hand screwdrivers.

• Safety note: It is recommended that this unit is secured to a wall using the bracket supplied.

• Dispose of all packaging carefully and responsibly.

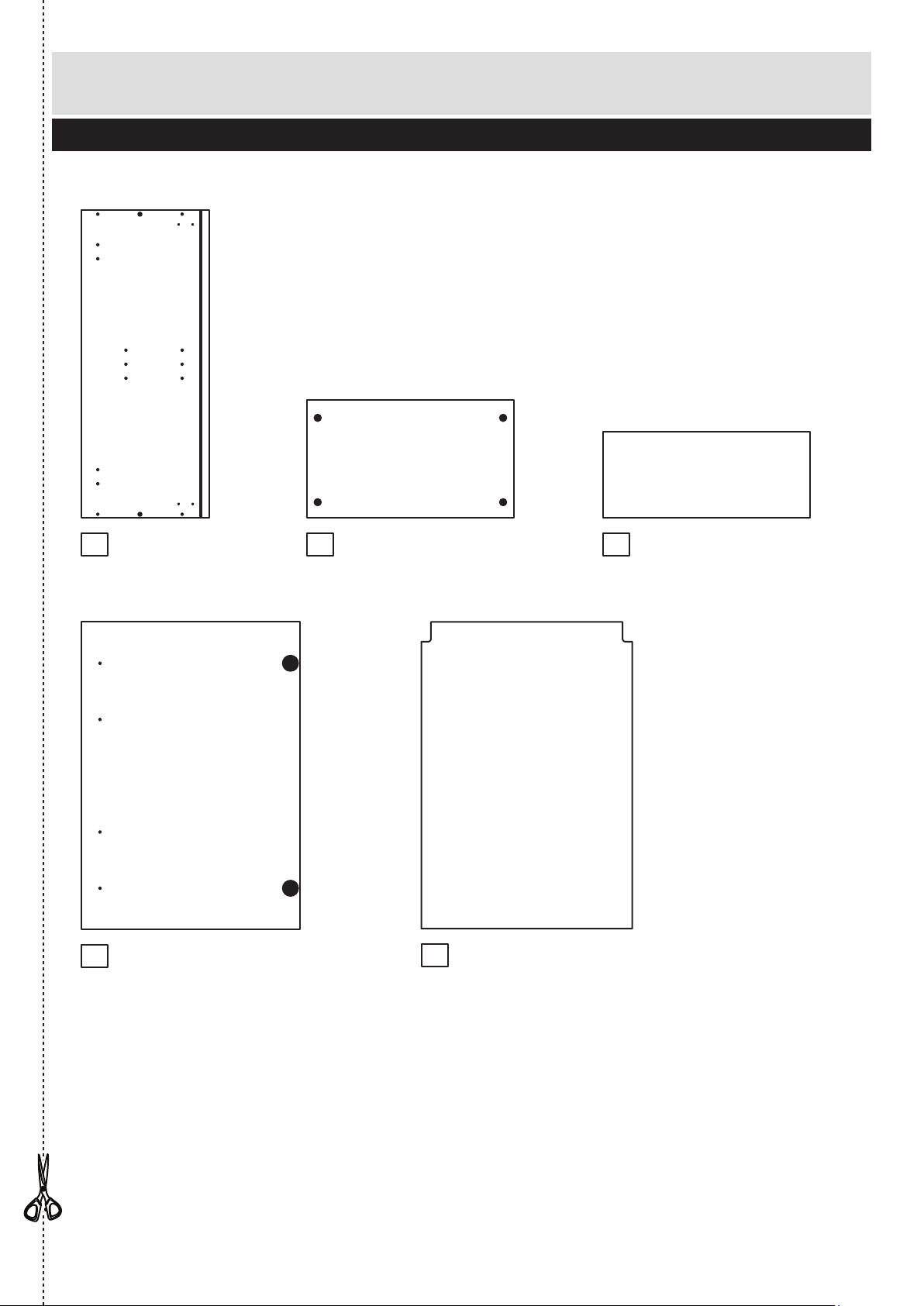

Components - Panels

Please check you have all the panels listed below

2

1

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

2 3

Side (D0331A)

(700 x 290mm) x 2

Door (D0332A)

(700 x 497mm)

Back (X737)

(480 x 698mm)

Top/Base (D0336A)

(470 x 269mm) x 2

4

Shelf (D0337A)

(470 x 197mm)

5

Please check you have all the fittings listed below

Tools required

3

Components - Fittings

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

A

Wooden dowel (F22) x 4

B

Metal dowel (F901) x 8

C

D

Shelf support (F110) x 4

E F

G H I

Rule Scissors Hammer Eye protection

(when using a hammer or drill)

Cross-head screwdriver

Nail (F51) x 8

Ruler - Use this ruler to help correctly identify the screws

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

M

J K L

Electric drill

Large locking nut (F900) x 8

Wall bracket (F198) x 2

25mm Screw (F50) x 4

13mm Screw (F63) x 4 Door Buffer (F137) x 2

Handle (F847a ) x 1

a

M

Handle Screw (F847b) x 2

b

Hanging bracket

(F849) x 2

Hinge Plate (F853) x 2

Hinge (F852) x 2

This shows a bracket with 3 holes. They can also be supplied with just 2 holes.

Assembly Instructions

4

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Step 1

Choose which way you would like the door to open

You can fit the door to the left side or right side.

If you would

like your door

to open this

way, fit the

hinge plates

to the left side

If you would

like your door

to open this

way, fit the

hinge plates to

the right side

Step 2

Prepare the left side

Use one of the side panels to make the left side.

a: If you have chosen to

fit the hinge plates to the left side (see step 1), fit 2 hinge plates onto the left side , making sure that the slot is facing towards the front edge.

Fit a hanging bracket to the left side using 2 screws , making sure that the hook is towards the back edge.

b: Screw 4 metal

dowels into the holes on the left side as shown.

Note: Tighten metal dowels up fully against the panels.

1

K

1

J

B

1

B

1

K

This is the

left side

This is the

left side

B

K

J

G

Front edge

1

a:

b:

1

G

Assembly Instructions

5

Step 3

Prepare the right side

Use one of the side panels to make the right side.

a: If you have chosen to

fit the hinge plates to the right side (see step 1), fit 2 hinge plates onto the right side , making sure that the slot is facing towards the front edge.

Fit a hanging bracket to the right side using 2 screws , making sure that the hook is towards the back edge.

b: Screw 4 metal

dowels into the holes on the right side as shown.

Note: Tighten metal dowels up fully against the panels.

1

K

1

B

1

Front edge

K

1

K

B

1

a:

b:

1

B

This is the

right side

This is the

right side

J

G

J

1

Finished

front edge

A

Assembly Instructions

6

Step 4

Prepare the top and base

Insert 4 large locking nuts into the 2 top/base panels as shown.

Note: Arrow on locking nut must point towards hole in edge of panel.

Tap 2 wooden dowels into the 2 top/base panels as shown.

Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.

C

10mm

A

C

A

Finished

front edge

B

C

2

A

2

Step 5

Fit the base and top to the right side

Push the base and top panels onto the right side .

Use a screwdriver to tighten the 2 large locking nuts fitted to the base and top .

Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.

2

C

1

2

1

2

Base

Right Side

Top

2

Top

Assembly Instructions

7

Step 6

2

1

Cut-out

corner

1

Fit the left side

Push the left side onto the base and top panels .

Use a screwdriver to tighten the 2 large locking nuts fitted to the base and top .

Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.

2

C

2

1

Fit the back

a: Square up the unit by

making sure that measurement x to x

equals y to y.

Note: The cut-out corners of the back must be at the top of the unit.

b: Slide the back

into the grooves along the side panels . Push it into the grooves until it is flush with the bottom end of the side panels .

c: Secure the back

by tapping 4 nails down into the back edge of the base and 4 nails into the back edge of the top .

1

5

x

y

x

5

Step 7

D

The measurement from top corner X to bottom corner X must be

equal to the measurement from top corner Y to bottom corner Y

a:

b:

c:

2

Base

Cut-out

corner

Left Side

2

Base

2

D

5

1

2

Top

Assembly Instructions

8

Step 8

18mm

37mm

464mm

18mm

464mm

F F

F

Outline of

the unit

Fit the unit to the wall

To fix the unit to the wall, place the unit in the required position and lightly mark the outline of the top corners of the unit with a pencil.

Fit the 2 wall brackets to the dimensions shown in the top diagram. The screws and plugs are not supplied as they need to be the correct type to suit your wall.

Place your unit onto the wall brackets , via the hanging brackets which you have fitted to the sides of the unit.

Use the screw in the bottom of the wall brackets to adjust the height of the unit.

Finally, pull the unit up against the wall by tightening up the top screw in the hanging brackets .

Warning: Take care when

drilling the wall that you do not drill into any pipes, wires etc. If in doubt, consult an expert.

F

J

1

J

To adjust the height of

the unit on the wall,

turn the bottom screw

Pull the unit up

against the wall

by tightening

the top screw

J

F

Warning: The unit is heavy. Lift with care.

Note: The diagrams show the wall brackets with 3 holes.

They can also be supplied with just 2 holes.

Assembly Instructions

9

Step 9

E

x 4

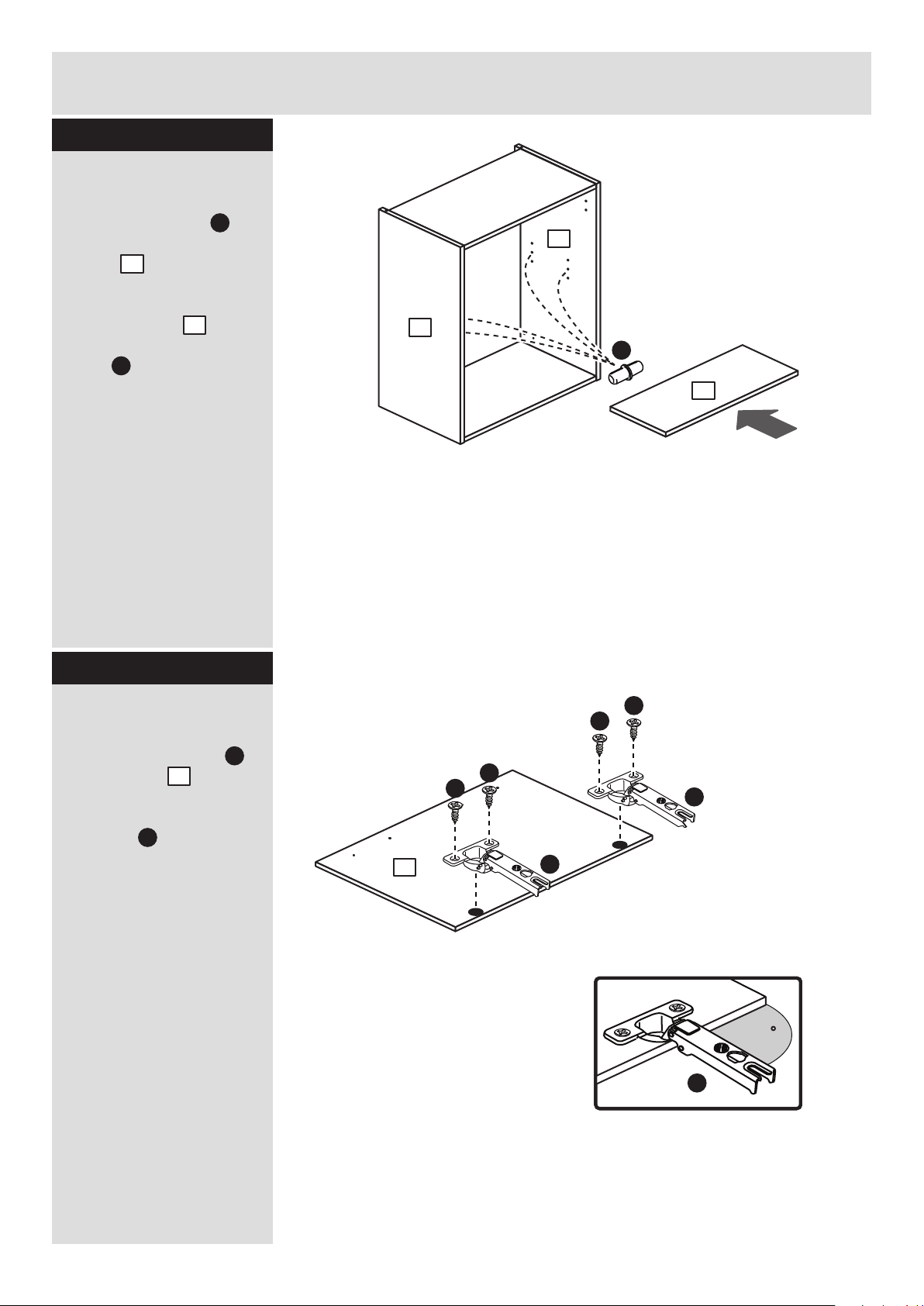

Fit the shelf

Push 4 shelf studs into the holes in the side panels at the desired height.

Place the shelf into the unit onto the shelf studs .

E

1

3

1

Step 10

Prepare the door

Push fit the 2 hinges into the door .

Secure each hinge with 2 screws .

Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees with the front edge of the door.

F

L

4

E

H

L

H

4

90

L

Assembly Instructions

10

Step 11

Drill these 2 holes if

you have fitted the

hinges to the left side.

Drill these 2 holes if you

have fitted the hinges

to the right side.

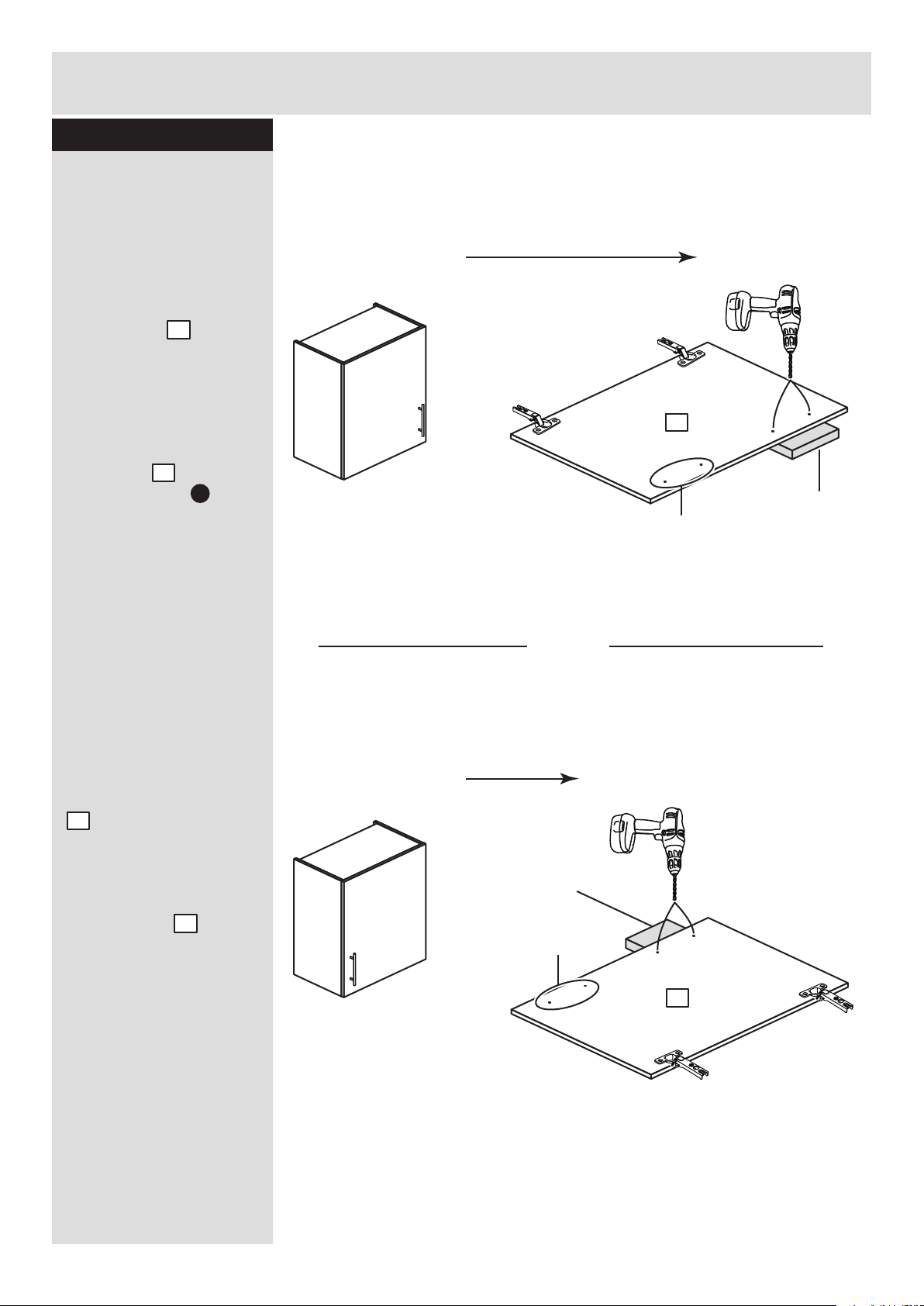

Drill the handle holes in the door

Important: Please follow these instructions carefully.

Lay the door down onto a smooth surface.

Important: Carefully choose which holes you need to drill. This will depend on which side you fitted the hinge plates .

Check that the holes and hinges are in the same place as the diagrams.

Note: We recommend the use of a small piece of waste wood, placed behind the hole while drilling, to reduce the possibility of any breakout.

Using the pilot hole in the rear face of the door, . drill through the holes indicated opposite, using a 2.5mm diameter drill.

Turn the door over and open out the 2.5mm holes that you have just drilled by drilling back through them with a 5mm drill.

Carefully choose which 2 holes you will need to drill

4

M

1

4

or

Small piece of

waste wood

ONLY drill

these 2 holes

DO NOT drill

these holes

4

Small piece of

waste wood

ONLY drill

these 2 holes

DO NOT drill

these holes

4

Assembly Instructions

11

Step 12

Fit doors and handles

2 people are needed here

Note: The easiest way to

attach the door is to fit the top hinge first, then align and fit the other hinges.

a: Push the hinge

onto the front part of the hinge plate .

b: Keep the hinge

FLAT against the hinge plate as you slide it across as far as it will go. Tighten screw A.

c: The hinge must be

flat against the hinge plate prior to any adjustment.

d: The hinge must

NOT be AT AN ANGLE to the hinge plate when assembled. This would indicate that the recess at the bottom of screw B had not located in the slot in the hinge plate and the hinge would not be secure. Remove the hinge from the hinge plate and then re-assemble being careful to follow instructions a-c.

e: Attach a handle

to the door using 2 screws .

screw A

a: b:

c: d:

A

screw B

L

K

L

K

4

L

LL

K

This shows the door being fitted to hinge

plates on the right side.

You may have fitted them to the left side.

e:

M a

M b

M a

4

M b

4

Assembly Instructions

12

Step 13

a:

b:

c:

A

B

C

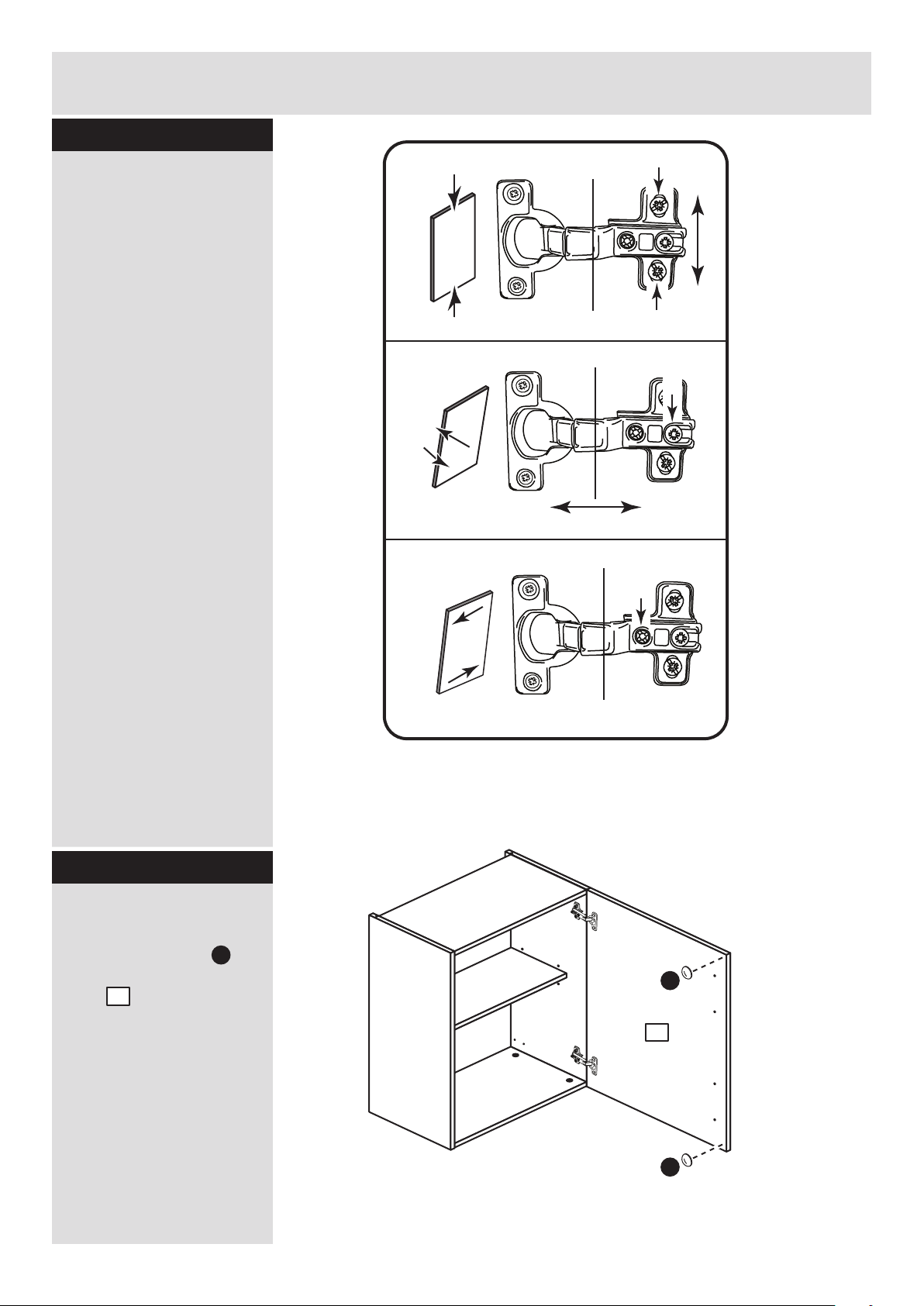

Adjust the door if needed

a: Height adjustment.

Loosen screws A on hinge plates and move door up or down as required. Retighten screw A.

b: Forward and Back

adjustment. Loosen screw B on hinge plate and move door in or out as required. Retighten screw B.

c: Sideways

adjustment. To move door ‘out’ loosen screw C. To move door ‘in’ tighten screw C

Fit the door buffers

Stick a door buffer onto the 2 corners of the door as shown, so that they hit the edge of the side panel when the door is closed.

I

4

Step 14

4

I

Assembly Instructions

13

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

and quote the reference numbers on the component pages.

Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW

Step 15

Assembly is complete

Warning: The unit is heavy. Lift with care.
