Argos ZSV3D-W-AR ASSEMBLY INSTRUCTIONS

Assembly Instructions - Please keep for future reference

MADE IN

BRITAIN

If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number)

Important - Please read these instructions fully before starting assembly

Dimensions

Width - 66cm

Depth - 33cm

Height - 58cm

Seville - 3 Drawer Chest

Issue 2 - 25/03/14

151/3297

170/2187

166/5413

161/7739

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Warning: This unit weighs approximately 14kgs. Please lift with care.

• Check you have all the components and tools listed on pages 2 and 3.

• Remove all fittings from the plastic bags and separate them into their groups.

• Keep children and animals away from the work area, small parts could choke if swallowed.

• Parts of the assembly will be easier with 2 people.

• Make sure you have enough space to layout the parts before starting.

• Do not stand or put weight on the product, this could cause damage.

• Assemble the item as close to its final position (in the same room) as possible.

• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).

• We do not recommend the use of power drill/drivers for

inserting screws, as this could damage the unit. Only use hand screwdrivers.

• Safety note: If there is any chance of this unit being pulled over by children etc. it is recommended that the unit is secured to a wall using suitable fixings (not supplied).

• Dispose of all packaging carefully and responsibly.

Care and maintenance

• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.

• From time to time check that there are no loose screws on this unit.

• This product should not be discarded with household waste. Take to your local authority waste disposal centre.

Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.

Components - Panels

Please check you have all the panels listed below

If you have damaged or missing components, call the

Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number

and the reference numbers below)

1 2

Top (D2488A)

(627 x 327mm)

Plinth (D2491A)

(627 x 80mm)

Drawer Front (D2492A)

(623 x 157mm) x 3

Drawer Base White : TSAV(T608-299)

(608 x 299mm) x 3

Back (X328-653)

(328 x 653mm)

Left Side (D2489A)

(576 x 328mm)

Right Side (D2490A)

(576 x 328mm)

7 8

Drawer Wrap (WSAV)

(1221 x 95mm) x 3

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

Tools required

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

Ruler - Use this ruler to help correctly identify the screws

Please check you have all the fittings listed below

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

Components - Fittings

If you have damaged or missing components, call the

Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number

and the reference numbers below)

Rule Scissors Hammer

Eye protection (when using a hammer or drill)

Cross-head screwdriver

Wooden dowel (F22) x 4

Metal dowel (F901) x 6

D E F

Small locking nut (F3) x 6

Nail (F51) x 1540mm Screw (F910) x 6

Handle (F300) x 6

R (F601)

L (F600)

F599

Drawer stops (F599) x 6 Runners (F600) x 3 and (F601) x 3

25mm Screw (F95) x 6

Step 1

Assembly Instructions

If you have damaged or missing components, call the

Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number

and the reference numbers below)

x 3

Prepare the drawer fronts

Screw 2 metal dowels into each of the drawer fronts .

Note: Tighten the metal dowels up fully against the panel.

x 3

Fit the drawer base

Place the drawer base into the narrow slot on the drawer wrap . Fold the wrap around the drawer base.

Step 3

Prepare the drawer wraps

Insert 2 small locking nuts into each of the drawer wraps .

Note: The arrow on the locking nut must point towards the hole in the edge of the panel.

Step 2

Note: Due to the manufacturing process, the holes for the locking nut can be on either surface of the drawer wrap.

Note: The locking nuts can be on either surface of the drawer sides. Make sure that the small groove is on the inside, as shown.

Plain chipboard

surface

Assembly Instructions

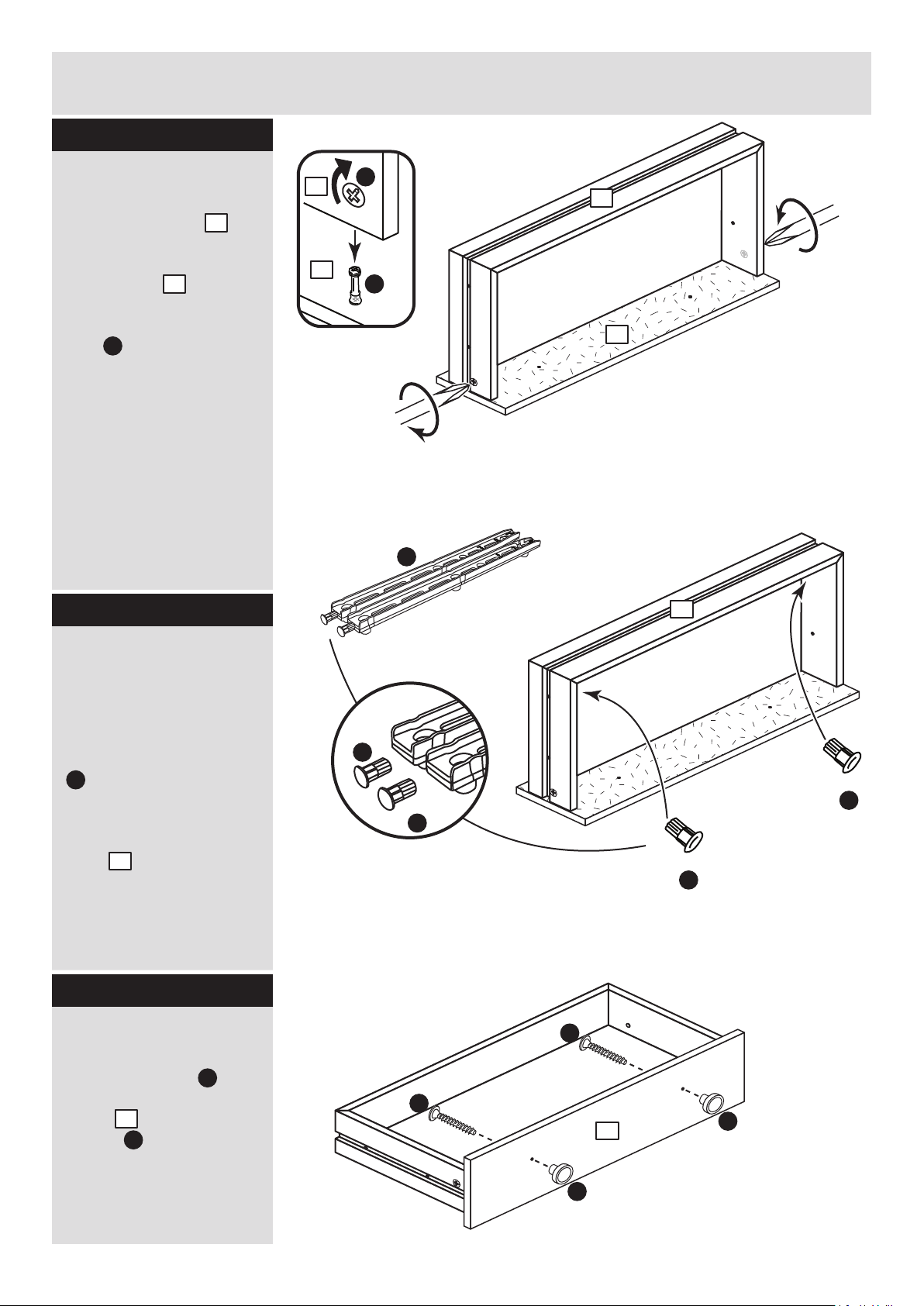

Step 4

Attach the handles

Attach 2 handles to each of the 3 drawer fronts using 2 screws .

Note: Do not overtighten the screws.

Step 6

Step 5

x 3

Attach the drawer stops

Carefully break off 2 drawer stops (F599) from a set of drawer runners . .

Push the drawer stops fully through the drawer wrap from the inside.

F599

x 3

SNAP!

F599

x 3

Fit the drawer front

Turn drawer wrap assembly over and push it onto the back of the drawer front .

Note: Turn the locking nuts clockwise to secure the panels - more than 1/2 a turn.

Finished

front edge

Assembly Instructions

Step 7

Prepare the left side

Separate the runners .

Push fit the 3 left runners . marked ‘L’ into the left side .

Note: Runners must be be fitted flat against the panel. If necessary gently tap into final position.

Prepare the right side

Push fit the 3 right runners marked ‘R’ into the right side .

Note: Runners must be be fitted flat against the panel. If necessary gently tap into final position.

Step 8

F600

F601

Finished

front edge

Finished

front edge

Prepare the top

Tap 2 wooden dowels into the top .

Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.

plain chipboard surface

Step 9

10mm

Finished

front edge

Assembly Instructions

Step 10

Join the top to the right side

Push the top onto the right side and secure with 2 screws .

Step 11

Prepare the plinth

Tap 2 wooden dowels into the plinth .

Step 12

plain chipboard surface

Finished

front edge

Join the plinth to the right side

Push the plinth onto the right side and secure with screw .

Support the plinth

until the left side

has been fitted in

the next step.
