Dimensions
Sparkle - Dressing Table and Stool
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Issue 1 - 05/06/15
Important - Please read these instructions fully before starting assembly
406/9803
424/1470
397/8689
Width - 100cm
Depth - 39.6cm
Height - 73.6cm
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 30kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
overbalance protector kit
supplied or, an alternative fixing
method of your choice.
• Dispose of all packaging
carefully and responsibly.
Components - Panels
Please check you have all the panels listed below
2
1
2
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
14
18
15 16
19
17
20 21 22
23
24
Stool
3
7
8
4
5
6
9
13
10 11 12
Dressing Table
Left Side (DF3819)
(72.1 x 37.2cm)
Left Fascia (DF3824)
(24.2 x 12.5cm)
Divider (DF3826)
(12.5 x 35.6cm) x 2
Modesty (DF3822)
(96.6 x 24.4cm) x 2
Rail (DF3828)
(50.3 x 7.8cm)
Right Side (DF3820)
(72.1 x 37.2cm)
Top (DF3821)
(100 x 39.6cm)
Right Fascia (DF3825)
(24.2 x 12.5cm)
Drawer Front (DF3823)
(49.6 x 12.2cm)
Drawer Base (T480-347)
(48 x 34.7cm)
Drawer Back (W469-95)
(46.9 x 9.5cmm)
Left Drawer
Side (W350-95LH)
(35 x 9.5cm)
Right Drawer
Side (W350-95RH)
(35 x 9.5cm)
Stool Left Side (DF342A)
(39.5 x 32.8mm)
Stool Rail (DF346A)
(47.8 x 16mm) x 2
Stool Base (DF347A)
(47.8 x 30.6mm)
Stool Drawer Base (T456-297)
(45.6 x 29.7mm)
Stool Right Side (DF343A)
(39.5 x 32.8mm)
Stool Top (DF344A)
(51 x 35.2mm)
Stool Drawer
Front (DF3833)
(49.7 x 15.7mm)
Stool Seat Pad (FHALPAD)
(45.8 x 30mm)
Stool Left
Drawer Side
(W300-124LH)
(30 x 12.4mm)
Stool Right
Drawer Side
(W300-124RH)
(30 x 12.4mm)
Stool Drawer
Back (W445-124)
(445 x 12.4mm)
Please check you have all the fittings listed below
Tools required
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Electric drill
(only use
when drilling
into walls)
B C
D E F
G
Small locking
nut (F3) x 4
I
A
Wooden dowel (F22) x 18 Metal dowel (F901) x 38
Large locking
nut (F900) x 34
Knock-in Peg (F171GY) x 8
M
Plastic Nail (F91) x 8
K
Wedgefix (F639) x 4
Mini block (F25) x 4
H
L
9mm Screw (F73) x 8
9mm Screw (F74) x 4
25mm Screw (F50) x 6
JM
JN
J
Drawer runner (F1004) x 4
Strap Screw Washer x 2
Overbalance protector kit (F269) x 1
Handle (F437) x 1
9
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Step 1
B
B
B
C
C
C
C
10
11
Step 2
Prepare the drawer
front
Screw 2 metal dowels
into the drawer front .
Note: Tighten the metal
dowels up fully against
the panels.
The Dressing Table will be built 1st
B
9
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and the right
drawer side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 3
C
10
11
Attach the drawer
sides to the drawer
front
Push the left drawer side
. and right drawer side
. onto the back of the
drawer front .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
10
11
9
C
C
10
11
10
11
B
B
9
9
Assembly Instructions
5
Step 4
E
E
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
Step 5
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
Step 6
13
10 11
9
12
10 11
13
12
12
E
10 11
Step 7
Fit the wedgefixes
Turn the drawer
assemby over and slide
2 wedgefixes into the
front and back grooves,
as shown, and tighten up
the screws.
K
E
E
K
K
K
13
10
12
10
11
13
11
Attach the handle
Attach the handle
to the drawer front
using 2 screws .
Note: Do not
overtighten the screw.
9
M
I
I
I
M
9
A
A
A
A
Assembly Instructions
Step 8
Finished
front edge
Prepare the left side
Tap 2 wooden dowels
into the left side .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Screw 4 metal dowels
into the left side .
Note: Tighten the metal
dowels up fully against
the panels.
Insert 2 large locking
nuts into the left side
. .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Gently tap a mini block
into the left side ,
orientated as shown.
B
1
D
D
D
F
F
D
1
F
1
1
D
B
B
F
Finished
front edge
Step 9
Prepare the right side
Tap 2 wooden dowels
into the right side .
Screw 4 metal dowels
into the right side .
Insert 2 large locking
nuts into the right
side .
Gently tap a mini block
into the right side ,
orientated as shown.
B
2
D
2
F
2
2
B
B
B
B
B
B
A
10mm
A
1
A
2
D
F
6
A
A
Assembly Instructions
7
Step 10
Step 11
Prepare the 2
modesty panels
Tap 4 wooden dowels
into each of the modesty
panels .
Insert 4 large locking
nuts into each of the
modesty panels .
D
8
8
D
D
D
D
8
x 2
Finished
edge
A
A
A
Join the 2 modesty
panels to the left side
Push the 2 modesty
panels onto the left
side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
each modesty .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
D
D
8
8
1
B
D
Note: Support this modesty
until the right side has been
fitted in the next step.
Important:
The finished edges on
the modesty panels must
be facing each other
1
8
8
Assembly Instructions
Step 12
Step 13
8
Fit the right side
Push the right side
onto the 2 modesty
panels .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
each modesty .
D
8
2
8
2
8
8
Prepare the rail
Insert 2 large locking
nuts into the rail .
Tap 2 wooden dowels
into the rail .
D
4
4
A
A
D
D
A
Finished
front edge
4
A
A
Finished
front edge
Finished
front edge
Finished
front edge
Assembly Instructions
9
Step 14
Finished
front edge
H
J
Prepare the left
divider
a: Place a runner on
1 of the dividers , as
shown. Slide back the
top of runner and use the
2nd hole from the front
to fit the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the divider .
c: Tap 2 wooden
dowels into the
divider .
Screw a metal dowel
into the divider .
Turn the divider over
d: Insert 2 large locking
nuts into the divider
. .
Note: Due to the
manufacturing process,
the 2 holes for the large
locking nuts can be on
either surface of the
divider.
Gently tap a mini block
into the divider ,
orientated as shown.
3
H
H
D
3
3
J
J
A
3
B
3
F
a:
b:
c:
d:
Turn the
divider over
F
3
H
J
H
B
Finished
front edge
3
3
3
3
D
D
F
Finished
front edge
A
A
Assembly Instructions
Step 15
10
Prepare the right
divider
a: Place a runner on
the divider as shown.
Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the divider .
c: Tap 2 wooden
dowels into the
divider .
Screw a metal dowel
into the divider .
Insert 2 large locking
nuts into the divider
. .
Note: Due to the
manufacturing process,
the 2 holes for the large
locking nuts can be on
either surface of the
divider.
Turn the divider over
d: Gently tap a mini
block into the divider
. , orientated as shown.
3
H
H
D
3
3
J
J
B
3
a:
b:
c:
d:
Turn the right
upright over
F
3
Finished
front edge
H
J
F
H
J
H
D
D
Finished
front edge
Finished
front edge
Finished
front edge
B
F
A
3
3
3
3
3
Assembly Instructions
11
Step 16
Prepare the top

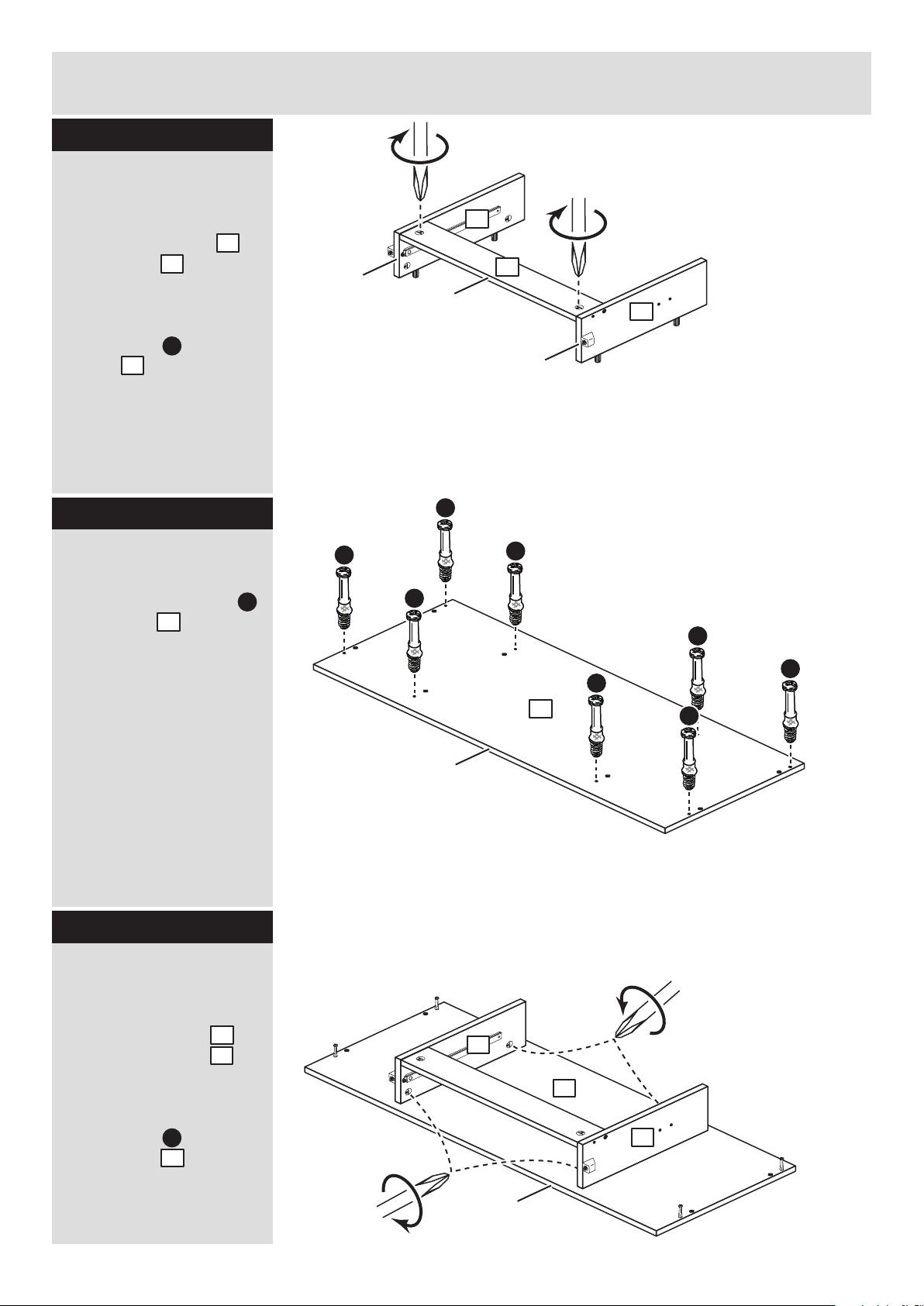

Screw 8 metal dowels
into the top .
B
7
Join the rail to the
dividers
Push the 2 dividers
onto the rail .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the rail .
Step 17
3
4
4
D
Finished
front edge
Finished
front edge
Finished
front edge
4
3
3
Finished
front edge
B
B
B
B
B
B
B
B
7
Fit the dividers to the
top
Lower the dividers
down onto the top .
Use a screwdriver to
tighten the 2 large
locking nuts fitted
each divider .
3
7
3
D
Step 18
3
3
Remember: The large
locking nuts can be on either
surface of the 2 dividers.
Important: The runners
must be on the inside
surface of the dividers.
Remember: The large
locking nuts can be on either
surface of the 2 dividers.
Finished
front edge
7
Assembly Instructions
Step 19
12
Fit the sides to the
top
Lower the left side
and right side down
onto the top .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the left side and right
side .
1
2
7
D
1
2
7
2
1
Fit the fascia panels
Position the holes on the
back surface of the left
fascia and right
fascia over the
screws on the mini
blocks .
Tighten up the screws in
the 4 mini blocks into
the holes in the fascia
panels and .
F
F
5 6
5
6
F
F
Finished
edge
Finished
edge
F
F
Note: The right
fascia has a shallow
identification hole
on its back surface.
5
6
Step 20
Assembly Instructions
13
Step 21
Step 22

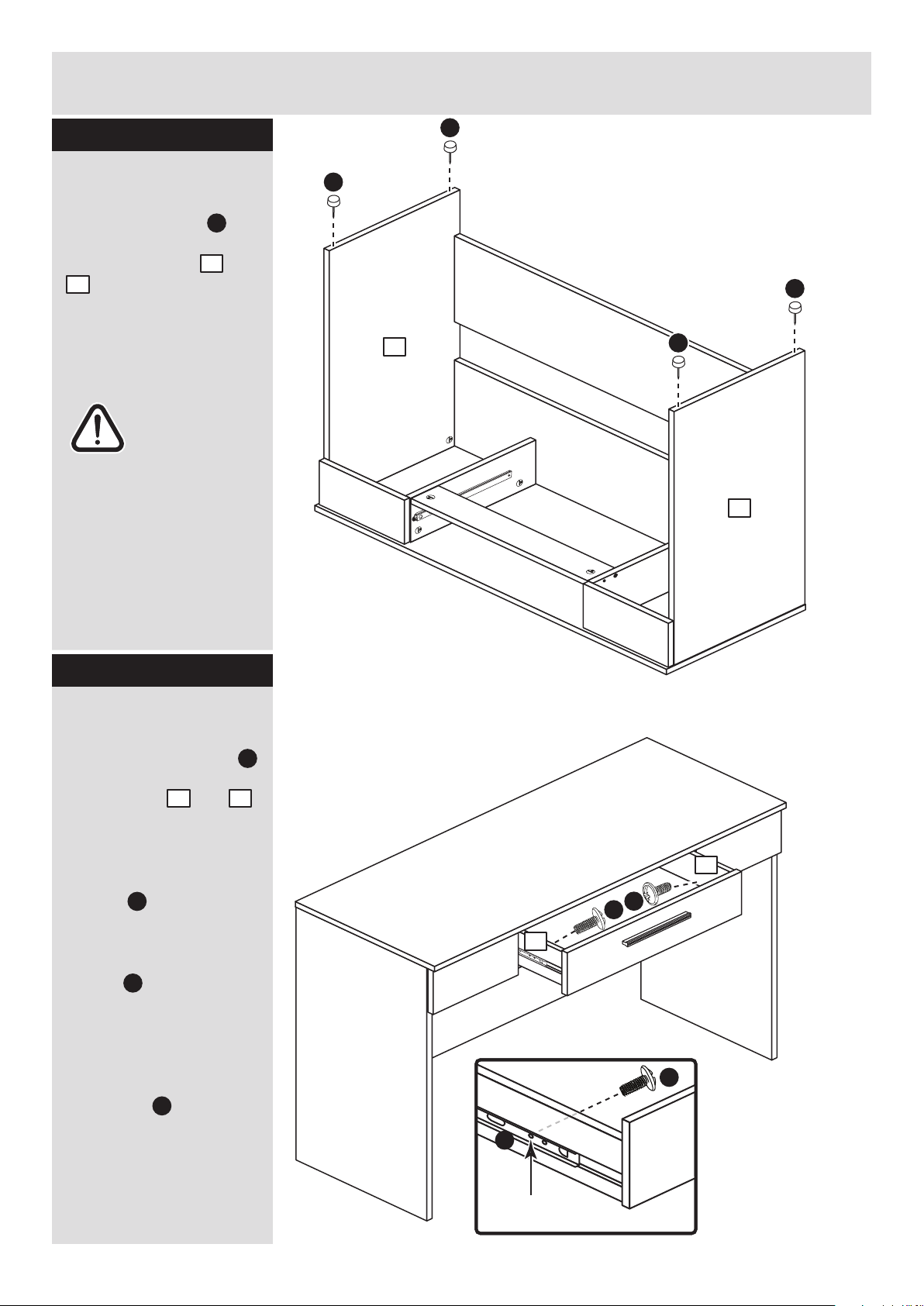

Fit the 4 plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. .
Carefully stand the
unit up for the next
step.
L
1
2
Warning: The
unit is heavy.
Lift with care.
L
L
L
L
1
2
Fit the drawer
Slide both the runners
forward and locate the
drawer sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
The dressing table
assembly is complete
G
J
J
G
2nd threaded
hole
J
G
10 11
G
G
10
11
19
19
Assembly Instructions
Step 23
14
Step 24
Prepare the stool
drawer front
Screw 2 metal dowels
into the stool drawer
front .
B
19
B
B
21
Step 25
Prepare the stool
drawer sides
Insert a small locking
nut into the hole
shown on the stool left
drawer side and stool
right drawer side .
Note: Arrow on locking
nut must point towards
hole in edge of panel.
C
20
21
Attach the stool
drawer sides to the
stool drawer front
Push the stool left
drawer side and stool
right drawer side
onto the back of the
stool drawer front .
Turn the small locking
nuts on the stool left
drawer side and stool
right drawer side .
20
21
19
C
20
21
B
B
C
C
20
C
20
C
21
19
Assembly Instructions
15
Step 26
Step 27
Fit the stool drawer
base
Slide the stool drawer
base down the
grooves in the stool
drawer sides and
and down into the
groove in the stool
drawer front .
24
20 21
19
20
21
24
Step 28
Fit the stool drawer
back
Fit the stool drawer back
. down onto the stool
drawer base .
Make sure that the stool
drawer base fits into
the groove in the stool
drawer back .
Hold the stool drawer
back in position and
tap the knock-in pegs
through the holes in the
stool drawer sides
and .
22
24
24
22
22
E
20
21
Fit the wedgefixes
Turn the drawer
assembly over and slide
2 wedgefixes into the
front and back grooves,
as shown, and tighten up
the screws.
K
K
E
E
21
24
20
E
E
22
K
K
Assembly Instructions
Step 29
16
Step 30
Prepare the stool rails
Insert 4 large locking
nuts into each of the
stool rails .
D
18
x 2
D
D
D
D
18
Prepare the stool left
side
a: Place a runner
onto the stool left side .
Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the stool left side .
c: Screw 6 metal
dowels into the stool
left side .
d: Insert 2 large locking
nuts into the stool left
side .
J
J
14
14
H
H
J
a:
b:
c:
d:
H
B
14
D
14
H
J
14
14
H
14
B
B
B
B
B
B
14
D
D
Assembly Instructions
17
Step 31
Prepare the stool right
side
a: Place a runner
onto the stool right side
. . Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the stool right side .
c: Screw 6 metal
dowels into the stool
right side .
d: Insert 2 large locking
nuts into the stool
right side .
J
J
15
15
H
a:
b:
c:
d:
H
B
15
D
15
H
J
H
J
H
J
15
15
H
15
B
B
B
B
B
B
15
D
D
Assembly Instructions
Step 32
18
Step 33
Step 34
Fit the stool base
Push the stool base
onto the stool left side
. .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the stool base .
17
14
D
17
Fit a stool rail to the
stool left side
Push a stool rail onto
the stool left side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the stool rail .
18
14
D
18
Prepare the stool
base
Insert 4 large locking
nuts into the stool
base .
D
17
D
D
D
17
D
14
18
14
17
Assembly Instructions
19
Step 35
Step 36
Step 37
Secure the stool base
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the stool base .
D
17
Fit the stool right side
Push the stool right side
. onto the stool base
and the 2 stool rails .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
each of the stool rails .
15 17
18
D
18
Fit the other stool rail
Push the other stool rail
. onto the stool left
side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the stool rail .
18
14
D
18
18
14
18
18
15
17
17
B
B
B
B
Assembly Instructions
20
Step 38
Step 39
Step 40
Fit the stool seat pad
Fit the stool seat pad
to the stool top using
4 screws .
Note: Make sure that it is
fitted centrally and you
screw into the hard
surface of the stool seat
pad.
23
16
I
Prepare the stool top
Screw 4 metal dowels
into the stool top .
16
B
Fit the 4 plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the stool sides
and . .
Stand the stool up for
the next step.
L
14
15
16
I
I
I
I
Hard
surface
Soft
surface
16
23
L
L
L
L
14
15
Assembly Instructions
21
Step 41
Step 42
Fit the stool top
Lower the stool top
down onto the assembly.
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the stool left side and
stool right side .
D
16
14
15
Fit the stool drawer
Slide both the runners
forward and locate the
drawer sides and
between them, lining up
the holes in the drawer
sides with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
G
J
J
G
2nd threaded
hole
J
G
20 21
16
15
14
G
G
20
21
J
Assembly Instructions
22
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 43
Fit the overbalance
protector
To prevent possible
overbalancing we
recommend that the
dressing table is secured
to a suitable wall by use
of the overbalance
protector kit fitted to
the unit or, an alternative
fixing method of your
choice.
Wall fixings are not
supplied as they will
need to suit the wall
type.
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Assembly is complete
N
Attach the
strap to the unit
Attach the
strap to the wall
Wall fixing
(not supplied)
Washer
Strap
Strap
N
N
Example
Screw
(not supplied)
Washer
Screw
UNIT
ALR3200
Loading...
