MADE IN
BRITAIN
Dimensions
Width - 149.5cm
Depth - 50cm
Height - 199.5cm
3 Door Tall Robe
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 7 - 15/12/14
Important - Please read these instructions fully before starting assembly
274/9668
239/2819
259/2468
355/1288
330/5386
355/3262

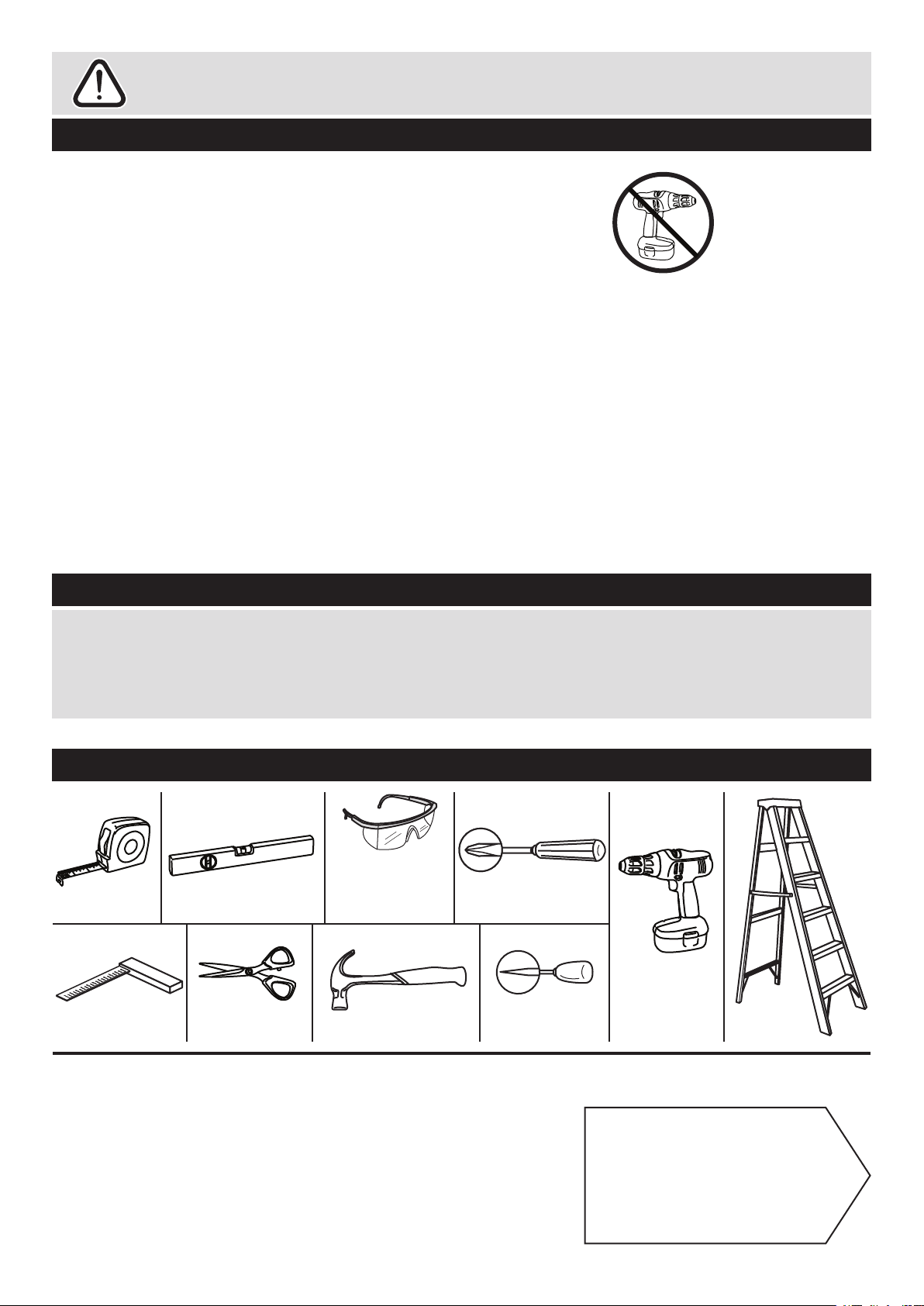

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 89kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 1, 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.

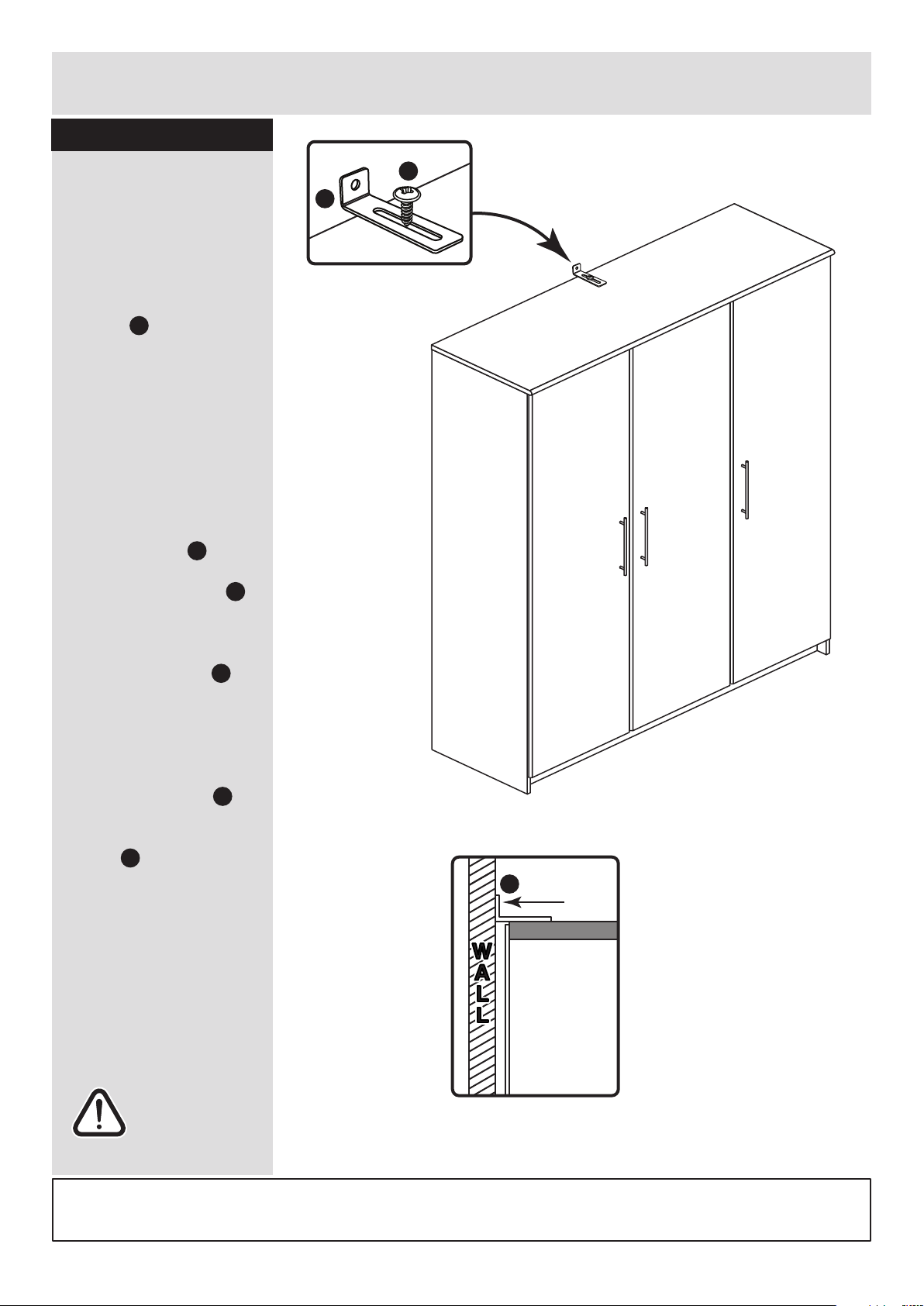

• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.
Tools required
Rule
ScissorsSquare
Spirit
level
Hammer Bradawl
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Step
ladder
Electric drill
(only use
when drilling
into walls)
mm
10
20
30
40
50
60
70
80
90
100
mm
10
20
30
40
50
60
70
80
90
100

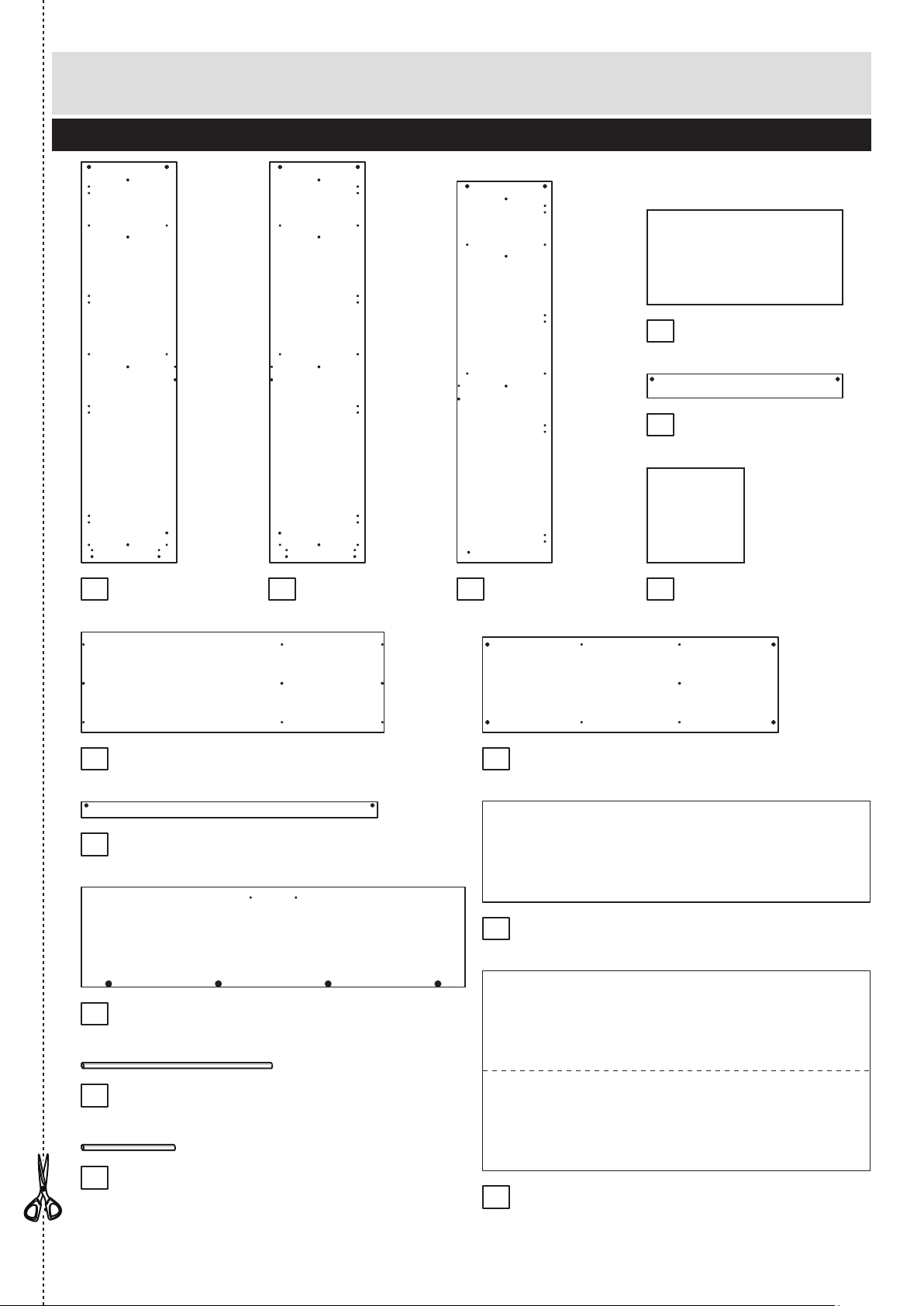

Components - Panels
Please check you have all the panels listed below
2
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
1
2 3
4
Top (D2047A)
(1495 x 496mm)
Base (D2050A)
(1461 x 470mm)
7
9
8
13
Large Shelf (D2052A)
(965 x 467mm)
5
Back Rail (D2053A)
(965 x 120mm)
6
Plinth (D2054A)
(1461 x 80mm)
Small Shelf (D2060A)
(479 x 467mm)
10
14
Door (D2056A)
(1894 x 494mm) x 3
Large Hanging Rail (FHR957)
(957mm long) x 2
11
Small Hanging Rail (FHR471)
(471mm long) x 2
12
Large Back (X956)
(1914 x 988mm)
Small Back (X955)
(1914 x 499mm)
Divider (D2051C)
(1883 x 469mm)
Left Side (D2048C)
(1978 x 471mm)
Right Side (D2049C)
(1978 x 471mm)

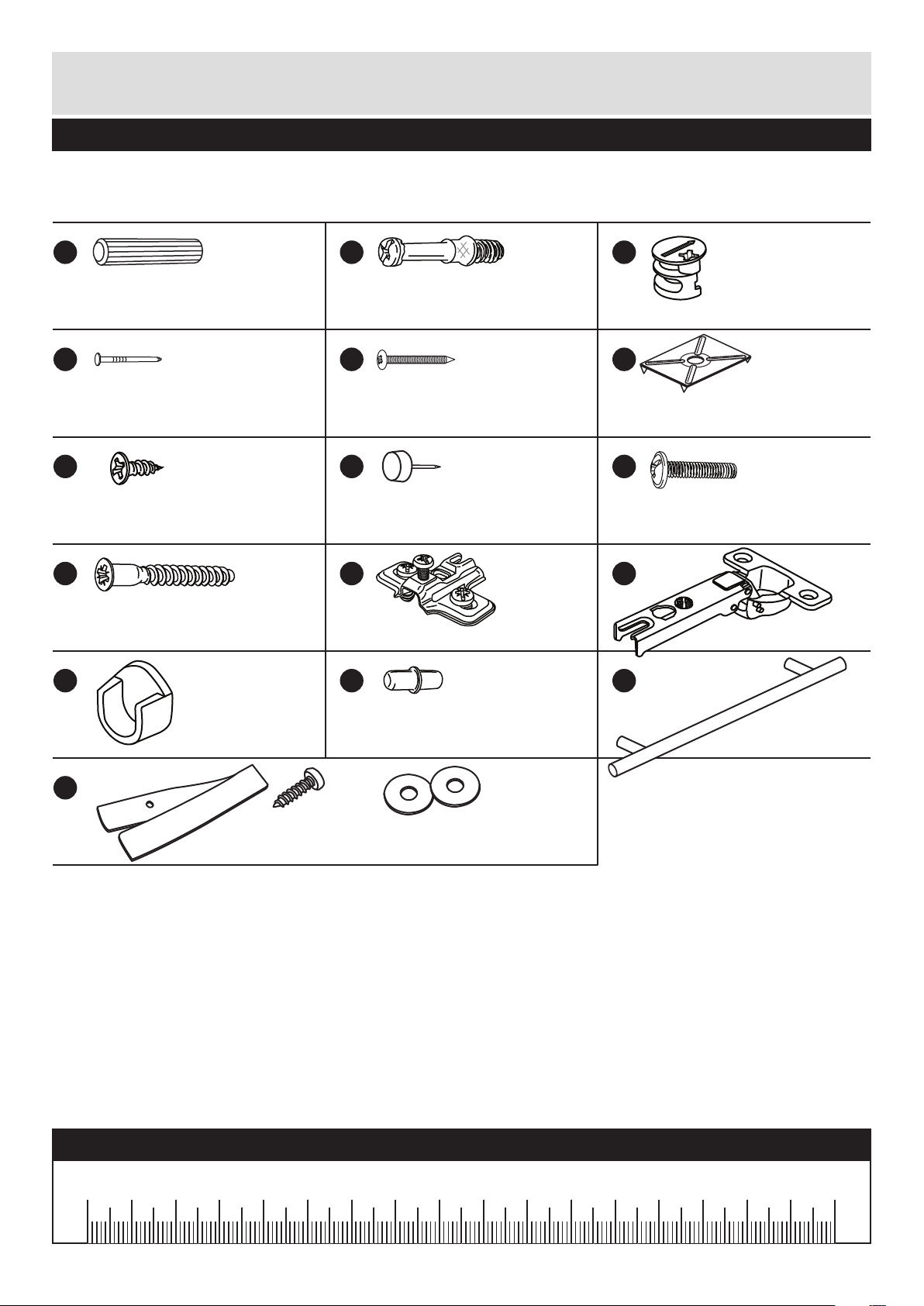

Please check you have all the fittings listed below
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 10
B
Metal dowel (F901) x 14
C
P
Handle (F266) x 3
K
Hinge plate (F523) x 12
I
O
Bracket (F327) x 1
E
Nail screw (F277) x 8
D
Nail (F51) x 46
Large locking
nut (F900) x 14
L
Hinge (F518) x 12
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws
H
N
Shelf stud (F110) x 8
G
13mm Screw (F63) x 32
M
Rail holder
(F1014) x 8
13mm Screw (F79) x 1
19mm Screw (F461) x 6
40mm Screw (F910) x 2
J
Q
Plastic Nail (F91) x 5
F
Back holder (F276) x 8
* These can also be round
A
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below

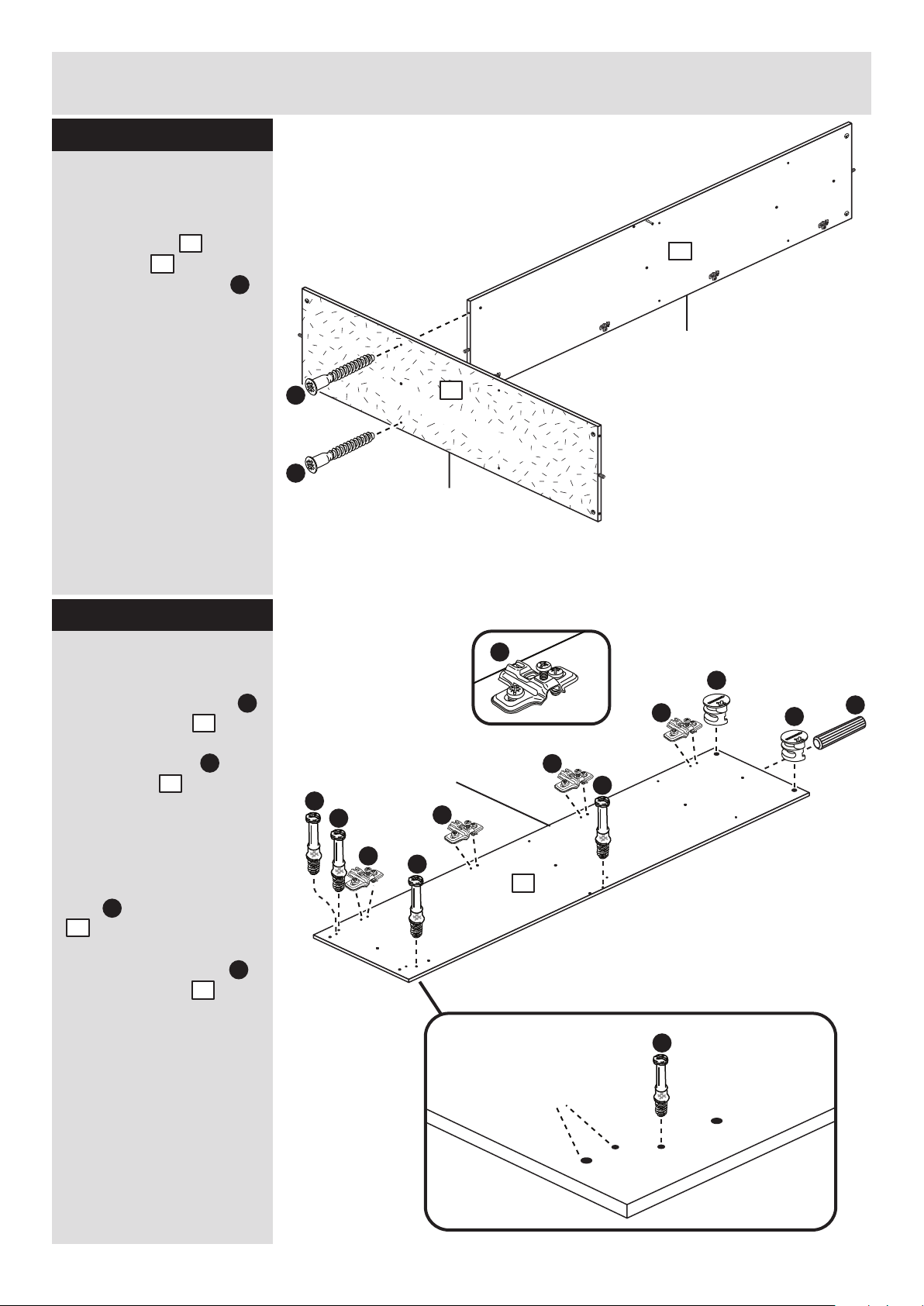

Step 1
Prepare the divider
Screw a metal dowel
into the divider .
Note: Tighten metal
dowels up fully against
the panel.
Fit 4 hinge plates onto
the divider , making
sure that the slot is
facing towards the
finished front edge.
Insert 2 large locking
nuts into the divider
. .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Tap 2 wooden dowels
into the divider .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
K
3
A
3
C
3
3
B
Prepare the base
Insert 4 large locking
nuts into the base .
Tap 2 wooden dowels
into the base .
C
8
A
8
Step 2
Finished
front edge
C
C
K
K
K
K
A
3
B
B
C
10mm
A
K
A
C
C
C
C
A
plain chipboard surface
8
Finished
front edge
Finished
front edge
3
Finished
front edge
Assembly Instructions
5
Step 3
Finished
front edge
Step 4
Fit the base to the
divider
Push the base onto
the divider and
secure with 2 screws .
3
8
J
Prepare the left side
Screw 4 metal dowels
into the left side .
Fit 4 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
Insert 2 large locking
nuts into the left side
. .
Tap a wooden dowel
into the left side .
B
1
K
1
C
A
1
1
8
plain chipboard surface
J
J
3
A
C
C
K
K
K
K
K
B
B
B
B
1
B
These 2 holes
are not used
2
A
Assembly Instructions
6

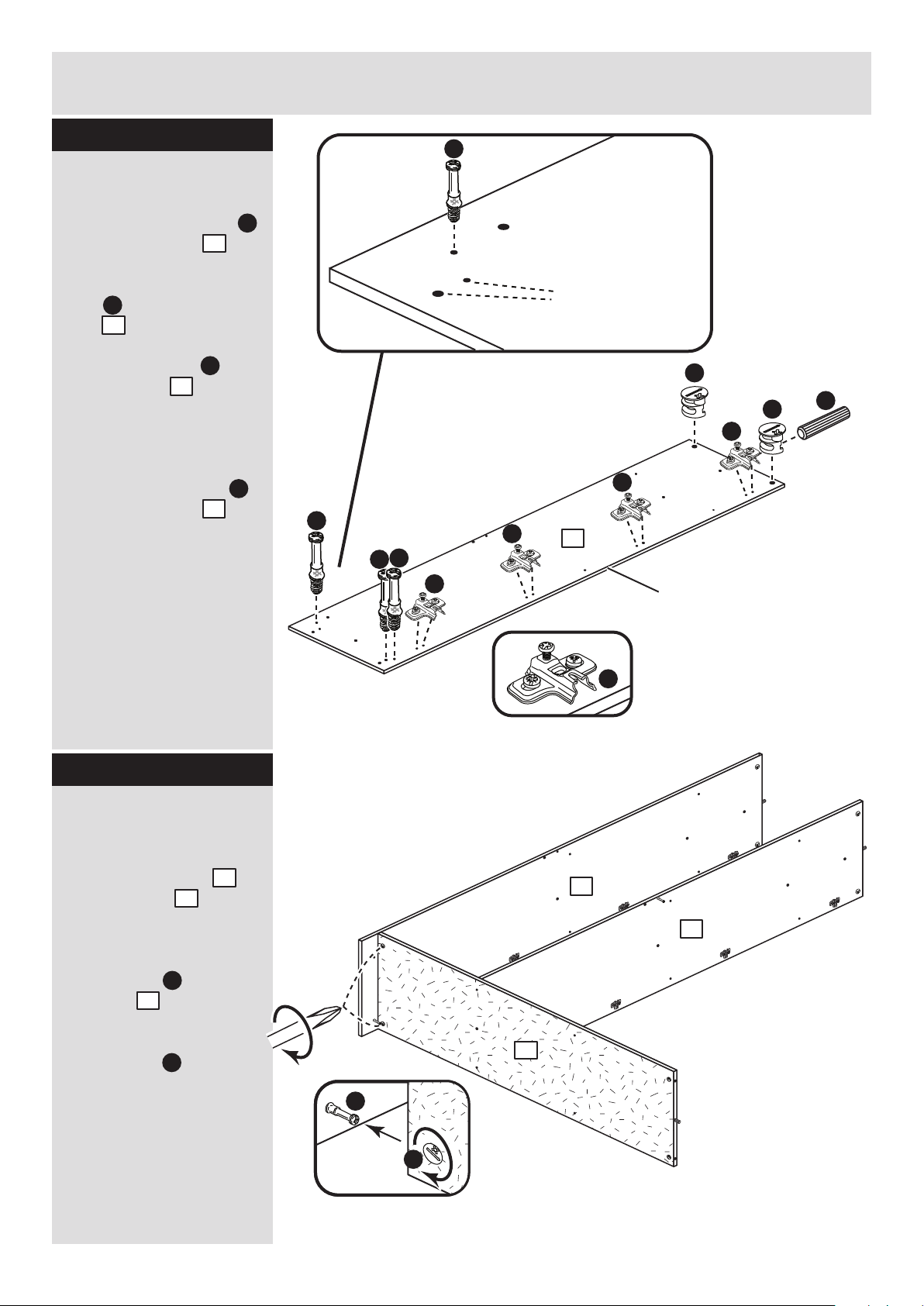

Step 5
Step 6
Prepare the right side
Screw 3 metal dowels
into the right side .
Insert 2 large locking
nuts into the right
side .
Fit 4 hinge plates onto
the right side , making
sure that the slot is
facing towards the
finished front edge.
Tap a wooden dowel
into the right side .
B
2
K
2
C
A
2
2
Fit the right side to
the base
Push the right side
onto the base .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
2
8
8
C
C
C
C
B
B
B
Finished
front edge
K
2
K
K
K
K
3
B
C
8
C
These 2 holes
are not used
B
2
3
Assembly Instructions
7
Step 7
Step 8
A
C
A
C
plain chipboard surface
9

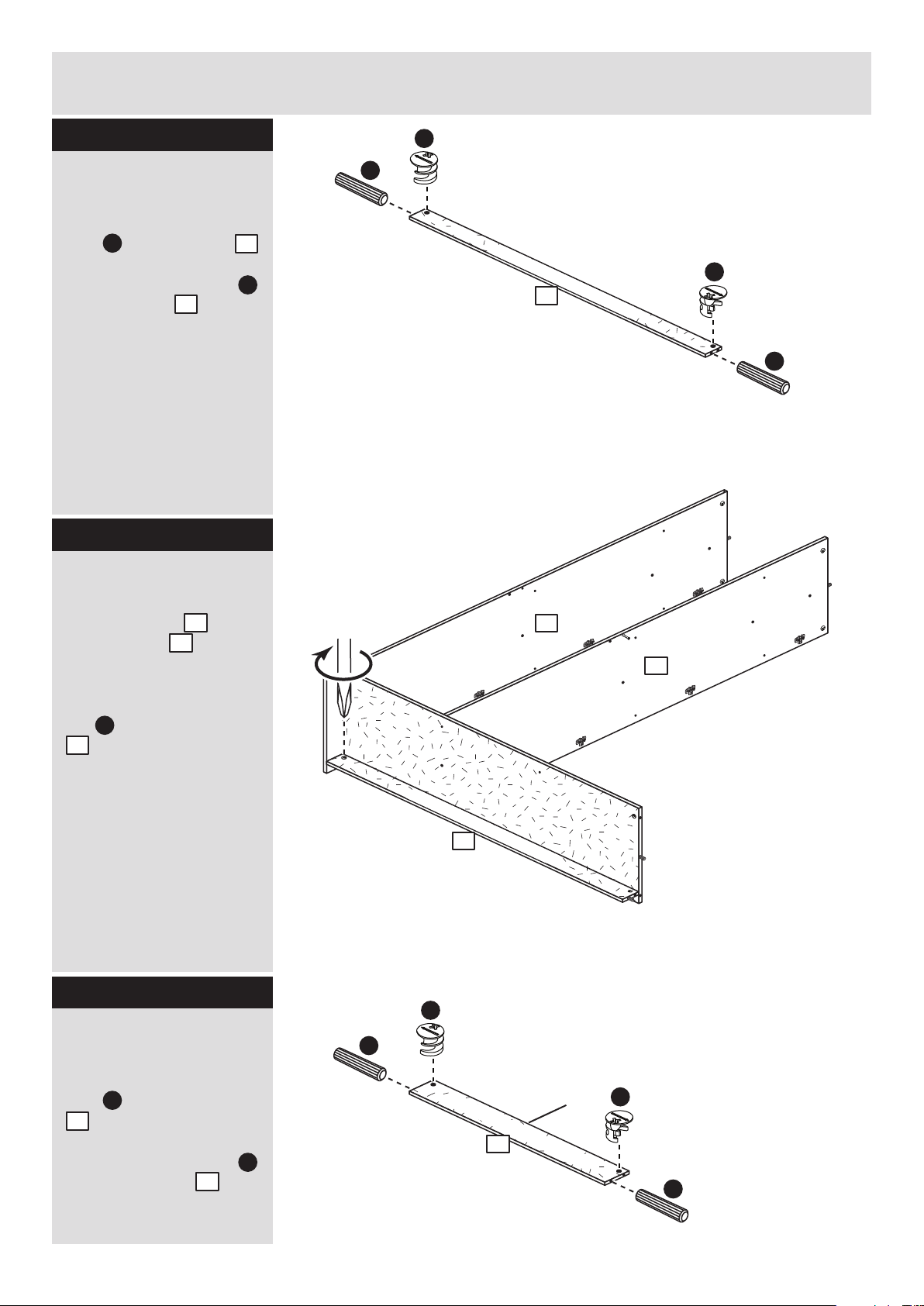

Prepare the plinth
Insert 2 large locking
nuts into the plinth .
Tap 2 wooden dowels
into the plinth .
C
9
A
9
Fit the plinth
Push the plinth onto
the right side .
Use a screwdriver to
tighten the large locking
nut fitted to the plinth
. .
Step 9
9
2
9
C
Finished
front edge
A
Prepare the back rail
Insert 2 large locking
nuts into the back rail
. .
Tap 2 wooden dowels
into the back rail .
C
5
A
5
C
C
A
plain chipboard surface
5
plain chipboard surface
9
2
Finished
front edge
Assembly Instructions
8

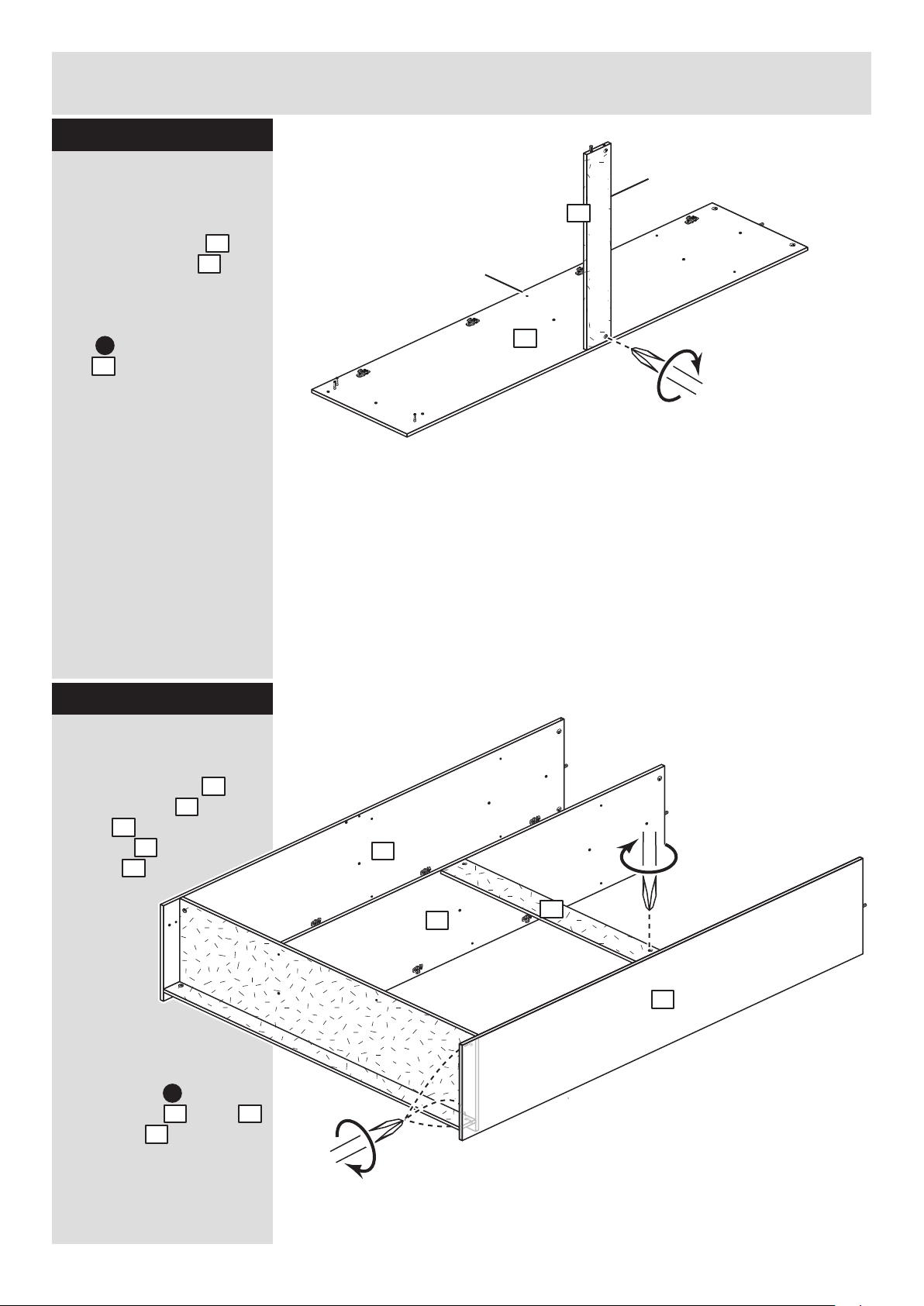

Step 10
Step 11
Fit the back rail to the
left side
Push the back rail
onto the left side .
Use a screwdriver to
tighten the large locking
nut fitted to the back
rail .
5
1
5
C
Fit the left side
Push the left side
onto the base and
plinth , then push the
back rail onto the
divider .
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the back rail , base ,
and plinth .
1
8
9
5
3
C
5 8
9
Finished
front edge
plain chipboard surface
5
5
3
1
1
Assembly Instructions
9
Step 12
Step 13
B
B
B
B
B
B
Rounded
front edge
Prepare the top
Screw 6 metal dowels
into the top .
B
7
7
Fit the top and plastic
nails
Push the top onto
the assembly.
Use a screwdriver to
tighten the 6 large
locking nuts fitted to
the left side , right
side and divider .
1
2 3
C
7
2
Rounded
front edge
1
7
3
Tap 1 plastic nail into
the bottom edge of the
plinth . .
Q
9
Q
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. .
Q
1
2
9
Q
Q
Q
Q
Assembly Instructions
10
Step 14
c:
Fit back panels
a: Square up the unit by
making sure that
measurement x:x equals
y:y.
Place the small back
and large back ,
coloured surface facing
down, onto the unit as
shown.
Make sure that the 2
backs are pushed up
tight against each other
and that they meet in the
centre of the divider’s
back edge.
b: Nail around the
outside edges of the 2
backs.
Note: Do not nail where
the 2 backs meet.
c: Push the nail screws
. through the back
holders and tap them
down between the small
back and large back
. and into the back
edge of the divider .
Keep tapping the nail
screws in until the
back holders dig into
the small and large back.
Stand the unit up for
the next step.
13
14
D
E
F
b:
D
y
x
y
x
y
FE
+
13
13
14
3
E
F
Warning: The
unit is heavy.
Lift with care.
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
1414
3
E
F
13
14
F
Note: These can
also be round
Note: If ever you need to take
the backs off to dismantle the
unit, the nail screws can be
taken out using a screwdriver.
E
F
Assembly Instructions
11
Step 15
M
Fit the hanging rails
You can fit the 2 long
hanging rails and 2
short hanging rails
using any of the 4
positions shown opposite.
Note: The rails at
position 4 are used for
shoe storage.
Insert 2 rail holders
for each of the 4 rails
and then secure with
them with screws .
Push the hanging rails
and down into the rail
holders .
G
11
12
M
11
12
M
G
x 8
x 4
11
12
M
Short Rail
Position 2
Short Rail
Position 3
Short Rail
Position 4
Short Rail
Position 1
Long Rail
Position 2
Long Rail
Position 3
Long Rail
Position 4
Long Rail
Position 1
Assembly Instructions
12
Step 16
Fit the shelves
Insert 4 shelf studs at
position 1 or 2 for the
large shelf and the
small shelf .
Lower the large shelf
and the small shelf
down onto the shelf
studs .
N
4
6
4
6
N
90
L
Prepare the 3 doors
Push fit 4 hinges into
each of the doors .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
G
L
10
L
G
G
L
G
G
L
G
G
L
G
G
Step 17
10
x 3
N
x 4
N
x 4
N
x 4
N
x 4
4
6
Small shelf
Position 1
Small shelf
Position 2
Large shelf
Position 1
Large shelf
Position 2
Assembly Instructions
13
Step 18
H
Fit doors and handles
Note: The easiest way to
attach each door is
to fit the top hinge first,
then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
each door using 2
screws .
L
L
K
K
K
L
K
10
10
e:
a: b:
c: d:
K
L
K
K
B
K
L
L
L
A
L
K
B
P
I
L
10
I
I
P
10
10
P
P
Assembly Instructions
14
Step 19
Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
b:
c:
d:
a:
A
A
B
C
Assembly Instructions
ALR300515
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW

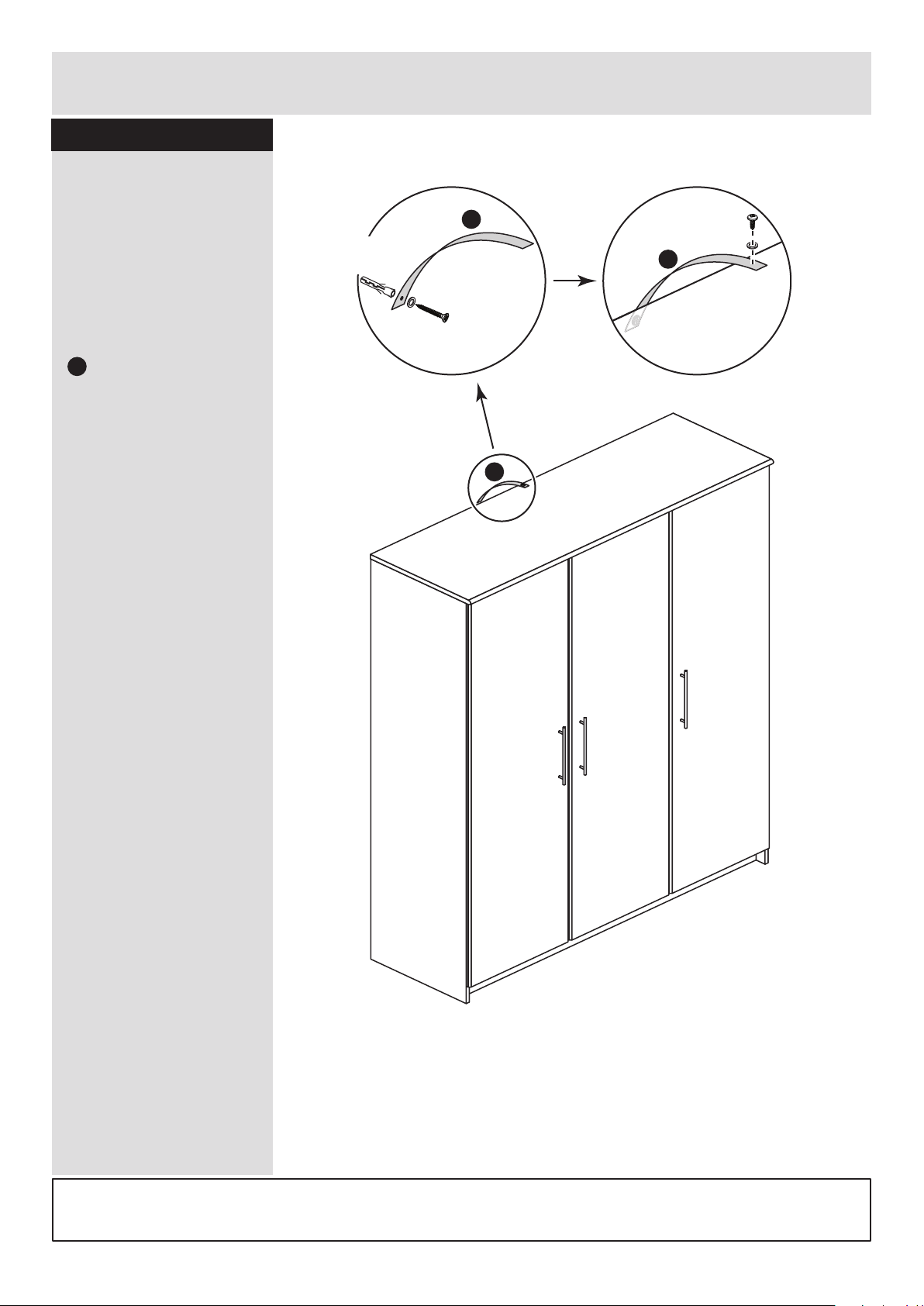

Step 20
Warning: The
unit is heavy.
Lift with care.
H
Top of Unit
WALL
WALL
Back of Unit
Attach bracket to top
To prevent possible
overbalancing, we
recommend that this unit
is secured to a suitable
wall by use of the
bracket fitted to the
top of the unit.
Fixings are not supplied,
as they will need to suit
the wall type and the
length of screw will
depend on the distance
from the back of the unit
to the wall.
Fix the bracket
loosely onto the top of
the unit using screw
and mark the wall for the
wall fixing.
Swivel the bracket
away from the wall and
drill a hole in the wall
using a suitable drill bit
and fit your wall fixing.
Swivel the bracket
back and fix the bracket
to the wall, then tighten
Screw .
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Assembly is complete
O
O
H
O
O
H
O
H
O
MADE IN
BRITAIN
Dimensions
Width - 149.5cm
Depth - 50cm
Height - 199.5cm
3 Door Tall Robe
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Issue 9 - 23/03/15
Important - Please read these instructions fully before starting assembly
274/9668
239/2819
259/2468
355/1288
330/5386
355/3262
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 89kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 1, 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Tools required
Rule
ScissorsSquare
Spirit
level
Hammer Bradawl
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Step
ladder
Electric drill
(only use
when drilling
into walls)
mm
10
20
30
40
50
60
70
80
90
100
mm
10
20
30
40
50
60
70
80
90
100
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
overbalance protector kit
supplied or, an alternative fixing
method of your choice.
• Dispose of all packaging
carefully and responsibly.
Components - Panels
Please check you have all the panels listed below
2
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
1
2 3
4
Top (D2047A)
(1495 x 496mm)
7
9
8
13
Large Shelf (D2052A)
(965 x 467mm)
5
Back Rail (D2053A)
(965 x 120mm)
6
Plinth (D2054A)
(1461 x 80mm)
Small Shelf (D2060A)
(479 x 467mm)
10
14
Door (D2056A)
(1894 x 494mm) x 3
Large Hanging Rail (FHR957)
(957mm long) x 2
11
Small Hanging Rail (FHR471)
(471mm long) x 2
12
Large Back (X956)
(1914 x 988mm)
Small Back (X955)
(1914 x 499mm)
Divider (D2051C)
(1883 x 469mm)
Left Side (D2048C)
(1978 x 471mm)
Right Side (D2049C)
(1978 x 471mm)
Base (DF1969A)
(1461 x 470mm)
Please check you have all the fittings listed below
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 10
B
Metal dowel (F901) x 14
C
K
Hinge plate (F523) x 12
I
O
E
Nail screw (F277) x 8
D
Nail (F51) x 46
Large locking
nut (F900) x 14
L
Hinge (F518) x 12
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws
H
N
Shelf stud (F110) x 8
G
13mm Screw (F63) x 32
M
Rail holder
(F1014) x 8
19mm Screw (F461) x 6
Handle (F266) x 3
40mm Screw (F910) x 2
J
Plastic Nail (F91) x 5
F
Back holder (F276) x 8
* These can also be round
P
Strap Screw Washer x 2
Overbalance protector kit (F269) x 1
A
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Step 1
Prepare the divider
Screw a metal dowel
into the divider .
Note: Tighten metal
dowels up fully against
the panel.
Fit 4 hinge plates onto
the divider , making
sure that the slot is
facing towards the
finished front edge.
Insert 2 large locking
nuts into the divider
. .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Tap 2 wooden dowels
into the divider .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
K
3
A
3
C
3
3
B
Prepare the base
Insert 4 large locking
nuts into the base .
Tap 2 wooden dowels
into the base .
C
8
A
8
Step 2
Finished
front edge
C
C
K
K
K
K
A
3
B
B
C
10mm
A
K
A
C
C
C
C
A
plain chipboard surface
8
Finished
front edge
Finished
front edge
3
Finished
front edge
Assembly Instructions
5
Step 3
Finished
front edge
Step 4
Fit the base to the
divider
Push the base onto
the divider and
secure with 2 screws .
3
8
J
Prepare the left side
Screw 4 metal dowels
into the left side .
Fit 4 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
Insert 2 large locking
nuts into the left side
. .
Tap a wooden dowel
into the left side .
B
1
K
1
C
A
1
1
8
plain chipboard surface
J
J
3
A
C
C
K
K
K
K
K
B
B
B
B
1
B
These 2 holes
are not used
2
A
Assembly Instructions
6
Step 5
Step 6
Prepare the right side
Screw 3 metal dowels
into the right side .
Insert 2 large locking
nuts into the right
side .
Fit 4 hinge plates onto
the right side , making
sure that the slot is
facing towards the
finished front edge.
Tap a wooden dowel
into the right side .
B
2
K
2
C
A
2
2
Fit the right side to
the base
Push the right side
onto the base .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
2
8
8
C
C
C
C
B
B
B
Finished
front edge
K
2
K
K
K
K
3
B
C
8
C
These 2 holes
are not used
B
2
3
Assembly Instructions
7
Step 7
Step 8
A
C
A
C
plain chipboard surface
9
Prepare the plinth
Insert 2 large locking
nuts into the plinth .
Tap 2 wooden dowels
into the plinth .
C
9
A
9
Fit the plinth
Push the plinth onto
the right side .
Use a screwdriver to
tighten the large locking
nut fitted to the plinth
. .
Step 9
9
2
9
C
Finished
front edge
A
Prepare the back rail
Insert 2 large locking
nuts into the back rail
. .
Tap 2 wooden dowels
into the back rail .
C
5
A
5
C
C
A
plain chipboard surface
5
plain chipboard surface
9
2
Finished
front edge
Assembly Instructions
8
Step 10
Step 11
Fit the back rail to the
left side
Push the back rail
onto the left side .
Use a screwdriver to
tighten the large locking
nut fitted to the back
rail .
5
1
5
C
Fit the left side
Push the left side
onto the base and
plinth , then push the
back rail onto the
divider .
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the back rail , base ,
and plinth .
1
8
9
5
3
C
5 8
9
Finished
front edge
plain chipboard surface
5
5
3
1
1
Assembly Instructions
9
Step 12
Step 13
B
B
B
B
B
B
Rounded
front edge
Prepare the top
Screw 6 metal dowels
into the top .
B
7
7
Fit the top and plastic
nails
Push the top onto
the assembly.
Use a screwdriver to
tighten the 6 large
locking nuts fitted to
the left side , right
side and divider .
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. .
Tap 1 plastic nail into
the bottom edge of the
plinth . .
1
2 3
C
7
2
Rounded
front edge
1
7
3
H
9
H
H
1
2
9
H
H
H
H
Assembly Instructions
10
Step 14
c:
Fit back panels
a: Square up the unit by
making sure that
measurement x:x equals
y:y.
Place the small back
and large back ,
coloured surface facing
down, onto the unit as
shown.
Make sure that the 2
backs are pushed up
tight against each other
and that they meet in the
centre of the divider’s
back edge.
b: Nail around the
outside edges of the 2
backs.
Note: Do not nail where
the 2 backs meet.
c: Push the nail screws
. through the back
holders and tap them
down between the small
back and large back
. and into the back
edge of the divider .
Keep tapping the nail
screws in until the
back holders dig into
the small and large back.
Stand the unit up for
the next step.
13
14
D
E
F
b:
D
y
x
y
x
y
FE
+
13
13
14
3
E
F
Warning: The
unit is heavy.
Lift with care.
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
1414
3
E
F
13
14
F
Note: These can
also be round
Note: If ever you need to take
the backs off to dismantle the
unit, the nail screws can be
taken out using a screwdriver.
E
F
Assembly Instructions
11
Step 15
M
Fit the hanging rails
You can fit the 2 long
hanging rails and 2
short hanging rails
using any of the 4
positions shown opposite.
Note: The rails at
position 4 are used for
shoe storage.
Insert 2 rail holders
for each of the 4 rails
and then secure with
them with screws .
Push the hanging rails
and down into the rail
holders .
G
11
12
M
11
12
M
G
x 8
x 4
11
12
M
Short Rail
Position 2
Short Rail
Position 3
Short Rail
Position 4
Short Rail
Position 1
Long Rail
Position 2
Long Rail
Position 3
Long Rail
Position 4
Long Rail
Position 1
Assembly Instructions
12
Step 16
Fit the shelves
Insert 4 shelf studs at
position 1 or 2 for the
large shelf and the
small shelf .
Lower the large shelf
and the small shelf
down onto the shelf
studs .
N
4
6
4
6
N
90
L
Prepare the 3 doors
Push fit 4 hinges into
each of the doors .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
G
L
10
L
G
G
L
G
G
L
G
G
L
G
G
Step 17
10
x 3
N
x 4
N
x 4
N
x 4
N
x 4
4
6
Small shelf
Position 1
Small shelf
Position 2
Large shelf
Position 1
Large shelf
Position 2
Assembly Instructions
13
Step 18
H
Fit doors and handles
Note: The easiest way to
attach each door is
to fit the top hinge first,
then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
each door using 2
screws .
L
L
K
K
K
L
K
10
10
e:
a: b:
c: d:
K
L
K
K
B
K
L
L
L
A
L
K
B
O
I
L
10
I
I
O
10
10
O
O
Assembly Instructions
14
Step 19
Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
b:
c:
d:
a:
A
A
B
C
Assembly Instructions
ALR300515
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 20
Fit the overbalance
protector kit
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall by fitting of the
overbalance protector kit
. to the unit, or an
alternative fixing method
of your choice.
Wall fixings are not
supplied as they will
need to suit the wall
type.
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Assembly is complete
P
P
WALL
Wall fixing
(not supplied)
Screw
(not supplied)
Washer
Strap
P
Strap
Washer
Screw
TOP OF UNIT
P
Loading...
