Argos ZNOT03R-DLO-AR ASSEMBLY INSTRUCTIONS

MADE IN

BRITAIN

Dimensions

Width - 149.5cm

Depth - 50cm

Height - 199.5cm

3 Door Tall Robe

Assembly Instructions - Please keep for future reference

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Issue 7 - 15/12/14

Important - Please read these instructions fully before starting assembly

274/9668

239/2819

259/2468

355/1288

330/5386

355/3262

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Warning: This unit weighs approximately 89kgs. Please lift with care.

• Check you have all the components and tools listed on pages 1, 2 and 3.

• Remove all fittings from the plastic bags and separate them into their groups.

• Keep children and animals away from the work area, small parts could choke if swallowed.

• Parts of the assembly will be easier with 2 people.

• Make sure you have enough space to layout the parts before starting.

• Do not stand or put weight on the product, this could cause damage.

• Assemble the item as close to its final position (in the same room) as possible.

• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).

1

Care and maintenance

• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.

• From time to time check that there are no loose screws on this unit.

• This product should not be discarded with household waste. Take to your local authority waste disposal centre.

Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.

• We do not recommend the use of power drill/drivers for

inserting screws, as this could damage the unit. Only use hand screwdrivers.

• Safety note: It is recommended that this unit is secured to a wall using the bracket supplied.

• Dispose of all packaging carefully and responsibly.

Tools required

Rule

ScissorsSquare

Spirit level

Hammer Bradawl

Eye protection (when using a hammer or drill)

Cross-head screwdriver

Step ladder

Electric drill (only use when drilling into walls)

mm

10

20

30

40

50

60

70

80

90

100

mm

10

20

30

40

50

60

70

80

90

100

Components - Panels

Please check you have all the panels listed below

2

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

1

2 3

4

Top (D2047A)

(1495 x 496mm)

Base (D2050A)

(1461 x 470mm)

7

9

8

13

Large Shelf (D2052A)

(965 x 467mm)

5

Back Rail (D2053A)

(965 x 120mm)

6

Plinth (D2054A)

(1461 x 80mm)

Small Shelf (D2060A)

(479 x 467mm)

10

14

Door (D2056A)

(1894 x 494mm) x 3

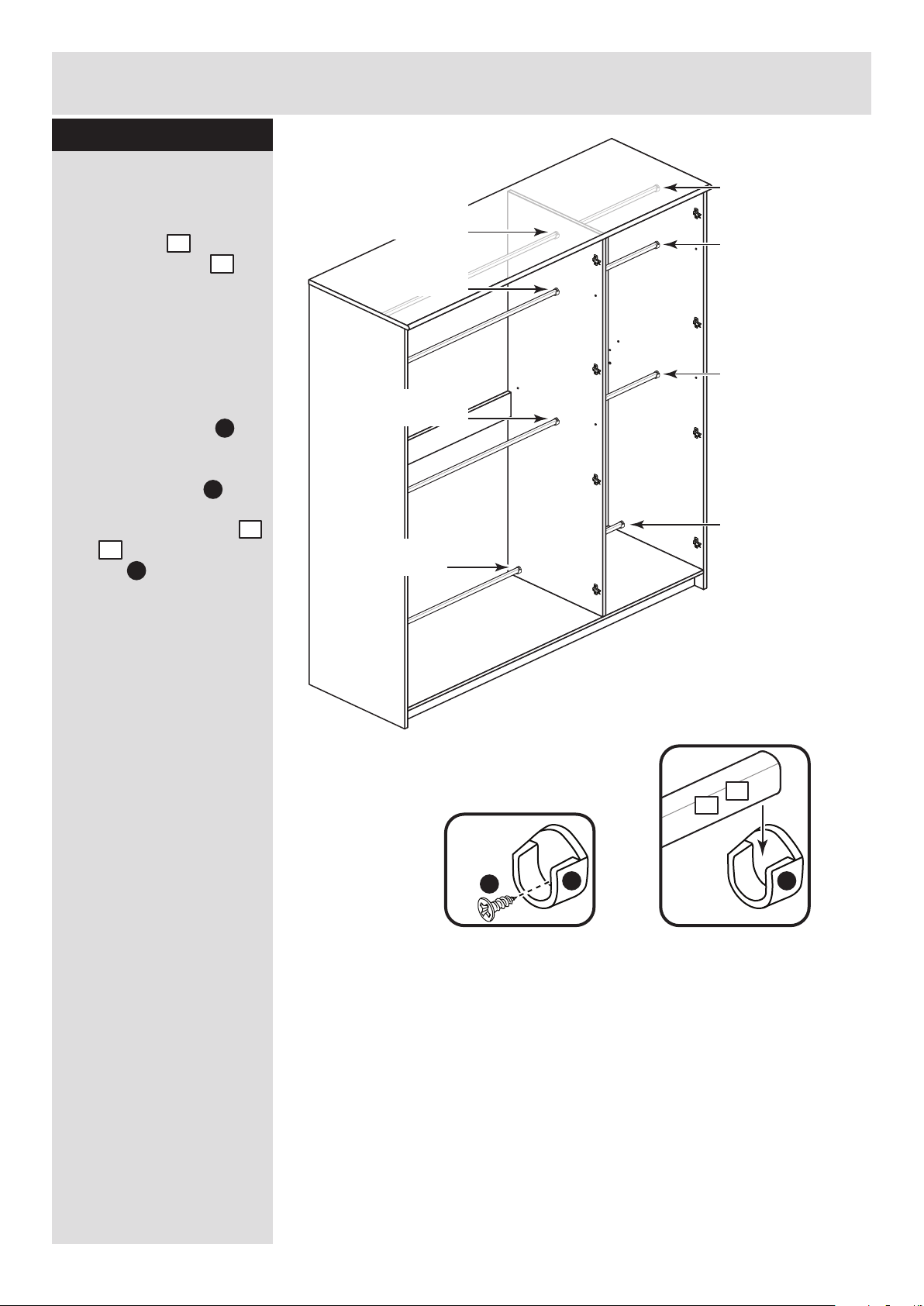

Large Hanging Rail (FHR957)

(957mm long) x 2

11

Small Hanging Rail (FHR471)

(471mm long) x 2

12

Large Back (X956)

(1914 x 988mm)

Small Back (X955)

(1914 x 499mm)

Divider (D2051C)

(1883 x 469mm)

Left Side (D2048C)

(1978 x 471mm)

Right Side (D2049C)

(1978 x 471mm)

Please check you have all the fittings listed below

3

Components - Fittings

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

A

Wooden dowel (F22) x 10

B

Metal dowel (F901) x 14

C

P

Handle (F266) x 3

K

Hinge plate (F523) x 12

I

O

Bracket (F327) x 1

E

Nail screw (F277) x 8

D

Nail (F51) x 46

Large locking nut (F900) x 14

L

Hinge (F518) x 12

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

Ruler - Use this ruler to help correctly identify the screws

H

N

Shelf stud (F110) x 8

G

13mm Screw (F63) x 32

M

Rail holder

(F1014) x 8

13mm Screw (F79) x 1

19mm Screw (F461) x 6

40mm Screw (F910) x 2

J

Q

Plastic Nail (F91) x 5

F

Back holder (F276) x 8

* These can also be round

A

Assembly Instructions

4

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Step 1

Prepare the divider

Screw a metal dowel into the divider .

Note: Tighten metal dowels up fully against the panel.

Fit 4 hinge plates onto the divider , making sure that the slot is facing towards the finished front edge.

Insert 2 large locking nuts into the divider . .

Note: The arrow on the locking nut must point towards the hole in the edge of the panel.

Tap 2 wooden dowels into the divider .

Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.

K

3

A

3

C

3

B

Prepare the base

Insert 4 large locking nuts into the base .

Tap 2 wooden dowels into the base .

C

8

A

8

Step 2

Finished

front edge

C

K

A

3

B

C

10mm

A

K

A

C

A

plain chipboard surface

8

Finished

front edge

Finished

front edge

3

Finished

front edge

Assembly Instructions

5

Step 3

Finished

front edge

Step 4

Fit the base to the divider

Push the base onto the divider and secure with 2 screws .

3

8

J

Prepare the left side

Screw 4 metal dowels into the left side .

Fit 4 hinge plates onto the left side , making sure that the slot is facing towards the finished front edge.

Insert 2 large locking nuts into the left side . .

Tap a wooden dowel into the left side .

B

1

K

1

C

A

1

8

plain chipboard surface

J

3

A

C

K

B

1

B

These 2 holes are not used

2

A

Assembly Instructions

6

Step 5

Step 6

Prepare the right side

Screw 3 metal dowels into the right side .

Insert 2 large locking nuts into the right side .

Fit 4 hinge plates onto the right side , making sure that the slot is facing towards the finished front edge.

Tap a wooden dowel into the right side .

B

2

K

2

C

A

2

Fit the right side to the base

Push the right side onto the base .

Use a screwdriver to tighten the 2 large locking nuts fitted to the base .

Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.

2

8

C

B

Finished

front edge

K

2

K

3

B

C

8

C

These 2 holes are not used

B

2

3

Assembly Instructions

7

Step 7

Step 8

A

C

A

C

plain chipboard surface

9

Prepare the plinth

Insert 2 large locking nuts into the plinth .

Tap 2 wooden dowels into the plinth .

C

9

A

9

Fit the plinth

Push the plinth onto the right side .

Use a screwdriver to tighten the large locking nut fitted to the plinth . .

Step 9

9

2

9

C

Finished

front edge

A

Prepare the back rail

Insert 2 large locking nuts into the back rail . .

Tap 2 wooden dowels into the back rail .

C

5

A

5

C

A

plain chipboard surface

5

plain chipboard surface

9

2

Finished

front edge

Assembly Instructions

8

Step 10

Step 11

Fit the back rail to the left side

Push the back rail onto the left side .

Use a screwdriver to tighten the large locking nut fitted to the back rail .

5

1

5

C

Fit the left side

Push the left side onto the base and plinth , then push the back rail onto the divider .

Use a screwdriver to tighten the 4 large locking nuts fitted to the back rail , base , and plinth .

1

8

9

5

3

C

5 8

9

Finished

front edge

plain chipboard surface

5

3

1

Assembly Instructions

9

Step 12

Step 13

B

Rounded

front edge

Prepare the top

Screw 6 metal dowels into the top .

B

7

Fit the top and plastic nails

Push the top onto the assembly.

Use a screwdriver to tighten the 6 large locking nuts fitted to the left side , right side and divider .

1

2 3

C

7

2

Rounded

front edge

1

7

3

Tap 1 plastic nail into the bottom edge of the plinth . .

Q

9

Q

Tap 2 plastic nails into the bottom edge of each of the sides and . .

Q

1

2

9

Q
