Argos ZNO02R-WO-AR ASSEMBLY INSTRUCTIONS

MADE IN

BRITAIN

Dimensions

2 Door Robe

Assembly Instructions - Please keep for future reference

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Issue 5 - 09/09/14

Important - Please read these instructions fully before starting assembly

249/3251

249/3660

244/2518

Width - 70.5cm

Depth - 51.5cm

Height - 183cm

356/1003

343/3935

339/1194

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Warning: This unit weighs approximately 48kgs. Please lift with care.

• Check you have all the components and tools listed on pages 2 and 3.

• Remove all fittings from the plastic bags and separate them into their groups.

• Keep children and animals away from the work area, small parts could choke if swallowed.

• Parts of the assembly will be easier with 2 people.

• Make sure you have enough space to layout the parts before starting.

• Do not stand or put weight on the product, this could cause damage.

• Assemble the item as close to its final position (in the same room) as possible.

• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).

1

Care and maintenance

• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.

• From time to time check that there are no loose screws on this unit.

• This product should not be discarded with household waste. Take to your local authority waste disposal centre.

Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.

• We do not recommend the use of power drill/drivers for

inserting screws, as this could damage the unit. Only use hand screwdrivers.

• Safety note: It is recommended that this unit is secured to a wall using the bracket supplied.

• Dispose of all packaging carefully and responsibly.

Components - Panels

Please check you have all the panels listed below

2

1

6

Door (D0530A)

(1724 x 345mm) x 2

2

3

Top (D0532A)

(702 x 516mm)

4

Horizontal (D0531A)

(670 x 490mm)

9

Base (D0582A)

(670 x 490mm)

5

Plinth (D0529A)

(670 x 80mm)

8

Back (X754)

(1750 x 688mm)

Hanging Rail (FHR660)

(660mm long)

7

Left Side (D0527B)

(1808 x 491mm)

Right Side (D0528B)

(1808 x 491mm)

Please check you have all the fittings listed below

3

Components - Fittings

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

A

Wooden dowel (F22) x 8

B

Metal dowel (F901) x 14

C

G

J

Handle (F847a) x 2

a

J

Handle Screw (F847b) x 4

b

H

L

Hinge (F518) x 6

K

Hinge plate (F523) x 6

F

13mm Screw (F63) x 14

Rail holder

(F1014) x 2

I

Bracket (F327) x 1

E

13mm Screw (F79) x 1

D

Nail (F51) x 33

Large locking nut (F900) x 14

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

Tools required

Rule

ScissorsSquare

Spirit level

Hammer Bradawl

Eye protection (when using a hammer or drill)

Cross-head screwdriver

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

Step ladder

Ruler - Use this ruler to help correctly identify the screws

Electric drill (only use when drilling into walls)

mm

10

20

30

40

50

60

70

80

90

100

mm

10

20

30

40

50

60

70

80

90

100

Plastic Nail (F91) x 4

Finished

front edge

Assembly Instructions

4

Step 1

Prepare the left side

a: Screw 5 metal dowels

. into the holes shown on the left side .

Note: Tighten metal dowels up fully against the panel.

Push a rail holder into the hole shown. Make sure that it is fitted straight, in line with the panel edges and then secure with screw .

b: Fit 3 hinge plates

onto the left side , making sure that the slot is facing towards the finished front edge.

Insert 2 large locking nuts into the left side . as shown.

Note: Arrow on locking nut must point towards hole in edge of panel.

Tap a wooden dowel into the left side as shown.

Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.

B

1

B

1

B

H

F

A

Finished

front edge

K

C

B

H

F

1

K

10mm

A

K

1

C

A

1

a:

b:

C

A

Assembly Instructions

5

Step 2

B

K

Prepare the right side

a: Screw 5 metal dowels

. into the holes shown on the right side .

Note: Tighten metal dowels up fully against the panel.

Push a rail holder into the hole shown. Make sure that it is fitted straight, in line with the panel edges and then secure with screw .

b: Fit 3 hinge plates

onto the right side , making sure that the slot is facing towards the finished front edge.

Insert 2 large locking nuts into the right side as shown.

Note: Arrow on locking nut must point towards hole in edge of panel.

Tap a wooden dowel into the right side as shown.

Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.

B

2

H

F

K

2

C

A

2

H

F

C

2

a:

b:

Finished

front edge

Finished

front edge

Finished

front edge

Finished

front edge

Finished

front edge

A

Assembly Instructions

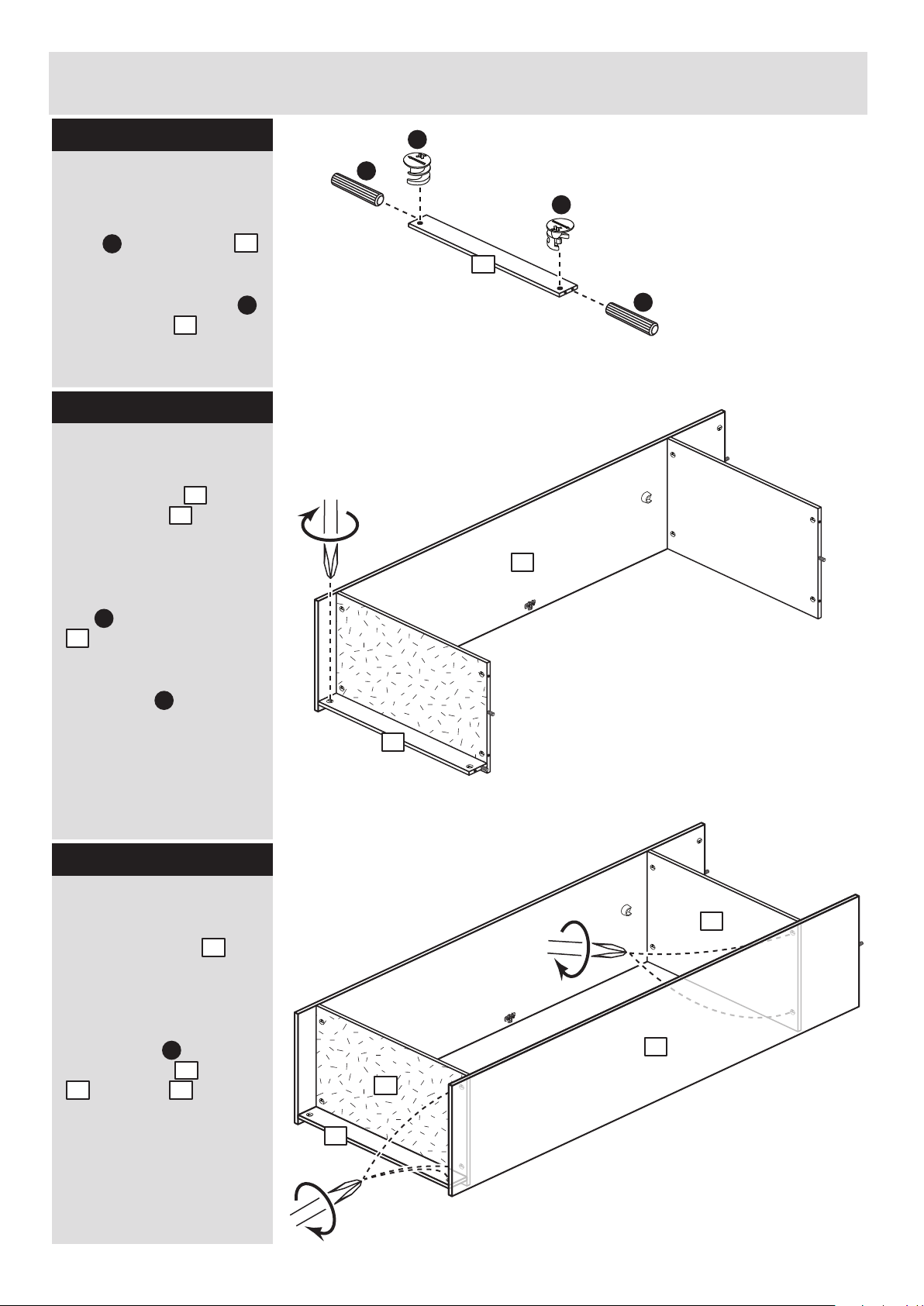

Step 3

6

Prepare the horizontal and base

Insert 4 large locking nuts into both the horizontal and the base as shown.

Note: Arrow on locking nut must point towards hole in edge of panel.

Tap 2 wooden dowels into both the horizontal . and the base as shown.

Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.

C

4

9

A

Join the horizontal and base to the right side

Push the horizontal and base onto the right side as shown.

Use a screwdriver to tighten the 2 large locking nuts fitted to both the horizontal and base .

Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.

Step 4

C

4

A

C

9

A

C

B

C

4 9

4

2

9

C

4

C

The base has a plain

chipboard surface

4

9

plain

chipboard

surface

2

A

Assembly Instructions

7

Step 5

Prepare the plinth

Insert 2 large locking nuts into the plinth as shown.

Tap 2 wooden dowels into the plinth as shown.

2

5

C

5

A

5

Fit the plinth

Push the plinth onto the right side as shown.

Use a screwdriver to tighten the large locking nut fitted to the plinth . .

Note: Turn the large locking nut as far as it will go - more than 1/2 a turn.

Step 6

Fit the left side

Push the left side onto the assembly.

Use a screwdriver to tighten the 5 large locking nuts fitted to the horizontal , plinth . and base .

Step 7

5

2

C

5

C

1

C

4

5 9

1

4

9

C

A

Assembly Instructions

Step 8

8

B

Prepare the top

Screw 4 metal dowels into the holes shown on the top .

B

3

2

Fit the top

Push the top onto the side panels and . .

Use a screwdriver to tighten the 4 large locking nuts fitted to the side panels and . .

Step 9

3

1

2

C

1

2

Rounded

front edge

Rounded

front edge

1

Assembly Instructions

9

Step 10

The measurement from top corner X to bottom corner X must be

equal to the measurement from top corner Y to bottom corner Y

a:

8

Fit the back and plastic nails

a: Square up the unit by

making sure that measurement x to x

equals y to y.

b: Place the back

onto the unit.

Nail around the outside edges of the back .

Note: Nails should be spaced about 150mm apart.

Tap 2 plastic nails into the bottom edge of each of the sides and . .

Stand the unit up for the next step.

8

Warning: The unit is heavy. Lift with care.

y

D

y

x

G

1 2

G

x

1

2

b:

D
