Dimensions
2 Door Robe
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 5 - 09/09/14
Important - Please read these instructions fully before starting assembly
249/3251
249/3660
244/2518
Width - 70.5cm
Depth - 51.5cm
Height - 183cm
356/1003
343/3935
339/1194
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 48kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.
Components - Panels
Please check you have all the panels listed below
2
1
6
Door (D0530A)
(1724 x 345mm) x 2
2
3
Top (D0532A)
(702 x 516mm)
4
Horizontal (D0531A)
(670 x 490mm)
9
Base (D0582A)
(670 x 490mm)
5
Plinth (D0529A)
(670 x 80mm)
8
Back (X754)
(1750 x 688mm)
Hanging Rail (FHR660)
(660mm long)
7
Left Side (D0527B)
(1808 x 491mm)
Right Side (D0528B)
(1808 x 491mm)
Please check you have all the fittings listed below
3
Components - Fittings
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 8
B
Metal dowel (F901) x 14
C
G
J
Handle (F847a) x 2
a
J
Handle Screw (F847b) x 4
b
H
L
Hinge (F518) x 6
K
Hinge plate (F523) x 6
F
13mm Screw (F63) x 14
Rail holder
(F1014) x 2
I
Bracket (F327) x 1
E
13mm Screw (F79) x 1
D
Nail (F51) x 33
Large locking
nut (F900) x 14
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Tools required
Rule
ScissorsSquare
Spirit
level
Hammer Bradawl
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Step
ladder
Ruler - Use this ruler to help correctly identify the screws
Electric drill
(only use
when drilling
into walls)
mm
10
20
30
40
50
60
70
80
90
100
mm
10
20
30
40
50
60
70
80
90
100
Plastic Nail (F91) x 4
Finished
front edge
Assembly Instructions
4
Step 1
Prepare the left side
a: Screw 5 metal dowels
. into the holes shown
on the left side .
Note: Tighten metal
dowels up fully against
the panel.
Push a rail holder into
the hole shown. Make
sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
b: Fit 3 hinge plates
onto the left side ,
making sure that the slot
is facing towards the
finished front edge.
Insert 2 large locking
nuts into the left side
. as shown.
Note: Arrow on locking
nut must point towards
hole in edge of panel.
Tap a wooden dowel
into the left side as
shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
B
1
B
B
B
B
1
1
B
H
F
A
Finished
front edge
K
K
K
C
C
B
H
F
1
K
10mm
A
K
1
C
A
1
1
a:
b:
C
A
Assembly Instructions
5
Step 2
B
B
B
B
B
K
K
K
Prepare the right side
a: Screw 5 metal dowels
. into the holes shown
on the right side .
Note: Tighten metal
dowels up fully against
the panel.
Push a rail holder into
the hole shown. Make
sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
b: Fit 3 hinge plates
onto the right side ,
making sure that the slot
is facing towards the
finished front edge.
Insert 2 large locking
nuts into the right
side as shown.
Note: Arrow on locking
nut must point towards
hole in edge of panel.
Tap a wooden dowel
into the right side as
shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
B
2
H
F
K
2
C
A
2
2
H
F
C
C
2
2
a:
b:
Finished
front edge
Finished
front edge
Finished
front edge
Finished
front edge
Finished
front edge
A
Assembly Instructions
Step 3
6
Prepare the horizontal
and base
Insert 4 large locking
nuts into both the
horizontal and the
base as shown.
Note: Arrow on locking
nut must point towards
hole in edge of panel.
Tap 2 wooden dowels
into both the horizontal
. and the base as
shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
C
4
9
A
Join the horizontal
and base to the right
side
Push the horizontal
and base onto the
right side as shown.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
both the horizontal
and base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
Step 4
C
C
C
C
4
A
A
C
C
C
C
9
A
C
B
C
4 9
4
2
9
9
C
4
C
The base has a plain
chipboard surface
4
9
plain
chipboard
surface
2
A
Assembly Instructions
7
Step 5
Prepare the plinth
Insert 2 large locking
nuts into the plinth
as shown.
Tap 2 wooden dowels
into the plinth as
shown.
2
5
5
C
5
A
5
Fit the plinth
Push the plinth onto
the right side as
shown.
Use a screwdriver to
tighten the large locking
nut fitted to the plinth
. .
Note: Turn the large
locking nut as far as it
will go - more than 1/2 a
turn.
Step 6
Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the 5 large
locking nuts fitted to
the horizontal , plinth
. and base .
Step 7
5
5
2
C
5
C
1
C
4
5 9
1
4
9
C
C
A
Assembly Instructions
Step 8
8
B
B
B
B
Prepare the top
Screw 4 metal dowels
into the holes shown on
the top .
B
3
3
3
2
Fit the top
Push the top onto
the side panels and
. .
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the side panels and
. .
Step 9
3
1
2
C
1
2
Rounded
front edge
Rounded
front edge
1
Assembly Instructions
9
Step 10
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
8
Fit the back and plastic nails
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Note: Nails should
be spaced about 150mm
apart.
Tap 2 plastic nails into
the bottom edge of each
of the sides and . .
Stand the unit up for
the next step.
8
8
Warning: The
unit is heavy.
Lift with care.
y
D
y
y
x
G
1 2
G
G
G
G
x
1
2
b:
D
Assembly Instructions
Step 11
10
Step 12
Prepare the 2 doors
Push fit 3 hinges into
each door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
F
L
6
90
L
L
F
F
L
F
F
L
F
F
6
7
H
Fit the hanging rail
Push the hanging rail
into the rail holders
fitted to the side panels.
7
H
7
Assembly Instructions

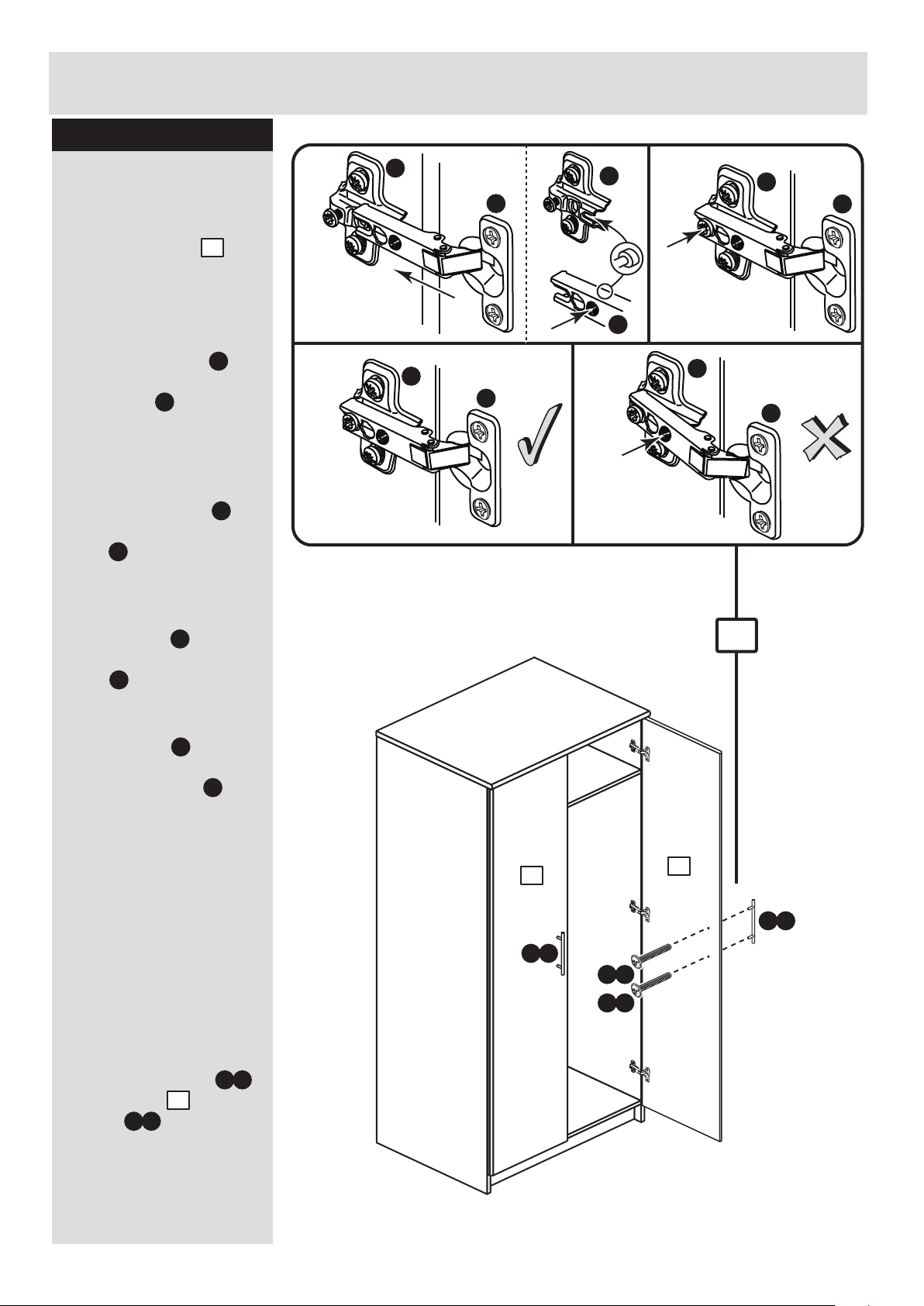

Step 13
11
e:
Fit doors and handles
Note: The easiest way to
attach each door is
to fit the top hinge first,
then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle
to each door using 2
screws .
L
L
L
K
K
K
L
K
6
6
a: b:
c: d:
K
L
L
L
K
K
K
A
B
B
K
L
L
J a
J b
J a
6
J b
J b
6
J a
Assembly Instructions
12
Step 14
b:
c:
d:
a:
A
A
B
C
Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
Assembly Instructions
13
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 15
Top of Unit
WALL
WALL
Back of Unit
Attach bracket to top
To prevent possible
overbalancing, we
recommend that this unit
is secured to a suitable
wall by use of the
bracket fitted to the
top of the unit.
Fixings are not supplied,
as they will need to suit
the wall type and the
length of screw will
depend on the distance
from the back of the unit
to the wall.
Fix the bracket
loosely onto the top of
the unit using screw
and mark the wall for the
wall fixing.
Swivel the bracket
away from the wall and
drill a hole in the wall
using a suitable drill bit
and fit your wall fixing.
Swivel the bracket
back and fix the bracket
to the wall, then tighten
Screw .
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Warning: The
robe is heavy.
Lift with care.
Assembly is complete
I
I
E
I
I
E
I
E
I
ALR3006
MADE IN
BRITAIN
Dimensions
2 Door Robe
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Issue 6 - 22/01/15
Important - Please read these instructions fully before starting assembly
249/3251
249/3660
244/2518
Width - 70.5cm
Depth - 51.5cm
Height - 183cm
356/1003
343/3935
339/1194
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 48kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
overbalance protector kit
supplied or, an alternative fixing
method of your choice.
• Dispose of all packaging
carefully and responsibly.
Components - Panels
Please check you have all the panels listed below
2
1
6
Door (D0530A)
(1724 x 345mm) x 2
2
3
Top (D0532A)
(702 x 516mm)
4
Horizontal (D0531A)
(670 x 490mm)
9
Base (D0582A)
(670 x 490mm)
5
Plinth (D0529A)
(670 x 80mm)
8
Back (X754)
(1750 x 688mm)
Hanging Rail (FHR660)
(660mm long)
7
Left Side (D0527B)
(1808 x 491mm)
Right Side (D0528B)
(1808 x 491mm)
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Please check you have all the fittings listed below
3
Components - Fittings
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 8
B
Metal dowel (F901) x 14
C
G
I
Handle (F847a) x 2
a
I
Handle Screw (F847b) x 4
b
H
K
Hinge (F518) x 6
J
Hinge plate (F523) x 6
F
13mm Screw (F63) x 14
Rail holder
(F1014) x 2
E
D
Nail (F51) x 33
Large locking
nut (F900) x 14
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Tools required
Rule
ScissorsSquare
Spirit
level
Hammer Bradawl
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Step
ladder
Ruler - Use this ruler to help correctly identify the screws
Electric drill
(only use
when drilling
into walls)
mm
10
20
30
40
50
60
70
80
90
100
mm
10
20
30
40
50
60
70
80
90
100
Plastic Nail (F91) x 4
Strap Screw Washer x 2
Overbalance protector kit (F269) x 1
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Finished
front edge
Assembly Instructions
4
Step 1
Prepare the left side
a: Screw 5 metal dowels
. into the holes shown
on the left side .
Note: Tighten metal
dowels up fully against
the panel.
Push a rail holder into
the hole shown. Make
sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
b: Fit 3 hinge plates
onto the left side ,
making sure that the slot
is facing towards the
finished front edge.
Insert 2 large locking
nuts into the left side
. as shown.
Note: Arrow on locking
nut must point towards
hole in edge of panel.
Tap a wooden dowel
into the left side as
shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
B
1
B
B
B
B
1
1
B
G
F
A
Finished
front edge
J
J
J
C
C
B
G
F
1
J
10mm
A
J
1
C
A
1
1
a:
b:
C
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
A
Assembly Instructions
5
Step 2
B
B
B
B
B
J
J
J
Prepare the right side
a: Screw 5 metal dowels
. into the holes shown
on the right side .
Note: Tighten metal
dowels up fully against
the panel.
Push a rail holder into
the hole shown. Make
sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
b: Fit 3 hinge plates
onto the right side ,
making sure that the slot
is facing towards the
finished front edge.
Insert 2 large locking
nuts into the right
side as shown.
Note: Arrow on locking
nut must point towards
hole in edge of panel.
Tap a wooden dowel
into the right side as
shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
B
2
G
F
J
2
C
A
2
2
G
F
C
C
2
2
a:
b:
Finished
front edge
Finished
front edge
Finished
front edge
Finished
front edge
Finished
front edge
A
Assembly Instructions
Step 3
6
Prepare the horizontal
and base
Insert 4 large locking
nuts into both the
horizontal and the
base as shown.
Note: Arrow on locking
nut must point towards
hole in edge of panel.
Tap 2 wooden dowels
into both the horizontal
. and the base as
shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
C
4
9
A
Join the horizontal
and base to the right
side
Push the horizontal
and base onto the
right side as shown.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
both the horizontal
and base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
Step 4
C
C
C
C
4
A
A
C
C
C
C
9
A
C
B
C
4 9
4
2
9
9
C
4
C
The base has a plain
chipboard surface
4
9
plain
chipboard
surface
2
A
Assembly Instructions
7
Step 5
Prepare the plinth
Insert 2 large locking
nuts into the plinth
as shown.
Tap 2 wooden dowels
into the plinth as
shown.
2
5
5
C
5
A
5
Fit the plinth
Push the plinth onto
the right side as
shown.
Use a screwdriver to
tighten the large locking
nut fitted to the plinth
. .
Note: Turn the large
locking nut as far as it
will go - more than 1/2 a
turn.
Step 6
Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the 5 large
locking nuts fitted to
the horizontal , plinth
. and base .
Step 7
5
5
2
C
5
C
1
C
4
5 9
1
4
9
C
C
A
Assembly Instructions
Step 8
8
B
B
B
B
Prepare the top
Screw 4 metal dowels
into the holes shown on
the top .
B
3
3
3
2
Fit the top
Push the top onto
the side panels and
. .
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the side panels and
. .
Step 9
3
1
2
C
1
2
Rounded
front edge
Rounded
front edge
1
Assembly Instructions
9
Step 10
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
8
Fit the back and plastic nails
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Note: Nails should
be spaced about 150mm
apart.
Tap 2 plastic nails into
the bottom edge of each
of the sides and . .
Stand the unit up for
the next step.
8
8
Warning: The
unit is heavy.
Lift with care.
y
D
y
y
x
E
1 2
E
E
E
E
x
1
2
b:
D
Assembly Instructions
Step 11
10
Step 12
Prepare the 2 doors
Push fit 3 hinges into
each door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
F
K
6
90
K
K
F
F
K
F
F
K
F
F
6
7
G
Fit the hanging rail
Push the hanging rail
into the rail holders
fitted to the side panels.
7
G
7
Assembly Instructions
Step 13
11
e:
Fit doors and handles
Note: The easiest way to
attach each door is
to fit the top hinge first,
then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle
to each door using 2
screws .
K
K
K
J
J
J
K
J
6
6
a: b:
c: d:
J
K
K
K
J
J
J
A
B
B
J
K
K
I a
I b
I a
6
I b
I b
6
I a
Assembly Instructions
12
Step 14
b:
c:
d:
a:
A
A
B
C
Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
Assembly Instructions
13
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 15
Fit the overbalance
protector kit
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall by fitting of the
overbalance protector kit
. to the unit, or an
alternative fixing method
of your choice.
Wall fixings are not
supplied as they will
need to suit the wall
type.
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Assembly is complete
H
H
WALL
Wall fixing
(not supplied)
Screw
(not supplied)
Washer
Strap
H
Strap
Washer
Screw
TOP OF UNIT
H
ALR3006
Loading...
