Argos ZNM52D-FE-AR ASSEMBLY INSTRUCTIONS

MADE IN

BRITAIN

Dimensions

Width - 75cm

Depth - 40cm

Height - 109cm

Malibu - 5+2 Drawer Chest

Assembly Instructions - Please keep for future reference

256/0029

247/7590

268/7153

227/2087

278/6243

276/3431

268/7706

278/6597

247/3178

228/9403

244/1928

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Issue 7 - 28/07/14

Important - Please read these instructions fully before starting assembly

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Warning: This unit weighs approximately 37kgs. Please lift with care.

• Check you have all the components and tools listed on pages 2 and 3.

• Remove all fittings from the plastic bags and separate them into their groups.

• Keep children and animals away from the work area, small parts could choke if swallowed.

• Parts of the assembly will be easier with 2 people.

• Make sure you have enough space to layout the parts before starting.

• Do not stand or put weight on the product, this could cause damage.

• Assemble the item as close to its final position (in the same room) as possible.

• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).

• We do not recommend the use of power drill/drivers for

inserting screws, as this could damage the unit. Only use hand screwdrivers.

• Safety note: It is recommended that this unit is secured to a wall using the bracket supplied.

• Dispose of all packaging carefully and responsibly.

1

Care and maintenance

• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.

• From time to time check that there are no loose screws on this unit.

• This product should not be discarded with household waste. Take to your local authority waste disposal centre.

Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.

Components - Panels

Please check you have all the panels listed below

2

1

2 4

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Left Side (D2834A)

(1071 x 394mm)

Large Drawer Front (D2783A)

(710 x 156mm) x 5

Small Left Drawer Front (D2781A)

(353 x 156mm)

Back Rail (D2779A)

(714 x 60mm) x 2

Right Side (D2835A)

(1071 x 394mm)

Divider (D2777A)

(160 x 238mm)

3

Top (D2774A)

(747 x 396mm)

Rail (D2780A)

(714 x 72mm)

Small Right Drawer Front (D2782A)

(353 x 156mm)

Large Drawer Back (W682-124)

(682 x 124mm) x 5

Small Drawer Back (W317-124)

(317 x 124mm) x 2

Small Drawer Base (T328-367)

(328 x 367mm) x 2

Left Drawer Side (W370-124LH)

(370 x 124mm) x 7

Right Drawer Side (W370-124RH)

(370 x 124mm) x 7

Large Drawer Base (T693-367)

(693 x 367mm) x 5

5

Plinth (D2778A)

(714 x 92mm)

8

6 7

9 10

11 12

13

14

15

16

17 Back (X989-738)

(989 x 738mm)

Please check you have all the fittings listed below

Tools required

3

Components - Fittings

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

Rule Scissors Hammer Eye protection

(when using a hammer or drill)

Cross-head screwdriver

Ruler - Use this ruler to help correctly identify the screws

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

Electric drill (only use when drilling into walls)

A

Wooden dowel (F22) x 13

B

Metal dowel (F901) x 18

C

D

Large locking nut (F900) x 4

E

Small locking nut (F3) x 14

F

G

40mm Screw (F910) x 6

H

25mm Screw (F50) x 12

I

Nail (F51) x 22

13mm Screw (F79) x 1

Knock-in Peg (F171GY) x 28

Handle (F631) x 12

N O

Bracket (F327) x 1

L

Plastic Nail (F91) x 4

J

9mm Screw (F74) x 14

K

9mm Screw (F73) x 28

M

P

Wedgefix (F639) x 24

Drawer runner (F1004) x 14

Assembly Instructions

4

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Step 1

x 2

B

F

Step 2

Prepare the 2 small drawer fronts

Screw 2 metal dowels into the small left drawer front and the small right drawer front .

Note: Tighten the metal dowels up fully against the panels.

B

8

Prepare 2 pairs of drawer sides

Insert a small locking nut into the hole shown on the left drawer side and the right drawer side .

Note: The arrow on the locking nut must point towards the hole in the edge of the panel.

Step 3

F

11

12

Attach the drawer sides to the small drawer fronts

Push the left drawer sides . and right drawer sides . onto the back of the 2 small drawer fronts and .

Turn the small locking nuts on the left drawer side and right drawer side .

Note: Turn the locking nuts clockwise to secure panels - more than 1/2 a turn.

11

9

12

8

F

11 12

F

Note: Due to the manufacturing process, the holes for the locking nut can be on either surface of the drawer sides.

Note: The locking nuts can be on either surface of the drawer sides. Make sure that the small groove is on the inside, as shown.

F

11

12

B

9

8 9

Note: The small right drawer front has a shallow identification mark.

11

8

9

Assembly Instructions

5

Step 4

C

Fit the small drawer base

Slide the small drawer base down the grooves in the drawer sides and and down into the groove in the small drawer fronts . and .

Step 5

Fit the small drawer back

Fit the small drawer back . between the drawer sides and . Make sure that the small drawer base fits into the groove in the small drawer back .

Hold the small drawer back in position and tap the knock-in pegs through the holes in the drawer sides and .

Step 6

15

11 12

8 9

13

11 12

15

13

C

Attach the handles

Attach a handle to each small drawer front . and using screw . .

Note: Do not overtighten the screw.

N

H

8 9

x 2

C

12

11

8

9

15

12

11

11 12

13

N

H

8

9

x 2

Step 7

M

Fit the wedgefixes

Turn the drawer assemblies over and slide 2 wedgefixes into the front and back grooves, as shown, and tighten up the screws.

M

Assembly Instructions

6

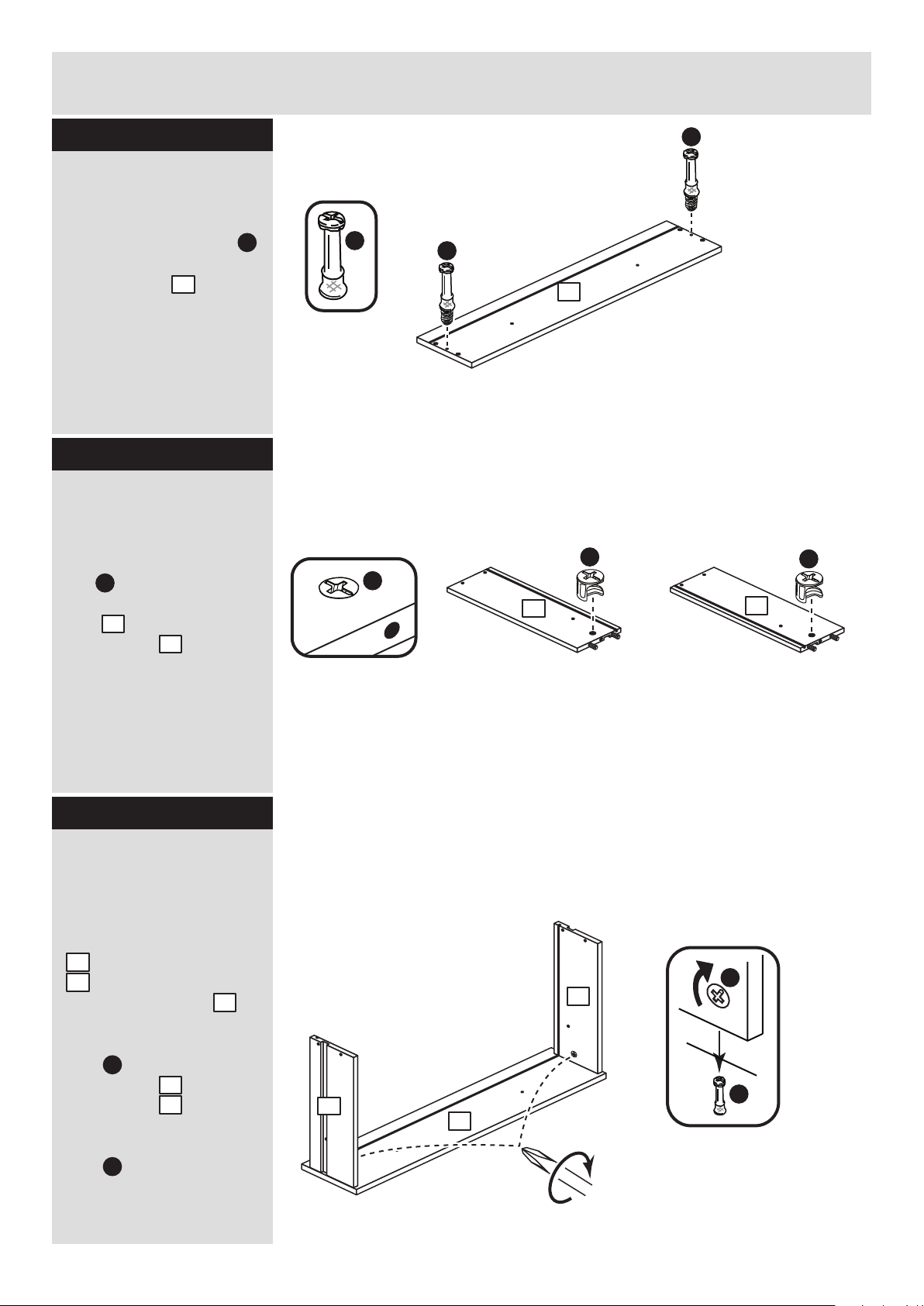

Step 8

x 5

B

F

Step 9

Prepare the large drawer fronts

Screw 2 metal dowels into each of the large drawer fronts .

Note: Tighten the metal dowels up fully against the panels.

B

Prepare 5 pairs of the drawer sides

Insert a small locking nut into the hole shown on the left drawer side and the right drawer side .

Note: The arrow on the locking nut must point towards the hole in the edge of the panel.

Step 10

F

11

12

Attach the drawer sides to the large drawer fronts

Push the left drawer sides . and right drawer sides . onto the back of the 5 large drawer fronts .

Turn the small locking nuts on the left drawer side and right drawer side .

Note: Turn the locking nuts clockwise to secure panels - more than 1/2 a turn.

11 12

10

F

11 12

F

Note: Due to the manufacturing process, the holes for the locking nut can be on either surface of the drawer sides.

Note: The locking nuts can be on either surface of the drawer sides. Make sure that the small groove is on the inside, as shown.

F

11

12

10

11

B

10

Assembly Instructions

7

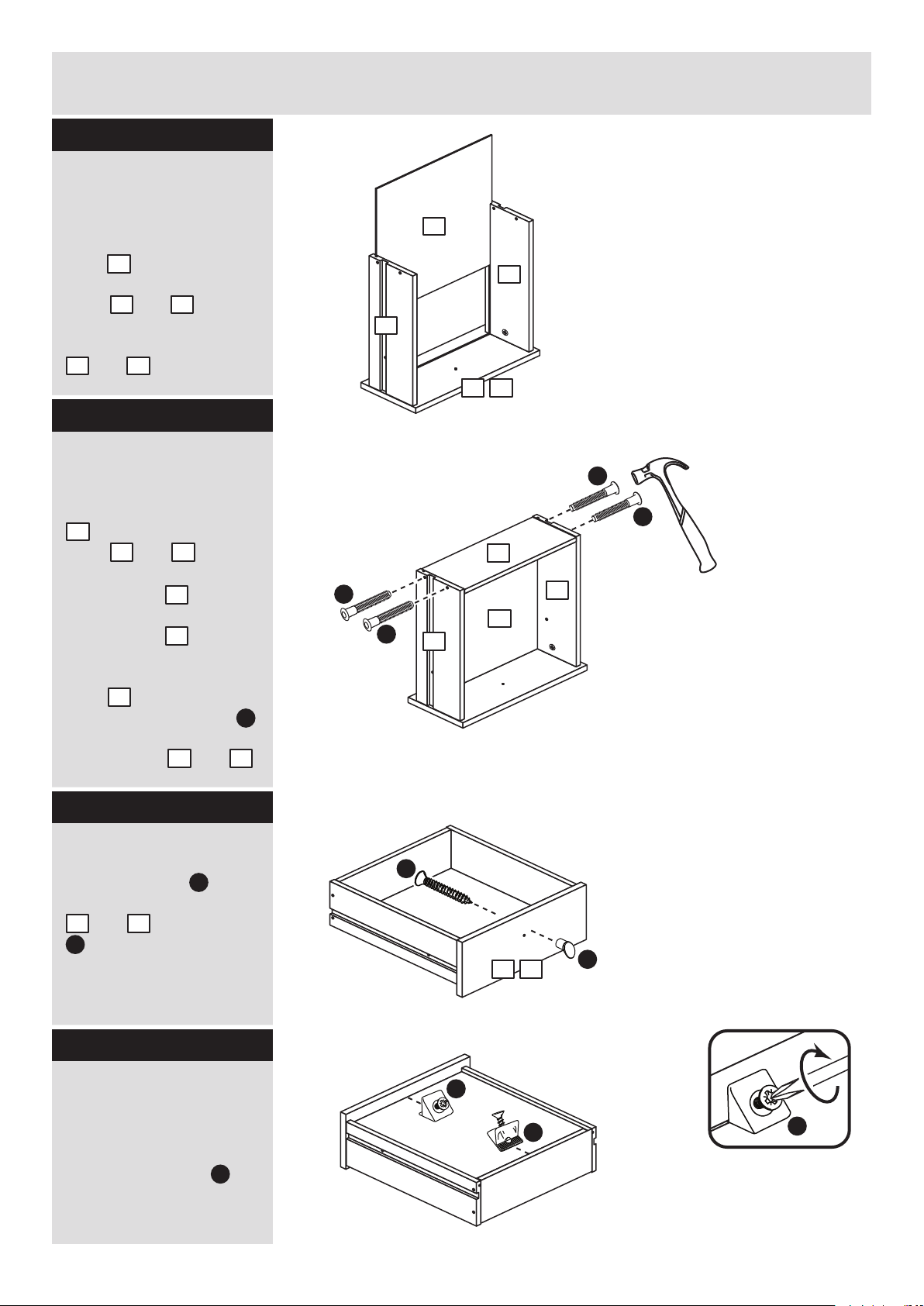

Step 11

10

C

Fit the large drawer base

Slide the large drawer base down the grooves in the drawer sides and and down into the groove in the large drawer fronts . .

Step 12

Fit the large drawer back

Fit the large drawer back . between the drawer sides and .

Make sure that the large drawer base fits into the groove in the large drawer back .

Hold the large drawer back in position and tap the knock-in pegs through the holes in the drawer sides and .

Step 13

16

11 12

10

14

11 12

16

14

C

Attach the handles

Attach 2 handles to each of the large drawer fronts using 2 screws . .

N

H

10

x 5

C

12

11

16

12

11

11 12

14

N

H

N

H

10

M

Fit the wedgefixes

Turn the large drawer assemblies over and slide 4 wedgefixes into the front and back grooves, as shown, and tighten up the screws.

M

Step 14

Note: Do not overtighten the screws.

Finished

front edge

Finished

front edge

Assembly Instructions

8

Step 15

A

Finished

front edge

K

P

E

Prepare the left side

a: Place 6 runners on

the left side as shown. Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw .

b: Slide the runner

back the other way and fit the 2nd screw into the corresponding hole in the left side .

Insert a large locking nut into the left side . .

Note: The arrow on the locking nuts must point towards the hole in the edge of the panel.

Tap a wooden dowel into the left side .

Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.

1

K

E

1

P

a:

b:

K

P

K

P

K

P

K

P

K

P

K

P

1

K

E

10mm

A

1

Assembly Instructions

Step 16

9

A

Prepare the right side

a: Place 6 runners on

the right side as shown. Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw .

b: Slide the runner

back the other way and fit the 2nd screw into the corresponding hole in the right side .

Insert a large locking nut into the right side . .

Tap a wooden dowel into the right side .

2

K

E

2

P

A

2

Finished

front edge

K

P

Finished

front edge

Finished

front edge

K

P

K

P

K

P

K

P

K

P

K

E

a:

b:

2

A

Prepare the plinth, rail and 2 back rails

Tap 2 wooden dowels into the plinth .

Tap 4 wooden dowels into the rail .

Tap 2 wooden dowels into each of the 2 back rails .

The plinth may

have a plain

chipboard surface.

A

Plain chipboard

surface

A

The colour of the back rails may differ from the main unit colour or may

be plain chipboard.

A

5

A

6

A

7

5

7

6

Finished

front edge

Step 17

x 2

K

P

G

Finished

front edge

2

G

2

Finished

front edge

Assembly Instructions

Step 18

10

Step 19

Fit the rail to the right side

Push the rail onto the right side as shown .

plain chipboard surface

6

2

5

Fit the plinth and back rails to the right side

Push the plinth onto the right side and secure it with screw .

Push the 2 back rails onto the right side and secure them with screws .

5

2

G

7

2

G

7

Note: Support the 2 back rails until the left side has been fitted in the next step.

Assembly Instructions

11

Step 20

Step 21

5

7

G

1

Fit the left side

Push the left side onto the assembly and secure it with screws .

1

G

B

Finished

front edge

200mm

I

O

Prepare the top

Screw 4 metal dowels into the top .

Fix a bracket flush to the back edge of the top . and 200mm in from the end using screw .

3

O

3

I

B

3

Assembly Instructions

12

Step 22

Finished

front edge

Finished

front edge

A

Prepare the divider

a: Place a runner on

the divider as shown. Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw .

b: Slide the runner

back the other way and fit the 2nd screw into the corresponding hole in the divider .

Insert 2 large locking nuts into the divider . .

Tap a wooden dowel into the divider .

Turn the divider over

c: Place a runner on

the divider as shown. Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw .

d: Slide the runner

back the other way and fit the 2nd screw into the corresponding hole in the divider .

4

K

E

4

P

4

K

4

P

a: b:

c:

d:

A

4

K

E

Note: Due to the manufacturing process, the 2 holes for

the large locking nut can be on either surface of the divider.

Finished

front edge

K

Finished

front edge

4

4 4

Turn the divider over

Finished

front edge

K

P

K

P

Finished

front edge

K

P

K

P

3

Assembly Instructions

13

Step 23

Fit the divider to the top

Push the divider onto the top .

Use a screwdriver to tighten the 2 large locking nuts fitted to the divider .

Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.

Finished

front edge

Remember: The large locking nuts can be on either surface of the divider.

3

4

3

E

4

E

B

Step 24

Fit the top

Push the top onto the sides and .

Use a screwdriver to tighten the 2 large locking nuts fitted to the sides and .

E

3

1 2

1

2

y

Assembly Instructions

14

Step 25

Fit the back

a: Square up the unit by

making sure that measurement x to x

equals y to y.

b: Place the back

down onto the unit, as shown.

Nail around the outside edges of the back .

Note: Nails should be spaced about 150mm apart.

Fit the 4 plastic nails

Tap 2 plastic nails into the bottom edge of each side and as shown.

Stand the unit up for the next step.

L

1 2

Step 26

Warning: The unit is heavy. Lift with care.

y

x

The measurement from top corner X to bottom corner X must be

equal to the measurement from top corner Y to bottom corner Y

a:

L

17

2

1

D

b:

17

D

17
