Argos ZNM42D-PBL-AR ASSEMBLY INSTRUCTIONS

MADE IN

BRITAIN

Dimensions

Width - 75cm

Depth - 40cm

Height - 93cm

Malibu - 4+2 Drawer Chest

Assembly Instructions - Please keep for future reference

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Issue 2 - 24/07/14

Important - Please read these instructions fully before starting assembly

266/1605

244/3971

275/3654

249/4119

275/2875

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Warning: This unit weighs approximately 31kgs. Please lift with care.

• Check you have all the components and tools listed on pages 2 and 3.

• Remove all fittings from the plastic bags and separate them into their groups.

• Keep children and animals away from the work area, small parts could choke if swallowed.

• Parts of the assembly will be easier with 2 people.

• Make sure you have enough space to layout the parts before starting.

• Do not stand or put weight on the product, this could cause damage.

• Assemble the item as close to its final position (in the same room) as possible.

• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).

Care and maintenance

• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.

• From time to time check that there are no loose screws on this unit.

• This product should not be discarded with household waste. Take to your local authority waste disposal centre.

Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.

• We do not recommend the use of power drill/drivers for

inserting screws, as this could damage the unit. Only use hand screwdrivers.

• Safety note: It is recommended that this unit is secured to a wall using the bracket supplied.

• Dispose of all packaging carefully and responsibly.

Components - Panels

Please check you have all the panels listed below

2 4

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Left Side (D2775A)

(911 x 394mm)

Large Drawer Front (D2783A)

(710 x 156mm) x 4

Small Left Drawer Front (D2781A)

(353 x 156mm)

Back Rail (D2779A)

(714 x 60mm) x 2

Right Side (D2776A)

(911 x 394mm)

Divider (D2777A)

(160 x 238mm)

Top (D2774A)

(747 x 396mm)

Rail (D2780A)

(714 x 72mm)

Small Right Drawer Front (D2782A)

(353 x 156mm)

Large Drawer Back (W682-124)

(682 x 124mm) x 4

Small Drawer Back (W317-124)

(317 x 124mm) x 2

Small Drawer Base (T328-367)

(328 x 367mm) x 2

Left Drawer Side (W370-124LH)

(370 x 124mm) x 6

Right Drawer Side (W370-124RH)

(370 x 124mm) x 6

Large Drawer Base (T693-367)

(693 x 367mm) x 4

Plinth (D2778A)

(714 x 92mm)

6 7

9 10

11 12

17 Back (X829-738)

(829 x 738mm)

Please check you have all the fittings listed below

Tools required

Components - Fittings

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

Rule Scissors Hammer

Eye protection (when using a hammer or drill)

Cross-head screwdriver

Ruler - Use this ruler to help correctly identify the screws

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

Electric drill (do not use for fitting screws)

Wooden dowel (F22) x 13

Metal dowel (F901) x 16

Large locking nut (F900) x 4

Small locking nut (F3) x 12

40mm Screw (F910) x 6

25mm Screw (F50) x 10

Nail (F51) x 22

13mm Screw (F79) x 1

Knock-in Peg (F171GY) x 24

Handle (F631) x 10

N O

Bracket (F327) x 1

Plastic Nail (F91) x 4

9mm Screw (F74) x 12

9mm Screw (F73) x 24

Wedgefix (F639) x 20

Drawer runner (F1004) x 12

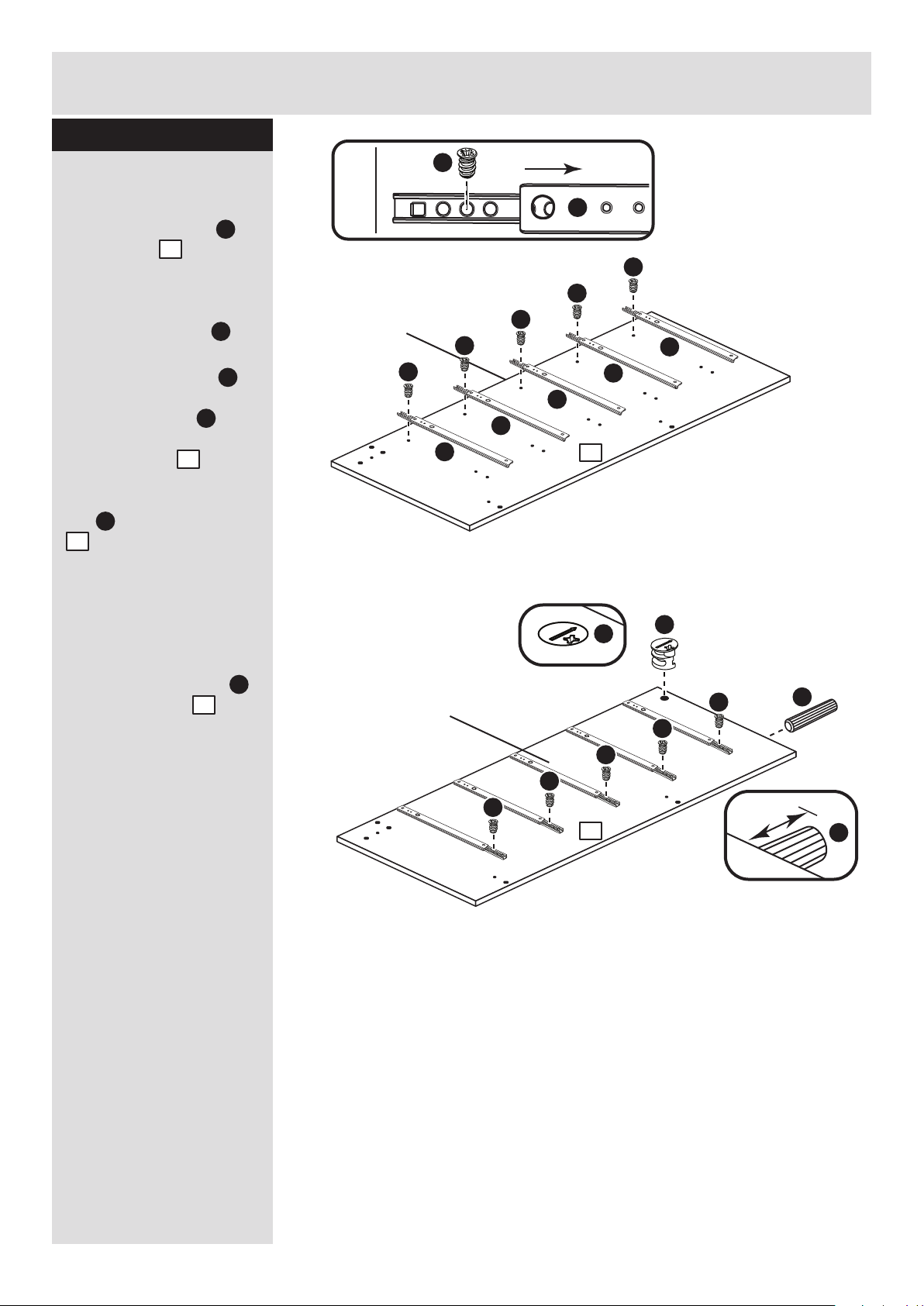

Assembly Instructions

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Step 1

x 2

Step 2

Prepare the 2 small drawer fronts

Screw 2 metal dowels into the small left drawer front and the small right drawer front .

Note: Tighten the metal dowels up fully against the panels.

Prepare 2 pairs of drawer sides

Insert a small locking nut into the hole shown on the left drawer side and the right drawer side .

Note: The arrow on the locking nut must point towards the hole in the edge of the panel.

Step 3

Attach the drawer sides to the small drawer fronts

Push the left drawer sides . and right drawer sides . onto the back of the 2 small drawer fronts and .

Turn the small locking nuts on the left drawer side and right drawer side .

Note: Turn the locking nuts clockwise to secure panels - more than 1/2 a turn.

11 12

Note: Due to the manufacturing process, the holes for the locking nut can be on either surface of the drawer sides.

Note: The locking nuts can be on either surface of the drawer sides. Make sure that the small groove is on the inside, as shown.

8 9

Note: The small right drawer front has a shallow identification mark.
