Argos ZNHL44D-W-AR ASSEMBLY INSTRUCTIONS

Assembly Instructions - Please keep for future reference

MADE IN

BRITAIN

If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number)

Important - Please read these instructions fully before starting assembly

Dimensions

Width - 119.5cm

New Hallingford - 4+4 Drawer Chest

Issue 6 - 14/08/14

Depth - 40cm

Height - 74.5cm

266/5508

268/9577

262/1638

245/7510

258/6625

272 825

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Warning: This unit weighs approximately 41.5kgs. Please lift with care.

• Check you have all the components and tools listed on pages 2 and 3.

• Remove all fittings from the plastic bags and separate them into their groups.

• Keep children and animals away from the work area, small parts could choke if swallowed.

• Parts of the assembly will be easier with 2 people.

• Make sure you have enough space to layout the parts before starting.

• Do not stand or put weight on the product, this could cause damage.

• Assemble the item as close to its final position (in the same room) as possible.

• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).

• We do not recommend the use of power drill/drivers for

inserting screws, as this could damage the unit. Only use hand screwdrivers.

• Safety note: If there is any chance of this unit being pulled over by children etc. it is recommended that the unit is secured to a wall using suitable fixings (not supplied).

• Dispose of all packaging carefully and responsibly.

1

Care and maintenance

• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.

• From time to time check that there are no loose screws on this unit.

• This product should not be discarded with household waste. Take to your local authority waste disposal centre.

Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.

2

Components - Panels

Please check you have all the panels listed below

If you have damaged or missing components, call the

Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number

and the reference numbers below)

1

Left Side (D2312A)

(721 x 372mm)

Top (D2322A)

(1193 x 396mm)

2

Right Side (D2313A)

(721 x 372mm)

4

3

Upright (D2323A)

(655 x 282mm)

Rail (D2325A)

(1158 x 66mm) x 2

Drawer Back (W518-124)

(518 x 124mm) x 8

11

5

6

8

9

10

Drawer Front (D2324A)

(588 x 162mm) x 8

Drawer Base (T529-367)

(529 x 367mm) x 8

Back (X1184-700)

(1184 x 700mm)

7

Left Drawer Side (W370-124LH)

(370 x 124mm) x 8

Right Drawer Side (W370-124RH)

(370 x 124mm) x 8

3

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

Tools required

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

Ruler - Use this ruler to help correctly identify the screws

Please check you have all the fittings listed below

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

Components - Fittings

If you have damaged or missing components, call the

Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number

and the reference numbers below)

Rule Scissors Hammer

Eye protection (when using a hammer or drill)

Cross-head screwdriver

Electric drill (do not use for fitting screws)

B C

D E F

G H

Small locking nut (F3) x 16

Nail (F51) x 26

13mm Screw (F52) x 48 13mm Screw (F63) x 48

I

A

Wooden dowel (F22) x 7

19mm Screw (F461) x 16

Metal dowel (F901) x 24

Large locking nut (F900) x 8

Knock-in Peg (F171GY) x 32

K

R Runner (F160) x 8

b

L Runner (F161) x 8

K

c

L Runner (F159) x 8

K

a

R Runner (F162) x 8

K

d

350mm long

J

Handle (F278) x 8

M

Plastic Nail (F91) x 5

L

Wedgefix (F639) x 32

4

Step 1

Assembly Instructions

If you have damaged or missing components, call the

Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number

and the reference numbers below)

5

x 8

B

C

Step 2

B

Prepare the drawer fronts

Screw 2 metal dowels into the holes shown on the back of each drawer front .

Note: Tighten the metal dowels up fully against the panels.

B

5

Prepare the drawer sides

Insert a small locking nut into the hole shown on the left drawer side and right drawer side .

Note: The arrow on the locking nut must point towards the hole in the edge of the panel.

Step 3

C

8

9

Attach the drawer sides to the drawer front

Push the left drawer side . and right drawer side . onto the back of the drawer front .

Turn the small locking nuts on the left drawer side and right drawer side .

Note: Turn the locking nuts clockwise to secure panels - more than 1/2 a turn.

9

8 9

5

C

8 9

Groove

8

C

Note: The locking nuts can be on either surface of the drawer sides. Make sure that the groove is on the inside, as shown.

5

x 8

8

C

Note: Due to the manufacturing process, the holes for the locking nut can be on either surface of the drawer sides.

x 8 x 8

C

8

9

8

9

Assembly Instructions

5

Step 4

5

Fit the drawer base

Slide the drawer base down the grooves in the drawer sides and and down into the groove in the drawer front .

Step 5

Fit the drawer back

Fit the drawer back between the drawer sides and .

Make sure that the drawer base fits into the groove in the drawer back .

Hold the drawer back in position and tap the knock-in pegs through the holes in the drawer sides and .

Step 6

7

8 9

5

E

8

10

9

7

10

8 9

7

10

E

8 9

Attach the handles

Attach a handle to each drawer front using 2 screws .

J

G

5

x 8

Step 7

L

Fit the wedgefixes

Turn the drawer assemblies over and slide 4 wedgefixes into the front and back grooves, as shown, and tighten up the screws.

L

7

8

9

6

7

9

8

10

E

5

J

5

G

5

L

Assembly Instructions

6

Step 8

Fit runners to the drawers

Fit runner , marked with ‘R’, to the bottom edge of the right drawer side , as shown, making sure that it is pushed up against the back of the drawer front . . Use a bradawl to mark the fixing positions, then secure with 2 screws .

Fit runner , marked ‘L’, to the bottom edge of the left drawer side using the same method.

8

K d

9

5

I

K c

I

Runners must be

pushed up against

the drawer front

K d

R

I

L

K c

L

5

8

9

x 8

D

A

10mm

A

Prepare the 2 rails

Tap 2 wooden dowels into each rail .

Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.

Insert 2 large locking nuts into each rail .

Note: The arrow on the locking nut must point towards the hole in the edge of the panel.

A

Step 9

plain chipboard surface

x 2

6

D

6

Assembly Instructions

7

Step 10

Finished

front edge

A

Finished

front edge

a:

Prepare the left side

a: Fit 4 runners to

the left side .

The 1st screw uses the 2nd hole in from the front of the runner.

The 2nd and 3rd screws . use the holes that line up with the other panel holes.

b: Fit a screw into

the 2nd hole in at the top of the runners .

Screw 2 metal dowels into the left side .

Insert a large locking nut into the left side . .

Note: The arrow on the locking nut must point towards the hole in the edge of the panel.

Tap a wooden dowel into the left side .

Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.

b:

B

D

1

K a

1

H

K a

H

Finished front edge

H

1st screw

2nd screw

H

3rd screw

K a

Finished front edge

I

K a

A

1

H

K a

H

K a

H

K a

H

K a

H

I

D

B

1

10mm

A

D

Assembly Instructions

8

Step 11

A

Prepare the right side

a: Fit 4 runners to

the right side .

The 1st screw uses the 2nd hole in from the front of the runner.

The 2nd and 3rd screws . use the holes that line up with the other panel holes.

b: Fit a screw into

the 2nd hole in at the top of the runner .

Screw 2 metal dowels into the right side .

Insert a large locking nut into the right side . .

Tap a wooden dowel into the right side .

B

D

2

K b

2

H

I

K b

H

Finished front edge

H

1st screw

2nd screw

H

3rd screw

K b

Finished front edge

I

a:

b:

A

2

H

K b

H

K b

H

K b

H

K b

H

I

D

B

Finished

front edge

Finished

front edge

2

Assembly Instructions

9

Step 12

Join the right side and rails

2 people are needed here

Push the 2 rails onto the right side .

Use a screwdriver to tighten the 2 large locking nuts fitted to the rails .

Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.

B

D

6

2

6

D

Note: Support this rail until the left side has been fitted in the next step.

plain chipboard surface

6

2

6

Fit the left side

Push the left side onto the 2 rails .

Use a screwdriver to tighten the 2 large locking nuts fitted to the rails .

D

1

6

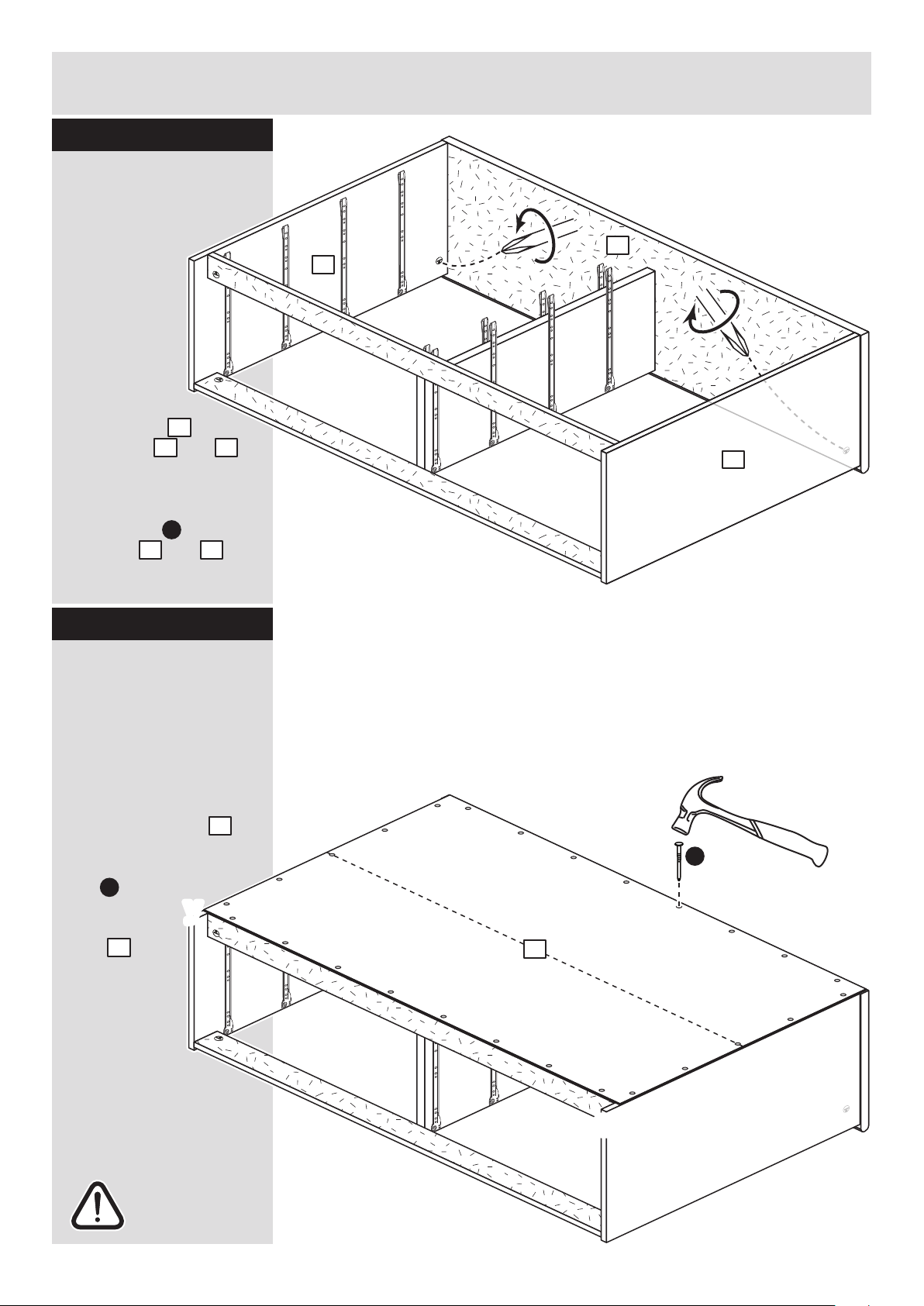

Step 13

1
