MADE IN
BRITAIN
Dimensions
Width - 30cm
Depth - 28cm
Height - 147cm

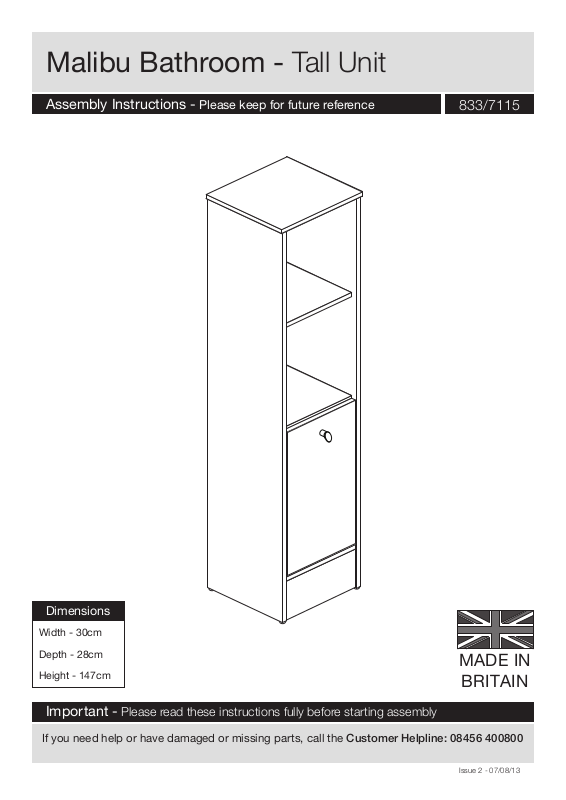

Malibu Bathroom - Tall Unit
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 2 - 07/08/13
Important - Please read these instructions fully before starting assembly
833/7115
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 14.5 kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.
Components - Panels
Please check you have all the panels listed below
2
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
1
Top (D2129A)
(300 x 280mm)
Base (D2132A)
(260 x 276mm)
Plinth (D2135A)
(260 x 145mm)
6
7
2
4
5
3
8
Left End (D2136A)
(1447 x 278mm)
Fixed Shelf (D2138A)
(260 x 260mm)
Loose Shelf (D2133A)
(260 x 260mm) x 2
Right End (D2137A)
(1447 x 278mm)
Door (D2139A)
(534 x 254mm)
9
Back (X966)
(1313 x 286mm)
Please check you have all the fittings listed below
Tools required
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 2
B
Metal dowel (F901) x 14
C
F
G H I
L
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
J K
Electric drill
(do not use for
fitting screws)
Large locking
nut (F900) x 14
D
25mm Screw (F50) x 1
Nail (F51) x 22
E
Bracket (F327) x 1
13mm Screw (F79) x 1
13mm Screw (F63) x 4
Shelf support (F121) x 8
N
Door Buffer (F137) x 1
Plastic Nail (F91) x 4
M
Handle (F631) x 1
Hinge plate
(F523) x 2
Hinge (F522) x 2
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Step 1
Step 2
Choose which way
you would like the
door to open
You can fit the door to
the left side or right side.
If you would
like your door
to open this
way, fit the
hinge plates
to the left side
If you would
like your door
to open this
way, fit the
hinge plates to
the right side
Prepare the left end
Refer to step 1 and, if
required, fit 2 hinge
plates onto the left
end , making sure
that they face the same
way as the diagram.
Screw 5 metal dowels
into the left end .
Note: Tighten the metal
dowels up fully against
the panels.
Insert 2 large locking
nuts into the left end
. .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
B
1
C
1
C
K
B
K
1
C
C
K
K
B
B
B
B
B
1
Assembly Instructions
5
Step 3
Step 4
C
C
B
Prepare the right end
Refer to step 1 and, if
required, fit 2 hinge
plates onto the right
end , making sure
that they face the same
way as the diagram.
Screw 5 metal dowels
into the right end .
Insert 2 large locking
nuts into the right
end .
B
2
C
2
K
2
2
K
B
B
B
B
K
K
Join the right end and
base
Push the base onto
the right end .
Note: The back edges
must be flush.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
Step 5
C
C
C
C
Prepare the base
Insert 4 large locking
nuts into the base .
C
4
4
4
2
C
4
C
4
B
C
2
4
2
Note: The base is larger
than the fixed shelf
(refer to the components page)
Assembly Instructions
6
Step 6
Prepare the fixed
shelf
Insert 4 large locking
nuts into the fixed
shelf .
C
C
C
C
5
5
Fit the fixed shelf
Push the fixed shelf
onto the right end .
Note: The back edges
must be flush.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the fixed shelf .
Step 7
5
2
C
5
2
5
2
5
A
Step 8
C
C
A
10mm
A
Prepare the plinth
Tap 2 wooden dowels
into the plinth .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Insert 2 large locking
nuts into the plinth .
A
6
6
C
6
Assembly Instructions
7
Step 9
Step 10
2
6
Fit the plinth
Push the plinth onto
the right end .
Use a screwdriver to
tighten the large locking
nut fitted to the plinth
. .
6
2
C
6
6
Fit the left end
Push the left end
onto the assembly.
Use a screwdriver to
tighten the 5 large
locking nuts fitted to
the base , fixed shelf
. and plinth .
1
4
5 6
C
1
4
5
Step 11
B
B
B
B
3
Prepare the top
Screw 4 metal dowels
into the top .
B
3
3
Assembly Instructions
8
Step 12
Step 13
Fit the top
Push the top onto
the assembly.
Note: The back edges
must be flush.
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the left end and right
end .
1
2
C
3
2 3
1
2
E
J
J
3
3
I
I
I
I
Fit the bracket and
the plastic nails
Fix the bracket in the
middle of the top ,
flush to the back edge,
using screw .
Tap the 4 plastic nails
into the bottom edge of
the left end and right
end .
J
3
E
I
1
2
1
2
y
Assembly Instructions
Step 14
Step 15
J
Secure unit to a wall
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall by use of the metal
bracket fitted to the
top .
Fixings are not supplied
as they will need to suit
the wall type, and the
length of screw will
depend on the distance
of the back of the unit to
the wall.
Warning: Take
care when
drilling the wall that you
do not drill into any
pipes, wires etc. If in
doubt, consult an expert.
3
J
3
WALL
WALL
Top of unit
J
b:
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of
the back .
Note: Nails should
be spaced about
150mm apart.
Stand the unit up
for the next step.
9
G
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
9
y
x
G
Warning: The
unit is heavy.
Lift with care.
y
x
9
9
Assembly Instructions
10
Step 16
Step 17
Prepare the door
Push fit 2 hinges into
the door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
F
L
8
L
F
F
90
L
L
F
F
8
7
7
Fit the shelves
Insert 8 shelf studs
into the holes in the end
panels and .
Lower the shelves
down onto the shelf
studs .
H
1 2
H
x 4
H
x 4
Make sure that the plastic
sleeve is fully pushed
onto the shelf stud.
H
1
2
7
H
Small piece of
waste wood
8
Assembly Instructions
11
Step 18
Small piece of
waste wood
ONLY drill
this hole
Drill this hole if you
have fitted the hinges
to the left end.
Drill this hole if you
have fitted the hinges
to the right end.

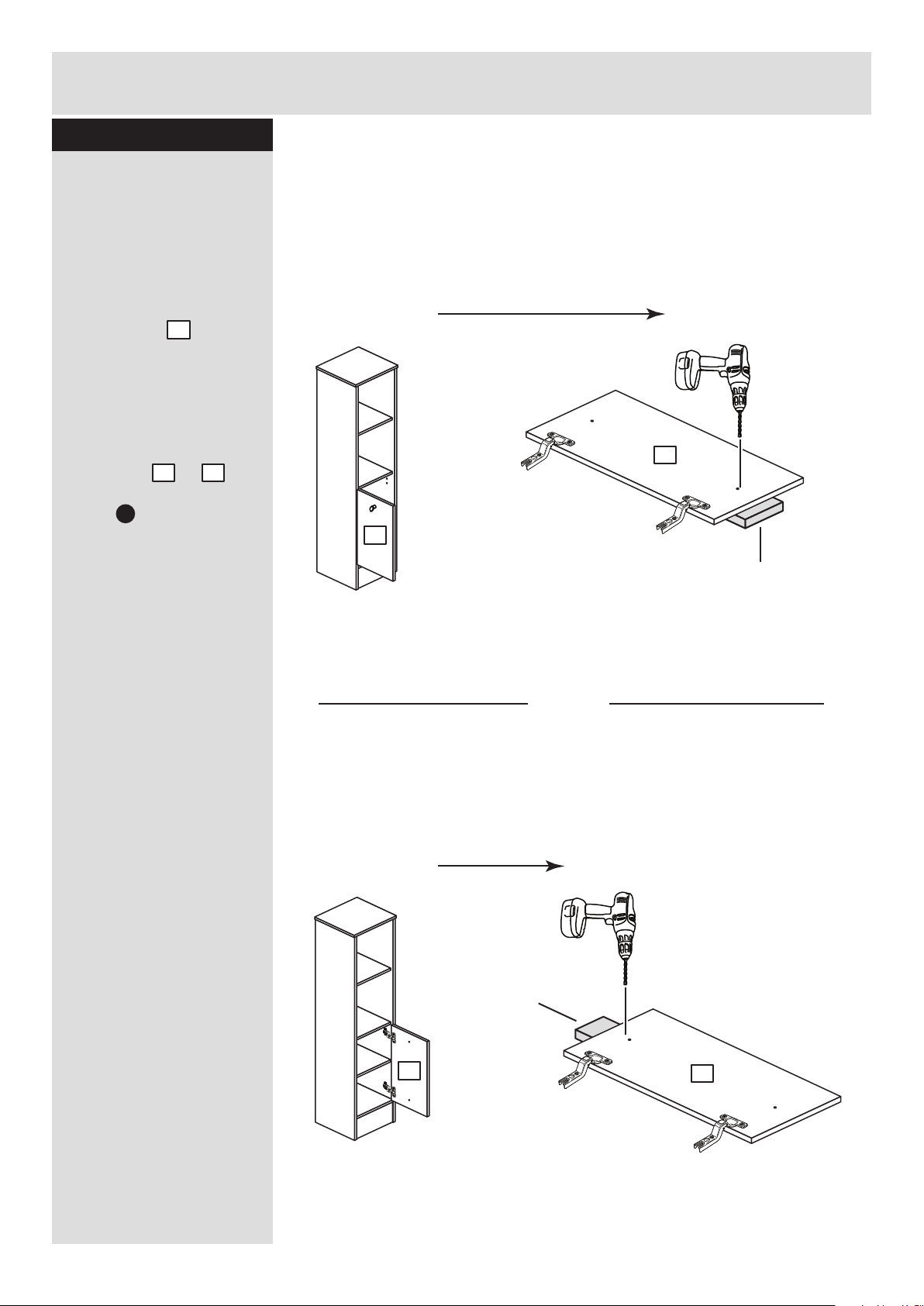

Drill the handle hole
in the door
Important: Please follow
these instructions
carefully.
Lay the door down
onto a smooth surface.
Important: Carefully
choose which hole you
need to drill.
This will depend on
which side or
you fitted the hinge
plates .
Check that the holes and
hinges are in the same
place as the diagrams.
Note: We recommend
the use of a small piece
of waste wood, placed
behind the hole while
drilling, to reduce the
possibility of any
breakout.
Using the pilot hole in
the rear face of the door,
drill through the hole
indicated opposite, using
a 2.5mm diameter drill.
Turn the door over and
open out the 2.5mm hole
that you have just drilled
by drilling back through it
with a 5mm drill.
Note: Drill bits are not
provided.
or
8
2
K
1
IMPORTANT
Carefully choose which hole you will need to drill
ONLY drill
this hole
8
8
8
Assembly Instructions
12
Step 19

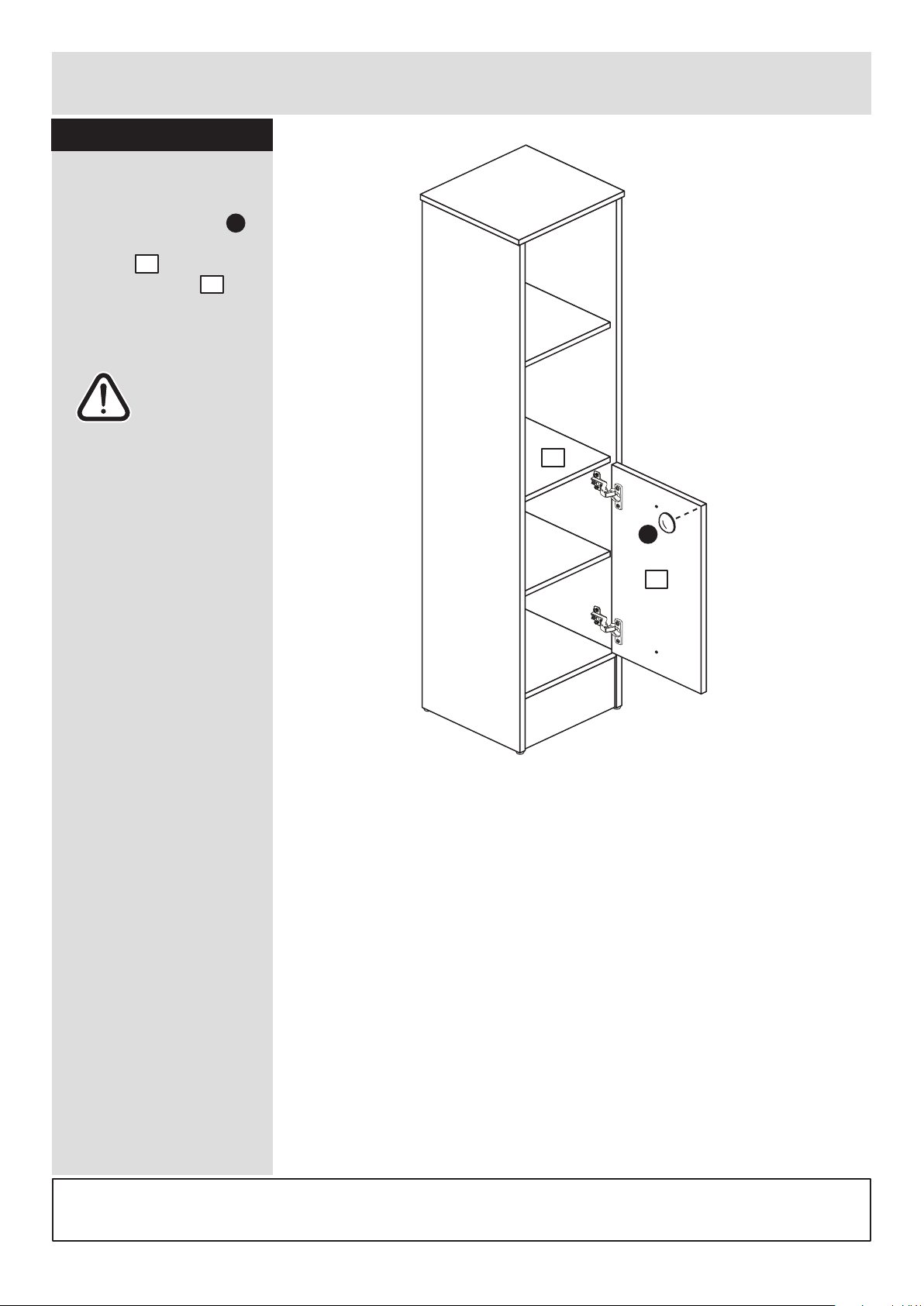

Fit door and handle
Note: The easiest way to
attach the door is to
fit the top hinge first,
then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.

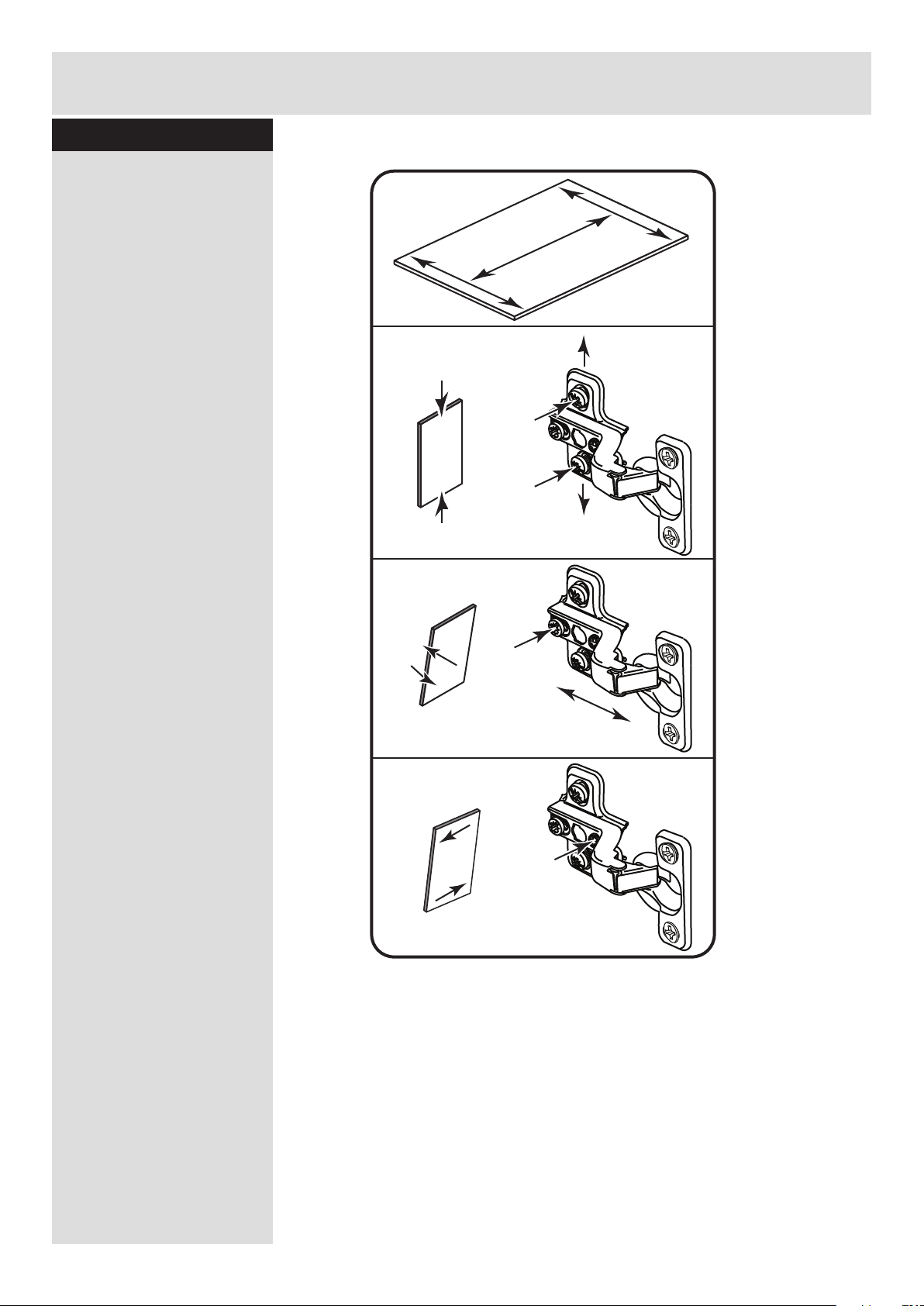

c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
the door using
screw .
L
L
L
K
K
K
L
K
M
D
8
8
a: b:
c: d:
K
L
K
K
B
K
L
L
L
A
L
K
B
e:
D
M
8
This shows the door
being fitted to hinge
plates on the right side.
You may have fitted
them to the left side.
Assembly Instructions
13
Step 20
b:
c:
d:
a:
Adjust the door if
needed
a: Before adjusting the
door, use a spirit level to
check the top (or base)
of the unit is level, frontto-back and side-to-side
in the 3 positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
A
A
B
C
Assembly Instructions
14
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 21
Assembly is complete
Warning: The
unit is heavy.
Lift with care.
N
8
Fit the door buffer
Stick the door buffer
onto the top corner of
the door where it will
hit the fixed shelf .
N
8
5
5
ALR2869
MADE IN
BRITAIN
Dimensions
Width - 30cm
Depth - 28cm
Height - 147cm
Malibu Bathroom - Tall Unit
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Issue 3 - 21/01/15
Important - Please read these instructions fully before starting assembly
833/7115
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 14.5 kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
overbalance protector kit
supplied or, an alternative fixing
method of your choice.
• Dispose of all packaging
carefully and responsibly.
Components - Panels
Please check you have all the panels listed below
2
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
1
Top (D2129A)
(300 x 280mm)
Base (D2132A)
(260 x 276mm)
Plinth (D2135A)
(260 x 145mm)
6
7
2
4
5
3
8
Left End (D2136A)
(1447 x 278mm)
Fixed Shelf (D2138A)
(260 x 260mm)
Loose Shelf (D2133A)
(260 x 260mm) x 2
Right End (D2137A)
(1447 x 278mm)
Door (D2139A)
(534 x 254mm)
9
Back (X966)
(1313 x 286mm)
Please check you have all the fittings listed below
Tools required
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 2
B
Metal dowel (F901) x 14
C
F
G H I
L
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
J K
Electric drill
(do not use for
fitting screws)
Large locking
nut (F900) x 14
D
25mm Screw (F50) x 1
Nail (F51) x 22
E
13mm Screw (F63) x 4
Shelf support (F121) x 8
Door Buffer (F137) x 1
Plastic Nail (F91) x 4
M
Handle (F631) x 1
Hinge plate
(F523) x 2
Hinge (F522) x 2
Strap Screw Washer x 2
Overbalance protector kit (F269) x 1
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Step 1
Step 2
Choose which way
you would like the
door to open
You can fit the door to
the left side or right side.
If you would
like your door
to open this
way, fit the
hinge plates
to the left side
If you would
like your door
to open this
way, fit the
hinge plates to
the right side
Prepare the left end
Refer to step 1 and, if
required, fit 2 hinge
plates onto the left
end , making sure
that they face the same
way as the diagram.
Screw 5 metal dowels
into the left end .
Note: Tighten the metal
dowels up fully against
the panels.
Insert 2 large locking
nuts into the left end
. .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
B
1
C
1
C
K
B
K
1
C
C
K
K
B
B
B
B
B
1
Assembly Instructions
5
Step 3
Step 4
C
C
B
Prepare the right end
Refer to step 1 and, if
required, fit 2 hinge
plates onto the right
end , making sure
that they face the same
way as the diagram.
Screw 5 metal dowels
into the right end .
Insert 2 large locking
nuts into the right
end .
B
2
C
2
K
2
2
K
B
B
B
B
K
K
Join the right end and
base
Push the base onto
the right end .
Note: The back edges
must be flush.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
Step 5
C
C
C
C
Prepare the base
Insert 4 large locking
nuts into the base .
C
4
4
4
2
C
4
C
4
B
C
2
4
2
Note: The base is larger
than the fixed shelf
(refer to the components page)
Assembly Instructions
6
Step 6
Prepare the fixed
shelf
Insert 4 large locking
nuts into the fixed
shelf .
C
C
C
C
5
5
Fit the fixed shelf
Push the fixed shelf
onto the right end .
Note: The back edges
must be flush.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the fixed shelf .
Step 7
5
2
C
5
2
5
2
5
A
Step 8
C
C
A
10mm
A
Prepare the plinth
Tap 2 wooden dowels
into the plinth .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Insert 2 large locking
nuts into the plinth .
A
6
6
C
6
Assembly Instructions
7
Step 9
Step 10
2
6
Fit the plinth
Push the plinth onto
the right end .
Use a screwdriver to
tighten the large locking
nut fitted to the plinth
. .
6
2
C
6
6
Fit the left end
Push the left end
onto the assembly.
Use a screwdriver to
tighten the 5 large
locking nuts fitted to
the base , fixed shelf
. and plinth .
1
4
5 6
C
1
4
5
Step 11
B
B
B
B
3
Prepare the top
Screw 4 metal dowels
into the top .
B
3
3
Assembly Instructions
8
Step 12
Step 13
Fit the top
Push the top onto
the assembly.
Note: The back edges
must be flush.
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the left end and right
end .
1
2
C
3
2 3
1
2
I
I
I
I
Fit the plastic nails
Tap the 4 plastic nails
into the bottom edge of
the left end and right
end .
I
1
2
1
2
y
Assembly Instructions
Step 14
Step 15
b:
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of
the back .
Note: Nails should
be spaced about
150mm apart.
Stand the unit up
for the next step.
9
G
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
9
y
x
G
Warning: The
unit is heavy.
Lift with care.
y
x
9
9
Fit the overbalance
protector kit
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall by fitting of the
overbalance protector kit
. to the unit, or an
alternative fixing method
of your choice.
Wall fixings are not
supplied as they will
need to suit the wall
type.
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
M
Attach the
strap to the unit
Attach the
strap to the wall
Wall fixing
(not supplied)
Washer
Strap
Strap
WasherWasher
Screw
M
M
Example
Screw
(not supplied)
Assembly Instructions
10
Step 16
Step 17
Prepare the door
Push fit 2 hinges into
the door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
F
L
8
L
F
F
90
L
L
F
F
8
7
7
Fit the shelves
Insert 8 shelf studs
into the holes in the end
panels and .
Lower the shelves
down onto the shelf
studs .
H
1 2
H
x 4
H
x 4
Make sure that the plastic
sleeve is fully pushed
onto the shelf stud.
H
1
2
7
H
Small piece of
waste wood
8
Assembly Instructions
11
Step 18
Small piece of
waste wood
ONLY drill
this hole
Drill this hole if you
have fitted the hinges
to the left end.
Drill this hole if you
have fitted the hinges
to the right end.
Drill the handle hole
in the door
Important: Please follow
these instructions
carefully.
Lay the door down
onto a smooth surface.
Important: Carefully
choose which hole you
need to drill.
This will depend on
which side or
you fitted the hinge
plates .
Check that the holes and
hinges are in the same
place as the diagrams.
Note: We recommend
the use of a small piece
of waste wood, placed
behind the hole while
drilling, to reduce the
possibility of any
breakout.
Using the pilot hole in
the rear face of the door,
drill through the hole
indicated opposite, using
a 2.5mm diameter drill.
Turn the door over and
open out the 2.5mm hole
that you have just drilled
by drilling back through it
with a 5mm drill.
Note: Drill bits are not
provided.
or
8
2
K
1
IMPORTANT
Carefully choose which hole you will need to drill
ONLY drill
this hole
8
8
8
Assembly Instructions
12
Step 19
Fit door and handle
Note: The easiest way to
attach the door is to
fit the top hinge first,
then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
the door using
screw .
L
L
L
K
K
K
L
K
J
D
8
8
a: b:
c: d:
K
L
K
K
B
K
L
L
L
A
L
K
B
e:
D
J
8
This shows the door
being fitted to hinge
plates on the right side.
You may have fitted
them to the left side.
Assembly Instructions
13
Step 20
b:
c:
d:
a:
Adjust the door if
needed
a: Before adjusting the
door, use a spirit level to
check the top (or base)
of the unit is level, frontto-back and side-to-side
in the 3 positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
A
A
B
C
Assembly Instructions
14
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 21
Assembly is complete
Warning: The
unit is heavy.
Lift with care.
E
8
Fit the door buffer
Stick the door buffer
onto the top corner of
the door where it will
hit the fixed shelf .
E
8
5
5
ALR2869
Loading...
