Ohio - TV Unit
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Issue 2 - 28/04/15
Important - Please read these instructions fully before starting assembly
309/6561
147/7618
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 30kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
Components - Panels
Please check you have all the panels listed below
2
1
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Top (D1782A)
(1200 x 395mm)
4
2
Left Side (D1783A)
(590 x 357mm)
Right Side (D1784A)
(590 x 357mm)
Base (D1785A)
(1020 x 350mm)
7
5
Divider (D1786A)
(480 x 349mm) x 2
Large Shelf (D1787A)
(444 x 348mm) x 2
Small Shelf (D1788A)
(271 x 348mm) x 2
6
1110
Plinth (D1789A)
(1020 x 95mm)
Fascia (D1790A)
(590 x 70mm) x 2
3
8 9
Door (D1808A)
(492 x 342mm) x 2
Small Back (X918)
(504 x 292mm) x 2
12
Large Back (X950)
(504 x 395mm)
Please check you have all the fittings listed below
Tools required
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Electric drill
(do not use for
fitting screws)
A
Wooden dowel (F22) x 6
B
Metal dowel (F901) x 18
C
D
Large locking
nut (F900) x 18
F
H I
19mm Screw (F461) x 4
J K
G
13mm Screw (F63) x 8
E
Shelf support (F121) x 16
Nail (F51) x 22
Hinge plate
(F523) x 4
Hinge (F522) x 4
Handle (F287) x 2
40mm Screw (F910) x 4
L
Plastic Nail (F91) x 5
A
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Step 1
C
C
C
C
C
J
J
B
B
B
B
10mm
A
Prepare the left side
a: Tap a wooden dowel
. into the left side .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Screw 3 metal dowels
into the left side .
Note: Tighten the metal
dowels up fully against
the panels.
b: Insert 4 large locking
nuts into the left side
. .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Fit 2 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
A
b:
a:
2
2
2
J
B
2
C
2
J
2
C
Left fascia - holes
nearest this side
A
A
A
Assembly Instructions
5
Step 2
J
C
C
C
C
B
B
B
J
J
Prepare the right side
a: Tap a wooden dowel
. into the right side .
Screw 3 metal dowels
into the right side .
b: Insert 4 large locking
nuts into the right
side .
Fit 2 hinge plates onto
the right side , making
sure that the slot is
facing towards the
finished front edge.
A
3
B
3
C
3
J
3
b:
a:
Step 3
Prepare the 2 fascias
Check that the holes are
in the same place as the
diagrams, as one will be
the left fascia and one
will be the right fascia.
Screw 2 metal dowels
into each of the 2 fascias
. .
Tap a wooden dowel
into each of the 2 fascias
. .
B
9
10mm
A
9
A
x 1
x 1
B
B
B
B
Right fascia - holes
nearest this side
9
9
3
3
Assembly Instructions
6
Step 4
a:
b:
Join the left side to
the left fascia panel
a: Push the left side
down onto the left fascia
panel .
b: Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the left side .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
2
9
C
2
C
Dowel
this end
9
9
C
B
Left fascia
Right fascia
C
Dowel
this end
2
2
Step 5
Join the right side to
the right fascia panel
a: Push the right side
down onto the right
fascia panel .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the right side .
3
9
C
3
3
9
Finished
front edge
Finished
front edge
3
Assembly Instructions
7
Step 6
Step 7
Prepare the base
Insert 4 large locking
nuts into the base .
C
4
C
C
C
C
Finished
front edge
plain chipboard surface
4
Fit the base
Push the base onto
the right side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the base .
C
4
3
4
Step 8
4
plain chipboard surface
C
C
Prepare the 2 dividers
Insert 2 large locking
nuts into each of the
2 dividers .
5
C
x 2
5
Finished
front edge
Finished
front edge
Assembly Instructions
8
Step 9
G
G
G
G
5
4
5
A
Step 10
Prepare the plinth
Tap 2 wooden dowels
into the plinth .
Insert 2 large locking
nuts into the plinth .
8
8
A
C
C
C
A
plain chipboard surface
8
5
4
G
Fit the dividers
Attach the 2 dividers
to the base using 4
screws .
Note: To make it easier
to fit the 2 dividers, place
polystyrene blocks from
the packaging
underneath to raise them
up level.
Polystyrene
block
Fit the plinth
Push the plinth onto
the right side .
Use a screwdriver to
tighten the large locking
nut fitted to the plinth
. .
C
8
3
8
plain chipboard surface
3
8

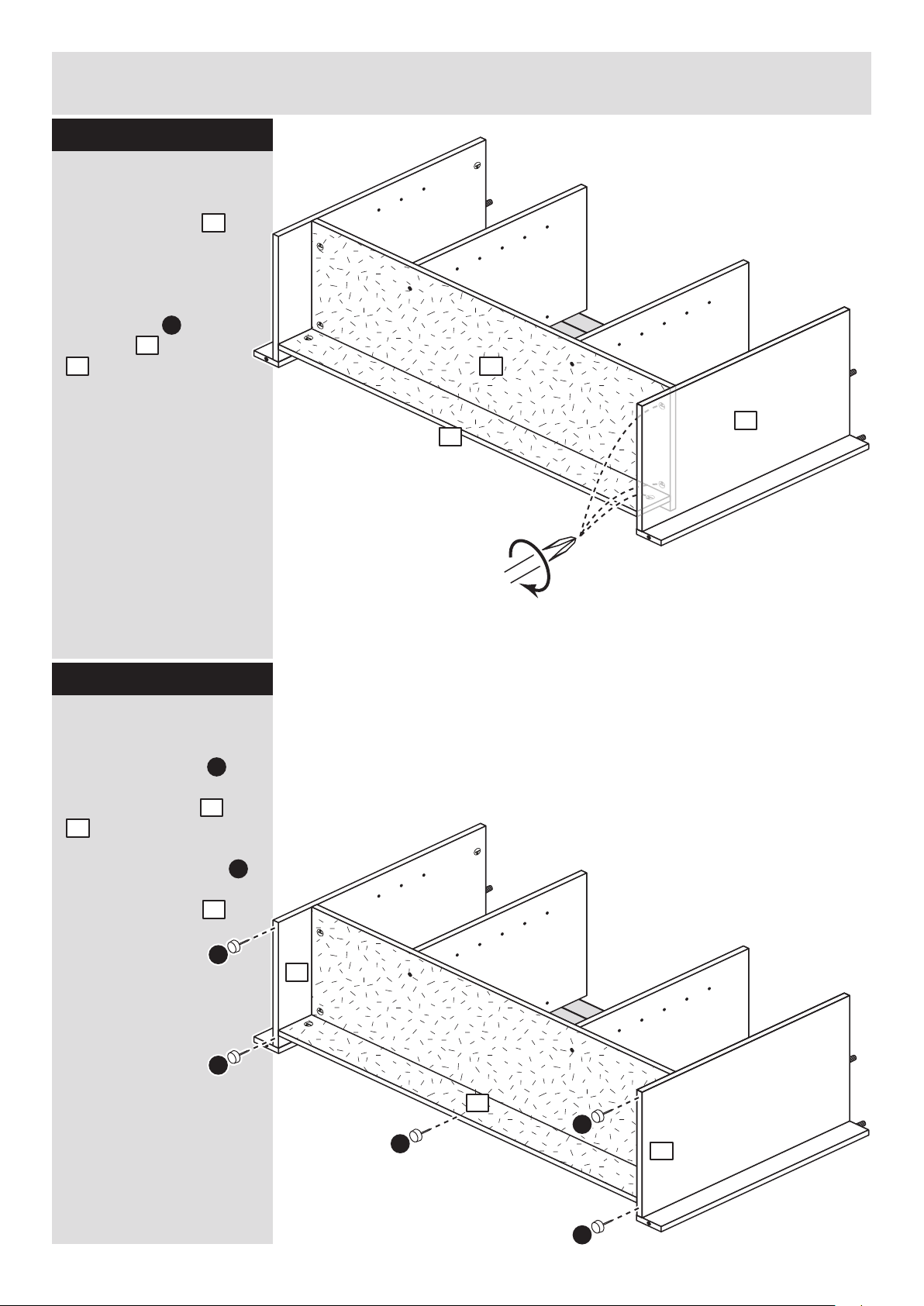

Step 11
Assembly Instructions
Step 12
2
9
8
Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the 3 large
locking nuts fitted to
the base and plinth
. .
2
C
4
8
2
4
Fit the 5 plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. .
The other plastic nail
taps into the the bottom
edge of the plinth . .
L
L
2
3
L
L
Step 13
8
L
L
L
8
3
Assembly Instructions
10
Step 14
Step 15
Fit the top
Carefully stand the
unit up for this step.
Push the top down
onto the assembly.
Use a screwdriver to
tighten the 8 large
locking nuts fitted to
the left side , the right
side and the 2
dividers .
1
C
2
3
5
Prepare the top
Screw 8 metal dowels
into the top .
B
1
B
B
B
B
B
B
B
B
Finished
front edge
Finished
front edge
1
2
5
5
3
Warning: The
unit is heavy.
Lift with care.
1
Assembly Instructions
Step 16
11
Fit the backs
Lay the unit back
down for this step.
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the 2 small
backs . . onto the unit.
Nail around the
outside edges of the
small backs .
c: Place the large back
. . onto the unit and
determine if you would
like a small gap at either
side or, a large gap on
one side, for cable
management.
Nail along the top and
bottom edges of the
large back .
Note: Nails should
be spaced out evenly.
Stand the unit up for
the next step.
11
E
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
11
Warning: The
unit is heavy.
Lift with care.
b:
E
11
y
y
x
12
12
E
12
c:
E
11
x
Assembly Instructions
Step 17
12
H
x 4
H
x 8
H
x 4
Fit the shelves
Insert 4 shelf studs for
each shelf at the
required height.
Lower the large shelves
. and small shelves
down onto the shelf
studs .
Make sure that the plastic
sleeve is fully pushed
onto the shelf stud.
H
H
Step 18
Prepare the 2 doors
Push fit 2 hinges into
each of the 2 doors .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
F
K
10
90
K
K
F
F
10
x 2
K
F
F
7
6
H
7
7
6
6
Assembly Instructions
13
Step 19
Small piece of
waste wood
Small piece of
waste wood
ONLY drill these
2 holes in 1 door
Drill 2 handle holes in
each of the doors
Important: Please follow
these instructions
carefully.
Lay the 2 doors
down onto a smooth
surface.
Check that the hinges
and holes are in the
same place as the
diagrams.
Note: We recommend
the use of a small piece
of waste wood, placed
behind the holes while
drilling, to reduce the
possibility of any
breakout.
Using the pilot holes in
the rear face of the door,
drill through the 2 holes
indicated opposite, using
a 2.5mm diameter drill.
Turn the door over and
open out the 2.5mm
holes that you have just
drilled by drilling back
through them with a
5mm drill.
10
This will be the
left hand door
This will be the
right hand door
IMPORTANT
Carefully choose which 2 holes
you need to drill in each door
10
10
ONLY drill these
2 holes in 1 door
Assembly Instructions
Step 20
14
Fit doors and handles
Note: The easiest way to
attach each door is
to fit the top hinge first,
then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would
indicate that the
recess at the
bottom of screw
B had not located
in the slot in the
hinge plate and
the hinge would
not be secure.
Remove the
hinge from the
hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
each door using 2
screws .
K
K
K
J
J
J
K
J
I
D
10
10
a: b:
c: d:
J
K
J
J
B
J
K
K
K
A
K
J
B
e:
D
D
I
10
10
I
Assembly Instructions
15
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 21
Warning: The
unit is heavy.
Lift with care.
Assembly is complete
ALR3083
b:
c:
d:
a:
Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
A
A
B
C
Loading...
