Argos ZCVOBC-FE-AR ASSEMBLY INSTRUCTIONS

MADE IN

BRITAIN

Dimensions

of each

cupboard

Width - 76cm

Depth - 39.5cm

Height - 50cm

Cheval - Overbed Cupboards

Assembly Instructions - Please keep for future reference

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Issue 1 - 20/01/14

Important - Please read these instructions fully before starting assembly

147/5634

151/3314

146/9918

144/1390

We recommend that you assemble any

Cheval Robe(s) you may have purchased

BEFORE you assemble these cupboards.

This will enable you to measure the correct

space and height required for the cupboards.

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Warning: The combined weight of the units is approximately 47kgs. Please lift with care.

• Check you have all the components and tools listed on pages 2 and 3.

• Remove all fittings from the plastic bags and separate them into their groups.

• Keep children and animals away from the work area, small parts could choke if swallowed.

• Parts of the assembly will be easier with 2 people.

• Make sure you have enough space to layout the parts before starting.

• Do not stand or put weight on the product, this could cause damage.

• Assemble the item as close to its final position (in the same room) as possible.

• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).

1

Care and maintenance

• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.

• From time to time check that there are no loose screws on this unit.

• This product should not be discarded with household waste. Take to your local authority waste disposal centre.

Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.

• We do not recommend the use of power drill/drivers for

inserting screws, as this could damage the unit. Only use hand screwdrivers.

• Safety note: It is recommended that this unit is secured to a wall using the brackets supplied.

• Dispose of all packaging carefully and responsibly.

Components - Panels

Please check you have all the panels listed below

2

1

2

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

4 5

6 7

Left Side (D2761A)

(484 x 372mm) x 3

Door (D2765A)

(480 x 373mm) x 6

Right Side (D2762A)

(484 x 372mm) x 3

Back (X738-476)

(738 x 476mm) x 3

Base (D2764A)

(728 x 371mm) x 3

Shelf (D2773A)

(727 x 350mm) x 3

3

Top (D2763A)

(760 x 393mm) x 3

Please check you have all the fittings listed below

3

Components - Fittings

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

Ruler - Use this ruler to help correctly identify the screws

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

A

Wooden dowel (F22) x 12

B

Metal dowel (F901) x 24

C

D E

Large locking nut (F900) x 24

F

G H I

J K

19mm Screw (F461) x 20

13mm Screw (F63) x 24

Handle (F273) x 6

25mm Screw (F50) x 12

Hanging bracket

(F849) x 6

Wall bracket (F198) x 6

Tools required

Rule

Scissors

Spirit level

Hammer Bradawl

Eye protection (when using a hammer or drill)

Cross-head screwdriver

Step ladder

Electric drill (only use when drilling into walls)

Square

mm

10

20

30

40

50

60

70

80

90

100

mm

10

20

30

40

50

60

70

80

90

100

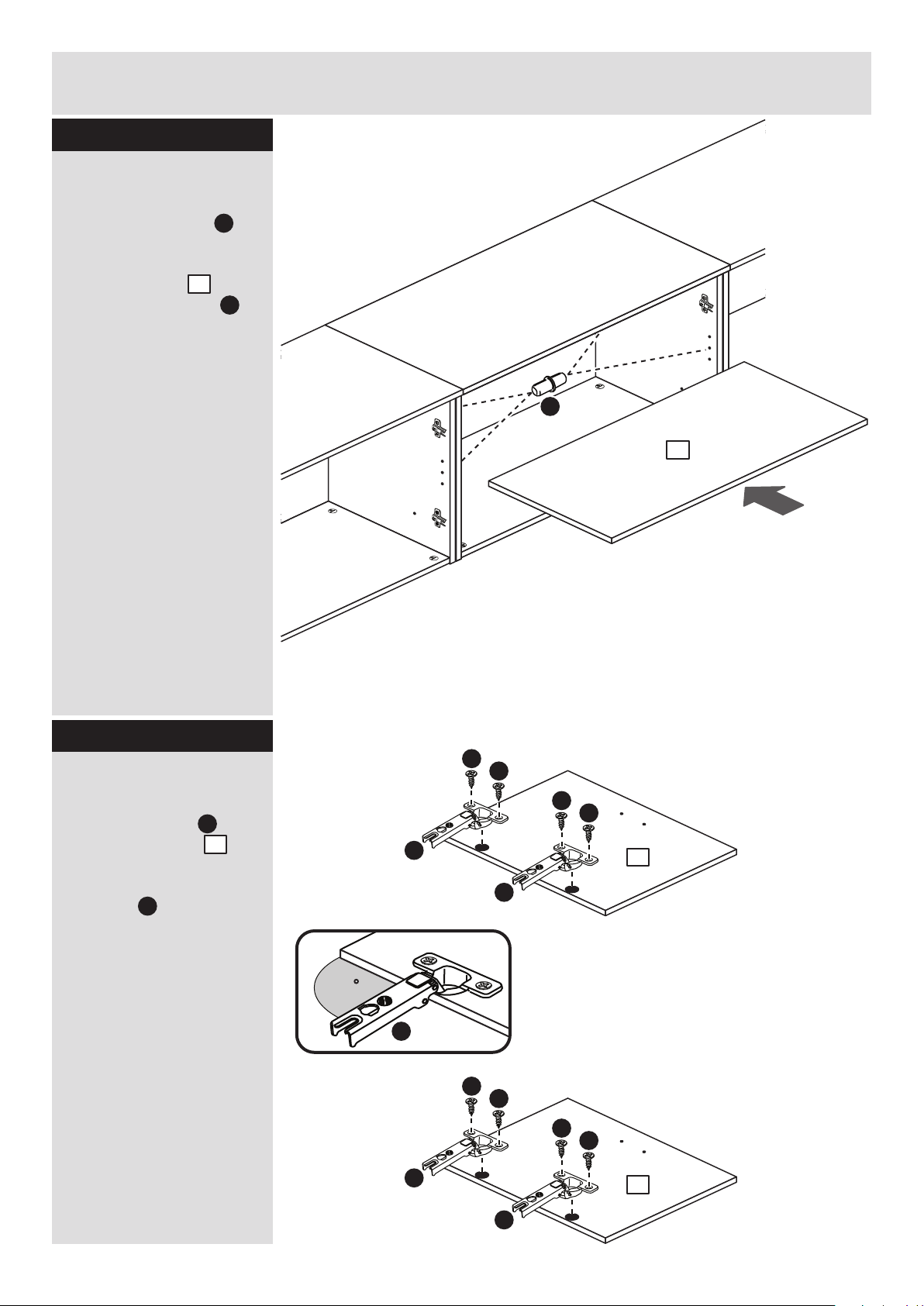

Connecting Sleeve (F432) x 8

Shelf stud (F110) x 12

L M

Hinge plate (F523) x 12

Hinge (F518) x 12

Assembly Instructions

4

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Step 1

Prepare the left side

Screw 2 metal dowels into the left side .

Note: Tighten the metal dowels up fully against the panels.

Insert 2 large locking nuts into the left side . .

Note: The arrow on the locking nut must point towards the hole in the edge of the panel.

Fit 2 hinge plates onto the left side , making sure that the slot is facing towards the finished front edge.

Fit a hanging bracket to the left side using 2 screws , making sure that the hook is towards the back edge.

Step 2

B

1

C

1

C

B

J

F

L

1

L

1

J

F

1

Prepare the right side

Screw 2 metal dowels into the right side .

Insert 2 large locking nuts into the right side .

Fit 2 hinge plates onto the right side , making sure that the slot is facing towards the finished front edge.

Fit a hanging bracket to the right side using 2 screws , making sure that the hook is towards the back edge.

B

2

C

2

L

2

J

F

2

C

B

J

F

L

2

Finished

front edge

Finished

front edge

These instructions will show you

how to build 1 overbed cupboard

Finished

front edge

A

Assembly Instructions

5

Fit the base to the right side

Push the base onto the right side .

Use a screwdriver to tighten the 2 large locking nuts fitted to the base .

Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.

Step 3

Step 4

C

A

10mm

A

Prepare the base

Tap 4 wooden dowels into the base .

Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.

Insert 4 large locking nuts into the base .

A

5

C

5

Finished

front edge

5

C

B

C

5

2

5

2

Fit the back

Slide the back along the groove in the base and on into the groove in the right side .

Important: Make sure that the cut-outs on the back are at the top of the assembly.

Step 5

2

6

5

Note: Support the back panel until the left side has been fitted in the next step.

7

5

2

Cut-outs

at the top

7

Assembly Instructions

6

Step 6

Fit the left side

Push the left side onto the base making sure that the back slots into the groove.

Use a screwdriver to tighten the 2 large locking nuts fitted to the base .

Hold the back in place and carefully stand the unit up

C

1

5

7

5

1

5

7

Prepare the top

Screw 4 metal dowels into the top .

B

3

B

Step 7

Fit the top

Lower the top down onto the assembly, making sure that the back slots into its groove.

Use a screwdriver to tighten the 4 large locking nuts fitted to the sides and .

Step 8

3

Finished

front edge

3

7

1 2

C

1

2

3

K

722mm

Assembly Instructions

7

Step 9

18mm

37mm

722mm

18mm

K K

Outline of

the unit

To adjust the height of

the unit on the wall,

turn the bottom screw

Pull the unit up

against the wall

by tightening

the top screw

J

K

Warning: The unit is heavy. Lift with care.

Fit the unit to the wall

To fix the unit to the wall, place the unit in the required position and lightly mark the outline of the top corners of the unit with a pencil.

Fit the 2 wall brackets to the dimensions shown in the top diagram. The screws and plugs are not supplied as they need to be the correct type to suit your wall.

Place your unit onto the wall brackets , via the hanging brackets which you have fitted to the sides and of the unit.

Turn the lower screw in the wall brackets to adjust the height of the unit.

Finally, pull the unit up against the wall by tightening the top screw in the hanging brackets . .

Warning: Take care when

drilling the wall that you do not drill into any pipes, wires etc. If in doubt, consult an expert.

K

J

1 2

J

IMPORTANT

If you are fitting these cupboards between

two robes or, a robe and a wall, please

measure the space required to fit the

cupboards and the height of the robe(s)

1

2
