MADE IN
BRITAIN
Dimensions
Width - 103cm
Depth - 49.5cm
Height - 200cm
Cheval - 3 Door Robe
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 2 - 08/09/14
Important - Please read these instructions fully before starting assembly
147/9489
147/7807
141/2219
152/5326
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 67kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 1, 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.

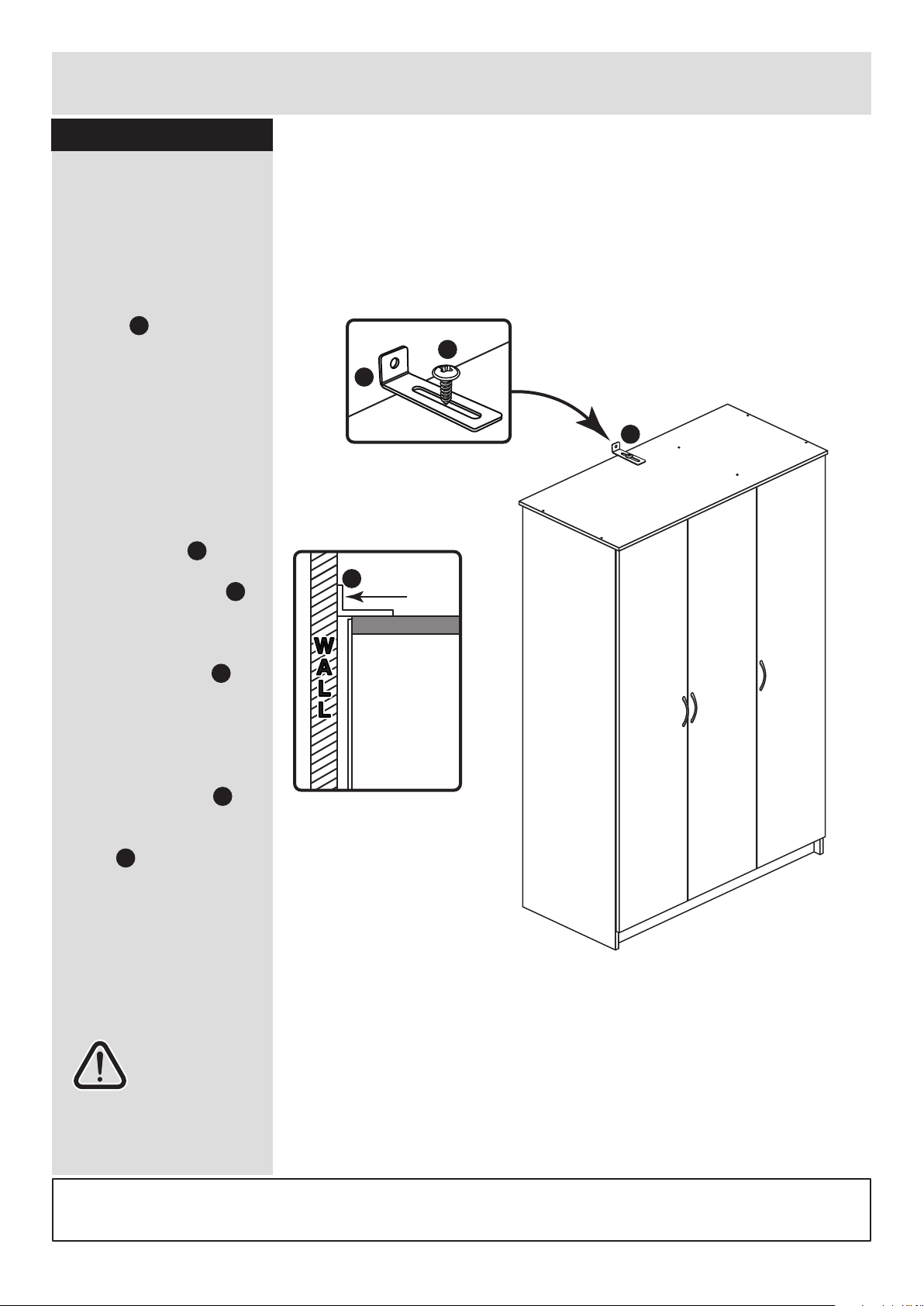

• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.
Tools required
Rule
Scissors
Spirit
level
Hammer Bradawl
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Step
ladder
Electric drill
(only use
when drilling
into walls)
Square
mm
10
20
30
40
50
60
70
80
90
100
mm
10
20
30
40
50
60
70
80
90
100
Components - Panels
Please check you have all the panels listed below
2
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
1 2 3
Door (D2725A)
(1888 x 337mm) x 3
7
10
12
13 14
Large Hanging Rail (FHR646)
(646mm long)
9
Small Hanging Rail (FHR317)
(317mm long) x 2
8
Left Side (D2720A)
(1981 x 458mm)
Right Side (D2726A)
(1981 x 458mm)
Large Horizontal (D2722A)
(654 x 456mm)
11
Plinth (D2729A)
(995 x 86mm)
Top (D2727A)
(1030 x 494mm)
Base (D2733A)
(995 x 456mm)
Upright (D2731A)
(1879 x 455mm)
Small Back (X1890-345)
(1890 x 345mm)
4
5
Large Back (X1890-674)
(1890 x 674mm)
6
Small Horizontal (D2732A)
(325 x 456mm)
Rail (D2724A)
(654 x 86mm) x 2
Please check you have all the fittings listed below
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
A
Wooden dowel (F22) x 26
B
Metal dowel (F901) x 18
C
D E
Large locking
nut (F900) x 18
F
G H I
L
Nail (F51) x 39
J
M
K
N
Rail Holder
(F891) x 6
19mm Screw (F461) x 6
13mm Screw (F63) x 3013mm Screw (F79) x 1
Bracket (F327) x 1
Handle (F274) x 3
40mm Screw (F910) x 8
Hinge (F518) x 9
Hinge plate
(F523) x 9
P
Plastic Nail (F91) x 4
Nail screw (F277) x 5
O
Back holder (F276) x 5
* These can also be round
A
A
Finished
front edge
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Step 1
Prepare the upright
a: Tap 4 wooden dowels
. into the upright .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Screw 2 metal dowels
into the upright .
Note: Tighten the metal
dowels up fully against
the panels.
Fit 2 rail holders to
the upright using 2
screws in each.
Turn the upright over
b: Screw 4 metal dowels
. into the upright .
Fit 3 hinge plates onto
the upright , making
sure that the slot is
facing towards the
finished front edge.
Fit a rail holder to the
upright using 2
screws .
A
B
3
3
B
3
I
3
H
To fit the rail holder, screw
through its top hole and into the
shallow mark hole drilled in the
panel. Make sure that it is fitted
straight, in line with the panel
edges and then fit another
screw using the lower hole.
H
I
H
I
I
H
H
B
B
A
A
I
H
H
b:
a:
10mm
A
B
K
H
3
Turn the upright over
3
K
I
3
H
Finished
front edge
K
K
K
B
B
I
H
3
B
B
Finished
front edge
Assembly Instructions
5
Step 2
Step 4
Step 3
Fit the large
horizontal to the
upright
Push the large horizontal
. onto the upright .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the large horizontal .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
10 3
C
C
10
B
C
A
Finished
front edge
A
A
A
C
C
C
C
C
10
Prepare the large
horizontal
Tap 4 wooden dowels
into the large horizontal
. .
Insert 4 large locking
nuts into the large
horizontal .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
A
10
10
C
Finished
front edge
10
3
A
A
Prepare the small
horizontal
Tap 4 wooden dowels
into the small horizontal
. .
Insert 4 large locking
nuts into the small
horizontal .
A
11
11
C
A
A
C
C
C
C
Finished
front edge
11
Finished
front edge
Finished
front edge
11
Assembly Instructions
6

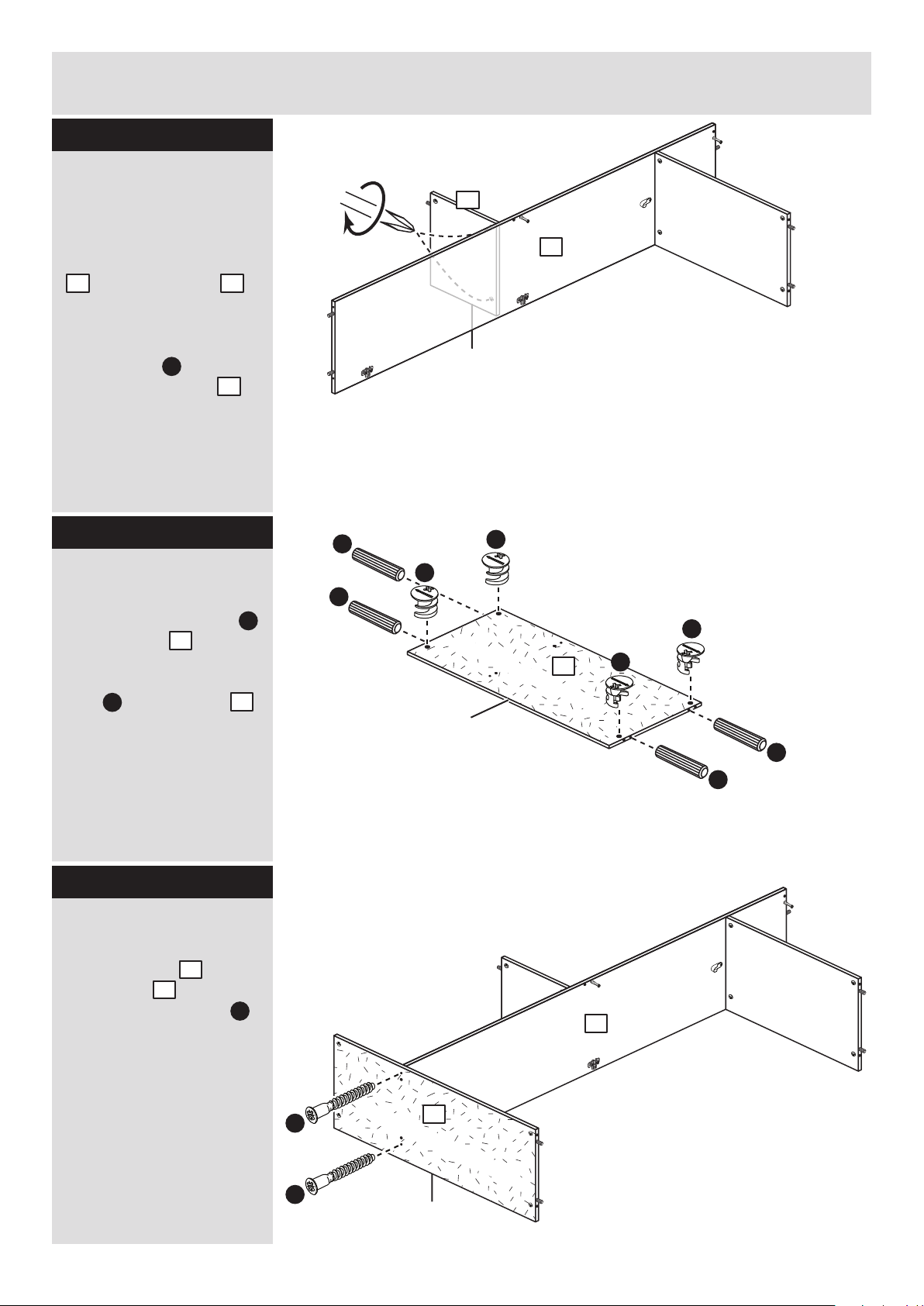

Step 5
Fit the small
horizontal to the
upright
Push the small horizontal
. onto the upright .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the small horizontal .
11 3
C
11
3
A
Finished
front edge
A
A
A
C
C
C
C
Step 6
Prepare the base
Tap 4 wooden dowels
into the base .
Insert 4 large locking
nuts into the base .
Step 7
A
5
5
C
Fit the base
Push the base onto
the upright and
secure with 2 screws .
E
E
5
5
5
3
3
E
plain chipboard surface
plain chipboard surface
Note: The base
can have a plain
chipboard surface.
2
A
A
Assembly Instructions
7
Step 8
Step 9
Fit the right side
Push the right side
onto the base and
small horizontal .
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the small horizontal
and the base .
Prepare the right side
Tap 2 wooden dowels
into the right side .
Screw 5 metal dowels
into the right side .
Fit 3 hinge plates onto
the right side , making
sure that the slot is
facing towards the
finished front edge.
Fit 2 rail holders to
the right side using 2
screws .
Note: Use the shallow
mark holes to fit the top
screw in the rail holders
(refer back to Step 1).
A
B
2
2
2
K
I
2
H
B
B
B
B
I
H
H
I
H
H
K
K
K
2
Finished
front edge
K
5
11
2
5
11
C
11
5
B
Finished
front edge
Assembly Instructions
8
Step 10
Step 12
Finished
top edge
A
A
C
C
Step 11
A
A
C
C
Prepare the plinth
Tap 2 wooden dowels
into the plinth .
Insert 2 large locking
nuts into the plinth .
A
6
6
C
6
7
Prepare the left side
Tap 2 wooden dowels
into the left side .
Screw 7 metal dowels
into the left side .
Fit 3 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
Fit a rail holder to the
left side using 2
screws .
A
B
1
1
1
K
I
1
H
Prepare the 2 rails
Tap 2 wooden dowels
into each of the rails .
Insert 2 large locking
nuts into each of the
rails .
A
7
7
C
A
A
10mm
A
K
K
K
K
B
B
B
B
B
B
1
I
H
H
B
Plain
chipboard
surface
x 2
Plain
chipboard
surface
Note: The plinth
can have a plain
chipboard surface.
Note: The 2 rails
can have a plain
chipboard surface.
Finished
front edge
Assembly Instructions
9
Step 13
Finished
top edge
6
7
Fit the plinth and rails
Push the plinth onto
the right side .
Use a screwdriver to
tighten the large locking
nut fitted to the plinth
. .
Push the rails onto
the upright .
Use a screwdriver to
tighten the large locking
nut fitted to the 2
rails .
2
C
6
6
3
C
7
7
3
6
7
Note: Support the
plinth and rails until
the left side has been
fitted in the next step.
1
Step 14
Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the 6 large
locking nuts fitted to
the base , plinth , 2
rails and large
horizontal .
1
C
5 6
7
10
5
10
2
Finished
top edge
7
7
E
E
E
E
E
E
Note: To make it easier to fit
the top panel, place polystyrene
blocks from the packaging
underneath the side and upright
panels to raise the assembly.
Polystyrene
block
Polystyrene
block
Assembly Instructions
10
Step 15
2
3
4
1
2
Fit the top
Push the top onto
the assembly and secure
it to the left side , right
side and upright
and using 6 screws .
4
1
2 3
E
Step 16
Fit the plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. as shown.
P
P
P
1
2
P
P
1
1
Assembly Instructions
Step 17
Fit the 2 backs
a: Square up the unit by
making sure that the
measurement x:x equals
y:y.
Place the small back
and large back onto
the unit as shown.
Make sure that the 2
backs are pushed up
tight against each other
and that they meet in the
centre of the divider’s
back edge.
b: Nail the backs
onto the back edge of
the 2 sides, the base, the
small horizontal and the
rail at the top.
Note: DO NOT nail
where the 2 backs meet
and along the top of the
small back.
c: Push the nail screws
. through the back
holders and tap them
down between the small
back and large back
. and into the back
edge of the upright .
Keep tapping the nail
screws in until the
back holders dig into
the small and large back.
D
N
O
13
14
3
N
O
y
11
3
b:
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
y
y
x
D
13
4
c:
13
14
Warning:
The unit is heavy.
Lift with care.
11
x
14
7
Stand the unit up
for the next step.
5
Note: If ever you need to take
the backs off to dismantle the
unit, the nail screws can be
taken out using a screwdriver.
N
O
N
O
13
14
O
ON
+
Note: These can
also be round
Assembly Instructions
12
Step 18
Step 19
I
Fit the hanging rail
Push the 2 small hanging
rails and the large
hanging rail into the
rail holders fitted to
the panels.
8
9
I
L
H
H
90
L
L
H
H
L
H
H
Prepare the 3 doors
Push fit 3 hinges into
each of the doors .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
H
L
12
12
x 3
9
8
8
9
8
Assembly Instructions
Step 20
13
Fit doors and handles
Note: The easiest way to
attach each door is
to fit the top hinge first,
then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
each door using 2
screws .
L
L
L
K
K
K
L
K
M
F
12
12
e:
a: b:
c: d:
K
L
K
K
B
K
L
L
L
A
L
K
B
F
M
F
12
M
M
12
12
Assembly Instructions
14
Step 21
Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
b:
c:
d:
a:
A
A
B
C
Assembly Instructions
15
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
ALR2963
Step 22
Top of Unit
WALL
WALL
Back of Unit
Fit the bracket
To prevent possible
overbalancing, we
recommend that this unit
is secured to a suitable
wall by use of the
bracket fitted to the
top of the unit.
Fixings are not supplied,
as they will need to suit
the wall type and the
length of screw will
depend on the distance
from the back of the unit
to the wall.
Fix the bracket
loosely onto the top of
the unit using screw
and mark the wall for the
wall fixing.
Swivel the bracket
away from the wall and
drill a hole in the wall
using a suitable drill bit
and fit your wall fixing.
Swivel the bracket
back and fix the bracket
to the wall, then tighten
screw .
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Warning: The
unit is heavy.
Lift with care.
Assembly is complete
J
J
G
J
J
G
J
G
J
J
IMPORTANT
If you have purchased the Cheval Overbed
Cupboards, you will need to fix them to the
wall BEFORE you fix the Robe to the wall.
Loading...
