Argos ZCVD3MR-BLO-AR, ZCVD3MR-WM-AR, ZCVD3MR-WO-AR, ZCVD3MR-FE-AR ASSEMBLY INSTRUCTIONS

MADE IN
BRITAIN
Dimensions
Width - 103cm
Depth - 49.5cm
Height - 200cm
Cheval - 3 Door Mirror Robe
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Important - Please read these instructions fully before starting assembly
147/2204
143/9388
146/7680
147/0361
Issue 2 - 08/09/14
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Warning: This unit weighs approximately 77kgs. Please lift with care.
• Check you have all the components and tools listed on pages 1, 2 and 3.
• Remove all fittings from the plastic bags and separate them into their groups.
• Keep children and animals away from the work area, small parts could choke if swallowed.
• Parts of the assembly will be easier with 2 people.
• Make sure you have enough space to layout the parts before starting.
• Do not stand or put weight on the product, this could cause damage.
• Assemble the item as close to its final position (in the same room) as possible.
• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).
1
Care and maintenance
• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.
• From time to time check that there are no loose screws on this unit.
• This product should not be discarded with household waste. Take to your local authority waste disposal centre.
Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.
• We do not recommend the use of power drill/drivers for
inserting screws, as this could damage the unit. Only use hand screwdrivers.
Safety note: It is recommended that this unit is secured to a wall using the bracket supplied.
• Dispose of all packaging carefully and responsibly.
Tools required
Rule
Scissors
Spirit level
Hammer Bradawl
Eye protection (when using a hammer or drill)
Cross-head screwdriver
Step ladder
Electric drill (only use when drilling into walls)
Square
mm
10
20
30
40
50
60
70
80
90
100
mm
10
20
30
40
50
60
70
80
90
100
Components - Panels
Please check you have all the panels listed below
2
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
1 2 3
7
10
12
13 14
Large Hanging Rail (FHR646)
(646mm long)
9
Small Hanging Rail (FHR317)
(317mm long) x 2
8
Left Side (D2720A)
(1981 x 458mm)
Right Side (D2726A)
(1981 x 458mm)
Large Horizontal (D2722A)
(654 x 456mm)
11
Plinth (D2729A)
(995 x 86mm)
Top (D2727A)
(1030 x 494mm)
Base (D2733A)
(995 x 456mm)
Upright (D2731A)
(1879 x 455mm)
Small Back (X1890-345)
(1890 x 345mm)
4
5
Large Back (X1890-674)
(1890 x 674mm)
6
Small Horizontal (D2732A)
(325 x 456mm)
Rail (D2724A)
(654 x 86mm) x 2
Mirror Door (D2725MA)
(1888 x 337mm) x 3
(Mirror - SG24 1817 x 260mm Safety Back SAR)
Please check you have all the fittings listed below
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
A
Wooden dowel (F22) x 26
B
Metal dowel (F901) x 18
C
D E
Large locking nut (F900) x 18
F
G H I
L
Nail (F51) x 39
J
M
K
N
Rail Holder (F891) x 6
19mm Screw (F461) x 6
13mm Screw (F63) x 3013mm Screw (F79) x 1
Bracket (F327) x 1
Handle (F274) x 3
40mm Screw (F910) x 8
Hinge (F518) x 9
Hinge plate (F523) x 9
P
Plastic Nail (F91) x 4
Nail screw (F277) x 5
O
Back holder (F276) x 5
* These can also be round
A
A
Finished
front edge
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below

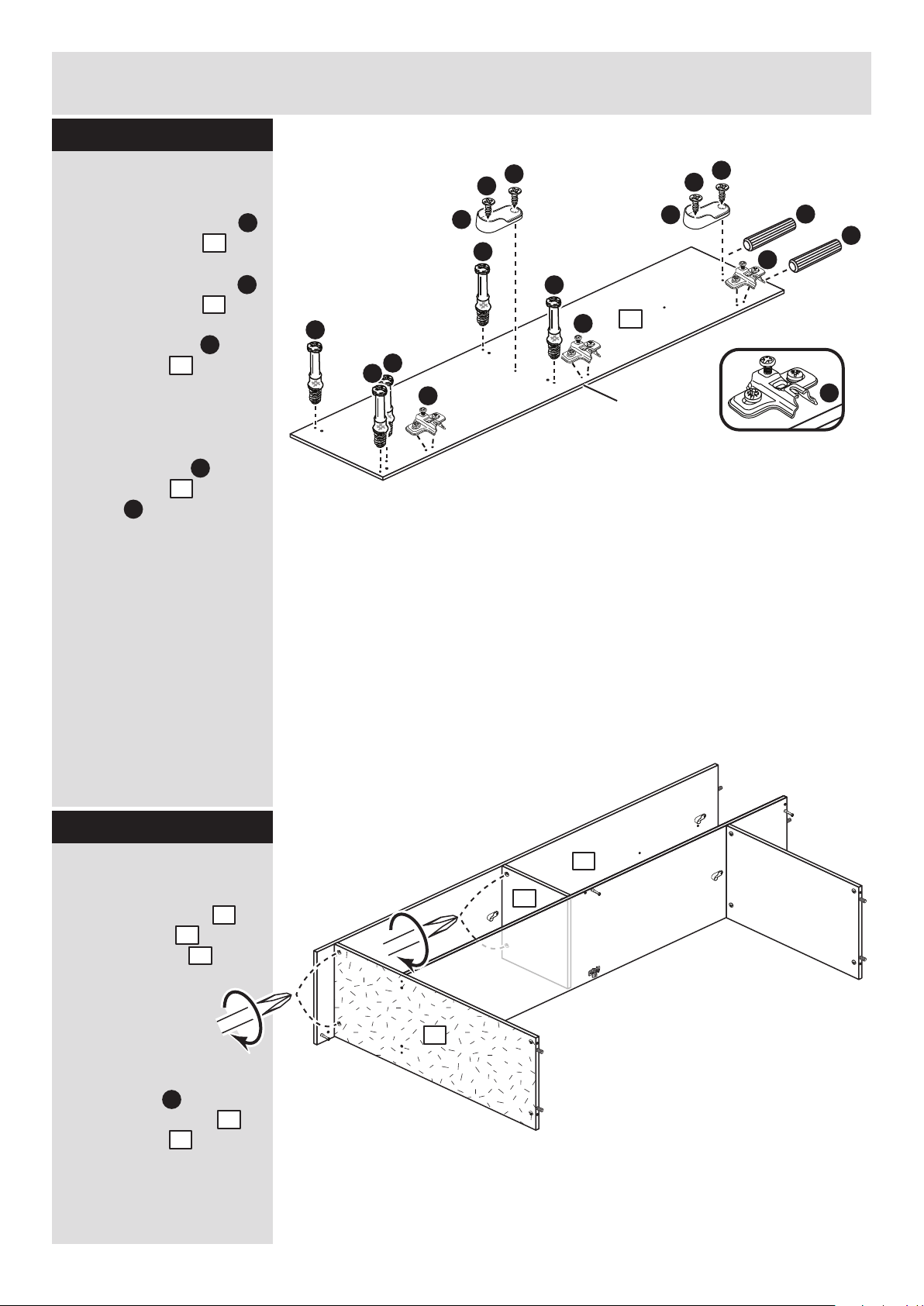

Step 1
Prepare the upright
a: Tap 4 wooden dowels
. into the upright .
Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.
Screw 2 metal dowels into the upright .
Note: Tighten the metal dowels up fully against the panels.
Fit 2 rail holders to the upright using 2 screws in each.
Turn the upright over
b: Screw 4 metal dowels
. into the upright .
Fit 3 hinge plates onto the upright , making sure that the slot is facing towards the finished front edge.
Fit a rail holder to the upright using 2 screws .
A
B
3
3
B
3
I
3
H
To fit the rail holder, screw through its top hole and into the shallow mark hole drilled in the panel. Make sure that it is fitted straight, in line with the panel edges and then fit another screw using the lower hole.
H
I
H
I
I
H
H
B
B
A
A
I
H
H
b:
a:
10mm
A
B
K
H
3
Turn the upright over
3
K
I
3
H
Finished
front edge
K
K
K
B
B
I
H
3
B
B
Finished
front edge
Assembly Instructions
5
Step 2
Step 4
Step 3
Fit the large horizontal to the upright
Push the large horizontal . onto the upright .
Use a screwdriver to tighten the 2 large locking nuts fitted to the large horizontal .
Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.
10 3
C
C
10
B
C
A
Finished
front edge
A
A
A
C
C
C
C
C
10
Prepare the large horizontal
Tap 4 wooden dowels into the large horizontal . .
Insert 4 large locking nuts into the large horizontal .
Note: The arrow on the locking nut must point towards the hole in the edge of the panel.
A
10
10
C
Finished
front edge
10
3
A
A
Prepare the small horizontal
Tap 4 wooden dowels into the small horizontal . .
Insert 4 large locking nuts into the small horizontal .
A
11
11
C
A
A
C
C
C
C
Finished
front edge
11
