Argos ZCPD3MR2-BD-AR ASSEMBLY INSTRUCTIONS

MADE IN

BRITAIN

Dimensions

Capella - 3 Door Mirror Robe

Assembly Instructions - Please keep for future reference

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Issue 5 - 23/04/14

Important - Please read these instructions fully before starting assembly

227/5390

238/8005

257/8334

246/3188

Width - 115cm

Depth - 49cm

Height - 181cm

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Warning: This unit weighs approximately 75kgs. Please lift with care.

• Check you have all the components and tools listed on pages 2 and 3.

• Remove all fittings from the plastic bags and separate them into their groups.

• Keep children and animals away from the work area, small parts could choke if swallowed.

• Parts of the assembly will be easier with 2 people.

• Make sure you have enough space to layout the parts before starting.

• Do not stand or put weight on the product, this could cause damage.

• Assemble the item as close to its final position (in the same room) as possible.

• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).

1

Care and maintenance

• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.

• From time to time check that there are no loose screws on this unit.

• This product should not be discarded with household waste. Take to your local authority waste disposal centre.

Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.

• We do not recommend the use of power drill/drivers for

inserting screws, as this could damage the unit. Only use hand screwdrivers.

• Safety note: It is recommended that this unit is secured to a wall using the bracket supplied.

• Dispose of all packaging carefully and responsibly.

Components - Panels

Please check you have all the panels listed below

2

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

1

Left Side (D1013A)

(1808 x 490mm)

2

Right Side (D1014A)

(1808 x 490mm)

Top/Base (D1018A)

(1119 x 471mm) x 2

Plinth (D1024A)

(1119 x 85mm)

8

Standard Door (D1017A)

(1701 x 369mm) x 2

9

4

5

7

Loose Shelf (D1023A)

(369.5 x 469mm) x 3

Long Divider (D1021A)

(1685 x 470mm)

3

1110

Small Back (X831A)

(1711 x 392mm)

Large Back (X830A)

(1711 x 753mm)

Hanging Rail (FHR722)

(722mm long)

6

Mirror Door (D1017MA)

(1701 x 369mm) x 1

(Mirror - SG13 - 1696 x 311mm 4mm Safety Back SAR)

Please check you have all the fittings listed below

3

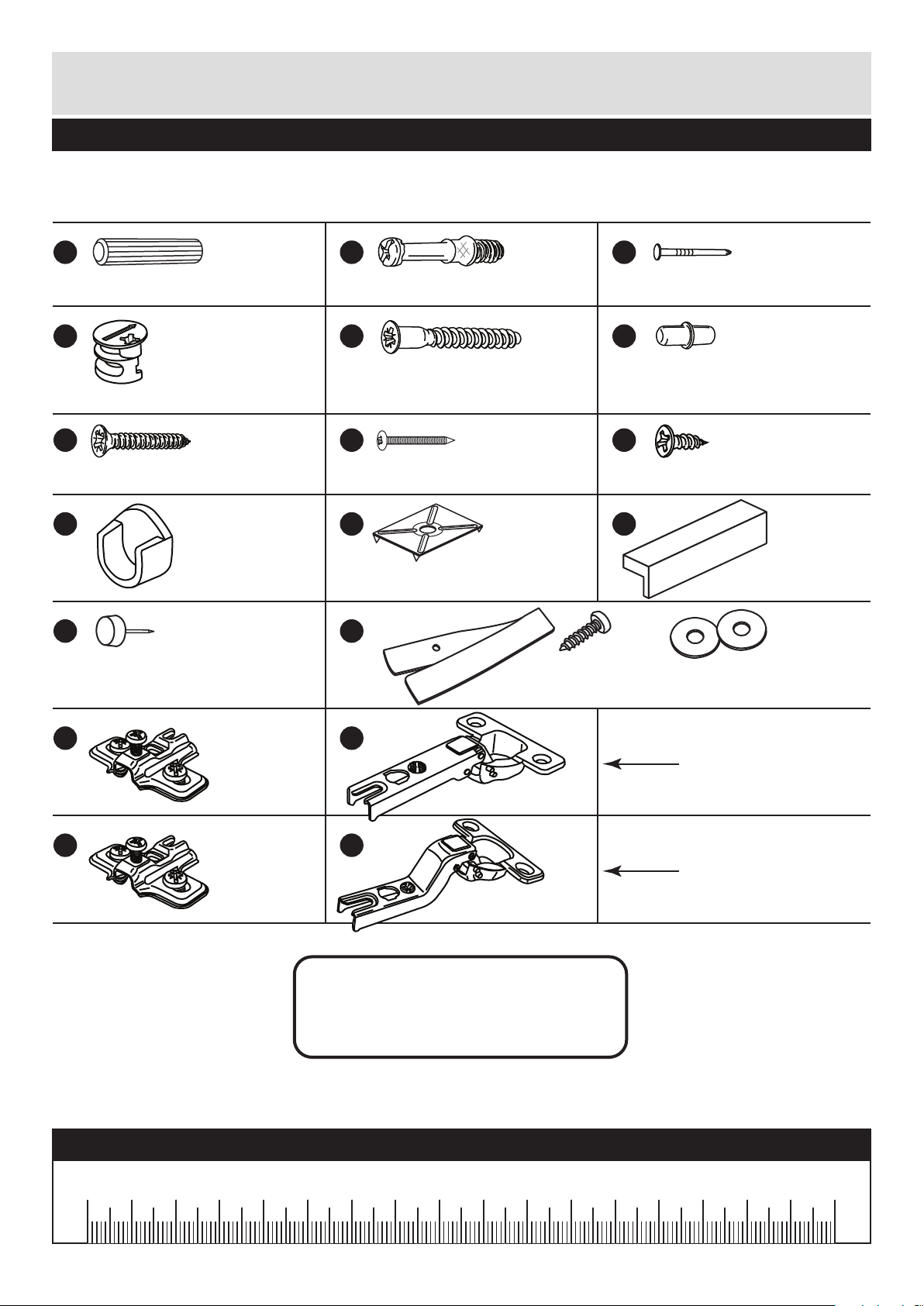

Components - Fittings

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

A

Wooden dowel (F22) x 10

B

Metal dowel (F901) x 10

C

D E

Large locking nut (F900) x 10

F

G H I

Nail (F51) x 40

25mm Screw (F50) x 6 13mm Screw (F79) x 1

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

Ruler - Use this ruler to help correctly identify the screws

J

13mm Screw (F63) x 18

K

Rail holder

(F1014) x 2

L

O

Shelf stud (F110) x 12

Handle (F930) x 3

Bracket (F327) x 1

N

R

Hinge (F522) x 6

40mm Screw (F910) x 4

Hinge (F518) x 3

M

Hinge plate (F523) x 9

Tools required

Rule

Scissors

Spirit level

Hammer Bradawl

Eye protection (when using a hammer or drill)

Cross-head screwdriver

Step ladder

Electric drill (only use when drilling into walls)

Square

mm

10

20

30

40

50

60

70

80

90

100

mm

10

20

30

40

50

60

70

80

90

100

P

Plastic Nail (F91) x 5

Q

Nail screw (F277) x 6 Back holder (F276) x 6

* These can also be round

Finished

front edge

Assembly Instructions

4

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Step 1

Prepare the long divider

Only carry out this step if you have chosen to fit the shelves on the right side.

Fit 3 hinge plates onto the long divider , making sure that the slot is facing towards the finished front edge.

Push a rail holder into the long divider . Make sure that it is fitted straight, in line with the panel edges.

M

3

J

3

Step 2

Prepare the long divider

Only carry out this step if you have chosen to fit the shelves on the left side.

Fit 3 hinge plates onto the long divider , making sure that the slot is facing towards the finished front edge.

Push a rail holder into the long divider . Make sure that it is fitted straight, in line with the panel edges.

M

3

J

3

Step 3

M

3

J

Choose which side you would like the shelves

Shelves on

the right side

Shelves on

the left side

3

M

J

Finished

front edge

3

Assembly Instructions

5

Step 4

Step 5

Prepare the top and base

Tap 4 wooden dowels into the top and base . as shown.

Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.

Insert 4 large locking nuts into the top and base as shown.

Note: The arrow on the locking nut must point towards the hole in the edge of the panel.

D

A

10mm

A

4

D

Finished

front edge

x 2

D

Important: If one of the top/base panels has a plain chipboard surface this must be used as the base.

E

Finished

front edge

Finished

front edge

Finished

front edge

E

4

Fit top and base to the long divider

Only carry out this step if you have chosen to fit the shelves on the right side.

Attach the top to the long divider using 2 screws .

Attach the base to the long divider using 2 screws .

E

4

3

4

3

E

4

3

E

Important: If one of the top/base panels has a plain chipboard surface this must be used as the base.

Finished

front edge

Finished

front edge

Assembly Instructions

6

Step 6

Step 7

E

Finished

front edge

E

4

Fit top and base to the long divider

Only carry out this step if you have chosen to fit the shelves on the left side.

Attach the top to the long divider using 2 screws .

Attach the base to the long divider using 2 screws .

E

4

3

4

3

E

4

3

E

Important: If one of the top/base panels has a plain chipboard surface this must be used as the base.

Profiled

front edge

Prepare the right side

Fit 3 hinge plates onto the right side , making sure that the slot is facing towards the finished front edge.

Screw 5 metal dowels into the right side .

Note: Tighten the metal dowels up fully against the panels.

Refer to step 1 and, only

if you have chosen to put the shelves on the left side, push a rail

holder into the right side . Make sure that it is fitted straight, in line with the panel edges.

M

2

B

2

M

B

2

J

2

Assembly Instructions

7

Step 8

Step 9

Profiled

front edge

1

M

Prepare the left side

Fit 3 hinge plates onto the left side , making sure that the slot is facing towards the finished front edge.

Screw 5 metal dowels into the left side .

Note: Tighten the metal dowels up fully against the panels.

Refer to step 1 and, only

if you have chosen to put the shelves on the right side, push a rail

holder into the left side . Make sure that it is fitted straight, in line with the panel edges.

B

J

B

M

1

B

1

J

1

Profiled

front edge

of right side

Fit the right side

Push the right side onto the top and base as shown.

Use a screwdriver to tighten the 4 large locking nuts fitted to the top and base .

Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.

D

B

4

2

4

4 4

D

Note: From now on the diagrams show the long divider on the right side of the unit. You may have fitted it to the left side.

Assembly Instructions

8

Step 10

Step 12

5

Fit the left side

Push the left side onto the top , base and plinth .

Use a screwdriver to tighten the 5 large locking nuts fitted to the top , base and plinth .

Step 11

1

4 4

5

D

4 4

5

1

4

Prepare the plinth

Tap 2 wooden dowels into the plinth .

Insert 2 large locking nuts into the plinth . .

D

A

D

5

A

5

D

Plain chipboard

surface

Fit the plinth

Push the plinth onto the right side .

Use a screwdriver to tighten the large locking nut fitted to the plinth .

5

2

D

5

2

Note: Support the plinth until the left side has been fitted in the next step.

Assembly Instructions

9

Step 13

Fit the back panels

a: Square up the unit by

making sure that measurement x to x

equals y to y.

b: Place the small back

. and large back coloured surface facing down, onto the unit as shown.

Make sure that the 2 backs and are pushed up tight against each other and that they meet in the centre of the long divider’s back edge.

Nail around the outside edges of the 2 backs and .

Note: Do not nail where the 2 backs meet. Nails should be spaced out evenly.

c: Push the 6 nail

screws through the 6 back holders and tap them down between the 2 backs and and into the back edge of the long divider .

Keep tapping the nail screws in until the back holders dig into the backs.

C

10 11

10

3

11

Warning: The unit is heavy. Lift with care.

y

x

y

x

10

11

b:

C

The measurement from top corner X to bottom corner X must be

equal to the measurement from top corner Y to bottom corner Y

a:

3

Impotant: If you have fitted the long divider on the left side of the unit the backs will need to go the opposite way around i.e. the small back on the left side and the large back on the right side.

Left side

Right side

RQ

+

Q

R

10

11

R

c:

Q

R

Q

R

10 11

3

Note: These can also be round

Assembly Instructions

10

Step 14

Warning: The unit is heavy. Lift with care.

Fit the 5 plastic nails

Tap 2 plastic nails into the bottom edge of each of the sides and . and 1 into the plinth .

P

1

2

Stand the unit up for the next step.

5

P

1

2

5

P

Assembly Instructions

11

Step 15

F

Fit the hanging rail and shelves

Push the hanging rail into the rail holders fitted to the left side and long divider .

For each of the 3 shelves , insert 4 shelf studs at the required height.

Lower the 3 shelves down onto the shelf studs .

1

6

3

J

6

J

6

7

13

M

7

F

1

3

Note: You may have fitted the long divider to the left side therefore the shelves will go on the left and the hanging rail on the right.

Assembly Instructions

12

Step 16

Prepare the 2 standard doors

Important: The 6 hinges used in this step are in the bag marked as AHP1546.

Push fit 3 hinges into each standard door .

Secure each hinge with 2 screws .

Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees with the edge of the door.

90

O

I

O

I

O

I

8

I

x 2

x 1

AHP1546

AHP1043

Step 17

Prepare the mirror door

Important: The 3 hinges used in this step are in the bag marked as AHP1043.

Push fit 3 hinges into the mirror door .

Secure each hinge with 2 screws .

Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees with the edge of the door.

N

9

N

I

90

N

I

N

I

N

I

AHP1043

AHP1546

9

Warning: Glass! Handle with care

L

Assembly Instructions

13

Step 18

Fit the standard doors and handles

Note: The easiest way to attach each door is to fit the top hinge first, then align and fit the other hinges.

a: Push the hinge

onto the front part of the hinge plate . The recess at the bottom of screw B goes into the slot in the hinge plate.

b: Keep the hinge

FLAT against the hinge plate as you slide it across as far as it will go. Tighten screw A.

c: The hinge must be

flat against the hinge plate prior to any adjustment.

d: The hinge must

NOT be AT AN ANGLE to the hinge plate when assembled. This would indicate that the recess at the bottom of screw B had not located in the slot in the hinge plate and the hinge would not be secure. Remove the hinge from the hinge plate and then re-assemble being careful to follow instructions a-c.

e: Attach a handle to

each standard door using 2 screws .

O

M

O

M

L

G

8

e:

a: b:

c: d:

M

O

M

B

M

O

A

O

M

B

8

L

G

Note: This diagram shows the long divider on the right side of the unit. You may have fitted it to the left side.

Assembly Instructions

14

Step 19

L

G

Fit the mirror door and handle

Note: The easiest way to attach the mirror door . is to fit the top hinge first, then align and fit the other hinges.

a: Push the hinge

onto the front part of the hinge plate . The recess at the bottom of screw B goes into the slot in the hinge plate.

b: Keep the hinge

FLAT against the hinge plate as you slide it across as far as it will go. Tighten screw A.

c: The hinge must be

flat against the hinge plate prior to any adjustment.

d: The hinge must

NOT be AT AN ANGLE to the hinge plate when assembled. This would indicate that the recess at the bottom of screw B had not located in the slot in the hinge plate and the hinge would not be secure. Remove the hinge from the hinge plate and then re-assemble being careful to follow instructions a-c.

e: Attach a handle to

the mirror door using 2 screws .

N

M

N

M

L

G

9

e:

a: b:

c: d:

M

N

M

B

M

N

A

N

M

B

9

Warning: Glass! Handle with care

Note: This diagram shows the mirror door being fitted to the long divider on the right side of the unit. You may have fitted the long divider to the left side.

Assembly Instructions

15

Step 20

b:

c:

d:

a:

Adjust the doors if needed

a: Before adjusting the

doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges, as shown.

b: Height adjustment.

Loosen screws A on hinge plates and move door up or down as required. Retighten screw A.

c: Forward and Back

adjustment. Loosen screw B on hinge plate and move door in or out as required. Retighten screw B.

d: Sideways

adjustment. To move door ‘out’ loosen screw C. To move door ‘in’ tighten screw C.

A

B

C

This shows the hinge and plate that is

fitted to the standard doors.

The ones fitted to the mirror door are

adjusted in the same way.

Assembly Instructions

16

Step 21

Top of Unit

WALL

Back of Unit

Fit the bracket

To prevent possible overbalancing, we recommend that this unit is secured to a suitable wall by use of the bracket fitted to the top of the unit.

Fixings are not supplied, as they will need to suit the wall type and the length of screw will depend on the distance from the back of the unit to the wall.

Fix the bracket loosely onto the top of the unit using screw and mark the wall for the wall fixing.

Swivel the bracket away from the wall and drill a hole in the wall using a suitable drill bit and fit your wall fixing.

Swivel the bracket back and fix the bracket to the wall, then tighten Screw .

Note: Take care when drilling the wall that you do not drill into any pipes, wires etc. If in doubt, consult an expert.

Warning: The unit is heavy. Lift with care.

K

H

K

H

K

H

K

Assembly Instructions

17

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

and quote the reference numbers on the component pages.

Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW

Step 22

Assembly is complete

IMPORTANT INFORMATION ABOUT THIS PRODUCT

This product complies with the requirements of BS 7449:1991 and has been

manufactured by

DECORATIVE PANELS FURNITURE LTD, TEESSIDE

INDUSTRIAL ESTATE, THORNABY-ON-TEES, CLEVELAND, TS17 9LT

.

The product code for this unit and the item code(s) for the glass

components are listed in the Assembly Instructions along with a description

of the type of glass used. All clear/tinted glass complies with the

requirements of BS 6206 Class A. All mirrors comply with the requirements of BS 6206 Class C. If the glass component contained in this unit is chipped or broken consult the furniture manufacturer, retailer, or agent with regard to

obtaining a manufacturing specification and shape for replacement glass

quoting the unit description and batch number or date of manufacture.

Do not place very hot or very cold items against or in close proximity to

glass surface(s) unless adequately thick insulating material is used to

prevent such items coming in contact with the glass.

Do not strike the glass with hard or pointed items.

Do not sit or stand upon horizontal glass surfaces.

When cleaning glass panels use a damp cloth or leather with washing up

liquid or soft soap if necessary - do not use washing powders or any other

substance containing abrasives since these substances scratch glass.

If stated in the instruction leaflet, it is essential that this unit is fixed to a wall.

KEEP THESE INSTRUCTIONS FOR FUTURE USE
