Argos ZCPD2R2-BD-AR ASSEMBLY INSTRUCTIONS

MADE IN

BRITAIN

Dimensions

Width - 78cm

Depth - 49cm

Height - 181cm

Capella - 2 Door Robe

Assembly Instructions - Please keep for future reference

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Issue 3 - 26/03/14

Important - Please read these instructions fully before starting assembly

267/9965

259/9760

228/5964

615/6154

257/7548

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Warning: This unit weighs approximately 44kgs. Please lift with care.

• Check you have all the components and tools listed on pages 2 and 3.

• Remove all fittings from the plastic bags and separate them into their groups.

• Keep children and animals away from the work area, small parts could choke if swallowed.

• Parts of the assembly will be easier with 2 people.

• Make sure you have enough space to layout the parts before starting.

• Do not stand or put weight on the product, this could cause damage.

• Assemble the item as close to its final position (in the same room) as possible.

• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).

1

Care and maintenance

• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.

• From time to time check that there are no loose screws on this unit.

• This product should not be discarded with household waste. Take to your local authority waste disposal centre.

Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.

• We do not recommend the use of power drill/drivers for

inserting screws, as this could damage the unit. Only use hand screwdrivers.

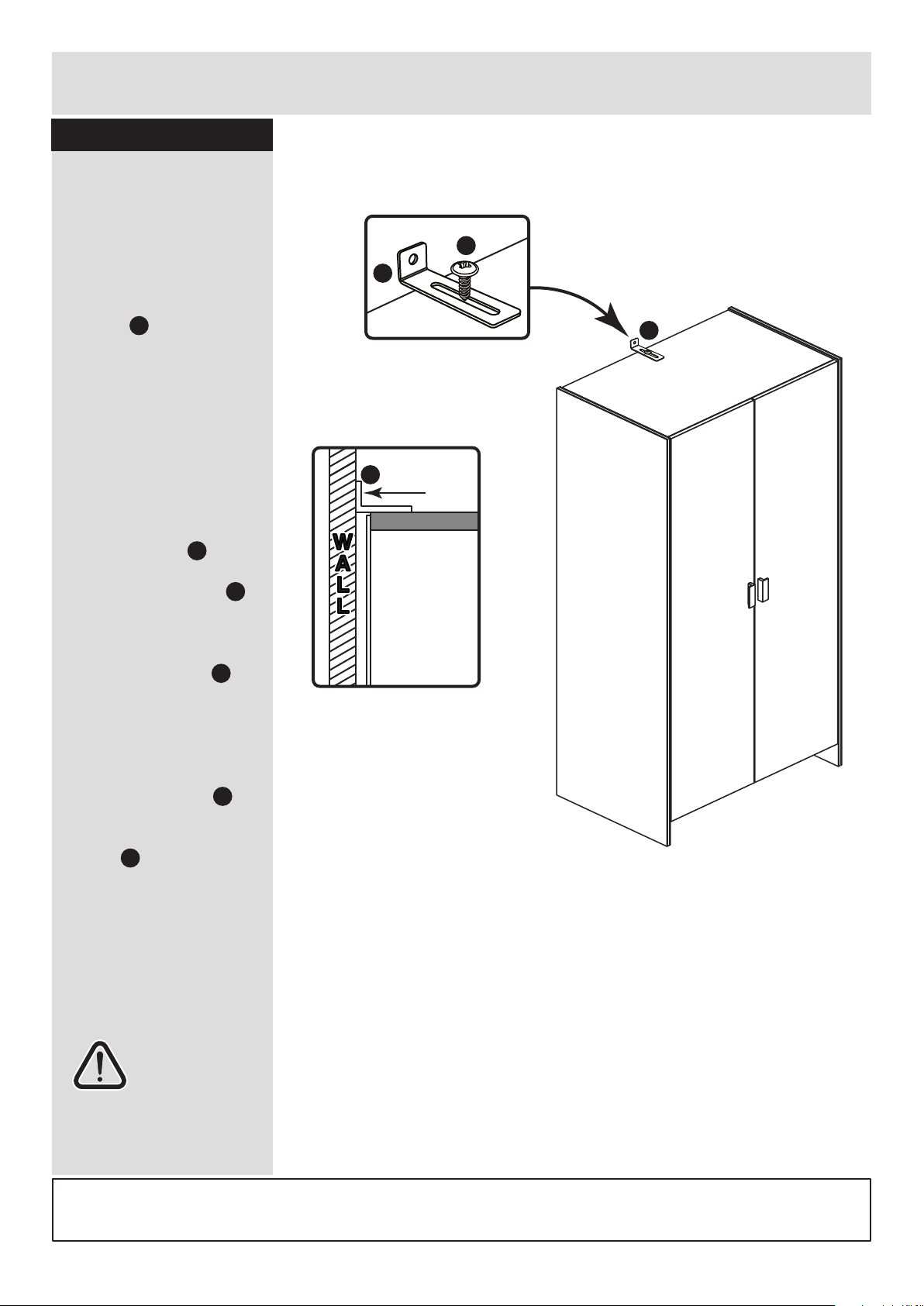

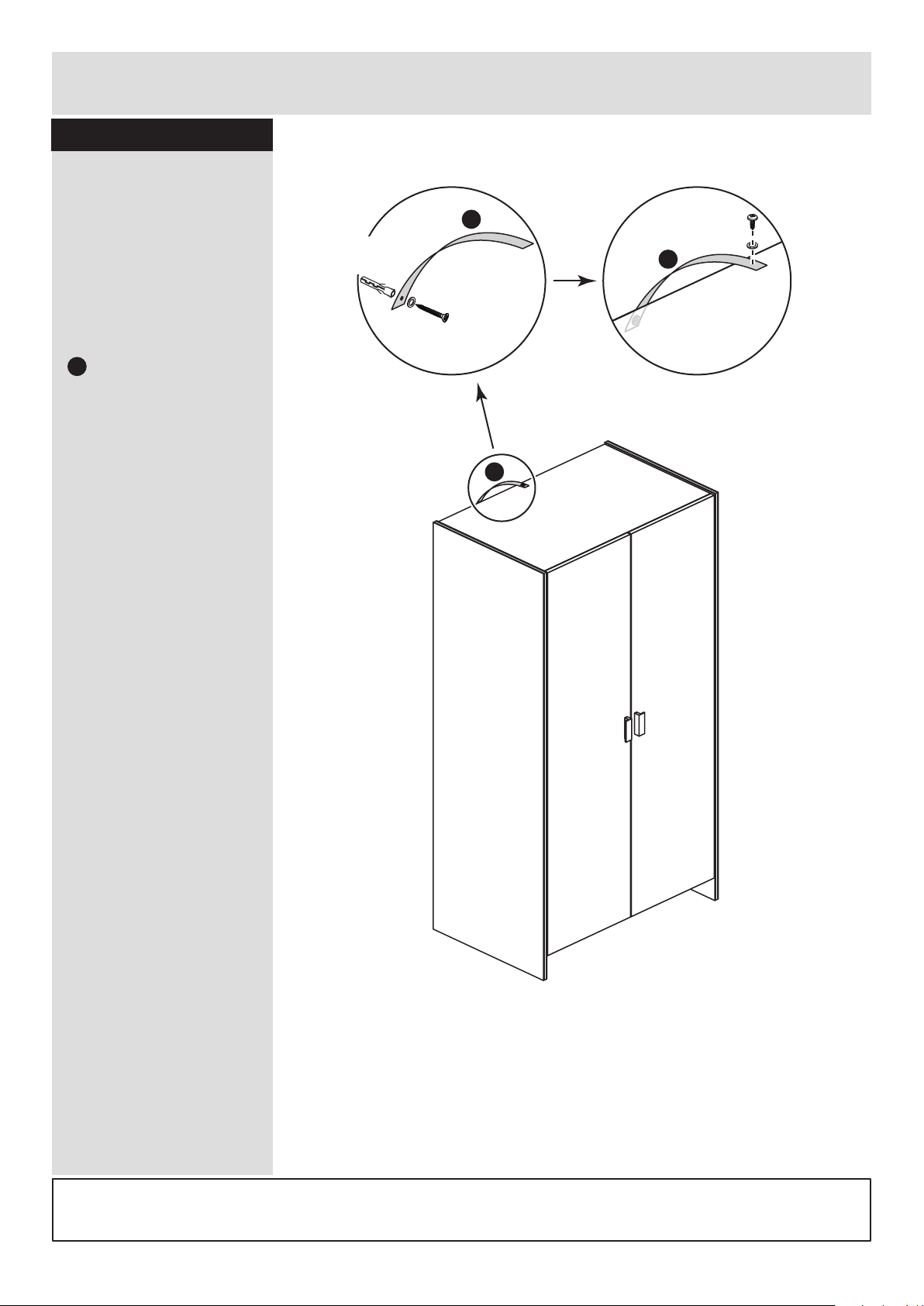

• Safety note: It is recommended that this unit is secured to a wall using the bracket supplied.

• Dispose of all packaging carefully and responsibly.

Components - Panels

Please check you have all the panels listed below

2

1

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

2

Top/Base (D1015A)

(747 x 471mm) x 2

Door (D1017A)

(1701 x 369mm) x 2

Back (X829A)

(1711 x 773mm)

Plinth (D1016A)

(747 x 85mm)

Left Side (D1013A)

(1808 x 490mm)

6

7

Right Side (D1014A)

(1808 x 490mm)

3

4

Hanging Rail (FHR737)

(737mm long)

5

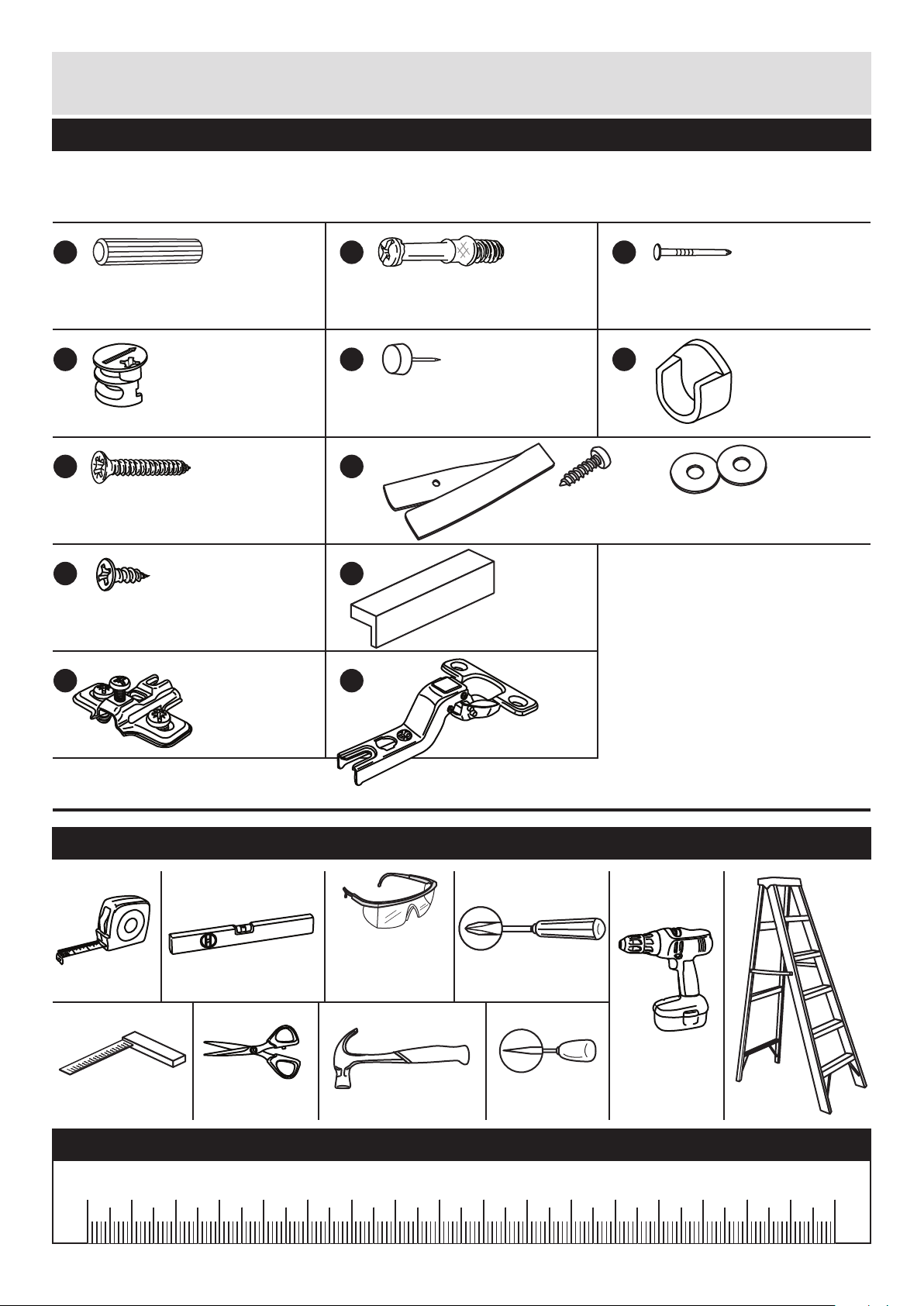

Please check you have all the fittings listed below

3

Components - Fittings

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

A

Wooden dowel (F22) x 10

B

Metal dowel (F901) x 10

C

D E

Large locking nut (F900) x 10

F

G H I

Nail (F51) x 34

J K

Rail holder

(F1014) x 2

Handle (F930) x 2

25mm Screw (F50) x 4 13mm Screw (F79) x 1

L

Hinge (F522) x 6

Hinge plate (F523) x 6

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

Tools required

Rule

Scissors

Spirit level

Hammer Bradawl

Eye protection (when using a hammer or drill)

Cross-head screwdriver

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

Step ladder

Ruler - Use this ruler to help correctly identify the screws

Electric drill (only use when drilling into walls)

Square

mm

10

20

30

40

50

60

70

80

90

100

mm

10

20

30

40

50

60

70

80

90

100

13mm Screw (F63) x 12

Bracket (F327) x 1

M

Plastic Nail (F91) x 4

Profiled

front edge

Profiled

front edge

Assembly Instructions

4

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

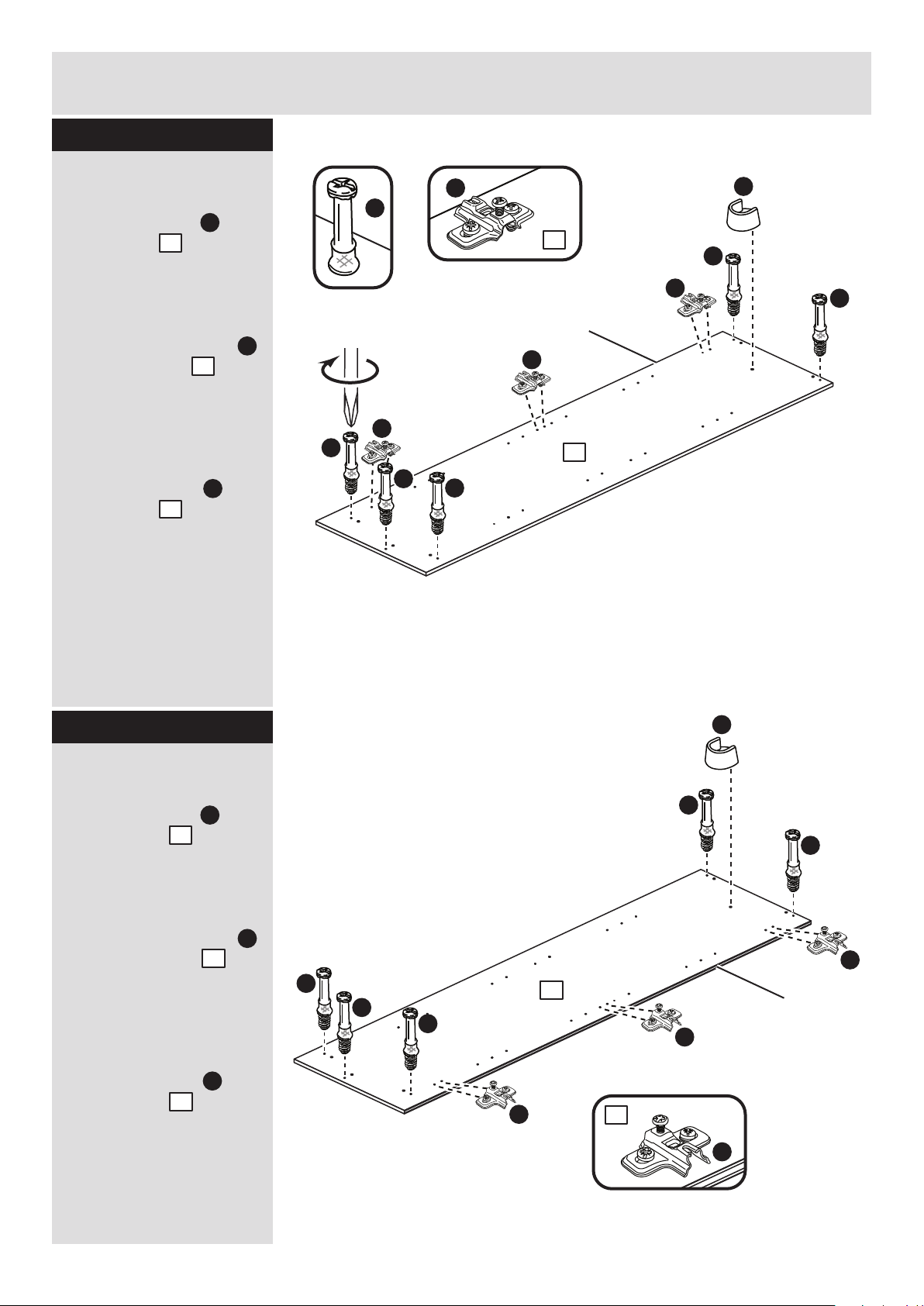

Step 1

Step 2

1

K

Prepare the left side

Fit 3 hinge plates onto the left side , making sure that the slot is facing towards the finished front edge.

Screw 5 metal dowels into the left side .

Note: Tighten the metal dowels up fully against the panels.

Push a rail holder into the left side . Make sure that it is fitted straight, in line with the panel edges.

B

F

B

K

1

B

1

F

1

Prepare the right side

Fit 3 hinge plates onto the right side , making sure that the slot is facing towards the finished front edge.

Screw 5 metal dowels into the right side .

Note: Tighten the metal dowels up fully against the panels.

Push a rail holder into the right side . Make sure that it is fitted straight, in line with the panel edges.

K

2

B

2

F

2

K

B

F

2

Profiled

front edge

Finished

front edge

Finished

front edge

A

Assembly Instructions

5

Step 3

Step 4

Prepare the top and base

Tap 4 wooden dowels into the top and base . as shown.

Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.

Insert 4 large locking nuts into the top and base as shown.

Note: The arrow on the locking nut must point towards the hole in the edge of the panel.

D

A

10mm

A

3

D

Finished

front edge

3

Fit the top and base to the right side

Push the top and base onto the right side as shown.

Use a screwdriver to tighten the 4 large locking nuts fitted to the top and base .

Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.

3

2

D

3 3

D

B

3

2

x 2

Important: If one of the top/base panels has a plain chipboard surface this must be used as the base.

Profiled

front edge

A

Assembly Instructions

6

Step 5

D

A

Prepare the plinth

Tap 2 wooden dowels into the plinth .

Insert 2 large locking nuts into the plinth

4

D

.

Note: Support the plinth until the left side has been fitted in the next step.

Step 6

Fit the plinth

Push the plinth onto the right side as shown.

Use a screwdriver to tighten the large locking nut fitted to the plinth . .

Step 7

Fit the left side

Push the left side onto the assembly.

Use a screwdriver to tighten the 5 large locking nuts fitted to the top , base and plinth .

4

2

4

2

D

4

3

1

D

3 3

4

Plain chipboard

surface

y

Assembly Instructions

7

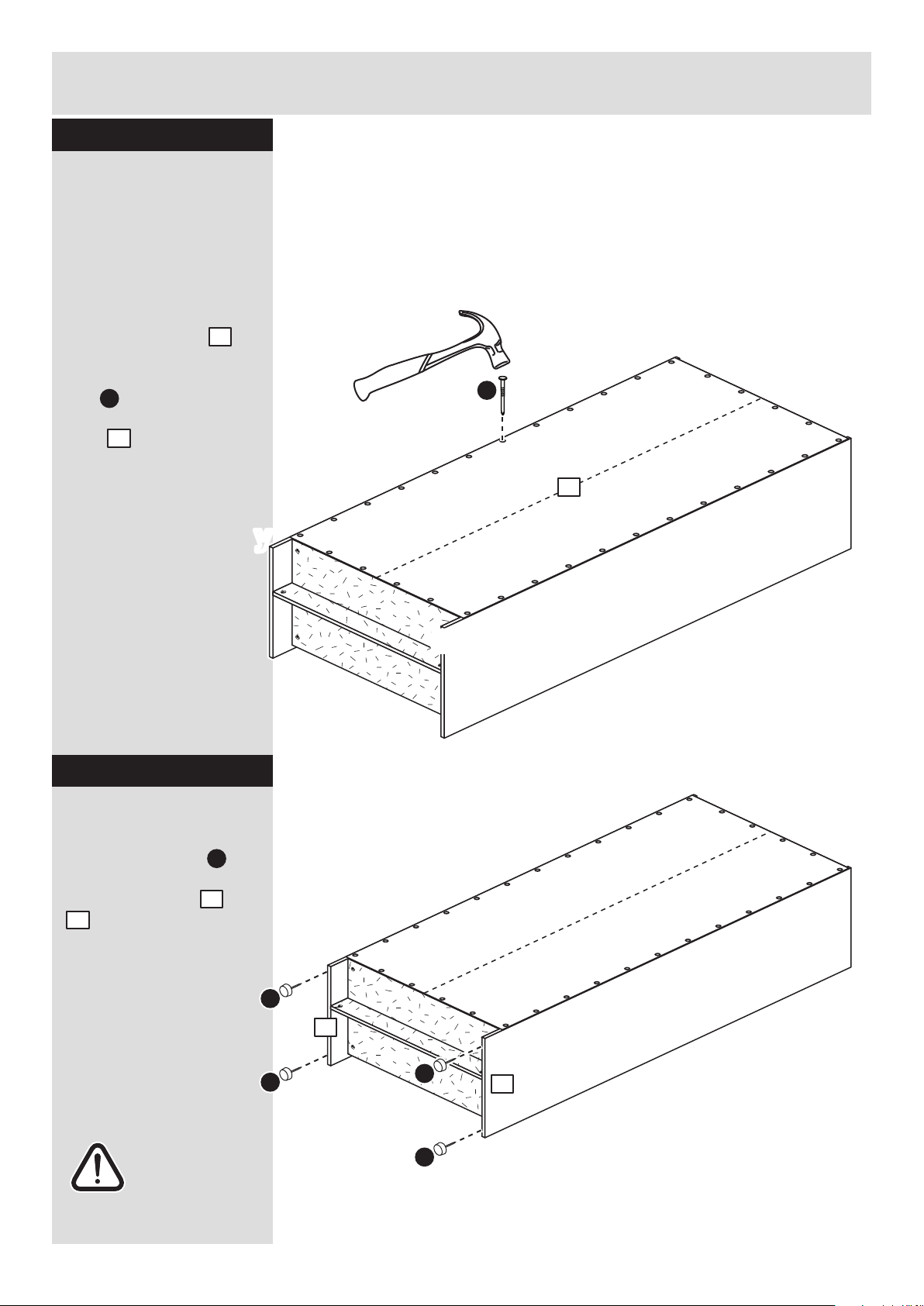

Step 8

y

x

b:

Fit the back

a: Square up the unit by

making sure that measurement x to x

equals y to y.

b: Place the back

onto the unit.

Nail around the outside edges of the back .

Note: Nails should be spaced about 150mm apart.

7

C

The measurement from top corner X to bottom corner X must be

equal to the measurement from top corner Y to bottom corner Y

a:

7

y

C

7

Warning: The unit is heavy. Lift with care.

Step 9

Fit the 4 plastic nails

Tap 2 plastic nails into the bottom edge of each of the sides and . .

M

1

2

M

1

2

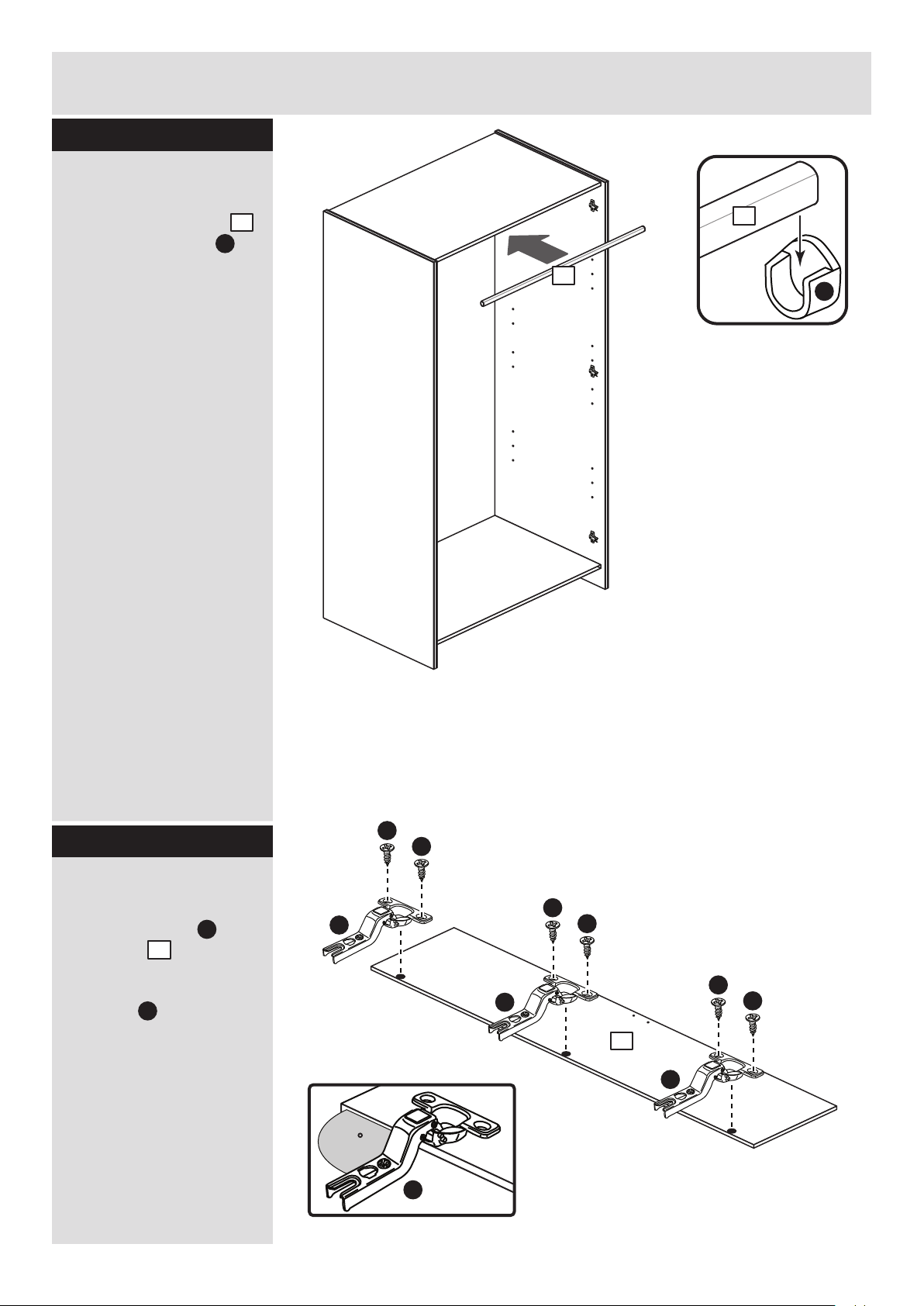

Stand the unit up for the next step.
