MADE IN
BRITAIN
Dimensions
Width - 63cm
Depth - 39cm
Height - 90.4cm
Capella - 5 Drawer Chest
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 7 - 21/05/14
Important - Please read these instructions fully before starting assembly
262/0804
267/5660
266/7788
254/9703
227/4061
247/7284
266/5735
274/3877
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 27kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.
Components - Panels
Please check you have all the panels listed below
2
1
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Left Side (D1011A)
(904 x 390mm)
Top (D1008A)
(596 x 369mm)
Drawer Front (D1010A)
(592 x 157mm) x 5
Back (X828A)
(622 x 807mm)
2
Right Side (D1012A)
(904 x 390mm)
3
8
76
5
9
10
4
Rail (D1009A)
(596 x 103mm) x 3
Drawer Back (W564 - 124)
(564 x 124mm) x 5
Drawer Base (T575 - 367)
(575 x 367mm) x 5
Left Drawer Side (W370-124LH)
(370 x 124mm) x 5
Right Drawer Side (W370-124RH)
(370 x 124mm) x 5
Please check you have all the fittings listed below
Tools required
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 10
B
Metal dowel (F901) x 20
D E
Large locking
nut (F900) x 10
F
G H I
K
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Small locking
nut (F3) x 10
C
Nail (F51) x 16
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
J
Drawer runner (F1004) x 10 Handle (F930) x 5
25mm Screw (F50) x 10 9mm Screw (F74) x 10 9mm Screw (F73) x 20
L M
13mm Screw (F79) x 1
Bracket (F327) x 1
Knock-in Peg (F171) x 20
O
Plastic Nail (F91) x 4
N
Wedgefix (F639) x 20
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Step 1
x 5
Prepare the drawer
fronts
Screw 2 metal dowels
into the holes shown on
the back of each drawer
front .
Note: Tighten the metal
dowels up fully against
the panels.
B
5
B
B
B
B
B
5
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and right drawer
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
E
6
7
Step 2
x 5 x 5
E
Note: Due to the manufacturing process, the holes for the
locking nut can be on either surface of the drawer sides.
E
E
6
7
Step 3
x 5
B
E
Attach the drawer
sides to the drawer
fronts
Push the left drawer sides
. and right drawer sides
. onto the back of the
drawer fronts .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
6
7
5
E
E
6
7
Note: The locking nuts can be on either surface of the drawer sides.
Make sure that the small groove is on the inside, as shown.
7
6
5
Assembly Instructions
5
Step 4
Attach the handle
Attach a handle to
each drawer front
using 2 screws .
K
G
Step 6
5
x 5
G
G
K
5
5
F
F
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front . .
Step 5
Fit the drawer back
Fit the drawer back .
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
9
6 7
5
8
6 7
9
8
8
F
x 5
x 5
x 5
F
F
6
9
9
7
6
6 7
8
N
Fit the wedgefixes
Turn the large drawer
assemblies over and
slide 4 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
N
N
N
N
N
Step 7
7
Profiled
front edge
Profiled
front edge
Assembly Instructions
6
Step 8
Profiled
front edge
I
J
I
J
I
J
I
J
I
J
Profiled
front edge
I
I
I
Prepare the left side
a: Place 5 runners on
the left side . Slide
back the top of the
runner and use the 1st
hole from the front to fit
the 1st screw .
b: Slide the runner back
the other way and fit the
2nd screw into the
corresponding hole in
the left side .
Tap 2 plastic nails
into the bottom edge of
the side . .
c: Screw 5 metal
dowels into the left
side .
a:
b:
c:
1
I
B
1
1
1
I
J
I
J
I
J
I
I
II
I
1
B
B
B
B
B
O
1
O
O
1
Assembly Instructions
7
Step 9
I
J
I
J
I
J
Profiled
front edge
I
J
I
I
I
Profiled
front edge
Profiled
front edge
I
J
I
J
I
J
I
J
I
I
I
I
I
Profiled
front edge
B
B
B
B
B
O
O
2
2
2
Prepare the right side
a: Place 5 runners on
the right side . Slide
back the top of the
runner and use the 1st
hole from the front to fit
the 1st screw .
b: Slide the runner back
the other way and fit the
2nd screw into the
corresponding hole in
the right side .
Tap 2 plastic nails
into the bottom edge of
the side . .
c: Screw 5 metal
dowels into the right
side .
I
J
2
I
B
2
O
2
2
a:
b:
c:
Finished
front edge
Profiled
front edge
A
A
Assembly Instructions
8
Step 9

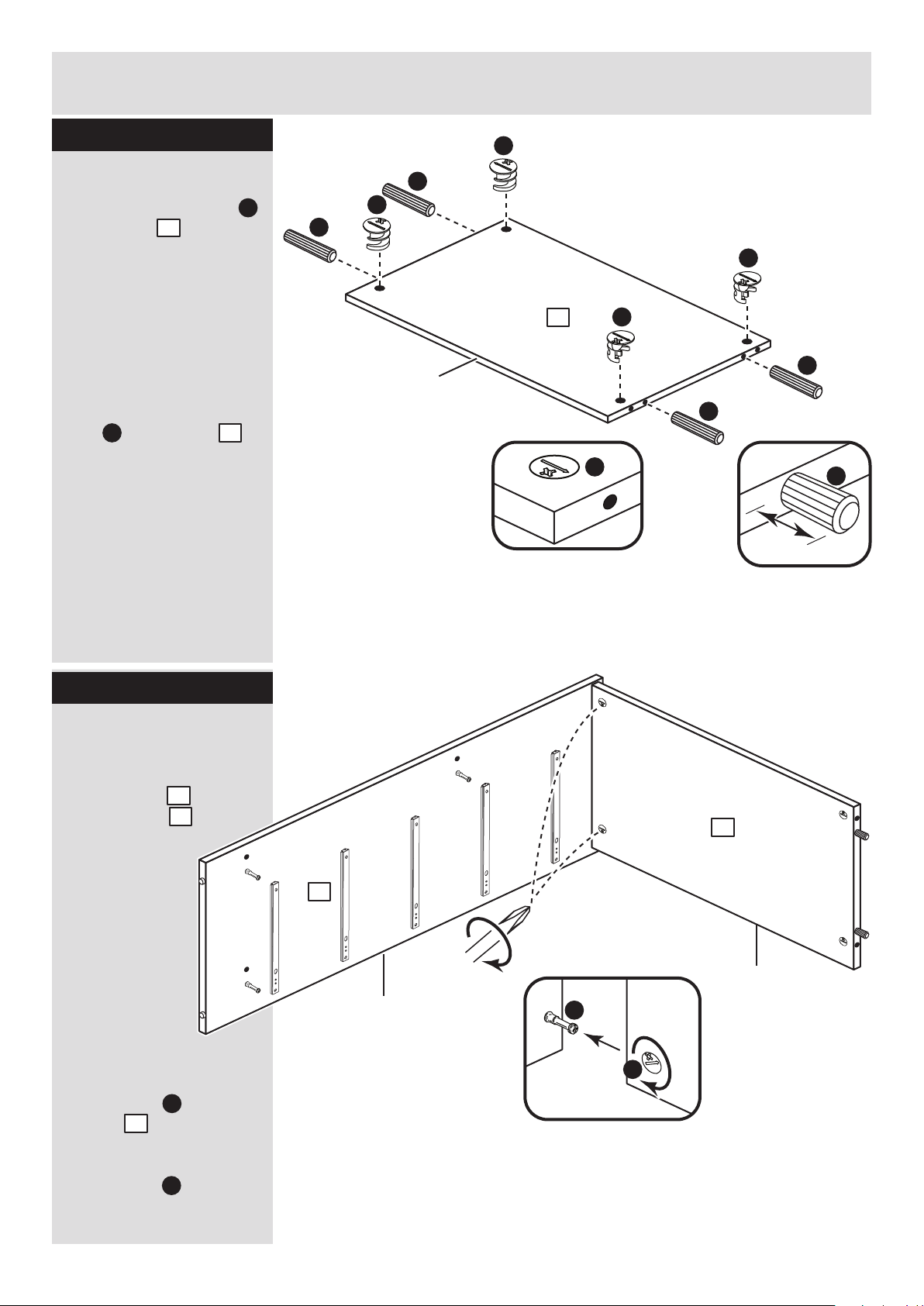

Prepare10the top
Tap 4 wooden dowels
into the top as
shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Insert 4 large locking
nuts into the top
as shown.
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
D
D
D
D
D
A
A
10mm
A
A
3
3
D
3
D
B
Join the right side and
top
Push the top onto
the right side as
shown.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the top .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
Step 11
3
2
3
2
D
D
3
Finished
front edge
Fit bracket to the
underside of the top
using screw so it is
flush with the back edge.
3
M
L
M
L
Assembly Instructions
9
Step 12
A
D
D
A
Prepare the rails
Tap 2 wooden dowels
into each of the rails .
Insert 2 large locking
nuts into each of the
rails .
A
4
D
4
4
Fit the rails
Push the rails onto
the right side as
shown.
Use a screwdriver to
tighten the 3 large
locking nuts fitted to
the rails .
Step 13
4
2
D
4
Note: Support
these rails until the
left side has been
fitted in the next
step.
2
4
2
4
4
x 3
Assembly Instructions
10
Step 14
Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the 5 large
locking nuts fitted to
the top and the rails
. .
D
1
3
4
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Note: Nails should
be spaced about 150mm
apart.
Stand the unit up for
the next step.
10
C
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
10
Step 15
Warning: The
unit is heavy.
Lift with care.
2
1
3
4
4
4
2
b:
C
x
x
y
y
10
Assembly Instructions
11
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
ALR2993
Step 16
J
H
H
Fit the drawers
Starting with the bottom
drawer, slide both the
runners forward and
locate the drawer
sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
Assembly is complete
H
J
J
H
2nd threaded
hole
J
H
6 7
6
7
Warning: The
unit is heavy.
Lift with care.
MADE IN
BRITAIN
Dimensions
Width - 63cm
Depth - 39cm
Height - 90.4cm
Capella - 5 Drawer Chest
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Issue 8 - 15/01/15
Important - Please read these instructions fully before starting assembly
262/0804
267/5660
266/7788
254/9703
227/4061
247/7284
266/5735
274/3877
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 27kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
overbalance protector kit
supplied or, an alternative fixing
method of your choice.
• Dispose of all packaging
carefully and responsibly.
Components - Panels
Please check you have all the panels listed below
2
1
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Left Side (D1011A)
(904 x 390mm)
Top (D1008A)
(596 x 369mm)
Drawer Front (D1010A)
(592 x 157mm) x 5
Back (X828A)
(622 x 807mm)
2
Right Side (D1012A)
(904 x 390mm)
3
8
76
5
9
10
4
Rail (D1009A)
(596 x 103mm) x 3
Drawer Back (W564 - 124)
(564 x 124mm) x 5
Drawer Base (T575 - 367)
(575 x 367mm) x 5
Left Drawer Side (W370-124LH)
(370 x 124mm) x 5
Right Drawer Side (W370-124RH)
(370 x 124mm) x 5
Please check you have all the fittings listed below
Tools required
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 10
B
Metal dowel (F901) x 20
D E
Large locking
nut (F900) x 10
F
L M N
G H I
K
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Small locking
nut (F3) x 10
C
Nail (F51) x 16
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
J
Drawer runner (F1004) x 10 Handle (F930) x 5
25mm Screw (F50) x 10 9mm Screw (F74) x 10 9mm Screw (F73) x 20
Knock-in Peg (F171) x 20
Plastic Nail (F91) x 4
Wedgefix (F639) x 20
Strap
Screw Washer x 2
Overbalance protector kit (F269) x 1
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Step 1
x 5
Prepare the drawer
fronts
Screw 2 metal dowels
into the holes shown on
the back of each drawer
front .
Note: Tighten the metal
dowels up fully against
the panels.
B
5
B
B
B
B
B
5
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and right drawer
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
E
6
7
Step 2
x 5 x 5
E
Note: Due to the manufacturing process, the holes for the
locking nut can be on either surface of the drawer sides.
E
E
6
7
Step 3
x 5
B
E
Attach the drawer
sides to the drawer
fronts
Push the left drawer sides
. and right drawer sides
. onto the back of the
drawer fronts .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
6
7
5
E
E
6
7
Note: The locking nuts can be on either surface of the drawer sides.
Make sure that the small groove is on the inside, as shown.
7
6
5
Assembly Instructions
5
Step 4
Attach the handle
Attach a handle to
each drawer front
using 2 screws .
K
G
Step 6
5
x 5
G
G
K
5
5
F
F
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front . .
Step 5
Fit the drawer back
Fit the drawer back .
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
9
6 7
5
8
6 7
9
8
8
F
x 5
x 5
x 5
F
F
6
9
9
7
6
6 7
8
M
Fit the wedgefixes
Turn the large drawer
assemblies over and
slide 4 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
M
M
M
M
M
Step 7
7
Profiled
front edge
Profiled
front edge
Assembly Instructions
6
Step 8
Profiled
front edge
I
J
I
J
I
J
I
J
I
J
Profiled
front edge
I
I
I
Prepare the left side
a: Place 5 runners on
the left side . Slide
back the top of the
runner and use the 1st
hole from the front to fit
the 1st screw .
b: Slide the runner back
the other way and fit the
2nd screw into the
corresponding hole in
the left side .
Tap 2 plastic nails
into the bottom edge of
the side . .
c: Screw 5 metal
dowels into the left
side .
a:
b:
c:
1
I
B
1
1
1
I
J
I
J
I
J
I
I
II
I
1
B
B
B
B
B
N
1
N
N
1
Assembly Instructions
7
Step 9
I
J
I
J
I
J
Profiled
front edge
I
J
I
I
I
Profiled
front edge
Profiled
front edge
I
J
I
J
I
J
I
J
I
I
I
I
I
Profiled
front edge
B
B
B
B
B
N
N
2
2
2
Prepare the right side
a: Place 5 runners on
the right side . Slide
back the top of the
runner and use the 1st
hole from the front to fit
the 1st screw .
b: Slide the runner back
the other way and fit the
2nd screw into the
corresponding hole in
the right side .
Tap 2 plastic nails
into the bottom edge of
the side . .
c: Screw 5 metal
dowels into the right
side .
I
J
2
I
B
2
N
2
2
a:
b:
c:
Finished
front edge
Profiled
front edge
A
A
Assembly Instructions
8
Step 9
Prepare10the top
Tap 4 wooden dowels
into the top as
shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Insert 4 large locking
nuts into the top
as shown.
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
D
D
D
D
D
A
A
10mm
A
A
3
3
D
3
D
B
Join the right side and
top
Push the top onto
the right side as
shown.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the top .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
Step 11
3
2
3
2
D
D
3
Finished
front edge
Assembly Instructions
9
Step 12
A
D
D
A
Prepare the rails
Tap 2 wooden dowels
into each of the rails .
Insert 2 large locking
nuts into each of the
rails .
A
4
D
4
4
Fit the rails
Push the rails onto
the right side as
shown.
Use a screwdriver to
tighten the 3 large
locking nuts fitted to
the rails .
Step 13
4
2
D
4
Note: Support
these rails until the
left side has been
fitted in the next
step.
2
4
2
4
4
x 3
y
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Note: Nails should
be spaced about 150mm
apart.
Stand the unit up for
the next step.
Assembly Instructions
10
Step 14
Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the 5 large
locking nuts fitted to
the top and the rails
. .
D
1
3
4
10
C
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
10
Warning: The
unit is heavy.
Lift with care.
2
1
3
4
4
4
2
b:
C
x
y
y
10
Step 15
x
Assembly Instructions
11
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
ALR2993
Step 16
J
H
H
Fit the overbalance
protector kit and the
drawers
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall by fitting of the
overbalance protector kit
. to the unit, or an
alternative fixing method
of your choice.
Wall fixings are not
supplied as they will
need to suit the wall
type.
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Starting with the bottom
drawer, slide both the
runners forward and
locate the drawer
sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Assembly is complete
H
J
J
2nd threaded
hole
J
H
6 7
6
7
Note: Do not overtighten
the screws.
If they catch on the
runner you may need to
loosen them slightly.
L
Attach the
strap to the unit
Attach the
strap to the wall
Wall fixing
(not supplied)
Washer
Strap
Strap
L
L
Example
Screw
(not supplied)
Washer
Screw
UNIT
Loading...
