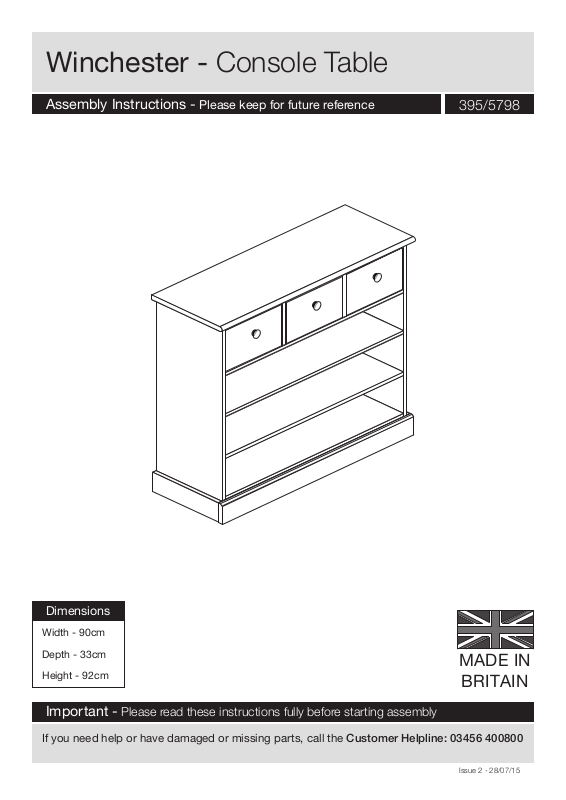

Argos Winchester - Console Table ASSEMBLY INSTRUCTIONS

MADE IN
BRITAIN
Dimensions
Width - 90cm
Depth - 33cm
Height - 92cm
Winchester - Console Table
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Issue 2 - 28/07/15
Important - Please read these instructions fully before starting assembly
395/5798
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Warning: This unit weighs approximately 30kgs. Please lift with care.
• Check you have all the components and tools listed on pages 2 and 3.
• Remove all fittings from the plastic bags and separate them into their groups.
• Keep children and animals away from the work area, small parts could choke if swallowed.
• Parts of the assembly will be easier with 2 people.
• Make sure you have enough space to layout the parts before starting.
• Do not stand or put weight on the product, this could cause damage.
• Assemble the item as close to its final position (in the same room) as possible.
• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).
1
Care and maintenance
• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.
• From time to time check that there are no loose screws on this unit.
• This product should not be discarded with household waste. Take to your local authority waste disposal centre.
Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.
• We do not recommend the use of power drill/drivers for
inserting screws, as this could damage the unit. Only use hand screwdrivers.
Safety note: It is recommended that this unit is secured to a wall using the overbalance protector kit supplied or, an alternative fixing method of your choice.
• Dispose of all packaging carefully and responsibly.
Components - Panels
Please check you have all the panels listed below
2
1 2
6
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Left End (DF2944)
(894 x 307mm)
Top (DF3377)
(897 x 327mm)
Shelf (DF2949)
(827 x 306mm) x 3
Cross Rail (DF2946)
(827 x 92mm) x 3
Drawer Front (DF2947)
(259.5 x 192mm) x 3
Right End (DF2945)
(894 x 307mm)
Divider (DF2950)
(198 x 305mm) x 2
Side Plinth (DF2941)
(307 x 91mm) x 2
Front Plinth (DF2948)
(889 x 92mm)
Left Drawer Side (W260-124LH)
(260 x 124mm) x 3
Right Drawer Side (W260-124RH)
(260 x 124mm) x 3
Drawer Back (W232-124)
(232 x 124mm) x 3
Back (X820-426)
(820 x 426mm) x 2
Drawer Base (T243-257)
(243 x 257mm) x 3
3
4
5
7
8
9
10 11 12
13
14
Please check you have all the fittings listed below
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
A B
D E F
G H
Small locking nut (F3) x 6
C
M
J
9mm Screw (F73) x 12
Knock-in Peg (F171GY) x 12
Large locking nut (F900) x 28
Metal dowel (F901) x 34
Wedgefix (F639) x 6
9mm Screw (F74) x 6
O
Strap Screw Washer x 2
Overbalance protector kit (F269) x 1
38mm Screw (F81) x 3
25mm Screw (F50) x 8
I
Plastic Nail (F91) x 4
K
Nail (F51) x 26
L
Wooden dowel (F22) x 28
N
Handle (F463) x 3
Drawer runner (F307) x 6
Tools required
Rule Scissors Hammer
Eye protection (when using a hammer or drill)
Cross-head screwdriver
Electric drill (do not use for fitting screws)
9
9
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Step 1
x 3
x 3 x 3
x 3
A
B
A
C
Step 2
Prepare the 3 drawer fronts
Screw 2 metal dowels into each of the 3 drawer fronts .
Note: Tighten the metal dowels up fully against the panels.
A
9
Prepare the drawer sides
Insert a small locking nut into the hole shown on the left drawer side and the right drawer side .
Note: The arrow on the locking nut must point towards the hole in the edge of the panel.
Step 3
C
10
11
Attach the drawer sides to the drawer fronts
Push the left drawer side . and right drawer side . onto the back of the drawer front .
Turn the small locking nuts on the left drawer side and right drawer side .
Note: Turn the locking nuts clockwise to secure panels - more than 1/2 a turn.
10 11
9
C
C
10 11
C
C
C
10
11
A
A
11
10
9
Assembly Instructions
5
Step 4
D
D
Fit the drawer bases
Slide the drawer base down the grooves in the drawer sides and and down into the groove in the drawer front .
Step 5
Fit the drawer backs
Fit the drawer back between the drawer sides and .
Make sure that the drawer base fits into the groove in the drawer back .
Hold the drawer back in position and tap the knock-in pegs through the holes in the drawer sides and .
Step 7
13
10 11
9
12
10 11
13
12
12
D
10 11
D
D
J
Fit the wedgefixes
Turn the drawer assembies over and slide 2 wedgefixes into the front and back grooves, as shown, and tighten up the screws.
J
13
10
11
12
10
11
13
x 3
x 3
x 3
x 3
J
J
Step 6
Attach the handle
Attach a handle to each drawer front using screw .
N
E
9
E
N
9
Finished
front edge
L
L
Assembly Instructions
6
Step 8
Finished
front edge
Finished
front edge

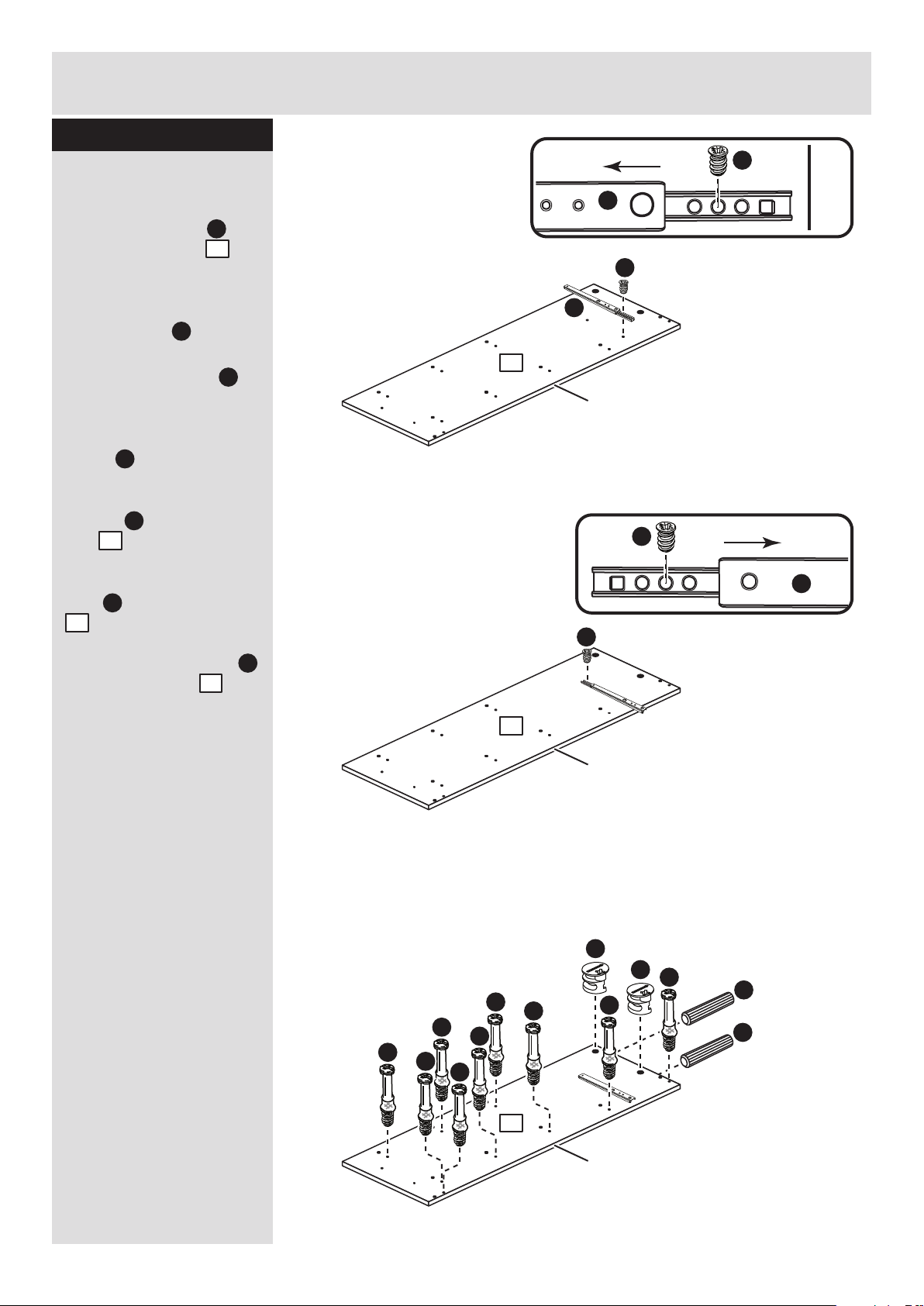

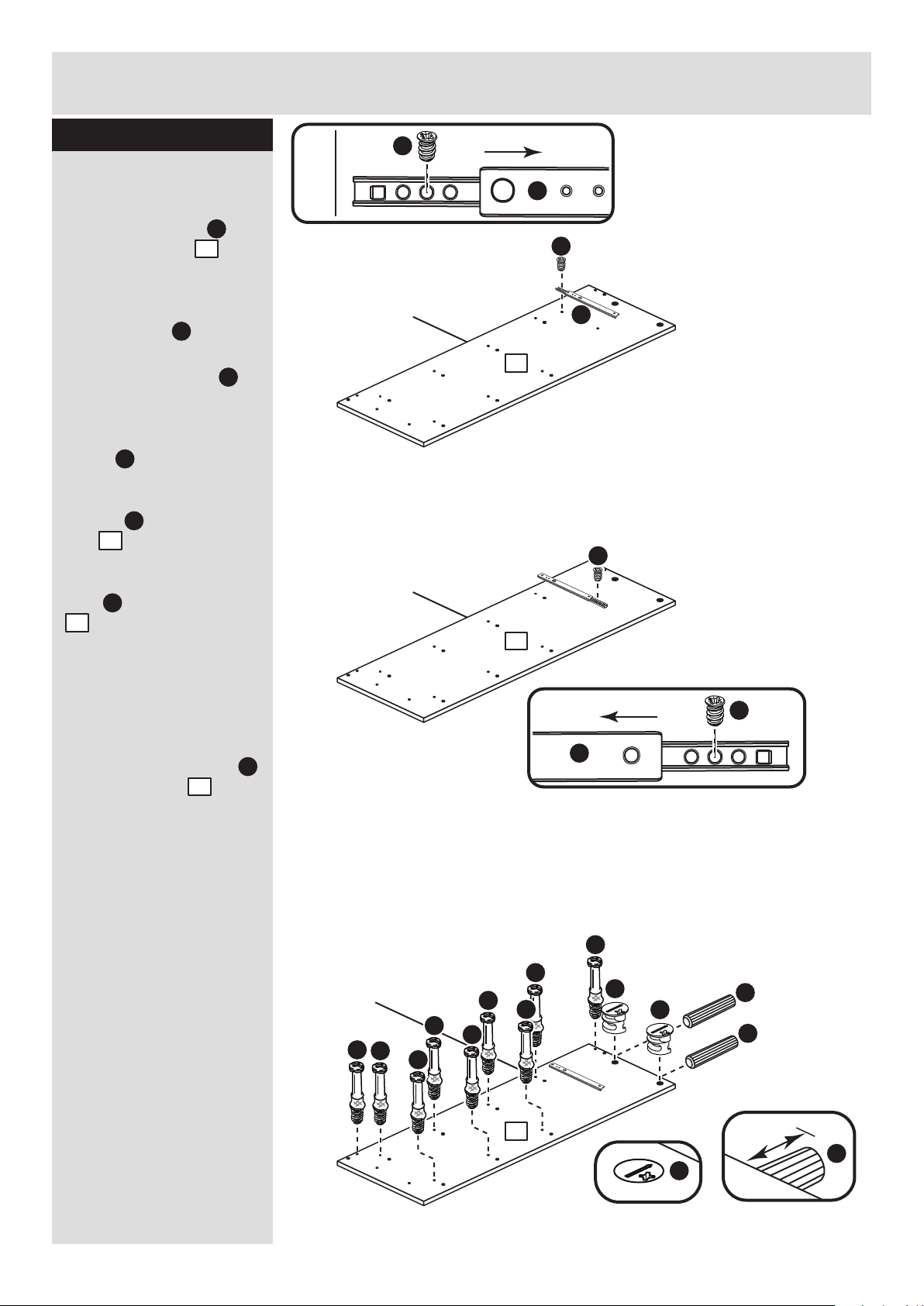

Prepare the left end
a: Place a runner
onto the left end . Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw .
b: Slide the runner
back the other way and use the 2nd hole from the back to fit the 2nd screw .
c: Screw 9 metal
dowels into the left end .
Insert 2 large locking nuts into the left end . .
Note: The arrow on the locking nut must point towards the hole in the edge of the panel.
Tap 2 wooden dowels into the left end .
Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.
G
M
G
M
1
G
M
G
Finished
front edge
G
M
G
M
A
1
B
1
A
A
A
A
A
A
A
10mm
L
B
B
B
L
1
a:
b:
c:
1
1
1
A
A
L
L
Assembly Instructions
7
Step 9
Prepare the right end
a: Place a runner
onto the right end . Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw .
b: Slide the runner
back the other way and use the 2nd hole from the back to fit the 2nd screw .
c: Screw 9 metal
dowels into the right end .
Insert 2 large locking nuts into the right end . .
Tap 2 wooden dowels into the right end .
M
2
G
M
G
A
2
B
2
L
2
a:
b:
c:
G
Finished
front edge
G
M
G
M
G
M
A
A
A
A
A
A
A
A
A
B
B
Finished
front edge
Finished
front edge
Finished
front edge
2
2
2
L
Finished
front edge
Finished
front edge
Assembly Instructions
8
Step 10

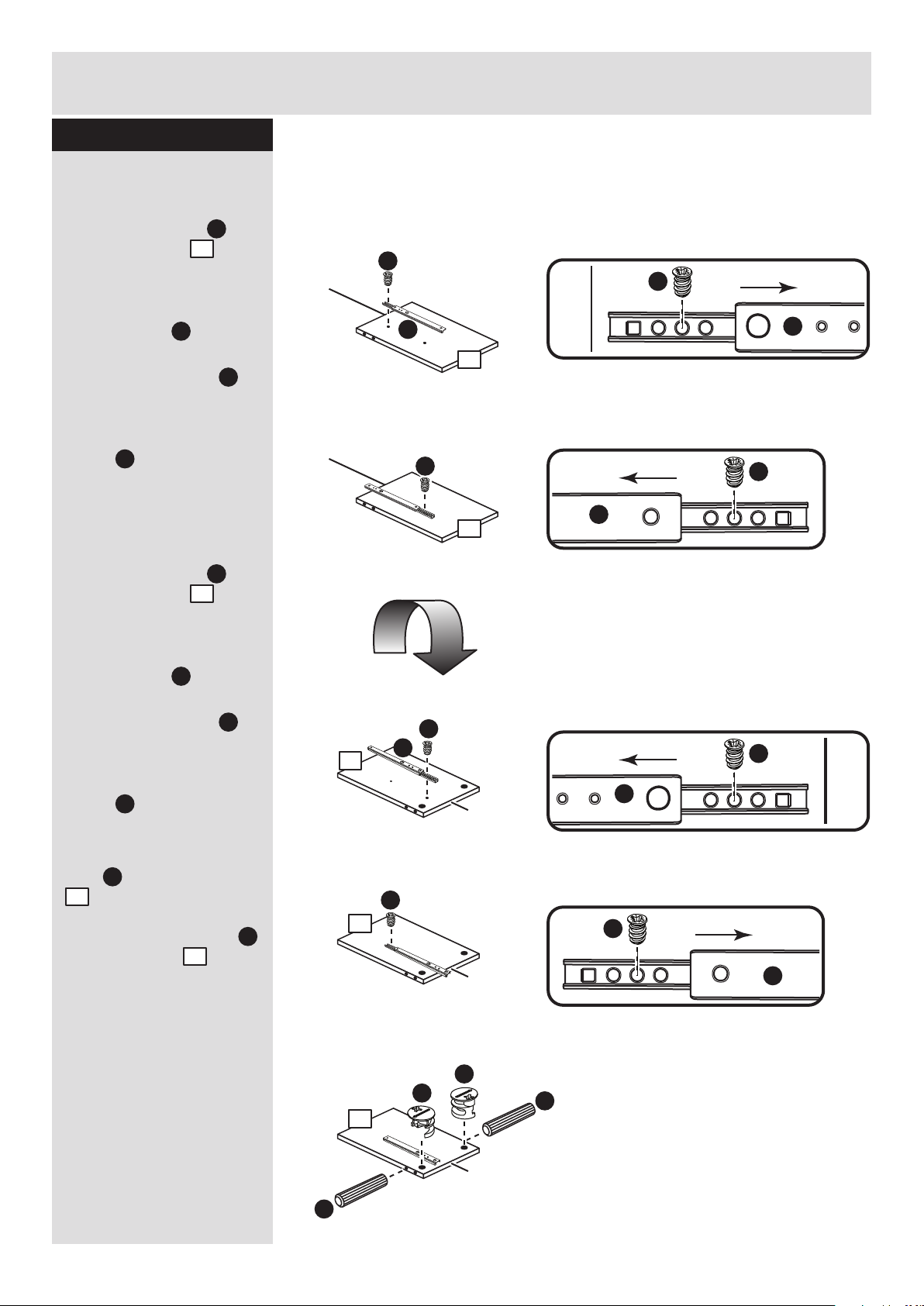

Prepare the 2 dividers
a: Place a runner
onto the divider . Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw .
b: Slide the runner
back the other way and use the 2nd hole from the back to fit the 2nd screw .
Turn the divider over
c: Place a runner
onto the divider . Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw .
d: Slide the runner
back the other way and use the 2nd hole from the back to fit the 2nd screw .
e: Insert 2 large locking
nuts into the divider . .
Tap 2 wooden dowels into the divider .
G
M
G
M
6
G
M
G
M
6
G
M
G
Finished
front edge
G
M
G
M
B
6
L
6
a:
b:
c:
d:
e:
Note: Due to the manufacturing process, the 2 holes for the large locking nut can be on either surface of the 2 dividers.
Turn the divider over
G
Finished
front edge
G
M
G
M
Finished
front edge
G
Finished
front edge
Finished
front edge
L
B
B
x 2
x 2
x 2
x 2
x 2
6
6
6
6
6
M
Finished
front edge
Finished
front edge
Finished
front edge
Assembly Instructions
9

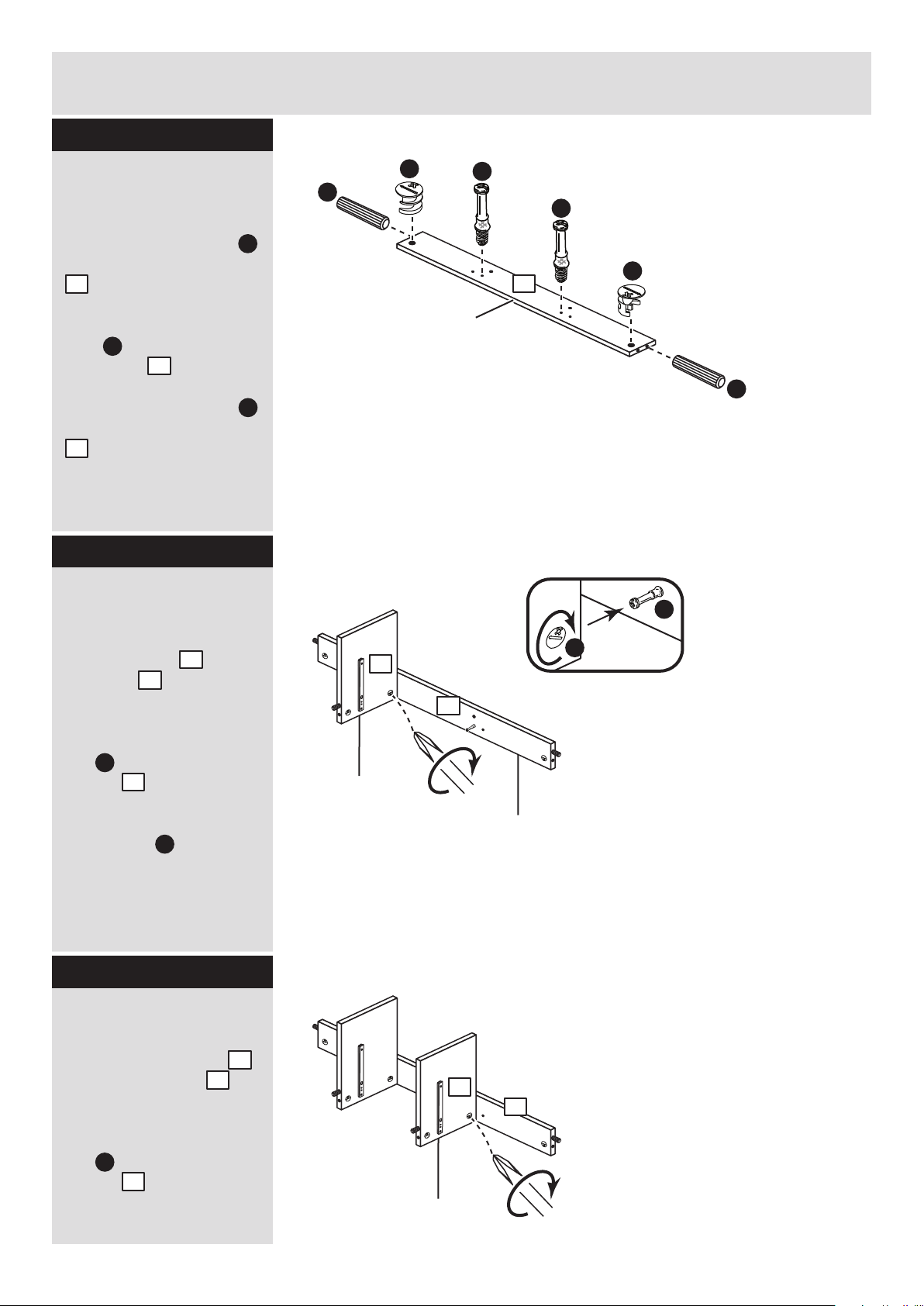

Step 11
L
Prepare 2 of the cross rails
Screw 2 metal dowels into 2 of the cross rails . .
Insert 2 large locking nuts into 2 of the cross rails . .
Tap 2 wooden dowels into 2 of the cross rails . .
A
A
B
B
L
3
Finished
front edge
x 2
A
3
3
B
3
L
B
A
Fit a divider to a cross rail
Push a divider onto a cross rail .
Use a screwdriver to tighten the large locking nut fitted to the divider .
Note: Turn the large locking nut as far as it will go - more than 1/2 a turn.
6
6
3
B
B
Step 12
Fit another divider
Push another divider onto the cross rail .
Use a screwdriver to tighten the large locking nut fitted to the divider .
6
6
3
B
Step 13
3
3
6
Remember: The large locking nuts can be on either surface of the dividers.
6
L
L
Finished
front edge
Assembly Instructions
10
Step 14

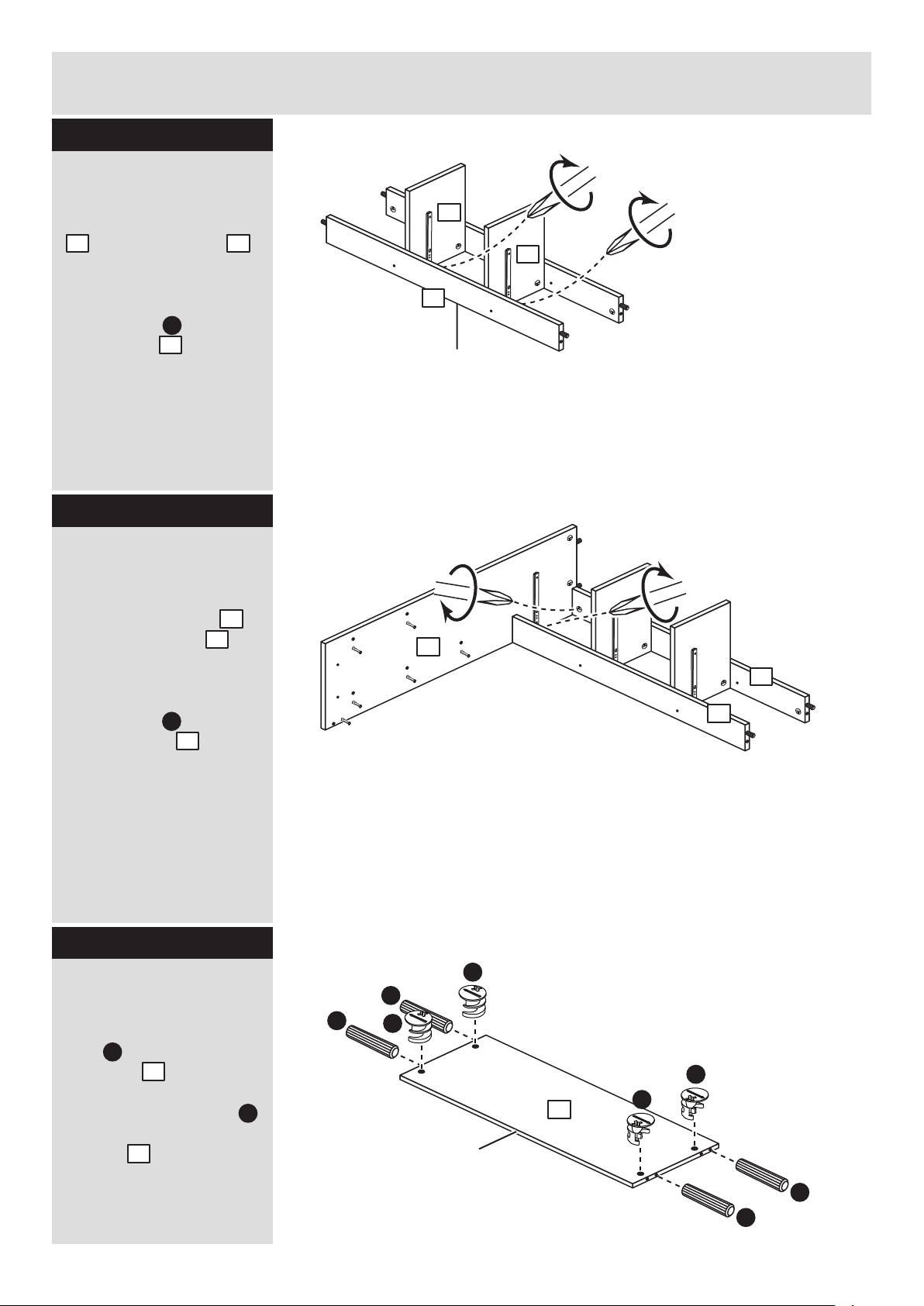

Fit the other cross rail
Push the other cross rail . onto the dividers .
Use a screwdriver to tighten the 2 large locking nuts fitted to the dividers .
6
3 6
B
6
6
3
3
3
Fit the cross rails to the right end
Push the cross rails onto the right end .
Use a screwdriver to tighten the 2 large locking nuts fitted to the cross rails .
3
3
2
B
Step 15
Step 16
2
B
B
L
Finished
front edge
B
B
L
Prepare the 3 shelves
Insert 4 large locking nuts into each of the 3 shelves . .
Tap 4 wooden dowels into each of the 3 shelves . .
8
B
8
L
8
x 3
Finished
front edge
Assembly Instructions
11
Step 17
Step 18

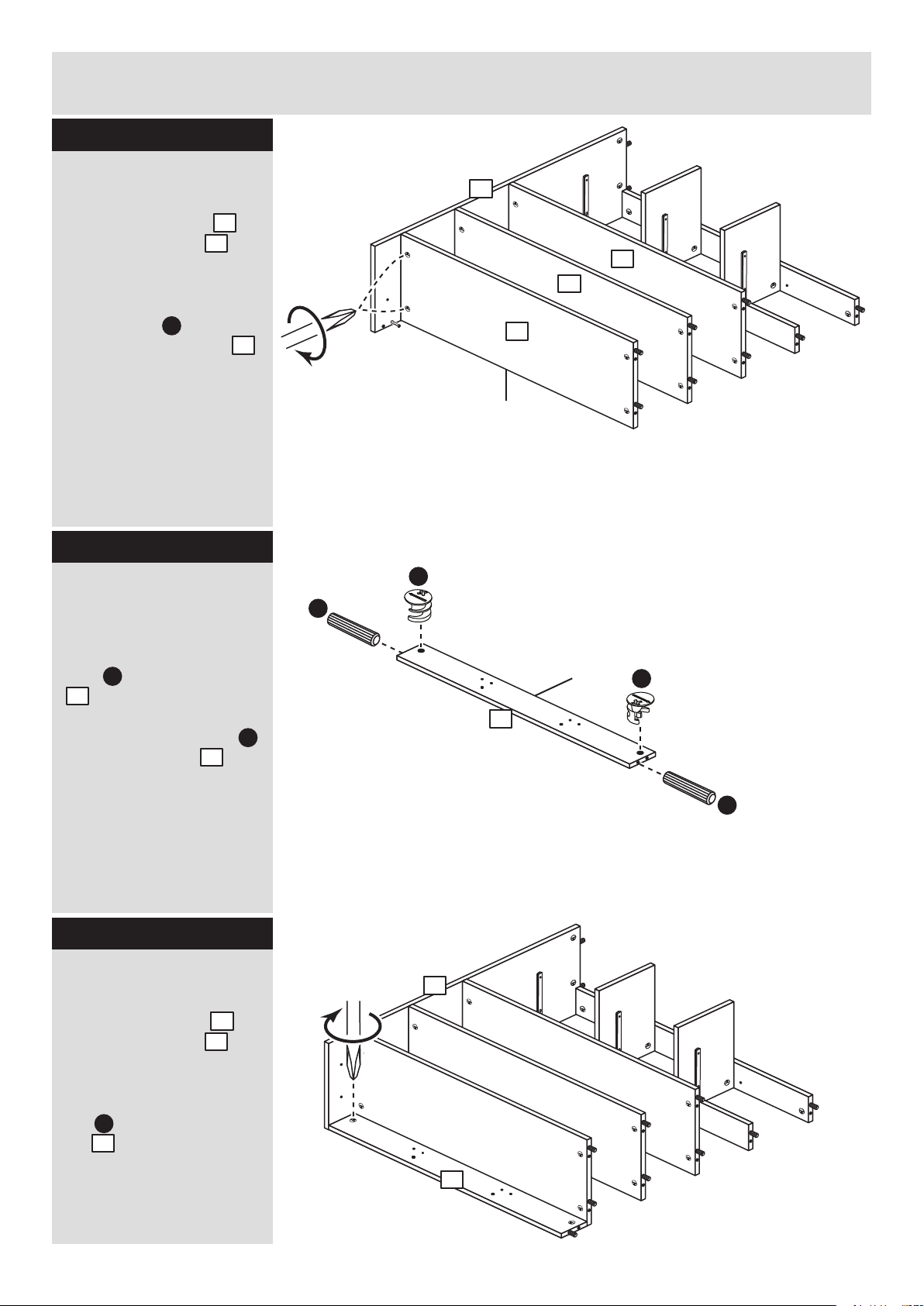

Fit the 3 shelves
Push the 3 shelves onto the right end .
Use a screwdriver to tighten the 2 large locking nuts fitted to each of the 3 shelves .
8
8
2
B
2
8
8
8
2
L
Prepare the remaining cross rail
Insert 2 large locking nuts into the cross rail . .
Tap 2 wooden dowels into the cross rail .
Step 19
B
B
L
3
Finished
front edge
3
B
3
L
Fit the cross rail
Push the cross rail onto the right end .
Use a screwdriver to tighten the large locking nut fitted to the cross rail .
3
3
2
B
3
Assembly Instructions
12
Step 20
Step 21

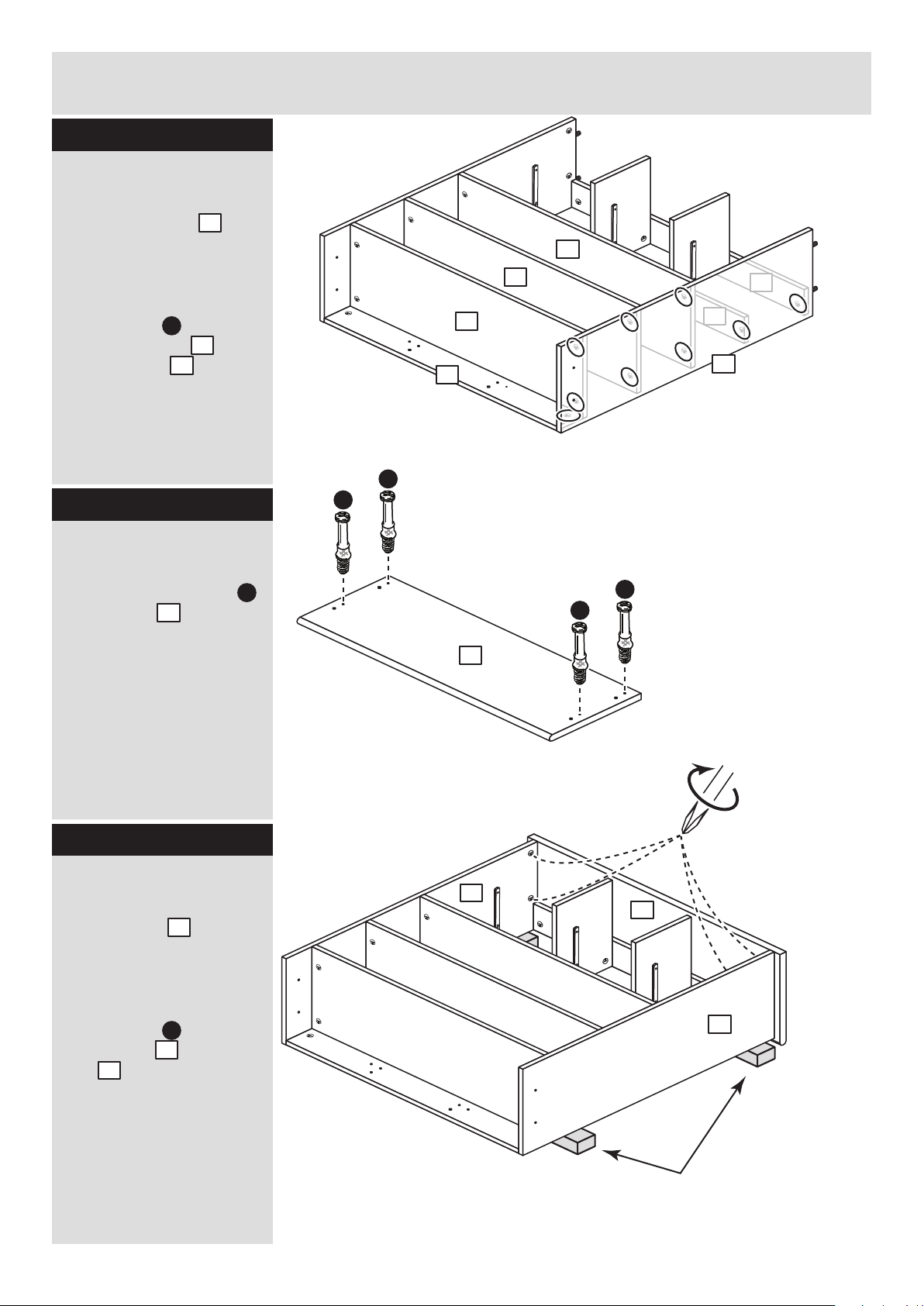

Fit the left end
Push the left end onto the assembly.
Use a screwdriver to tighten the 9 large locking nuts fitted to the 3 cross rails and the 3 shelves .
1
3
8
B
1
3
3
3
8
8
8
1
Prepare the top
Screw 4 metal dowels into the top .
Step 22
A
A
7
A
A
A
7
Fit the top
Push the top onto the assembly.
Use a screwdriver to tighten the 4 large locking nuts fitted to the left end and right end .
7
1
2
B
7
2
Note: To make it easier to fit the top and the plinths, place 4 polystyrene blocks from the packaging underneath the side panels to raise the assembly.
Finished
top edge
Finished
top edge
Assembly Instructions
13

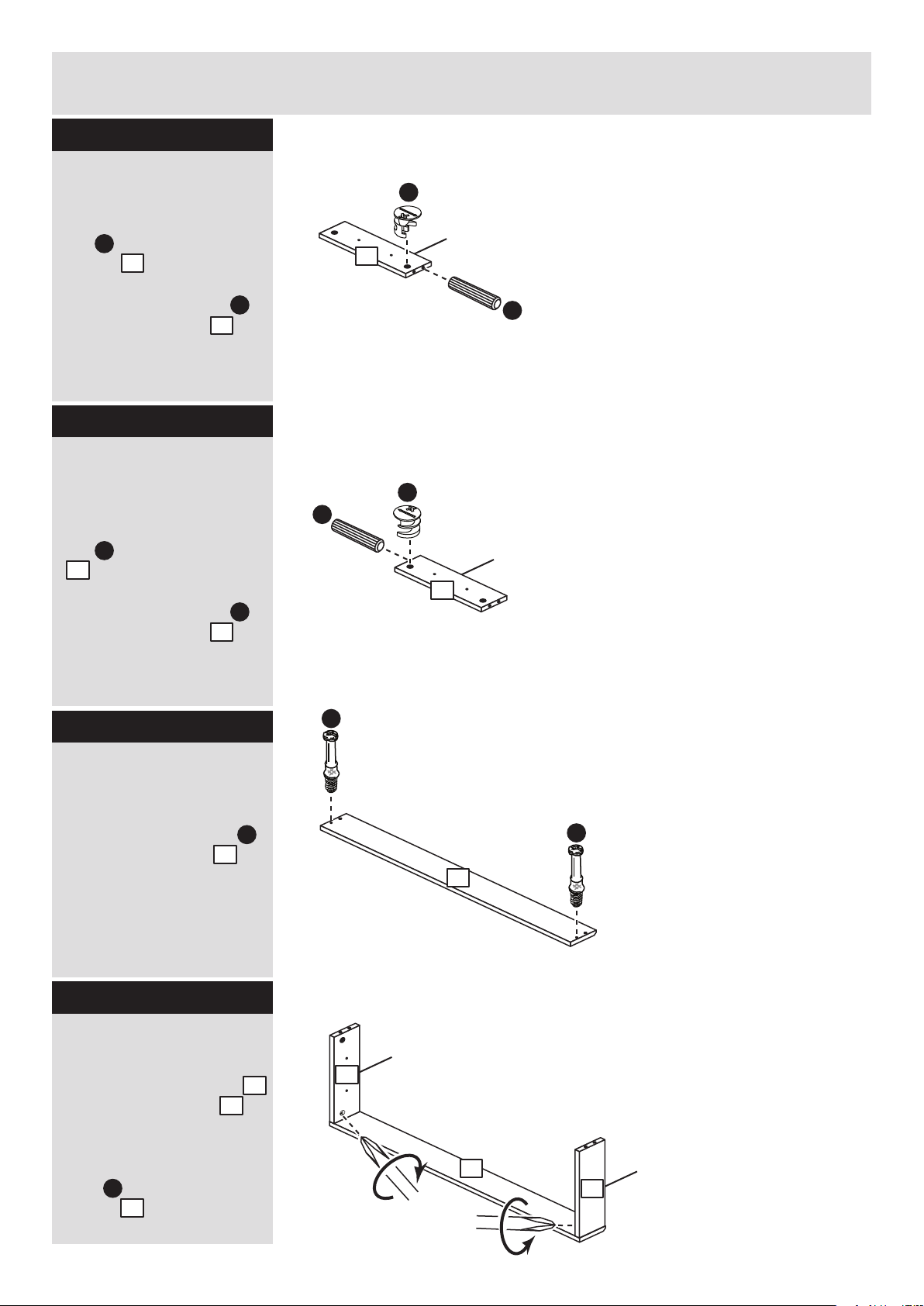

Step 23
Prepare a side plinth
Insert a large locking nut into 1 of the side plinths .
Tap a wooden dowel into the side plinth .
5
B
5
L
B
L
Step 24
5
L
B
5
Step 25
Prepare the front plinth
Screw 2 metal dowels into the front plinth .
Step 26
A
A
4
A
4
4
Prepare the other side plinth
Insert a large locking nut into the side plinth . .
Tap a wooden dowel into the side plinth .
5
B
5
L
5
5
Fit the plinths together
Push the 2 side plinths onto the front plinth .
Use a screwdriver to tighten the large locking nuts fitted to the side plinths .
5
4
B
5
Finished
top edge
Finished
top edge
Assembly Instructions
14

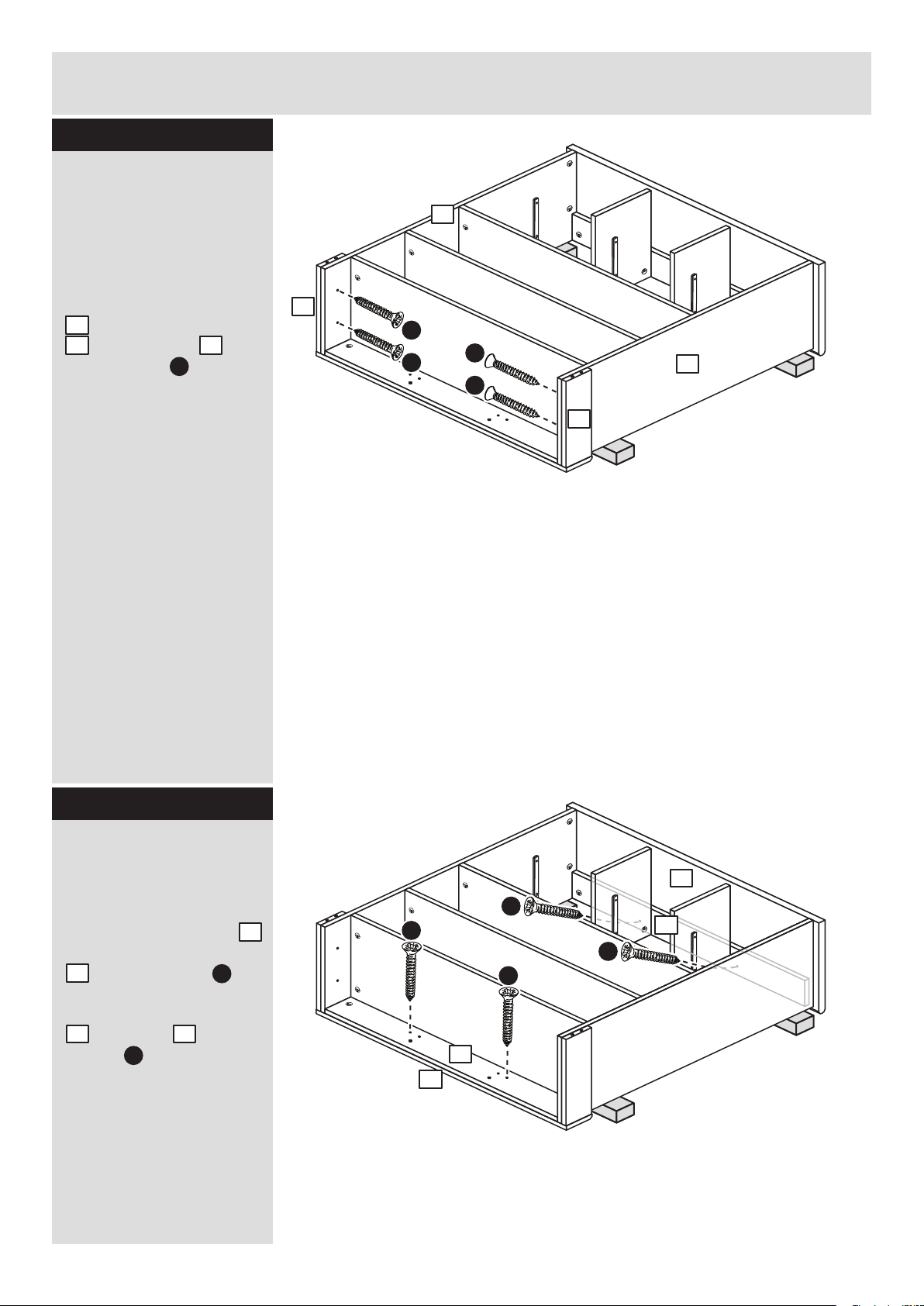

Step 27
Fit the plinths
Position the 3 plinths onto the assembly, as shown.
Secure the 2 side plinths . through the left end . . and right end using screws . Use the 2 mark holes on the side plinths to line them up with the holes in the ends.
Step 28
F
F
1
2
F
F
7
5
1 2
F
F
F
F
F
Secure the front plinth and the top cross rail
Secure the front plinth to the bottom cross rail . using 2 screws .
Secure the top cross rail . to the top using 2 screws .
4
3
3 7
F
F
5
5
4
3
3

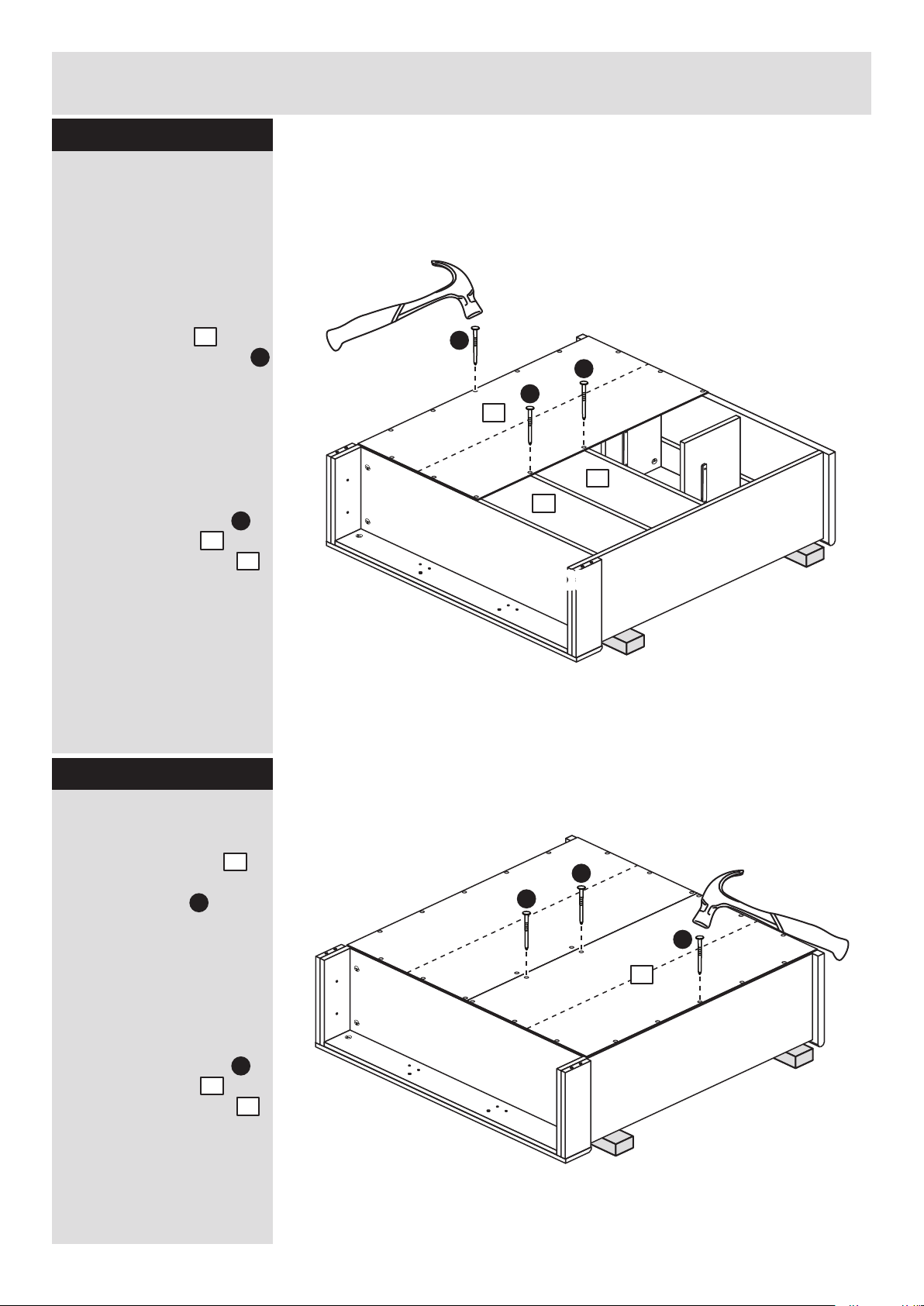

Fit the other back
Push the other back up against the 1st back and tap 11 nails around its 3 outside edges, as shown.
Note: Nails should be spaced about 150mm apart.
Tap 2 additional nails through the back and down into the shelves .
Note: Make sure that the nails are fitted central to the shelves to avoid damage.
yy
yy
xx
xx
Assembly Instructions
Step 29
b:
K
Fit a back
a: Square up the unit by
making sure that measurement x to x
equals y to y.
b: Place a back onto
the unit and tap 11 nails around its 3 outside edges, as shown.
Note: Nails should be spaced about 150mm apart.
Tap 2 additional nails through the back and down into the shelves .
Note: Make sure that the nails are fitted central to the shelves to avoid damage.
14
K
K
K
14
14
8
8
14
K
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
Step 30
14
15
K
14
K
K
K
K
8
8
Assembly Instructions
Step 31
Step 32

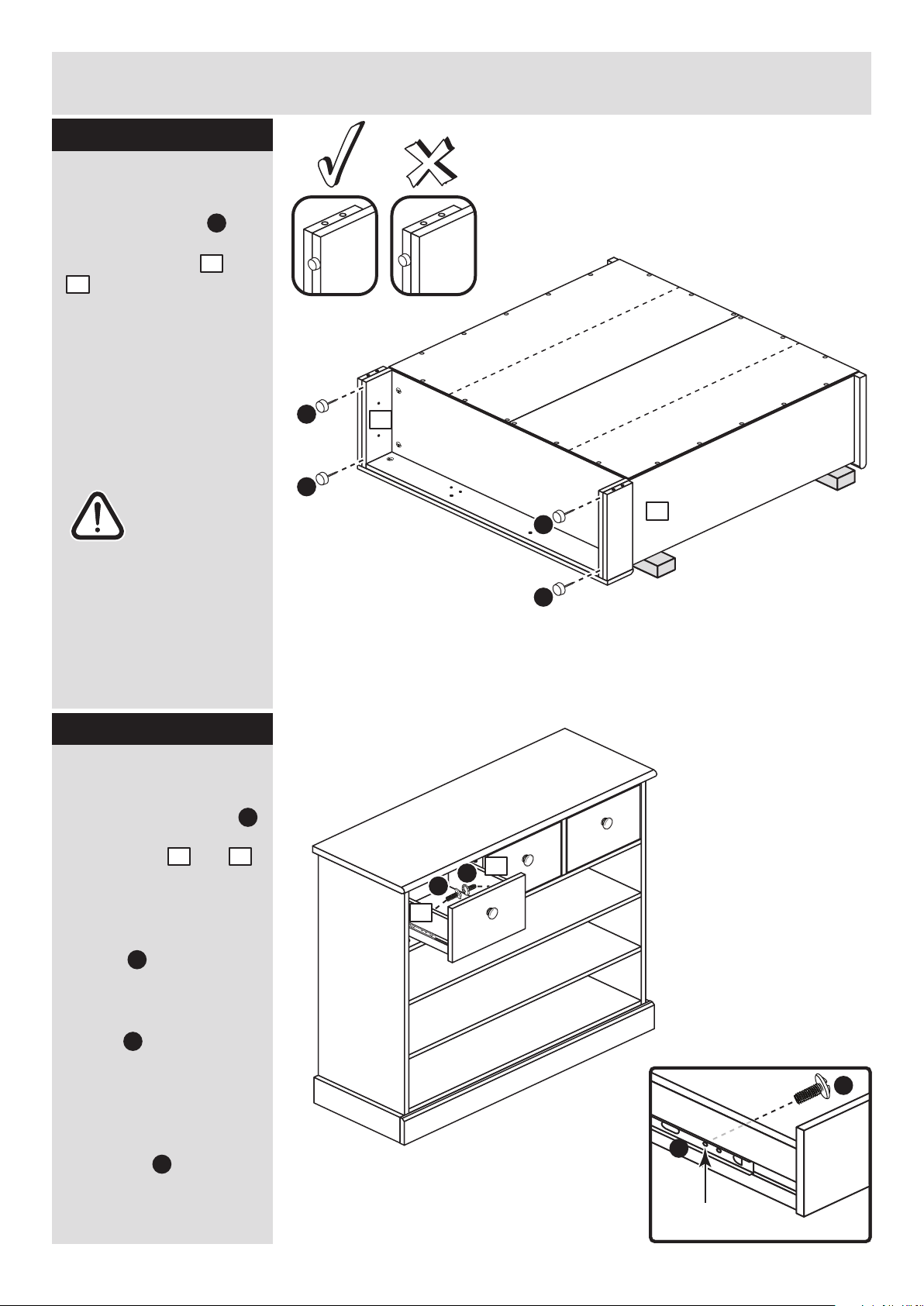

Fit the 4 plastic nails
Tap 2 plastic nails into the bottom edge of each of the sides and . .
DO NOT fit the
plastinails to the side plinths.
Carefully stand the unit up for the next step.
I
1
2
I
I
I
I
Warning: The unit is heavy. Lift with care.
1
2
Fit the drawers
Slide both the runners forward and locate the drawer sides and between them, lining up the holes in the drawer wrap with the 2nd 'threaded' holes in the runners .
Working from the inside of the drawer, insert 2 screws through the drawer sides and out into the 2nd threaded hole in the runner.
Note: Do not overtighten the screws . If they catch on the runner you may need to loosen them slightly.
H
M
M
H
2nd threaded
hole
M
H
10 11
H
H
10
11
Assembly Instructions
17
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 33

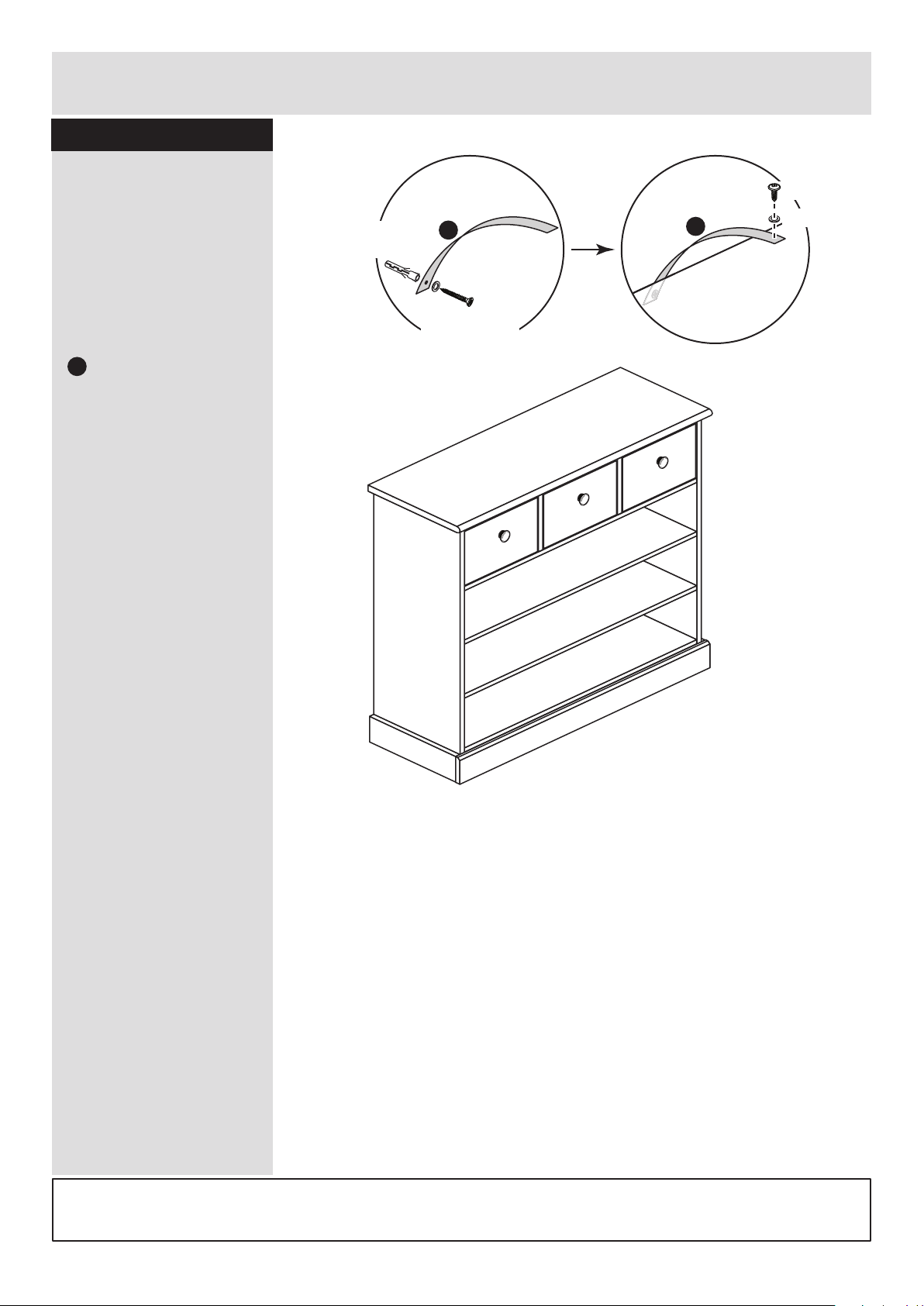

Fit the overbalance protector kit
To prevent possible overbalancing we recommend that this unit is secured to a suitable wall by fitting of the overbalance protector kit . to the unit, or an alternative fixing method of your choice.
Wall fixings are not supplied as they will need to suit the wall type.
Note: Take care when drilling the wall that you do not drill into any pipes, wires etc. If in doubt, consult an expert.
O
Attach the
strap to the unit
Attach the
strap to the wall
Wall fixing
(not supplied)
Washer
Strap
Strap
O
O
Example
Screw
(not supplied)
Washer
Screw
UNIT
ALR3166
