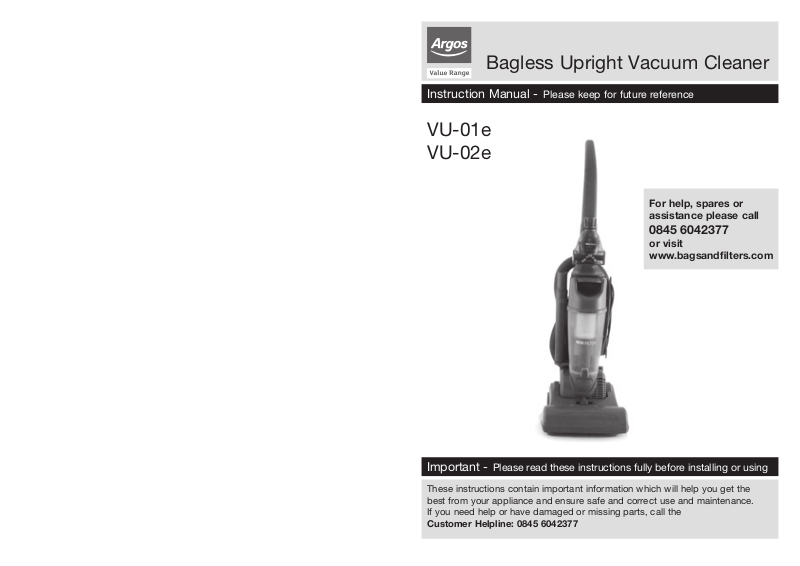

Argos VU-01 ASSEMBLY INSTRUCTIONS

Bagless Upright Vacuum Cleaner

Instruction Manual - Please keep for future reference

VU-01e
VU-02e

For help, spares or
assistance please call

0845 6042377

or visit

www.bagsandlters.com

Important - Please read these instructions fully before installing or using

These instructions contain important information which will help you get the
best from your appliance and ensure safe and correct use and maintenance.
If you need help or have damaged or missing parts, call the

Customer Helpline: 0845 6042377

Contents

Safety Information

Vacuum Cleaner

Safety Information 2

Parts 3

Initial Setup for 4
normal operation

Assembly 5-6

Operation 7

Accessories 8

Maintenance 9-10

Emptying the dirt container 9

Cleaning the HEPA media filter 9

Cleaning the pre motor filter 10

Replacing the belt 10

Clearing Blockages 11

Removing debris from 11
the Turbotool

Removing debris from 11
the hose

Removing debris from 11
the brushbar

Troubleshooting 12

Technical Specications 13

Guarantee 14

1

Product Code

VU-01e/VU-02e

Important - Please read all instructions before use and keep for future reference

FOR HOUSEHOLD USE ONLY.

When using the vacuum cleaner, basic safety
precautions should always be observed, including
the following:

1. Only use the vacuum cleaner indoors on dry
surfaces. Do not handle the plug or vacuum
cleaner with wet hands. Do not use outdoors
or on wet surfaces.

2. Turn off the vacuum cleaner controls before
disconnecting or connecting from the
mains supply.

3. Always unplug the vacuum cleaner before
connecting or disconnecting the vacuum hose
and accessories.

4. Children should be supervised to ensure that
they do not play with the appliance.

5. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.

6. Only use as described in this manual. Only use
recommended attachments.

7. Do not use the vacuum cleaner if it has been
dropped, damaged, left outdoors or dropped
into water.

8. Do not use the vacuum cleaner with a
damaged cord or plug. If the supply cord is
damaged, call the helpline for assistance.

9. Do not pull or carry by cord/hose. Do not use
the cord/hose as a handle, close a door on
the cord/hose or pull cord/hose around sharp
edges or corners. Do not run the vacuum
cleaner over the cord. Keep the cord away
from heated surfaces.

10. Do not put any objects into openings. Do not
use with any openings blocked and do not
restrict air-flow. Keep all openings free of dust,
lint, hair or anything that might reduce airflow.

11. Keep hair, loose clothing, fingers and all
parts of the body away from openings and
moving parts.

12. Do not pick up hot coals, cigarette
butts, matches or any hot, smoking or
burning objects.

13. Do not pick up flammable or combustible
materials (lighter fluid, petrol, kerosene
etc.) or use in the presence of explosive
liquids or vapours.

14. Do not vacuum up harmful or toxic material
(chlorine, bleach, ammonia, drain cleaner etc.).

15. Do not vacuum up hard or sharp objects such
as glass, nails, screws, coins, etc.
Do not use without ALL of the filters in place.

16

17. Take extra care when vacuuming on stairs.

18. Keep vacuuming area well lit.

19. Store the vacuum cleaner in a cool, dry area.

20. Turn off the on/off switch before unplugging the
vacuum cleaner.

21. Only use CE-approved 13 amp extension
cords. Non-approved cords may overheat. Care
should be taken to arrange the cord so that the
cord cannot be tripped over.

WARNING: Always switch off and unplug

the vacuum cleaner from the electrical
outlet before assembling, opening or emptying
the dirt container, connecting/disconnecting the
attachments, or carrying out maintenance or
troubleshooting checks.

CAUTION: The vacuum cleaner is a very

powerful unit. Before plugging the cord into
the electrical outlet, make sure the switch is in the
‘off’ position. Hold the vacuum cleaner firmly when
starting and in use.

IMPORTANT: If the inlet, hose or extension

tube is blocked, switch off the vacuum
cleaner and remove the blockage(s) before
re-starting the vacuum cleaner.

IMPORTANT: We recommend that filters

should be checked and cleaned periodically.
For washable filters, ensure they are completely
dry before inserting back into the vacuum cleaner.
Do not wash with detergents. Only use warm
water, max 40°C.

IMPORTANT: The motor is equipped with a

thermal cut-out. If for any reason the unit
should overheat, the thermostat will automatically
turn the unit off. Should this occur, unplug the
vacuum cleaner from the electrical outlet and turn
off the switch. Remove dirt container and empty.
Clean filters. Allow the unit to cool for approximately
one (1) hour. To re-start, plug into an electrical
outlet and switch back on.

This vacuum cleaner is intended for
household use only and NOT for commercial
or industrial use.

PLEASE KEEP INSTRUCTIONS FOR FURTHER USE.

2

AssemblyParts

the Customer Helpline: 0845 6042377

Please familiarise yourself with parts and accessories listed below

If you have damaged or missing parts, call

Initial Setup for normal operation

1. Use the base accessories.

– Shortest hose

– Extension tube set to shortest practicable length.

1

2

3

4

5

6

1

Hose
Crevice tool

2

Dirt container release handle

3

Extension tube

4

Dirt release button

5

Floor height adjust slider

6

Turbotool (VU-02e only)

7

Upper cord wrap

8

17

3. Dust receptacle empty.

2. Clean filters installed.

7

8

9

10

11

12

9

HEPA media filter
Power cord

10

Dirt container

11

On/off button

12

Cable clip

13

Upper hose caddy/carry handle

14

Hose/tool connector

15

Lower hose caddy

16

Turbotool caddy

17

13

14

4. All Bleeds must be closed.

5. Variable Power set to Maximum.

6. Floor heads/tools set to Carpet Mode for carpet cleaning.

7. Mechanical Agitation turned ON for carpet cleaning.

15

16

8. Floor heads/tools set to Hard Floor Mode for hard floor cleaning.

9. Mechanical Agitation turned OFF for hard floor cleaning.

Filters (pre-assembled in product) Tools required for assembly

18

3

HEPA media filter

9

Pre motor filter

18

9

1 x Crosshead

screwdriver

4
