MADE IN
BRITAIN
Dimensions
Width - 79.5cm
Depth - 39cm
Height - 51cm

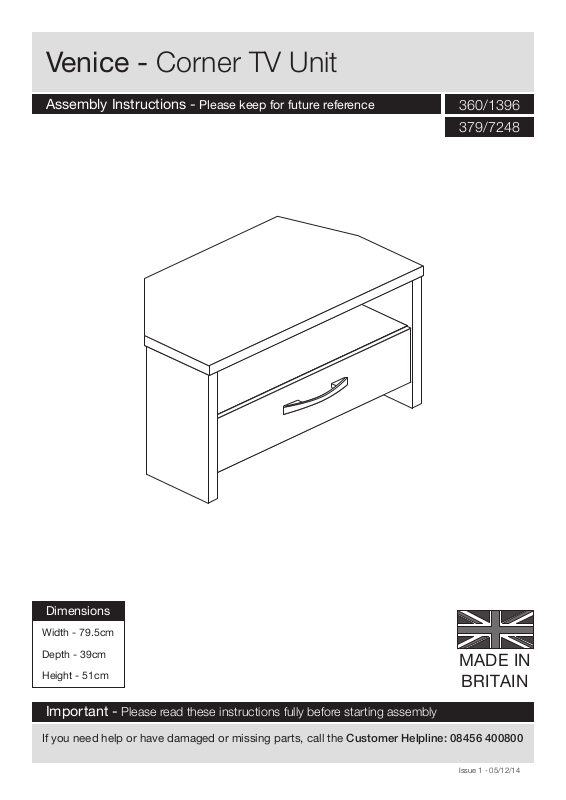

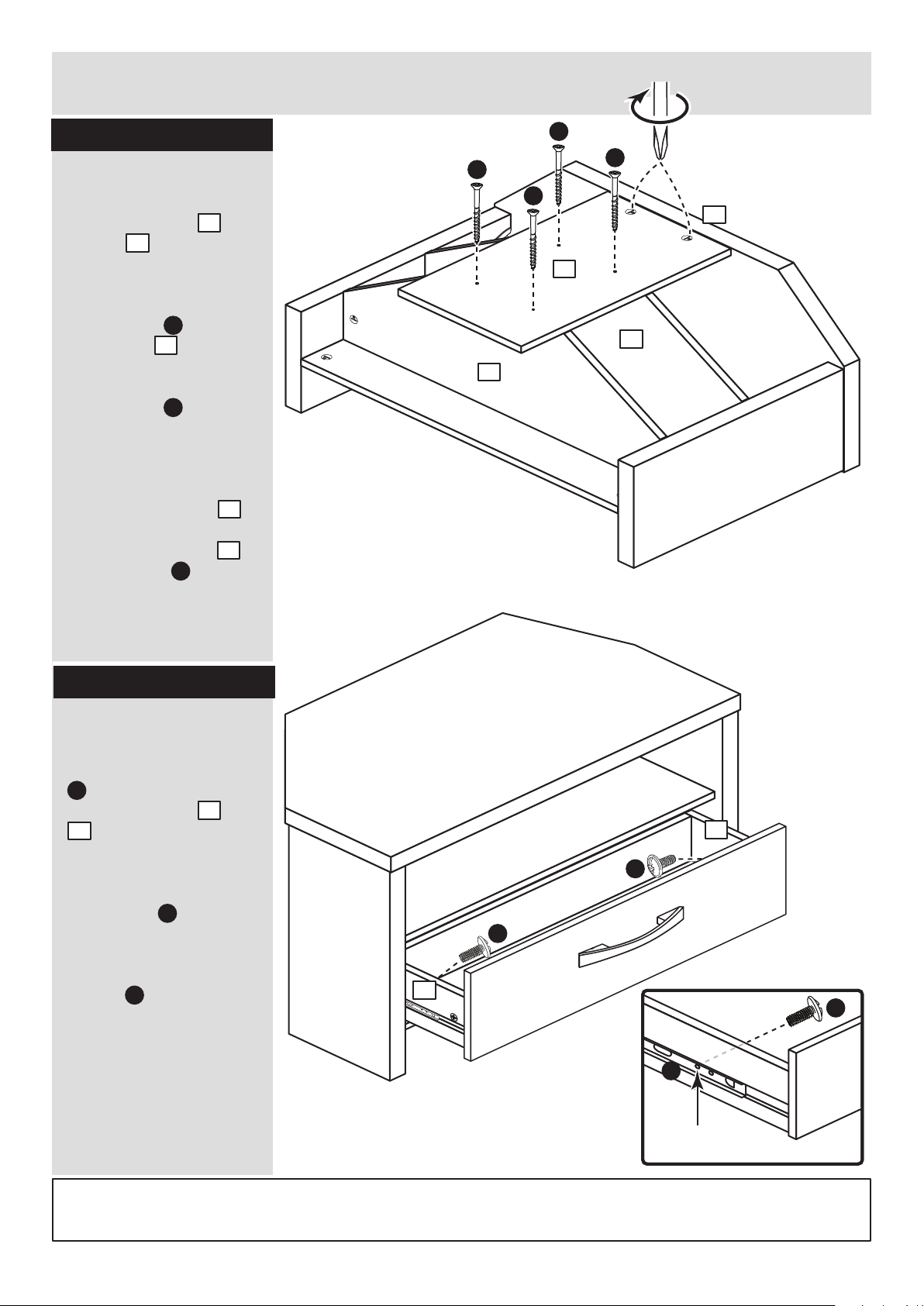

Venice - Corner TV Unit
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 1 - 05/12/14
Important - Please read these instructions fully before starting assembly
360/1396
379/7248
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 16kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Components - Panels
Please check you have all the panels listed below
2
1
3
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below

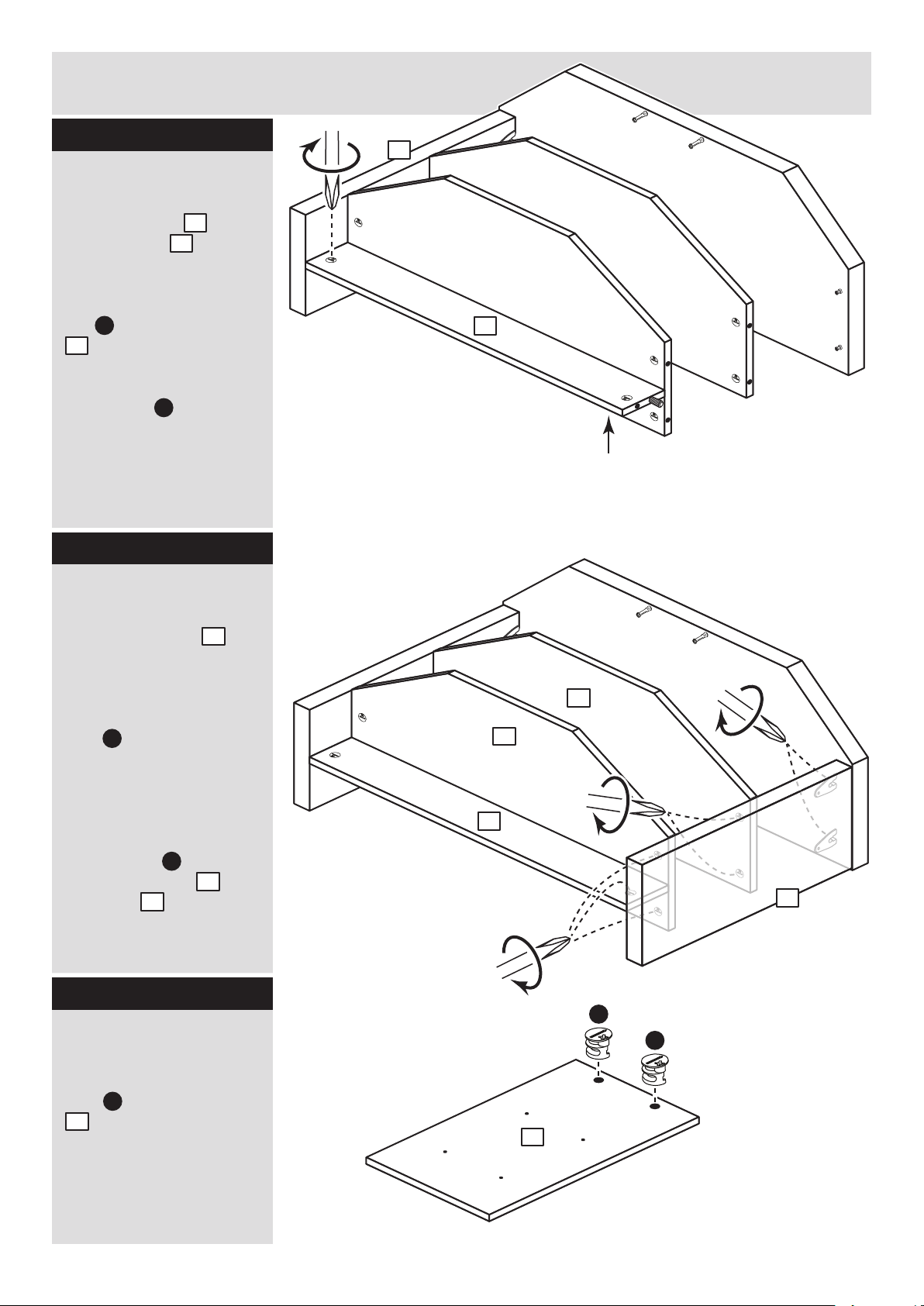

Upright (D1319A)
(477 x 280mm)
Plinth (D1320A)
(721 x 96mm)

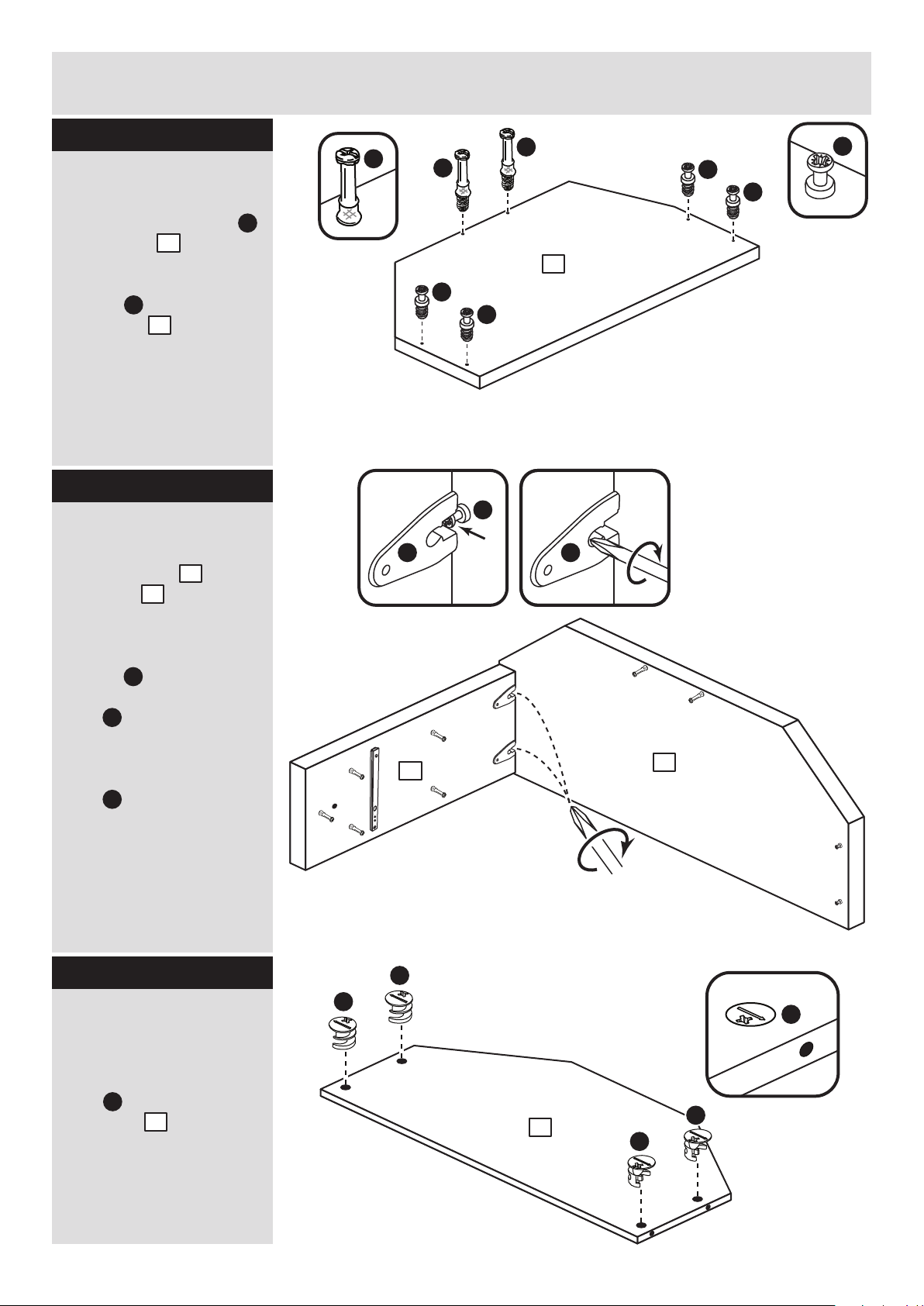

Top (D1315A)
(795 x 391mm)

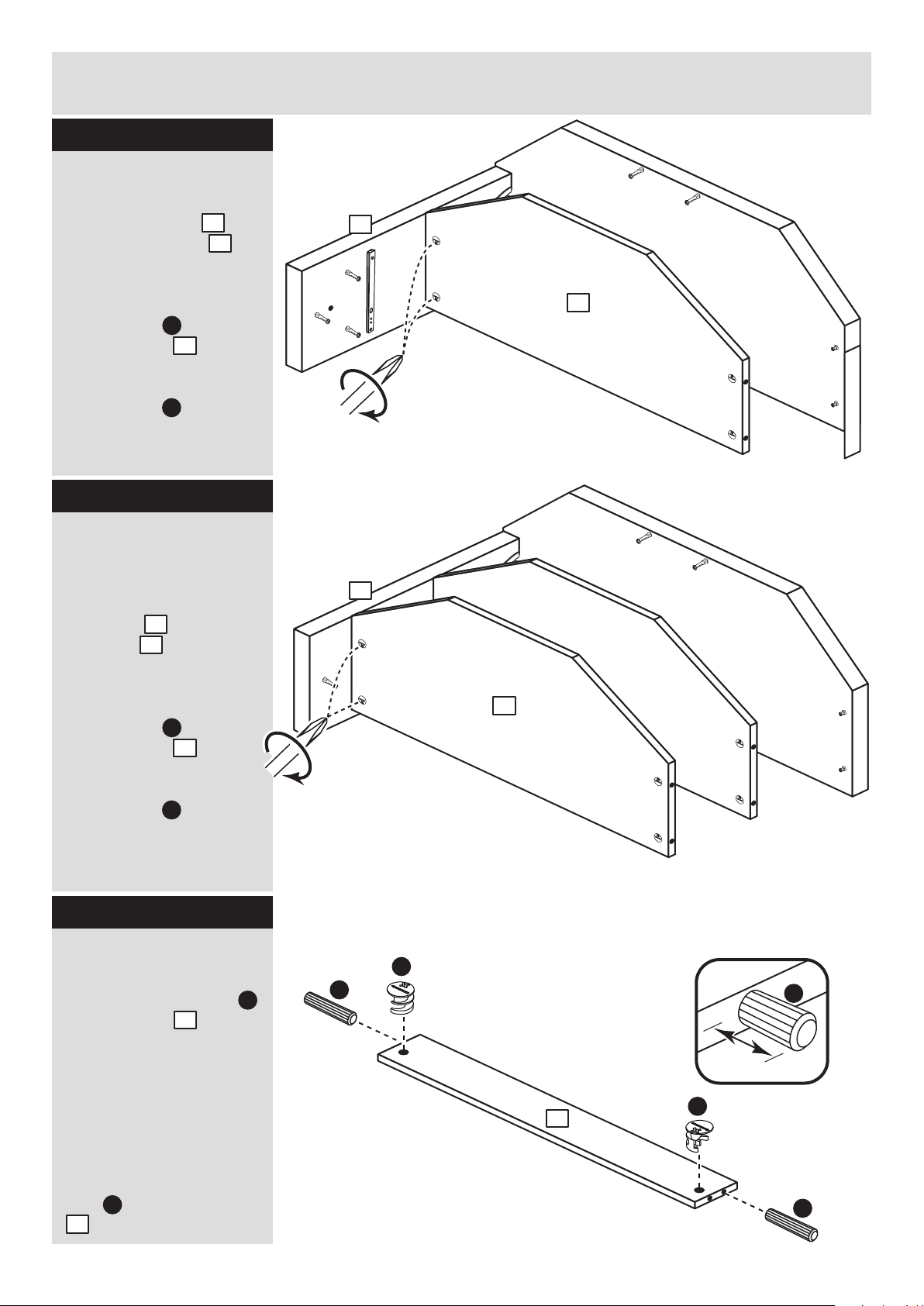

Horizontal (D1318A)
(721 x 352mm) x 2
4
2
5
6

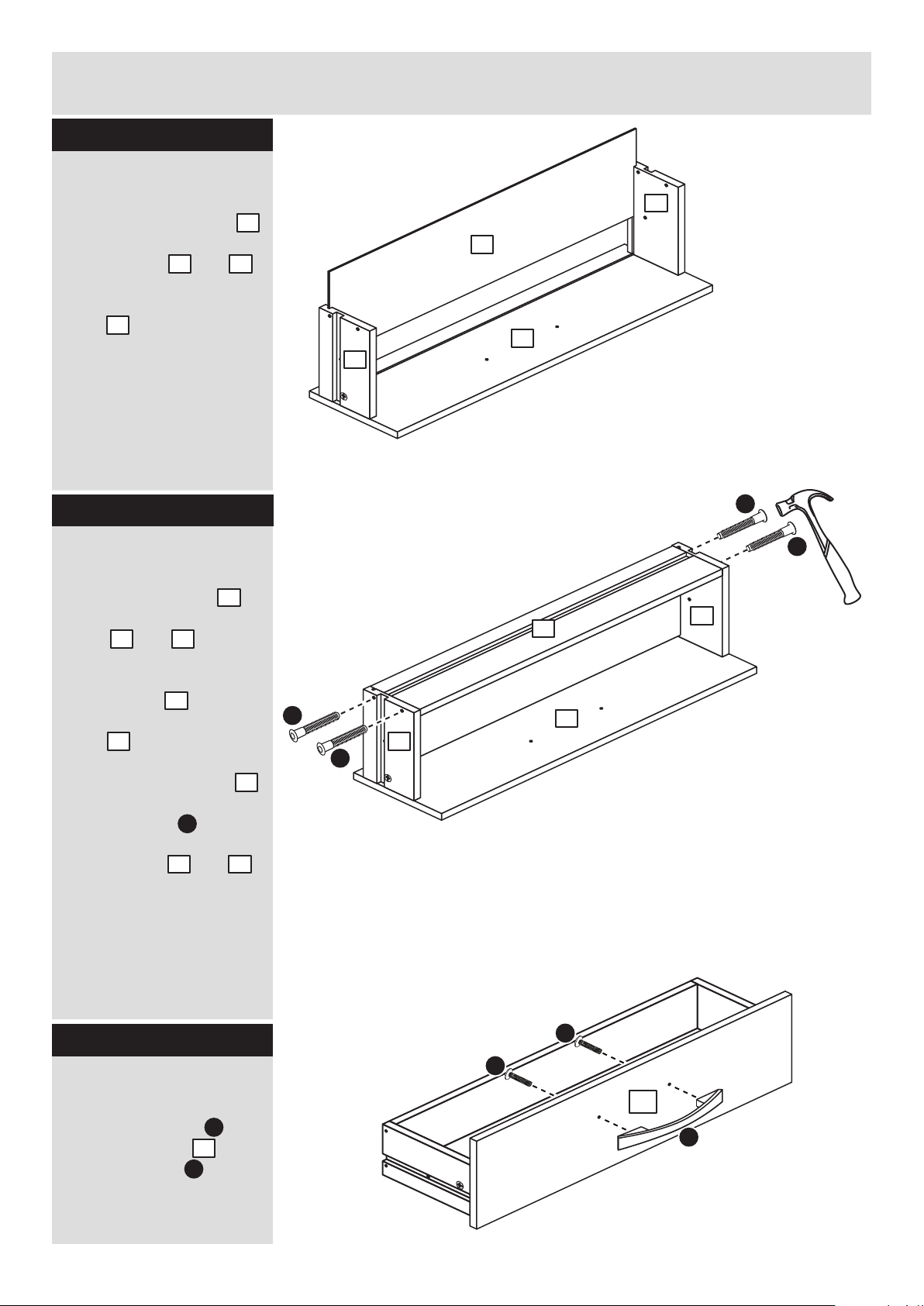

Drawer Front (D3076A)
(717 x 200mm)
Left Drawer Side (W454LH)
(200 x 115mm)
Right Drawer Side (W454RH)
(200 x 115mm)
Drawer Base (T454)
(700 x 197mm)

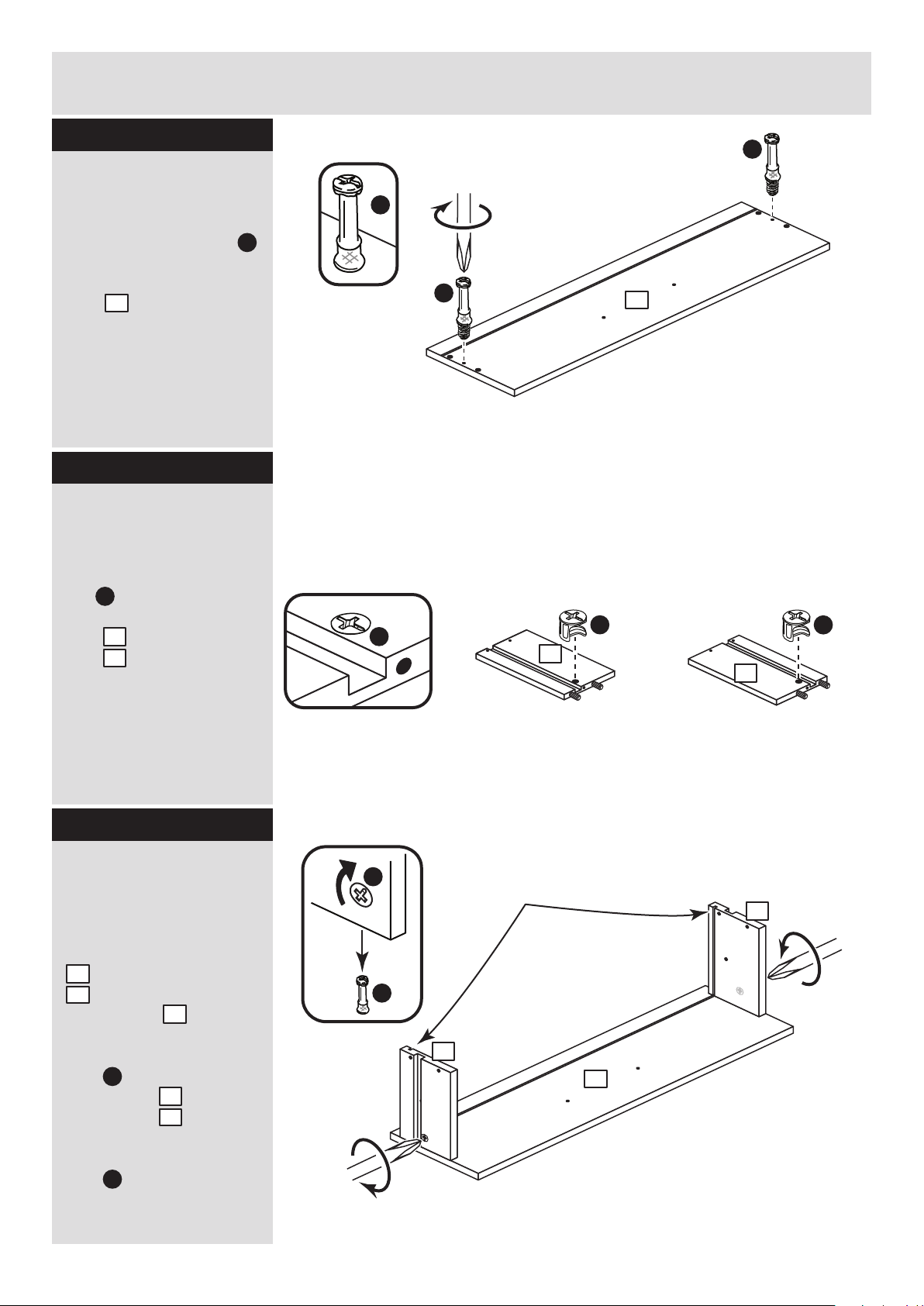

Side (D1912A)
(477 x 230mm) x 2
Drawer Back (W454)
(689 x 115mm)
97
8
10
Please check you have all the fittings listed below
Tools required
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 2
B
Metal dowel (F901) x 14
C
D E
Large locking
nut (F900) x 12
F
G
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Small metal dowel (F893) x 4
Hollow core
locking nut
(F892) x 4
45mm Screw (F65) x 4
Small locking
nut (F3) x 2
I
19mm Screw (F461) x 2
H
Knock-in Peg (F171GY) x 4
M

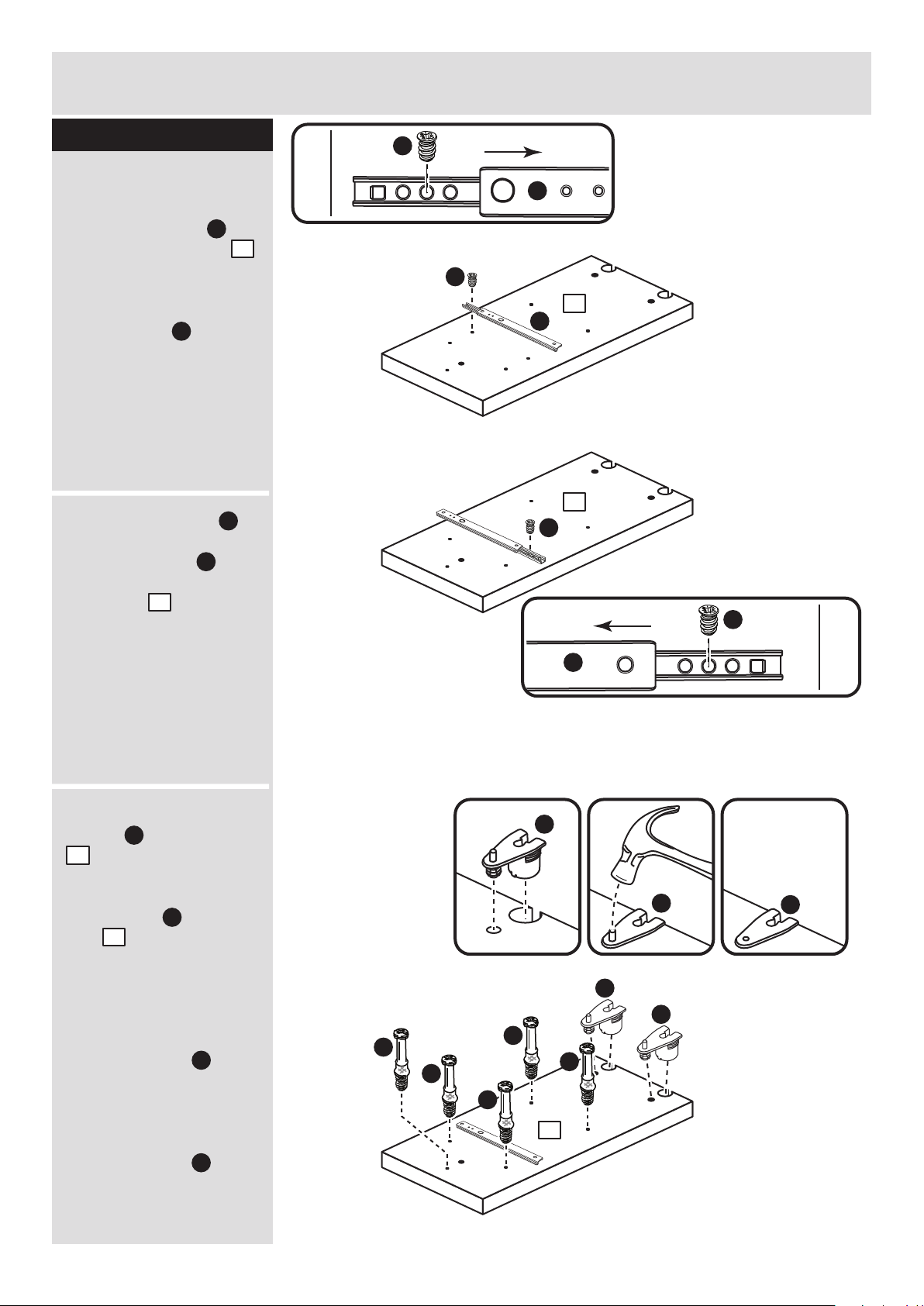

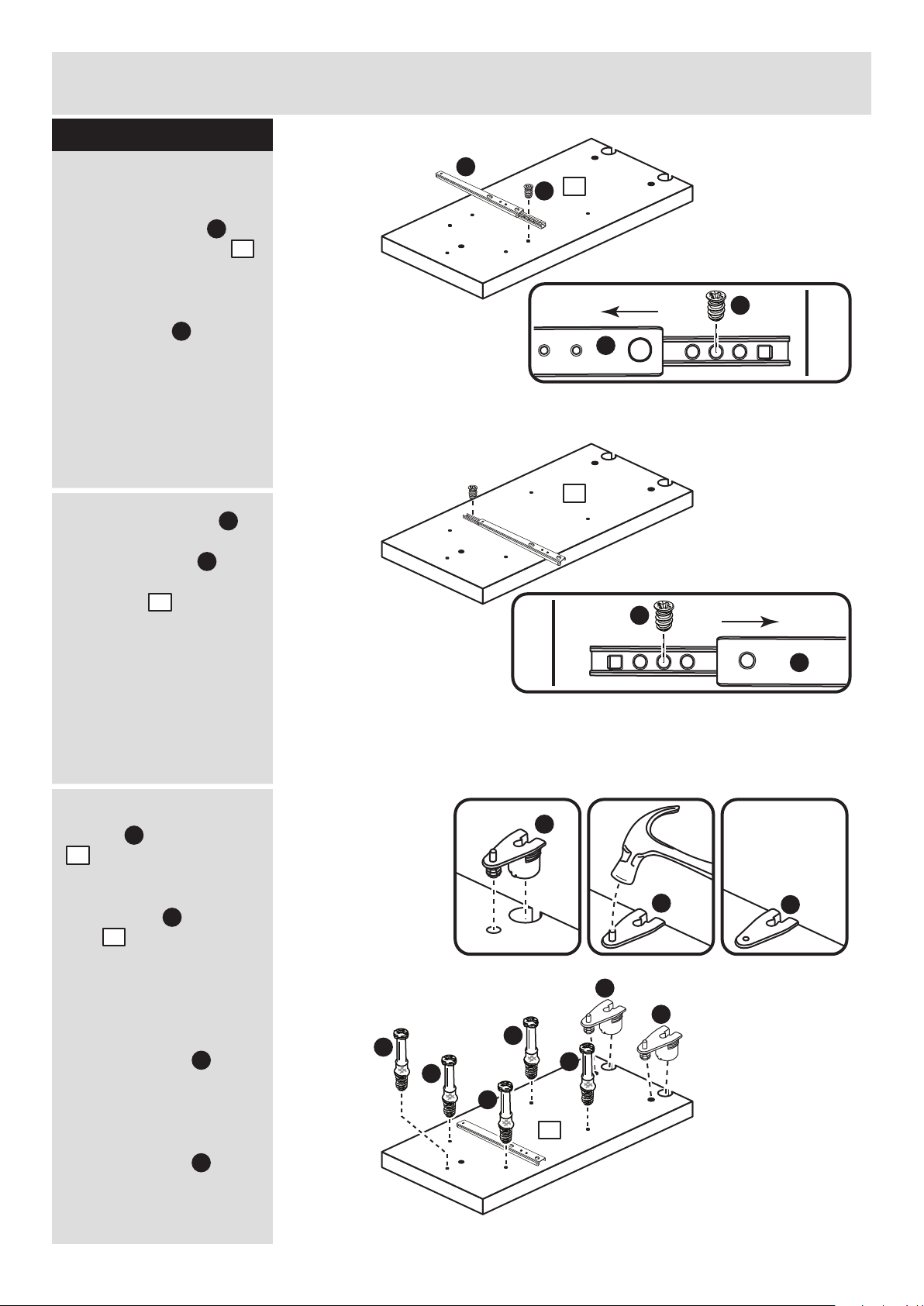

Drawer runner (F307) x 2
J K
9mm Screw (F74) x 2
9mm Screw (F73) x 4
L
Handle (FBARH128)
