Argos 758-4457, Valencia - 300mm Larder Cabinet, 758-4464, 758-4471, 205-3787 ASSEMBLY INSTRUCTIONS

MADE IN

BRITAIN

Dimensions

Width - 30cm

Depth - 59cm

Height - 213cm

Valencia - 300mm Larder Cabinet

Assembly Instructions - Please keep for future reference

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Issue 2 - 04/08/14

Important - Please read these instructions fully before starting assembly

hygena

758/4457

758/4464

758/4471

205/3787

758/4488

205/4676

Cabinet

Black Door Pack

Cream Door Pack

Oak Door Pack

White Gloss Door Pack

White HN Door Pack

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Warning: This unit weighs approximately 45kgs. Please lift with care.

• Check you have all the components and tools listed on pages 1, 2 and 3.

• Remove all fittings from the plastic bags and separate them into their groups.

• Keep children and animals away from the work area, small parts could choke if swallowed.

• Parts of the assembly will be easier with 2 people.

• Make sure you have enough space to layout the parts before starting.

• Do not stand or put weight on the product, this could cause damage.

• Assemble the item as close to its final position (in the same room) as possible.

• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).

1

Care and maintenance

• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.

• From time to time check that there are no loose screws on this unit.

• This product should not be discarded with household waste. Take to your local authority waste disposal centre.

Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.

• We do not recommend the use of power drill/drivers for

inserting screws, as this could damage the unit. Only use hand screwdrivers.

• Safety note: It is recommended that this unit is secured to a wall using the bracket supplied.

• Dispose of all packaging carefully and responsibly.

Tools required

Rule Scissors Hammer

Eye protection (when using a hammer or drill)

Cross-head screwdriver

Electric drill

Components - Panels

Please check you have all the panels listed below

2

1

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

2

4

3

5

6

7

Left Side (DPF106B)

(1980 x 560mm)

Right Side (DPF107B)

(1980 x 560mm)

Back (DPF1149A)

(280 x 1978mm)

Loose Shelf (DPF071A)

(268 x 431mm) x 3

Horizontal (DPF070A)

(269 x 494mm) x 3

Door (DPF146A)

(297 x 716mm)

Larder Door (DPF1150A)

(297 x 1258mm)

Please check you have all the fittings listed below

3

Components - Fittings

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

A

Wooden dowel (F22) x 18

B

Metal dowel (F901) x 12

C

D

Large locking nut (F900) x 12

F

G H I a

I c

I d

I e

I b

Ruler - Use this ruler to help correctly identify the screws

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

J K

13mm Screw (F63) x 10

E

13mm Screw (F79) x 2

Connecting Sleeve (F432) x 2 19mm Connecting bolt (F461) x 2

L M

25mm Screw (F50) x 6

N

Hinge Cover (F119) x 5

Bracket (F945) x 2

Shelf support (F110) x 12

Hinge Plate (F117) x 5

Hinge Arm (F118) x 5

Leg Bracket (F127) x 2

Leg Socket (F120) x 4

Leg Clip (F128) x 2

16mm Screw (F129) x 16

Leg (F122) x 4

h

ygen

a

OOa

b

25mm Screw (F132) x 4

Handle (F214) x 2

45mm Screw (F65) x 4

P

4

Step 1

J

E

Step 2

Prepare the left side

Refer to step 1 and, if required, fit 5 hinge

plates onto the left side , as shown.

Screw 6 metal dowels into the left side .

Note: Tighten the metal dowels up fully against the panels.

Fit a bracket to the left side using screw , flush with the top edge and back edge, see diagram.

B

L

J

1

E

Choose which way you would like the doors to open

You can fit the doors to the left side or right side.

Assembly Instructions

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

1

L

If you would

like your doors

to open this

way, fit the

hinge plates to

the left side

If you would

like your doors

to open this

way, fit the

hinge plates to

the right side

5

Step 3

Step 4

Assembly Instructions

L

J

E

Prepare the right side

Refer to step 1 and, if required, fit 5 hinge plates onto the right side , as shown.

Screw 6 metal dowels into the holes shown on the right side .

Fit a bracket to the right side , flush with the top edge and back edge, see diagram.

Secure the bracket using screw .

2

B

2

J

2

E

B

L

J

2

L

A

C

Prepare the 3 horizontals

Insert 4 large locking nuts into each of the 3 horizontals .

Note: Arrow on locking nut must point towards hole in edge of panel.

Tap 6 wooden dowels into each of the 3 horizontals .

Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.

C

4

10mm

A

4

C

x 3

Finished

front edge

Finished

front edge

Assembly Instructions

6

Step 5

Join the horizontals to the right side

Push the horizontals onto the right side .

Use a screwdriver to tighten the 2 large locking nuts fitted to each horizontal .

Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.

4

2

C

Step 6

B

C

4

2

I a

I b

b:

a:

c: d:

Fit the legs to one of the horizontals

a: Push the leg sockets

. into the holes in one of the horizontals

b: Secure each leg

socket with 3 screws .

c: Tap in the centre plug

on each leg socket .

d: Push the leg into

the leg socket .

I a

I e

4

x 3

I a

I b

I a

4

I a

NOTE: Hinge plates are not

shown as you may have

fitted them to the left side.

4

x 1

Horizontal

with feet

4

Finished

front edge

.

Assembly Instructions

7

Step 7

Fit the left side

Push the left side onto the assembly.

Use a screwdriver to tighten the 6 large locking nuts fitted to the 3 horizontals .

Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.

1

C

4

1

4

C

Assembly Instructions

8

Step 8

a:

b:

Fit the back

a: Slide the back

along the grooves in the side panels and .

3

1 2

b: The bottom edge of

the back must be flush with the bottom edge of the horizontal with the feet .

Secure the back to the unit using 2 screws . into the back edge of each of the 3 horizontals . .

Stand the unit up for the next stage.

3

4

F

3

1

2

Note: These 2 holes must be nearest the bottom edge of the panel.

F

3

4

Note: The bottom of the back must be flush with this horizontal.

9

Assembly Instructions

Step 9

Warning: Take care when

drilling the wall that you do not

drill into any pipes, wires etc. If in doubt, consult an expert.

Secure the unit to the wall

Using the brackets fitted to the back edge of the sides and screw the unit to the wall.

Fixings are not supplied as they will need to suit the wall type, and the length of screw will depend on the distance of the back of the unit to the wall.

F

1 2

5mm

G

H

Joining units together

Fittings have been supplied so you are able to join units together.

Make sure that your first unit is level.

Push the other unit up against first unit and ensure both units are level.

Check that the ends are flush and in line, then clamp them together.

Using a 5mm drill bit, drill 2 holes (example of positions shown circled) in the side panel into the adjoining side panel of the other unit.

Push the connecting sleeves into the holes and then screw the connecting bolts in from the other side.

G

H

Step 10

2

1

2

1

F

Assembly Instructions

10

Step 11

Prepare the doors

Push fit 2 hinges into the door and 3 hinges into the larder door .

Secure each hinge with 2 screws .

Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees with the front edge of the door.

M

D

M

6

7

6

7

90

M

D

M

D

M

D

M

D

M

D

M

Fit the 3 loose shelves

Insert 4 shelf studs at the required height for each of the shelves .

Lower the loose shelves . down onto the shelf studs .

K

5

Step 12

K

x 4

K

x 4

K

x 4

5

Assembly Instructions

11

Step 13

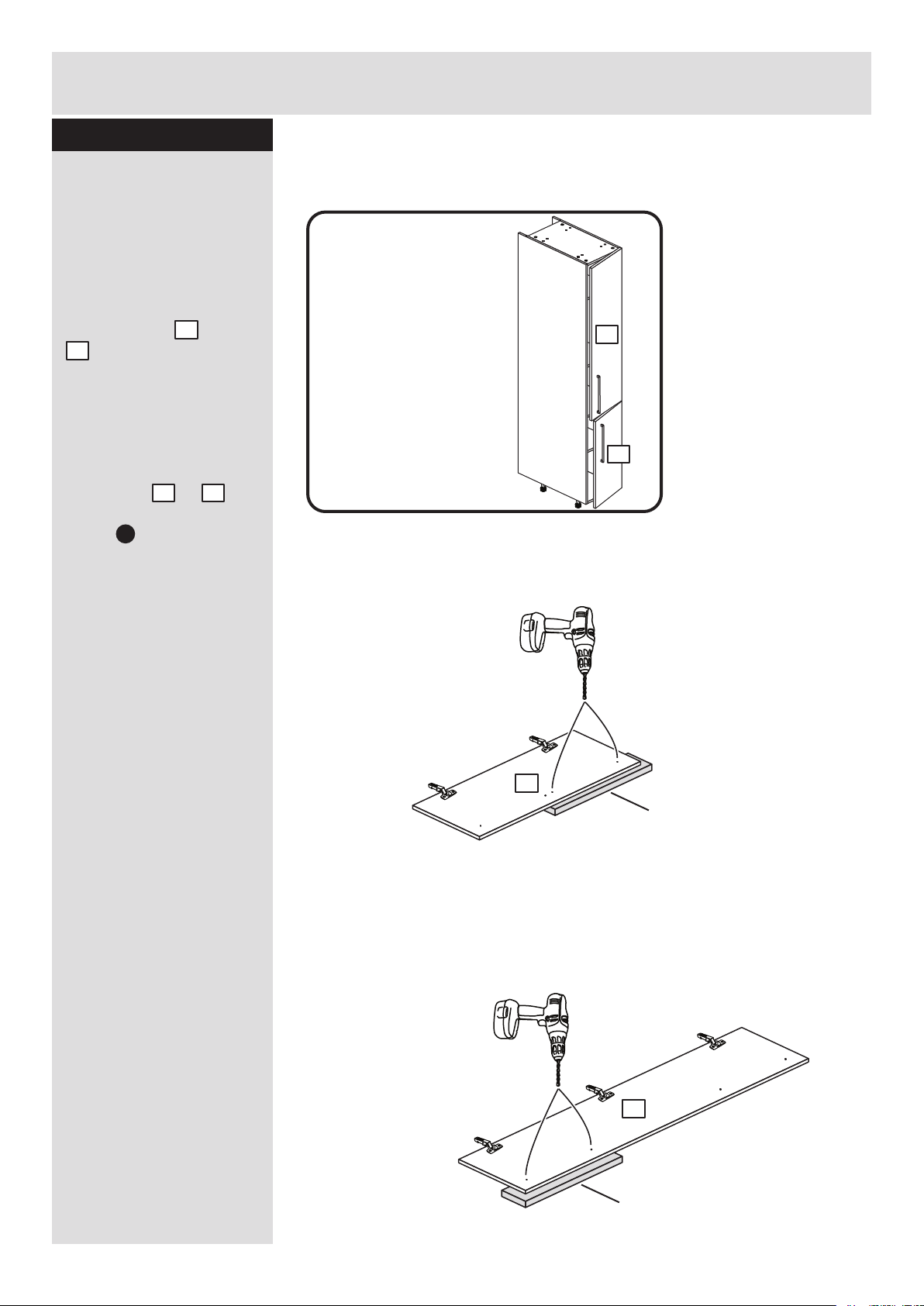

Drill the handle holes in the door

Important: Please follow these instructions carefully.

Lay the doors and . down onto a smooth surface.

Important: Carefully choose which holes you need to drill. This will depend on which side or you fitted the hinge plates .

Check that the holes and hinges are in the same place as the diagrams.

Note: We recommend the use of a small piece of waste wood, placed behind the hole while drilling, to reduce the possibility of any breakout.

Using the pilot hole in the rear face of the door, drill through the holes indicated opposite, using a 2.5mm diameter drill.

Turn the door over and open out the 2.5mm holes that you have just drilled by drilling back through them with a 5mm drill.

Note: Drill bits are not provided.

6

7

2

L

1

6

7

Important

ONLY drill the

2 holes in each

door shown

here if you

have fitted the

hinges to the

LEFT side.

If you have

fitted the

hinges on the

RIGHT side,

go to the

next step.

Small piece of

waste wood

DO NOT drill

any other holes

ONLY drill

these 2 holes

DO NOT drill

any other holes

ONLY drill

these 2 holes

Small piece of

waste wood

6

7

PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY

TO CHOOSE WHICH HANDLE HOLES YOU WILL NEED TO DRILL

Assembly Instructions

12

Step 14

Small piece of

waste wood

Drill the handle holes in the door

Important: Please follow these instructions carefully.

Lay the doors and . down onto a smooth surface.

Important: Carefully choose which holes you need to drill. This will depend on which side or you fitted the hinge plates .

Check that the holes and hinges are in the same place as the diagrams.

Note: We recommend the use of a small piece of waste wood, placed behind the hole while drilling, to reduce the possibility of any breakout.

Using the pilot hole in the rear face of the door, drill through the holes indicated opposite, using a 2.5mm diameter drill.

Turn the door over and open out the 2.5mm holes that you have just drilled by drilling back through them with a 5mm drill.

Note: Drill bits are not provided.

In the next step, fit the handles using the holes you have drilled here.

6

7

2

L

1

7

6

Important

ONLY drill the

2 holes in each

door shown

here if you

have fitted the

hinges to the

RIGHT side.

DO NOT drill

any other holes

ONLY drill

these 2 holes

Small piece of

waste wood

DO NOT drill

any other holes

ONLY drill

these 2 holes

If you have

fitted the

hinges on the

LEFT side,

go to the

previous step.

PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY

TO CHOOSE WHICH HANDLE HOLES YOU WILL NEED TO DRILL

6

7

Assembly Instructions

13

Step 15

a:

b:

c:

This shows the doors being fitted to

hinge plates on the right side.

You may have fitted them to the left side.

Push and

click

Push

d:

Fit doors and handles

2 people are needed here

Note: The easiest way to

attach each door and . is to fit the top hinge first, then align and fit the other hinge(s).

a: Push the hooks on

the hinge arm underneath the front of the hinge plate .

b: Press the front of the

hinge arm against the hinge plate until it clicks into place.

c: If you need to

seperate the hinge arm . from the hinge plate, . press the button at the end of the hinge arm and lift it off of the hinge plate.

d: Attach a handle

to each door and using the 2 screws packed with it.

L

M

L

M

L

M

L

M

6

7

M

L

M

O a

O b

6 7

O a

O b

7

6

O a

Assembly Instructions

14

Step 16

Adjust the doors if needed

a: Height adjustment.

Loosen screws A on hinge plates and move door up or down as required. Retighten screw A.

b: Forward and Back

adjustment. Loosen screw B on hinge arm and move door in or out as required. Retighten screw B.

c: Sideways

adjustment. To move door ‘out’ loosen screw C. To move door ‘in’ tighten screw C

a:

b:

c:

A

C

B

Assembly Instructions

15

Step 17

Fit the hinge covers

Push the hinge covers onto the hinge arms .

N

M

Step 18

Pencil mark

Plinth

I c

I d

Plinth

I e I e

Fit the plinth

After cutting the plinth to the required length, offer the plinth up to the unit and using a pencil, mark the position of the unit’s legs on the back of the plinth.

Position the leg bracket . so it is in the centre of the pencil mark and half way up the plinth.

Fix the leg bracket to the back of the plinth using 2 screws .

Slide the leg clip into the leg bracket

Offer the plinth up to the unit and push the leg clips onto the legs . .

I b

I c

I d

.

I e

h

ygen

a

N

M

608/2345

608/2369

205/5668

198/9917

608/2352

Black Plinth Pack

Cream Plinth Pack

Oak Plinth Pack

White HN Plinth Pack

White Gloss Plinth Pack

Assembly Instructions

16

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

and quote the reference numbers on the component pages.

Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW

Step 19

Fit other products to the unit

To fit other products to this unit e.g. worktops etc., please follow the instructions packed with them.

We recommend that you consult a qualified joiner or kitchen fitter.

Assembly is complete

Warning: The unit is heavy. Lift with care.

Please dispose of any unused fittings carefully and responsibly.

They should not be discarded with household waste.

Take them to your local authority waste disposal centre.

ALR2722

Argos 758-4457, Valencia - 300mm Larder Cabinet, 758-4464, 758-4471, 205-3787 ASSEMBLY INSTRUCTIONS

Specifications and Main Features

Frequently Asked Questions

User Manual
