Devon End Table
Assembly Instructions - Please keep for future reference
532/7623
Dimensions
Width - 45.5cm
Depth - 30cm
Height - 42.7cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts,call the Customer Helpline:03456 400800.
For further assistance please visit http://www.argos-support.co.uk/.
Issue 1 - 15/03/16
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
·Check you have all the
components and tools listed on
pages 2 and 3.
·Remove all fittings from the
plastic bags and separate them
into their groups.
·Keep children and animals
away from the work area, small
parts could choke if swallowed.
·Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
·Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
·Do not stand or put weight on
the product, this could cause
damage.
·Assemble the item as close to
its final position (in the same
room) as possible.
·Assemble on a soft level
surface to avoid damaging the
unit or your floor.
·Parts of the assembly will be
easier with 2 people.
·From time to time check that
there are no loose screws on
this unit.
·To reduce
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torgue
setting.
·This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Handy Hints
·Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts
·Regularly check and ensure
that all bolts and fittings are
tightend properly.
1
If you have damaged or missing componets, call the

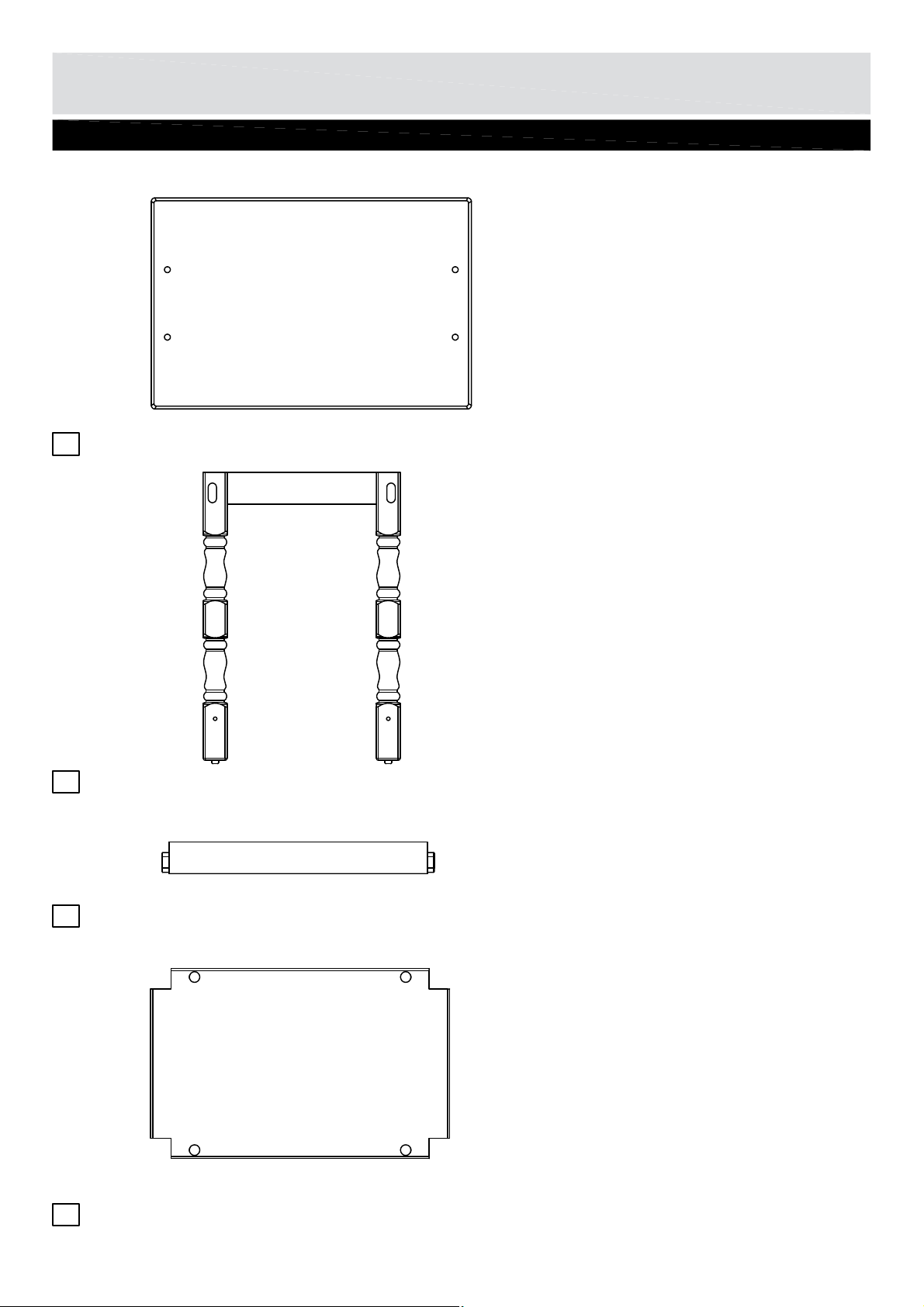

Components - Panels
Customer Helpline:03456 400800.For further
assistance please visit http://www.argos-support.co.uk/
Please check you have all the panels listed below
Top panel × 1 (45.5× 30cm)
1
Side frame× 2 (40.9 ×28cm)
2
Rail × 2 (38.7 ×4.5cm)
3
Bottom panel × 1 (42.5 × 27cm)
4
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
Ø8 ×30mm Wooden dowel × 4
D
Ø3.5×45mm
Screw × 12
B
Locking pin× 4
C
Locking nut× 4
Tools required
Phillips screwdriver
(medium & large)
Flatblade screwdriver
(medium)
Ruler - Use this ruler to help correctly identify the screws
0 101520253035404550556065707580859095100
5
3
Rubber
mallet
105
110115120125130135140145150155160165170
Assembly Instructions

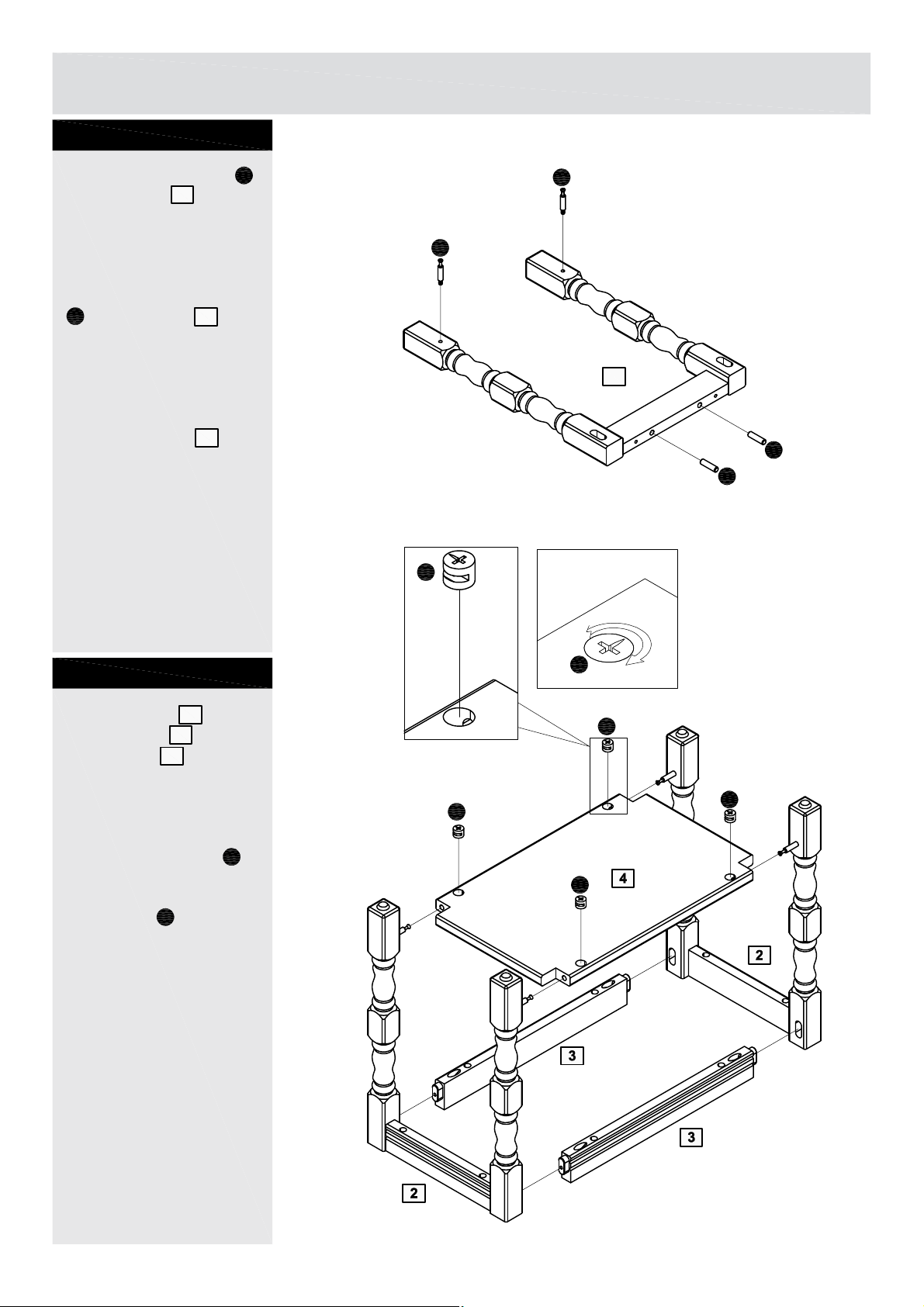

Step 1
a. Insert 2 Locking pin
to Side frame .
2
B
b. Insert 2 Wooden dowel
A
to Side frame .
2
Repeat Step a & b for the
other Side frame .
2
B
B
2
A
A
C
Step 2
a. Attach Rails and
Bottom panel to the
Side frames .
b. Insert Locking nut
to the Bottom panel and
use screw driver turn
Locking nut clock
wise to lock as show on
picture.
3
4
2
C
C
C
C
C
C
C
Assembly Instructions
Step 3
Fixing rails to Side
frame by 4 Screw
as show on picture. Use
screw driver turn Screw
D
clock wise to fix.
3
2
D
D x4
Step 4
Fix the unit to Top panel
1
by 8 Screw as
show on picture.
Assembly is completed.
D
D x8
1
