Argos Savannah Dining Table ASSEMBLY INSTRUCTIONS

602/3919
Assembly Instructions – Please keep for future reference
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 01799 513466
Issue 1 - 02/11/09
Savannah Dining Table
EXTENDED
Dimensions
Width - 200cm
Depth - 80cm
Height - 75cm
Width - 140cm
Depth - 80cm
Height - 75cm
Extended
Closed
603/1217
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
1
Glass safety
Care and maintenance
1
• This product complies with BS7376: 2004.
• Imported by: Justwise Group Ltd 6 The Shires Shirehill Industrial Estate Saffron Walden Essex CB11 3AP
• Product stock ref: DTSAV (Clear Glass)
DTSAVB (Black Glass)
• P/O No:
• If the glass is chipped or broken, stop using the product and consult the Manufacturer of Supplier.
WARNINGS
a) Do not place very hot or very cold items on the glass surface(s) unless adequately thick table mats are used to prevent such items from coming into contact with the glass..
b) Do not sit or stand upon the glass surface(s).
c) Do not use the glass as a chopping surface. Do not strike the glass with hard or pointed items.
d) When cleaning glass panels use a damp cloth or leather with washing up liquid or soft soap if necessary, do not use washing powders or any other substance containing abrasives since these substances scratch glass.
• Only clean using a damp cloth
and mild detergent, do no use bleach or abrasive cleaners.
• From time to time check that there are no loose screws on this unit.
• This product should not be discarded with household waste. Take to your local authority waste disposal centre.
• Check you have all the components and tools listed on pages 2 and 3.
• Remove all fittings from the plastic bags and separate them into their groups.
• Keep children and animals away from the work area, small parts could choke if swallowed.
• Make sure you have enough space to layout the parts before starting.
• Do not stand or put excessive
weight on the product, this could cause damage.
• Assemble the item as close to its final position (in the same
room) as possible.
• Parts of the assembly will be
easier with 2 people.
• Dispose of all packaging
carefully and responsibly.
• Place the product on flat and
steady surface during use.
• Assemble on a soft level surface to avoid damaging the unit or your floor.
• Keep these instructions for further use.
• To ensure an easier assembly, we strongly advise that all fittings are only finger tightened during initial assembly. Only upon completion of the assembly should all fixing points be fully tightened.
Please check you have all the parts listed below
Components - Parts
2
Leg frame x 2
(70 x 12.6cm)
Top frame (138 x 60.7cm)
Glass extension leaves x 2 (80 x30cm)
3
5
4
1
Leg x 4
(54.8 x Ø5.1cm)
2
Glass top (140 x 80cm)
Components - Fittings
A
0
Ruler – Use this ruler to help correctly identify the screws
3
5
10 2015 4035
30
25 80
75
7060 65
45
50
55
160155150140 145120 125
130 135
85 90 10095 115110105 165 170
Please check you have all the fittings listed below
Note:
The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
If you have damaged or missing components, call the Customer Helpline: 01799 513466
0010 20 40
30
80706050 150140120
130
90 100 110
1 2
4
3
5
6
Tools required
Ruler/tape measure
B C
D E F
G
75mm Large stud x 4
Nut x 4
Spanner x 1
H
J
K L M
N O P
Q
Leg spacer x 4
13mm Allen screw x 16
Spring washer x 8
Ø16mm Plain washer x 8
68mm Medium stud x 4
Nut x 4
15mm Short stud x 8
10mm Threaded spacer x 4
Rubber washer x 8
14mm Threaded spacer x 8
Ø18mm Plain washer x 4
Rubber pad x 4 Allen key x 1
Step 1
Assembly Instructions
4
Step 2
Assembling leg frames
Place leg frame upside down onto the floor.
Screw large threaded rods into leg frames
as shown.
Note:
Screw the short
end in until it stops.
Locate leg spacers over the threaded rods.
Screw legs onto
threaded rods and tighten.
Repeat for other leg frame.
A
Assembling side rails
Place top frame upside down onto a clean flat surface.
Assemble leg frames to the top frame using
fixings and .
3
C
B
C D
3
1
1
2
25mm
B
AA
Upside down
D
E
3
D
E
C
1
2
E
Assembly Instructions

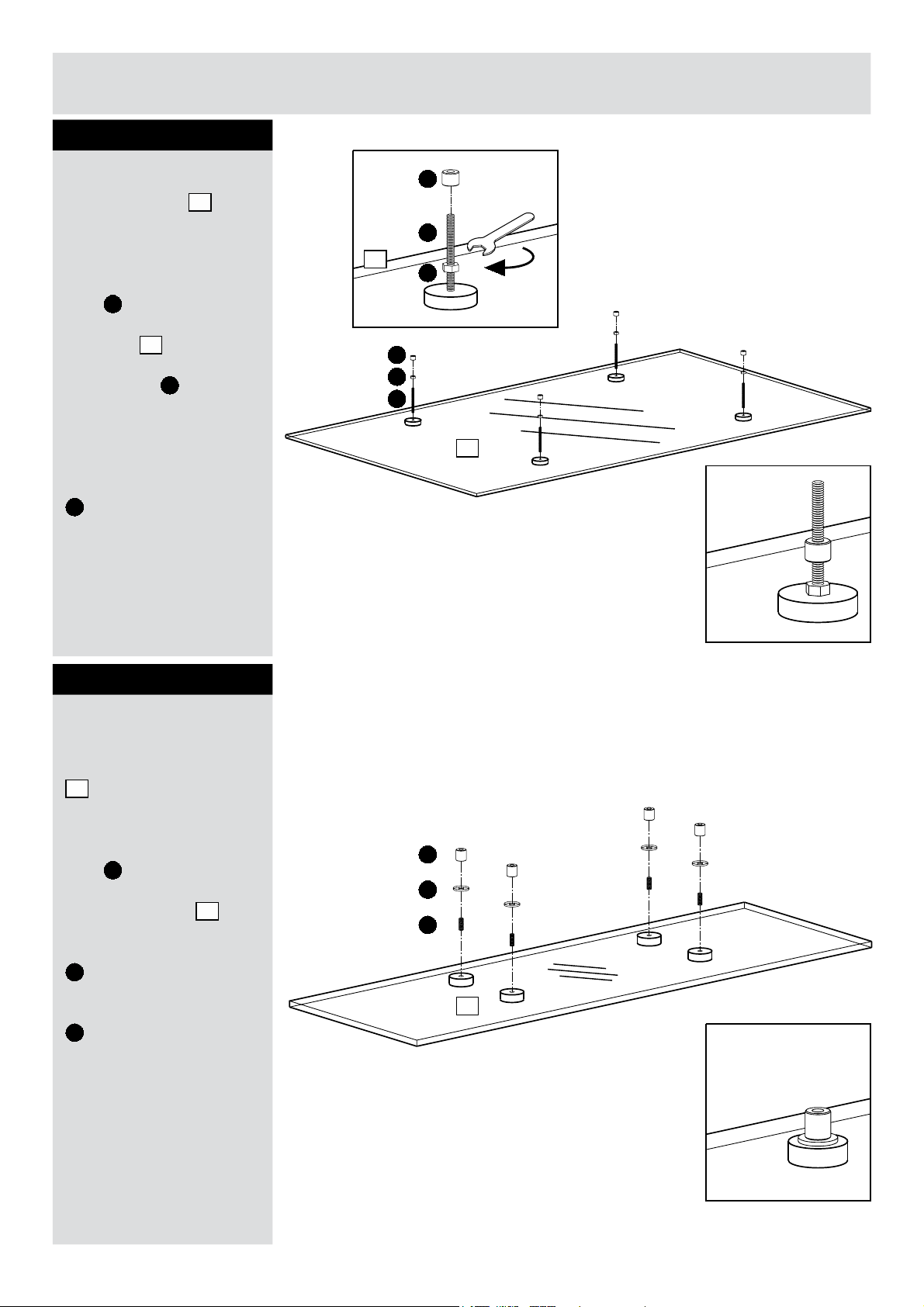

Step 3
5
Step 4
Preparing glass top
Place glass top upside down onto a clean flat surface.
Screw medium threaded rods into the metal discs on the underside of glass top .
Screw nuts onto
threaded rods and use the spanner to tighten
onto the metal discs.
Screw threaded spacers
half way onto the threaded rods.
F
Preparing extension leaves
G
5
4
4
4
5
G
F
H
H
F
G
4
Step 3 completed
Step 4 completed
L
K
J
H
Place extension leaves
upside down onto a
clean flat surface.
Screw short threaded rods into the metal discs on the underside of extension leaves .
Locate rubber washers
over the rods.
Screw threaded spacers
onto the rods and tighten.
J
5
K
L
Assembly Instructions

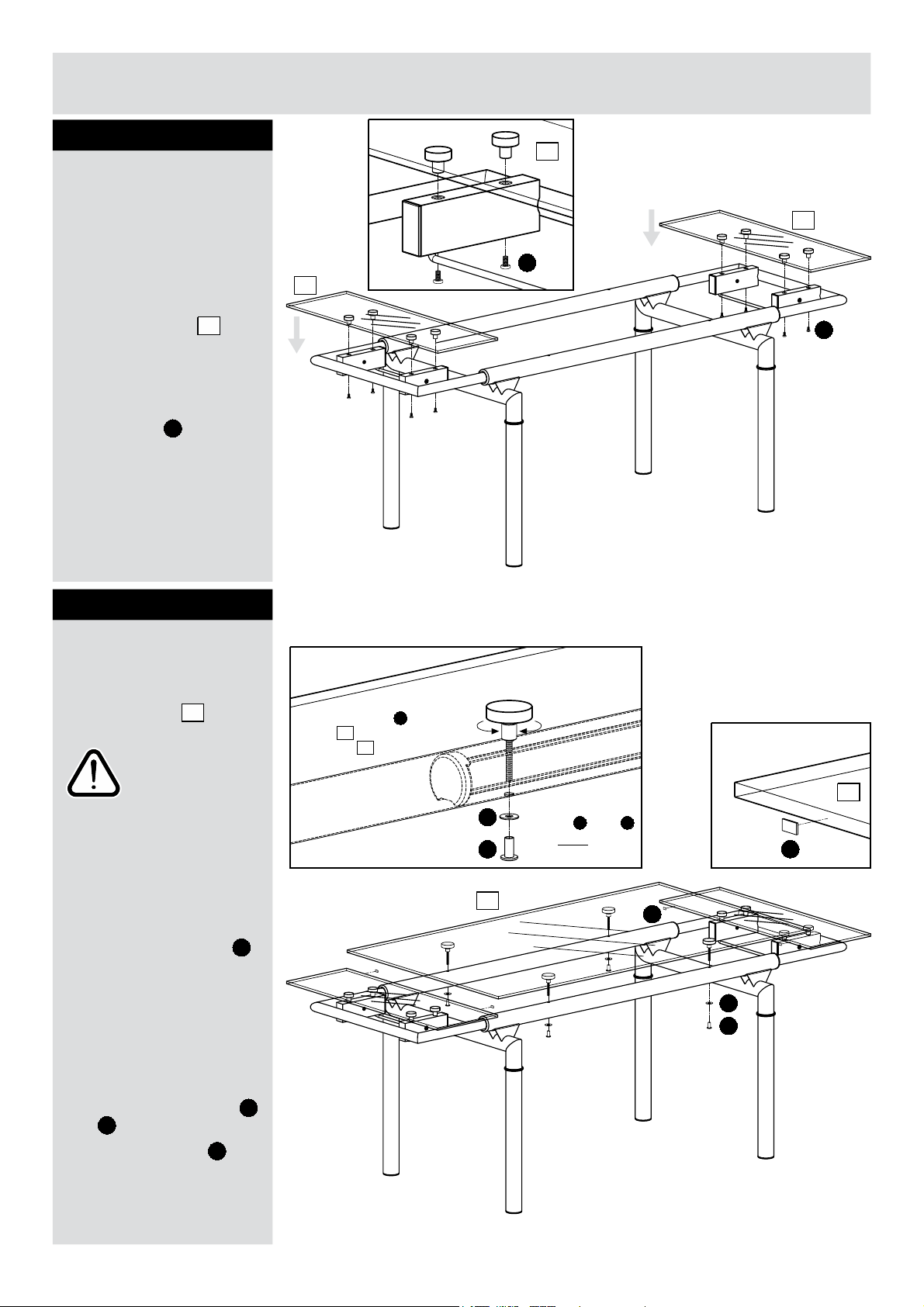

Step 5
6
Step 6
Attaching extension
leaves
With help, turn frame over into it's standing position.
Carefully align glass extension leaves with
the brackets on the
frame.
Secure from underneath using fixings .
Attaching main glass top
C
5
5
With help, carefully lower main glass top down into position.
Warning:
The glass top is heavy, lift with care.
Following the extension procedure described in step 7, raise the extension leaves into the extended position.
a: Threaded spacers
can be turned to adjust
the height of the glass
top and achieve alignment with the extension leaves.
b: Once alignment is
achieved, secure main glass top using fixings and .
Small rubber pads can be located onto the edge of the extension leaves
to prevent direct glass to glass contact.
4
H
M
N
O
Note:
Do not fit
fixings and
until after
height
alignment.
Turn spacer to align top with extension leaves .
a:
b:
M
N
M
N
H
4
M N
5
O
O
C
5
5
C
4
5
Assembly Instructions
Step 7
7
Extending and closing
TO EXTEND
Pull extension leaf out from below the main glass top until it stops.
Push down on the handlebar to raise the extension leaf.
Once raised, push the extension leaf back in until it touches the main glass top.
TO CLOSE
Repeat the above in reverse order, expect the handlebar should be raised to lower the
extension leaf.
Warning:
Keep fingers
clear of glass contact area when closing/extending the leaves!
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline: 01799 513466
Justwise Group Ltd., 6 The Shires. Shire Hill Industrial Estate. Saffron Walden. Essex. CB11 3AP
1
2
3
602/5326
Assembly Instructions – Please keep for future reference
Important – Please read these instructions fully before starting assembly
Dimensions
Width - 44.5cm
Depth - 54cm
Height - 106.5cm
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 3 - 07/05/13
Savannah Dining Chair
602/3988
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
1
Care and maintenance
• From time to time check that
there are no loose screws on
this unit.
• This product should not be discarded with household waste. Take to your local authority waste disposal centre.
Cleaning Guidance
• Minor stains and spillages should be removed immediately from cushion fabric, by wiping over lightly with a damp cloth and mild soapy water.
• Light marking can also be removed using this method.
• To remove more stubborn stains or marking, a good quality proprietary domestic fabric cleaner can be used, although it should first be tested on and inconspicuous area of
the fabric.
• Check you have all the components and tools listed on pages 2 and 3.
• Remove all fittings from the plastic bags and separate them into their groups.
• Keep children and animals away from the work area, small parts could choke if swallowed.
• Make sure you have enough space to layout the parts before starting.
• Assemble the item as close to its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the unit or your floor.
• Dispose of all packaging
carefully and responsibly.
• Keep these instructions for
further use.
• We do not recommend the use of power drill/drivers
for
inserting screws,
as this could damage the unit. Only use hand screwdrivers.
• To ensure an easier assembly, we strongly advise that all
fittings are only finger tightened during initial assembly. Only upon completion of the assembly should all fixing points be fully tightened.
2
Left leg frame x 2
(44 x 37cm)
4
1
Right leg frame x 2
(44 x 37cm)
2
Stretcher x 2
(30 x 2.6cm)
3
Backrest x 2
(106 x 27cm)
Front
5
Seat pad x 2
(44.5 x 44cm)
Front
44.5cm
Back
33cm
Please check you have all the parts listed below
Components - Parts
Components - Fittings
A
38mm Wood screw x 4
Please check you have all the fittings listed below
Note:
The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
Allen key x 2
B C
D E
3
18mm Allen screw x 89mm Allen screw x 8 28mm Wood screw x 4
If you have damaged or missing components, call the Customer Helpline: 08456 400800
0
5
10 15 20 25 30 35 40
45
50
55
60 65 70
75
80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
Ruler - Use this ruler to help correctly identify the screws
Tools required
Phillips screwdriver (medium & large)
Step 1
Assembly Instructions
Step 2
4
B
Attaching backrest
Place backrest down onto a clean flat surface.
Note:
fixing holes must
be facing up.
Turn the leg assembly over and place it onto the backrest as shown.
Secure to the backrest using screws .
Note:
Do not fully tighten
screws .
B
4
4
Attaching legs
Assemble stretcher in between left and right leg frames and using screws .
Note:
Ensure the arrow label on stretcher is facing 'up' as shown.
Note:
Do not fully tighten screws .
A
2
3
1
4
3
A
B
1
2
3
A
Bottom
Top
A
Assembly Instructions
Step 3
Assembly is complete.
5
Step 4
Turn the chair upright
Attaching seat pad
Place seat pad upside down onto a clean flat surface (edge of table
top).
Align chair frame on top of seat pad and secure using screws and .
Note:
Longer wood screws go through stretcher at the front.
5
C D
5
C
D
Front
44.5cm
Stand the chair upright.
Whilst applying a firm downward pressure to ensure the chair is stable, fully tighten all
screws.
If necessary, stability can be further adjusted using
the adjustable front feet.
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Justwise Group Ltd., 6 The Shires. Shire Hill Industrial Estate. Saffron Walden. Essex. CB11 3AP
3
D
3
