Argos S15-2041 W ASSEMBLY INSTRUCTIONS

Phoenix Wall Desk
Assembly lnstructions - Please keep for future reference
455/5991
497/4479
498/1307
460/6613
Dimensions
Width - 80cm Depth - 60 cm Height -180.5 cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
Safety and Care Advice
Check you have all the components and tools listed on pages 2 and 3. Remove all fittings from the plastic bags and separate them into their groups. Keep children and animals away from the work area, small parts could choke if swallowed. Make sure you have enough space to layout the parts before starting.
Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.
Assemble the item as close to its final position (in the same room) as possible.
Assemble on a soft level surface to avoid damaging the unit or your floor.
Assembly requires 2 people.
Keep this instructions for future use.
Do not stand or put excessive weight on the product, this could cause damage.
From time to time check that
there are no loose screws on this unit.
We do not recommend the use of power drill/drivers for
inserting screws,
as this could damage the unit. Only use hand screwdrivers and
Allen keys.
Dispose of all packaging carefully and responsibly.
This product should not be discarded with household waste. Take to your local authority waste disposal centre.
1
Components - Parts
lf you have damaged or missing components. call the Customer Helpline :
0345 6400 800
Desk Top x 1
1
(77x60x1.8cm)
Base Panel x 1
4
(77x29.3x1.5cm)
Top Shelf x 1
7
(77x21.2x1.5cm)
Lower Divider x 2
2
(33x27.4x1.5cm)
Upper Divider
5
(Left And Right) x 2 (19.3x11.6x1.5cm)
Upper Shelf x 1
8
(77x26.5x1.5cm)
Lower Shelf x 1
3
(77x27.5x1.5cm)
6
Top Horizontal Rail X 1 (77x11.7x1.5cm)
Drawer Divider x 1
9
(24.7x11.5x1.5cm)
Drawer Shelf x 1
10
(77x23.5x1.5cm)
Side Panel (Right)x 1
12
(180.6x40x1.5cm)
Middle Divider x 1
11
(32.9x23.2x1.5cm)
2
Components - Parts
13
Side Panel (Left) x 1
(180.6x40x1.5cm)
lf you have damaged or missing components. call the Customer Helpline :
0345 6400 800
Upper Divider (Middle) x 1
14
(19.3x11.6x1.5cm)
Drawer Back x 2
17
(34.9x8.9x1.2cm)
Drawer Base x 2
19
(35.6x20.8x0.3cm)
Drawer Side (Right) x 2
15
(21.3x9x1.2cm)
Drawer Front x 2
18
(37.4x11.1x1.5cm)
Lower Back Panel x 2
20
(77.7x34x0.3cm)
Drawer Side (Left) x 2
16
(21.3x9x1.2cm)
Middle Back Panel x 1
21
(77.7x47.4x0.3cm)
Upper Back Panel Extra hole x 1
22
(77.7x46.7x0.3cm)
3
Components - Fittings
0345 6400 800
A
Short 30mm wooden dowel x 46
D
35mm screw x 49
G
F
Crosshead nut x 4
J
F
Plastic trim x 1
M
F
20mm screw x 2
B
Metal dowel x 14
E
Plastic drawer runner x 4
H
F
53mm screw x 4 Allen Key x 1
K
F
Small locking nut x 8
N
F
Plastic Drawer Stop x 4 Plastic Bracket x 14
C
Large locking nut x 6
F
F
10mm screw x 8
F
I
L
F
Handle x 2
O
F
Q
P
F
16mm screw x 14
F
S
Sticker x (24+2)
V
F
Long 50mm wooden dowel x 4
F
Wall Strap x 2
T
F
Sticker x (6+2)
Tools required
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110115 120 125 130135 140 145 150
0
1 2 3 4 5 6
Ruler/tape measure
Ruler - Use this ruler to help correctly identify the screws
R
F
screw x 2
U
F
10mm screw x 3
Phillips screwdriver (Not supplied)
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
4
Assembly Instructions
Preparing panels
Place desk top flat onto
the floor with the fixing holes facing up.
Insert short wooden dowels
A
into shown.
Screw metal dowels
into desk top as shown.
Note:
dowels as far as shown.
Do not overtighten.
desk top as
Screw metal
1
1
B
1
B
1
B
A
Preparing panels
Place lower divider flat
onto the floor with the fixing holes facing up.
Insert short wooden dowels into each side as shown.
A
2
2
A
x 2
5
Assembly Instructions
Preparing panels
With help, locate lower
divider to the underside
of
2
desk top as shown.
1
Insert large locking nuts into the holes in
.
divider .
2
Turn locking nuts
lower
C
C
clockwise to secure.
Preparing panels
1
C
2
C
Place lower shelf flat
3
onto the floor with the fixing holes facing up.
Insert short wooden dowels
A
into shown.
lower shelf as
Screw metal dowels
lower shelf as
into
3
B
3
shown.
Note:
Screw metal
dowels as far as shown.
Do not overtighten.
A
B
3
B

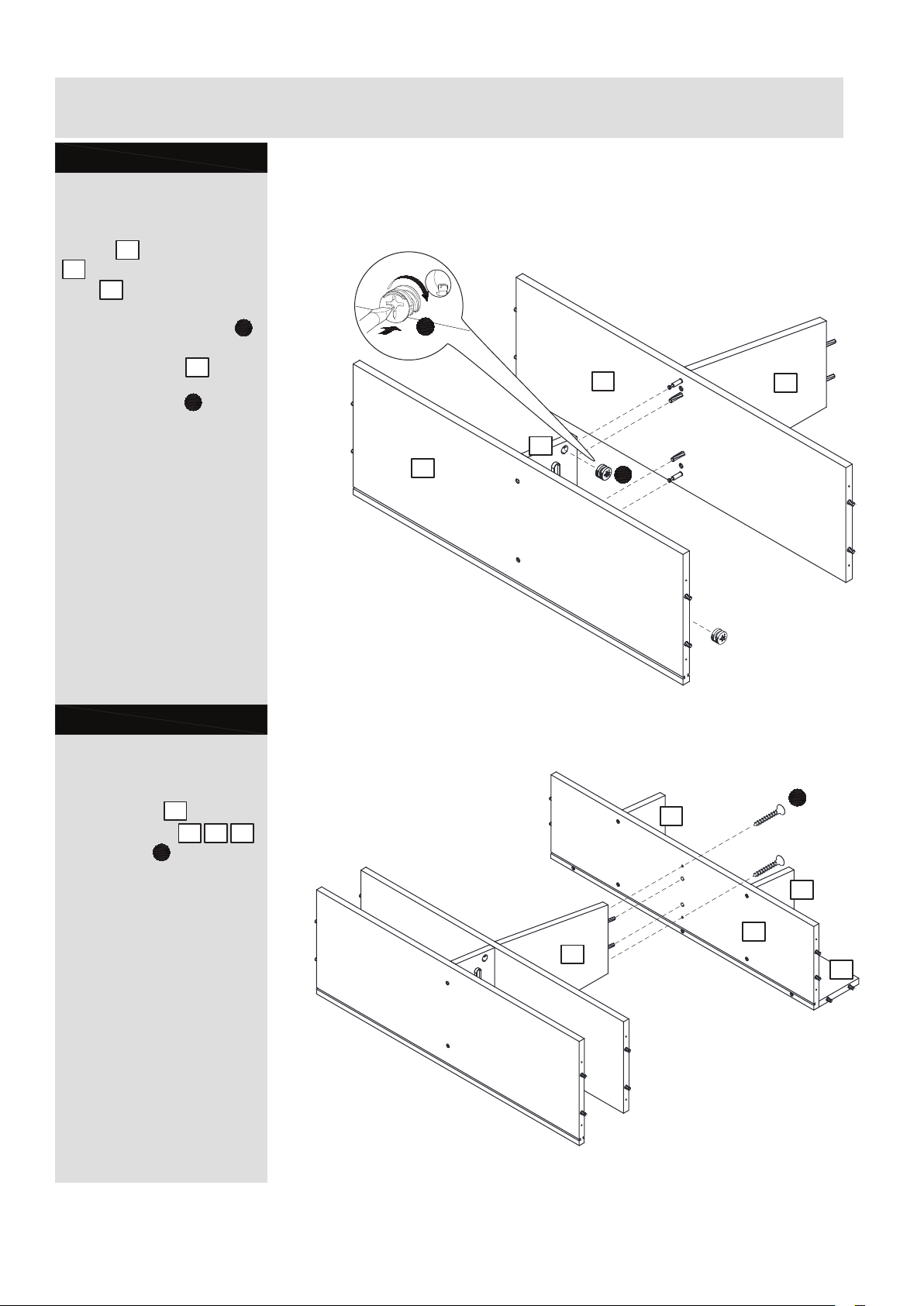

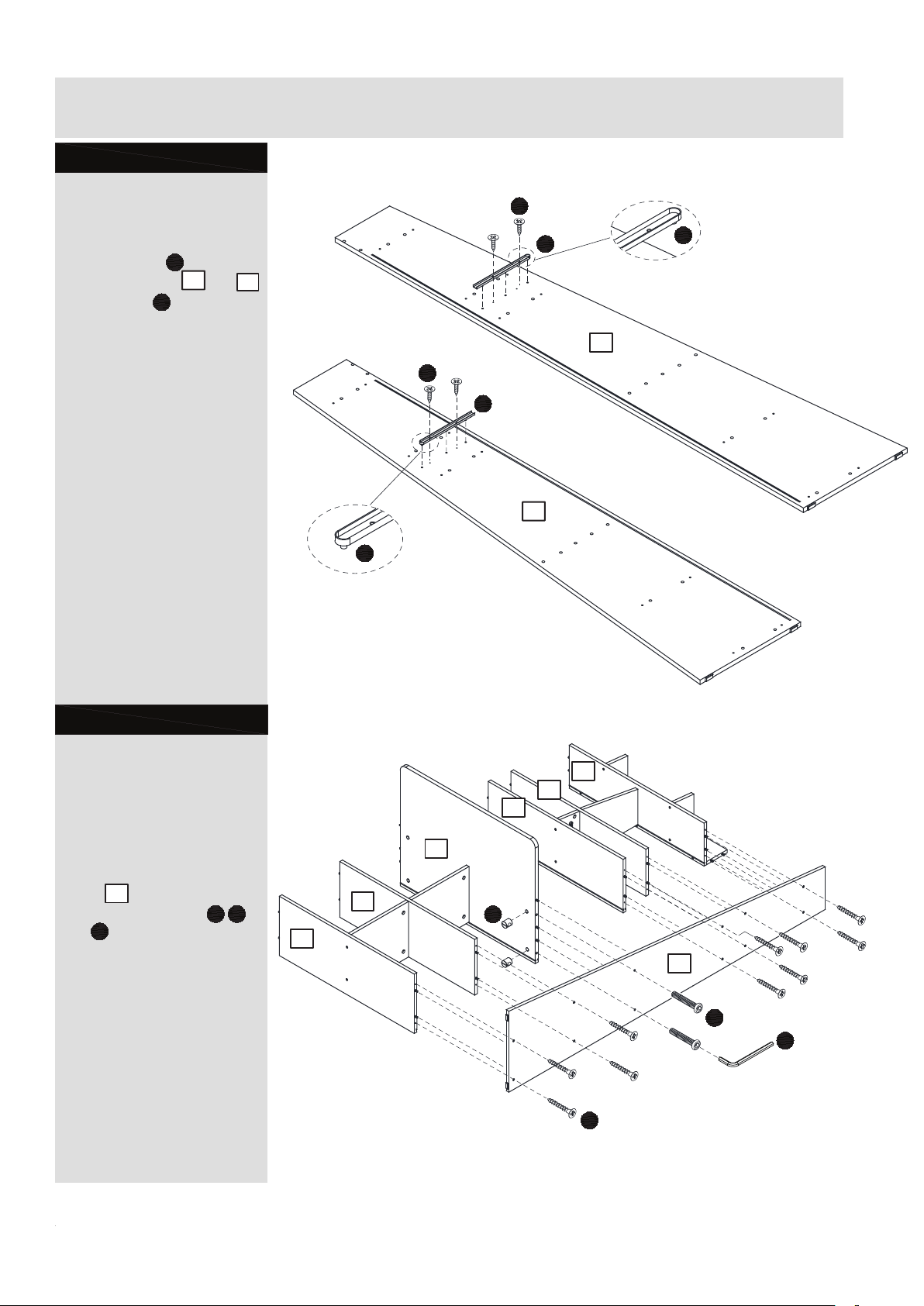

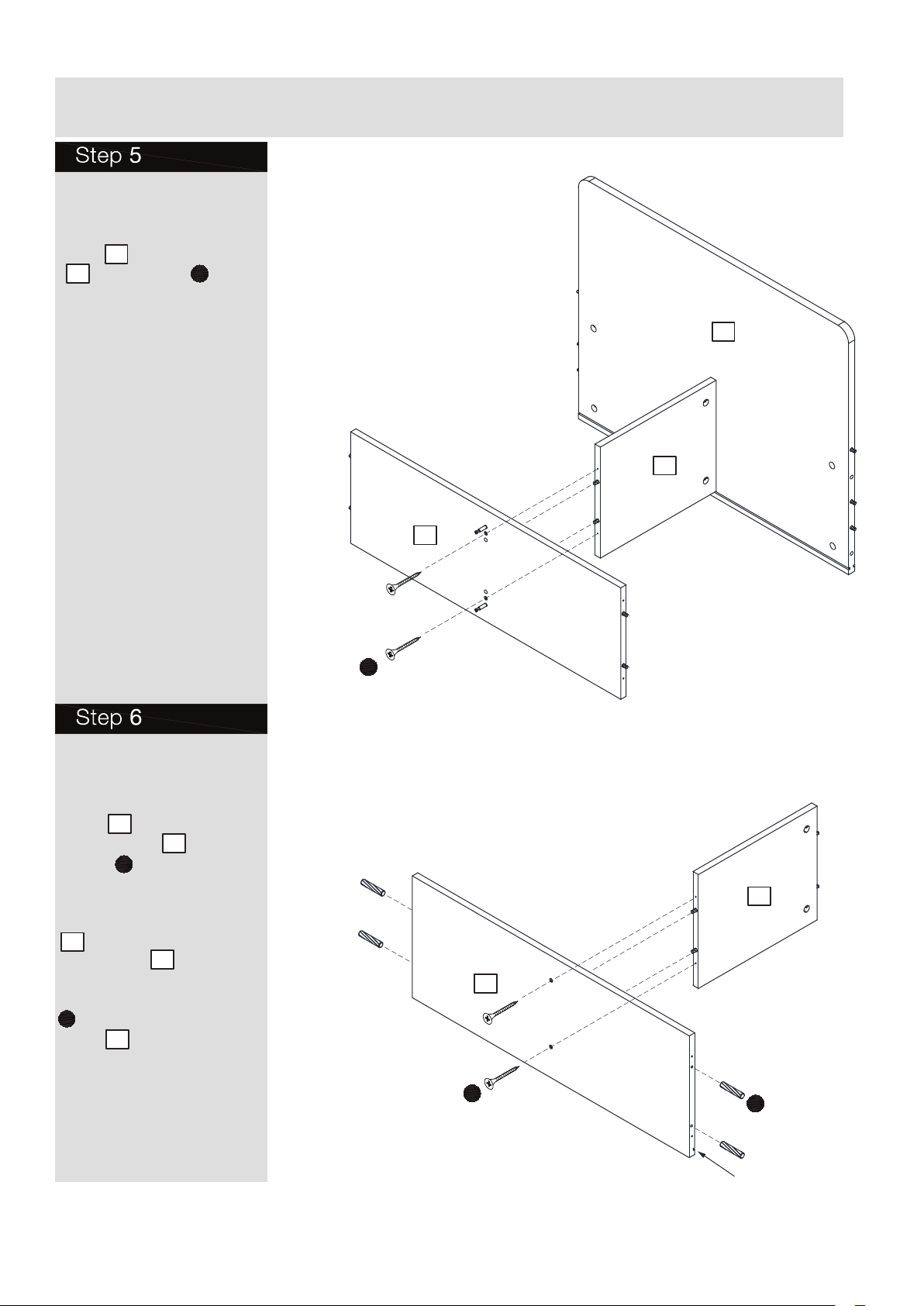

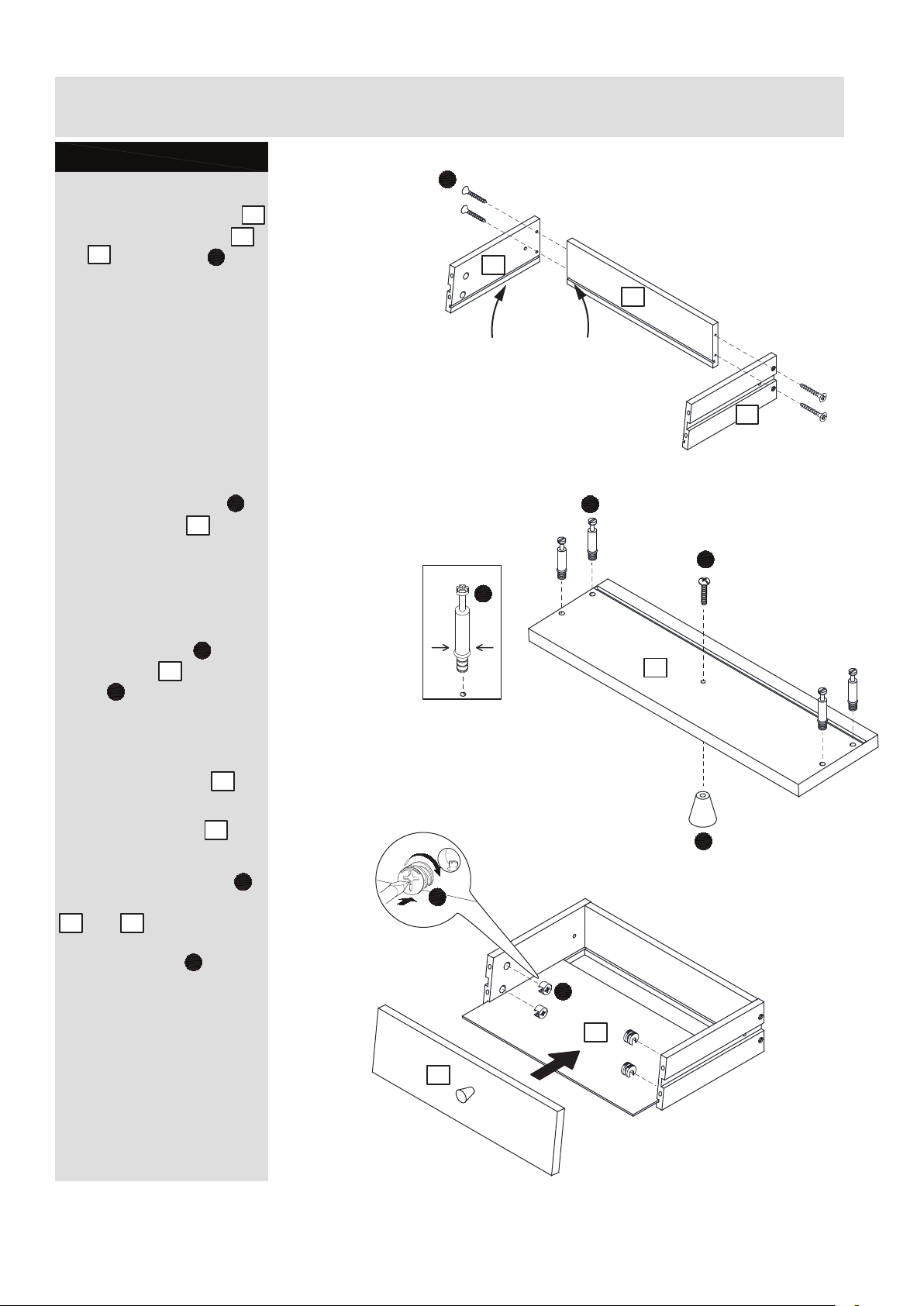

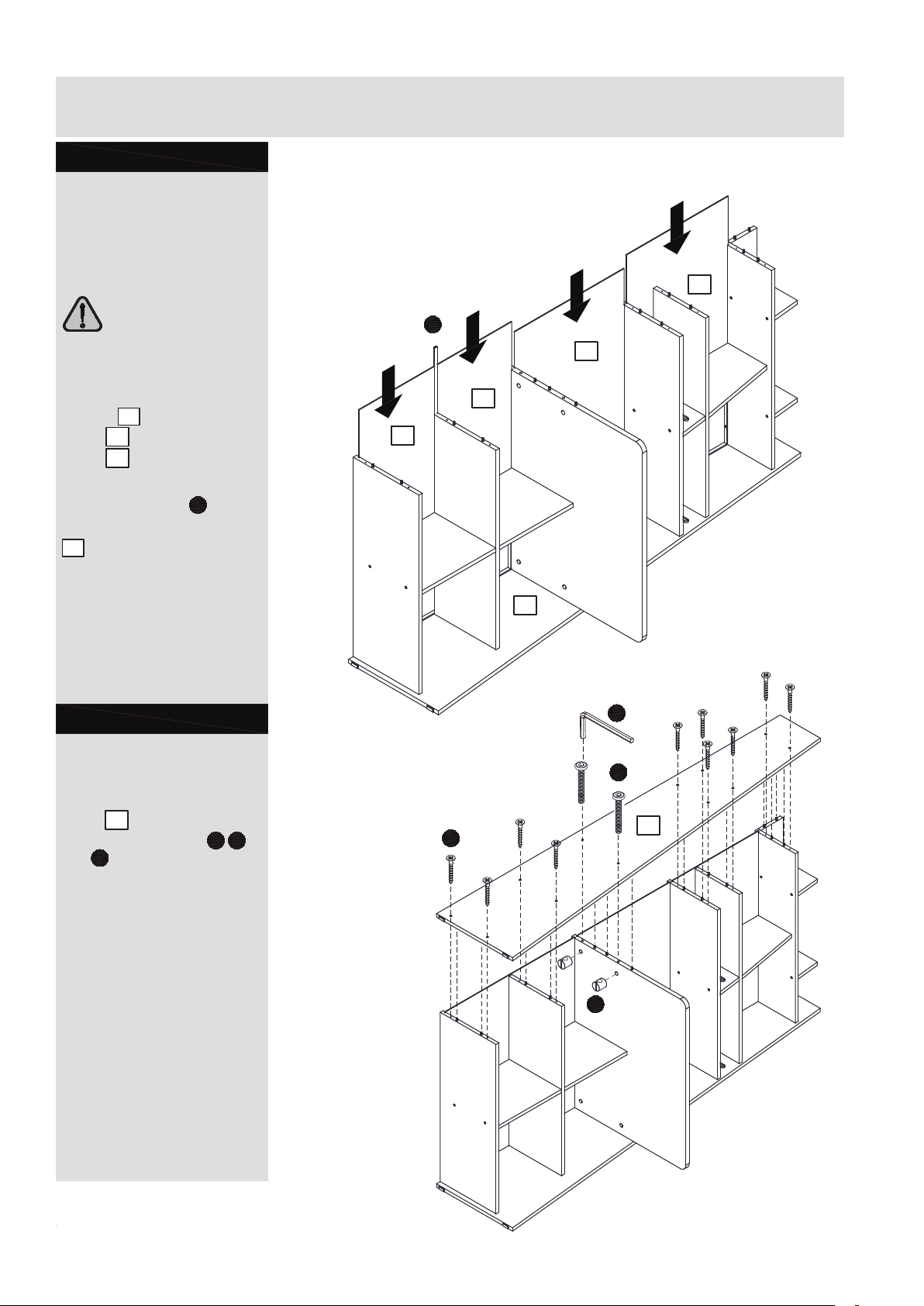

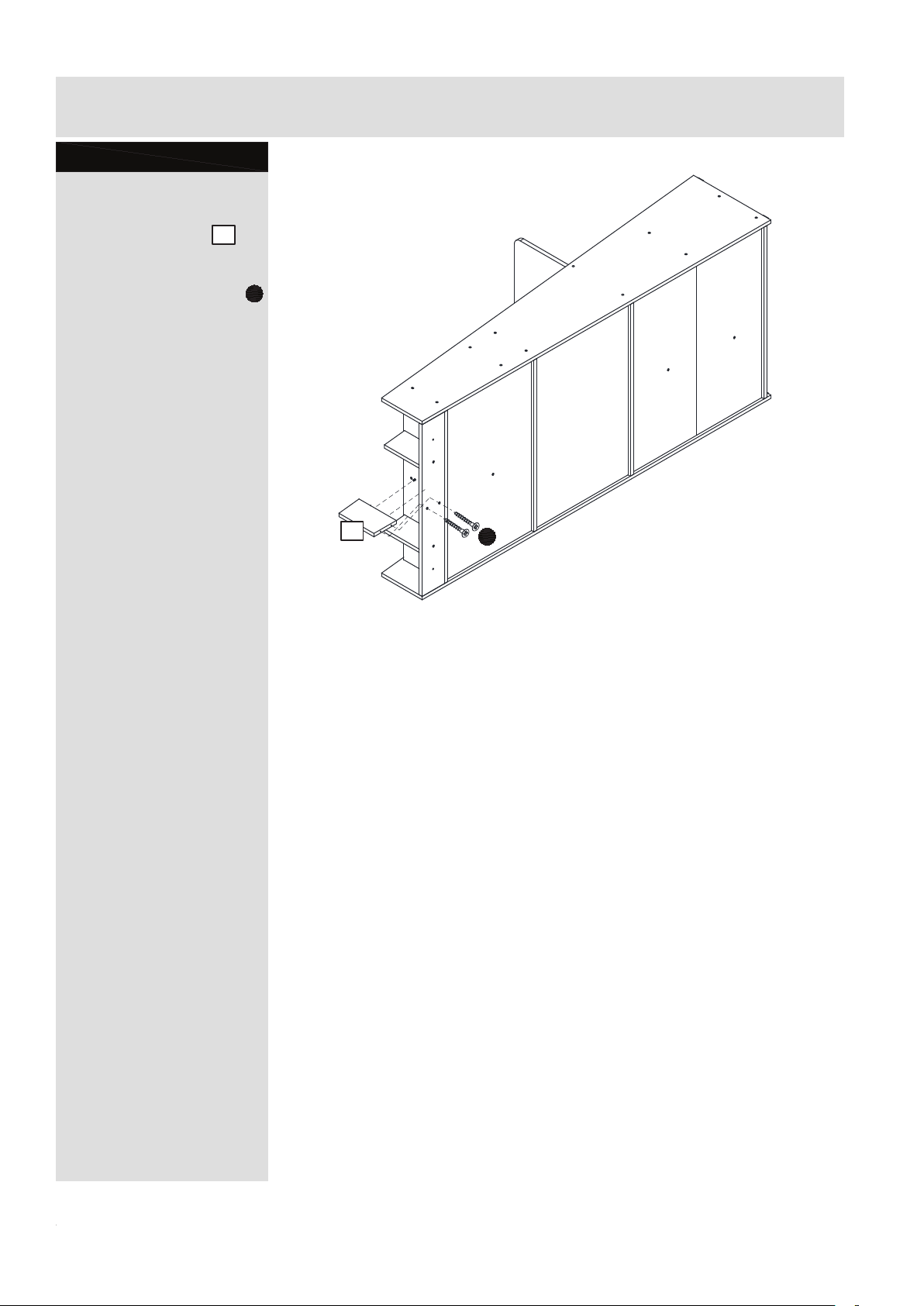

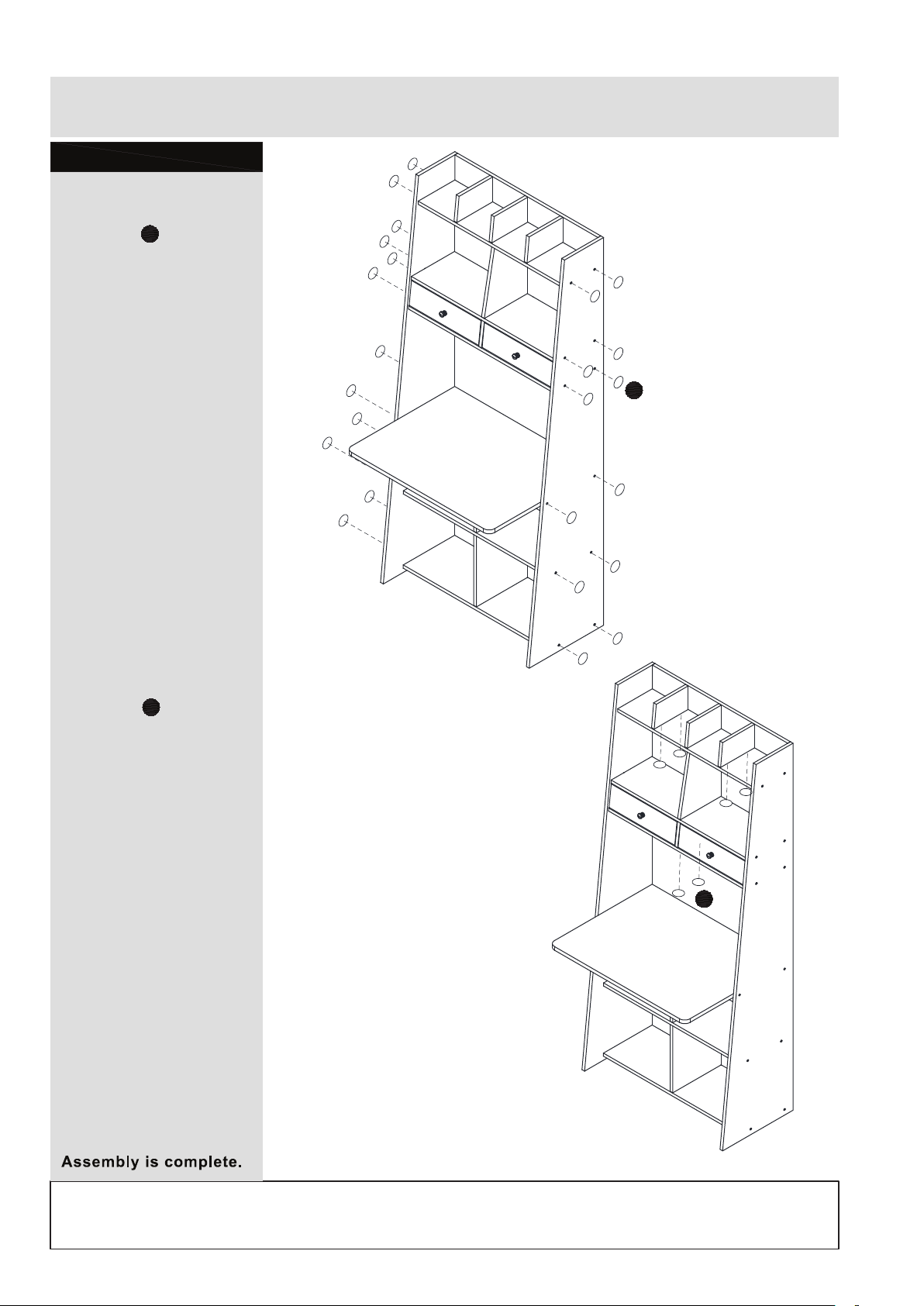

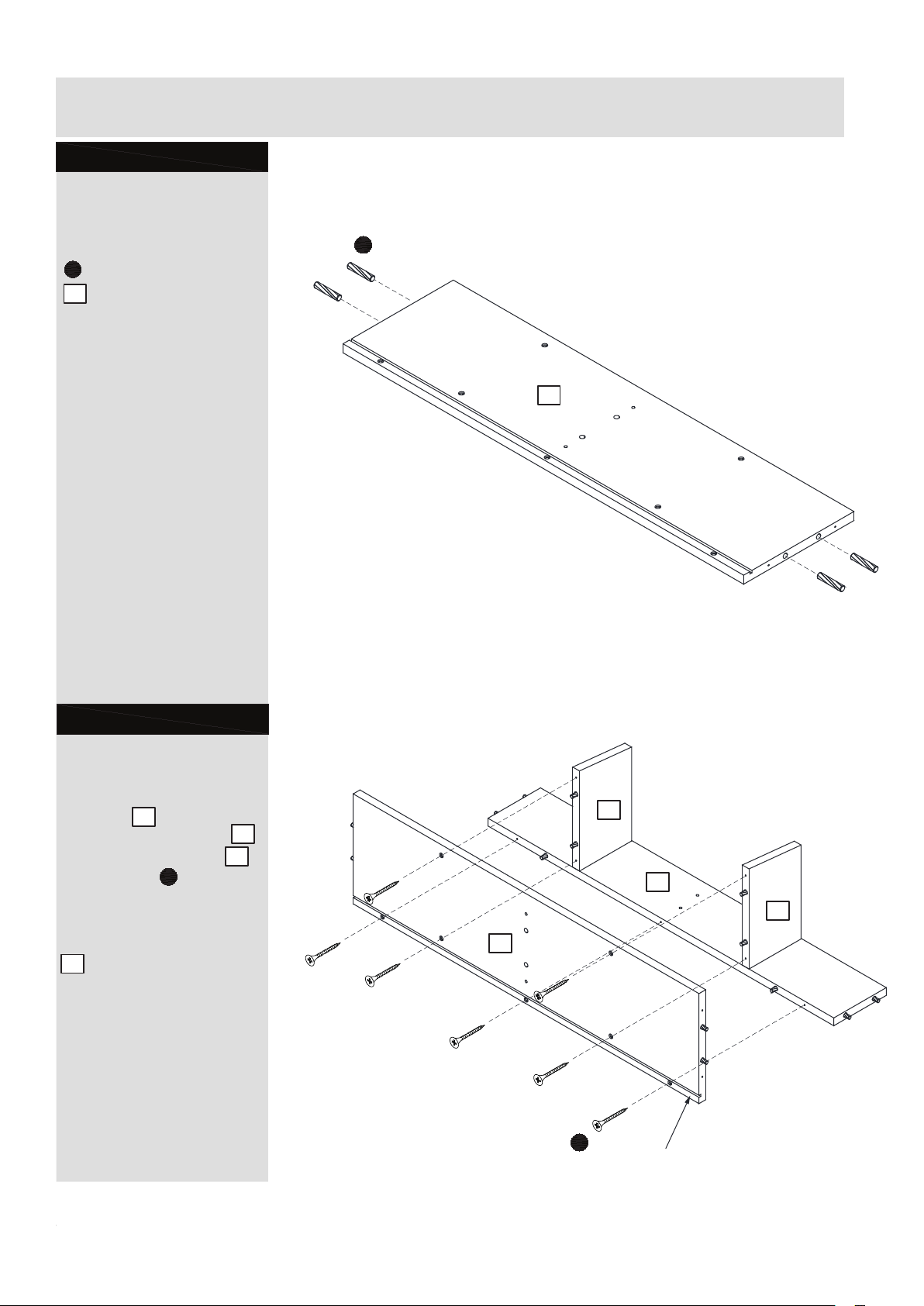

6
