MADE IN
BRITAIN
Dimensions
Width - 119.5cm
Depth - 39.5cm
Height - 35.5cm
Retro Pedestal - TV Unit
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 1 - 01/12/14
Important - Please read these instructions fully before starting assembly
332/5476
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 20kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Components - Panels
Please check you have all the panels listed below
2
1
2
5
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Drawer Back (W463-124)
(463 x 124mm)
Drawer Base (T474-367)
(474 x 367mm)
Left Drawer
Side (W370-124LH)
(370 x 124mm)
Right Drawer
Side (W370-124RH)
(370 x 124mm)
Top (DF1088)
(1194 x 392mm)
Base (DF1092)
(1194 x 392mm)
Left Side (DF1089)
(235 x 390mm)
Left Divider (DF1090)
(235 x 390mm)
Right Divider (DF1880)
(235 x 390mm)
Right Side (DF1091)
(235 x 390mm)
4
3
6
7
Drawer Front (DF1094)
(489 x 229mm)
8 9 10
11
12
13
14
Back (X1186-261)
(1113 x 261mm)
Rail (DF1095)
(1075 x 60mm)
Shelf (DF1482)
(521 x 389mm)
Please check you have all the fittings listed below
Tools required
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
A
D E F
G H I
L
C
Small locking
nut (F3) x 2
B
Nail (F51) x 20
M
J
9mm Screw (F74) x 2
K
9mm Screw (F73) x 4
Drawer runner (F1004) x 2
Knock-in Peg (F171GY) x 4
Large locking
nut (F900) x 8
Metal dowel (F901) x 10
Wooden dowel (F22) x 8
Wedgefix (F639) x 4
Rule Scissors Hammer Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Electric drill
(do not use for
fitting screws)
Allen Key (F36) x 1
Foot (D3084) x 4
50mm Screw (F49) x 12
O
N
Shelf stud (F110) x 4
25mm Screw (F281) x 5
8
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Step 1
A
B
A
B
B
B
B
9
10
Step 2
Prepare the drawer
front
Screw 2 metal dowels
into the drawer front .
Note: Tighten the metal
dowels up fully against
the panels.
A
8
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and the right
drawer side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 3
B
9
10
Attach the drawer
sides to the drawer
front
Push the left drawer sides
. and right drawer sides
. onto the back of the
drawer fronts .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
9
10
8
B
B
9
10
10
A
A
8
9
8
Assembly Instructions
5
Step 4
F
F
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
Step 5
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
12
9 10
8
11
9 10
12
11
11
F
9 10
Step 6
Fit the wedgefixes
Turn the drawer
assembly over and slide
4 wedgefixes into the
front and back grooves,
as shown, and tighten up
the screws.
L
F
F
L
L
L
L
L
12
9
11
9
10
12
10
D
D
Assembly Instructions
6
Step 7
Prepare the top
Screw 8 metal dowels
into the top .
A
3
Finished
front edge
A
A
A
A
A
A
A
A

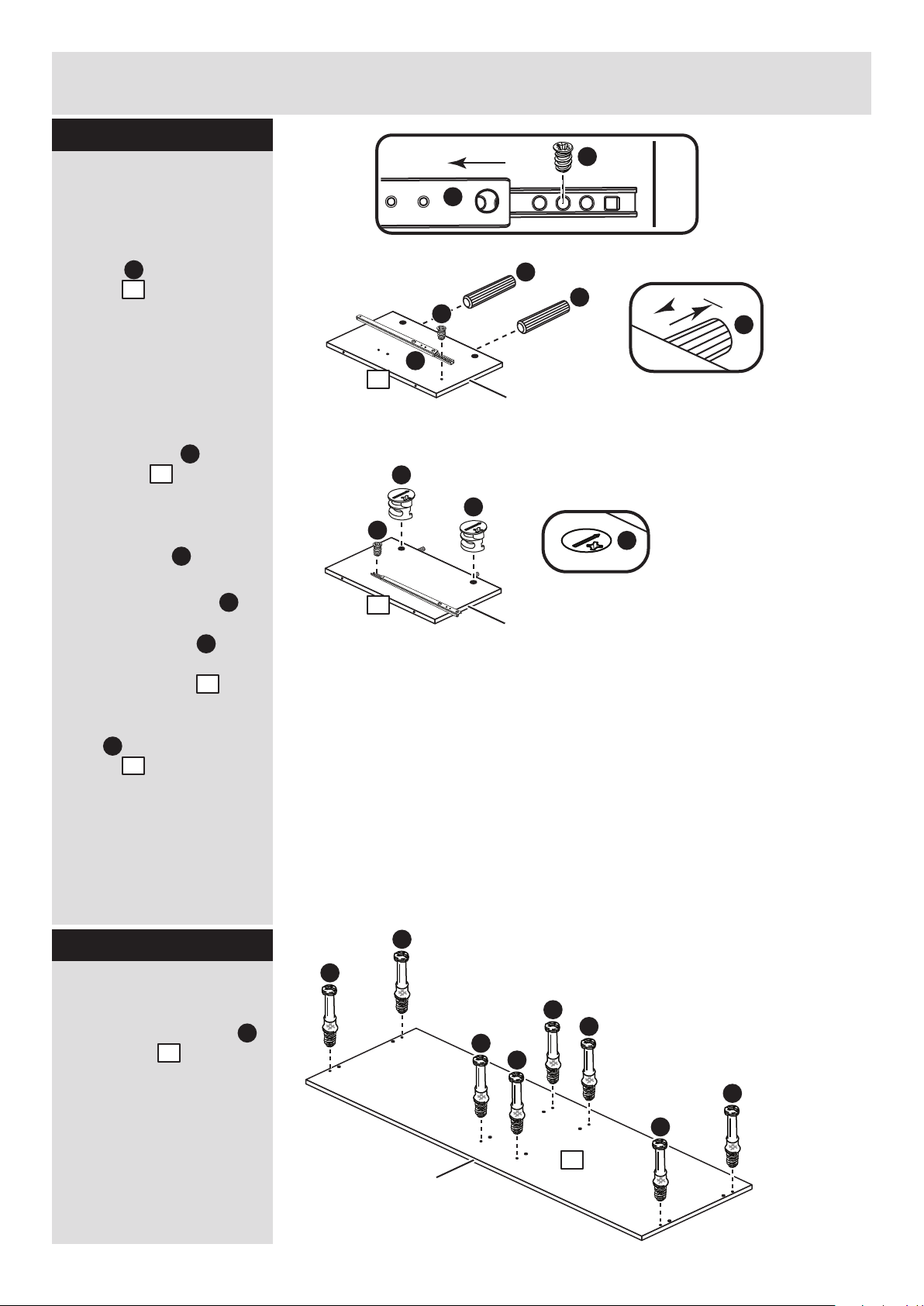

Step 8
3
Finished
front edge
I
O
Prepare the left
divider
a: Tap 2 wooden
dowels into the left
divider .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Place a runner on the
left divider as shown.
Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the left divider .
Insert 2 large locking
nuts into the left
divider .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
2
D
a:
b:
10mm
D
O
2
I
O
I
2
2
C
I
O
I
C
C
Finished
front edge
Finished
front edge
C
2
2
Finished
front edge
Finished
front edge
D
D
Finished
front edge
Finished
front edge
Assembly Instructions
7

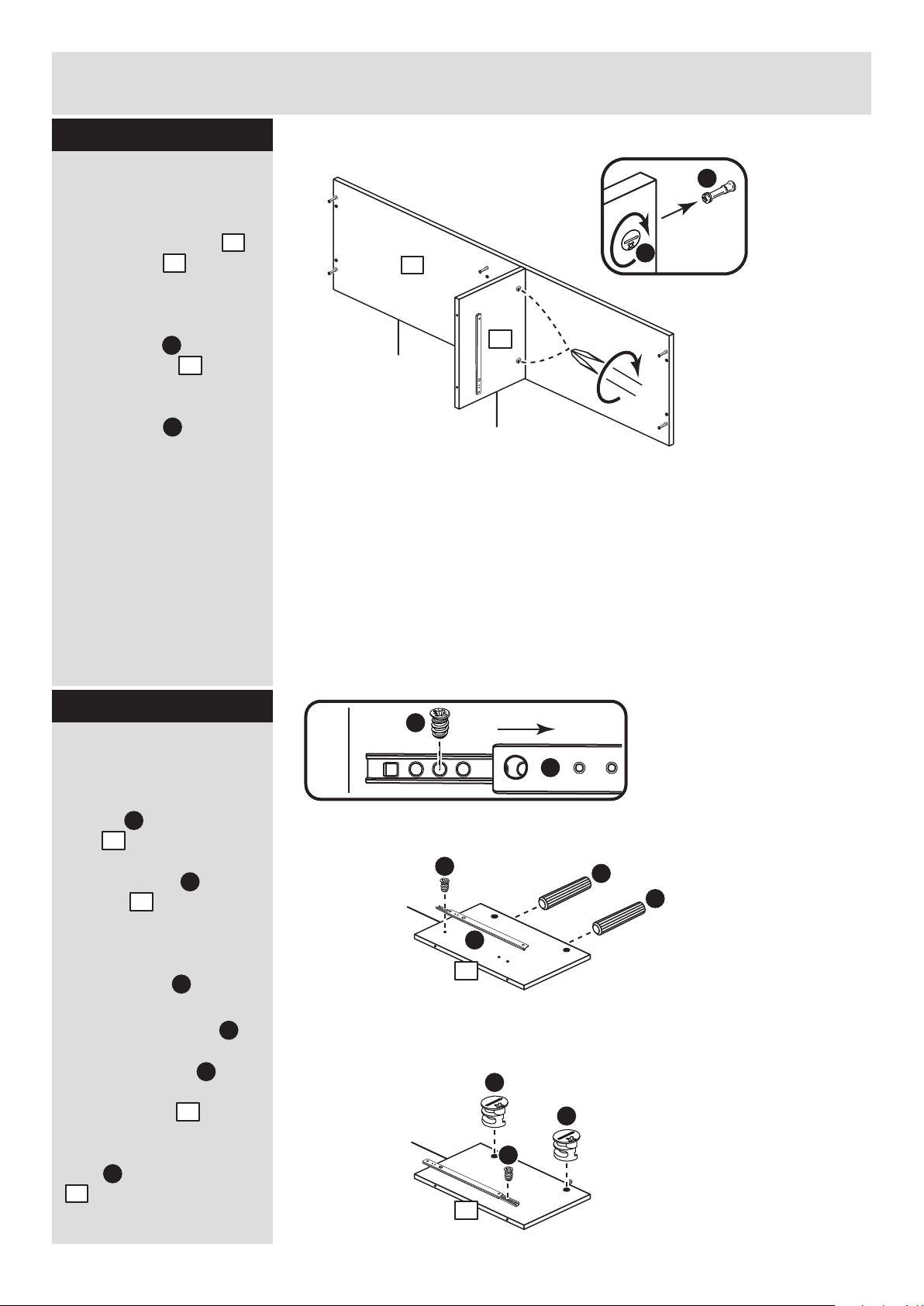

Step 9
Step 10
Fit the left divider to
the top
Push the left divider
onto the top .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the left divider .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
3
2
C
C
2
A
C
Prepare the left side
a: Tap 2 wooden
dowels into the left
side .
Place a runner on the
left side as shown.
Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the left side .
Insert 2 large locking
nuts into the left side
. .
1
D
O
1
I
O
I
1
1
C
Finished
front edge
I
O
a:
b:
I
O
I
C
C
3
2
1
1
Finished
front edge
Finished
front edge
Assembly Instructions
8

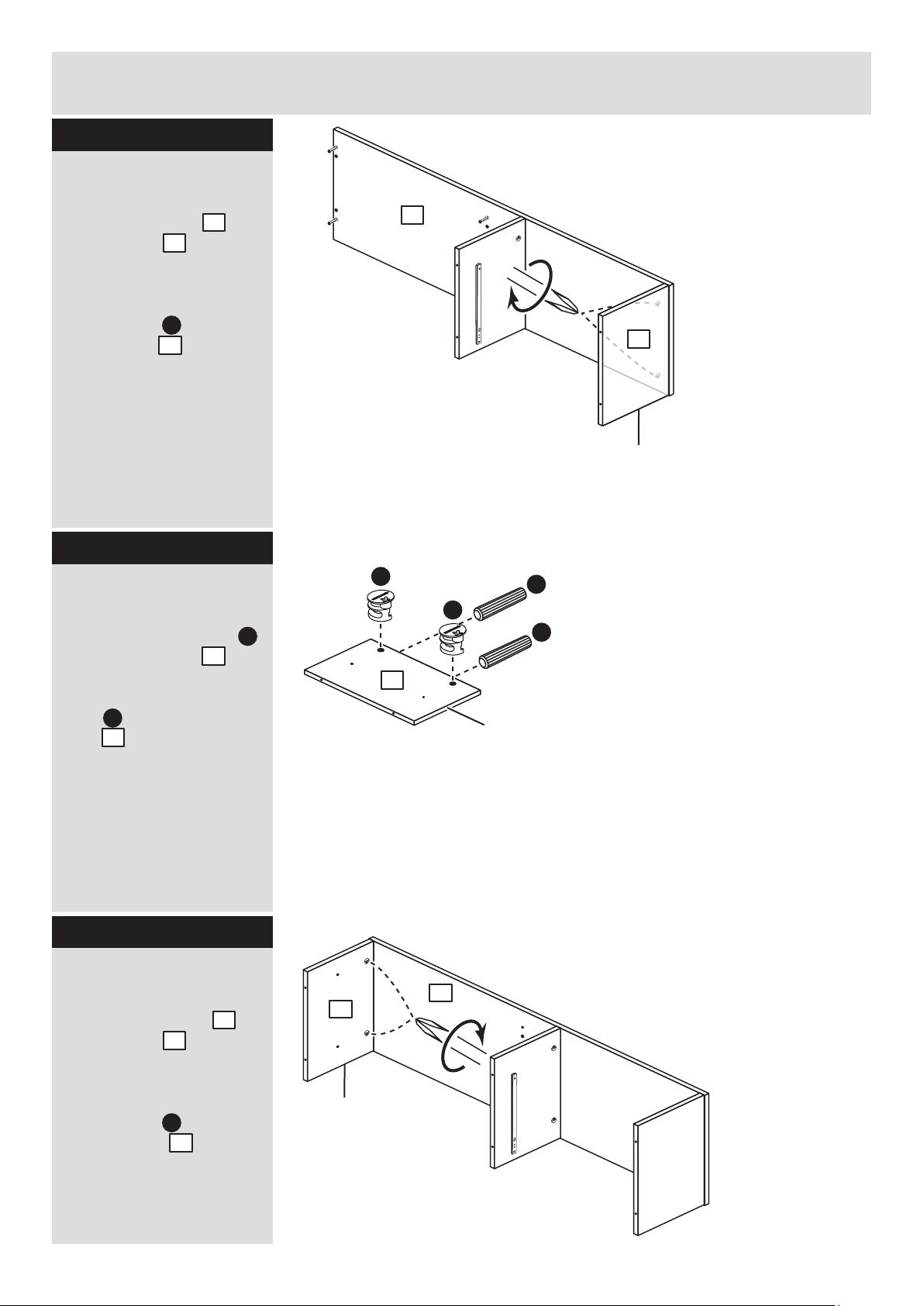

Step 11
Step 12
D
D
Finished
front edge
C
C
Prepare the right side
Tap 2 wooden dowels
into the right side .
Insert 2 large locking
nuts into the right
side .
4
D
4
C
4
Fit the left side
Push the left side
onto the top .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the left side .
3
1
C
1
3
1
Fit the right side
Push the right side
onto the top .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the right side .
3
4
C
4
Step 13
3
4
Finished
front edge
Finished
front edge
Assembly Instructions
9
Step 14
Step 15
Finished
front edge
D
D
5
C
C
Prepare the right
divider
Tap 2 wooden dowels
into the right divider .
Insert 2 large locking
nuts into the right
divider .
5
D
5
C
Fit the right divider
Push the right divider
onto the top .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the right divider .
Step 16
3
5
C
5
3
5
5
Fit the base
Attach the base to
the left side , the left
divider , the right side
. and the right divider
. using 8 screws
and tighten them using
the allen key .
1
6
4
5
2
G
M
G
G
G
M
G
G
G
G
G
1
6
4
5
2
Finished
front edge
Assembly Instructions
10

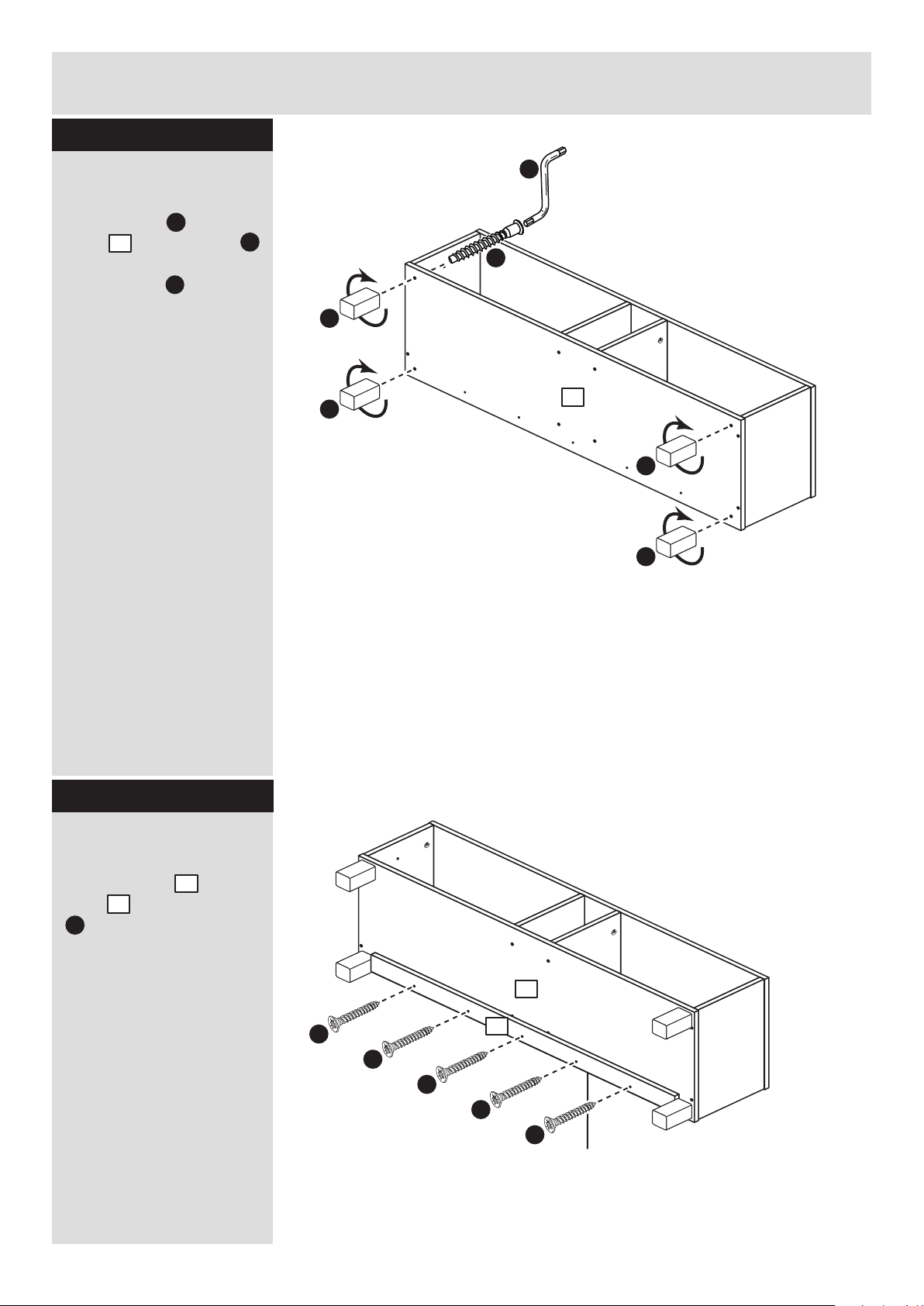

Step 17
Fit the rail
Attach the rail to the
base using 5 screws
. .
Step 18
G
M
Fit the feet
Fit the 4 feet to the
base using screws
and tighten them using
the allen key .
Note: You may find it
easier to turn the foot as
the screw is held with
the allen key.
N
G
6
M
13
6
H
N
N
N
N
H
H
H
H
H
13
6
6
yy
Assembly Instructions
11

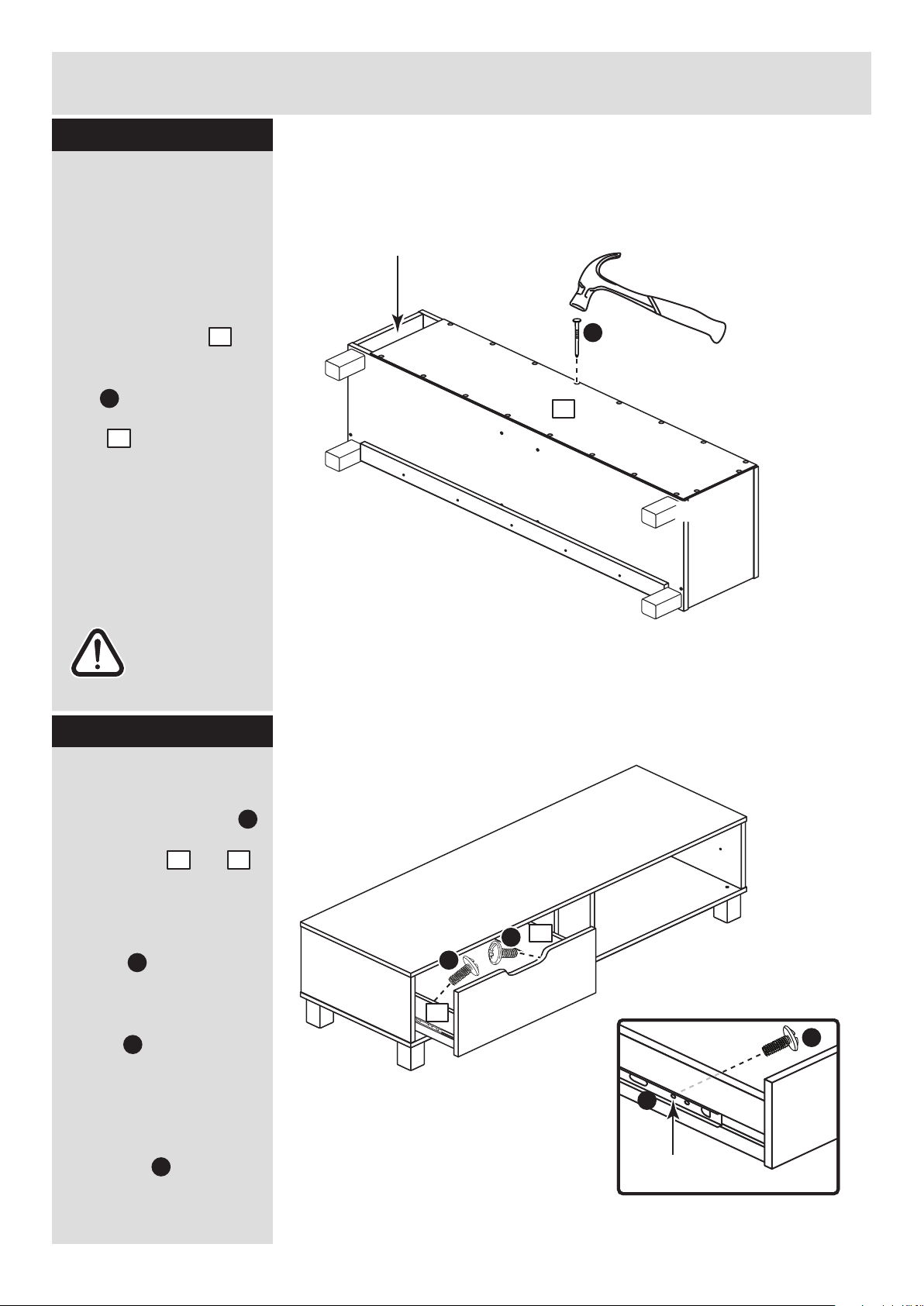

Step 19
Step 20
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the 3
outside edges of the
back , as shown
Note: Nails should be
spaced about 150mm
apart.
Stand the unit up for
the next step.
14
E
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
14
Warning: The
unit is heavy.
Lift with care.
The gap at this end is
for cable management
yy
xx
xx
b:
E
Fit the drawer
Slide both the runners
forward and locate the
drawer sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
J
J
O
O
2nd threaded
hole
O
J
9 10
J
J
9
10
14
Assembly Instructions
12
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW

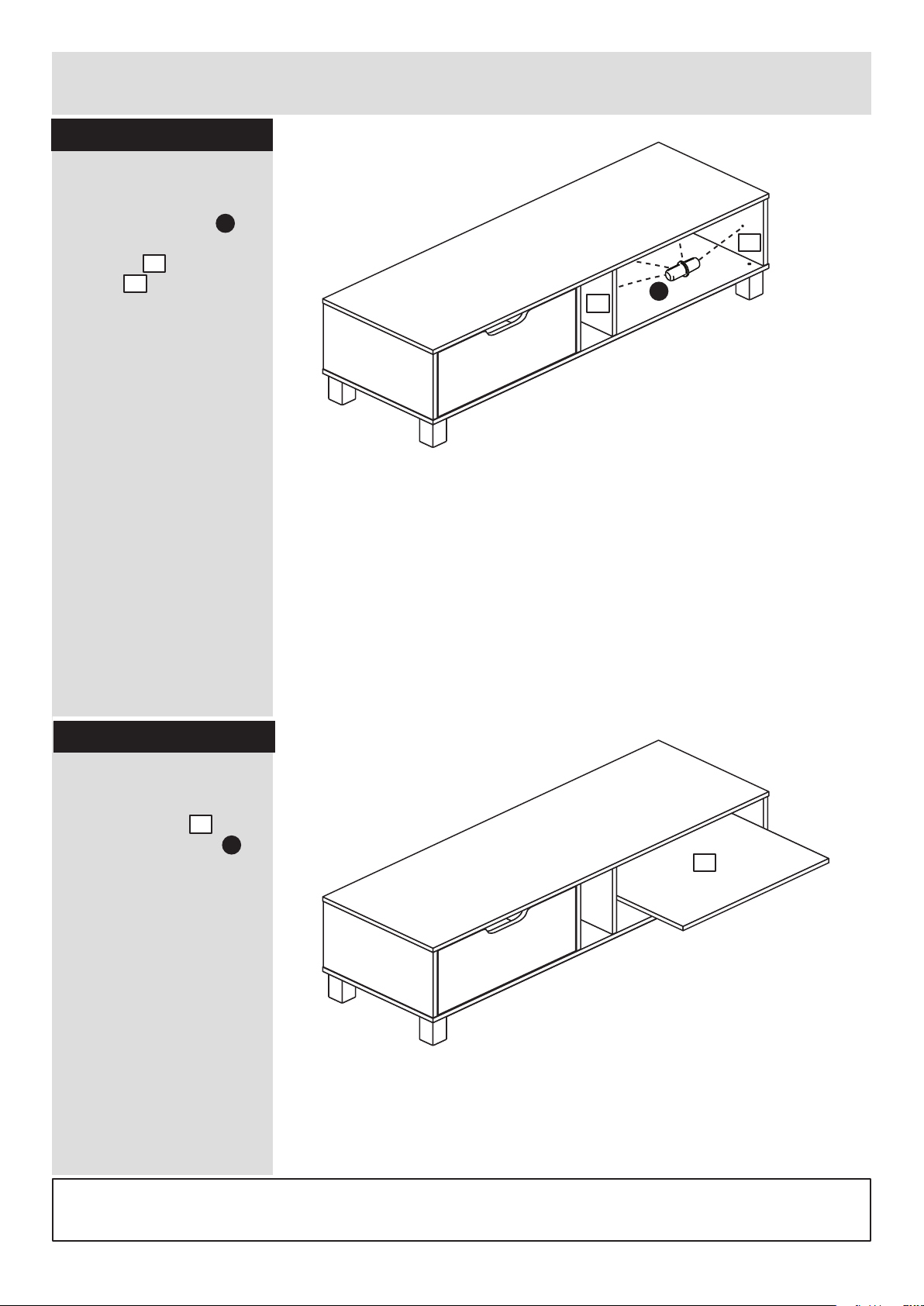

Step 21
K
x 4
Fit the shelf studs
Insert 4 shelf studs ,
into the holes on the
right side and right
divider .
K
4
5
4
5
Step 22
Fit the shelf
Lower the shelf down
onto the shelf studs .
Assembly is complete
7
K
7
ALR3119
Loading...
