Argos PUERTO ASSEMBLY INSTRUCTIONS

Puerto Rico - 3 Door Wardrobe
Assembly Instructions - Please keep for future reference
332/6901
338/7012
Dimensions
Width - 158.8cm
Depth - 57cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
Issue 1 - 01/10/14
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
Check you have all the components and tools listed on pages 2 and 3.
Remove all fittings from the plastic bags and separate them into their groups.
Keep children and animals away from the work area, small parts could choke if swallowed.
Make sure you have enough space to layout the parts before starting.
Do not stand or put weight on the product, this could cause damage.
Assemble the item as close to its final position (in the same room) as possible.
Assemble on a soft level surface to avoid damaging the unit or your floor.
This product has been produced from natural timber; you may notice some variation in the grain and colour of different component parts which is normal for furniture produced using natural wood and is not the result of any manufacturing fault.
The product has been treated with a wax and oil finish to prevent dirt ingress and preserve moisture.
On unpacking the furniture you may notice an odour due to this treatment; this will disappear once the furniture is unpacked and assembled after a period of time.
This process may leave some staining on the packaging material; please take care to ensure this does not transfer to clothing or carpeted surfaces during assembly.
We do not recommend the use of power drill/drivers for
inserting screws,
as this could damage the unit. Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
Care and maintenance
Use an appropriate furniture polish for natural wood furniture and a dry cloth to clean the product.
Avoid placing the furniture in direct sunlight as this will cause the timber to prematurely age.
From time to time check that there are no loose screws on this unit.
This product should not be discarded with household waste. Take to your local authority waste disposal centre.
Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.
1
Components - Panels
Please check you have all the panels listed below
Right front frame (178 x 6.5cm)
8
Left front frame (178 x 6.5cm)
9
Right middle front frame
10
(167 x 6.5cm)
Right side panel (177.3 x 53cm)
1
top
top
underside
Left shelf
20
(100.5 x 51.5cm)
underside
Left side panel (177.3 x 53cm)
2
left side
Middle wall panel (164.5 x 52.5cm)
3
underside
Top panel (152.8 x 50cm)
4
Base panel (149.3 x 51.4cm)
5
top
Left middle front frame
11
(167 x 6.5cm)
Horizontal front frame
12
(140 x 6.5cm)
Larger H profile (137 x 2cm)
13
Curved top rail (149 x 21cm)
14
Curved top moulding
15
(158.8 x 12.6cm)
Front plinth (158.8 x 11.2cm)
16
Right fixed shelf
21
(47 x 51.5cm)
Right shelf x 2
22
(47 x 51.5cm)
Hanging rail
23
(100 x 2.8cm)
Side top moulding
24
(54 x 2.8cm)
x 2
Side plinth x 2
25
(54 x 11.2cm)
Back panel right (167 x 48.8cm)
6
Back panel left x 2 (167 x 50.8cm)
7
Right door (166.6 x 41.6cm)
17
Middle door (166.6 x 41.6cm)
18
Left door (166.6 x 41.6cm)
19
Smaller H profile
26
(25 x 2cm)
Bottom Support
27
(20 x 10.3cm)
Blocks x 2
28
(20 x 2.5cm)
Blocks x 11
29
(10 x 2cm)
Hanging rail support
30
(7 x 6.5cm)
x 2
2
If you have damaged or missing components,
Components - Fittings
call the
Customer Helpline: 03456 400 800
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
A
Wooden dowel x 34
D
B
C
14mm Screw x 70 25mm Screw x 12
E
F
35mm Screw x 26 35mm Screw x 49 50mm Screw x 8
G
H
J
Locking
Metal dowel x 12
K
Door handle x 3
N
Plug x 6
Q
nut x 12
L
Door hinge x 9
O
Shelf support x 8
R
19mm Bolt x 3
M
Clip x 6
P
Metal stud x 2
S
Washer x 2Nail x 64
T
Door spacer x 1
Tools required
Phillips screwdriver (medium & large)
Small hammer
Ruler - Use this ruler to help correctly identify the screws
Wall strap x 1
m
2
Ruler/tape measure
Eye protection (when using a hammer or glue)
5
0
10 15 20 25 30 35 40
55
45
50
60 65 70
75
80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
3
Assembly Instructions
Step 1
Fixing right front frame.
(Two people required for an easier assembly).
a: Insert right side panel
1
into right front frame
8
through joints.
Note:
Before fixing the
blocks into place it is important to ensure that the slot and groove of parts and are fully pushed together and lined up correctly at the top and bottom.
b: Place blocks
between the two marks on the front frame as shown. First fix to the side panel using screws .
29
1
29
E
8
a: b: c:
8
E
1
29
Yes!No!
Top
29
29
1
8
29
E
Attention: this
side lined up.
29
c: Fix front frame through
blocks using screws
E
29
.
Step 2
Fixing left front frame.
(Two people required for an easier assembly).
a: Insert left side panel
2
into left front frame
9
through joints.
Note:
Before fixing the
blocks into place it is important to ensure that the slot and groove of parts and are fully pushed together and lined up correctly at the top and bottom.
b: Place blocks
between the two marks on the front frame as shown. First fix to the side panel using screws .
29
2
29
E
9
a: b: c:
9
E
2
29
Yes!No!
29
Attention: this
side lined up.
9
29
29
29
2
E
Top
c: Fix front frame through
blocks using screws
E
29
.
4
Assembly Instructions
Step 3
Fixing middle front frame.
(Two people required for an easier assembly).
a: Insert middle wall
panel into right middle front frame through joints.
front frame out before fixing.
b: Place blocks
between the two marks on the front frame as shown. First fix to the middle wall panel using screws .
3
10
Attention:
Ensure to leave
of middle9mm
29
E
a:
3
10
9mm
Yes!No!
29
b:
E
29
10
c:
E
Attention!
Correct position out.9mm
10
3
9mm
3
29
29
c: Fix middle front frame
through blocks using screws .
E
29
Step 4
Insert shelf supports into the right side panel
1
and middle wall
panel .
3
O
O
1
O
3
O
O
5
Assembly Instructions
Step 5
Insert dowels into the indicated parts.
Fix hanging rail supports
30
in the pre marked
holes on left side panel
2
and middle wall
panel using screws
3
E
, as shown.
A
E
30
A
3
A
2
A
21
A
A
A
20
A
5
A
A
A
2x
A
24
A
A
A
A
12
6
Assembly Instructions
Step 6
Fitting Metal dowels.
Screw metal dowels into right side panel and left side panel .
1
2
Insert metalNote: dowels as far as shown.
Do not over tighten.
G
G
G
1
G
G
G
2
Step 7
Fitting Metal dowels.
Screw metal dowels into both sides of middle wall panel .
3
Insert metalNote: dowels as far as shown.
Do not over tighten.
G
G
G
3
G
O
180
3
7
Assembly Instructions
Step 8
Fixing base panel.
Fit base panel to the middle wall panel then fix it using screws .
Attention!
Round edge on base panel must be facing front.
5
3
F
Attention:
5
3
F
F
5
Step 9
Fixing shelves.
With help, fit shelf and fixed shelf to middle wall panel .
21
3
Insert 4 locking nuts into shelf and fixed shelf where shown.
Use a screwdriver to turn locking nuts clockwise to lock.
Do not over tighten.
Attention!
Round edge on shelves must be facing front.
20
H
H
20
Attention!
20
21
H
20
3
21
H
3
10
12
3
21
Insert horizontal front frame into the right middle front frame .
12
10
H
H
8
Assembly Instructions
Step 10
Fixing right side panel.
H
Two people are required for an easier assembly.
With help, place right side panel properly
1
ensuring dowels are all fit into their holes at the same time.
Insert 4 locking nuts
H
into base panel and fixed shelf where shown.
Use a screwdriver to turn locking nuts clockwise
H
to lock.
Do not over tighten.
H
1
21
H
H
5
Step 11
Fixing left side panel.
Two people are required for an easier assembly.
With help, place left side panel properly
ensuring dowels are all fit into their holes at the same time.
Insert 4 locking nuts into base panel and shelf where shown.
Use a screwdriver to turn locking nuts clockwise to lock.
Do not over tighten.
2
H
H
20
H
5
2
H
H
H
9
Assembly Instructions
Step 12
Place left middle front frame properly
11
ensuring dowels are all located into their holes. Attach left middle front frame to left shelf using screw .
Attach the block in base panel and to the horizontal front frame using screws .
20
E
28
5
12
D
20
E
11
20
28
12
12
28
5
5
D
Step 13
Fix curved top rail to the right front frame and left front frame using screws .
Fix curved top rail to the left middle front frame
11
using screws .
14
8
9
C

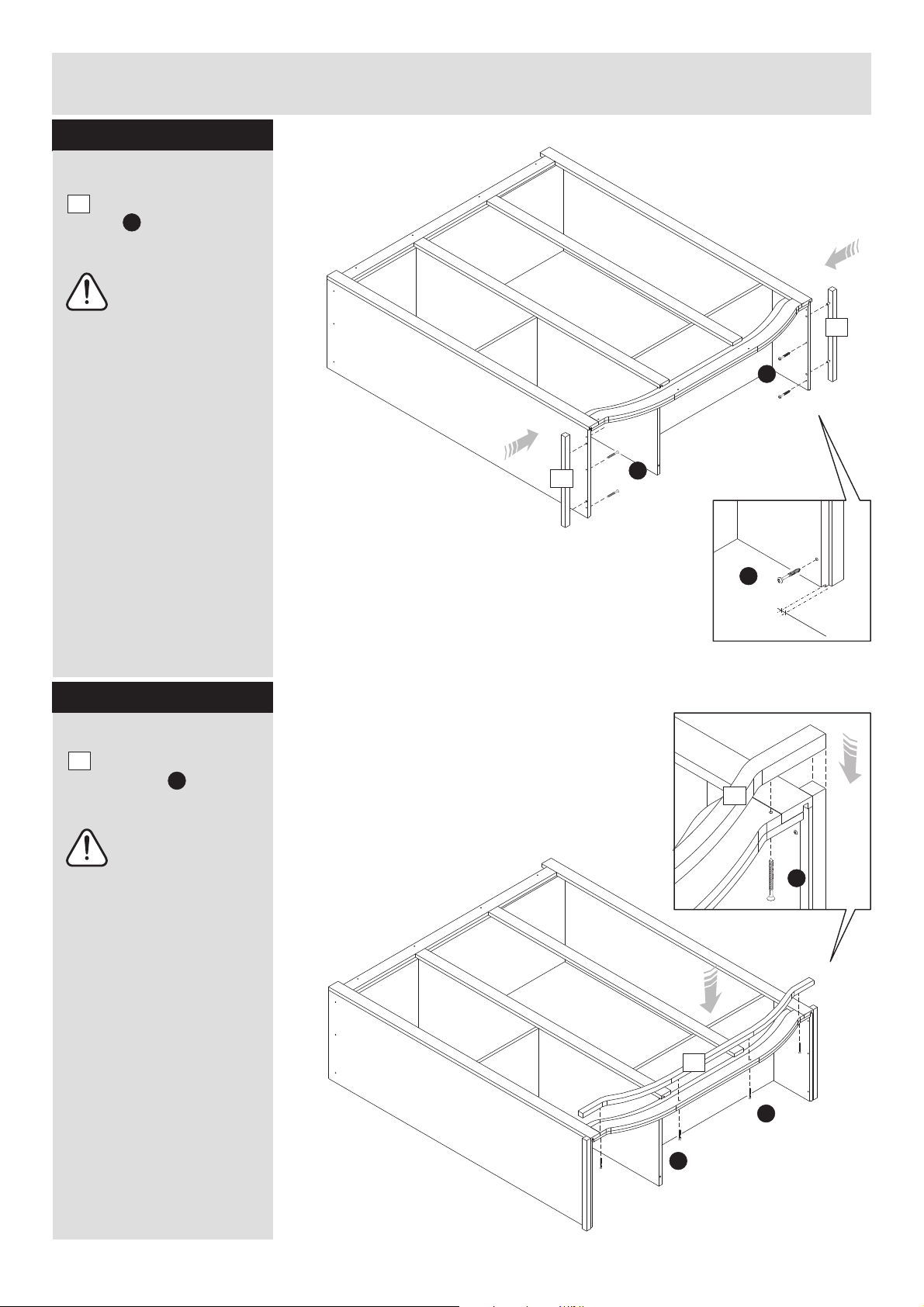

14
C
D
14
C
8
11
9
C
14
C
10
Assembly Instructions
Step 14
Fix side top mouldings
24
to the sides using
screws .
mouldings are fixed in the correct position in a height of from the top7mm edge of the side panels.
D
Attention:
Ensure top
24
D
Step 15
Fix curved top moulding
15
to the curved top rail
using screws .
Note:
Make sure top moulding is aligned to the top rail and to the side mouldings.
F
24
D
Attention:
D
7mm
15
F
11
15
F
F
Assembly Instructions
Step 16
Fixing top panel.
Attach top panel to the cabinet using screws
C
and middle wall
panel using screws
Do not over tighten screws.
Attention:
Make sure top panel is completely pushed against the top moulding before fixing.
4
D
.
Attention:
4
4
D
4
D
C
Step 17
Attach the block in top panel and curved top rail using screws
D
.
4
14
28
C
C
28
14
4
D
28
D
12
Assembly Instructions
Step 18
a: Fix side plinths to
the side panels using screws .
plinths are aligned to the bottom and front edges of the side panels.
D
Note:
Make sure side
25
b: Fix front plinth
to the bottom front frame using screws .
Chanfred edges to be facing up!
Note:
Make sure front
16
plinth is aligned to the bottom edge of the side panels and in line to the side plinths.
25
16
D
a:
25
b:
D
D
16
a:
D
25
D
Step 19
Fix metal studs into the pre drilled holes in the front plinth.
Important:
After fixing the metal studs, with help, carefully stand the product upright.
P
P
P
13
NO! NO!
YES!
Assembly Instructions
Step 20
Attach bottom support to the base panel using screws .
5
F
27
5
27
F
27
Step 21
Fitting hinges to the doors.
Attach hinges to the pre drilled holes in the doors using screws .
L
B
B
L
L
L
17
L
18
L
L
L
19
L
L
14
Assembly Instructions
Step 22
Hanging doors.
a:
With help, centralise the door in the opening of the cabinet using the door spacer to ensure correct spacing, as shown.
T
b: Fix hinges using
screws as shown.
alignment of the doors is correct, centralise the doors in the opening before attaching to the cabinet.
B
Note:
To ensure the
19
a:
17
18 19
T
17
18
b:
B
T
T
T
Step 23
Attach handles to the doors using bolts .
K
J
K
K
K
J
15
Assembly Instructions
Step 24
Hinge adjustment.
a: To move doors up or
down: loosen screws shown and move doors to suit.
Once doors are aligned, re-tighten screws.
a:
b: To move doors left or
right: loosen screws shown and move doors to suit.
Re-tighten screws.
Step 25
Insert hanging rail into the supports.
Position shelves into place. These are adjustable.
23
22
b:
23
23
30
22
22
16
Assembly Instructions
Step 26
Fitting door locks.
a: Screw clips in place
using screws . Ensure that the 2 small wheels are flush with the edge of the base as shown in the diagram.
b: Insert plugs into
M
clips , ensuring they are leveled as shown in the diagram.
M
B
N
a:
B
M
b:
M
5
N
c:
17 18 19
d:
N
B
c: Push the door against
the plug . This will make 2 small marks on the door as shown in the diagram.
N
d: The doors can then be
opened and plugs can be screwed into place using the 2 marks made as a guide. This will ensure that the 2 parts of the door clips are lined up correctly.
N
17
N
M
M
18
N
19
M
M
N
N
N
N
17
Assembly Instructions
Step 27
Fixing back panels.
Important:
Cabinet beMUST squarewhen back panels are attached. Make sure back panels are in flush with the edge of the top panel prior to fixing.
26
Q
7
Q
a:
Attach the left back
panel first using nails
b: Position profiles
and onto back panel
7
Q
.
13
26
(just attach).
c: Carefully slot the
second back panel into the profile and fix it to the cabinet using nails .
d:
Attach right back
panel using nails .
7
Q
6
Q
Step 28
Fixing to wall.
Furniture must be fixed to
a wall. Fix wall strap to top of furniture using washer and screw .
R
With help, move furniture into position.
S
B
7
6
Note: Wall plugs not supplied. The correct type of fixing must
be used for your wall, seek
professional advice if in doubt.
wall
R
B
13
Q
7 7
26
13
S
R
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
18
A Guide to - Wall Mounting & Fixings
Important note:
If plastic wall plugs are supplied with your product:
- these are only suitable for use in masonry walls.
If you are in any doubt about the correct wall plugs for your wall, seek professional advice.
Failure of the product due to using incorrect fixings is the responsibility of the installer.
Important: When drilling into walls always check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualifed tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the
drilled hole.
Types of walls
You can use one of the following types of wall plug if your walls are made of brick, breeze block, concrete, stone or wood.
No.1 General Purposewall plug No.3 Cavity Fixingwall plug No.5 Hammer Fixingwall plug
Generally aerated blocks should not be used to support heavy loads, use a specialist fitting in this case. For light loads, general purpose wall plugs can be used.
No.2 Plasterboardwall plug
For use with plasterboard partitions or hollow wooden doors.
No.4 Cavity Fixing-Heavy Duty
wall plug
For use with walls stuck with plasterboard. The hammer fixing allows it to be fixed to the wall rather than the plasterboard. Always check the fixing is secure to the retaining wall.
No.6 Shield Anchorwall plug
Heavy loads
For use when attaching light loads on to plasterboard partitions.
Care & Maintenance
For use when fitting or supporting heavy loads such as shelving, wall cabinets and coat racks.
Safety: Always check the fitting and location to ensure your safety in and around the home.
For use with heavier loads such as TV & HiFi speakers and satelite dishes etc.
Fitting: From time to time check the fitting to ensure the wall plugs or screws do not become loose.
Loading...
