Argos PENTON STORAGE C TBL ASSEMBLY INSTRUCTIONS

PENTON - Storage Coffee Table
Assembly Instructions - Please keep for future reference
490/9475
Dimensions
Width - 90cm
Depth - 50cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
Issue 1 - 15/09/15
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
Check you have all the components and tools listed on pages 2 and 3.
Remove all fittings from the plastic bags and separate them into their groups.
Keep children and animals away from the work area, small parts could choke if swallowed.
Make sure you have enough space to layout the parts before starting.
Do not stand or put weight on the product, this could cause damage.
Assemble the item as close to its final position (in the same room) as possible.
Assemble on a soft level surface to avoid damaging the unit or your floor.
This product has been produced from natural timber; you may notice some variation in the grain and colour of different component parts which is normal for furniture produced using natural wood and is not the result of any manufacturing fault.
The product has been treated with a wax and oil finish to prevent dirt ingress and preserve moisture.
On unpacking the furniture you may notice an odour due to this treatment; this will disappear once the furniture is unpacked and assembled after a period of time.
This process may leave some staining on the packaging material; please take care to ensure this does not transfer to clothing or carpeted surfaces during assembly.
We do not recommend the use of power drill/drivers for
inserting screws,
as this could damage the unit. Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
Care and maintenance
Use an appropriate furniture polish for natural wood furniture and a dry cloth to clean the product.
Avoid placing the furniture in direct sunlight as this will cause the timber to prematurely age.
From time to time check that there are no loose screws on this unit.
This product should not be discarded with household waste. Take to your local authority waste disposal centre.
Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.
1
Components - Panels
Please check you have all the panels listed below
Top panel (90 x 50cm)
1
Smaller drawer front x 3
5
(18.4 x 12.6cm)
Larger drawer front x 2
6
(31 x 12.6cm)
Drawer side x 10 (35.6 x 12.6cm)
7
view from behind
Front frame (88 x 44cm)
2
view from behind
Back panel (88 x 44cm)
3
Smaller drawer back x 3
8
(16 x 12.6cm)
Larger drawer back x 2
9
(28.6 x 12.6cm)
Side drawer runner x 4
10
(44 x 8cm)
Middle drawer runner x 3
11
(44 x 8cm)
Side panel x 2 (44 x 46cm)
4
Smaller drawer bottom x 3
12
(17.1 x 33.7cm)
Larger drawer bottom x 2
13
(29.7 x 33.7cm)
2
If you have damaged or missing components,
Components - Fittings
call the
Customer Helpline: 03456 400 800
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
A CB
Wooden dowel x 52
D E
22mm Bolt x 10
30mm Screw x 40 35mm Screw x 24
Drawer handle x 5
Tools required
Phillips screwdriver (small & medium)
Small hammer
Ruler - Use this ruler to help correctly identify the screws
5
0
10 15 20 25 30 35 40
3
55
45
50
60 65 70
75
80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
m
2
Ruler/tape measure
Eye protection (when using a hammer or glue)

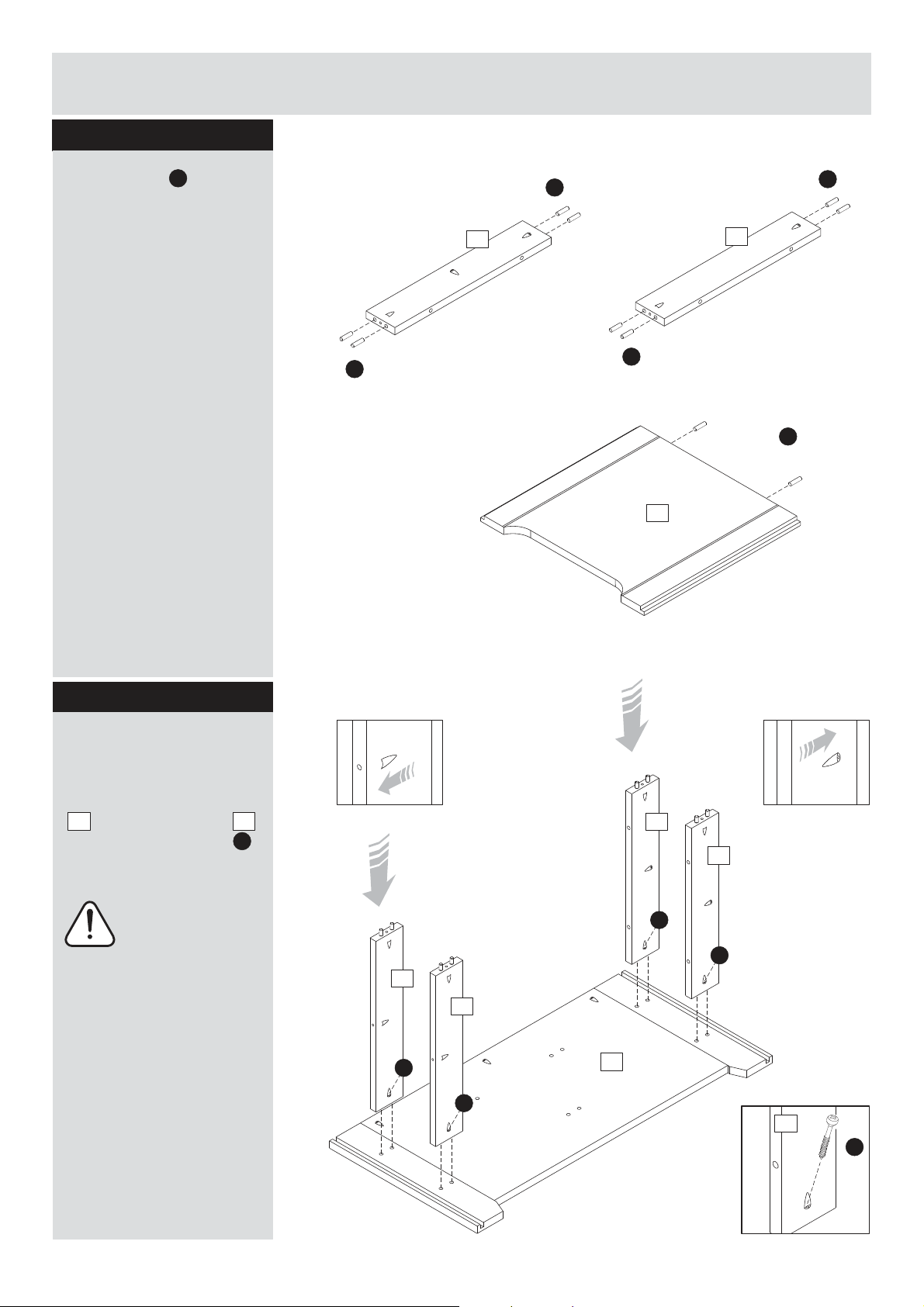

Assembly Instructions
Step 1
Insert dowels into the
A
indicated parts.
A
10
4x
A
A
2x
3x
4
11
A
A
Step 2
Fixing side drawer runners.
Fit side drawer runners
10
to the back panel
then fix using screws .
Attention:
Make sure the holes in the middle of the side drawer runners are correctly positioned as shown in the drawing prior to fixing.
3
C
Attention! Attention!
10
10
C
C
10
10
C
C
3
10
C
4
Assembly Instructions
Step 3
Inserting side panels.
Insert side panels to the back panel into the grooves.
Attention!
Side panels must be in the grooves and aligned with the edges.
4
3
Attention!
4
4
3
4
3
Step 4
Fixing middle drawer runners.
Fit middle drawer runners
11
to the back panel
then fix using screws .
3
C
11
11
11
C
C
3
11
C
5

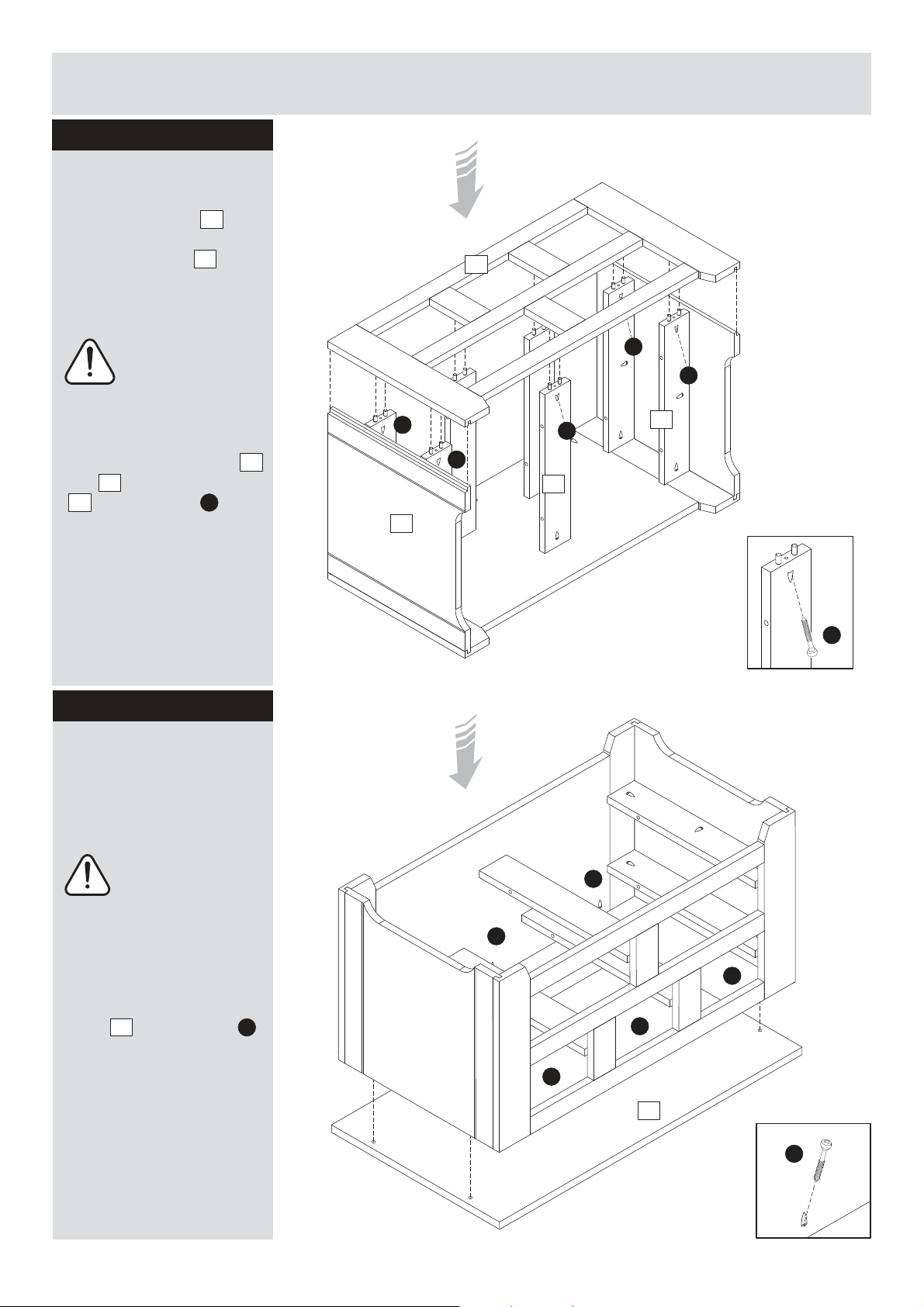

Assembly Instructions
Step 5
Fixing front frame.
Place front frame
2
properly ensuring dowels and side panels are
4
all fit into their holes at the same time.
Attention!
Side panels must be in the grooves and aligned with the edges.
a: Fix drawer runners
11
and to the front frame
2
using screws .
10
C
2
C
C
C
C
4
C
11
10
C
Step 6
Fixing top panel.
Two people are required for an easier assembly.
Caution:
Carefully lay the top panel on a soft and clean surface to avoid damaging the product.
Attach cabinet to the top panel using screws .
1
C
C
C
C
C
C
1
C
6
Assembly Instructions
Step 7
a: Fix side drawer
runners to the side panels using screws .
b: Insert dowels only
into the back of the drawer runners and
11
help, carefully stand the product upright.
10
as shown.
Important:
After dowels insertion, with
10
C
A
A
10
a:
10
10
A
A
11
A
C
C
C
b:
10
11
A
Only in the back of the drawer runners.
Step 8
Smaller drawer assembly.
a: Attach drawer sides
7
to the drawer front
5
using screws .
b: Slide drawer bottom
12
into slots on drawer
sides and position drawer
8
back in place.
c: Holding the drawer
back , press the drawer sides and fix them using screws .
8
d: Using bolts attach
drawer handle to drawer front.
B
B
D
E
a: b:
7
7
B
5
B
3x
c: d:
B
B
8
12
D
Repeat step 8 for the other smaller drawers.
7
E
Assembly Instructions
Step 9
a: b:
Larger drawer assembly.
a: Attach drawer sides
7
to the drawer front
6
using screws .
b: Slide drawer bottom
13
into slots on drawer
sides and position drawer
9
back in place.
B
B
7
9
7
6
B
13
2x
c: Holding the drawer
back , press the drawer sides and fix them using screws .
d: Using bolts attach
drawer handle to drawer front.
Repeat step 9 for the other larger drawer.
9
B
D
E
Step 10
Insert drawers into unit. With the back of the drawers past the front frames, use a hammer to tap dowels in flush to drawer sides. This is a safety catch to stop drawer falling out.
A
c: d:
B
B
D
E
Assembly is complete.
A A
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
