Penton - Nest Tables
AssemblyInstructions - Please keep for future reference
609/7110
609/7127
Dimensions
Width-64cm
Depth-42cm
Height-46cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400 800
Issue 1 - 17/10/12
SafetyandCareAdvice
Important – Please read these instructions fully before starting assembly
Check you have all the
components and tools listed on
pages 2 and 3.
Remove all fittings from the
plastic bags and separate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Do not stand or put weight on
the product, this could cause
damage.
Assemble the item as close
to its final position (in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
This product has been produced
from natural timber; you may
notice some variation in the grain
and colour of different component
parts which is normal for furniture
produced using natural wood and
is not the result of any
manufacturing fault.
The product has been treated
with a wax and oil finish to
prevent dirt ingress and preserve
moisture.
On unpacking the
furniture you may notice an
odour due to this treatment;
this will disappear once the
furniture is unpacked and
assembled after a period of time.
This process may leave some
staining on the packaging
material; please take care to
ensure this does not transfer
to clothing or carpeted surfaces
during assembly.
We do not
recommend the
use of power
drill/drivers
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
for
Careandmaintenance
Use an appropriate furniture
polish for natural wood
furniture and a dry cloth to
clean the product.
Avoid placing the furniture in
direct sunlight as this will cause
the timber to prematurely age.
From time to time check
that there are no loose
screws on this unit.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
Components - Panels
Please check you have all the panels listed below
Large top panel
1
(64 x 42cm)
Small top panel
5
(40 x 38cm)
Large front panel
2
(44 x 60cm)
Large back panel
3
(44 x 60cm)
Base panel
6
(34 x 32.2cm)
Small front panel x 2
7
(36 x 36cm)
Large side panel x 2
4
(44 x 40cm)
Small side panel x 2
8
(36 x 36cm)
Block x 4
9
(10 x 2cm)
2
If you have damaged or missing components,

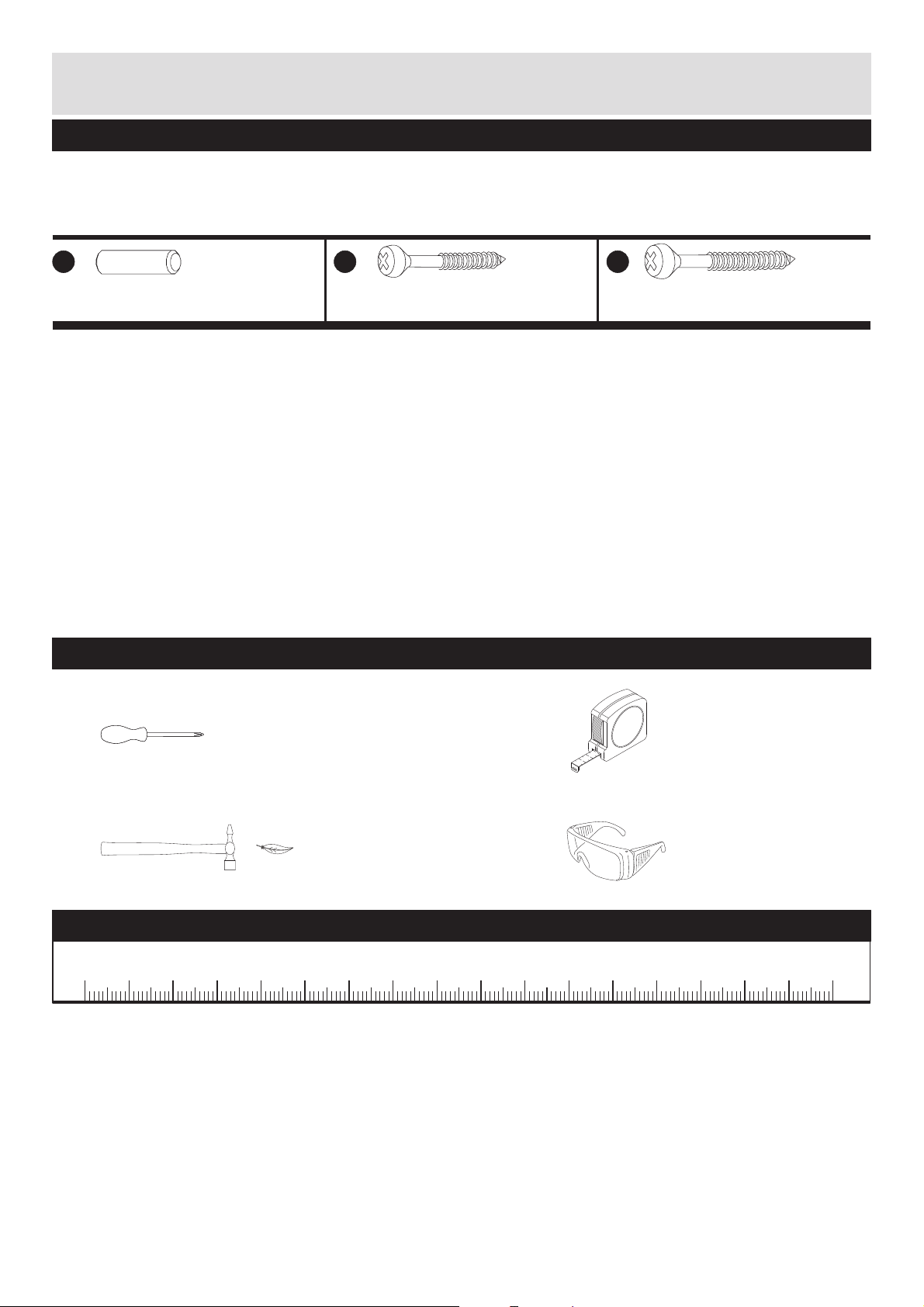

Components - Fittings
call the
CustomerHelpline: 08456400800
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
A B C
Wooden dowel x 12
Toolsrequired
35mm Screw x 22
Phillips screwdriver
(medium)
50mm Screw x 8
m
2
Ruler/tape
measure
Small
hammer
Ruler - Use this ruler to help correctly identify the screws
5
0
10 15 20 25 30 35 40
3
55
45
50
60 65 70
75
80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
Eye protection
(when using a
hammer or glue)
Assembly Instructions
Step 1
Insert dowels into
large side panels ,
small side panels and
base panel .
A
4
8
6
Step 2
Assembling larger table.
A
2x
8
A
2x
4
A
6
A
Two people are required
for an easier assembly.
Caution:
Carefully lay the
top panel on a soft and
clean surface to avoid
damaging the product.
Place large side panels
4
properly ensuring
dowels all fit into their
holes on large top panel
1
.
Step 3
Insert large front panel
2
and large back panel
3
in the grooves on
large side panels.
4
4
1
Attention!
3
3
2
Attention!
Note correct
position of the panels.
Attention!
2
4
4
Assembly Instructions
Step 4
Fix assembled frame to
the top panel using
screws as shown.
C
C
Attention:
Do not over
tighten screws
Step 5
Place blocks in the
positions shown. Then fix
it to the panels using
screws .
Important:
Before fixing the
blocks into place it is
9
important to ensure that
the slot and groove of
front panel, back panel
and sides panels are fully
pushed together and
lined up correctly.
9
B
C
C
C
C
3cm
9
B
9
B
After fixing, carefully
stand the product upright.
5
9
9
9

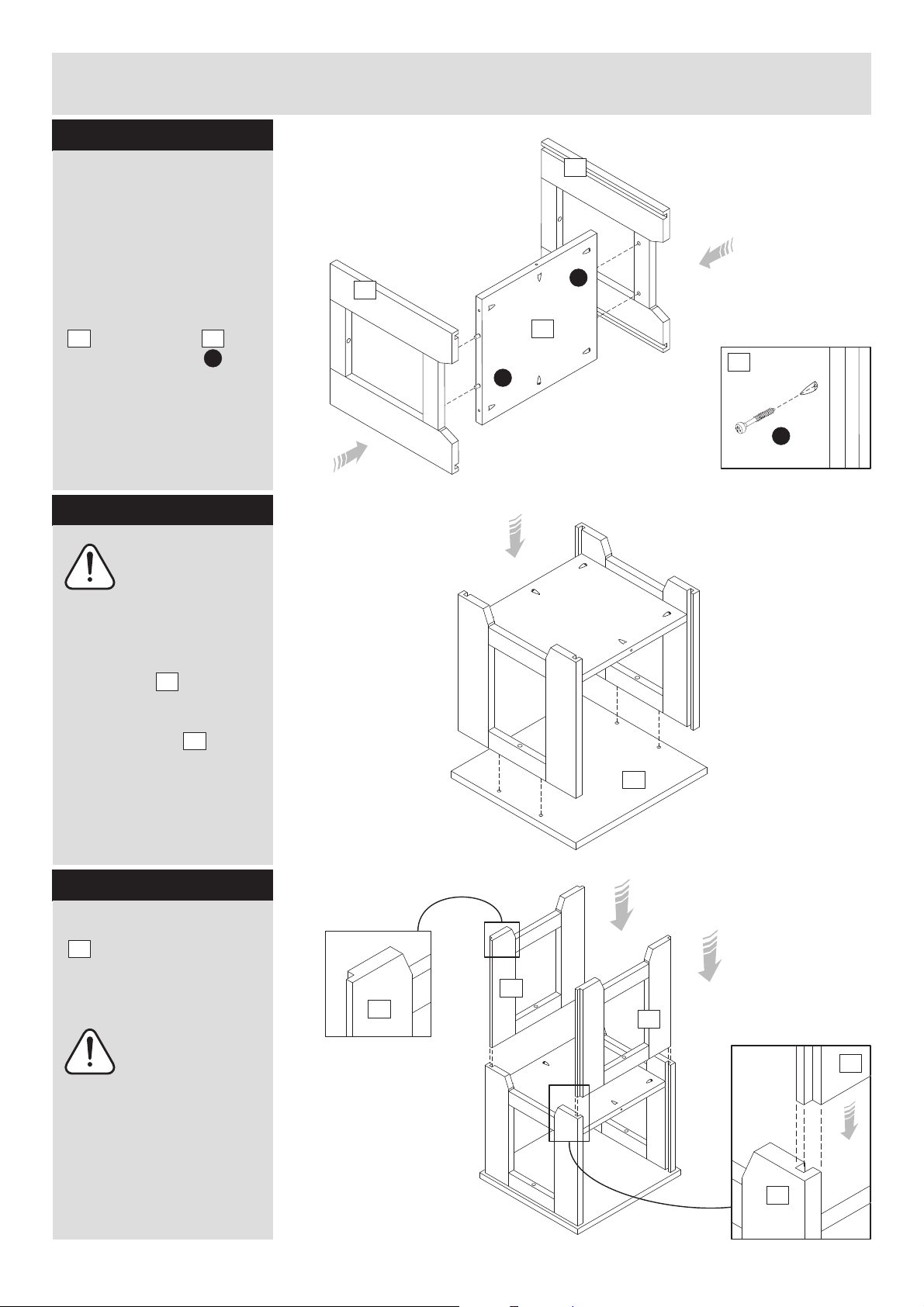

Assembly Instructions
Step 6
Assembling smaller
table.
Two people are required
for an easier assembly.
With help, fit base panel
6 8
to side panels then
fix it using screws .
B
Step 7
Caution:
Carefully lay the
top panel on a soft and
clean surface to avoid
damaging the product.
8
8
B
B
6
6
B
Place sides properly
8
ensuring dowels are all
fitted into their holes on
small top panel .
5
Step 8
Insert small front panels
7
in the grooves on
side panels.
Attention!
Note correct
position of the panels.
Attention!
7
5
7
7
Attention!
7
8
6

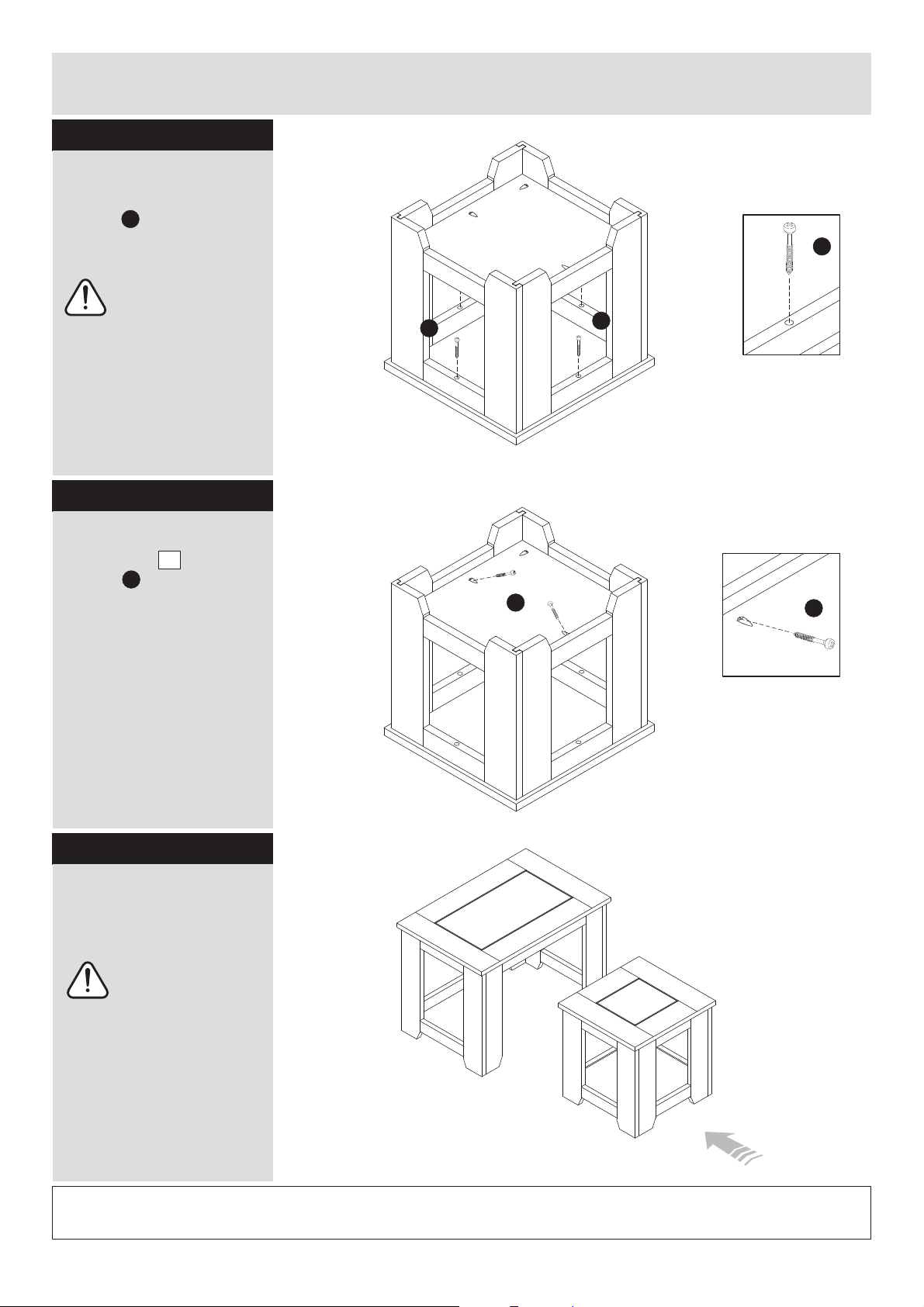

Assembly Instructions
Step 9
Fix assembled frame to
the top panel using
screws as shown.
Step 10
C
Attention:
Do not over
tighten screws
C
C
C
Fix base panel to the
front panels using
screws .
After fixing, carefully
stand the product upright.
7
B
Step 11
Insert smaller table
underneath large table.
Note:
Tables go in only
through one of the sides
of the tables. So, you
may need to turn table
around to insert the
smaller one.
B
B
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400 800
