PENTON - Corner TV Unit
Assembly Instructions - Please keep for future reference
462/6198
Dimensions
Width - 85cm
Depth - 40cm
Height - 57cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
Issue 1 - 15/09/15
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
Check you have all the
components and tools listed on
pages 2 and 3.
Remove all fittings from the
plastic bags and separate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Do not stand or put weight on
the product, this could cause
damage.
Assemble the item as close
to its final position (in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
This product has been produced
from natural timber; you may
notice some variation in the grain
and colour of different component
parts which is normal for furniture
produced using natural wood and
is not the result of any
manufacturing fault.
The product has been treated
with a wax and oil finish to
prevent dirt ingress and preserve
moisture.
On unpacking the
furniture you may notice an
odour due to this treatment;
this will disappear once the
furniture is unpacked and
assembled after a period of time.
This process may leave some
staining on the packaging
material; please take care to
ensure this does not transfer
to clothing or carpeted surfaces
during assembly.
We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
Care and maintenance
Use an appropriate furniture
polish for natural wood
furniture and a dry cloth to
clean the product.
Avoid placing the furniture in
direct sunlight as this will cause
the timber to prematurely age.
From time to time check
that there are no loose
screws on this unit.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
Components - Panels
Please check you have all the panels listed below
Top panel (85 x 40cm)
1
underside
Base panel (79.4 x 28.4cm)
2
Back panel (81.2 x 27cm)
7
Top front frame (68.6 x 6.5cm)
8
Bottom front frame x 2
9
(68.6 x 6.5cm)
Top
Right side panel (55 x 30cm)
3
Top
Left side panel (55 x 30cm)
4
Right front frame (55 x 9.2cm)
5
Drawer front x 2
11
(28.4 x 14cm)
Drawer back x 2
13
(26 x 14cm)
Side drawer
15
runner x 2
Cross rail (79.4 x 6.5cm)
10
(28.4 x 8cm)
Drawer sides x 4
12
(25 x 14cm)
Drawer bottom x 2
14
(27 x 23.6cm)
Middle drawer
16
runner
(26.4 x 8cm)
Left front frame (55 x 9.2cm)
6
Vertical frame
17
(18.8 x 6.5cm)
Block x 4
19
(10 x 2cm)
Back column
18
(22 x 6.5cm)
2
If you have damaged or missing components,
Components - Fittings
call the
Customer Helpline: 03456 400 800
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
A
Wooden dowel x 34
D E
35mm Screw x 24
G
Locking
nut x 8
B
C
14mm Screw x 2 30mm Screw x 16
F
22mm Bolt x 4
H
Metal dowel x 8
I
Drawer
handle x 2
Nail x 16
Tools required
Phillips screwdriver
(small & medium)
Small
hammer
Ruler - Use this ruler to help correctly identify the screws
5
0
10 15 20 25 30 35 40
3
55
45
50
60 65 70
75
80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
m
2
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
Assembly Instructions
Step 1
Fixing right front frame
to the right side panel
(Two people required for
an easier assembly).
a: Insert right side panel
3
into right front frame
5
through joints.
Note:
Before fixing
blocks into
place it is important to
ensure that the slot and
groove of parts and
are fully pushed together
and lined up correctly at
the top and bottom.
b: Place blocks
between the two marks as
shown. First fix to the side
panel using screws .
19
3
5
19
D
a: b: c:
5
D
3
19
Yes!No!
19
3
5
19
D
Attention: correct
position of panel.
Top
c: Fix front frame through
blocks using screws
19
D
.
Step 2
Fixing left front frame
to the left side panel
(Two people required for
an easier assembly).
a: Insert left side panel
4
into left front frame
6
through joints.
Note:
Before fixing
blocks into
place it is important to
ensure that the slot and
groove of parts and
are fully pushed together
and lined up correctly at
the top and bottom.
b: Place blocks
between the two marks as
shown. First fix to the side
panel using screws .
19
64
19
D
a: b: c:
6
D
4
19
Yes!No!
Attention: correct
position of panel.
Top
6
19
19
4
D
c: Fix front frame through
blocks using screws
19
D
.
4
Assembly Instructions
Step 3
Insert dowels into the
A
indicated parts.
AA
34
A
2x
2
A
A
15
A
A
10
18
A
16
A
Step 4
Fitting Metal dowels.
Screw metal dowels
into top panel and side
panels and .
3
1
Insert metalNote:
dowels as far as
shown.
Do not over tighten.
F
4
F
F
3
F
4
F
1
F
5
Assembly Instructions
Step 5
Fixing side drawer
runners.
a: Fit side drawer
runner to the right
side panel. Fit and push
dowels into the front
frame first.
b: Attach side drawer
runner using screw .
15
D
3
15
D
Repeat step 5 for the
left side panel and side
drawer runner.
Step 6
Assembling parts.
Put parts and
together as shown in the
diagram.
9 17
b:
D
a:
15
9
17
9
6
Assembly Instructions
Step 7
Insert the assembled
frame and top front frame
8
into the holes on left
side panel .
4
4
8
Note: The
hole position.
Step 8
Fixing base panel.
With help, fit base panel
2
to the left side panel.
Note:
The hole position
on the base panel.
Insert 2 locking nuts
into base panel where
shown.
Use a screwdriver to turn
locking nuts clockwise
G
to lock.
Do not over tighten.
G
Note: The
hole position.
G
G
2
G
G
7
Assembly Instructions

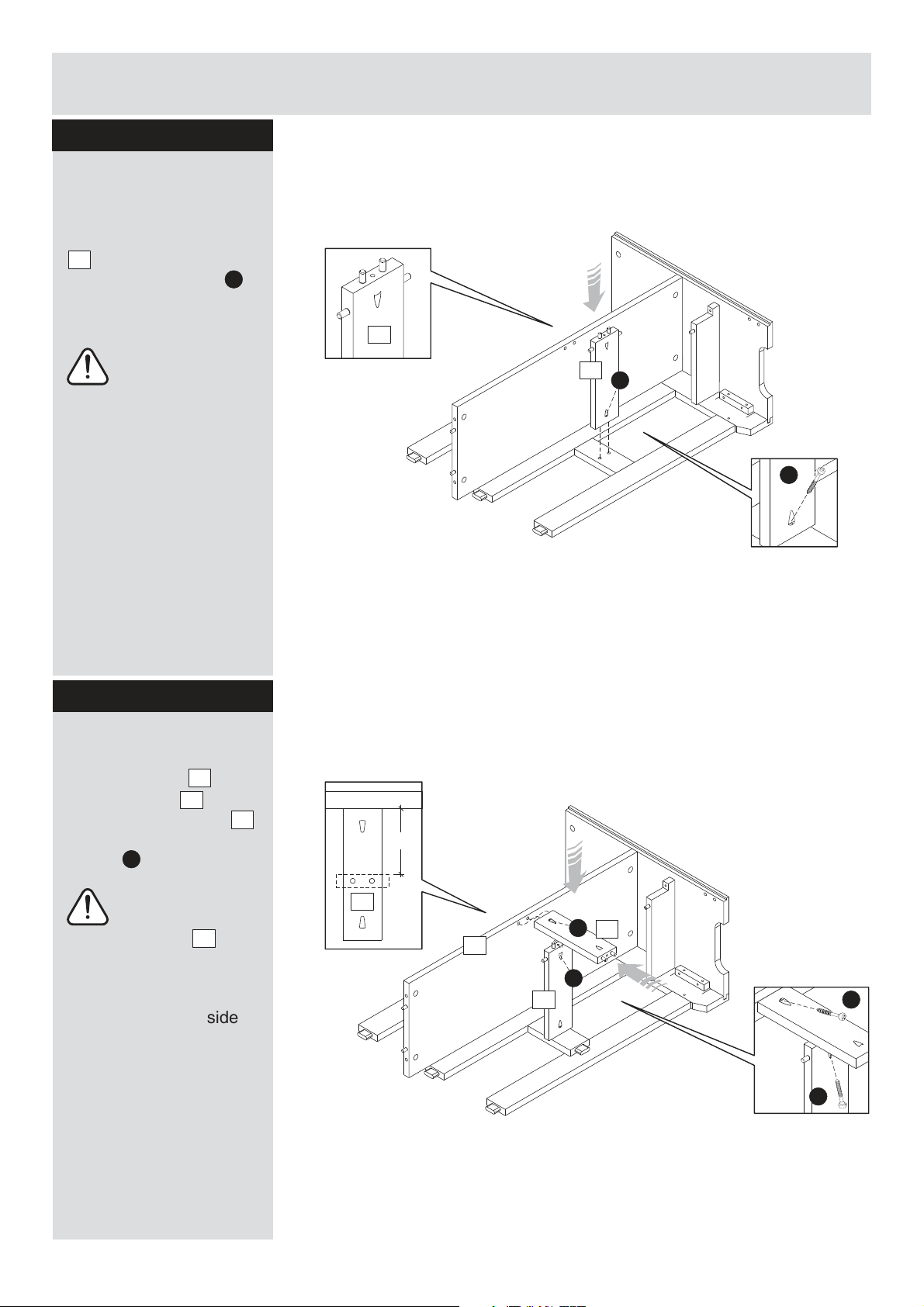

Step 9
Fixing middle drawer
runner.
Fit middle drawer runner
16
to the vertical frame
then fix using screw .
D
Attention:
Make sure middle
drawer runner is
positioned as shown in
the diagram prior to
fixing.
Attention:
16
16
D
D
Step 10
Fixing back column.
Fit back column to
the base panel and
middle drawer runner
then fix them using
screws .
D
Attention:
Correct position of
the back column .
The side with the longer
distance to the holes in
back column (11cm) must
be attached to the side
panel.
18
2
16
18
Attention
Base panel
Back
column
18
11cm
D
18
2
D
16
11cm
D
D
8
Assembly Instructions
Step 11
Fixing cross rail.
Fit cross rail to the left
side panel and back
column then fix it
using screws .
10
4
18
D
10
18
4
D
D
10
D
D
4
18
10
Step 12
Fixing right side panel.
With help, place right side
panel properly
ensuring dowels and front
frames are all fit into their
holes at the same time.
Insert 2 locking nuts
into base panel where
shown.
Use a screwdriver to turn
locking nuts clockwise
to lock.
Do not over tighten.
Fix cross rail to the
side panel using screw
3
G
G
10
D
.
2
10
G
3
D
H
D
H
10
9
Assembly Instructions
Step 13
Fixing top panel.
Caution:
Carefully lay the
top panel on a soft
and clean surface to
avoid damaging the
product.
With help, f
to the top panel .
1
it cabinet
1
B
B
9
B
Insert locking nuts4
G
side p sinto anel where
shown.
Use a screwdriver to turn
locking nuts clockwise
G
to lock.
Do not over tighten.
Fix bottom front frame
9
to the right and left
side panels using screws
B
as shown in the
diagram.
Step 14
B
G
1
G
G
G
Fixing back panels.
Important:
Cabinet beMUST
‘square’ when back
panels are attached.
Attach back panel
using nails .
I
7
With help, carefully
stand the product upright.
I
7
I
I
10
Assembly Instructions
Step 15
Drawer assembly.
a: Attach drawer sides
12
to the drawer front
11
using screws .
C
b: Slide drawer bottom
14
into slots on drawer
sides and position drawer
13
back in place.
c: Holding the drawer
13
back , press the
drawer sides and fix them
using screws .
d: Using bolts attach
drawer handle to
drawer front.
C
E
H
a:
12
C
12
11
C
2x
C
c: d:
C
b:
13
14
E
Repeat step 15 for the
other drawer.
Step 16
Insert drawers into unit.
With the back of the
drawers past the front
frames, use a hammer to
tap dowels in flush to
drawer sides. This is a
safety catch to stop
drawer falling out.
Assembly is complete.
A
H
A A
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
