Normandy - 3 Drawer Bedside
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Issue 1 - 22/04/15
Important - Please read these instructions fully before starting assembly
412/9011
424/6138
392/9243
Width - 38cm
Depth - 40cm
Height - 62.5cm
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 15kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Components - Panels
Please check you have all the panels listed below
2
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
1
4
2
3
5
10
7
Drawer Back (W314-124)
(314 x 124mm) x 3
6
8
9
Left Drawer Side (W370-124LH)
(370 x 124mm) x 3
Right Drawer Side (W370-124RH)
(370 x 124mm) x 3
Drawer Front (D2353A)
(367 x 176mm) x 3
Top (D2349A)
(380 x 396mm)
Rails (D2354A)
(347 x 60mm) x 2
Left Side (DF3851)
(601 x 372mm)
Right Side (DF3852)
(601 x 372mm)
Drawer Base (T325-367)
(325 x 367mm) x 3
Back (X583-373)
(583 x 373mm)
Please check you have all the fittings listed below
Tools required
3
Components - Fittings
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 6
B
Metal dowel (F901) x 12
C
D E F
G
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Large locking
nut (F900) x 6
Nail (F51) x 14
Small locking
nut (F3) x 6
9mm Screw (F73) x 12
9mm Screw (F74) x 6
H
Drawer runner (F1004) x 6
Rule Scissors Hammer Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
J
Knock-in Peg (F171) x 12
L
Plastic Nail (F91) x 4
K
Wedgefix (F639) x 6
JI
Handle (FBARHANDLE ) x 3
a
I b
19mm Screw (F461) x 6
b
a
5
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Step 1
x 3
x 3
x 3
x 3
B
B
D
D
D
D
7
8
Step 2
Prepare the 3 drawer
fronts
Screw 2 metal dowels
into each of the drawer
fronts .
Note: Tighten the metal
dowels up fully against
the panels.
B
5
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and the right
drawer side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 3
D
7
8
Attach the drawer
sides to the drawer
fronts
Push the left drawer sides
. and right drawer sides
. onto the back of the
drawer fronts .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
7
8
5
D
D
7
8
B
B
5
8
7
5
Assembly Instructions
5
Step 4
J
J
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
Step 5
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
Step 6
6
7 8
5
9
7 8
6
9
9
J
7 8
Step 7
Fit the wedgefixes
Turn the drawer
assemblies over and
slide 2 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
K
x 3
x 3
x 3
J
J
x 3
K
K
K
6
7
9
7
8
6
8
Attach the handle
Attach a handle to
each drawer front
using screws .
5
I a
I b
I a
I b
I b
5
A
Finished
front edge
Finished
front edge
Finished
front edge
Assembly Instructions
6
Step 8
Finished
front edge
F
H
Prepare the left side
a: Place 3 runners on
the left side as
shown. Slide back the
top of runner and use the
2nd hole from the front
to fit the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the left side .
c: Tap a wooden dowel
. into the left side .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Screw 2 metal dowels
into the left side .
Insert a large locking
nut into the left side
. .
Note: The arrow on the
locking nuts must point
towards the hole in the
edge of the panel.
1
F
F
C
1
1
1
H
H
B
1
F
H
F
F
F
F
H
F
H
C
B
B
10mm
A
A
C
a:
b:
c:
1
1
1
A
Assembly Instructions
7
Step 9
Finished
front edge
F
H
Prepare the right side
a: Place 3 runners on
the right side as
shown. Slide back the
top of runner and use the
2nd hole from the front
to fit the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the right side .
c: Tap a wooden dowel
. into the right side .
Screw 2 metal dowels
into the right side .
Insert a large locking
nut into the right side
. .
2
F
F
C
2
2
2
H
H
B
2
a:
b:
c:
F
H
F
H
F
H
F
F
F
Finished
front edge
Finished
front edge
Finished
front edge
C
B
B
A
2
2
2
A
A
Assembly Instructions
8

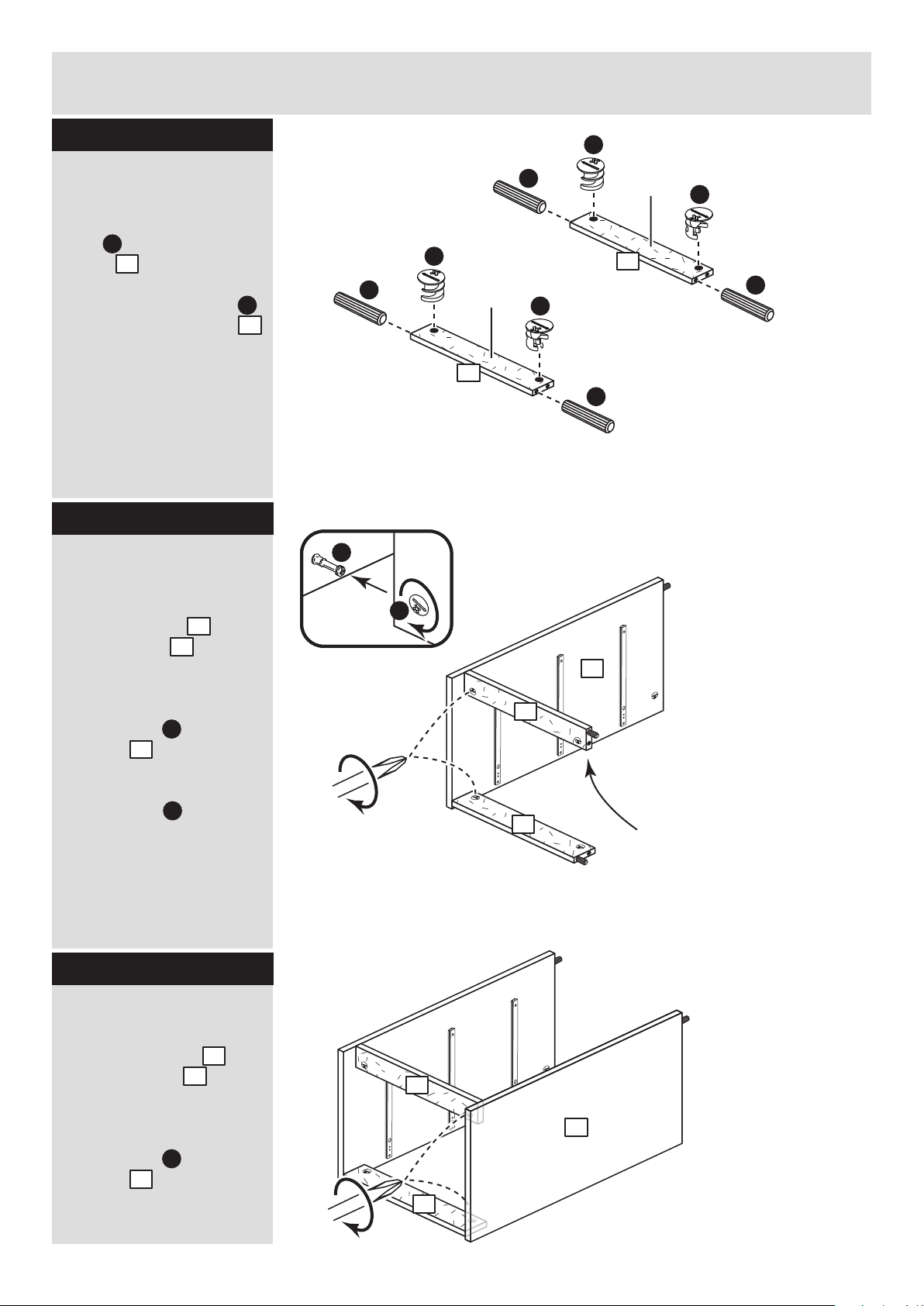

Step 10
Prepare the 2 rails
Insert 2 large locking
nuts into each of the
2 rails .
Tap 2 wooden dowels
into each of the 2 rails .
4
C
A
4
C
C
A
Plain
chipboard
surface
4
C
C
A
Plain
chipboard
surface
4
Support this rail
until the left side
has been fitted in
the next step.
4
4
2
Step 11
Fit rails to the right
side
Push the 2 rails onto
the right side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the rails .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
2
4
C
4
Step 12
Fit the left side
Push the left side
onto the 2 rails .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the rails .
4
1
C
4
B
C
4
4
1
C
Assembly Instructions
9
Step 13
Prepare the top
Screw 2 metal dowels
into the top .
B
B
Rounded
front edge
B
3
Step 14
Fit the top
Push the top onto
the assembly.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the left side and right
side .
3
C
1
2
3
1
2
Step 15
Fit the 4 plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. .
L
1
2
L
L
L
L
1
2
3
yy
yy
xx
Assembly Instructions
10
Step 16
Step 17
b:
E
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Note: Nails should be
spaced about 150mm
apart.
Carefully stand the
unit up for the next
step.
10
E
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
10
10
Fit the drawers
Starting with the bottom
drawer, slide both the
runners forward and
locate the drawer
sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner .
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
G
H
2nd threaded
hole
G
7 8
H
H
G
7
H
G
G
xx
Assembly Instructions
11
