Toddler Bed
Assembly Instructions - Please keep for future reference
707/3676
723/9939
Dimensions
Width -75 cm
Depth - 145cm
Height - 57cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
Issue 4 - 04/04/17
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
.
Check you have all the
components and tools listed on
pages 2 and 3.
.
Remove all fittings from the
plastic bags and separate them
into their groups.
.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
.
Make sure you have enough
space to layout the parts before
starting.
.
Do not stand or put weight on
the product, this could cause
damage.
.
Assemble the item as close
to its final position (in the same
room) as possible.
.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
.
This product has been produced
from natural timber; you may
notice some variation in the grain
and colour of different component
parts which is normal for furniture
produced using natural wood and
is not the result of any
manufacturing fault.
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
.
Parts of the assembly will be
easier with 2 people.
.
Dispose of all packaging
carefully and responsibly.
.
We do not
care and maintenance
.
Use an appropriate furniture
polish for natural wood
furniture and a dry cloth to
clean the product.
.
Avoid placing the furniture in
direct sunlight as this will cause
the timber to prematurely age.
.
From time to time check
that there are no loose
screws on this unit.
.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
IMPORTANT! KEEP IT FOR FUTURE REFERENCE,
READ IT CAREFULLY.
Warning: Do not place this child´s bed near heat sources, windows and other furniture
Warning: Do not use this child´s bed if any part is broken, torn or missing.
· Designed and manufactured to BS 8509:2008.
· Model: 707/3676 - 723/9939
·R etailer: Home Retail Group
· The bed is suitable for children aged from 18 months to 4 years.
· The bed is suitable for a mattres of 140cm in lenght and 69cm in
width.
· Periodically check that all fittings are always properly tightened.
· Children are likely to play, bounce, jump and climb on beds,
therefore the child´s bed should not be placed too close to other
furniture or windows, and should be placed either tight to any wall
or have a gap of 300mm between the wall and side of the bed.
Note: if required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
Components - Panels
Please check you have all the panels listed below
Headboard (75 x 57cm)
01
Footboard (75 x 51cm)
02
Guard rails x 2 (41 x 19,7cm)
05
Slats x 12 (69 x 6.9cm)
06
Left side rail (140 x 9cm)
03
Right side rail (140 x 9cm)
04
2
If you have damaged or missing components,
Components - Fittings
call the Customer Helpline: 03456 400 800
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
A
70mm Bolt 1/4 x 04
D
40mm Wooden dowel x 08
G
Spacer x 02 (52mm)
B
Half-Moon Nut x 04
E
25mm Screw x 24
H
40mm Bolt 1/4 x 04
C
Allen key
F
60mm Bolt 1/4 x 02
Tools required
Phillips screwdriver
(medium & large)
Small
hammer
Ruler - Use this ruler to help correctly identify the screws
5
0
10 15 20 25 30 35 40
55
45
50
60 65 70
75
80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
m
2
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
3
Assembly Instructions

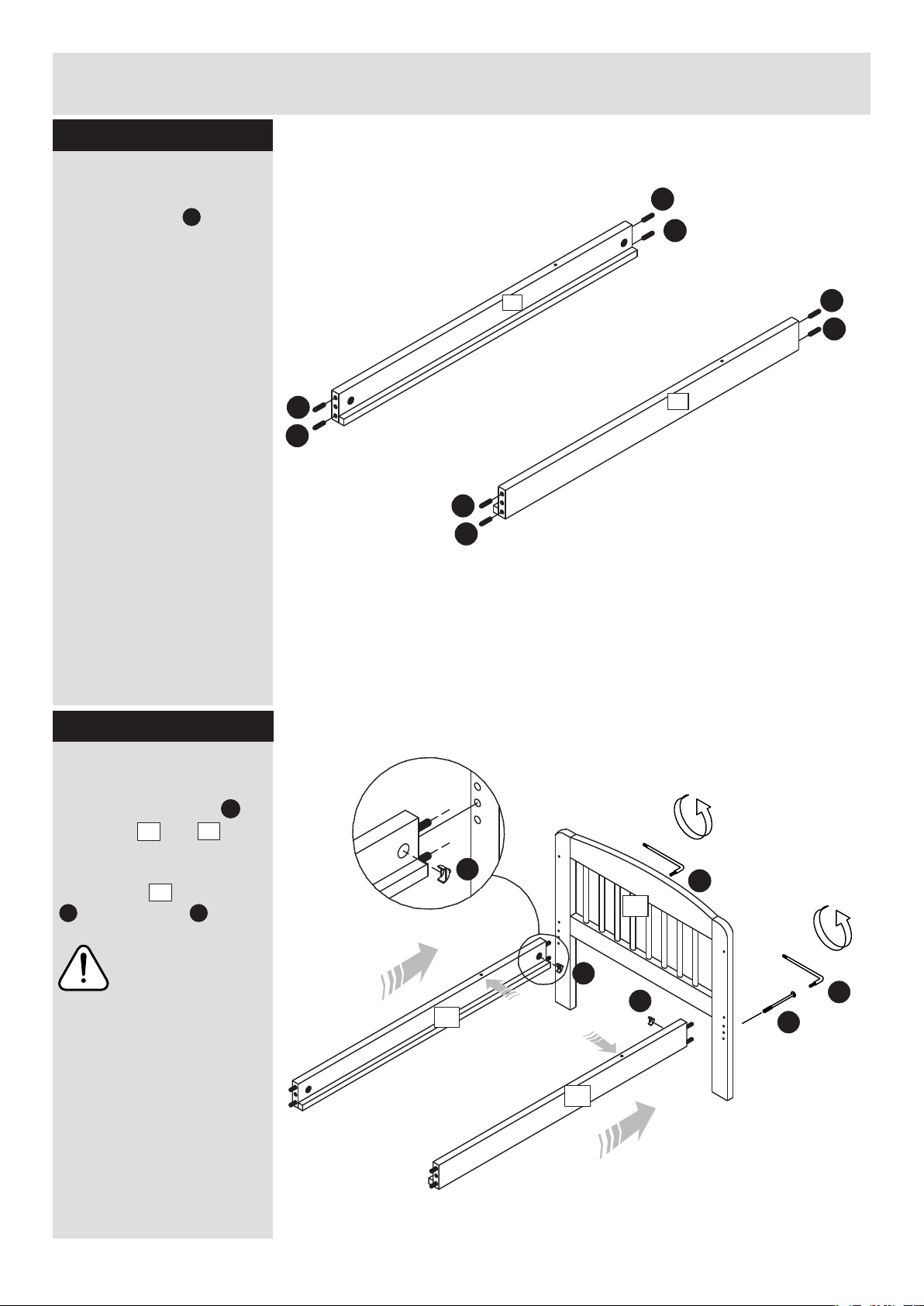

Step 1
Fitting dowels
Insert dowels
into the indicated parts.
D
D
D
Step 2
D
D
D
D
03
D
D
04
Assembling side rails:
Insert half moon nut into
side rails and as
shown.
Then fix them to the
headboard using bolts
and allen key .
Caution:
Make sure rails
are positioned as
shown with holes near to
headboard.
03
01
B
04
CA
03
B
ATTENTION!
04
C
01
B
B
C
A
4
Assembly Instructions
Step 3
Assembling side rails:
Insert half moon nut into
side rails and as
shown.
Then fix them to the
footboard using bolts
and allen key .
03
02
B
04
CA
C
02
A
B
A
C
A
B
Step 4
Fixing slats:
Fix slats adjacent to
the headboard working
towards the middle of the
bed using the spacer
as shown to ensure correct
spacing. Fix using screws
E
.Periodically check that
all screws are tight.
06
G
12x
11
06
C
G
G
E
E
5
Assembly Instructions
Step 5
Attaching guard rails:
Fix guard rails using
F
bolts and allen
key .
H
C
05
C
C
H
H
050505
01
C
C
H
H
02
C
F
C
C
F
05
H
C
Assemble is complete!
