HUDSON LEATHER FACED CHAIR
Assembly Instructions - Please keep for future reference
146/2551(D)
Dimensions
Width - 69 cm
Depth - 77 cm
Height - 113-121 cm
Important -
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Argos FIO5801R-IM
Please read these instructions fully before starting assembly
1
21x29.7cm 20131011 Judy
110 kg
Max Weight
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and fittings list
on page 3.
• Remove all fittings from the
plastic bags and separate
them into their groups.
• Keep children and animals
away from the work area,
small parts could choke if
swallowed.
• Make sure you have enough
space to layout the parts
before starting.
Care and maintenance
• Only clean using a damp
cloth and mild detergent, do
not use bleach or abrasive
cleaners.
• To avoid any risk of
suffocation to animals or
children dispose of the plastic
bags immediately.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging
the unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
• We do not
recommend
the use of
power drill or
drivers for
inserting
screws, as this could
damage the unit. Only use
hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
Safety during use
• Do not stand on this chair.
Don’t use this chair as a step
ladder.
• At least every 4 months,
check all bolts, screws and
knobs, to be sure they are
tight.
• Use this product only for
seating one person at a time.
• If parts are missing, broken or
damaged or worn, stop use of
this product until repairs are
made and using factory
authorized parts.
2
• Do not use this chair unless
all bolts, screws and knobs
are firmly secured.
• Failure to follow these
warnings could result in
serious injury.
Argos FIO5801R-IM
21x29.7cm 20131011 Judy
Components - Parts
Please check you have all the fittings listed below
If you have damaged or missing components,
call the
Customer Helpline: 08456 400800
1
Backrest (60 x 81 cm)
4
Seat Support
7
Base (350 mm)
2
Seat Cushion (60 x 56 cm)
5
Gas lift (80 mm)
8
Castor (R50 mm) – 5pcs
Components - Fittings
If you have damaged or missing components,
call the
Customer Helpline: 08456 400800
3
6
Armrest
Cover
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
Bolt 20 mm x 6 mm - 4 pcs
C D
Cap x 8 pcs Allen key M5 x 1 pc
Argos FIO5801R-IM
21x29.7cm 20131011 Judy
B
Bolt 30 mm x 6 mm - 8 pcs
3
/bolts
Assembly Instructions

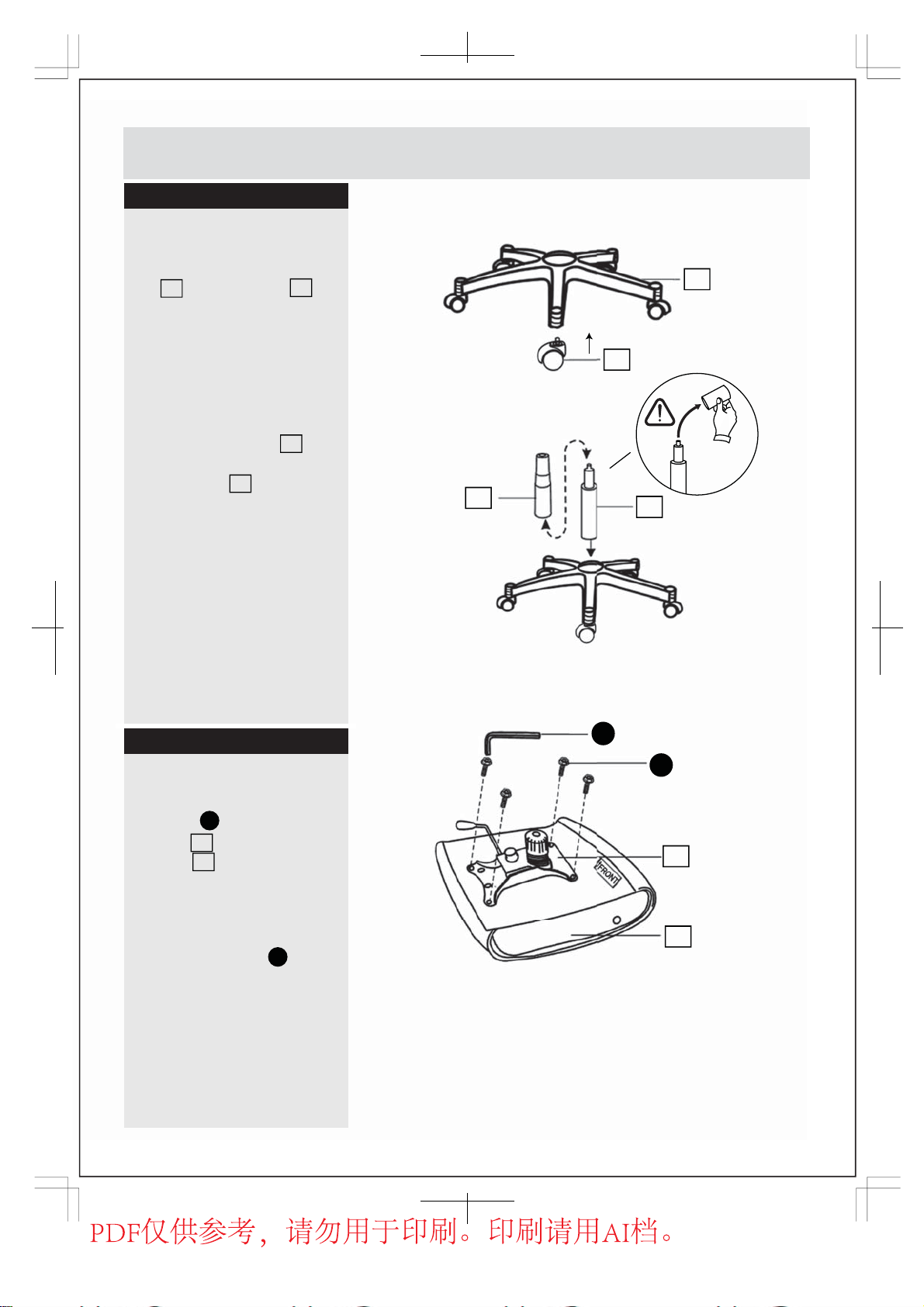

Step 1
Fitting the base
1a. Push all the five castors
8 onto the base 7 .
Note: Ensure all the castors
are firmly located on the
base.
1b. Please remove the cap
before assembly, then
insert the gas lift 5 into
the base, and then slide
the cover 6 over the
top.
Note: Ensure the gas lift is
fully inserted.
1a.
1b.
7
8
6
5
Step 2
Fitting the seat cushion
Use bolts to fix seat
support 4 onto the seat
cushion 2 , ensure the
support is fitted to the seat
cushion with correct
orientation.
Note: Tool required .
Don’t fully secure bolts at
this stage.
A
D
D
A
4
2
4
Argos FIO5801R-IM
21x29.7cm 20131011 Judy
Assembly Instructions

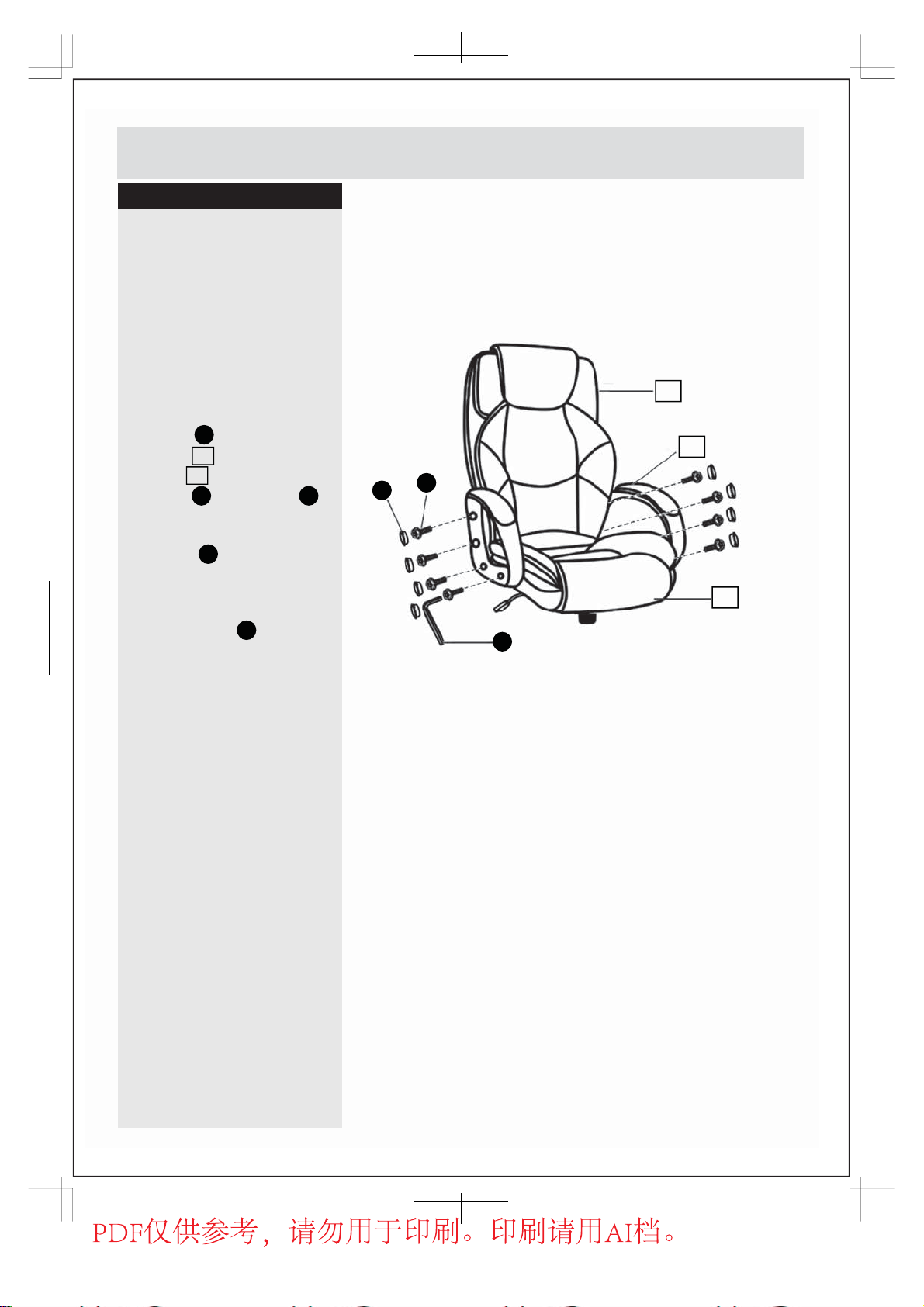

Step 3
Fitting the backrest
You need flexibility to
assemble the arms. it will be
impossible to assemble the
arms if all the bolts are
already very tight.
1
Use bolts to fix the
backrest 1 and the seat
cushion 2 , finally insert the
bolts cap on the bolts .
Note: Tool required Allen
NOW FULLY SECURE ALL
BOLTS IN 12 PLACES
USING TOOLS .
B
C B
D
Key .
D
3
B
C
2
D
Argos FIO5801R-IM
21x29.7cm 20131011 Judy
5
Assembly Instructions
Assembly Instructions
Step 4
Finishing the unit.
Carefully locate the seat
cushion and backrest onto the
gas lift of the base unit.
NOTE: To ensure gas lift
mechanism remains secure
assembly as shown, then sit
on the seat, and raise/ lower
the seat several times top and
bottom.
Argos FIO5801R-IM
21x29.7cm 20131011 Judy
110 kg
Max Weight
call the If you need help or have damaged or missing parts, Customer Helpline: 0845 640 0800
