Argos HOME Assembly Instructions Manual

Assembly Instructions - Please keep for future reference
Width - 61.2cm
8 Cube Storage Unit
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08450613967 Please turn to back page for important information when contacting Customer Helpline.
Dimensions
Height - 120.8cm
Rev A - 01/07/2013
011 xx 3557
MADE IN
GREAT BRITAIN
Important - Please read these instructions fully before starting assembly
Safety and Care Advice
Check you have all the components and tools listed on pages 2 and 3.
Remove all fittings from the plastic bags and seperate them into their groups.
Keep children and animals away from the work area, small parts could choke if swallowed.
Make sure you have enough space to layout the parts before starting.
Do not stand or put weight on the product, this could cause damage.
Assemble the item as close to its final position (in the same room) as possible.
Assemble on a soft level surface to avoid damaging the unit or your floor.
Parts of the assembly will be easier with 2 people.
We do not recommend the use of power drill/drivers for
inserting screws,
as this could damage the unit. Only use hand screwdrivers.
Care and maintenance
Always lift furniture when moving it (do not drag) otherwise the joints may be damaged.
From time to time check that there are no loose screws on this unit.
This product should not be discarded with household waste. Take to your local authority waste disposal centre.
1
Dust surfaces with a soft, dry, lint free cloth.
More stubborn marks can be removed using a damp (not wet) cloth. Wipe the surface dry immediately using a soft lint free cloth.
Do not use detergents, abrasive cleaning products or cleaning products that contain ammonia, solvents or silicone as these may damage the surface finish.
To protect the furniture, position the furniture out of direct sunlight and away from direct heat sources such as radiators and fires.
Do not place the furniture in excessively dry and humid conditions.
Do not place hot or cold objects on the surface, always use protective mats to avoid marking the furnture.
Clean spills up immediately
Dispose of all packaging carefully and responsibly when assembly complete.
Do Not dispose of packaging until assembly complete.
Please check you have all the panels listed below
Components - Panels
2
Important - Thick lines indicate finished edges
Top / Bottom x2 (58.0x29.3cm)
9096
End Panel x2
(120.8 x 29.5cm)
9121
Shelf x3 (58.0x29.3cm)
9097
Divider x4 (28.2x29.1cm)
9098
Back Panel x4 (30.8x29.5cm)
9101
3
70
80
90
100
110
120
0
10
20
30
40
50
60
mm
130
140
150
160
170
Ruler - Use this ruler to help correctly identify the screws
Please check you have all the fittings listed below
Components - Fittings
Note: The quantities below are the correct amount to complete the assembly, In some case more fittings may be supplied than are required.
Tools required
If you have damaged or missing components, call the
Customer Helpline: 0845 0613967
Please turn to back page
for important information when contacting Customer Helpline.
A
B
C
E
D
G H
F
Dowel 50mm x 6 Code 770003550
45mm screw x 10 Code 690001075
Dowel 30mm x 16 Code 770001006
L bracket x 1 Code 760001901
12mm screw x 2 Code 690001099
Eye protection (when using a hammer)
Large Cross Headed Screwdriver
Small Hammer
Panel pin x 32 Code 760001012
Panel Pin Locator Code 684004501
Tape Measure
Cover cap x 10
Exploded View
4
9096
9097
9121
9098
9098
9097
9098
9097
9101
9098
9096
9121
x4
Step 1
Assembly Instructions
5
B
C
B
B
x4
Fitting dowels to the divider panels.
x1
50mm30mm
Step 2
B
B
Fitting dowels to the shelf panels.
1. Insert 2 of the 30mm
dowels into the pre­drilled holes in one end of the divider panel and 2 50mm dowels into other end of the same panel.
2. Insert 2 of the 50mm dowels into only one end of 2 of the divider panels .
3. Insert 2 of the 30mm dowels into only one end of the other divider panel .
Insert 2 of the 30mm dowels into the pre­drilled holes in both ends of the shelf panels .
9098
9098
9097
9098
Step 3
Connect shelf panel and divider panels.
FINISHED EDGES TO THE FLOOR
Locate the divider panel which has the 2 50mm dowels inserted into the pre-drilled holes in panel .
Slide the 50mm dowels through the pre­drilled holes in the shelf panel and connect to the next divider panel
B
B
B
B
x12
30mm
C
C
C
C
C
C
C
C
C
C
C
x6
9098
B
B
x1
9098
9098
9098
9098
9097
B
B
x3
B
B
9097
9097
9097
9098
9098
9098
9098
9097
x2
1.
1.
2.
2.
3.
Assembly Instructions
6
Step 4
Connect the divider to the shelf and the next divider.
Slide the dowels (already inserted) in the divider panel through the shelf panel and into the next divider panel .
Step 5
9098
9097
9098
9098
Connect the bottom divider to the shelf and the remaining divider.
Slide the dowels (already inserted) in the divider panel through the shelf panel and into the next divier panel .
9097
9098
9098
9098
9098
9098
9097
9097
2.
2.
2.
3.
C
C
C
C
B
B
Assembly Instructions
7
Step 6
Connect top/bottom panels to the dividers panels.
Insert the dowels (already inserted into the divider panels) into the pre­drilled holes in the top & bottom panels .
Step 7
Fasten one of the end panels to the shelves and top/bottom panels.
Connect the end panel to the dowels in the shelf panels .
Secure the end panel in place by using screws and screwing into the pre-drilled holes in the top & bottom panels and the central shelf .
9096
9098
9121
9121
9097
9096
9097
A
A
x5
9096
9098
9096
9098
9096
9096
9097
9097
9097
A
A
A
A
A
9121
A
A
Assembly Instructions
8

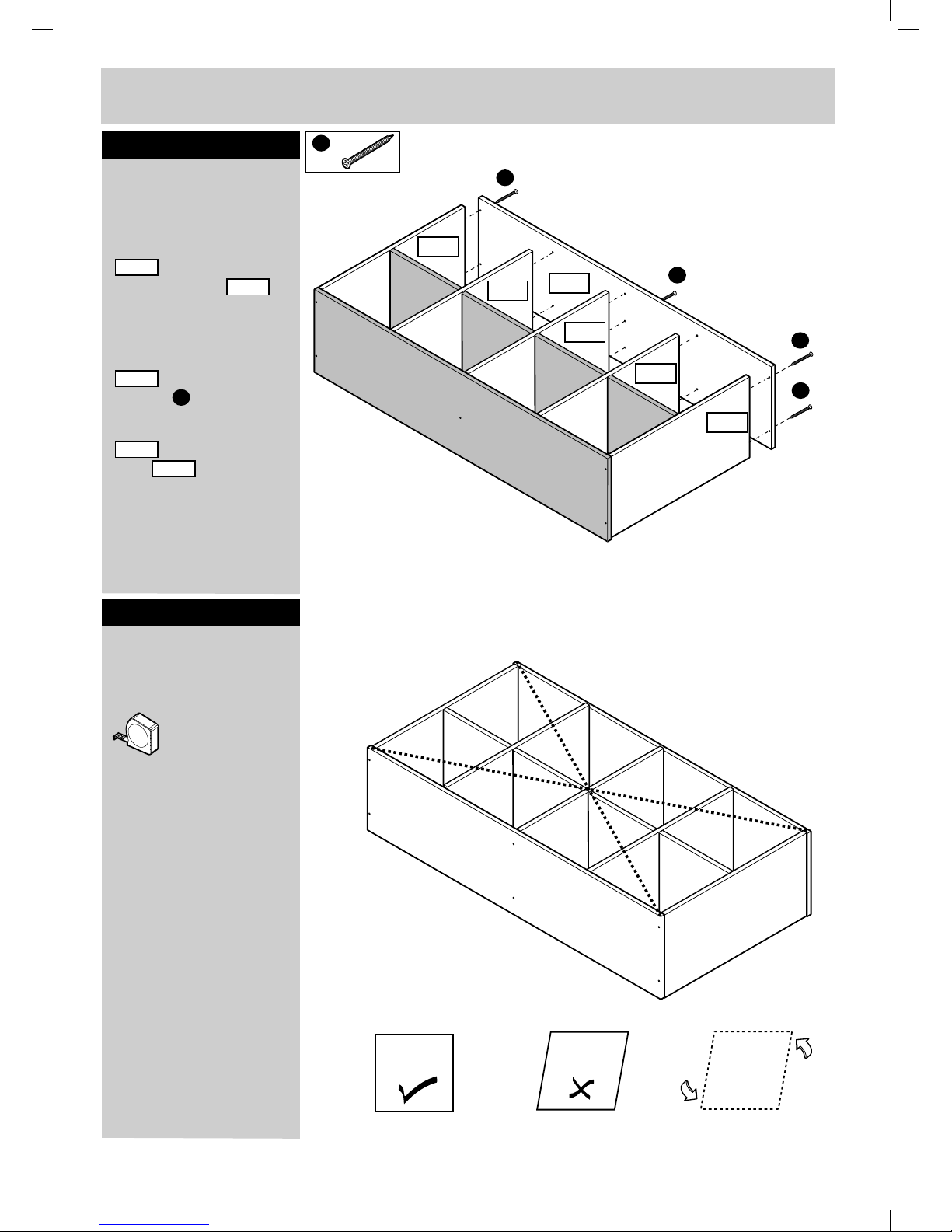

Step 8
Step 9
Fasten the other end panel to the shelf and top & bottom panels.
A
x5
9096
9096
9097
9097
9097
9121
A
A
Connect the end panel to the dowels in the shelf panels
Secure the end panel in place by using screws and screwing into the pre-drilled holes in the top/bottom panels and the central shelf .
9121
9121
9097
9096
9097
A
Squaring the unit up.
Important.
Ensure a tape m measure is used to square unit up!
Before securing the back it is necessary to square up the unit.
You can do this by measuring between XX - XX and YY - YY ensuring these are the same (DIAG 1).
If they are not (DIAG 2) Apply slight pressure as indicated (DIAG 3) until they are the same.
DIAG 1
DIAG 2
DIAG 3
XX
XX
YY
YY
XX
XX
YY
YY
XX
XX
YY
YY
XX
XX
YY
YY
Assembly Instructions
9
Step 11
We recommend that this unit is fixed to a suitable wall to prevent possible overbalancing. We have included a fixing bracket for this. No fixing screws are provided as they will need to suit the wall type, and the length of screw will depend on the distance from the back of the unit to the wall. 2 screws are provided to attach the bracket to the unit. Please ensure fixings used are appropriate to your wall type. Locate the bracket to the top panel or to the end panel as close to top as possible. We do not specify exact location for the bracket, this is left to the customer’s discretion.
Fixing to wall
Please take care when drilling into the wall, avoiding any pipes and wires. Wear safety goggles when drilling. The use of residual current device (RCD) is recommended when working with tools. If in doubt consult a qualified person.
Warning:
D
x1
E
x2
Step 10
Attach the 4 back panels.
G
G
x32
F
F
F
x1
Ensure that you measure the backpanel and attach the longest side as shown.
Use the panel pin guide when locating the panel pins. This will hold the panel pins vertically.
Ensure that the distance from the edge of the back panels to the edge of the top / bottom / shelf and end panels is equal on every back panel.
Stand the unit upright once this is complete.
Plain chipboard surface
9101
9101
9101
9101
29.5cm
30.8cm
Assembly Instructions
10
Step 12
Use the cover caps to conseal exposed fittings.
Using the 10 cover caps provided, conceal the exposed screws by placing these caps over them.
H
H
x10
H
H
H
H
H
Assembly Instructions
Congratulations! Your unit is complete.
Important Information
If you need help or have damaged or missing parts, call the Customer Helpline:
0845 061 3967
8am - 4.30pm (Monday to Thursday) 8am - 2.30pm (Fridays)
Please have the following information to hand:
>> Unit Description >> Product Code >> Product Colour >> Place of Purchase >> Catalogue Ref. No. >> Item Code >> Assembly Instructions
You can also e-mail your requests to us at:
customer.helpdesk@addspace.co.uk
Alternatively, you can write to us at: Customer Service Department, Addspace Furniture Limited, Braithwell Way, Hellaby Industrial Estate, Hellaby, Rotherham, South Yorkshire, S66 8QY.
We do have an answer machine should you contact us out of office hours, so in addition to the above information could you leave your name, address, daytime telephone number and the nature of your call on the answerphone. All calls will be actioned asap.
(by contacting the customer service line your statutory rights are not aected)
