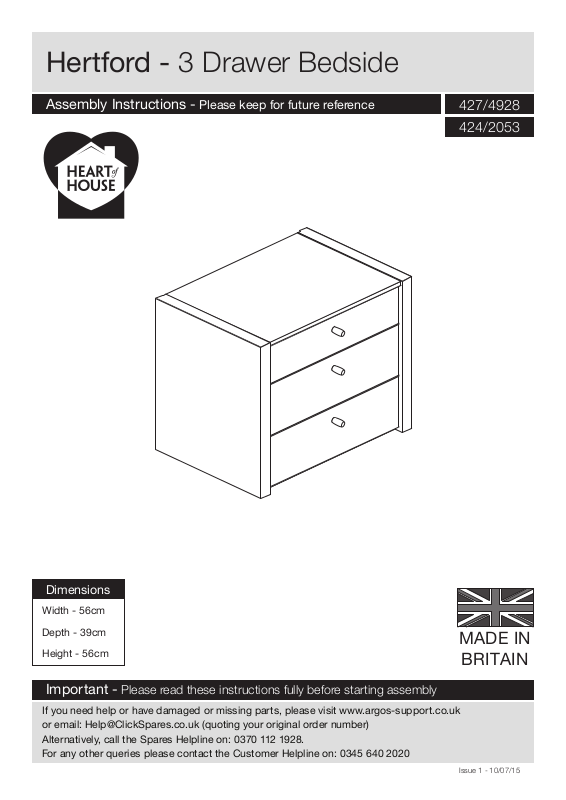

Argos Hertford - 3 Drawer Bedside ASSEMBLY INSTRUCTIONS

MADE IN
BRITAIN
Dimensions
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020
Assembly Instructions - Please keep for future reference
427/4928
424/2053
Issue 1 - 10/07/15
Width - 56cm
Depth - 39cm
Height - 56cm
Hertford - 3 Drawer Bedside
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Warning: This unit weighs approximately 15kgs. Please lift with care.
• Check you have all the components and tools listed on pages 2 and 3.
• Remove all fittings from the plastic bags and separate them into their groups.
• Keep children and animals away from the work area, small parts could choke if swallowed.
• Parts of the assembly will be easier with 2 people.
• Make sure you have enough space to layout the parts before starting.
• Do not stand or put weight on the product, this could cause damage.
• Assemble the item as close to its final position (in the same room) as possible.
• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).
• We do not recommend the use of power drill/drivers for
inserting screws, as this could damage the unit. Only use hand screwdrivers.
Safety note: If there is any chance of this unit being pulled over by children etc. it is recommended that the unit is secured to a wall using suitable fixings (not supplied).
• Dispose of all packaging carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.
• From time to time check that there are no loose screws on this unit.
• This product should not be discarded with household waste. Take to your local authority waste disposal centre.
Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.
Components - Panels
Please check you have all the panels listed below
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020
2
Left Side (DF3858)
(56.2 x 39cm)
Right Side (DF3859)
(56.2 x 39cm)
Drawer Base (T452-347)
(45.2 x 34.7cm) x 3
Back (X547-508)
(54.7 x 50.8cm)
Bottom Drawer Front (DF354)
(48.6 x 18.9cm) x 2
Bottom Drawer Back
(W441-124)
(44.1 x 12.4cm) x 2
Bottom Left Drawer Side (W350-124LH)
(35 x 12.4cm) x 2
Bottom Right Drawer Side (W350-124RH)
(35 x 12.4cm) x 2
1
2 3
4 5
7 8
6
9
10 11 12
13 14
Top (DF351)
(49.05 x 38.5cm)
Rail (DF352)
(49.05 x 7cm) x 2
Top Drawer Front (DF353)
(48.6 x 14cm)
Top Drawer Back
(W441-95)
(44.1 x 9.5cm)
Top Left Drawer Side (W350-95LH)
(35 x 9.5cm)
Top Right Drawer Side (W350-95RH)
(35 x 9.5cm)
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Components - Fittings
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020
3
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
A B
D E F
G H I
Small locking nut (F3) x 6
C
Nail (F51) x 14
J K
Knock-in Peg (F171GY) x 12
Large locking nut (F900) x 8
Metal dowel (F901) x 14
Wooden dowel (F22) x 8
M
Wedgefix (F639) x 6 Handle (F341) x 3
19mm Screw (F461) x 3
13mm Screw (F63) x 18
9mm Screw (F73) x 18
L
R Runner (F160) x 3
b
L Runner (F161) x 3
L
c
L Runner (F159) x 3
L
a
R Runner (F162) x 3
L
d
350mm long
Tools required
Rule Scissors Hammer
Eye protection (when using a hammer or drill)
Cross-head screwdriver
Assembly Instructions
4

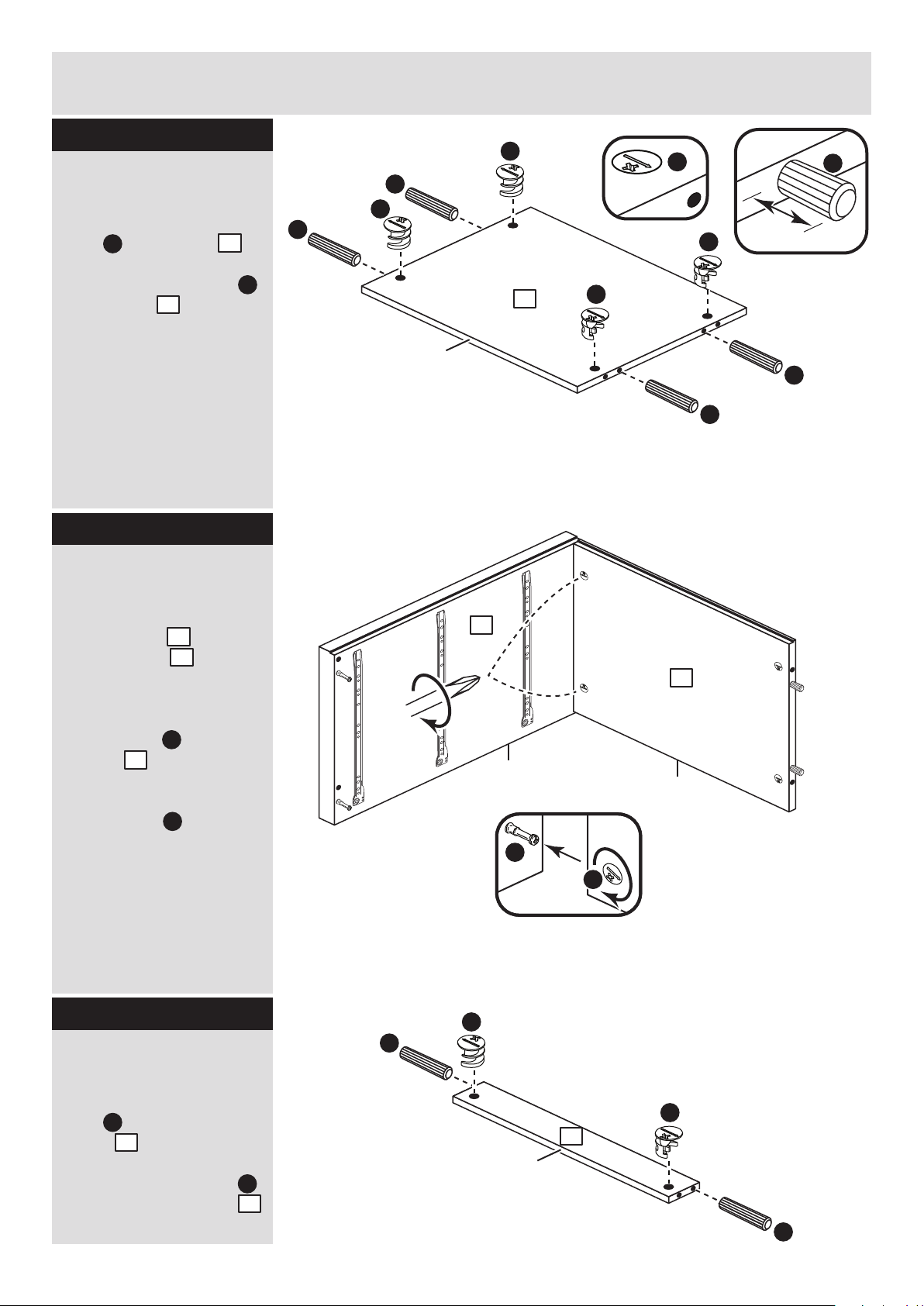

Step 1
5
A
B
A
C
C
C
C
7
8
Step 2
Prepare the top drawer front
Screw 2 metal dowels into the top drawer front . .
Note: Tighten the metal dowels up fully against the panels.
A
5
Prepare the top drawer sides
Insert a small locking nut into the hole shown on the top left drawer side and the top right drawer side .
Note: The arrow on the locking nut must point towards the hole in the edge of the panel.
Step 3
C
7
8
Attach the top drawer sides to the top drawer front
Push the top left drawer side and top right drawer side onto the back of the top drawer front .
Turn the small locking nuts on the top left drawer side and top right drawer side .
Note: Turn the locking nuts clockwise to secure panels - more than 1/2 a turn.
7
8
5
C
C
7
8
7
8
A
A
5
Assembly Instructions
5
Step 4
5
F
F
Fit the drawer base
Slide the drawer base down the grooves in the top drawer sides and . and down into the groove in the top drawer front .
Step 5
Fit the top drawer back
Fit the top drawer back . between the top drawer sides and . Make sure that the drawer base fits into the groove in the top drawer back .
Hold the top drawer back in position and tap the knock-in pegs through the holes in the top drawer sides and . .
Step 6
13
7
8
5
9
7 8
13
9
9
F
Attach the handle
Attach a handle to the top drawer front using screw .
K
G
5
7
8
F
F
13
7
9
7
8
13
8
G
K
5
6
Assembly Instructions
6
Step 7
A
B
A
C
C
C
C
10
11
Step 8
Prepare the 2 bottom drawer fronts
Screw 2 metal dowels into each of the bottom drawer fronts .
Note: Tighten the metal dowels up fully against the panels.
A
6
Prepare the bottom drawer sides
Insert a small locking nut into the hole shown on the bottom left drawer side and the bottom right drawer side . .
Note: The arrow on the locking nut must point towards the hole in the edge of the panel.
Step 9
C
10
11
Attach the bottom drawer sides to the bottom drawer fronts
Push the left drawer side . and right drawer side . onto the back of the bottom drawer front .
Turn the small locking nuts on the bottom left drawer side and bottom right drawer side . .
Note: Turn the locking nuts clockwise to secure panels - more than 1/2 a turn.
10 11
6
C
C
10
11
A
A
6
10
11
x 2
x 2
x 2
x 2
Assembly Instructions
7
Step 10
6
Fit the drawer base
Slide the drawer base down the grooves in the bottom drawer sides and and down into the groove in the bottom drawer front .
Step 11
Fit the bottom drawer back
Fit the bottom drawer back between the bottom drawer sides and . Make sure that the drawer base fits into the groove in the bottom drawer back .
Hold the bottom drawer back in position and tap the knock-in pegs through the holes in the bottom drawer sides and .
Step 12
13
10
11
6
12
11
10
13
12
12
F
Attach the handles
Attach a handle to each of the bottom drawer fronts using screws .
K
G
6
10
11
F
F
F
F
13
10
11
13
12
10
G
11
K
6
x 2
x 2
x 2
H
H
H
H
Assembly Instructions
8
Step 13
Fit runners to each of the 3 drawers
Fit runner , marked with ‘R’, to the bottom edge of the right drawer sides as shown, making sure that it is pushed up against the back of the drawer fronts. Use a bradawl to mark the fixing positions, then secure with 2 screws .
Fit runner , marked ‘L’, to the bottom edge of the left drawer side using the same method.
L d
H
L c
L d
R
R
L
L c
L
Runners must be
pushed up against
the drawer fronts
Fit the wedgefixes to each of the 3 drawers
Turn the 3 drawer assemblies over and slide 2 wedgefixes into the front and back grooves, as shown, and tighten up the screws.
J
J
J
J
Step 14
x 3
x 3
Finished
front edge
Finished
front edge
Assembly Instructions
9
Step 15
L a
I I
1st screw
2nd screw
I
3rd screw
Finished
front edge
L a
H
Finished
front edge
a:
b:
Prepare the left side
a: Fit 3 runners to
the left side .
The 1st screw uses the 1st hole in from the front of the runners.
The 2nd and 3rd screws . use the holes that line up with the other panel holes.
b: Fit a screw into
the 2nd hole in at the top of the runners .
Screw 4 metal dowels into the left side .
L a
1
I
I
H
L a
A
1
I
L a
I
I
I
L a
I
I
I
L a
I
I
H
H
H
A
A
A
A
1
1
Assembly Instructions
10
Step 16
L b
H
Prepare the right side
a: Fit 3 runners to
the right side .
The 1st screw uses the 1st hole in from the front of the runners.
The 2nd and 3rd screws . use the holes that line up with the other panel holes.
b: Fit a screw into
the 2nd hole in at the top of the runners .
Screw 4 metal dowels into the right side .
L b
2
I
I
H
L b
L b
II
1st screw
2nd screw
I
3rd screw
A
2
a:
b:
I
I
L b
I
I
I
L b
I
I
I
L b
I
Finished
front edge
2
Finished
front edge
H
H
H
A
A
A
A
2
Finished
front edge
D
Assembly Instructions
11
Step 17
10mm
D
Prepare the top
Insert 4 large locking nuts into the top .
Tap 4 wooden dowels into the top .
Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.
B
3
3
D
B
Step 18
Fit the top to the right side
Push the top onto the right side .
Use a screwdriver to tighten the 2 large locking nuts fitted to the top .
Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.
Step 19
2
3
B
B
3
Prepare the 2 rails
Insert 2 large locking nuts into each of the 2 rails .
Tap 2 wooden dowels into each of the 2 rails .
B
4
4
D
x 2
B
B
B
B
D
D
D
D
Finished
front edge
3
B
B
D
Finished
front edge
4
Finished
front edge
A
B
2
3
Assembly Instructions
12
Step 20
Fit the 2 rails
Push the 2 rails onto the right side .
Use a screwdriver to tighten the large locking nut fitted to each rail . .
2
4
B
4
Step 21
Fit the left side
Push the left side onto the assembly.
Use a screwdriver to tighten the 4 large locking nuts fitted to the top and the 2 rails .
1
B
3
4
Note: Support this rail until the left side has been fitted in the next step.
2
4
4
4
4
3
1
Assembly Instructions
13
Step 22
yy
yy
xx
xx
14
Fit the back
a: Square up the unit by
making sure that measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the outside edges of the back .
Note: Nails should be spaced about 150mm apart.
Stand the unit up for the next step.
14
E
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
14
b:
E
Assembly Instructions
14
Step 23
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020
Fit the drawers
Slide the wheels of the runners fitted to the drawers, over the wheels of the runners fitted to the side panels and push the drawers into position.
Note: Now the assembly has finished you can remove any protective film from the panels.
Assembly is complete
