Assembly Instructions - Please keep for future reference
Issue 2 - 20/11/13
MADE IN
BRITAIN
If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928
or email: Help@ClickSpares.co.uk (quoting your original order number)
Important - Please read these instructions fully before starting assembly
Dimensions
Width - 74cm
Depth - 40cm
Height - 107.5cm
Hallingford - 5+2 Drawer Chest
305/2103
305/2093
305/2062
305/2110
305/2079
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 38kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.
2
Components - Panels
Please check you have all the panels listed below
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email:
Help@ClickSpares.co.uk (quoting your original order number
and the reference numbers below)
1
Top (D2311A)
(740 x 396mm)
Divider (D2314A)
(165 x 282mm)
Small Drawer Front (D2309A)
(362 x 162mm) x 2
5
2
10
4
3
6
8
9
Rail (D2315A)
(705 x 66mm) x 3
Drawer Front (D2316A)
(727 x 162mm) x 5
Large Drawer Base (T668-327)
(668 x 327mm) x 5
Small Drawer Base (T304-327)
(304 x 327mm) x 2
Left Drawer Side (W500LH)
(330 x 95mm) x 7
Right Drawer Side (W500RH)
(330 x 95mm) x 7
Large Drawer Back (W657-95)
(657 x 95mm) x 5
Small Drawer Back (W293-95)
(293 x 95mm) x 2
11
14
13
7
12
Left Side (D2320A)
(1051 x 372mm)
Right Side (D2321A)
(1051 x 372mm)
Back (X1030-731)
(1030 x 731mm)
3
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Tools required
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email:
Help@ClickSpares.co.uk (quoting your original order number
and the reference numbers below)
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Electric drill
(do not use for
fitting screws)
B C
D E F
G H
Small locking
nut (F3) x 14
Nail (F51) x 24
13mm Screw (F52) x 42 13mm Screw (F63) x 42
I
A
Wooden dowel (F22) x 9
19mm Screw (F461) x 14
Metal dowel (F901) x 24
Large locking
nut (F900) x 10
Knock-in Peg (F171) x 28
M
R Runner (F160) x 7
b
L Runner (F161) x 7
M
c
L Runner (F159) x 7
M
a
R Runner (F162) x 7
M
d
350mm long
J
Handle (F278) x 7
K
13mm Screw (F79) x 1
L
Bracket (F327) x 1
4
Step 1
Assembly Instructions
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email:
Help@ClickSpares.co.uk (quoting your original order number
and the reference numbers below)
8
x 2
B
8
6
B
B
C
Step 2
B
B
Prepare the 2 small
drawer fronts
Screw 2 metal dowels
into the holes shown on
the back of each of the
small drawer fronts .
Note: Tighten the metal
dowels up fully against
the panels.
B
8
Prepare the 2 sets of
the drawer sides
Insert a small locking
nut into the hole
shown on the left drawer
side and right drawer
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 3
C
6
7
Attach the drawer
sides to the small
drawer front
Push the left drawer side
. and right drawer side
. onto the back of the
small drawer front .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
7
6
7
8
C
6
7
Groove
6
C
C
C
6
7
C
Note: Due to the manufacturing process, the holes for the
locking nut can be on either surface of the drawer sides.
Note: The locking nuts can be on either surface of the drawer sides.
Make sure that the groove is on the inside, as shown.
8
x 2 x 2
x 2
Assembly Instructions
5
Step 4
8
8
6
7
10
Fit the small drawer
base
Slide the small drawer
base down the
grooves in the drawer
sides and and
down into the groove in
the small drawer front .
Step 5
Fit the small drawer
back
Fit the small drawer back
. between the drawer
sides and .
Make sure that the small
drawer base fits into
the groove in the small
drawer back .
Hold the small drawer
back in position and
tap the knock-in pegs
through the holes in the
drawer sides and .
Step 6
10
6 7
8
E
E
E
E
6
9
7
10
9
6 7
10
9
9
E
6 7
Attach the handles
Attach a handle to
each of the small drawer
fronts using 2 screws
. .
J
J
G
8
8
G
G
x 2
x 2
x 2
Assembly Instructions
6
Step 7
Fit runners to the
small drawers
Turn the 2 small drawer
assemblies over.
Fit runner , marked
with ‘R’, to the bottom
edge of the right drawer
side , as shown,
making sure that it is
pushed up against the
back of the small drawer
front .
Use a bradawl to mark
the fixing positions, then
secure with 2 screws .
Fit runner , marked
‘L’, to the bottom edge
of the left drawer side
using the same method.
6
M d
7
8
I
M c
I
I
Runners must be
pushed up against
the drawer front
M d
R
R
I
I
L
M c
L
8
6
7
x 2
x 5
B
B
B
Prepare the 5 large
drawer fronts
Screw 2 metal dowels
into the holes shown on
the back of each large
drawer front .
Note: Tighten the metal
dowels up fully against
the panels.
B
11
11
Step 8
Assembly Instructions
7
Step 9
11
11
6
B
B
C
Prepare 5 sets of
drawer sides
Insert a small locking
nut into the hole
shown on the left drawer
side and right drawer
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 10
C
6
7
Attach the drawer
sides to the large
drawer front
Push the left drawer side
. and right drawer side
. onto the back of the
large drawer front .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
7
6
7
11
C
6
7
Groove
6
C
C
C
6
7
C
Note: Due to the manufacturing process, the holes for the
locking nut can be on either surface of the drawer sides.
Note: The locking nuts can be on either surface of the drawer sides.
Make sure that the groove is on the inside, as shown.
x 5 x 5
x 5
11
6
7
13
Fit the large drawer
base
Slide the large drawer
base down the
grooves in the drawer
sides and and
down into the groove in
the large drawer front .
13
6 7
11
x 5
Step 11
Assembly Instructions
8
Step 12
11
Fit the large drawer
back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
Step 13
E
E
E
E
6
12
7
13
12
6 7
13
12
12
E
6 7
Attach the handles
Attach a handle to
each of the large drawer
fronts using 2 screws
. .
Step 14
J
J
G
11
11
G
G
x 5
x 5

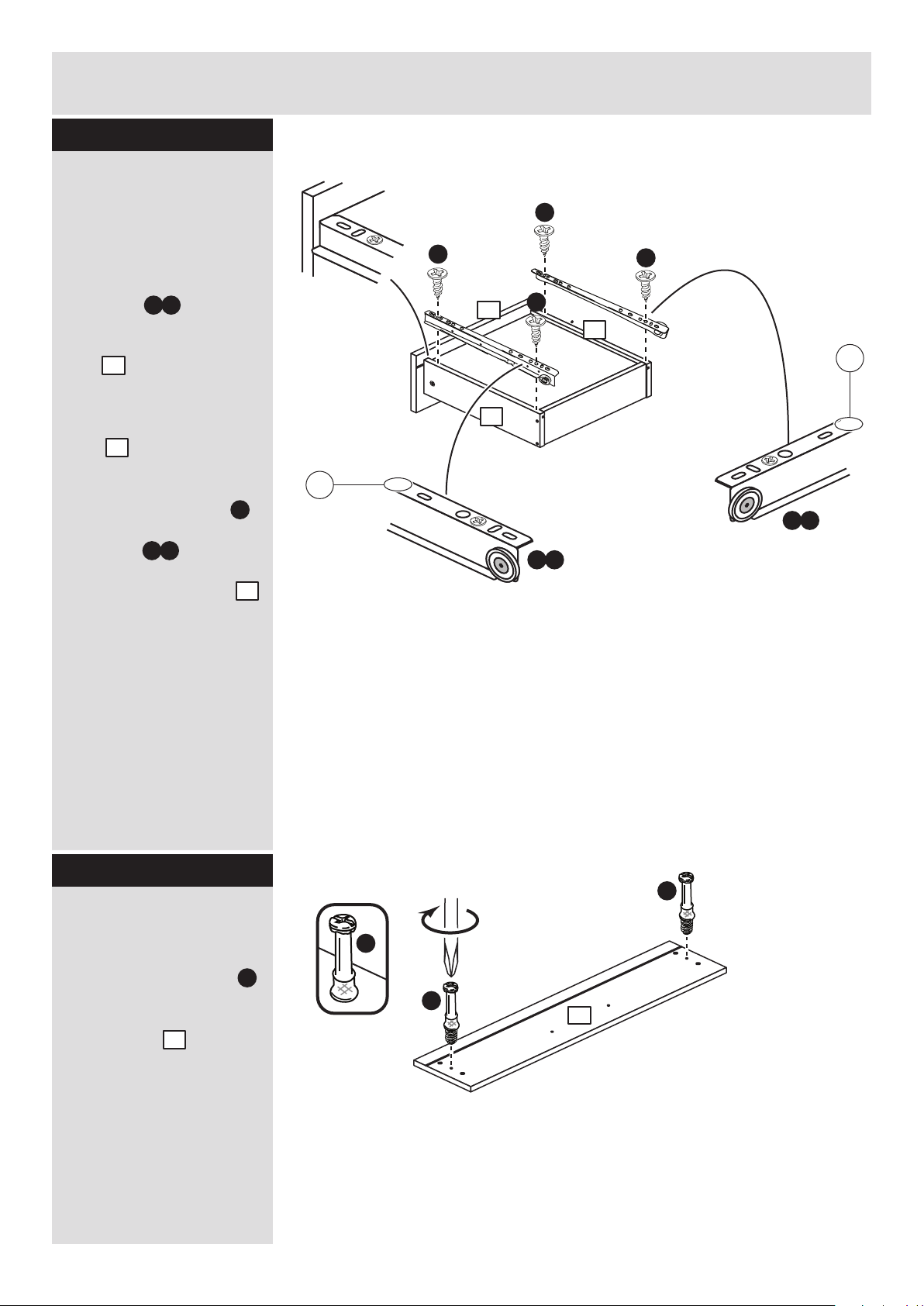

Fit runners to the
large drawers
Turn the 5 large drawer
assemblies over.
Fit runner , marked
with ‘R’, to the bottom
edge of the right drawer
side , as shown,
making sure that it is
pushed up against the
back of the large drawer
front .
Use a bradawl to mark
the fixing positions, then
secure with 2 screws .
Fit runner , marked
‘L’, to the bottom edge
of the left drawer side
using the same method.
6
M d
7
11
I
M c
I
I
Runners must be
pushed up against
the drawer front
M d
R
R
I
I
L
M c
L
11
6
7
x 5
Finished
front edge
A
Finished
front edge
Assembly Instructions
9

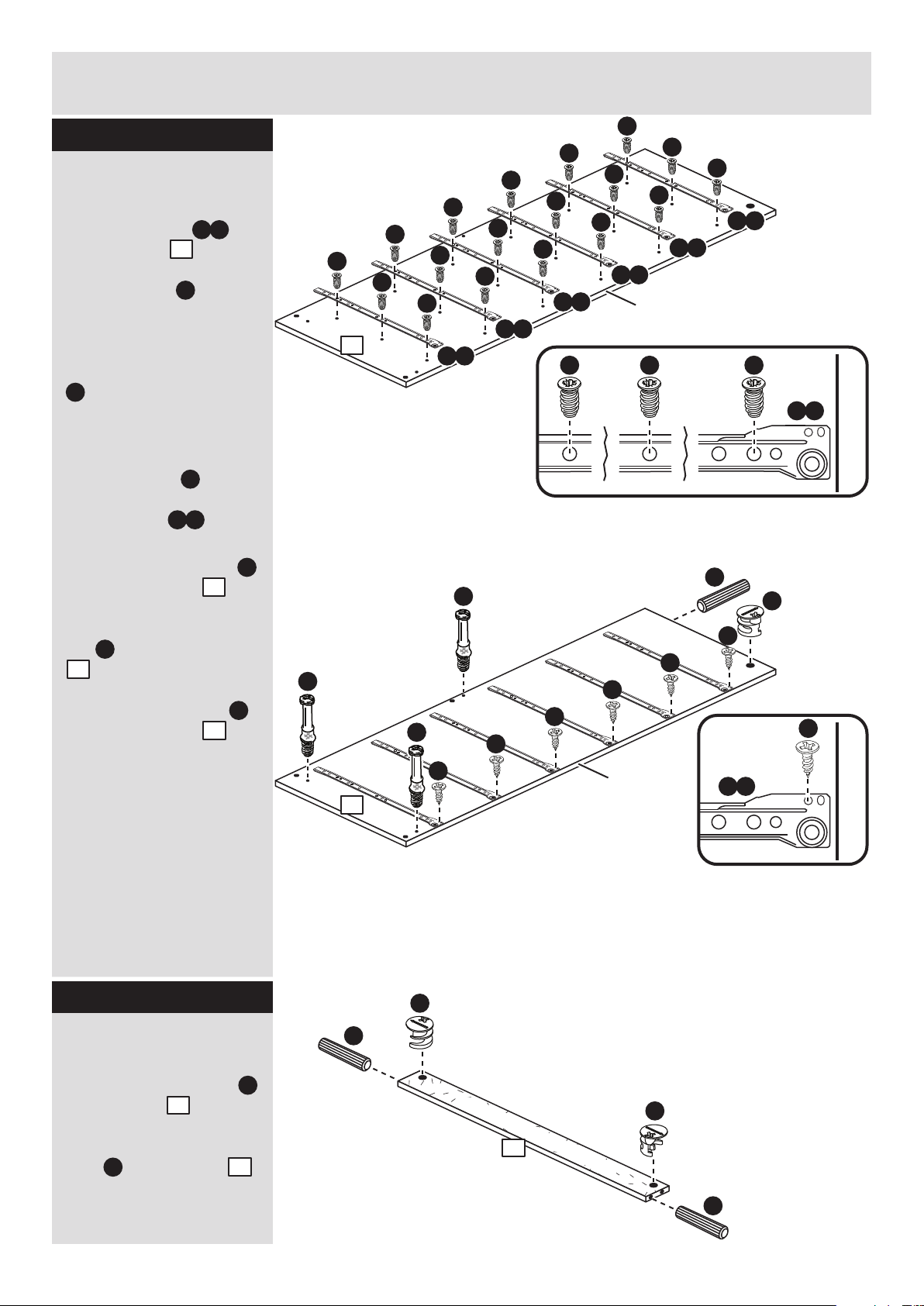

Step 15
a:
Prepare the left side
a: Fit 6 runners to
the left side .
The 1st screw uses
the 2nd hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
b: Fit a screw into
the 2nd hole in at the top
of the runners .
Screw 3 metal dowels
into the left side .
Insert a large locking
nut into the left side
. .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Tap a wooden dowel
into the left side .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
b:
B
D
1
1
M a
1
H
H
M a
H
Finished front edge
H
1st
screw
2nd
screw
H
3rd
screw
M a
Finished front edge
I
I
M a
A
1
10mm
A
D
H
M a
H
H
H
M a
H
H
H
M a
H
H
H
M a
H
H
H
M a
H
H
H
M a
H
H
1
1
I
I
I
I
I
I
D
B
B
B
A
Assembly Instructions
10
Step 16
Prepare the right side
a: Fit 6 runners to
the right side .
The 1st screw uses
the 2nd hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
b: Fit a screw into
the 2nd hole in at the top
of the runner .
Screw 3 metal dowels
into the right side .
Insert a large locking
nut into the right side
. .
Tap a wooden dowel
into the right side .
B
D
2
2
M b
2
H
H
I
M b
M b
H
Finished front edge
H
1st
screw
2nd
screw
H
3rd
screw
M b
Finished front edge
I
a:
b:
A
2
D
D
A
Prepare the 3 rails
Tap 2 wooden dowels
into each rail .
Insert 2 large locking
nuts into each rail .
A
A
Step 17
plain chipboard surface
x 3
4
4
D
4
H
H
M b
H
H
H
M b
H
H
H
M b
H
H
H
M b
H
H
H
M b
H
H
H
M b
H
2
2
I
I
I
I
I
I
D
B
B
B
Finished
front edge
Finished
front edge
Assembly Instructions
11
Step 18
Join the right side and
rails
Push the 3 rails onto
the right side .
Use a screwdriver to
tighten the 3 large
locking nuts fitted to
the rails .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
B
D
D
4
2
4
D
Fit the left side
Push the left side
onto the 3 rails .
Use a screwdriver to
tighten the 3 large
locking nuts fitted
to the rails .
D
1
4
4
Step 19
plain chipboard surface
plain chipboard surface
4
4
plain chipboard surface
4
2
Note: Support these
rails until the left side
has been fitted in the
next step.
4
4
4
1
Assembly Instructions
12
Step 20
A
Finished
front edge
Prepare both surfaces
of the divider
Note: The colour of the
divider may differ from
the main unit colour.
a: Fit a runner to
the divider .
The 1st screw uses
the 2nd hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
b: Fit a screw into
the 2nd hole in at the top
of the runner .
Insert 2 large locking
nuts into the divider
. .
Turn the divider over
c: Fit a runner to
the divider .
The 1st screw uses
the 2nd hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
d: Fit a screw into
the 2nd hole in at the top
of the runner .
Tap a wooden dowel
into the divider .
b:
Note: Due to the manufacturing process, the 2 holes for
the large locking nut can be on either surface of the divider.
M b
H
Finished front edge
H
1st
screw
2nd
screw
H
3rd
screw
M b
Finished front edge
I
a:
d:c:
Turn the divider over
M b
5
H
H
M a
5
H
H
I
M a
I
M b
D
5
H
H
M b
H
Finished
front edge
Finished
front edge
D
D
I
Finished
front edge
H
M a
H
H
I
M a
H
Finished front edge
H
1st
screw
2nd
screw
H
3rd
screw
A
5
M a
Finished front edge
I
5 5
5 5
3
Assembly Instructions
13
Step 21
B
B
Prepare the top
Screw 4 metal dowels
into the top .
Fix the bracket ,
200mm in from the side
of the top and flush
to the back edge, using
screw .
B
3
Shaped
front edge
plain chipboard surface
3
B
B
200mm
K
L
L
K
L
3
Join the divider and
top
Push the divider onto
the top .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the divider .
Shaped
front edge
3
5
Finished
front edge
D
5
3
5
Step 23
Fit the top
Push the top onto
the 2 sides and .
Use a screwdriver
to tighten the 2
large locking nuts
fitted to the sides
and .
D
3
1 2
1
2
Step 22
1
2
Secure unit to a wall
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall by use of the metal
bracket fitted under
the top of the unit.
Fixings are not supplied
as they will need to suit
the wall type, and the
length of screw will
depend on the distance
of the back of the unit to
the wall.
Warning: Take
care when
drilling the wall that you
do not drill into any
pipes, wires etc. If in
doubt, consult an expert.
y
Assembly Instructions
14
Step 24
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around
the outside
edges of the
back .
Note: Nails
should be
spaced about
150mm apart.
Stand the unit up for
the next step.
14
F
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
14
Warning: The
unit is heavy.
Lift with care.
y
y
x
x
14
b:
F
L
3
WALL
WALL
Top of unit
L
Step 25
3
Assembly Instructions
If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928
or email: Help@ClickSpares.co.uk (quoting your original order number and the reference numbers on the component pages)
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
15
ALR2887
Step 26
Fit the drawers
Slide the wheels of the
runners fitted to the
drawers, over the wheels
of the runners fitted to
the unit and push the
drawers into position.
Assembly is complete
Side
panel
Drawer
Loading...
