New Hallingford
3 Door 3 Drawer Wardrobe
DR899154
Assembly Instructions - Please keep for future reference
2278380
2745253
2749716
2482279
2448282
Dimensions
Width - 148,8cm
Depth - 60,3cm
Height - 205,7cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, please visit: www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928
For any other queries please contact the Customer Helpline on: 0345 640 2020
Tip : To prevent damage,
we recommend that you
build your unit on the
carton(s) it was packed in.
Issue 3 - 12-02-2016
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close
to its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
•To reduce the
likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
Warning: Only use a manual
screwdriver to attach the hinges.
• Dispose of all packaging
carefully and responsibly.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Instruction video
• This manual is provided with an additional instruction
video. If the icon on the right is displayed at a particular
step in the manual, Follow the link: http://nlink.nu/vid01
Or scan the QR code on the left with your phone.
See page 1 for link
to instruction video!
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
Components - Panels
For damaged or missing parts, please visit:
www.argos-support.co.uk or email: Help@ClickSpares.co.uk
Please check you have all the panels listed below
Left side
1
(205.6 x 58cm)
P2349b
Top/Bottom x 2
5
(145.8 x 57.7cm)
P1350
Drawer base x 3
9
(45.4 x 34.9cm)
BO33955B
Right side
2
(205.6 x 58cm)
P2349b
6
Drawer wrap x 3
10
(35 x 46.7 x 10cm)
LA1869
Upright small
(47.5 x 57.7cm)
P2893
Upright
3
(196.9 x 57.7cm)
P2354b
Large horizontal
7
(96.7 x 57.6cm)
P1342
Drawer front x 3
11
(48.8 x 15.7cm)
P4315
Door x 2
4
(199.2 x 48.8cm)
P3724
Small horizontal
8
(47.6 x 57.6cm)
P1343
Shelf
12
(47.6 x 57.6cm)
P1348
Back
13
(199.3 x 48.8cm)
BO33902
Foldy back
14
(199.3 x 98cm)
BO33933
Mirror door small
15
(151.2 x 48.8cm)
PS3719
Plinth front
16
(145.7 x 14cm)
P7336C
Plinth back
17
(145.7 x 5.4cm)
P7337C
Pelmet
18
(149 x 4.5cm)
FA248
2
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
110 115 120 125 130 135 140 145 150 155 160 165 170
105
Components - Fittings
For damaged or missing parts, please visit:
www.argos-support.co.uk or email: Help@ClickSpares.co.uk
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
Fittings Drawers
B
20mm Screw x 12
J
Small locking
nut x 6
Fittings Carcase
A
FK1980
FK1010
FK1324
C
9mm Srew x 6
W
Drawerbase support x 6
D
FK1981
H
24mm locking screw x 6
FK1250
X
Glue x 1
FK1400
E
FK1011
FA1510
FK1301
40mm Screw x 9
F
12.5 mm Screw x 4
M
Hanger rail support x 4
P
Hinge back x 9
S
Peg x 2
PM1884
V
Hanger rail small x 1
Hanger rail large x 1
Tools required
15mm Screw x 32
FK1309
FA1515 FK1419
K
Nail x 60
FK1217
N
Board carrier x 4
FK1207
O
15mm Screw x 16
FK1311
FK1268FK1269
Q
Hinge door x 9
FK1234
GR1975
T
Door/Drawer handle x 6
PM1873
U
H
FK1011
24mm locking screw x 26
10mm Fixing screw drawer x 12
L
Nail holder x 1
G
L-Bracket x 1
PM16951
R
Runner x 6
I
Large locking
nut x 26
ZF99936
X
Wall plug and parkerscrew x 1
FK1235
FK1012
Phillips screwdriver
(medium & large)
Drill
Flatblade screwdriver
(medium)
Piercer
(small)
Spirit level
5mm Suitable drill bit
2.5mm Suitable drill bit
Ruler - Use this ruler to help correctly identify the screws
3
Stairs
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1 2 3 4 5 6
Tape measure
Setsquare
Small
hammer
Ruler
Scissors
Eye protection
(when using a
hammer or drill)
Assembly Instructions

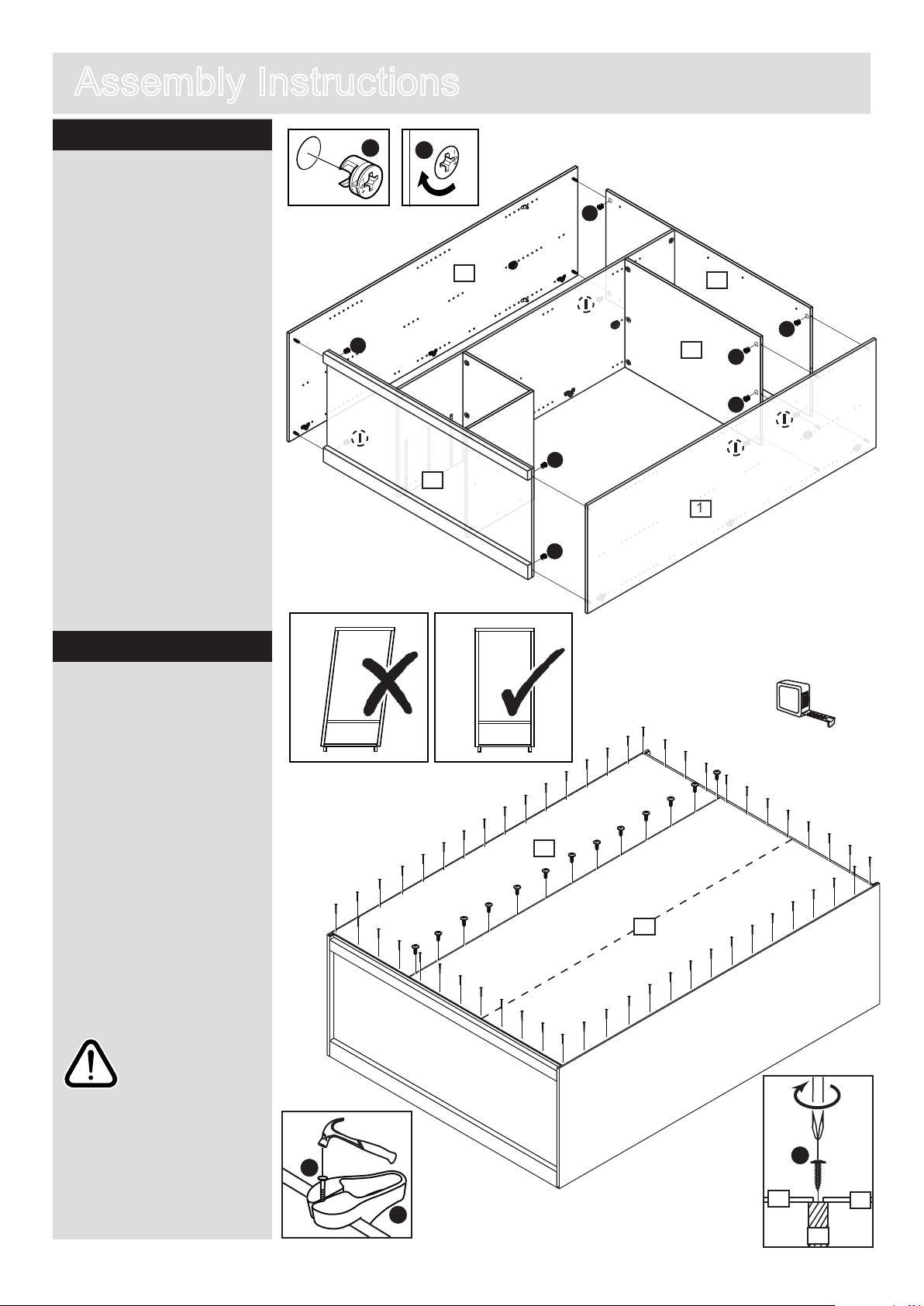

Step 1
Drawer assembly x 3
a: Insert two small locking
nuts J into drawer wrap
0.
Make sure the ‘arrow’ on
J is pointing towards the
hole in the edge of 0
b: Screw 24mm locking
screws H into holes
shown on back of drawer
front !.
J
a:
10
J
b
H
11
H
Make sure 24mm locking
screws H are tightened
right up against drawer
front !.
c: Slide drawer base 9
into grooves shown on
drawer wrap 0.
H
H
11
c:
9
10
4
Assembly Instructions
Step 1 - continued
d: Turn the drawer wrap
assembly over and push
onto drawer front !. Use
a philips or flatblade
screwdriver, that is a good
fit, to turn small locking nut
J as far as it will go - more
than 1/2 turn.
J
H
e: Fix drawer handle T
onto drawer front ! using
30mm screw B.
Turn over drawer and
slide Drawerbase supports
W in corner as shown and
fix them, using the attached
screws .
e:
B
d
J
11
J
B
W
11
W

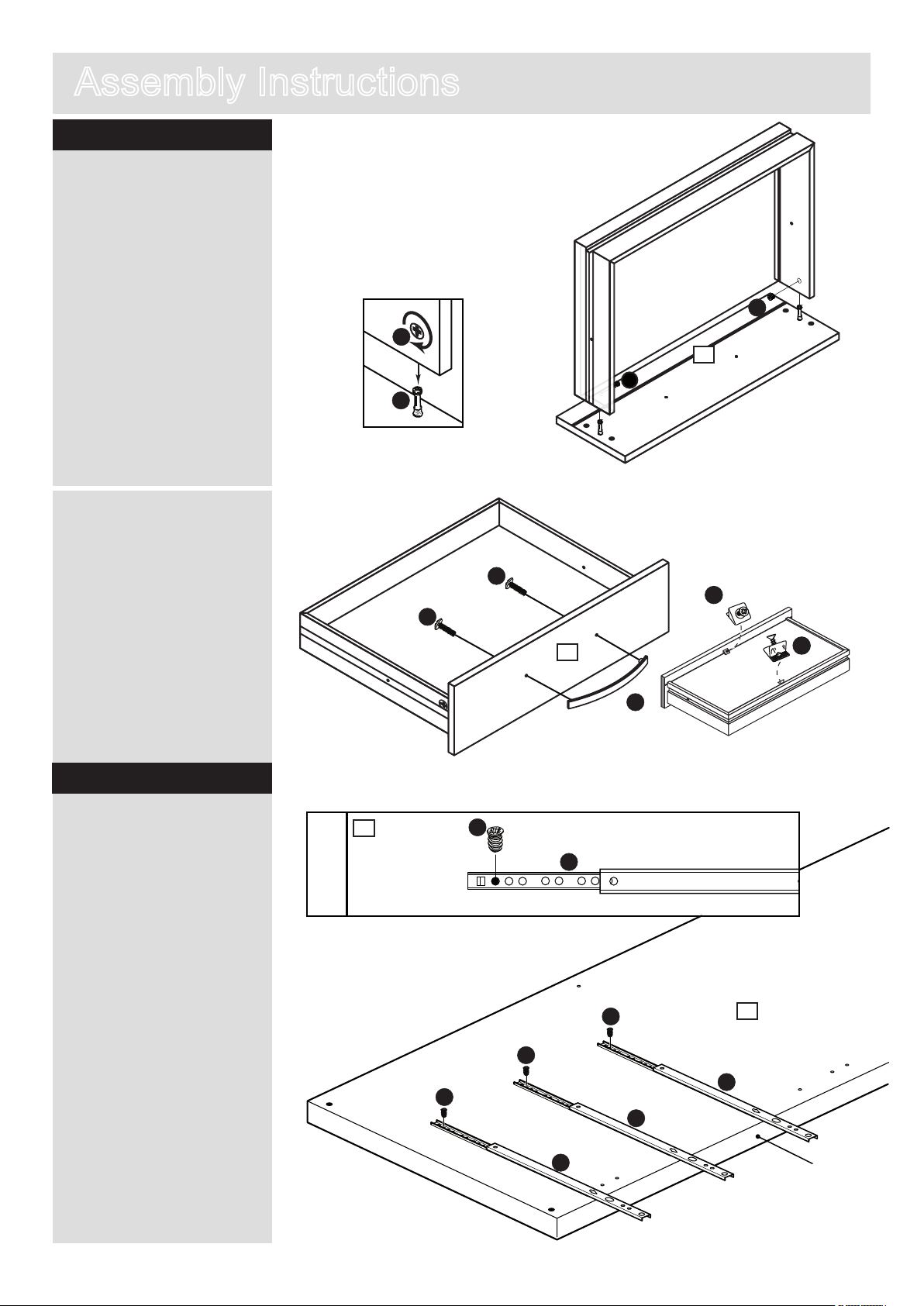

Step 2
Attaching runners
a: Slide top of runners R
foreward and fix on upright
3 as shown using 10mm
fixing screw drawer E.
a:
T
3
E
R
E
E
E
R
3
R
R
5
Finished
front edge

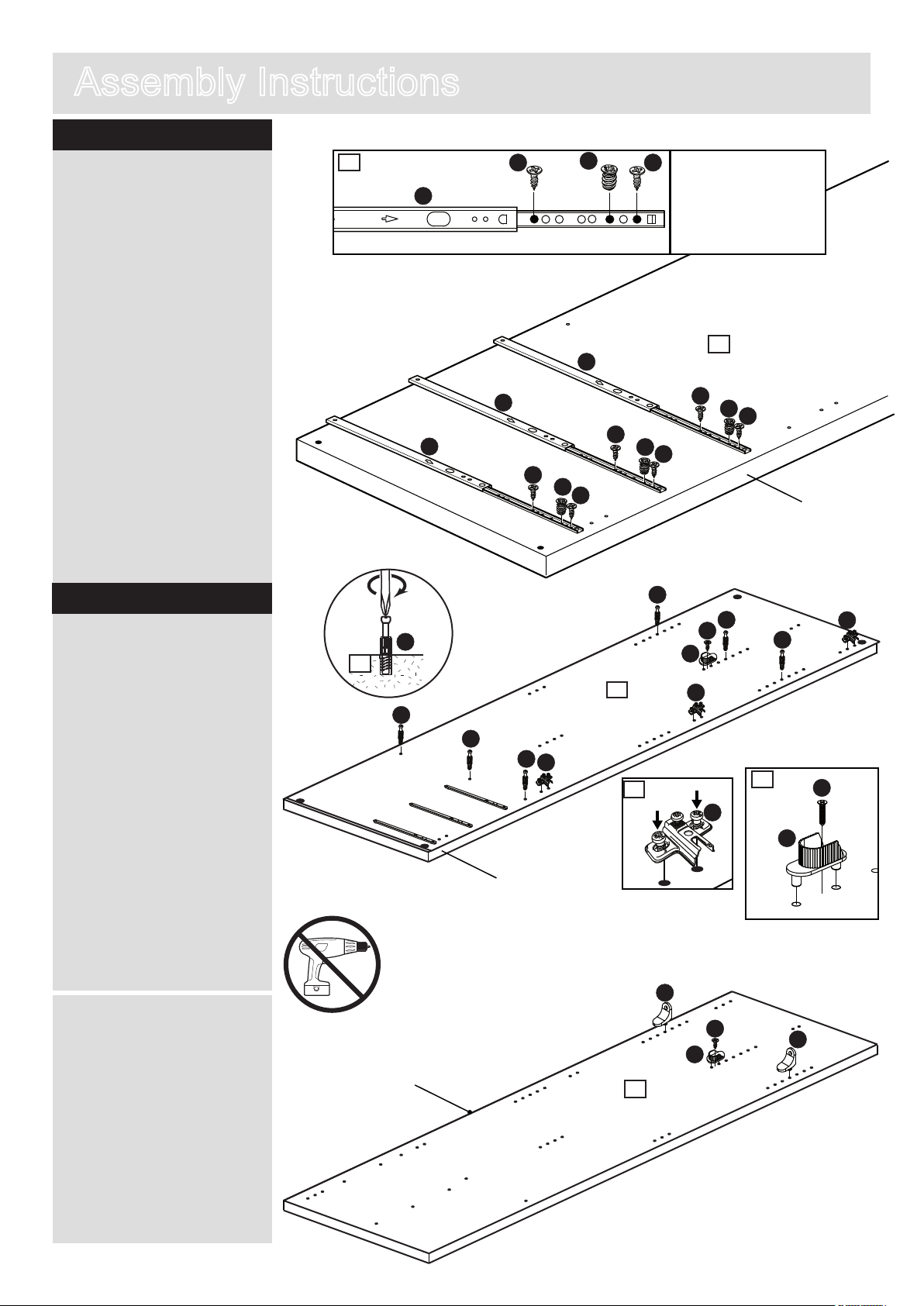

Assembly Instructions
Step 2 - continuedStep 2 - continued
b: Slide top of runners R
back.
Fix through 3rd hole of
runner R and pre-drilled
holes of upright 3 using
10mm fixing screw drawer
E.
Fix through 1st and 9th
hole of runners R using
15mm screw O.
Note: there are no predrilled holes for 15mm
screw O.
Repeat a and b on
upright small 6.
Step 3
Insert fittings
a: Screw 24mm locking
screw H into upright 3.
Note: Insert 24mm locking
screw H as far as shown.
Do not over tighten.
Attach hinge back P onto
upright 3.
Attach hanger rail
support M using 12.5mm
screw F onto uprigh 3.
Flip panel
b
a:
3
R
R
R
O
H
3
H
H
H
Finished
front edge
E
R
E
O
P
OO
3
O
E
O
O
E
O
H
H
F
M
3
3
P
P
Warning: Do not use an electric screwdriver to attach the
hinges as this can weaken the fixing.
N
Finished
front edge
P
H
3
F
M
b: Put board carrier N
into upright 3.
Attach hanger rail
support M using 12.5mm
screw F onto upright 3.
b
Finished
front edge
F
M
3
N
6
Assembly Instructions
I

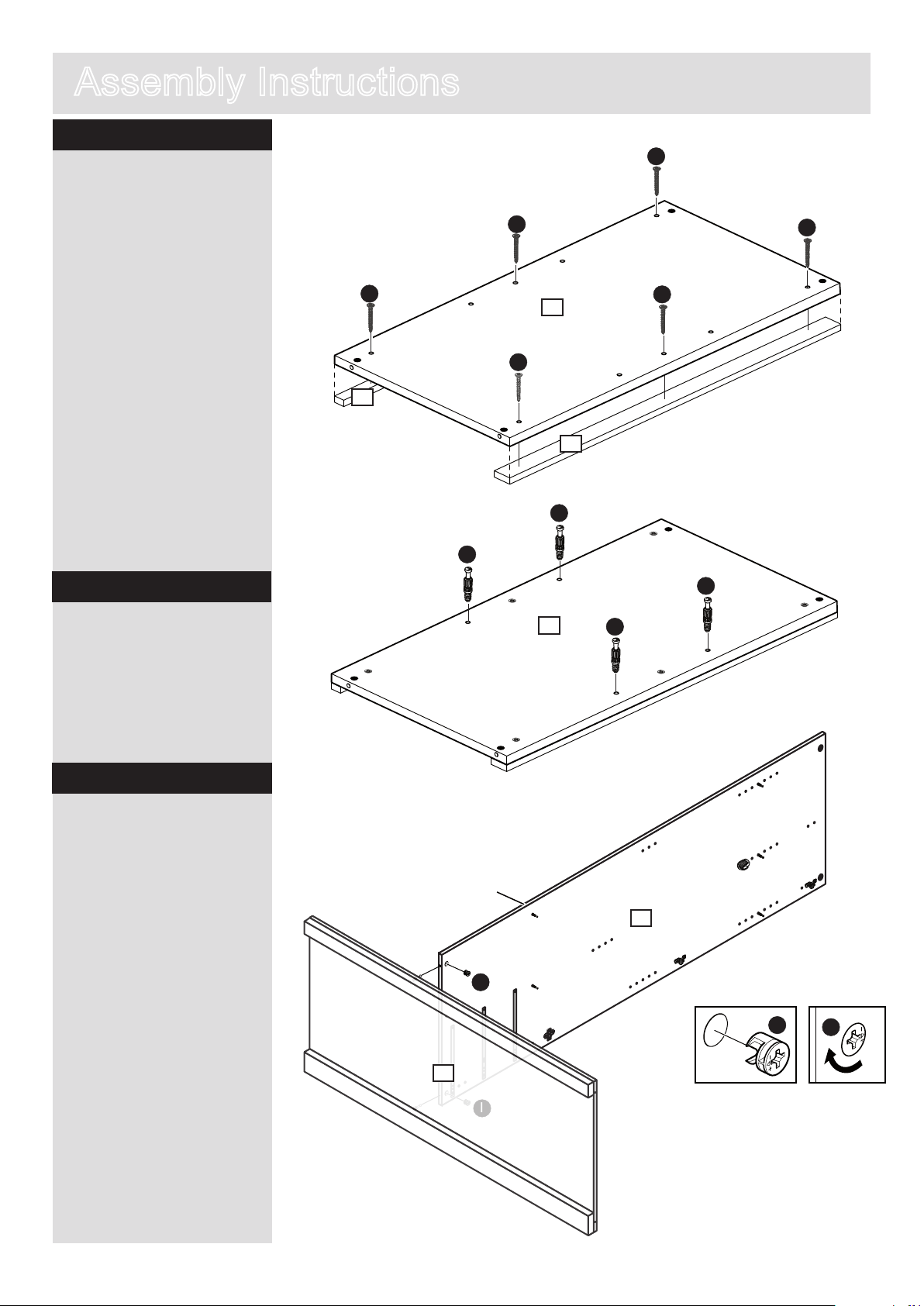

Step 4
Attaching plinths
A
Align the sides of plinth
front ^ with bottom 5 as
shown and attach using
40mm screw A.
Note: there are no
predrilled holes for
40mm screw aA.
Note: top and bottom
panels 5 are identical.
Only prepare one of the
panels at this stage. This
will be the bottom panel
Repeat with plinth back
&.
Step 5
Insert locking screws
17
A
A
H
5
Top side
A
5
Top side
16
H
H
A
H
A
Screw 24mm locking
screw H into bottom 5.
Step 6
Attaching panels
Position upright 3 onto
bottom panel 5.
Insert two Large locking nuts
I into upright as shown.
Use a screwdriver to turn
locking nuts I clockwise to
lock.
Unfinished
back edge
I
5
3
M
I
M
I
7
Assembly Instructions
Step 7Step
Insert locking screws
Screw 24mm locking
screw H into top 5.
Step 8
Attaching panels
Two people are needed
here.
I
H
5
H
Unfinished
back edge
I
Position top 5, large
horizontal 7 and small
horizontal 8 onto upright
3.
Insert two Large locking
nuts I into upright 3, 3 in
large horizontal 7 and 2 in
small 8 horizontal where
shown.
Use a screwdriver to turn
locking nuts I clockwise to
lock.
Step 9
Insert locking screws
I
I
3
I
I
I
I
I
I
8
H
H
I
I
I
7
5
Screw 24mm locking
screw H into upright
smal 6.
H
6
Unfinished
back edge
8
Assembly Instructions
Step 10
M
I
Attaching panels
Two people are needed
here.
Position upright small 6
onto bottom 5 and small
horizontal 8.
M
I
Insert two Large locking
nuts I into upright small
6 and small horizontal 8
where shown.
Use a screwdriver to turn
locking nuts I clockwise to
lock.
Step 11
Insert fittings
Put board carrier N into
right side 2.
8
I
5
I
I
6
I
I
I
Warning: Do not use an electric screwdriver to attach the
hinges as this can weaken the fixing.
H
N
H
F
M
H
1
2
2
P
N
P
Screw 24mm locking
screws H into left side 1
and right side 2.
Note: Insert 24mm locking
screw H as far as shown.
Do not over tighten.
Attach hinge back P onto
left side 1 and right side
2.
Attach hanger rail
support M using 12.5mm
screw F onto left side 1
and right side 2.
9
H
H
P
H
P
H
Finished
front edge
P
1
H
M
1
2
P
H
P
H
F
H
3
M
H
F
1
Assembly Instructions
SStep 12
Attaching panels
Two people are needed here.
Position right side 2 and left
side 1 onto top and bottom
5.
Insert six Large locking nuts I
in top and bottom 5,
insert 2 large locking nuts
I into large horiziontal 7.
Use a screwdriver to turn
locking nuts I clockwise to
lock.
M
I
I
I
M
I
I
2
I
I
5
I
I
5
I
7
I
I
I
I
I
SStep 13
Fitting back panels
Attach back # and foldy
back $ to back of
wardrobe with the coloured
surface facing the inside of
the unit using nails K and
15mm screws D.
Use nail holder L to hold
the nails K vertical and at
correct distance as you
secure the back # and
foldy back $ .
Nails K should be spaced
about 150mm apart.
Important:
Cabinet MUST
be ‘square’
when back is
attached.
A
A:A = B:B
13
B
B
14
A
Stand unit up - 2 people
required.
13
D
14
3
10
K
L
Assembly Instructions
Step 14
Attaching pelment and
L-bracket
Position pelment * onto
top 5 as shown, fix by
using three 40mm screws
A.
A
A
5
A
18
Step 15
Insert shelf
Position shelf @ onto
board carriers N and fix
by screwing four 15mm
screws O through board
carrier N into shelf @.
12
b:
11
12
N
O
Assembly Instructions
Step 16
a:
Inserting drawers
b:
a: Pull runners out.Slide
drawers onto runners
so they butt up against
back of drawer front.
b: Fix through drawer
sides into runners using
9mm screws .
C
Step 17
Inserting hanger rails
Place hanger rails U and
V onto hanger rail
supports M.
C
2
1st small
threaded hole
U
V
S
M
Step 18
Fitting hinges to doors
Fix three hinge door Q
to each door 4 and
mirror door small %
using 15mm screws D.
Attach door handles T
using 30mm screws B.
Warning: Do not use an electric screwdriver to attach the
hinges as this can weaken the fixing.
See page 1 for link
to instruction video!
D
D
D
4
Q
D
15
B
B
4
Q
Q
D
Q
T
12
Assembly Instructions
Step 19
Hanging doors
a: With help, slot hinge
door Q onto hinge back
P.
b: Tighten screw
shown to lock hinges in
position.
Repeat a and b for
other doors.
See ‘Hinge adjustment’
in step 20 if the doors
need adjusting.
c:
See page 1 for link
X
D
X
G
P
Q
P
Q
to instruction video!
a:
P
b:
P
Q
Q
Q
c: Position L-Bracket G
onto top 5 as shown, fix
by using15mm screw D.
Note: there are no
pre-drilled holes for 15mm
screw D.
Use X to fix on the wall,
please see last page for
more information.
d: Before adjusting the
doors, use a spirit level to
check if the base of this
unit is level front-to-back
and side-to-side in the
three positions shown.
Use pegs S to square
your unit. Knock peg S
in, as far as you require,
under the ends of the unit
and then snap off flush
with the panel.
P
Q
d:
SNAP!
S
13
Assembly Instructions

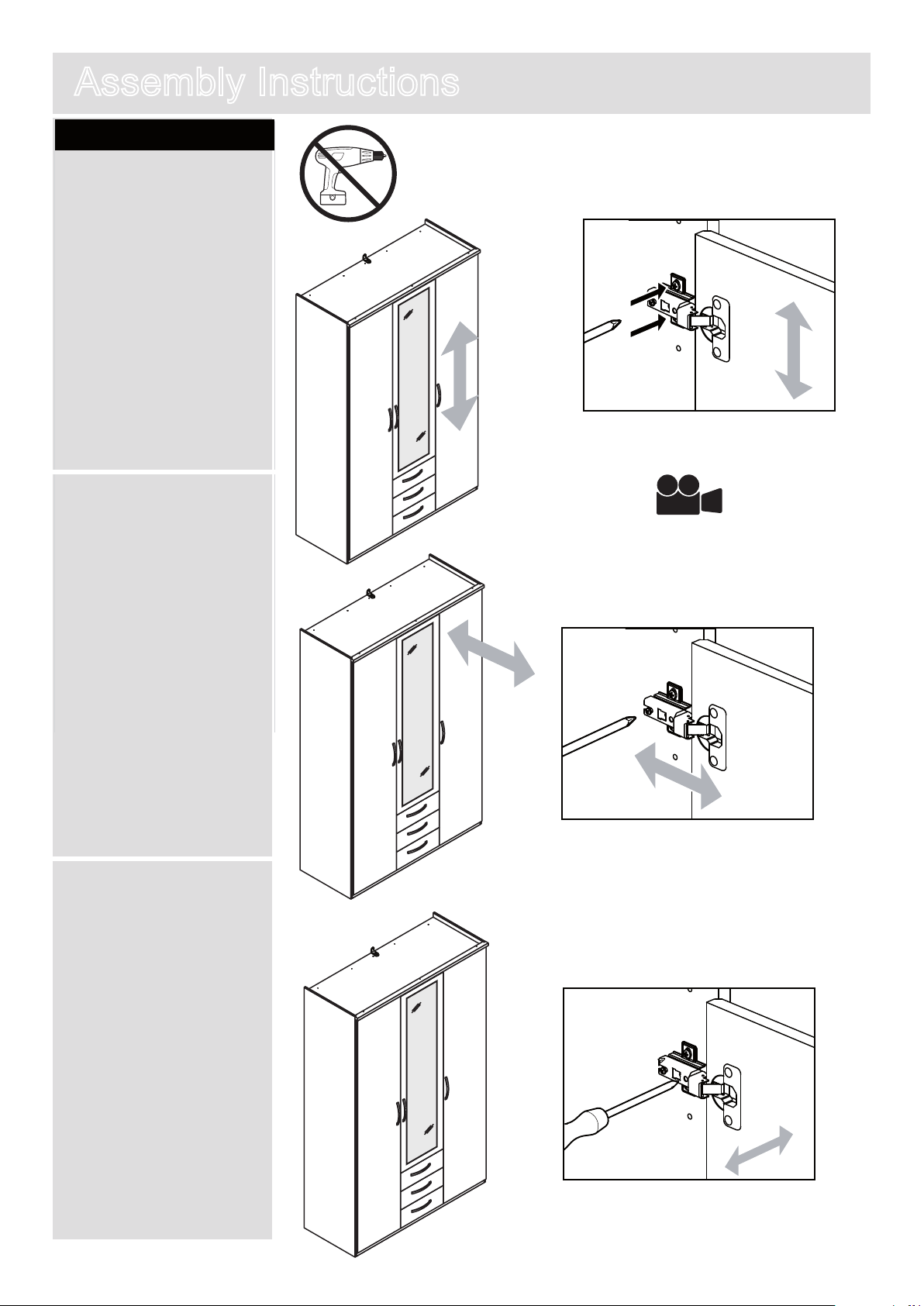

Step 20
Hinge adjustment
a: To move doors up
or down: loosen screws
shown and move doors
to suit.
Once doors are aligned,
re-tighten.
b: To move doors in
or out: loosen screw
shown and move doors
to suit.
Re-tighten screws.
Warning: Do not use an electric screwdriver to attach the
hinges as this can weaken the fixing.
a:
See page 1 for link
to instruction video!
b:
c: To move doors left
or right: loosen screw
shown and move doors
to suit.
Re-tighten screws.
c:
14

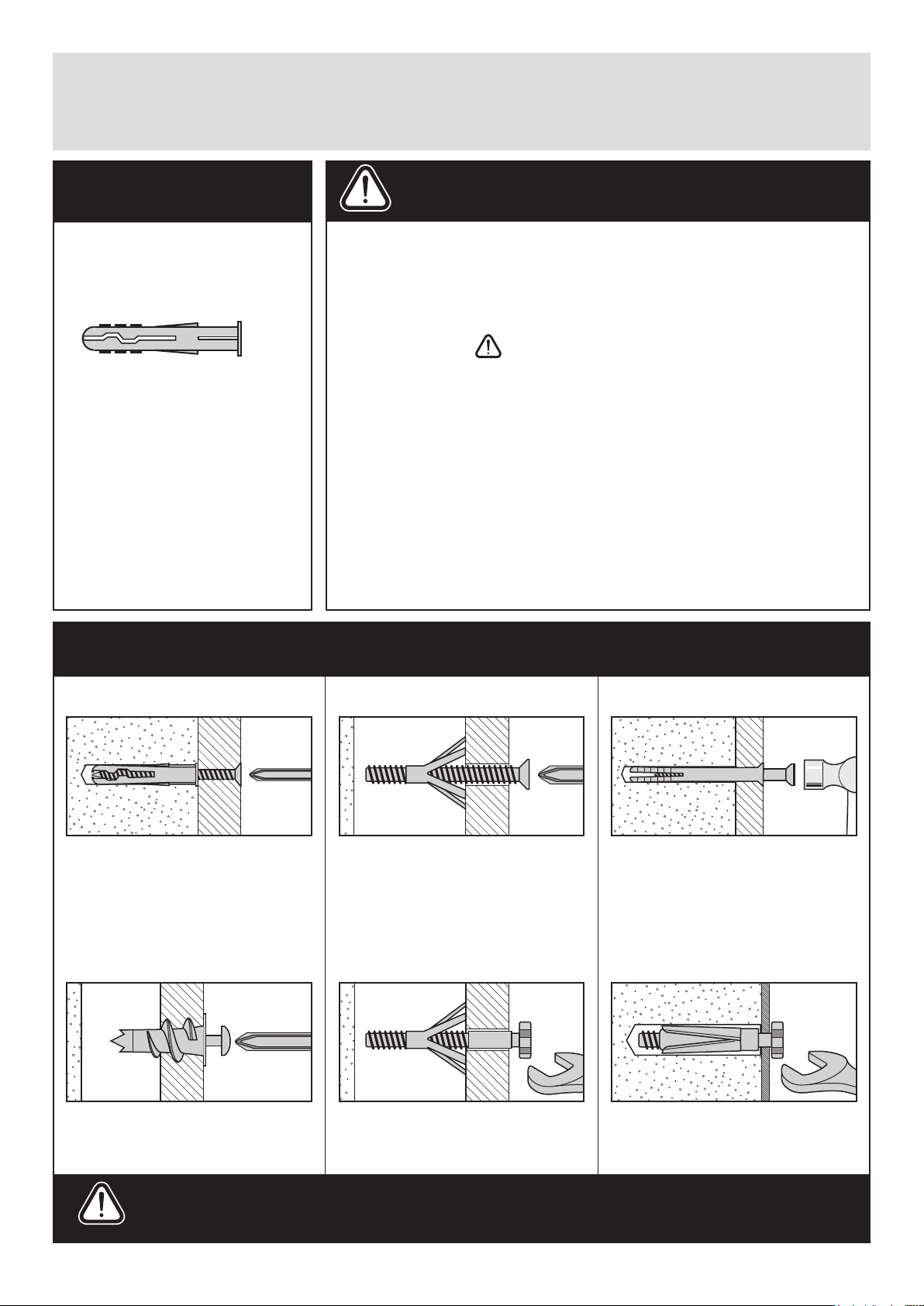

A Guide to - Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect fixings is the
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the
drilled hole.
Types of walls
No.1 “General Purpose” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist fitting in this case. For light
loads, general purpose wall plugs can
be used.
No.2 “Plasterboard” wall plug
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
No.3 “Cavity Fixing” wall plug
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
For use with walls stuck with
plasterboard. The hamemr fixing allows
it to be fixed to the wall rather than the
plasterboard. Always check the fixing
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
15
For use when fitting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
Loading...
