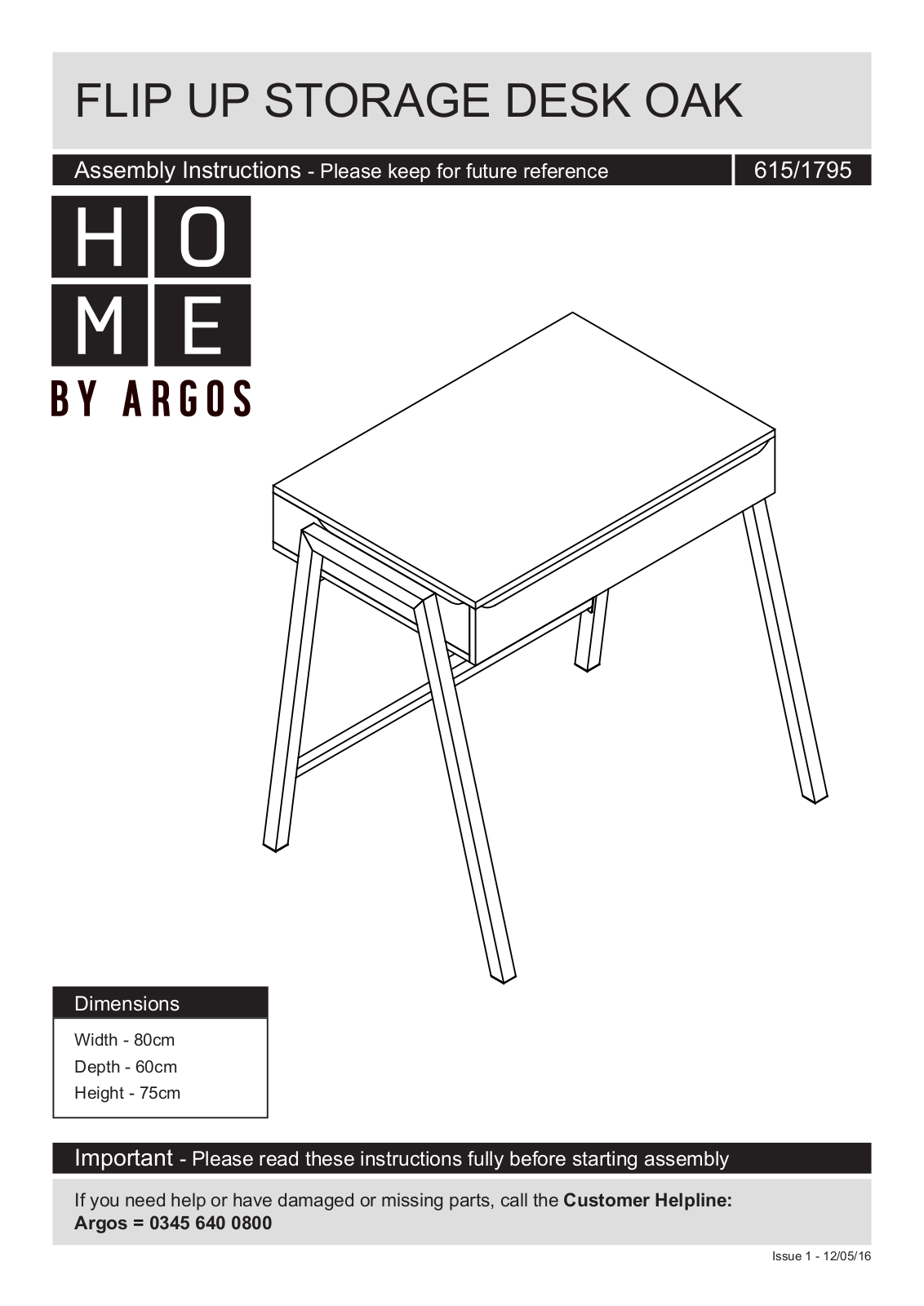

Argos FLIPTOP ASSEMBLY INSTRUCTIONS

FLIP UP STORAGE DESK OAK
Assembly Instructions
- Please keep for future reference
615/1795
Dimensions
Width - 80cm
Depth - 60cm
Height - 75cm
Important
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800

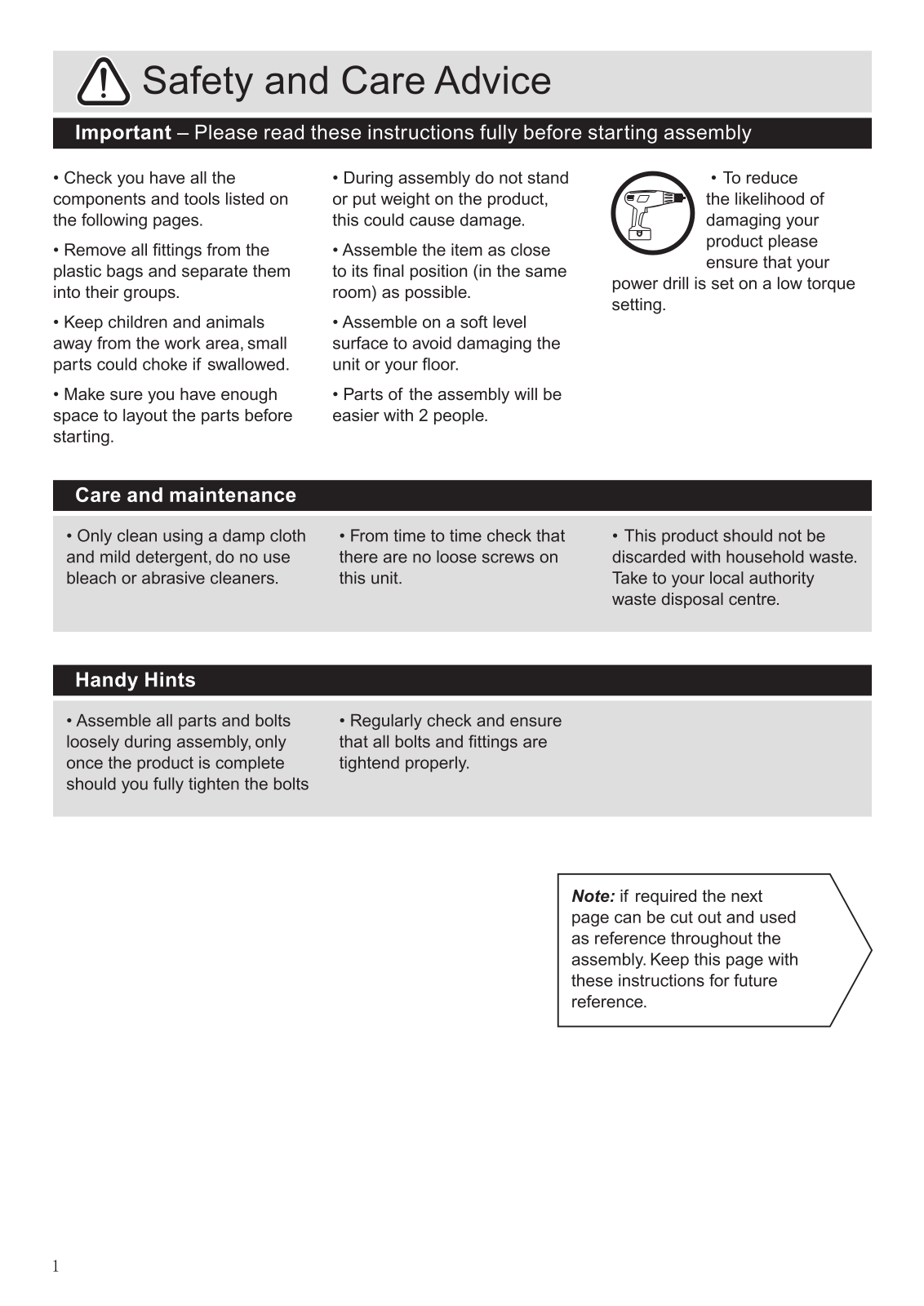

- Please read these instructions fully before starting assembly
1
0345 6400800
1

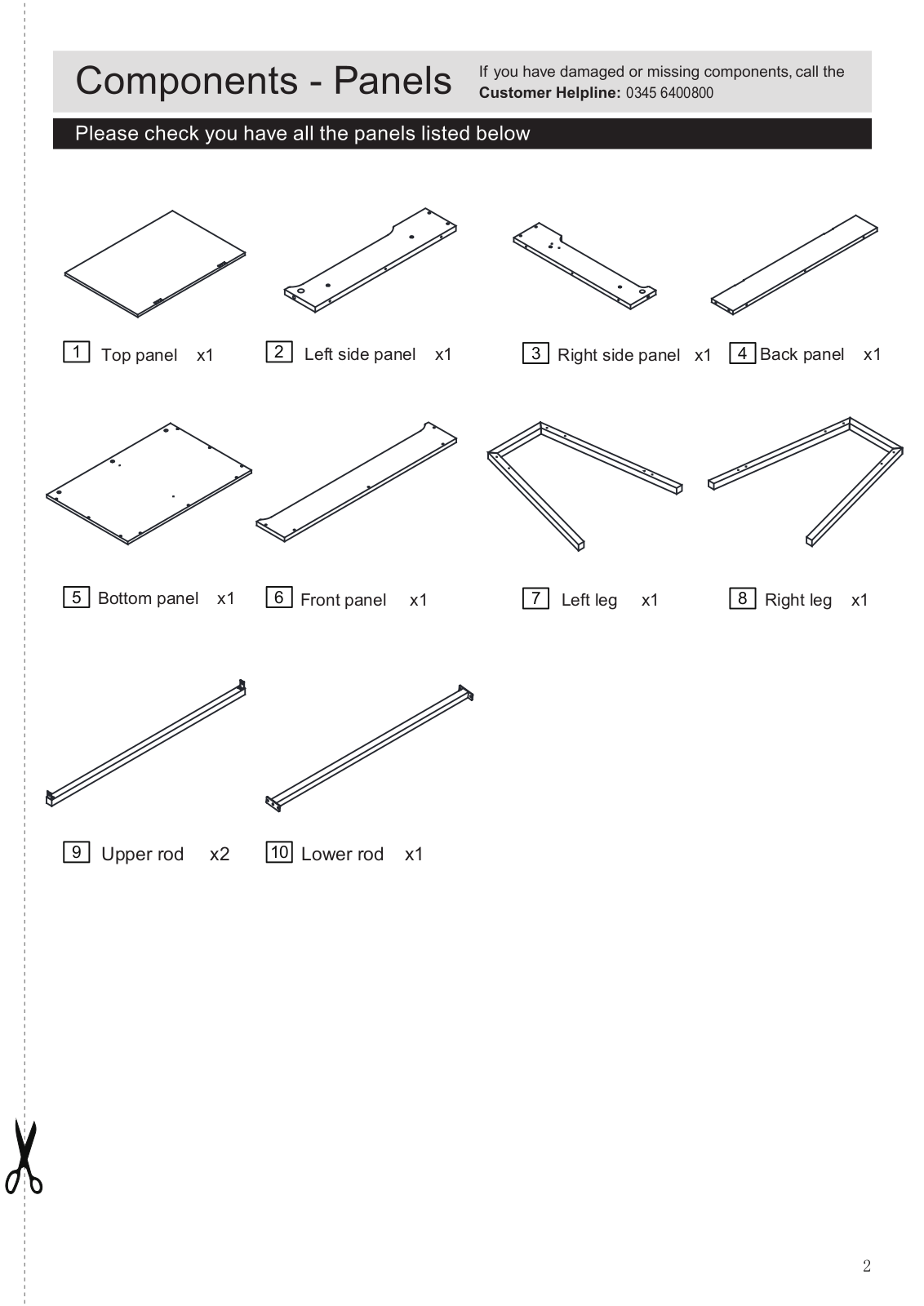

Top panel x1
5
Bottom panel x1
2
Left side panel x1
6
Front panel x1 Left leg x1 Right leg x1
3 4
Right side panel x1
7 8
Back panel x1
Upper rod x2 Lower rod x1
109
2

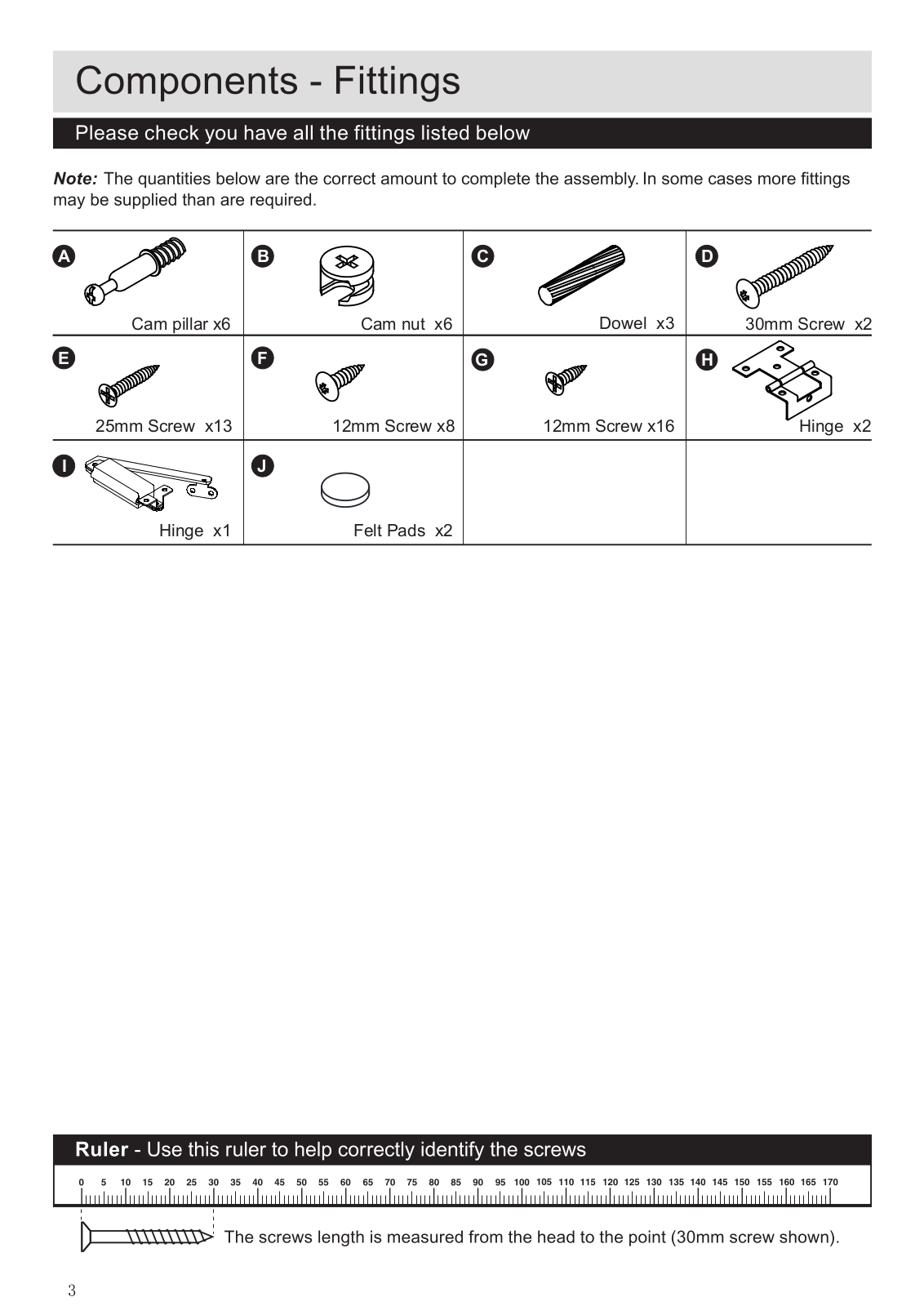

A B C
D
Cam pillar x6
E F
Cam nut x6
G H
Dowel x3
30mm Screw x2
25mm Screw x13 12mm Screw x8 12mm Screw x16 Hinge x2
I J
Hinge x1 Felt Pads x2
3
Assembly InstructionsAssembly Instructions

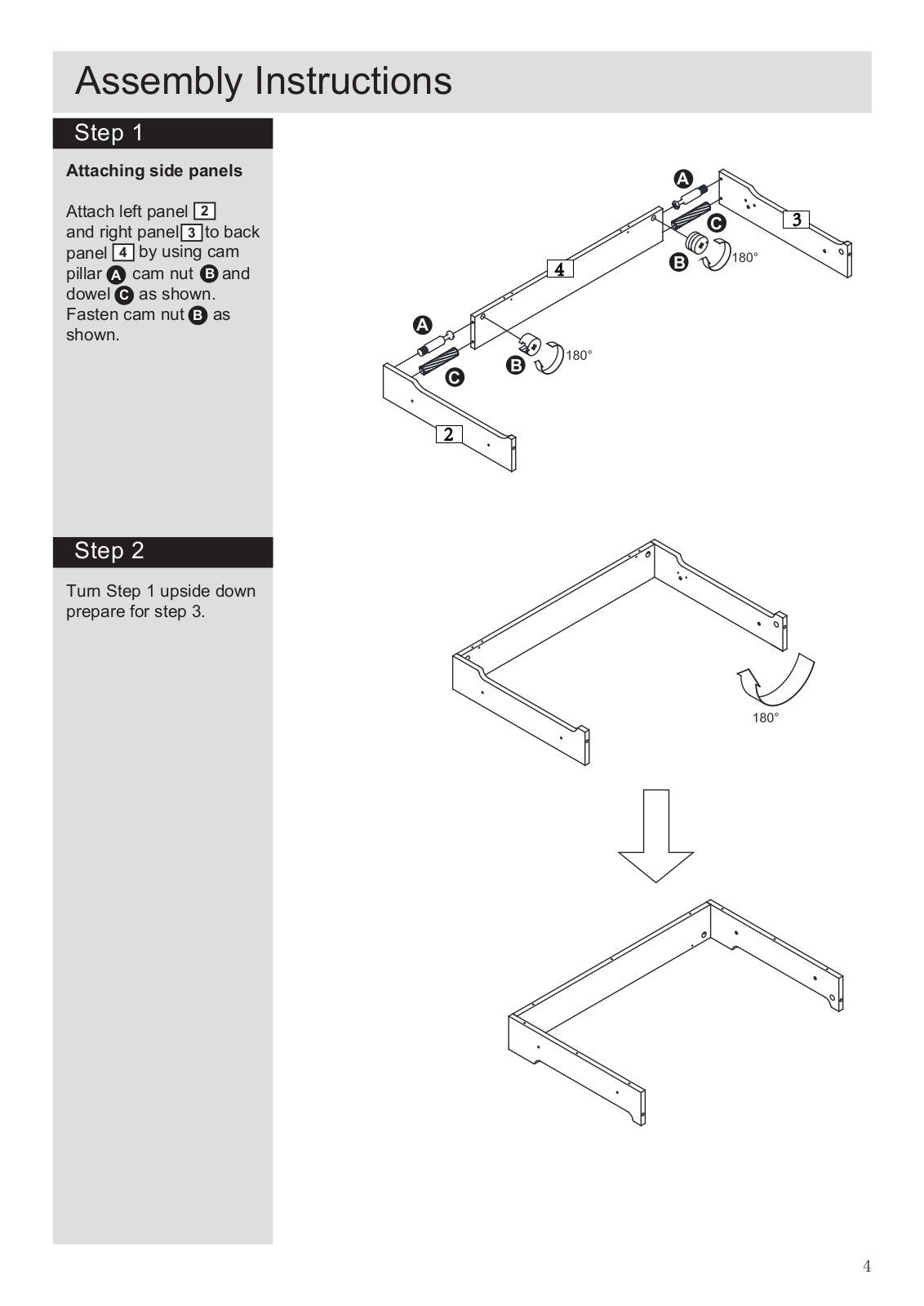

Step 1
Attaching side panels
Attach left panel and right panel to back
4
panel pillar cam nut and dowel as shown. Fasten cam nut as shown.
Step 2
Turn Step 1 upside down prepare for step 3.
by using cam
A
C
2
3
B
B
A
C
4
A
C
B
B
3
2
4
Assembly InstructionsAssembly Instructions

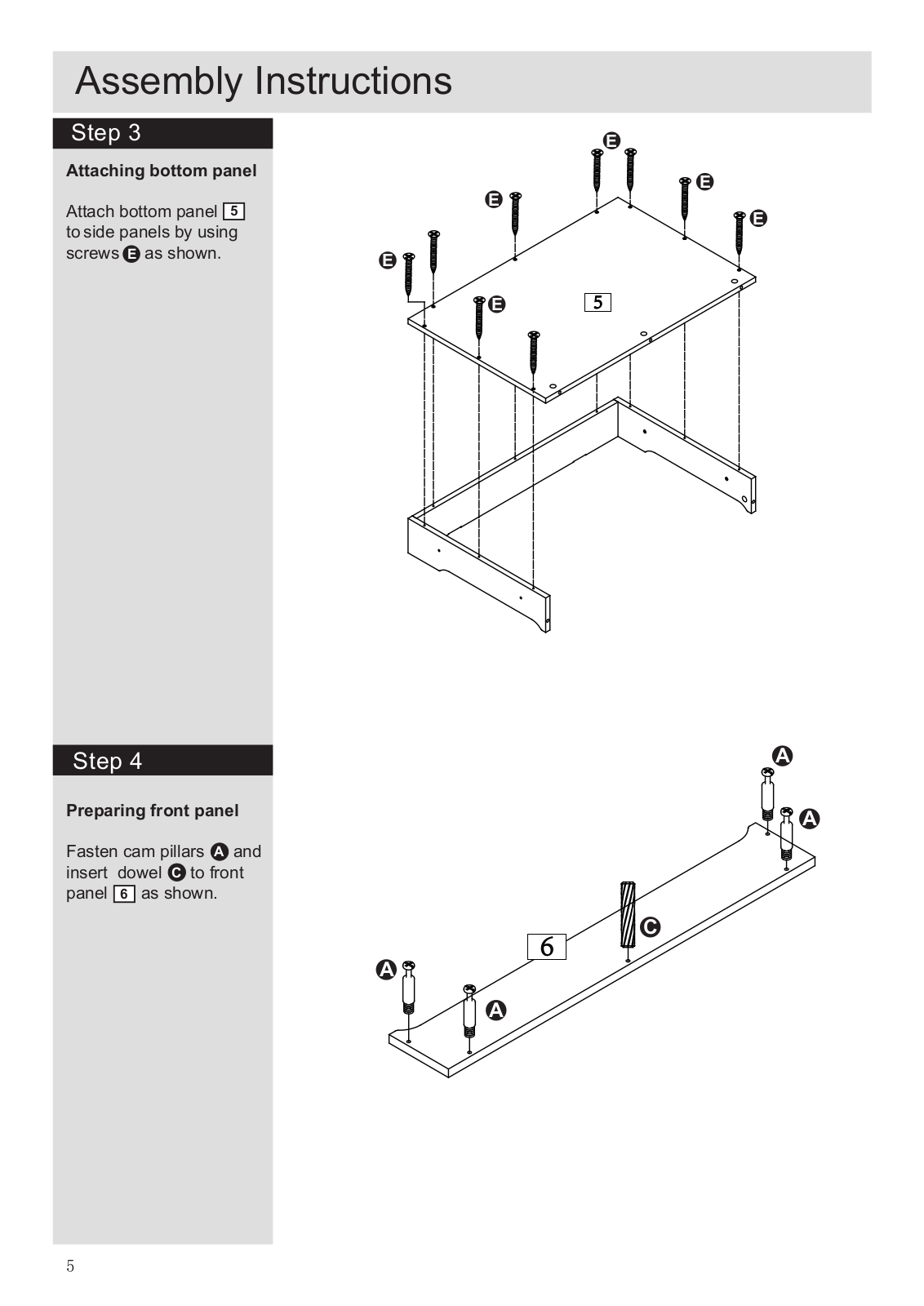

Step 3
Attaching bottom panel
Attach bottom panel to side panels by using screws as shown.
E
5
E
E
E
E
E
E
5
Step 4
Preparing front panel
Fasten cam pillars and insert dowel to front panel as shown.
6
A
C
A
A
C
6
A
A
5
Assembly InstructionsAssembly Instructions

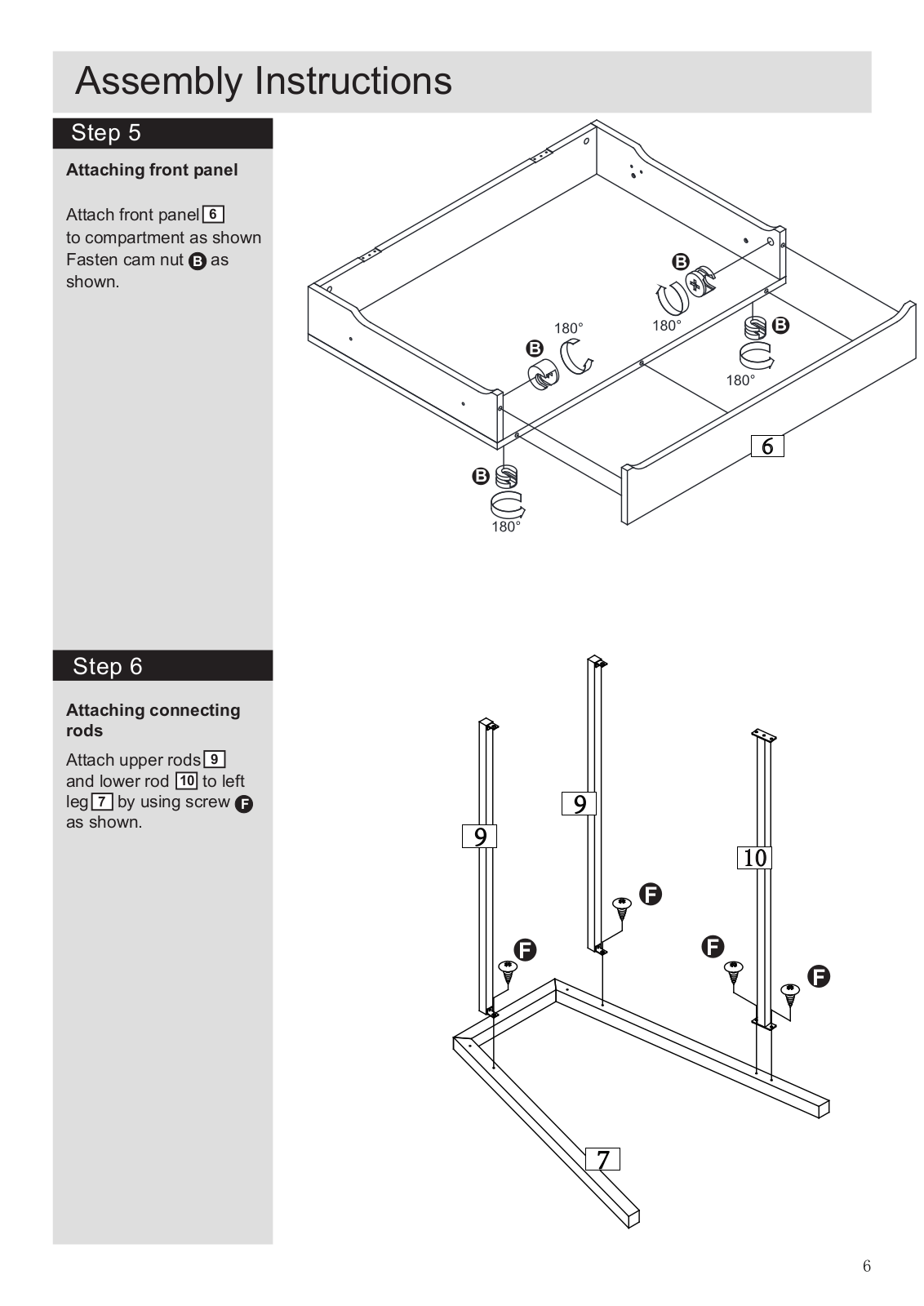

Step 5
Attaching front panel
Attach front panel to compartment as shown Fasten cam nut shown.
6
B
B
B
B
B
Step 6
Attaching connecting rods
Attach upper rods and lower rod to left
7
leg by using screw as shown.
9
10
F
9
9
10
F
F
F
F
as
7
6
Assembly Instructions

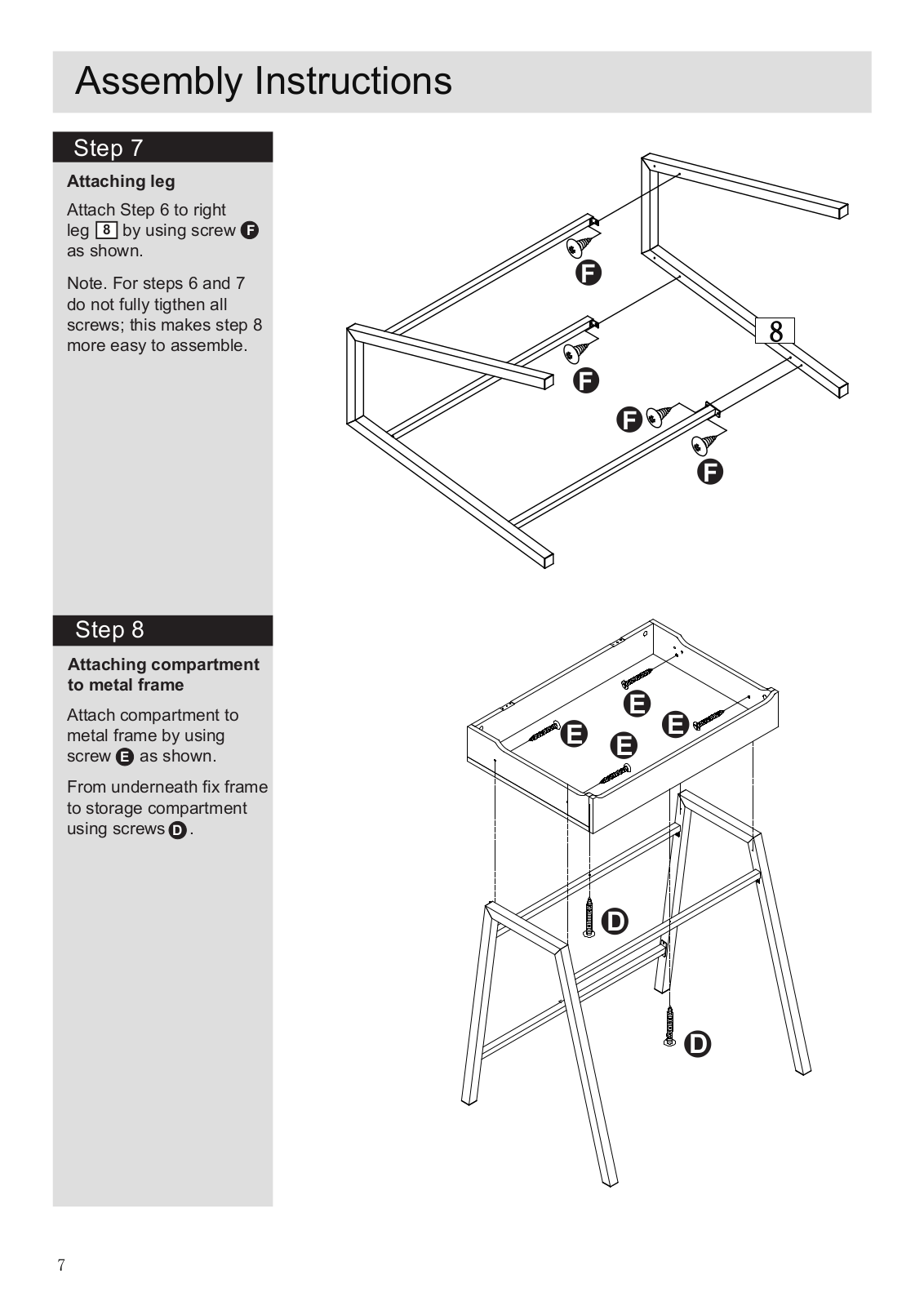

Step 7
Attaching leg
Attach Step 6 to right
8
leg by using screw as shown.
Note. For steps 6 and 7 do not fully tigthen all screws; this makes step 8 more easy to assemble.
F
F
F
F
F
8
F
Step 8
Attaching compartment to metal frame
Attach compartment to metal frame by using screw as shown.
From underneath fix frame to storage compartment using screws .
E
D
E
E
E
E
D
D
7
Assembly Instructions

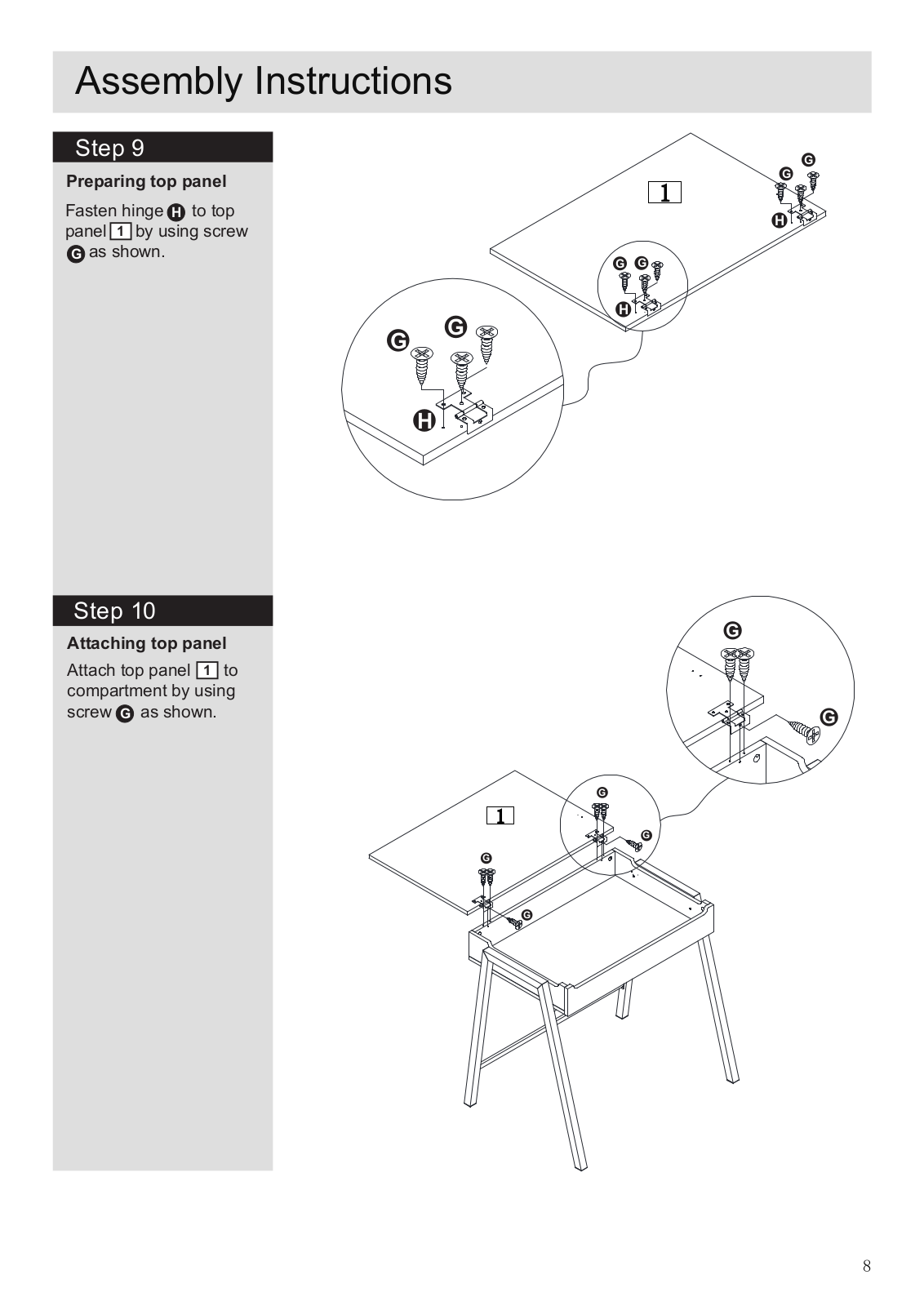

Step 9
Preparing top panel
Fasten hinge to top panel by using screw as shown.
1
G
H
G
H
G
G
G
H
H
G
G
H
Step 10
Attaching top panel
Attach top panel to compartment by using screw as shown.
1
G
G
G
G
G
G
G
8
Assembly Instructions

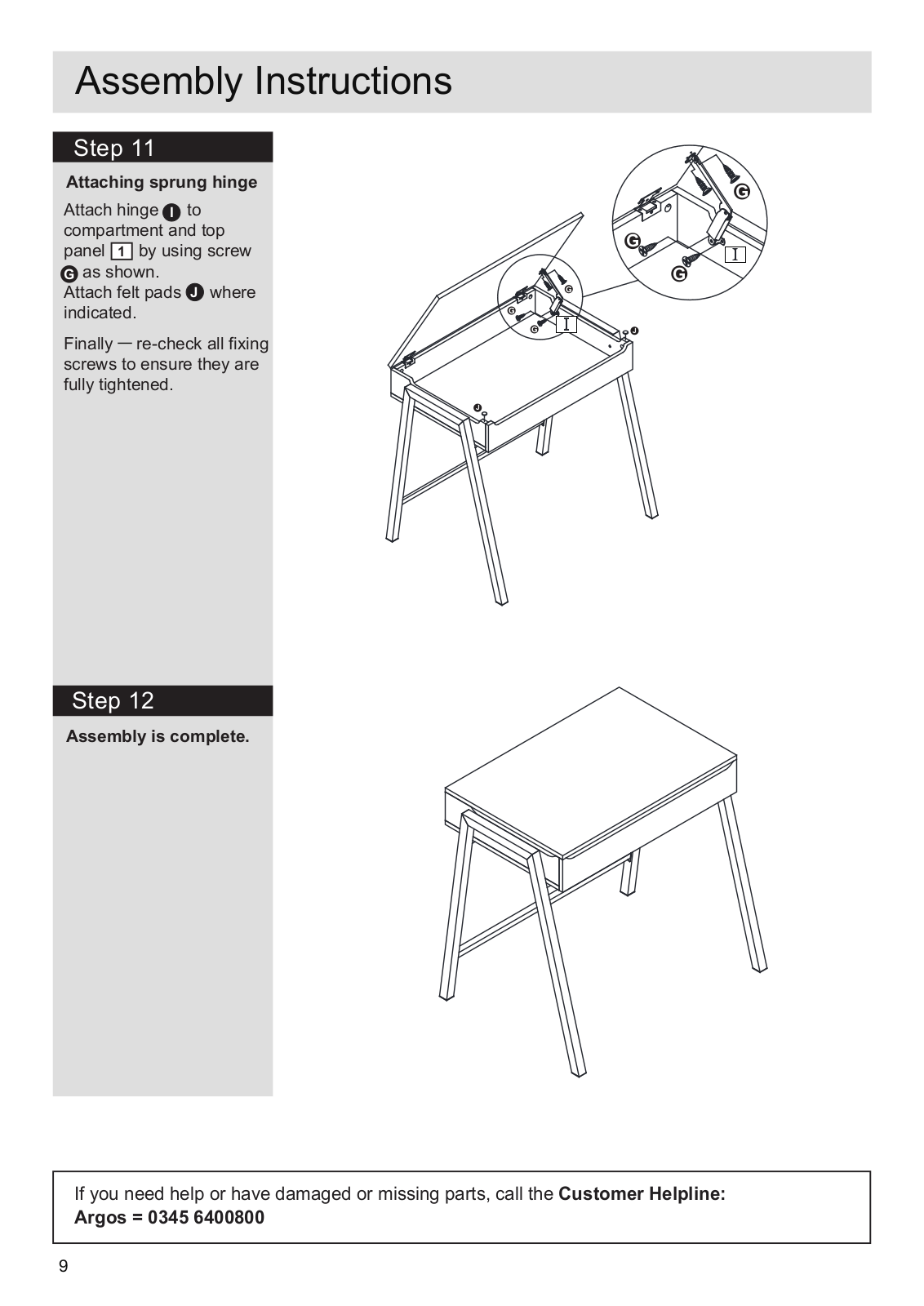

Step 11
Attaching sprung hinge
Attach hinge to
I
compartment and top panel by using screw as shown.
G
Attach felt pads where
1
J
indicated.
Finally re-check all fixing screws to ensure they are fully tightened.
G
G
I
G
G
I
G
J
G
J
Step 12
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800
9
