Argos FIVYTV2W ASSEMBLY INSTRUCTIONS

Assembly lnstructions - Please keep for future reference
Foley 2 Door TV Unit
Dimensions
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
Important - Please read these instructions fully before starting assembly
Issue 1- 28-11-14
358/8914
Depth -
40
cm
Height -
57cm
1
Safety and Care Advice
Check you have all the components and tools listed on pages 2 and 3. Remove all fittings from the plastic bags and separate them into their groups. Keep children and animals away from the work area, small parts could choke if swallowed. Make sure you have enough space to layout the parts before starting.
Assemble the item as close to its final position (in the same room) as possible.
Assemble on a soft level surface to avoid damaging the unit or your floor.
Assembly requires 2 people.
Do not fully tighten bolts until
the whole bed is assembled. Do not overtihgten the nuts to avoid causing damage to the
threads.
We do not recommend the use of power drill/drivers for
inserting screws,
as this could damage the unit. Only use hand screwdrivers and
Allen keys.
Dispose of all packaging carefully and responsibly.
Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.
From time to time check that
there are no loose screws on
this unit.
This product should not be discarded with household waste. Take to your local authority waste disposal centre.
This product has been finished using natrual materials. As a living material, you may notice some variation in the grain and colour shade between the different components.
Unlike a synthetic or man-made material which has a uniform finish, a feature of natural wood is its
variation in grain and colour. We wish to reassure you that this is quite normal and is not the result
of any manufacturing fault.
Where sheets of wood are joined together, a line may be detected. Again, this is normal and is not
an imperfection.
The natural finish should be cared for by the periodic application of a good quality 'was' based domestic furniture polish (Not silicone!!). Occasional / small spills should be removed immediately using a damp cloth.
Do not allow hot articles to come into contact with the surface, as damage will occur!
6
Adjustable shelf x 2 (37x30x1.2cm)
5
Fixed shelf x 1 (53.7x38.5x1.5cm)
9
Feet x 4 (3.8x3.8x15cm)
4
Door x 2 (38.5x29.5x1.5cm)
8
Components - Parts
2
lf you have damaged or missing components. call the Customer Helpline : 0345 6400 800
1
Top x 1 (120x40x1.5cm)
2
Side panel x 2 (39x40x1.5cm)
3
Divider (right) x 2
(39x38.5x1.5cm)
7
Back panel x 1 (117.8x39.8x0.3cm)
Base x 1 (120x40x7.5cm)
Underside
3
Plastic bracket x 8
0345 6400 800
B C
D E F
3 x 14mm screw x 24
Shelf support pin x 8
A
F
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
Tools required
0
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100105 110115 120 125 130135 140 145 150
1 2 3 4 5 6
Ruler/tape measure
Components - Fittings
G
Metal dowel x 16
Locking nut x 16
Wooden dowel x 20
H
M6 x 50mm Allen screw x 8
Phillips screwdriver (Not supplied)
Spring washer x 8
Plain washer x 8
J
L MK
PN
4 x 25mm screw x 4
Allen key x 1
Door stop x 2
Door hinge x 4 4 x 14mm screw x 8
4
Preparing panels
1
1
Assembly Instructions

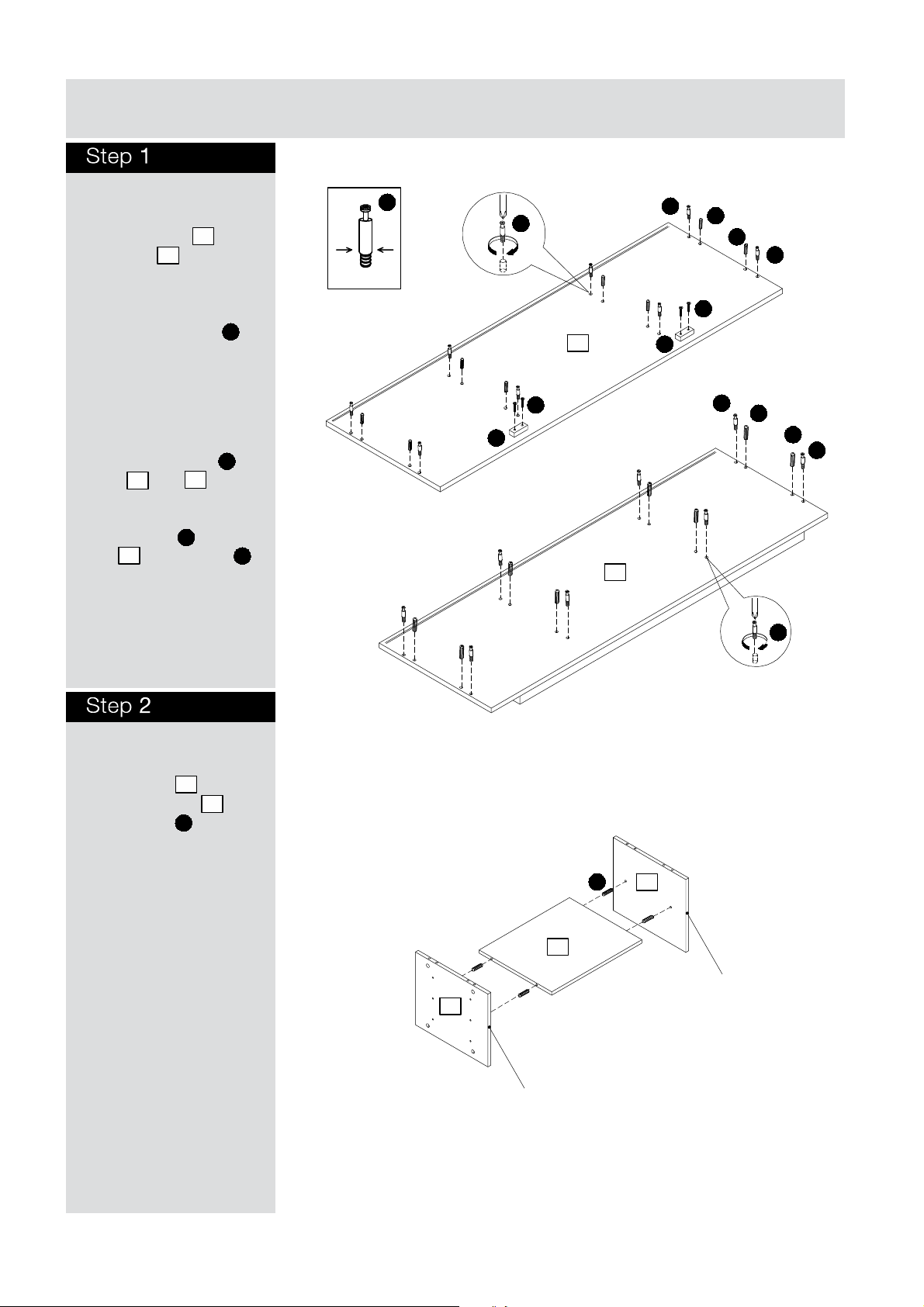

Place top panel and base panel flat on the floor with the fixing holes facing up.
Screw metal dowels into each panel as shown.
Note:
Screw metal
dowels as far as shown.
Do not overtighten.
Insert wood dowels into panels and as shown.
Fit door stops to top panel using screw .
A
3
5
3C
A
A
A
C
C
N
N
M
M
Assembling shelf
Fit fixed shelf in between dividers using wood dowels .
8
A
A
C
C
A
8
C
1
8
M
1
N
A
5
3
C
Front edge
finished
Front edge
finished
5
1
Assembling panels
Attaching back panel
Assembly Instructions
2
3
3
2
B
B
B
B
B
B

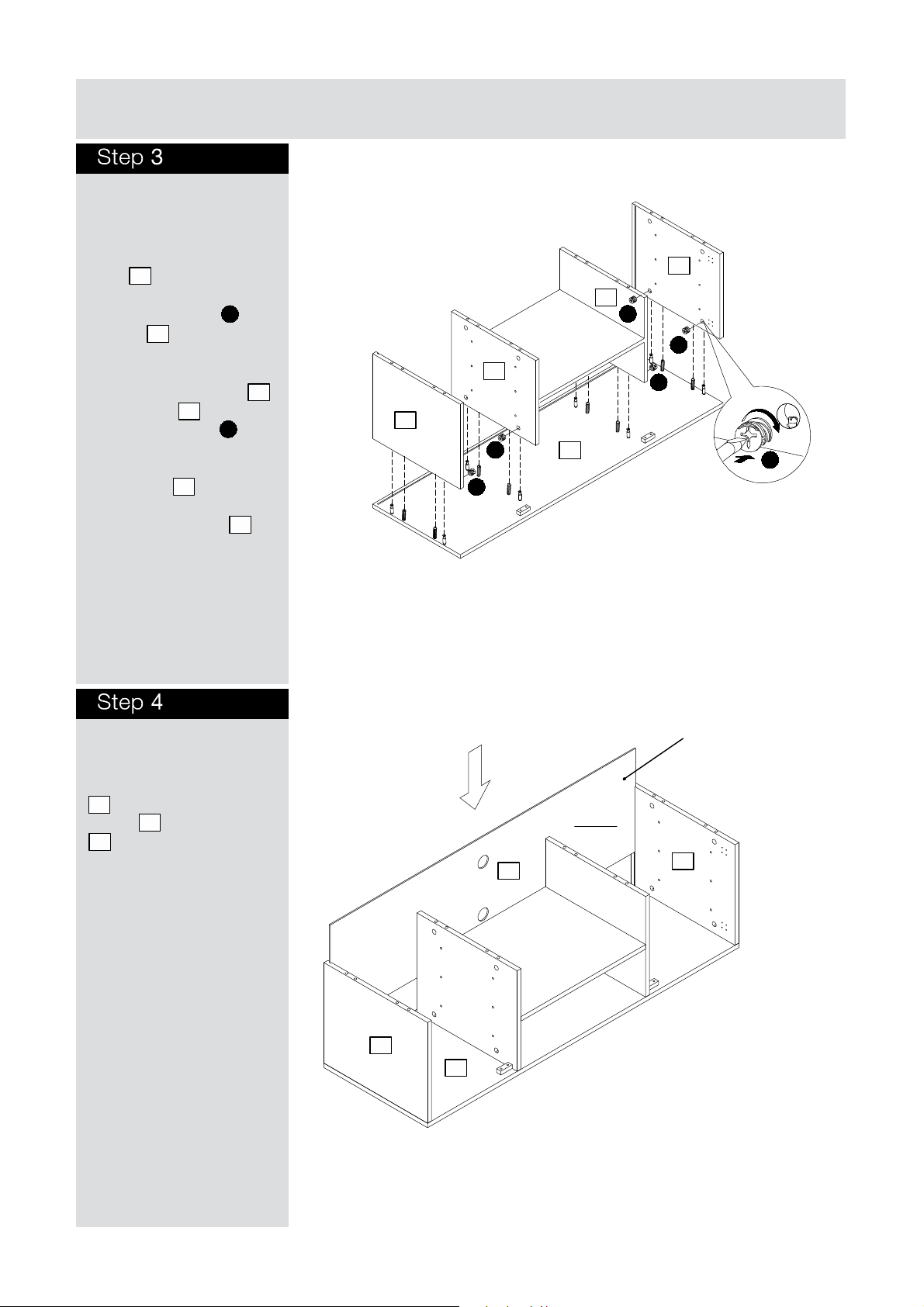

Carefully lower the shelf assembly down onto top panel .
Insert locking nuts into dividers . Turn locking nuts clock wise to secure.
Assemble side panels to top panel and secure
using locking nuts .
Note: Ensure the grooves in
side panels are correctly aligned next to the groove in top panel .
Carefully slide back panel
into the grooves in side panels and top panel
.
B
3
2
1
B
2
1
7
2
1
7
2
1
2
Surface finished
Shown upside down
1
Front
Front
6
Attaching base
Assembly Instructions
H
8
B
B
B
J
G
9
J
H
G
Carefully locate base panel
into position as shown.
Secure using locking nuts
in side panels and
dividers .
Attaching legs
Assemble legs to base panel using fixings ,
and .
8
B
2
3
2
3
3
2
9
8
G
H J
8
4
4
4
4
L
L
L
L
F
K
K
K
K
6
6
D
D
Lccating shelves
Assembly Instructions
Fit shelf support pins at
the desired height.
Carefully place adjustable
shelves onto the
support pins.
a: Assemble hinges to
doors using screws .
b: Assemble doors to
side panels using screws .
7
D
6
K
4
L
a:
b:
4
2
F
2
2
Preparing doors
F
F
Hinge adjustment
Assembly Instructions
a: To move doors up or
down, loosen screws as shown and move doors
to suit.
Once doors are aligned, insert 2 more screws into the hinge plates and
fully tighten all screws.
8
a:
L
L
b:
c:
L
L
b: To move doors in or
out, loosen screw shown and move doors to suit.
Re-tighten screws.
c: To move doors left or
right, lossen screw shown and move doors to suit.
Re-tighten screws.
9
Assembly Instructions
F
E
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
Home Retail Group. 489-499 Avebury Boulevard. Saxon Gate West. Central Milton Keynes. MK9 2NW
Fit plastic brackets
around the edge of back
panel using screws .
E
7 F
Securing assembly
F
E
7
