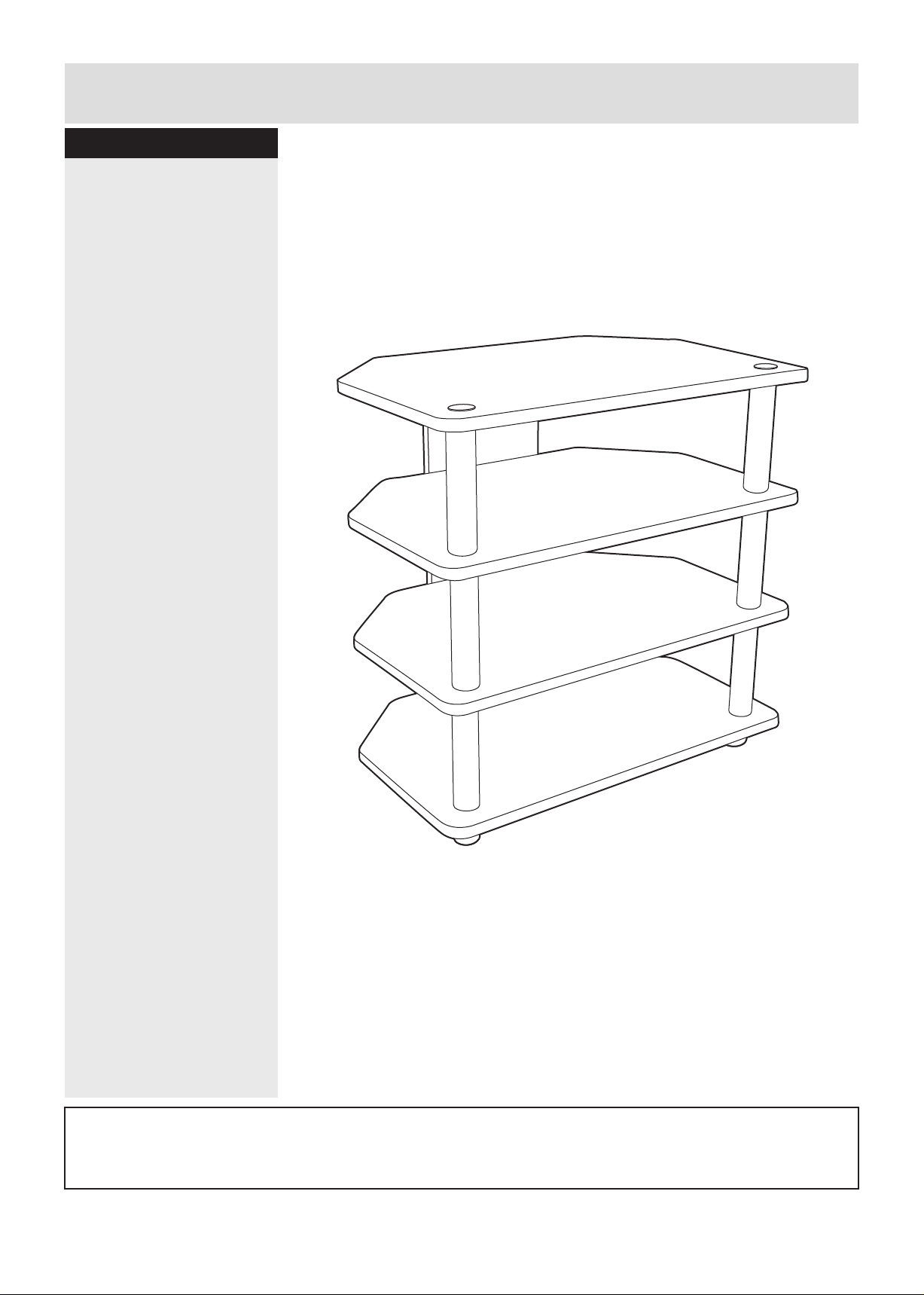

Verona Corner TV Unit
Assembly Instructions - Please keep for future reference
609/5057
610/3475
Dimensions
Width - 60cm
Depth - 40cm
Height - 59.5cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
issue 1 4/28/10
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Check you have all the
components and tools listed on
pages 2 and 3.
Remove all fittings from the
plastic bags and separate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
●Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
Do not stand on the panels, this
could cause damage.
Assemble the unit as close to its
final position (in the same room)
as possible.
Assemble on a soft level
surface to avoid damaging the unit
or your floor.
Parts of the assembly will be
easier with 2 people.
●From time to time check that
there are no loose screws on this
unit.
We do not
recommend the use
of power drill/ drivers
for inserting screws,
as this could damage
the unit. Only use hand
screwdrivers.
Dispose of all packaging carefully
and responsibly.
Warning: The unit weighs
approximately 11kgs.
Please lift with care.
●This product should not be
discarded with household waste.
Take to your local authority waste
disposal centre.
1
Components - Panels
Please check you have all the panels listed below
3
Back panel (57.5 x 20cm)
1
Table top (60 x 40cm)
Leg x 6 (19.3 x Ø3.5cm)
4
If you have damaged or missing components,
call the Customer Helpline:08456 400800
Foot x 2 (4.7 x 3.4cm)Ø
2
Shelf x 3 (60 x 38.5cm)
5
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
Cap screw x 2
Pre-assembled at 5
D
50mm Screw x 6
Tools required
Phillips screwdriver
(medium & large)
B
B
Locking pin x 2
Locking pin x 2
E
Tool x 1
C
Locking nut x 2
Ruler/tape
measure
Flatblade screwdriver
(medium)
Ruler - Use this ruler to help correctly identify the screws
105
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
110 115 120 125 130 135 140 145 150 155 160 165 170
2
Assembly Instructions
Step 1
Step 1
Fitting the back panel
a: Unscrew Cap screws
a from the Feet .
A 5
a:
A
5
b: Insert Legs into
the first Shelf , then
screw Feet into the
Legs.
c: Use Screws to fix
the Back panel onto
the Shelf .
4
2
5
D
3
2
c:
b:
4
2
5
3
2
D
3
Assembly Instructions
Step 2
Fitting the shelves
a: Carefully locate the
second Shelf onto the
unit.
2
a:
2
b: Use Screws to fix
the second Shelf onto
the Back panel .
Screw in Legs to fix
the second Shelf onto
the unit.
Continued on next page.
D
2
3
4
2
b:
4
3
2
D
4
Assembly Instructions
Step 2 - continued
Fitting the shelf
c:
c: Carefully locate the
third Shelf onto the
unit.
2
2
d: Use Screws to fix
the third Shelf onto
the Back panel .
Screw in Legs to fix
the third Shelf onto
the unit.
D
2
3
4
2
d:
4
4
3
2
D
5
Assembly Instructions
Step 3
Fitting the table top
a: Screw Locking pins
into the Top panel .
1
B
B
a:
B
1
b:
1
b: Carefully locate the
Table top onto the
unit.
1
Continued on next page.
6
Assembly Instructions
Step 3 - continued
c: Screw Cap screws
to fix the Table top
onto the unit.
1
c:
1
A
A
d: Use Locking nuts
to fix the Table top
onto the unit.
C
1
C
C
d:
1
C
7
Assembly Instructions
Step 4
Finishing the unit
Finally place the unit in
the desired location.
Note: Before use always
make sure the unit is
secure.
Assembly is complete.
If you need help or have damaged or missing parts, call the
Customer Helpline : 08456 400800
8
Components
A
1 x Table Top
1 x Back Panel
C
3 x Shelf
B
Verona Corner TV Entertainment Unit
Simple Assembly Instructions - Please keep for future reference
6 x Leg
D
Fittings
2 x Cap Screw
A
B
2 x Locking Pin
1 x Tool
E
E
C
2 x Locking Nuts
2 x Foot
D
6 x Screw
IMPORTANT
1. Read these instructions carefully and
familiarise yourself with the procedure
before assembling the unit.
2. Check that you have all the component
parts following the list on the back
3-06
cover and familiarise yourself with
each part before proceeding.
3. Take all the fittings out of the plastic bag
and separate them into their groups.
4. Ensure you have enough space to lay out
all the parts before assembly.
5. To avoid scratching it is recommended
that you assemble the unit on a soft
level surface.
Assembly Instructions
Assembly Instructions
Stage 2 – Fitting the ShelvesStage 1 – Fitting the Back Panel
NOTE: It would be useful to ask
someone to help you at this
stage.
1. Unscrew Cap Screws A from the
Feet E.
See fig. 1.
2. Use Screws D to fix the Back
Panel C onto the Shelf B.
See fig. 2.
A
fig. 1
E
C
D
B
fig. 2
NOTE: It would be useful to ask
someone to help you at this
stage.
1. Carefully locate the second Shelf
B onto the unit.
See fig. 4.
2. Use Screws D to fix the second
Shelf B onto the Back Panel C.
See fig. 5.
B
fig. 4
C
D
D
3. Insert Legs D into the first Shelf
B, then screw Feet E into the
Legs.
See fig. 3.
B
D
B
fig. 3
E
3. Screw in Legs D to fix the second
Shelf B onto the unit.
See fig. 5.
fig. 5
Assembly Instructions
B
4. Carefully locate the third Shelf B
onto the unit.
See fig. 6.
Assembly Instructions
Stage 3 – Fitting the Table TopStage 2 – Fitting the Shelves
NOTE: It would be useful to ask
someone to help you at this
stage.
1. Screw Locking Pins B into the
Top Panel A.
See fig. 8.
B
A
fig. 8
5. Use Screws D to fix the third Shelf
B onto the Back Panel C.
See fig. 7.
6. Screw in Legs D to fix the third
Shelf B onto the unit.
See fig. 7.
fig. 6
D
B
C
D
2. Carefully locate the Table Top A
onto the unit.
See fig. 9.
fig. 7
A
fig. 9
Assembly Instructions
Assembly Instructions
Stage 4 – Finishing the UnitStage 3 – Fitting the Table Top
3. Screw in Cap Screws A to fix the
Table Top A onto the unit.
See fig. 10.
A
A
A
NOTE: It would be useful to ask
someone to help you at this
stage.
fig. 10
A
1. Carefully place the unit in the
desired location.
See fig. 12.
fig. 12
4. Use Locking Nuts C to fix the
Table Top A onto the unit.
See fig. 11.
fig. 11
Care and Maintenance
Safety
To avoid any risk of suffocation to animals or children dispose of the plastic
bags immediately.
Cleaning
As with all surfaces clean with a damp cloth and mild detergent, do not use bleach
or abrasive products.
Fitting
From time to time please ensure there are no loose screws on the product.
