MADE IN
BRITAIN
Dimensions
Width - 47.5cm
Depth - 38cm
Height - 51cm
Eden - Small Side Table
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Issue 1 - 15/05/15
Important - Please read these instructions fully before starting assembly
414/1594
414/4962
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 10kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Components - Panels
Please check you have all the panels listed below
2
1
2 3
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
4 5
Left End (DF3748)
(475 x 378mm)
Drawer Front (DF3752)
(393 x 194mm)
Right End (DF3749)
(475 x 378mm)
Top (DF3750)
(475 x 381mm)
Base (DF3751)
(399 x 372mm)
6
Drawer Back (W366-165)
(366 x 165mm)
Drawer Base (T378-347)
(378 x 347mm)
Left Drawer Side (W350-165LH)
(350 x 165mm)
Right Drawer Side (W350-165RH)
(350 x 165mm)
7 8
9
10
Back (X452-417)
(452 x 417mm)
Please check you have all the fittings listed below
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
A B
D E F
G H I
C
Small locking
nut (F3) x 2
Nail (F51) x 12
L
J
9mm Screw (F74) x 2
K
9mm Screw (F73) x 4
Drawer runner (F1004) x 2
Knock-in Peg (F171GY) x 4
Metal dowel (F901) x 2
Wedgefix (F639) x 2
Tools required
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Small metal dowel (F893) x 8
Hollow core
locking nut
(F892) x 8
19mm Screw (F461) x 2
Handle (F414) x 1
5
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Step 1
A
B
A
B
B
B
B
7
8
Step 2
Prepare the drawer
front
Screw 2 metal dowels
into the drawer front .
Note: Tighten the metal
dowels up fully against
the panels.
A
5
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and the right
drawer side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 3
B
7
8
Attach the drawer
sides to the drawer
front
Push the left drawer side
. and right drawer side
. onto the back of the
drawer front .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
7
8
5
B
B
7
8
8
7
5
A
A
Fit the wedgefixes
Turn the drawer
assembly over and slide
2 wedgefixes into the
front and back grooves,
as shown, and tighten up
the screws.
5
Assembly Instructions
5
Step 4
C
C
13
8
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
Step 5
Step 6
9
7
8
5
9
Attach the handle
Attach the handle to
the drawer front
using screws .
F
5
L
7
8
7
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
6
7 8
9
6
6
C
7 8
C
C
9
6
Step 7
I
I
I
I
F
F
L
5
Finished
front edge
Finished
front edge
Assembly Instructions
6
Step 8
Finished
front edge
E
E E
E
1 1 1
c:
a:
b:
E
Finished
front edge
H
K
H
K

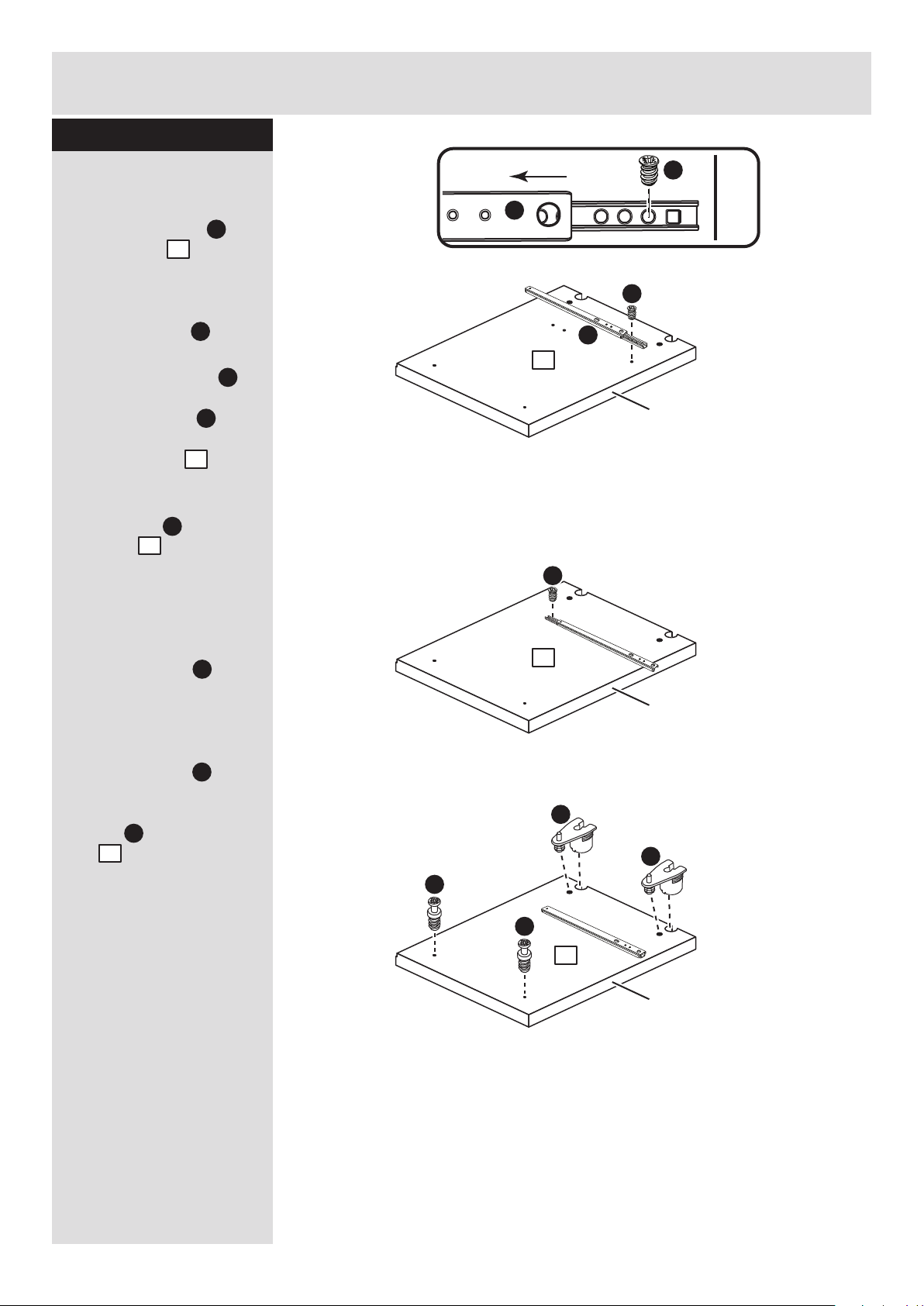

Prepare the left end
a: Place a runner on
the left end as
shown. Slide back the
top of runner and use the
1st hole from the front to
fit the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the left end .
c: Push 2 hollow core
locking nuts into the
left end , making sure
that they are flush
against the panel’s
surface.
Using a hammer, tap in
the pin on the hollow
core locking nut .
Note: The pin should be
tapped in flush with the
top surface of the hollow
core locking nut .
Screw 2 small metal
dowels into the left
end .
1
H
H
1
K
K
H
D
D
E
E
E
1
D
1
1
1
1
Assembly Instructions
7
Step 9
c:
a:
b:
Prepare the right end
a: Place a runner on
the right end as
shown. Slide back the
top of runner and use the
1st hole from the front to
fit the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the right end .
c: Push 2 hollow core
locking nuts into the
right end , making
sure that they are flush
against the panel’s
surface.
Using a hammer, tap in
the pin on the hollow
core locking nut .
Note: The pin should be
tapped in flush with the
top surface of the hollow
core locking nut .
Screw 2 small metal
dowels into the right
end .
2
H
H
2
K
K
E
E
E
2
D
2
Finished
front edge
H
K
H
K
Finished
front edge
Finished
front edge
Finished
front edge
H
E
E
D
D
2
2
2
Finished front edge
Finished front edge
Assembly Instructions
8
Step 10
Prepare the base
Push 4 hollow core
locking nuts into the
base , making sure
that they are flush
against the panel’s
surface.
Using a hammer, tap in
the pin on the hollow
core locking nut .
E
E
E
E
E
E
4
4
Finished
front edge
Fit the base to the
right end
Push the base onto
the right end .
The 2 small metal dowels
. fitted to the right end
. must slide into the
top of the 2 hollow core
locking nuts fitted to
the base . .
Insert a screwdriver into
the 2 hollow core locking
nuts and turn the nuts
inside as far as they will
go.
D
E E
2
4
D
2
E
4
E
Step 11
Fit the left side
Push the left end
onto the base .
The 2 small metal dowels
. fitted to the left end
. must slide into the
top of the 2 hollow core
locking nuts fitted to
the base . .
Insert a screwdriver into
the 2 hollow core locking
nuts and turn the nuts
inside as far as they will
go.
4
1
D
1
E
4
E
Step 12
2
4
4
1
yy
yy
xx
xx
Assembly Instructions

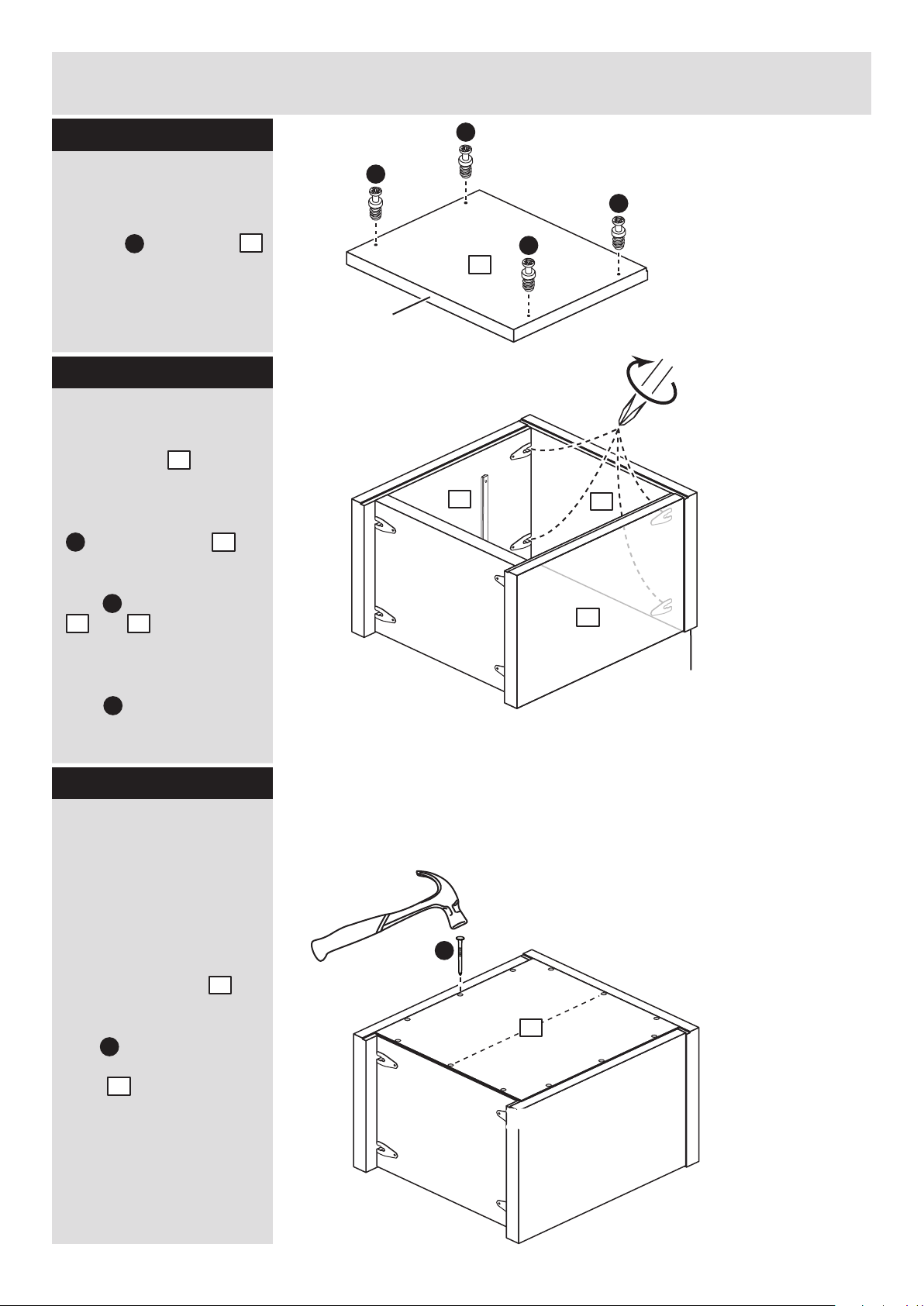

Step 13
Prepare the top
Screw 4 small metal
dowels into the top .
D
D
D
D
D
3
3
Finished
front edge
Finished
front edge
Fit the top
Push the top onto the
assembly.
The 4 small metal dowels
. fitted to the top
must slide into the top of
the 4 hollow core locking
nuts fitted to the ends
. and .
Insert a screwdriver into
the 4 hollow core locking
nuts and turn the nuts
inside as far as they will
go.
3
D
3
E
1 2
E
Step 14
Step 15
3
1
2
b:
J
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Note: Nails should be
spaced about 150mm
apart.
Stand the unit up for
the next step.
10
J
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
10
9
10
Assembly Instructions
10
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 16
Fit the drawers
Slide both the runners
forward and locate the
drawer sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
Assembly is complete
G
K
K
G
2nd threaded
hole
K
G
7 8
G
G
7
8
ALR3154
