Assembly lnstructions - Please keep for future reference
Foley Bookcase
Width - 63cm
Depth - 30 cm
Height - 137 cm
Dimensions
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
Important - Please read these instructions fully before starting assembly
Issue 1-26-11-14
333/7976
Safety and Care Advice
Check you have all the
components and tools listed on
pages 2 and 3.
Remove all fittings from the
plastic bags and separate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Assemble the item as close
to its final position (in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
Assembly requires 2 people.
Do not fully tighten bolts until
the whole bed is assembled.
Do not overtihgten the nuts to
avoid causing damage to the
threads.
We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers and
Allen keys.
Dispose of all packaging
carefully and responsibly.
1
Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
From time to time check that
there are no loose screws on
this unit.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
This product has been finished using natrual materials. As a living material, you may notice some
variation in the grain and colour shade between the different components.
Unlike a synthetic or man-made material which has a uniform finish, a feature of natural wood is its
variation in grain and colour. We wish to reassure you that this is quite normal and is not the result
of any manufacturing fault.
Where sheets of wood are joined together, a line may be detected. Again, this is normal and is not
an imperfection.
The natural finish should be cared for by the periodic application of a good quality 'was' based
domestic furniture polish (Not silicone!!). Occasional / small spills should be removed immediately
using a damp cloth.
Do not allow hot articles to come into contact with the surface, as damage will occur!
6
Middle shelf x1
(60x26x1.5cm)
5
Upper shelf x1
(60x24.5x1.5cm)
9
Leg x 4
(3.8x3.8x15cm)
4
Back panel (white)x 2
(60.8x35.3x0.3cm)
8
Components - Parts
lf you have damaged or missing components.
call the Customer Helpline : 0345 6400 800
1
Side panel (left) x 1
(128x30x1.5cm)
2
Side panel (right) x 1
(128x30x1.5cm)
3
Back panel (grey) x 2
(60.8x35.3x0.3cm)
7
Lower shelf x 1
(60x27.5x1.5cm)
Base panel x 1
(60x29.5x1.5cm)
2
10
Top panel x 1
(60x22.5x1.5cm)
Underside
3
0345 6400 800
B C
D E F
Allen key x 1
A
F
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
Tools required
0
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150
1 2 3 4 5 6
Ruler/tape measure
Components - Fittings
G
Metal dowel x 20
Locking nut x 20 Wooden dowel x 4
H
6 x 50mm Allen screw x 8
Phillips screwdriver
(Not supplied)
Spring washer x 8
Plain washer x 8
J
Wall strap x 2
12mm Wood screw x 2
4
Preparing panels
Assembly Instructions
A
A
A
A
2
1
Place side panels and
flat onto the floor with
the fixing holes facing up.
Screw metal dowels
into each panel as shown.
Screw metal dowels as far
as shown.
Do not overtighten.
1
2
A
Assembling shelves
Carefully locate base
panel ,shelves ,
and and top panel
onto right side panel
in the locations shown.
Note: Ensure all grooves
are correctly located at
the back.
Secure all panels using
locking nuts .
8
5
6
7
10
2
B
8
7
6
5
10
B
B
C
2
A
B
Back
Front
5
Assembly Instructions

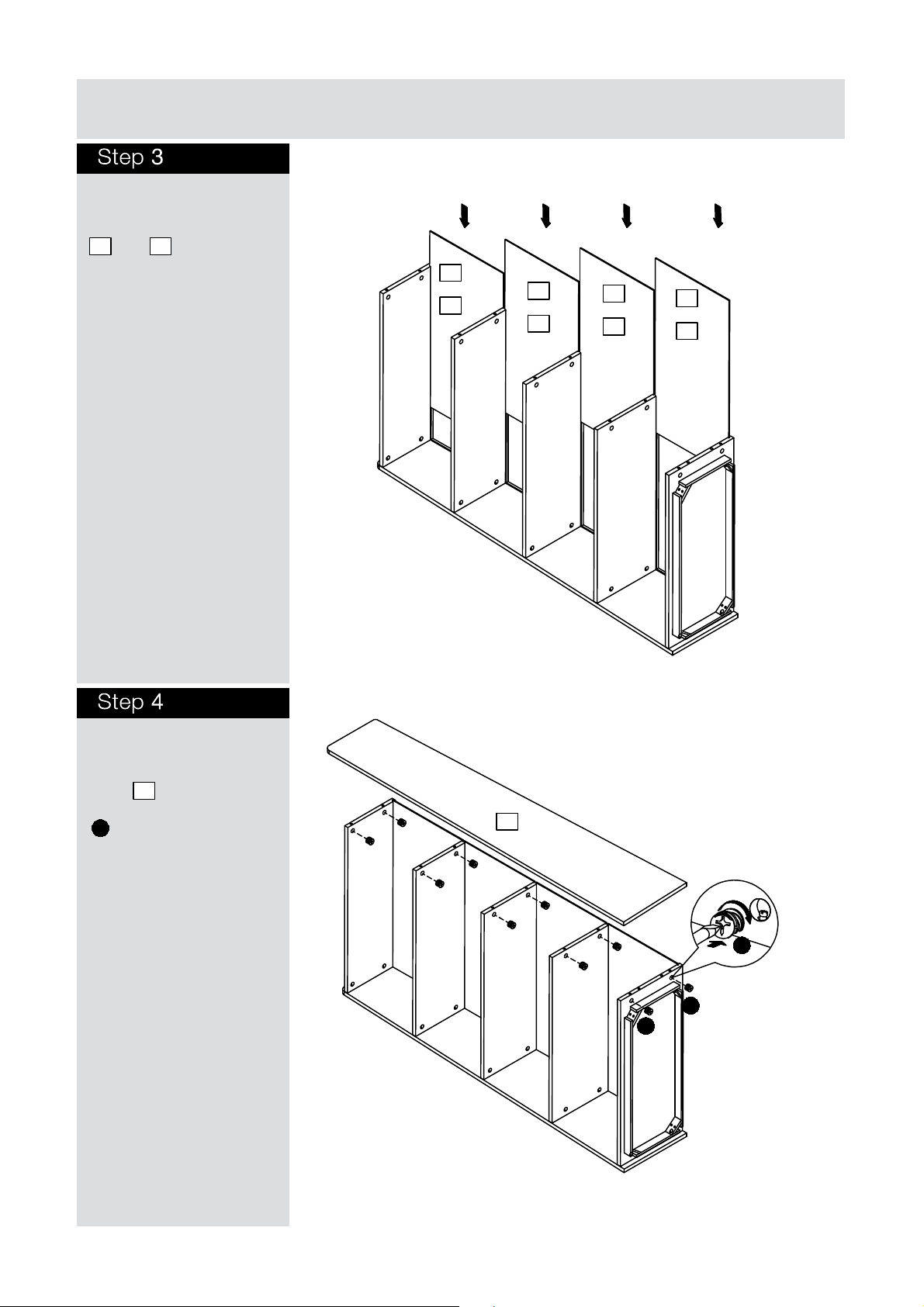

Assembling back panels
Carefully slide back panels
and into the
grooves as shown.
Note: All back panels are
the same size so can be
moved to suit your
required colour
combination.
3
4
Assembling side panel
Carefully locate left side
panel into position and
secure using locking nuts
.
1
B
3
3
3
3
Or
4
Or
4
Or
4
Or
4
B
B
B
1
6
Assembly Instructions
D
E
F
Attaching feet
Assemble feet to base
panel using fixing ,
and .
9
8
D
E
F
9
8
H
G
H
G
Assembly Instructions
7
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
Home Retail Group. 489-499 Avebury Boulevard. Saxon Gate West. Central Milton Keynes. MK9 2NW
It is recommended that
the unit is fixed to the wall
to ensure stability.
Assemble wall straps
to the back edge of top
panel using screws
.
With help, move the unit
to the desired location.
Mark the fixing hole
locations on the wall and
remove the unit.
Drill the wall and fit
suitable plugs for your wall
type.
Note: Wall plugs are not
supplied.
Warning: Before
drilling. Check the wall for
hidden pipes or
cables.Re-position the
unit and secure the wall
straps to the wall.
Note: Screws are not
supplied.
H
G
H
G
10
10
