Argos Capella - 5 Drawer Chest ASSEMBLY INSTRUCTIONS

MADE IN

BRITAIN

Dimensions

Width - 63cm

Depth - 39cm

Height - 90.4cm

Capella - 5 Drawer Chest

Assembly Instructions - Please keep for future reference

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Issue 7 - 21/05/14

Important - Please read these instructions fully before starting assembly

262/0804

267/5660

266/7788

254/9703

227/4061

247/7284

266/5735

274/3877

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Warning: This unit weighs approximately 27kgs. Please lift with care.

• Check you have all the components and tools listed on pages 2 and 3.

• Remove all fittings from the plastic bags and separate them into their groups.

• Keep children and animals away from the work area, small parts could choke if swallowed.

• Parts of the assembly will be easier with 2 people.

• Make sure you have enough space to layout the parts before starting.

• Do not stand or put weight on the product, this could cause damage.

• Assemble the item as close to its final position (in the same room) as possible.

• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).

Care and maintenance

• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.

• From time to time check that there are no loose screws on this unit.

• This product should not be discarded with household waste. Take to your local authority waste disposal centre.

Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.

• We do not recommend the use of power drill/drivers for

inserting screws, as this could damage the unit. Only use hand screwdrivers.

• Safety note: It is recommended that this unit is secured to a wall using the bracket supplied.

• Dispose of all packaging carefully and responsibly.

Components - Panels

Please check you have all the panels listed below

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Left Side (D1011A)

(904 x 390mm)

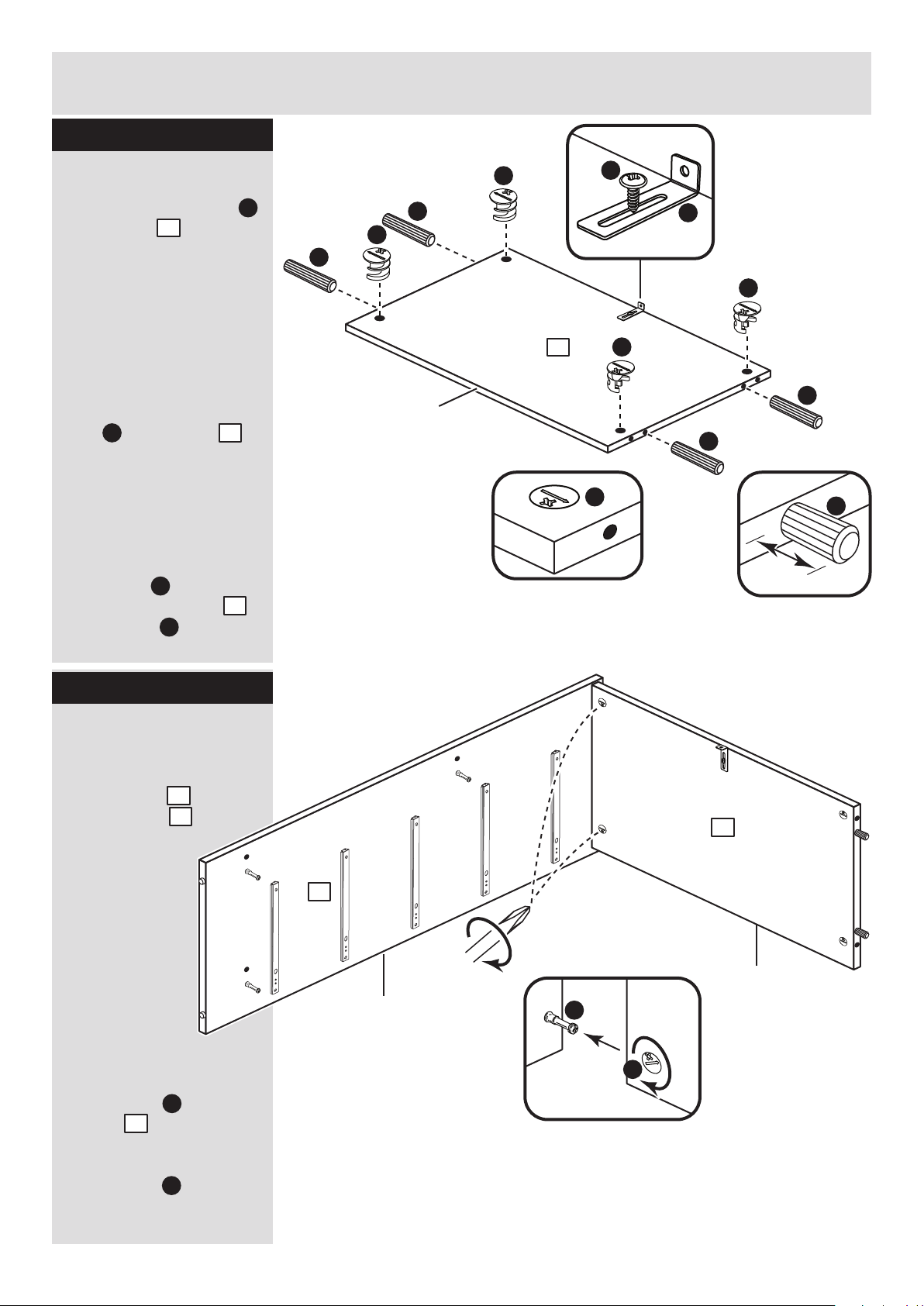

Top (D1008A)

(596 x 369mm)

Drawer Front (D1010A)

(592 x 157mm) x 5

Back (X828A)

(622 x 807mm)

Right Side (D1012A)

(904 x 390mm)

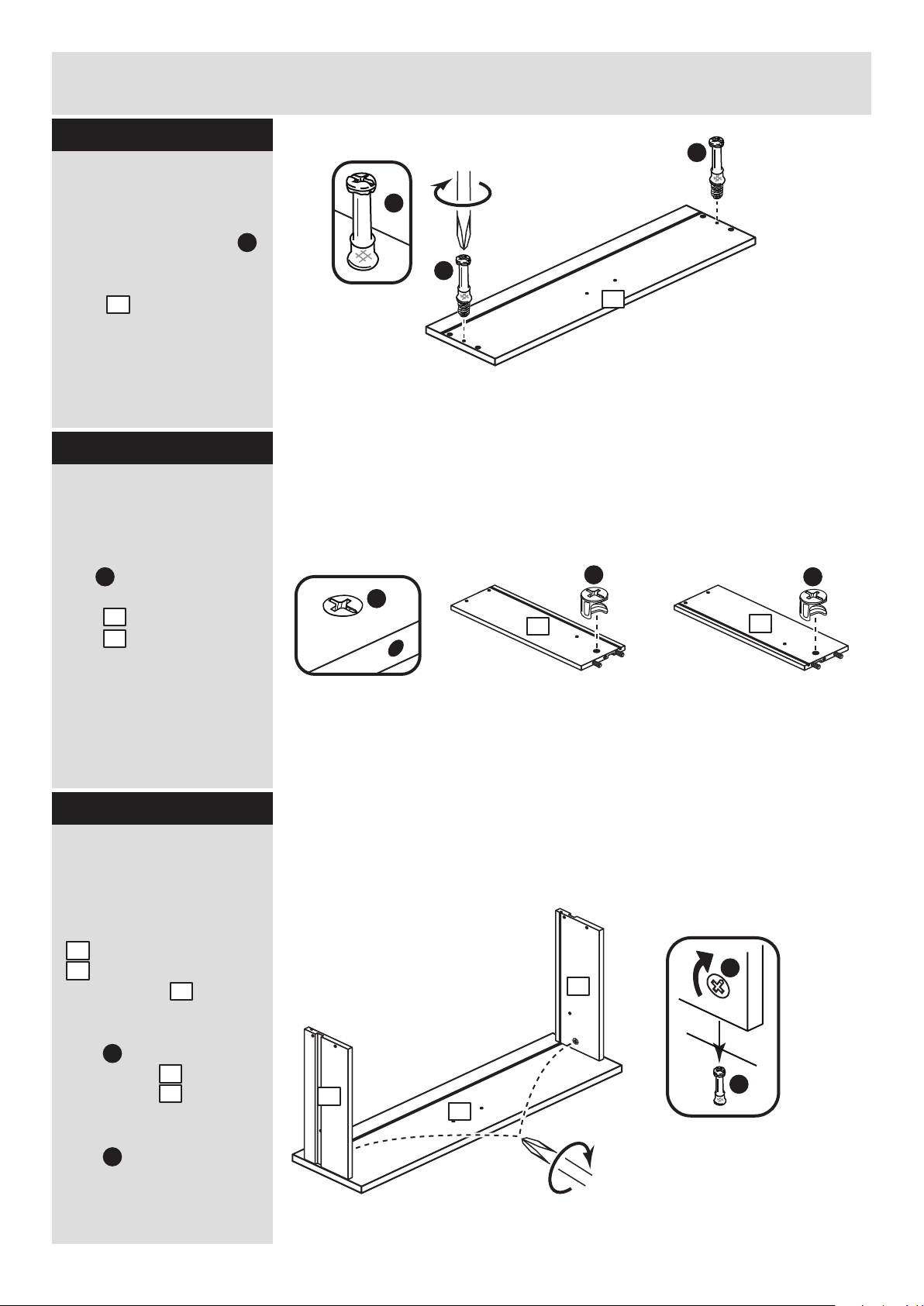

Rail (D1009A)

(596 x 103mm) x 3

Drawer Back (W564 - 124)

(564 x 124mm) x 5

Drawer Base (T575 - 367)

(575 x 367mm) x 5

Left Drawer Side (W370-124LH)

(370 x 124mm) x 5

Right Drawer Side (W370-124RH)

(370 x 124mm) x 5

Please check you have all the fittings listed below

Tools required

Components - Fittings

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

Wooden dowel (F22) x 10

Metal dowel (F901) x 20

D E

Large locking nut (F900) x 10

G H I

Rule Scissors Hammer

Eye protection (when using a hammer or drill)

Cross-head screwdriver

Small locking nut (F3) x 10

Nail (F51) x 16

Ruler - Use this ruler to help correctly identify the screws

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

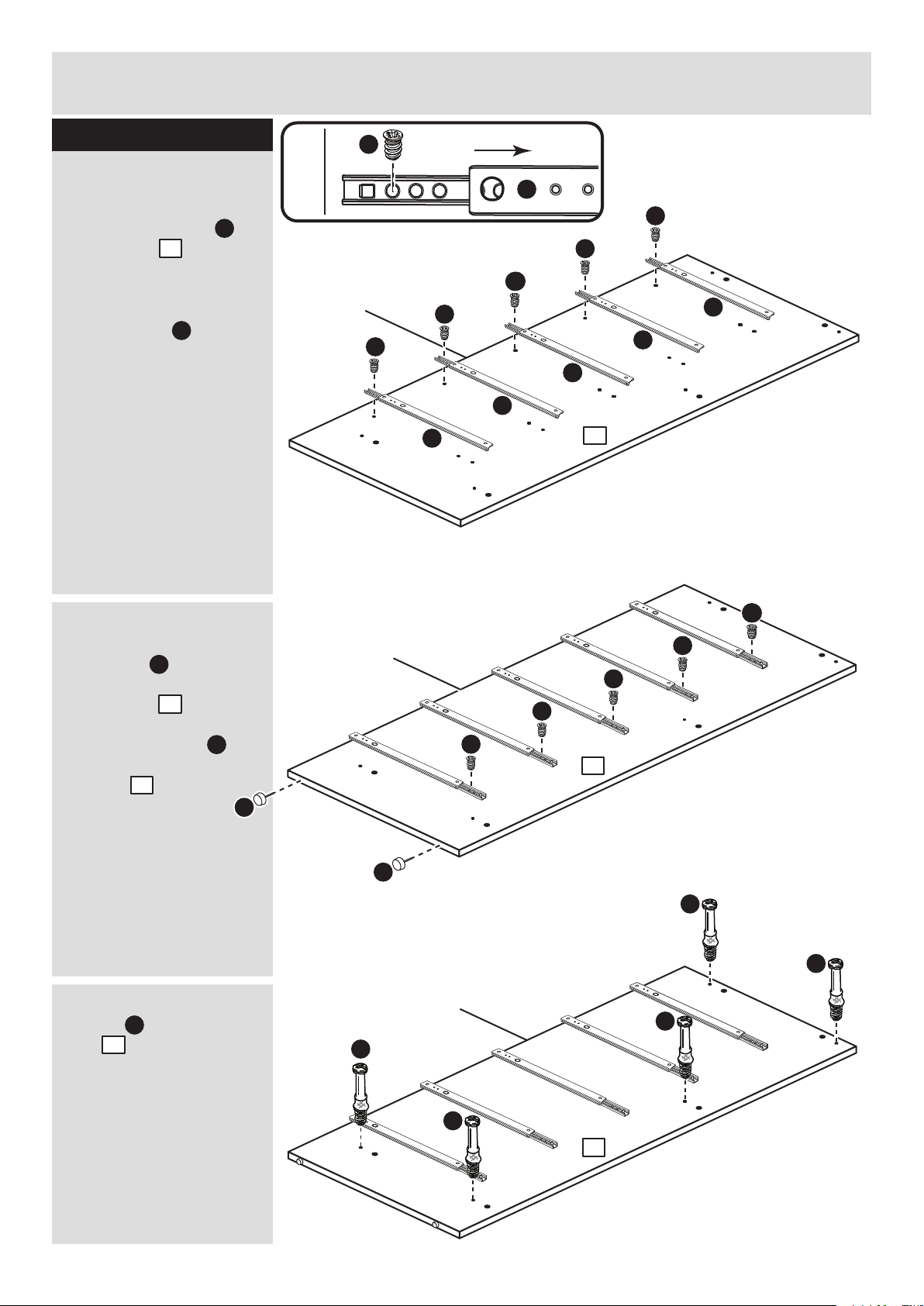

Drawer runner (F1004) x 10 Handle (F930) x 5

25mm Screw (F50) x 10 9mm Screw (F74) x 10 9mm Screw (F73) x 20

L M

13mm Screw (F79) x 1

Bracket (F327) x 1

Knock-in Peg (F171) x 20

Plastic Nail (F91) x 4

Wedgefix (F639) x 20
