Bergen SHELF PACK 150 x 200 x 53cm
Assembly Instructions- Please keep for future reference 247/3532
DR825033
Dimensions
Width - 72.7cm
Depth - 48.8cm
Height - 1.8cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, please visit: www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928
For any other queries please contact the Customer Helpline on: 0345 640 2020
Issue 1 - 03/05/15
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
• To reduce
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Handy Hints
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts
• Regularly check and ensure
tightend properly.
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
2
BCD
A
105

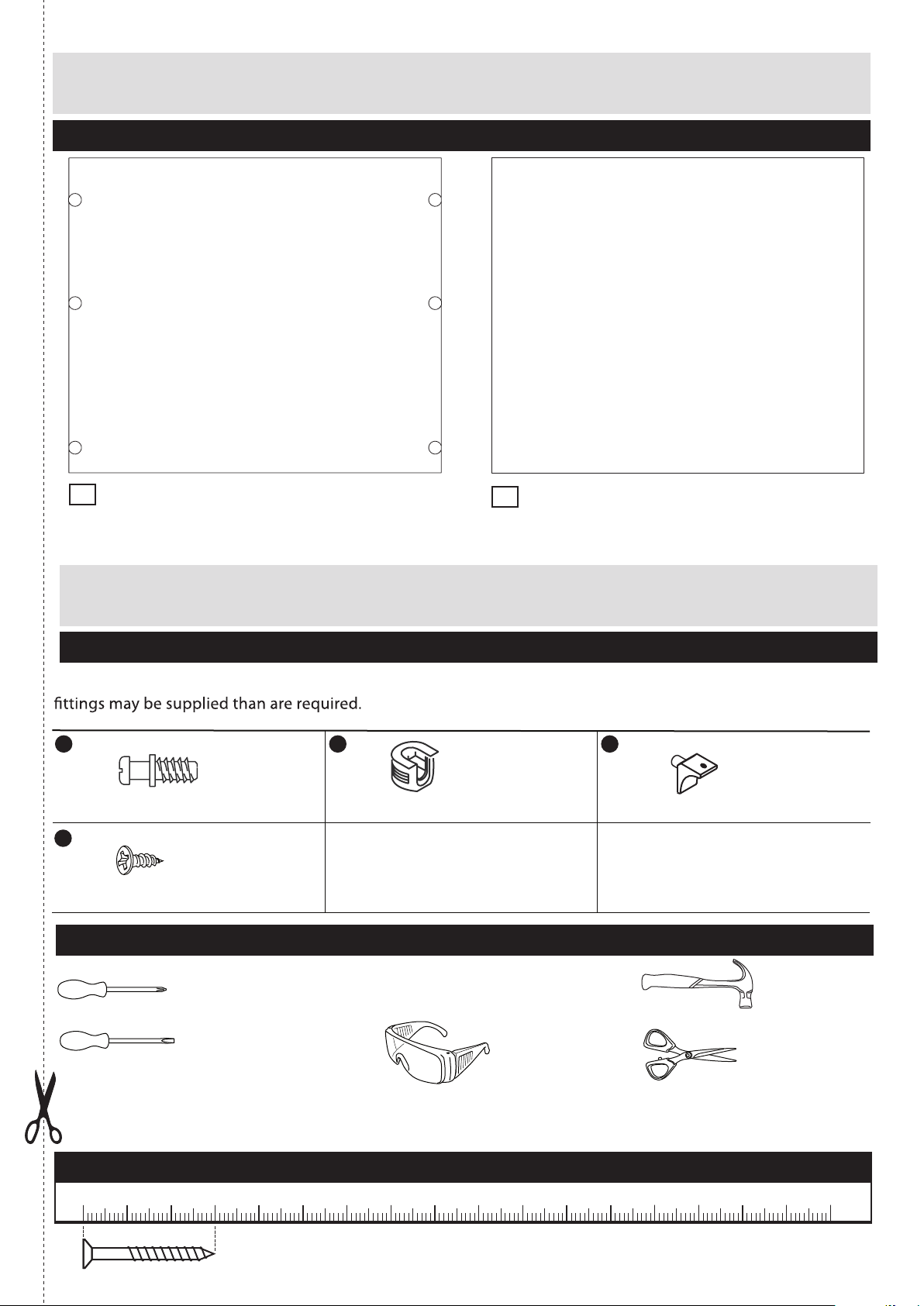

Components - Panels
For damaged or missing parts, please visit:
www.argos-support.co.uk or email: Help@ClickSpares.co.uk
Please check you have all the panels listed below
Horizontal
1
(72.7 x 48.8cm)
P1895
2
Shelf x 2
(72.7 x 48.8cm)
P1894
Components - Fittings
Please check you have all the fittings listed below
Note: The quantiti es below are the correct amount to complete the assembly. In some cases more
Small locking screw x 6
12,5mm Screw x 8
Tools required
Phillips screwdriver
(medium & large)
Flatblade screwdriver
(medium)
FK1056
Cam 20x12mm Expando housing x 6
FK1309
Eye protection
(when using a
hammer or drill)
FK1051
Shelf support with fixinghole x 8
Small
hammer
Scissors
1/1
FK1207
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
The screws length is measured from the head to the point (30mm screw shown).
110 115 120 125 130 135 140 145 150 155 160 165 170
3
Assembly Instructions
A
Step 1
Insert the fittings
a:
change the place of one
hanging-rail as shown.
a:
b:
Insert 6 small locking
screws A as shown.
b:
4
Assembly Instructions
BBBBB
B
1
B
1
1
B
1

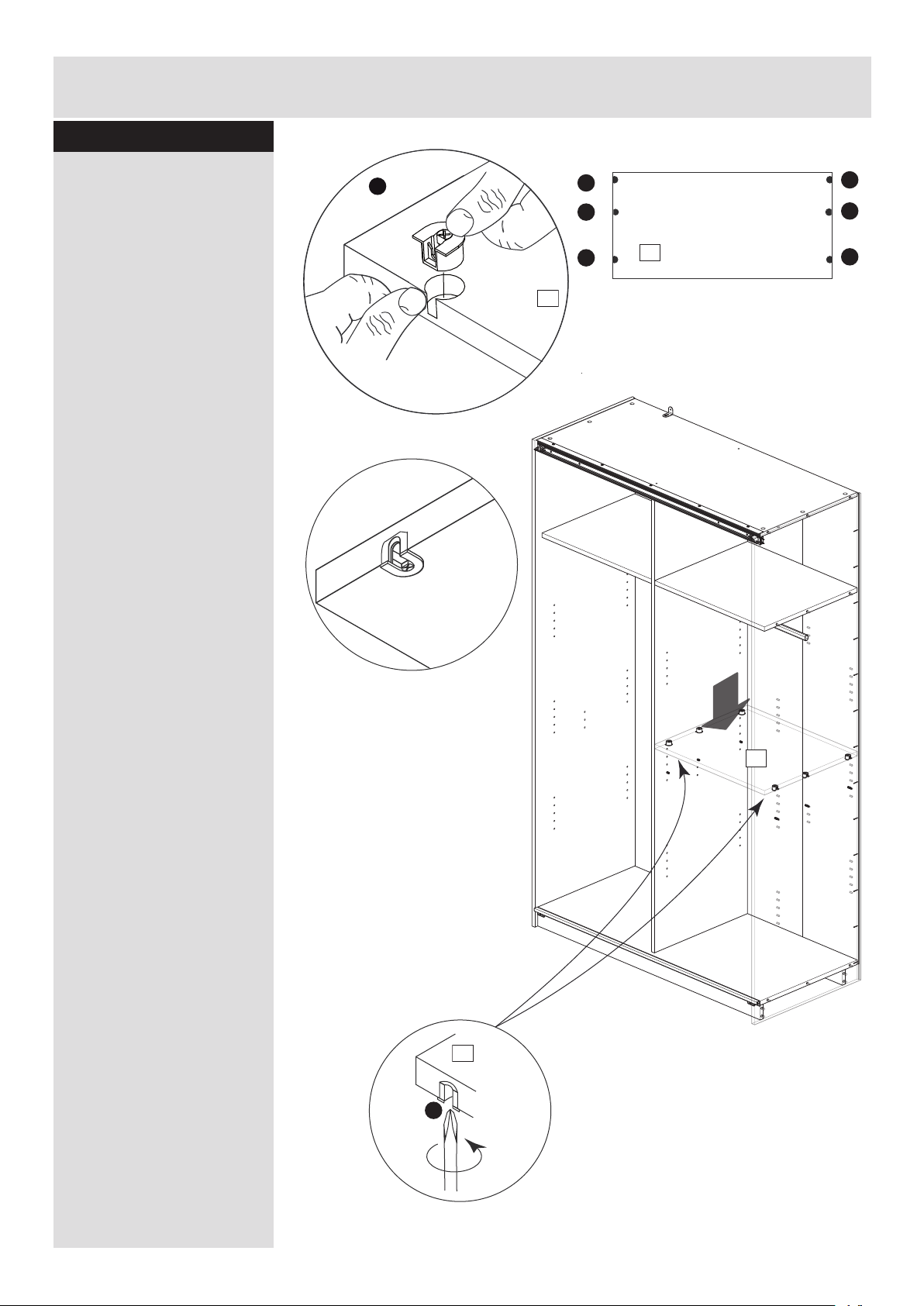

Step 2
Inserting Horizontal
a: Push Cam Expando
housing B into the hole of
the Horizontal 1.
b: Turn Horizontal 1 and
lower it onto the small
locking screws A.
a:
b:
c: Tighten the Cams B
with a Philips screwdriver.
c:
x6
5
Assembly Instructions
2
2
C2C
D
Step 3
inserting shelves
a: Push shelf supports C
in hole as shown.
a:
b:
b: Position shelves 2 onto
shelf supports C and fix by
screwing eight
chipboardscrews D through
shelf supports C into
shelves 2.
6
