eastleigh 4ft 6 frame
Assembly Instructions - Please keep for future reference 258/7507
Dimensions
Width - 148cm
Length - 203cm
Height - 112cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
Issue 1 - 06/06/14
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• During assembly do not stand
or put weight on the product, this
could cause damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
• To reduce the
likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
• Unit weight: 30.6kgs.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Handy Hints
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the
bolts.
• Regularly check and ensure
that all bolts and fittings are
tightend properly.
1
If you have damaged or missing components, call the

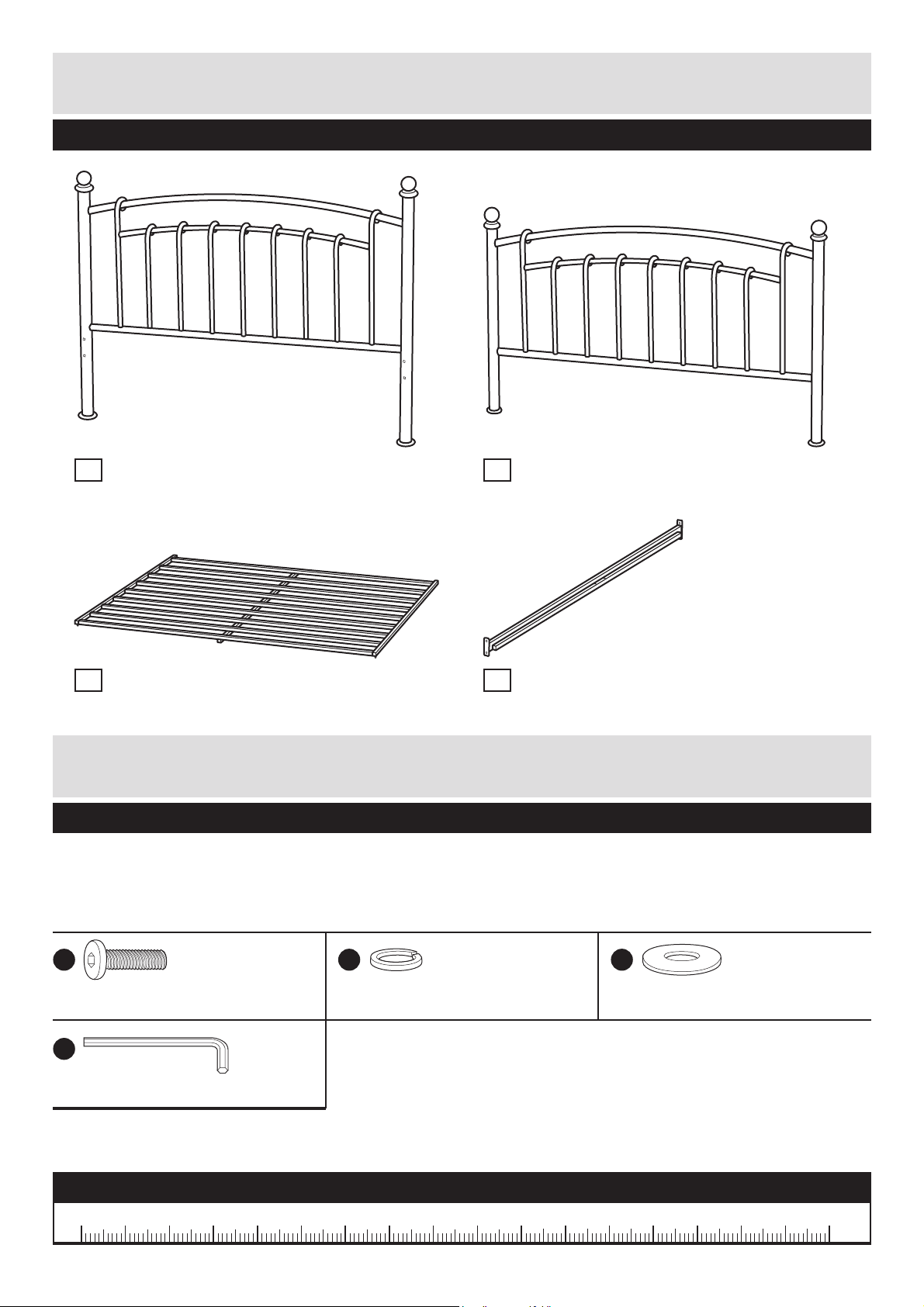

Components - Parts
Customer Helpline: Argos = 0345 640 0800
Please check you have all the parts listed below
1
Headboard
(148 x 112 x 7.5cm)
3
Slat x 2
(137 x 90.5 x 3.2cm)
2
Footboard
(148 x 94 x 7.5cm)
4
Siderail x 2
(190 x 12 x 4.5cm)
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
A
M8 x 25mm Bolt x 8 Spring washer x 8 Plastic washer x 8
D
Allen key x 2
B C
Ruler - Use this ruler to help correctly identify the screws
105
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
110 115 120 125 130 135 140 145 150 155 160 165 170
2
Assembly Instructions
Step 1
Attaching siderails
Position the siderails
on the headboard as
4
1
shown. Align the holes
and fix using bolts ,
spring washers and
flat washers .
C
A
B
Important:
Two persons are
required to hold
on the frames to
assist the
assembly.
Important:
Fasten bolts using
allen key but do
D
not fully tighten at
this stage.
C
B
A
4
B
A
4
1
C
1
C
B
A
C
B
A
4
C
B
A
C
B
A
Step 2
Attaching footboard
Position the footboard
on the siderails as
shown. Align the holes
and fix using bolts ,
spring washers and
flat washers .
Important:
Two persons are
required to hold
on the frames to
assist the
assembly.
4
A
B
C
A
B
2
2
B
C
C
C
B
C
A
A
B
4
A
4
4
2
A
B
C
A
B
C
3
Assembly Instructions
Step 3
Attaching slats
Place the slats on top
of the siderails . Align
and insert dowels on the
slats into holes on
siderails as shown.
Important:
Two persons are
required to lift the
slats.
3
4
3
3
4
3
4
3
4
Important:
Fully tighten all
the bolts at this
stage using allen
D
key .
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
4
