MADE IN
BRITAIN
Dimensions
Width - 123cm
Arvika - 3 Door Mirror Robe
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 2 - 16/12/14
Important - Please read these instructions fully before starting assembly
335/9789
346/6531
Depth - 49.5cm
Height - 186.5cm
Components - Panels
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 83.5kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 1, 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.

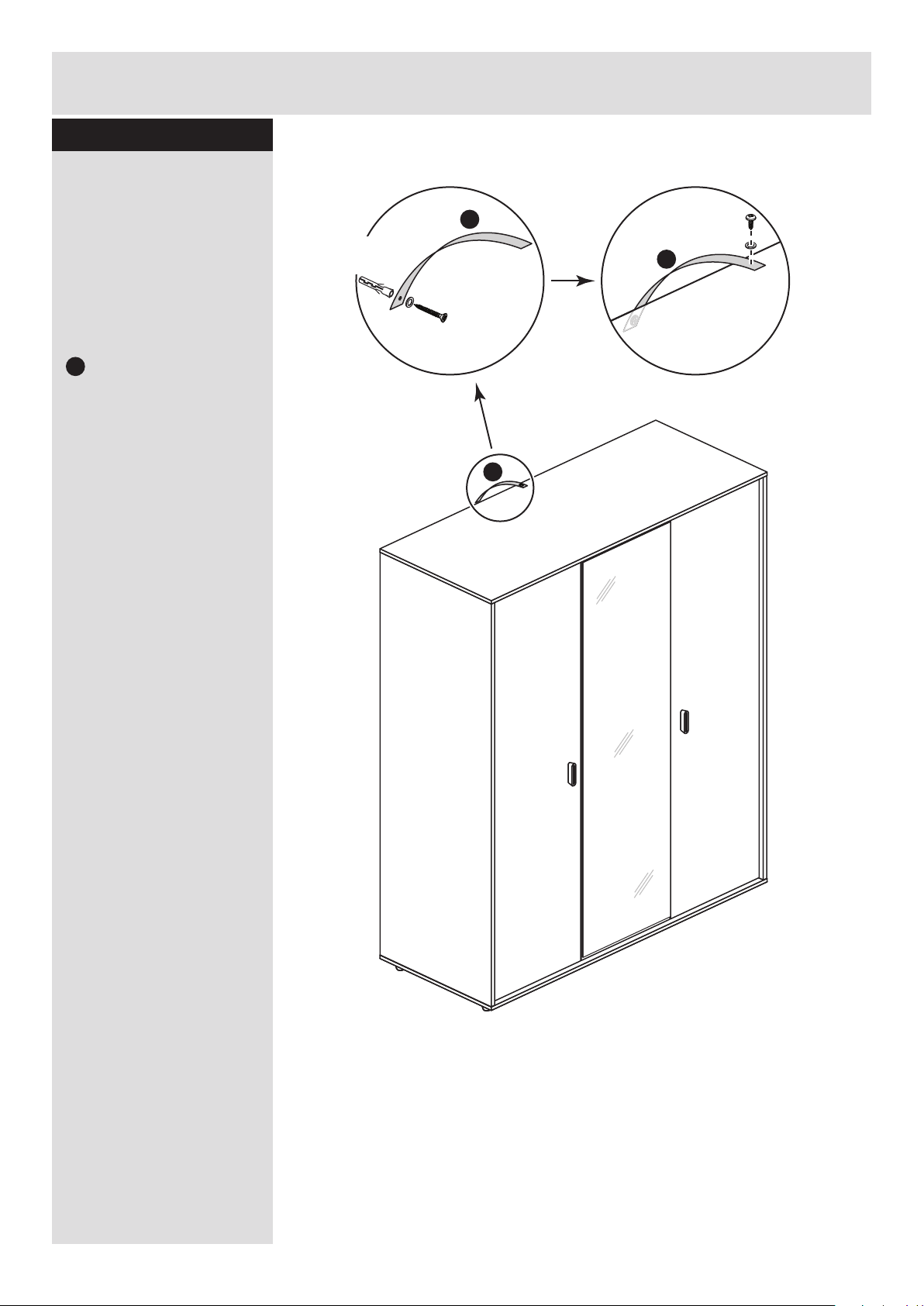

• Safety note: It is
recommended that this unit is
secured to a wall using the
overbalance kit supplied.
• Dispose of all packaging
carefully and responsibly.
1
2 3
Left Side (DF917)
(1791 x 494mm)
Right Side (DF1893)
(1791 x 494mm)
Divider (DF1892)
(1791 x 464mm)
Please check you have all the panels listed on pages 1 and 2
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Components - Panels
2
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Horizontal (DF1420)
(797 x 464mm)
Shelf (DF1894)
(382 x 463mm) x 3
Top (DF1891)
(1226 x 495mm)
Base (DF1965)
(1226 x 495mm)
7
8
4 5
Hanging Rail (FHR791)
(791mm long)
6
9 10
Right Door (DF3010)
(1785 x 394mm)
Left Door (DF920)
(1785 x 394mm)
Mirror Door (DF3011)
(1785 x 394mm)
Mirror - SG27
1755 x 388mm
Safety Back SAR
11
Small Back (X1817-401)
(1817 x 401mm)
Large Back (X1817-816)
(1817 x 816mm)
12 13
Please check you have all the panels listed on pages 1 and 2
Please check you have all the fittings listed below
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
A B
D
H I
L
C
Nail (F51) x 40
G
40mm Screw (F910) x 17
J K
N
Large locking
nut (F900) x 4
Metal dowel (F901) x 4 Wooden dowel (F22) x 16
M
O
19mm Screw (F461) x 4
13mm Screw (F63) x 22
Handle (F336) x 2
Leg (F334) x 5
Rail Holder
(F891) x 2
P
Hinge plate
(F523) x 9
Hinge (F522) x 9
Strap
Screw Washer x 2
Overbalance protector kit (F269) x 1
Shelf stud (F110) x 12
E
F
Nail screw (F277) x 6
Back holder (F276) x 6
* These can also be round
Tools required
Rule
Scissors
Spirit
level
Hammer Bradawl
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Step
ladder
Electric drill
(only use
when drilling
into walls)
Square
mm
10
20
30
40
50
60
70
80
90
100
mm
10
20
30
40
50
60
70
80
90
100
C
C
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below

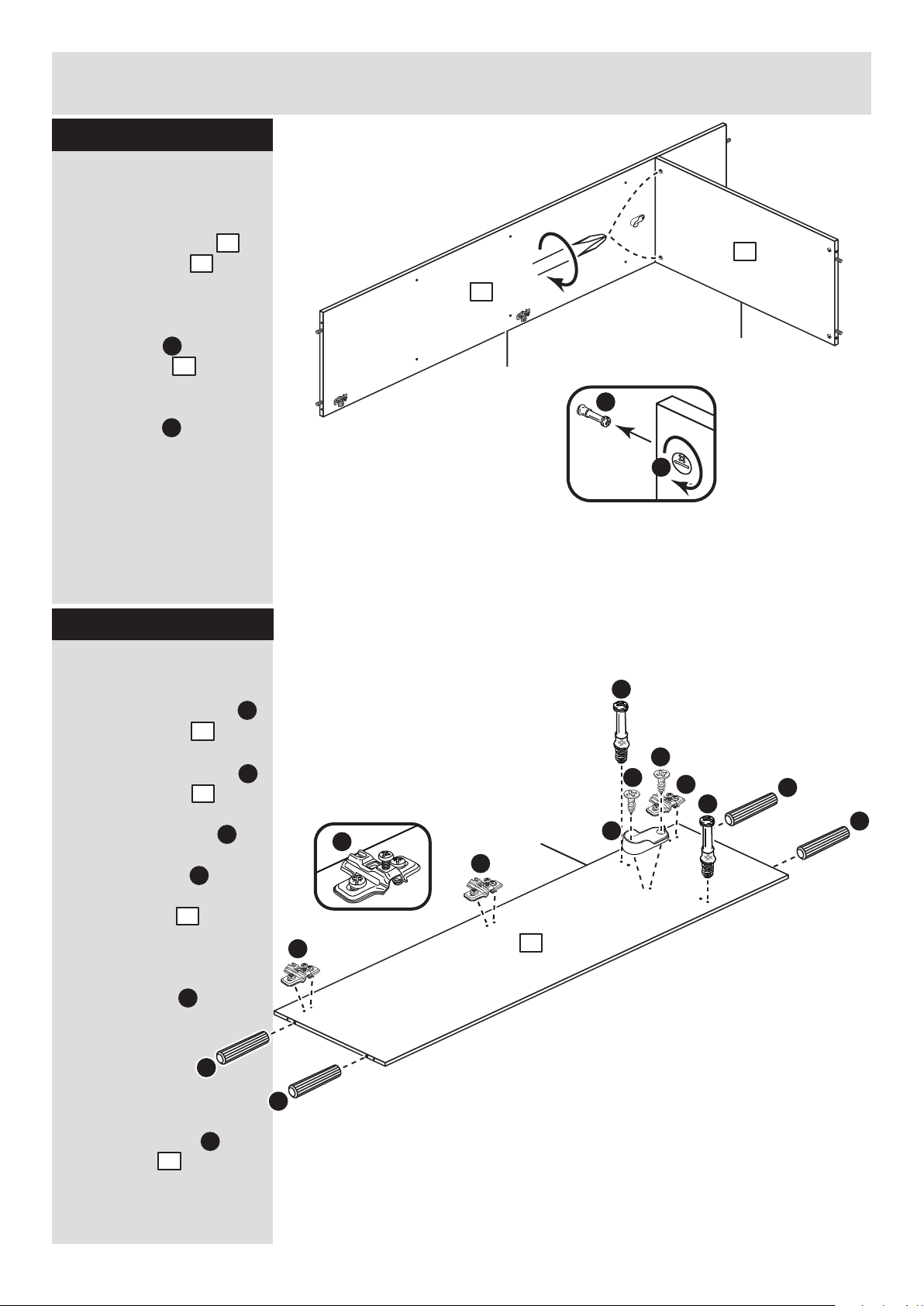

Step 1
Finished
front edge
P
P
P
P
A
A
Prepare the divider
Screw 2 metal dowels
into the divider .
Tap 4 wooden dowels
into the divider .
To fit the rail holder ,
screw through the top
hole with screw and
into the mark hole drilled
in the divider . Make
sure that it is fitted
straight, in line with the
panel edges and then fit
another screw using
the lower hole.
Fit 3 hinge plates onto
the divider , making
sure that the slot is
facing towards the
finished front edge.
K
J
J
3
3
A
P
3
C
C
10mm
C
J
K
K
J
J
K
J
C
3
3
C
C
C
B
B
B
B
C
B
Prepare the horizontal
Insert 4 large locking
nuts into the
horizontal .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Tap 4 wooden dowels
into the horizontal .
B
C
4
4
Step 2
Finished
front edge
4
C
C
Finished
front edge
P
Finished
front edge
Assembly Instructions
5
Step 3
Step 4
Finished
front edge
5
Fit the horizontal to
the divider
Push the horizontal
onto the divider .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the horizontal .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
3
4
B
B
4
A
B
P
P
P
A
J
K
J
C
C
A
Prepare the left side
Screw 2 metal dowels
into the left side .
Tap 4 wooden dowels
into the left side .
To fit the rail holder ,
screw through the top
hole with screw and
into the mark hole drilled
in the left side . Make
sure that it is fitted
straight, in line with the
panel edges and then fit
another screw using
the lower hole.
Fit 3 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
K
J
J
1
1
A
P
1
C
1
1
3
G
Finished
front edge
Assembly Instructions
6

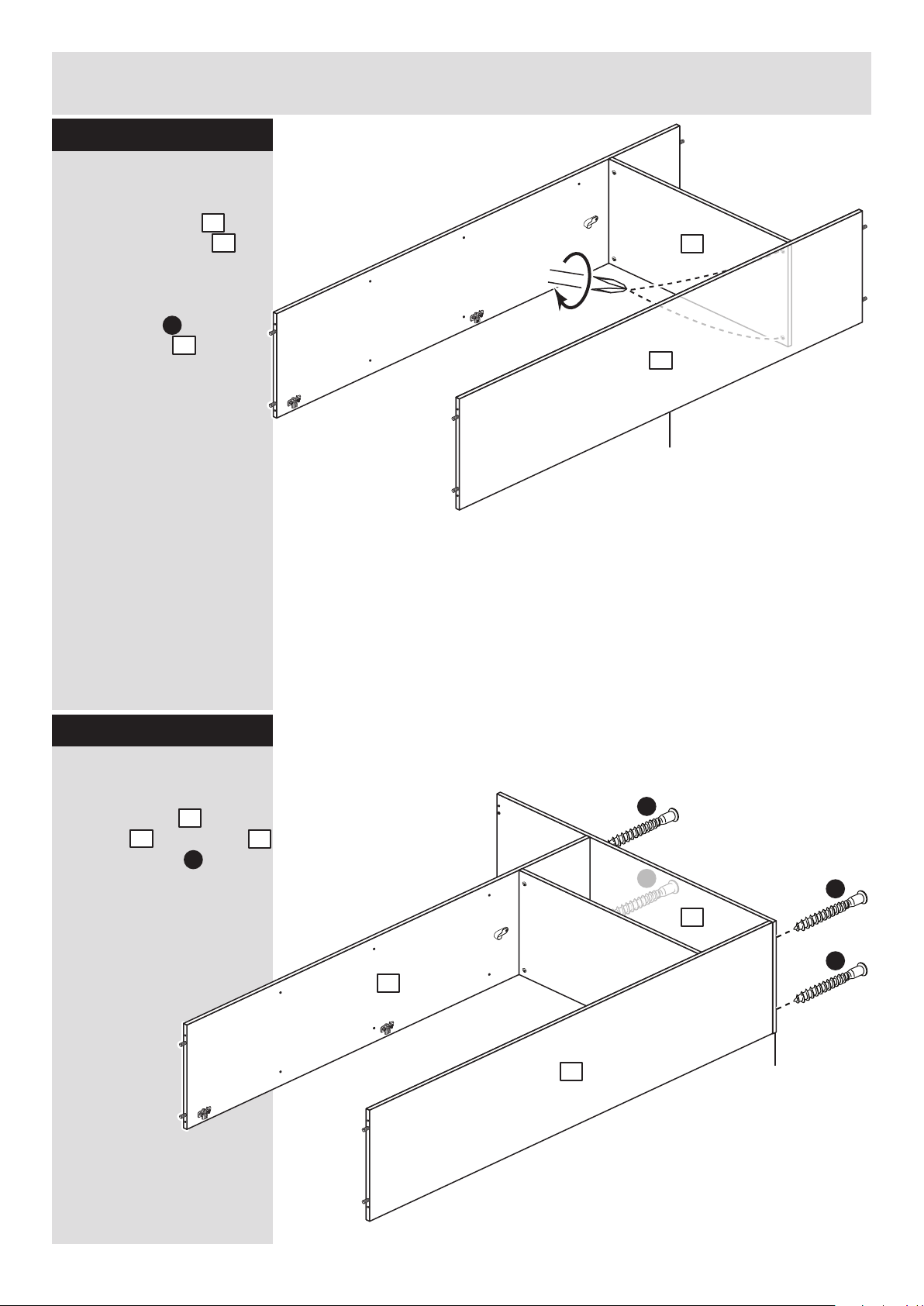

Step 5
Fit the left side
Push the left side
onto the horizontal .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the horizontal .
4
1
B
G
4
4
1
1
Finished
front edge
G
G
Fit the top
Attach the top to the
left side and divider
using 4 screws .
G
7
1
3
Note: The top panel has been finished on both surfaces.
The base panel only has 1 finished suface.
Step 6
7
3
G
G
C
C
Assembly Instructions
7
Step 7
Finished
front edge
P
P
P
C
C
Prepare the right side
Tap 4 wooden dowels
into the right side .
Fit 3 hinge plates onto
the right side , making
sure that the slot is
facing towards the
finished front edge.
P
C
2
2
2
Fit the right side
Attach the right side
to the top using 2
screws .
G
2
7
Step 8
2
7
Assembly Instructions
8
Step 9
Step 10
Fit the feet
Attach the 5 feet to
the base using 5
screws .
N
G
8
Finished
front edge
2
Fit the base
Attach the base to
the left side , right
side and upright
using 6 screws .
G
8
1
2 3
G
G
G
G
G
G
1
3
Finished
front edge
N
N
N
N
N
8
plain
chipboard
surface
8
G
G
yy
xx
yy
Assembly Instructions
9
Step 11
Fit the back panels
a: Square up the unit by
making sure that
measurement x:x equals
y:y.
Place the small back
and large back down,
onto the unit as shown.
Make sure that the 2
backs are pushed up
tight against each other
and that they meet in the
centre of the divider’s
back edge.
b: Nail around the
outside edges of the 2
backs.
Note: Do not nail where
the 2 backs meet and
nails should be spaced
about 150mm apart.
c: Push the 6 nail
screws through the 6
back holders and tap
them down between the
small back and large
back and into the
back edge of the divider
. .
Keep tapping the nail
screws in until the
back holders dig into
the small and large back.
Carefully stand the
unit up for the next
step.
12
13
D
E
F
12
13
3
E
F
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
Note: If ever you need to take
the backs off to dismantle the
unit, the nail screws can be
taken out using a screwdriver.
E
F
xx
c:
E
F
12
13
F
FE
+
Note: These can
also be round
b:
D
12
13
Warning: The
unit is heavy.
Lift with care.
Assembly Instructions
10

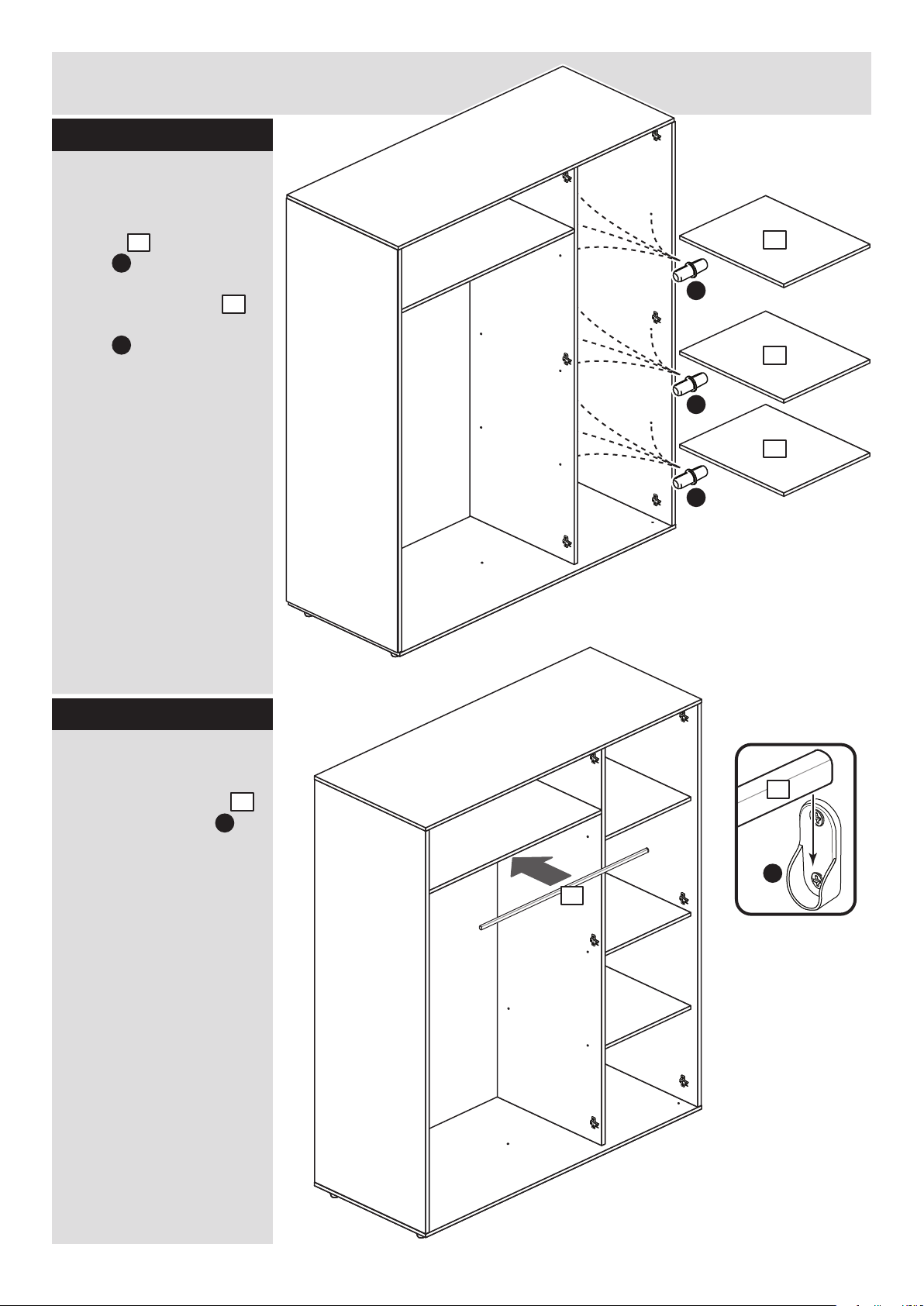

Step 12
I
x 4
I
x 4
I
x 4
5
5
5
Fit the shelves
For each of the 3
shelves , insert 4 shelf
studs .
Lower the 3 shelves
down onto the shelf
studs .
I
5
I
5
6
K
Fit the hanging rail
Push the hanging rail
into the rail holders .
6
K
Step 13
6
Assembly Instructions
9
Step 14
Step 15
Prepare the left and
right doors
Push fit 3 hinges into
the left door and the
right door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
J
O
9
10
90
O
O
J
J
O
J
J
O
J
J
Prepare the mirror
door
Push fit 3 hinges into
the mirror door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
J
O
11
9
Warning:
Glass! Handle
with care
O
J
J
O
J
J
O
J
J
10
O
J
J
O
J
J
O
J
J
11
Assembly Instructions
12
Step 16
Fit doors and handles
Note: The easiest way to
attach each door , .
and is to fit the top
hinge first, then align and
fit the other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
the left door and the
right door using
screws .
O
O
O
P
P
P
O
P
M
H
9 10
11
9
10
a: b:
c: d:
P
O
P
P
B
P
O
O
O
A
O
P
B
e:
10
11
9
M
Warning:
Glass! Handle
with care
H
H
M
Note: To differentiate
between the left and right
door, the handles are
positioned just below the
centre of the door.
Assembly Instructions
Step 17
b:
c:
d:
a:
Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
A
A
B
C
13
Assembly Instructions
12
Step 18
Fit the overbalance
protector
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall by use of the
overbalance protector kit
. fitted to the unit or, an
alternative fixing method
of your choice.
Wall fixings are not
supplied as they will
need to suit the wall
type.
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
L
L
WALL
Wall fixing
(not supplied)
Screw
(not supplied)
Washer
Strap
L
Strap
Washer
Screw
TOP OF UNIT
L
Assembly Instructions
ALR3116
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 19
Assembly is complete
IMPORTANT INFORMATION ABOUT THIS PRODUCT
This product complies with the requirements of BS 7449:1991 and has been manufactured by
DECORATIVE PANELS FURNITURE LTD, TEESSIDE INDUSTRIAL ESTATE,
THORNABY-ON-TEES, CLEVELAND, TS17 9LT
.
The product code for this unit and the item code(s) for the glass components are listed in the Assembly
Instructions along with a description of the type of glass used. All clear/tinted glass complies with the
requirements of BS 6206 Class A. All mirrors comply with the requirements of BS 6206 Class C. If the
glass component contained in this unit is chipped or broken consult the furniture manufacturer, retailer,
or agent with regard to obtaining a manufacturing specification and shape for replacement glass
quoting the unit description and batch number or date of manufacture.
Do not place very hot or very cold items against or in close proximity to glass surface(s) unless
adequately thick insulating material is used to prevent such items coming in contact with the glass.
Do not strike the glass with hard or pointed items.
Do not sit or stand upon horizontal glass surfaces.
When cleaning glass panels use a damp cloth or leather with washing up liquid or soft soap if
necessary - do not use washing powders or any other substance containing abrasives since these
substances scratch glass.
If stated in the instruction leaflet, it is essential that this unit is fixed to a wall.
KEEP THESE INSTRUCTIONS FOR FUTURE USE
Loading...
