Safety and Care Advice
Product Details
Suki Corner TV Unit 940/7879, 609/7426, 392/4970
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough space
to layout the parts before
starting.
• This product has been
constructed to be used in the
domestic environment only and
not for commercial purposes.
Care and maintenance
Only clean using a damp cloth
and mild detergent. Do not use
abrasive cleaners.
Use a dry cloth to clean the
product, furniture polish is
not recommended.
Assemble the item as close
room) as possible.
Assemble on a soft level
surface to avoid damaging the
• From time to time check that there
are no loose screws, nuts or bolts.
If there are please re-tighten.
We do not
recommend the
use of power
drill/drivers for
inserting screws
as this could damage the unit.
Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
WARNING
In order to prevent overturning this product must be used with the wall attachment device provided.
Additional Guidance
● Assemble all parts and bolts loosely during assembly, only once the product is complete should you
fully tighten the bolts.
● Regularly check and ensure that all bolts and fittings are tighten properly.
●
This product is compliant BS4875-7 level 3
Sainsbury's Argos is a trading name of both: Argos Limited, Registered office: 489-499 Avebury Boulevard, Milton Keynes, United
Kingdom, MK9 2NW, registered number: 01081551 (England and Wales); and Sainsbury's Supermarkets Limited, Registered
office: 33 Holborn, London, EC1N 2HT, registered number: 03261722 (England and Wales). Both companies are subsidiaries of J
1
Page 3

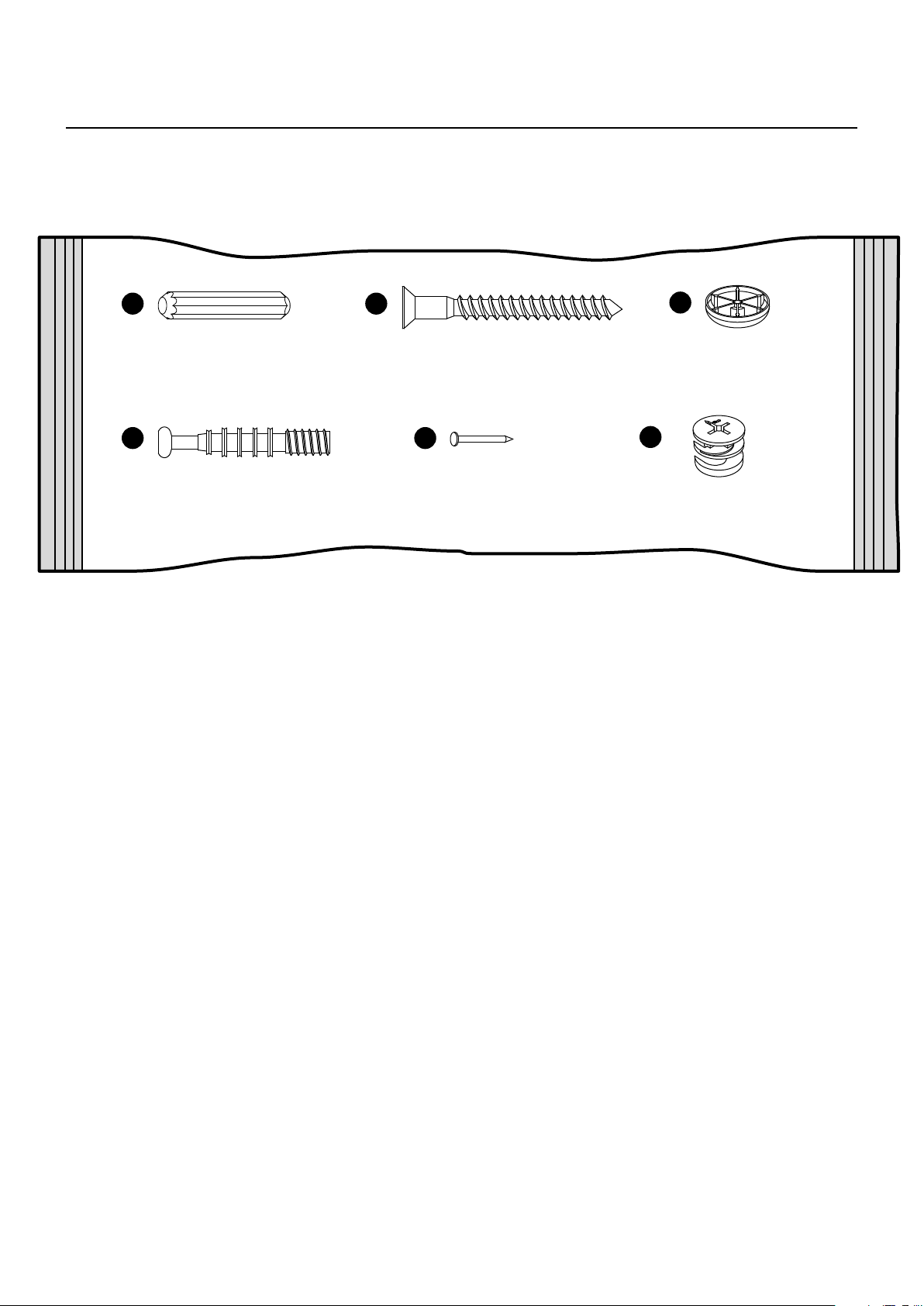

Fittings (Shown to scale)
Bag 1
A
6 x 30mm Dowel x 8
D
7 x 39mm Locking Pin x 6
B
5 x 50mm Screw x 18
E
1.2 x 20mm Nail x 6
C
Foot x 4
F
15 x 12mm Locking Nut x 6
2
Page 4

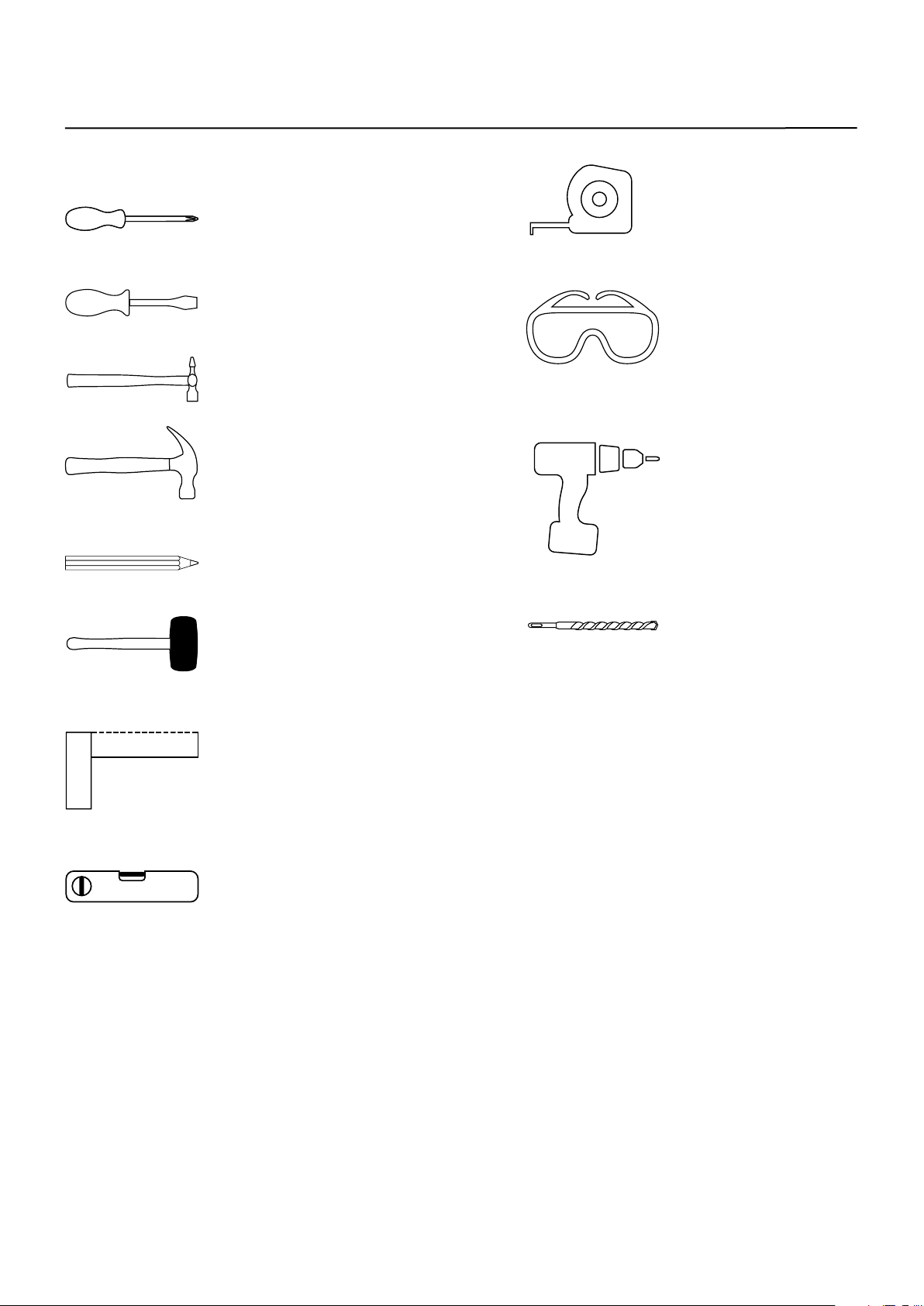

Tools required
Phillips screwdriver
(small & medium)
Phillips screwdriver
(small & medium)
Small
hammer
Large hammer
Pencil
Mallet
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
Power Drill
Drill Heads
Set Square
Spirit Level
3
Page 5

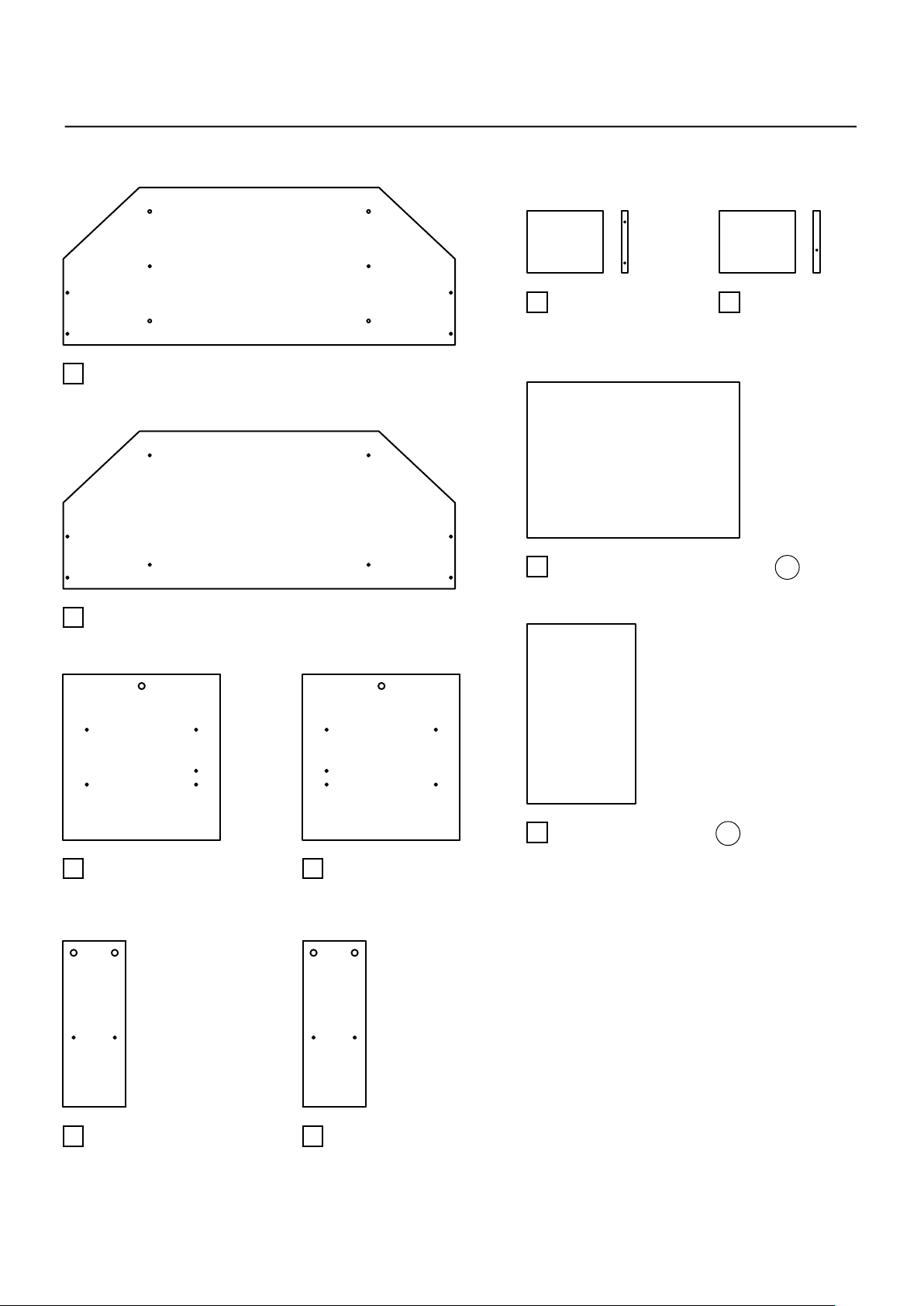

Panels
1
Top (916 x 368mm)
2
Bottom (916 x 368mm)
7
Right Shelf
(177
x 145mm)
9
Middle Shelf (496 x 366mm)
8
Left Shelf
(177
x 145mm)
x2
3
Middle Right
(367
x 386mm)
5
Right Side
(147
x 386mm)
4
Middle Left
(367
6
Left Side
(147
x 386mm)
x 386 mm)
10
Back (192 x 386mm)
x2
4
Page 6

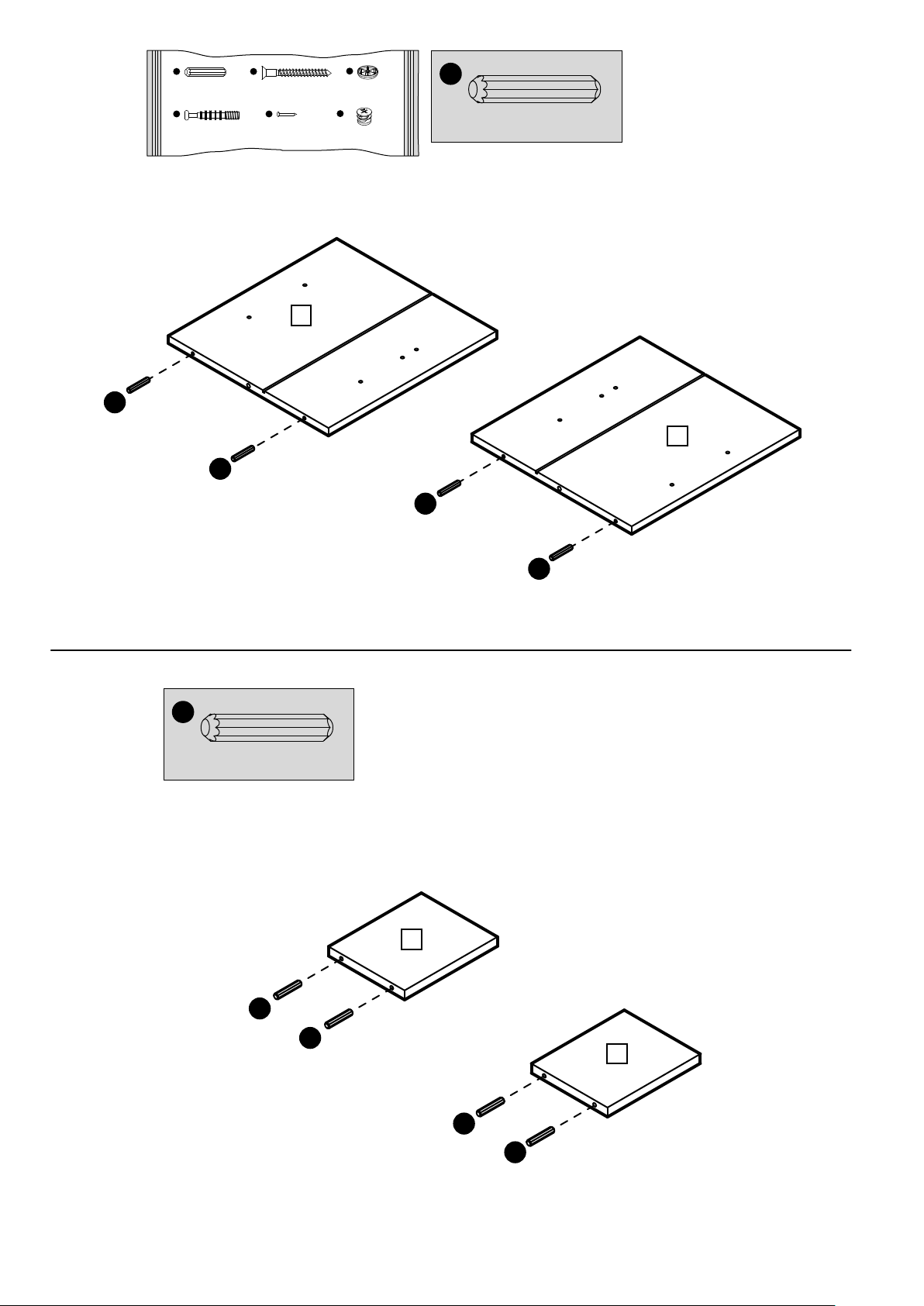

1
A
A
6 x 30mm Dowel x 8
D
7 x 39mm Locking Pin x 6
A
B
5 x 50mm Screw x 18
E
1.2 x 20mm Nail x 6
3
C
Foot x 4
F
15 x 12mm Locking Nut x 6
A
6 x 30mm Dowel x 46 x 30mm Dowel x 4
4
A
2
A
A
6 x 30mm Dowel x 46 x 30mm Dowel x 4
7
A
A
8
A
A
5
Page 7

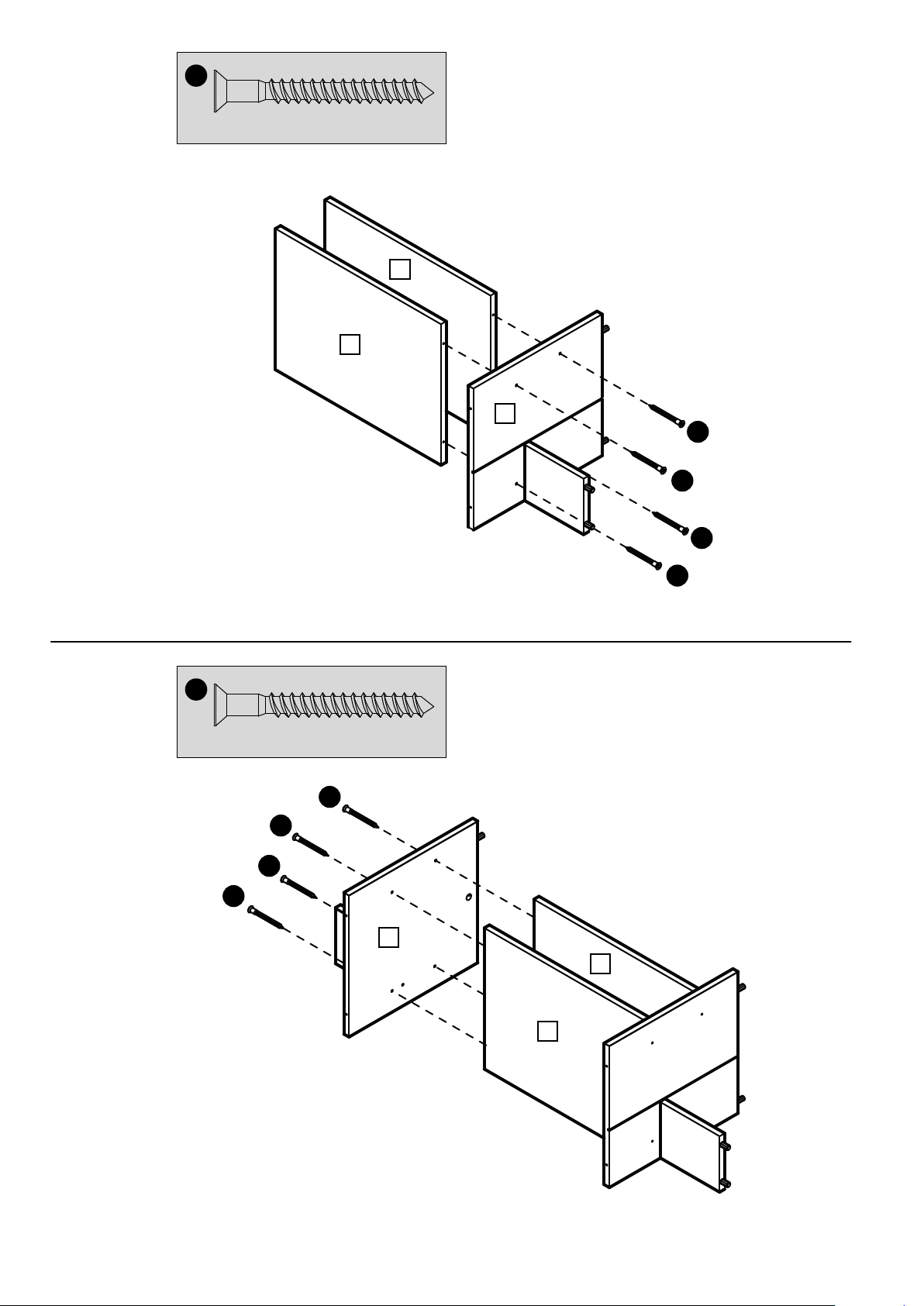

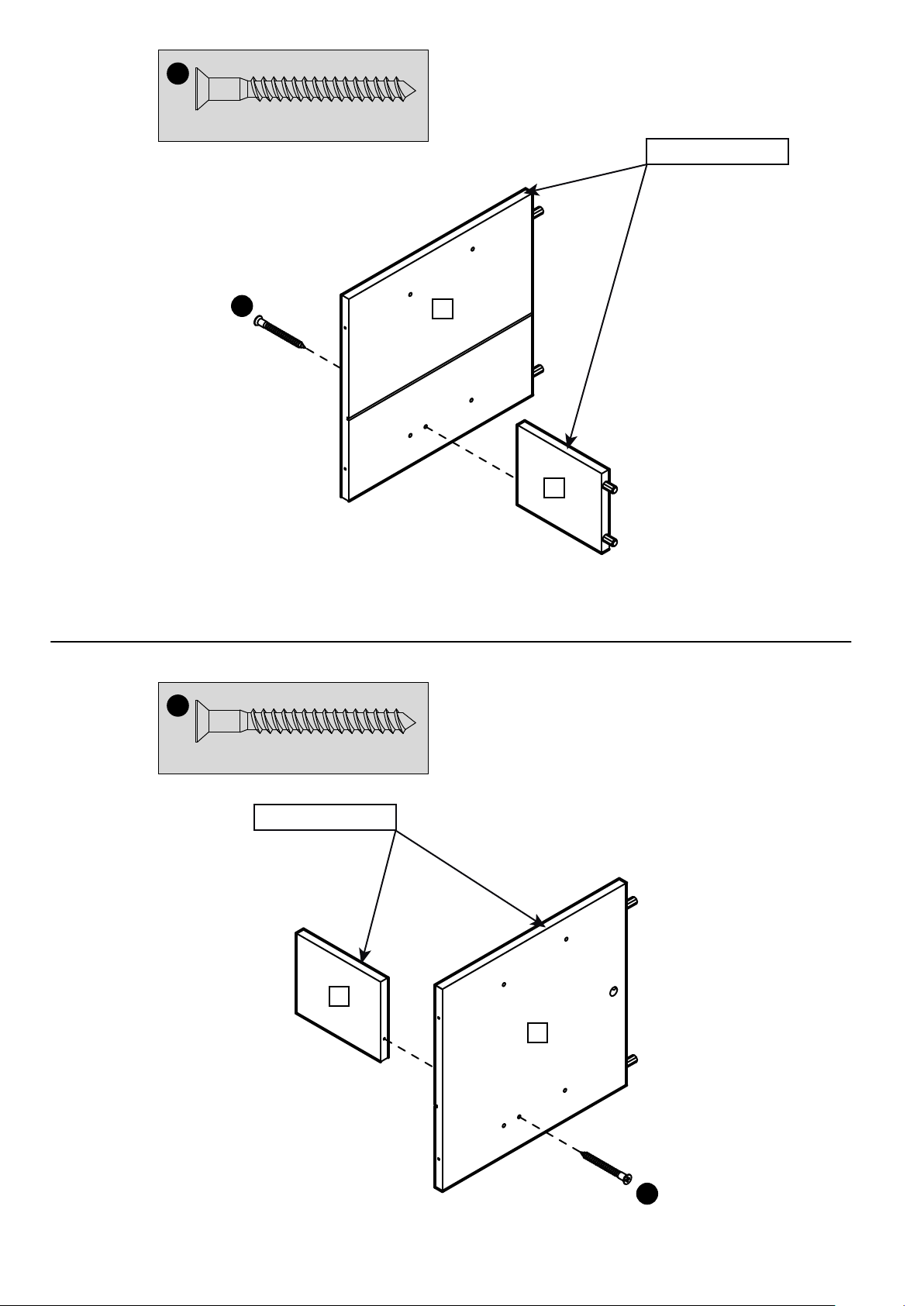

B
3
5 x 50mm Screw x 15 x 50mm Screw x 1
B
B
Unfinished edge
4
8
4
B
5 x 50mm Screw x 15 x 50mm Screw x 1
Unfinished edge
7
3
B
6
Page 8
B
5
5 x 50mm Screw x 45 x 50mm Screw x 4
9
9
4
B
B
B
B
6
B
5 x 50mm Screw x 45 x 50mm Screw x 4
B
B
B
B
3
9
9
7
Page 9

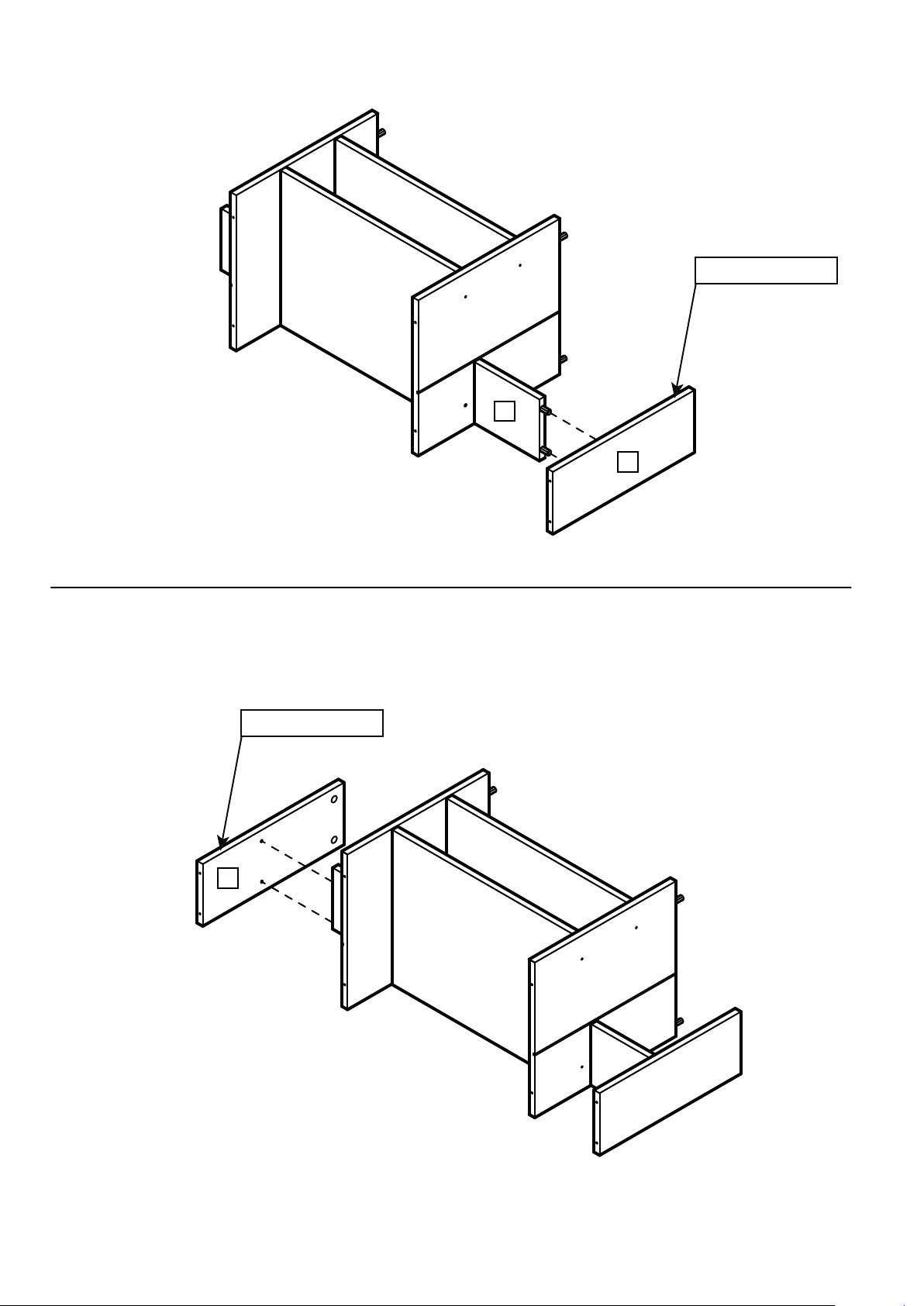

7
Unfinished edge
8
6
8
Unfinished edge
5
8
Page 10

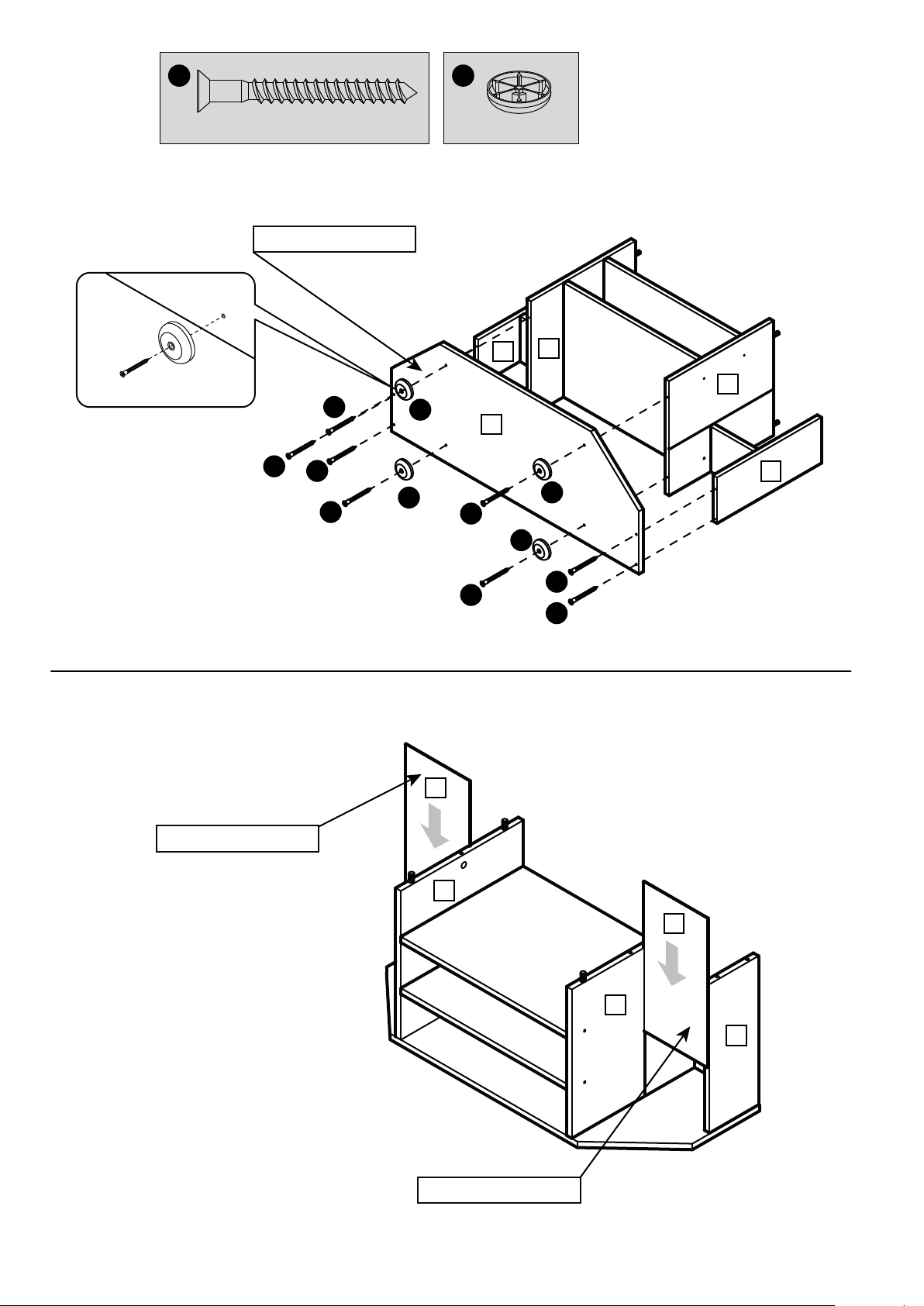

B
C
9
5 x 50mm Screw x 85 x 50mm Screw x 8
Unfinished surface
B
Foot x 4Foot x 4
3
5
4
B
B
B
C
C
2
6
C
B
C
10
Unfinished surface
B
B
B
10
3
10
4
Unfinished surface
6
9
Page 11

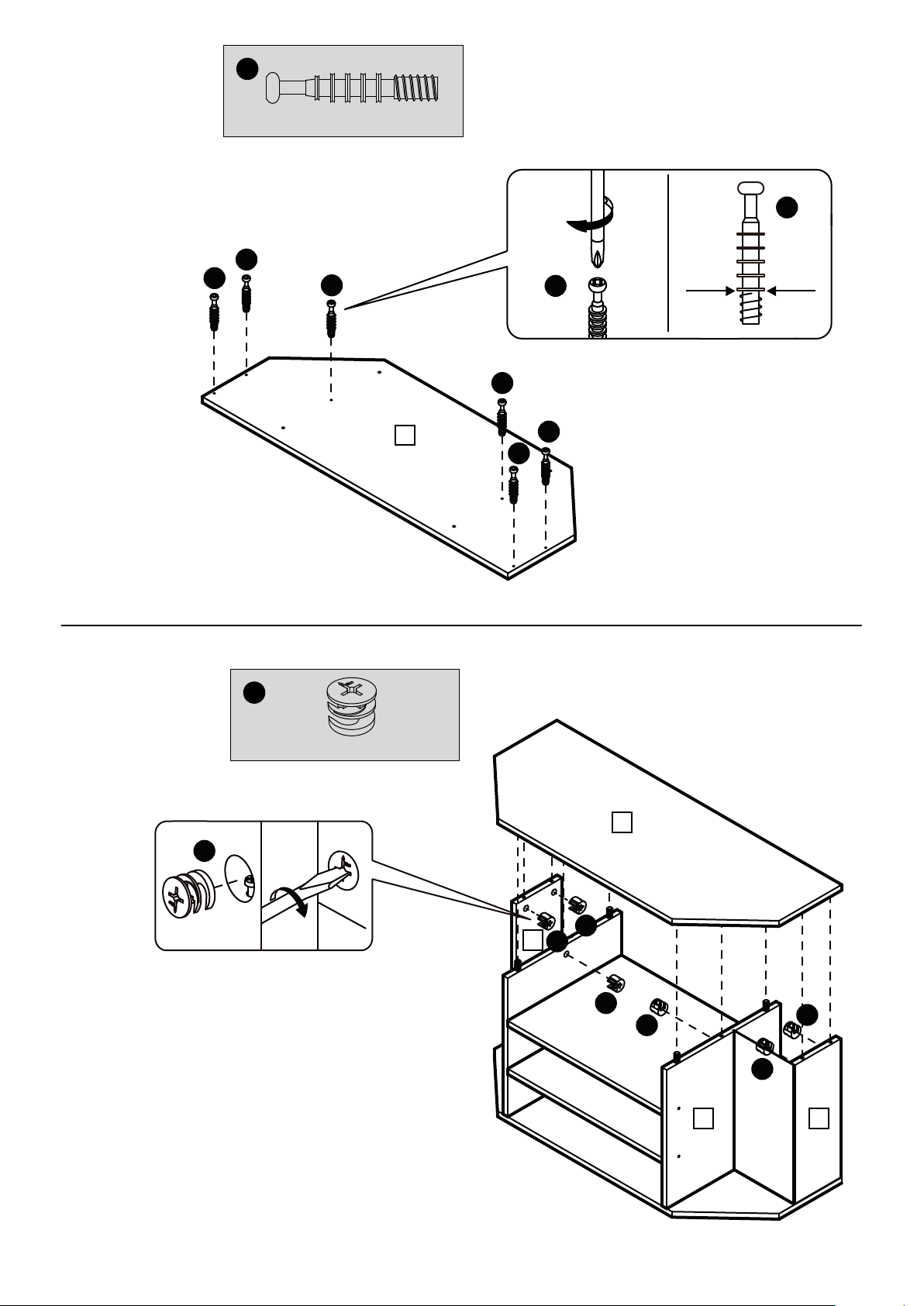

D
11
7 x 39mm Locking Pin x 6
D
D
D
D
D
D
1
D
D
12
F
15 x 12mm Locking Nut x 6
F
1
5
F
F
F
F
F
F
64
10
Page 12

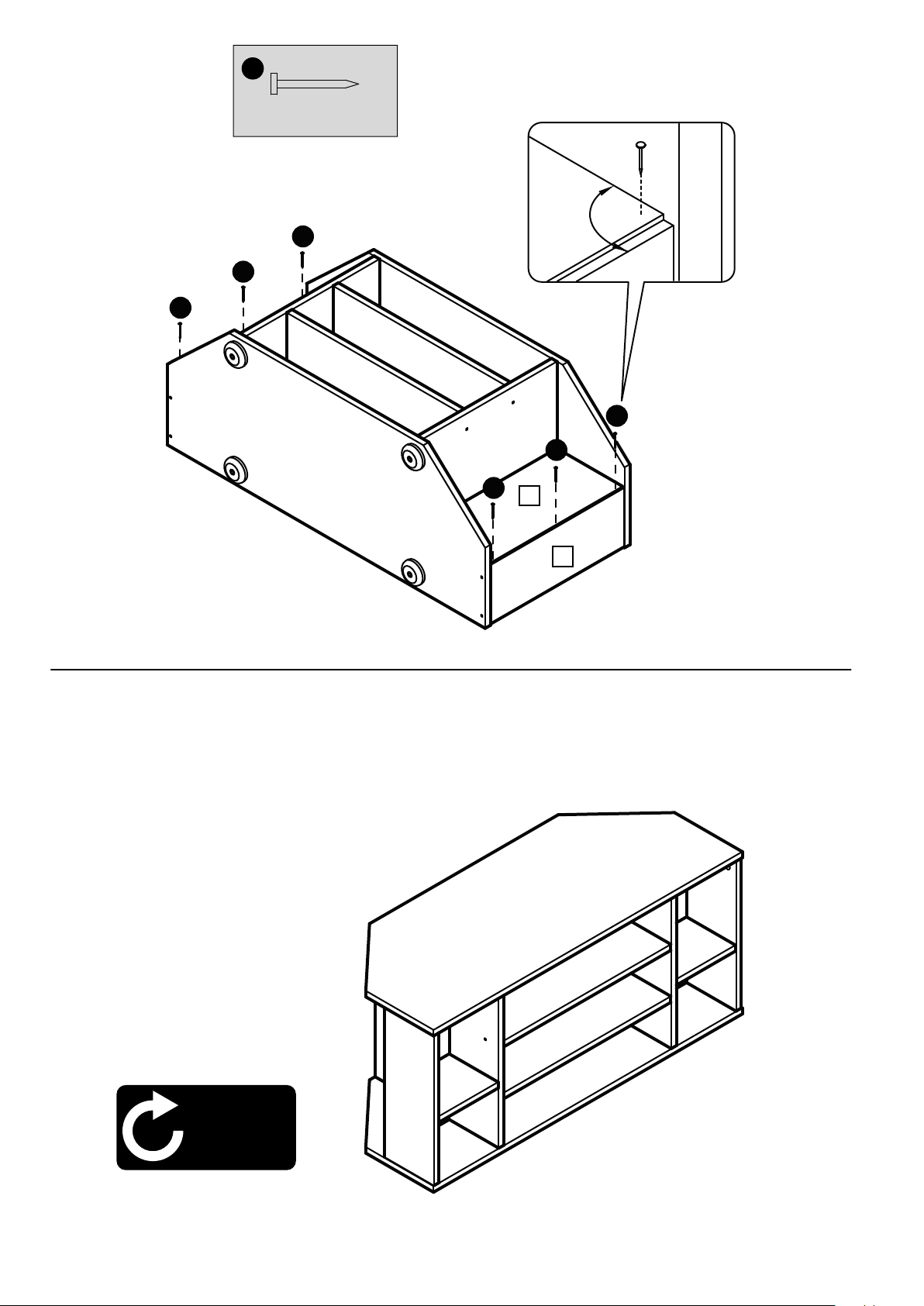

E
13
E
1.2 x 20mm Nail x 6
E
E
90˚
E
E
E
10
6
14
Rotate
Product
11
