Maine Tall CD / DVD Media Tower
Assembly Instructions
-
Please keep for future reference
932/8594
932/8604
932/8635
932/8642
932/8673
932/8680
Dimensions
Width - 19.2cm
Depth - 15.3cm
Height - 180cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the
Customer Helpline: 08456 400800
Version2 Date:15/04/11
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
rom the
plastic bags and separate them
into their groups.
• Keep children and animals away
from the work area, small parts
could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do not use
bleach or abrasive cleaners.
• Do not stand on the product,
this could cause damage.
• Assemble the item as close to
room) as possible.
• Assemble on a soft level surface
to avoid damaging the unit or your
r.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• This product should not be
discarded with household waste.
Take to your local authority waste
disposal centre.
1
Page 3
Components - Panels
Please check you have all the panels listed below
Pilot holes for
guidance only
Pilot holes for
guidance only
If you have damaged or missing components,
call the Customer Helpline: 08456 400800
Front panel
1
(16.1 x 5.9cm)
Top back panel (119.6 x 18.7cm)
5
Bottom back panel (54 x 18.7cm)
6
Bottom panel
2
(16.1 x 14.8cm)
Top/Middle support
3
panel x 2
(16.1 x 14.8cm)
Shelf x 8
4
(16.1 x 14.7cm)
Left side panel (180 x 14.9cm)
7
Right side panel (180 x 14.9cm)
8
2
Page 4

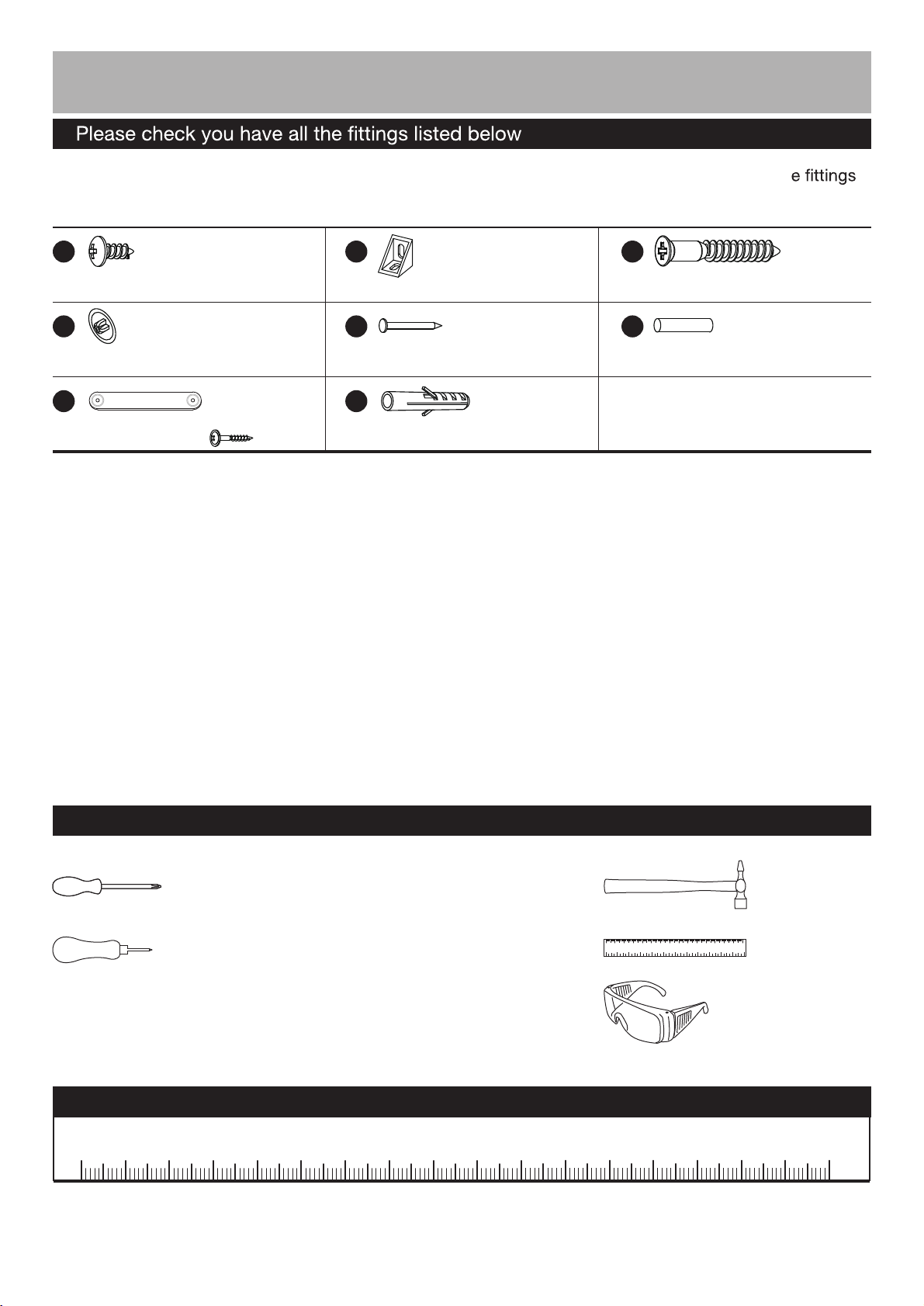

Components - Fittings
Note: The quantities below are the correct amount to complete the assembly. in some cases mor
may be supplied than are required.
A
14mm Screw x 5
D
G
Wall strap x 1
(This screw is
included in the
wall strap bag)
x 1
B
Plastic support x 2
E
Nail x 26Screw cover x 12
H
Wall plug x 1
C
50mm Screw x 12
F
Shelf support x 32
Tools required
Phillips screwdriver
(medium & large)
Bradawl
(or sharp point)
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
3
Small
hammer
0 1 2 3 4 5 6
110 120 130 140 1500 10 20 30 40 50 60 70 80 90 100
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
105
110 115 120 125 130 135 140 145 150 155 160 165 170
Page 5

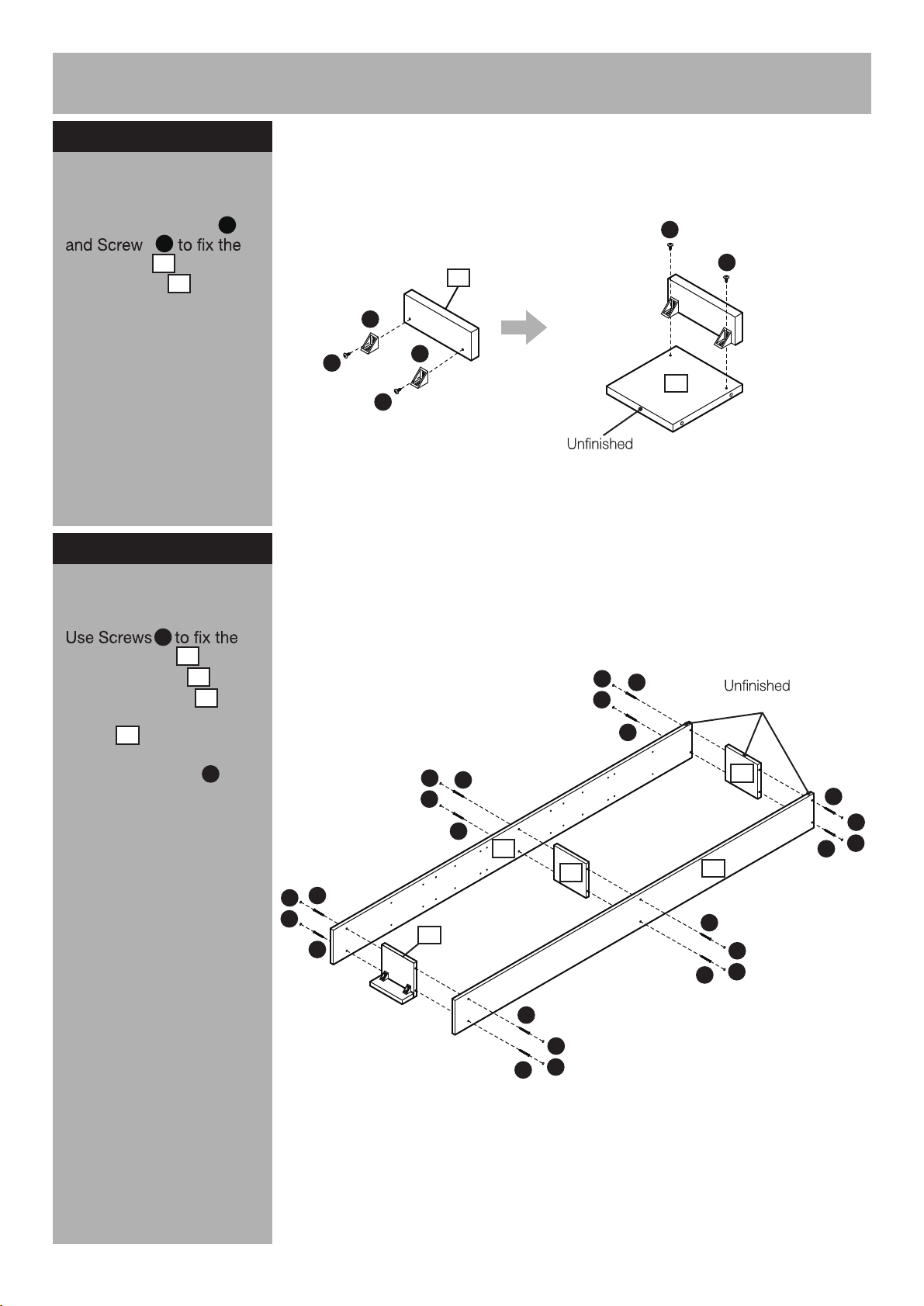

Assembly Instructions
Step 1
Attaching bottom panel
Use Plastic supports
A
s
Front panel onto the
Bottom panel .
1
2
B
Step 2
Attaching side panels
C
Left side panel and
Right side panel onto
the Bottom panel ,
Middle support and Top
panels .
3
7
8
2
A
A
1
B
A
B
2
A
back edge
D
C
D
C
back edge
Use Screw covers to
D
cover the Screw heads.
D
C
D
C
8
3
C
D
D
C
2
C
D
D
C
3
C
D
D
C
7
C
D
D
C
4
Page 6
Assembly Instructions

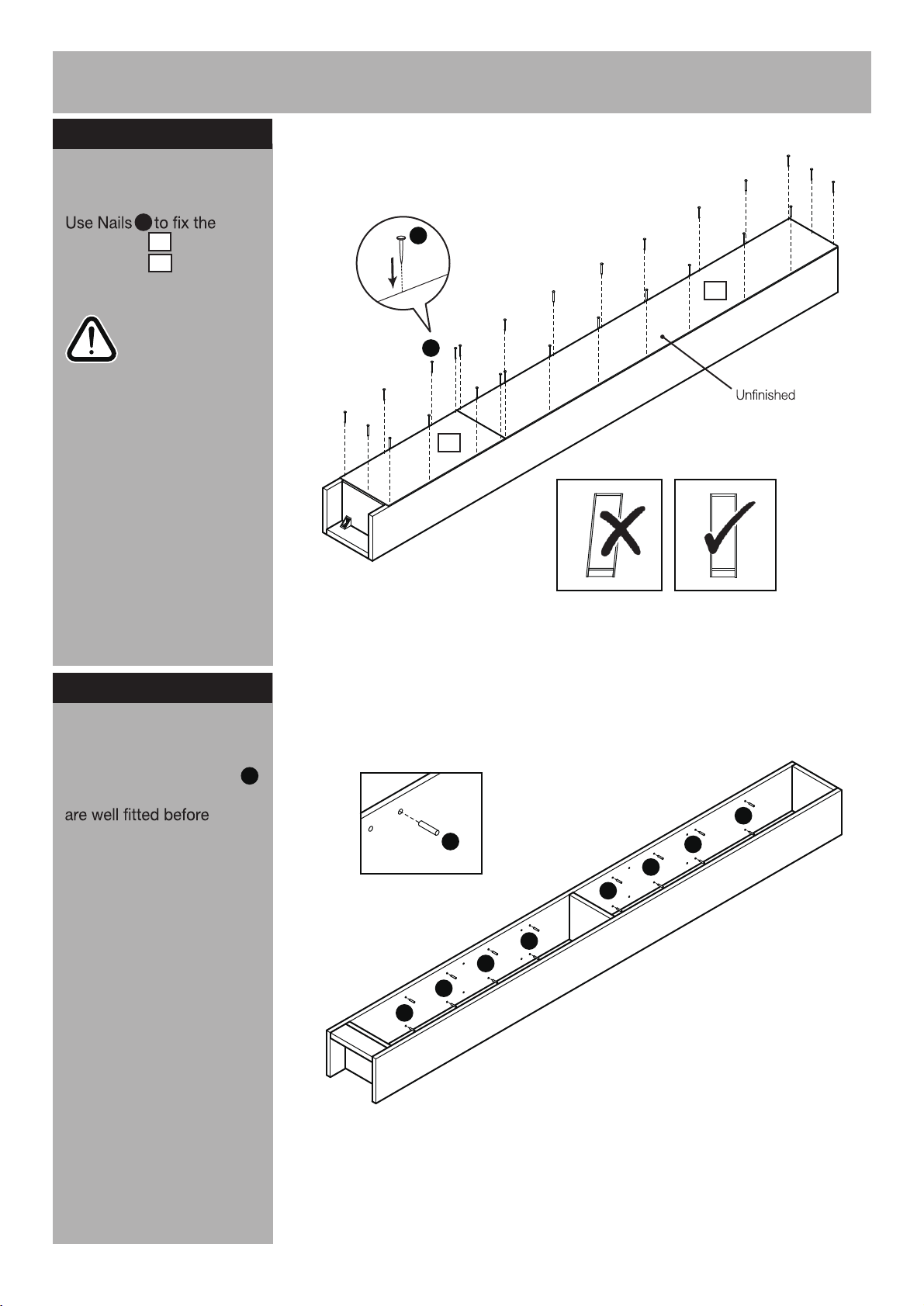

Step 3
Fixing back panels
back panel and Bottom
back panel onto the
E
5
6
Top
unit.
Important:
The unit MUST
be ‘square’ when
the back is attached.
E
5
E
back surface
6
Step 4
Attaching shelf panel
a:
lnsert Shelf supports
into the unit. Ensure they
inserting the Shelves.
Note:
Set the shelf
supports to the desired
height.
F
a:
F
F
F
F
F
F
F
F
F
Continued on next page.
5
Page 7
Assembly Instructions
Step 4 - continued
b:
With help, carefully
stand Media tower upright.
Warning:
The
Media tower
heavy.
Lift with care.

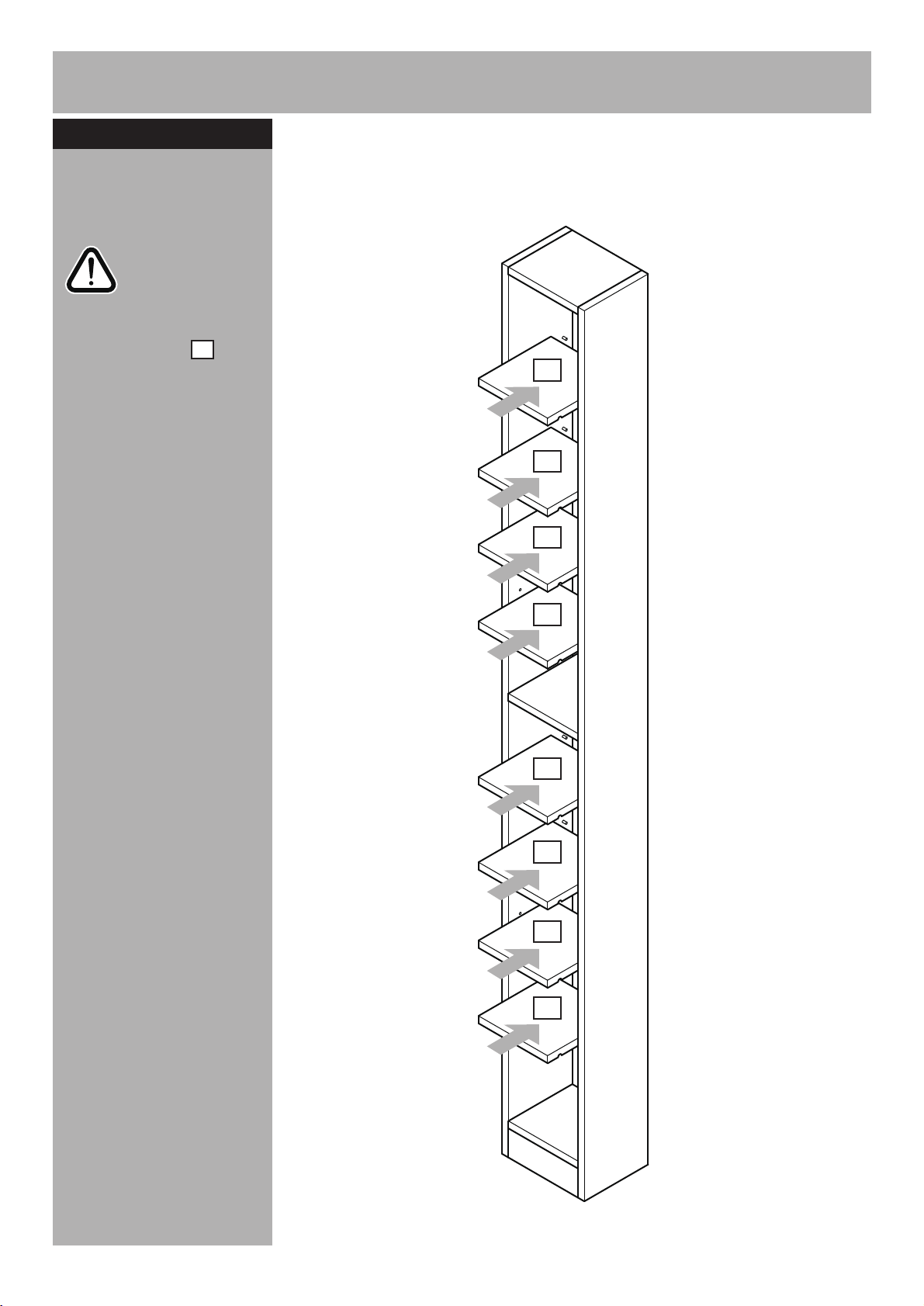

Slide the Shelves into
the unit.
4
is
b:
4
4
4
4
4
4
4
4
6
Page 8
Assembly Instructions

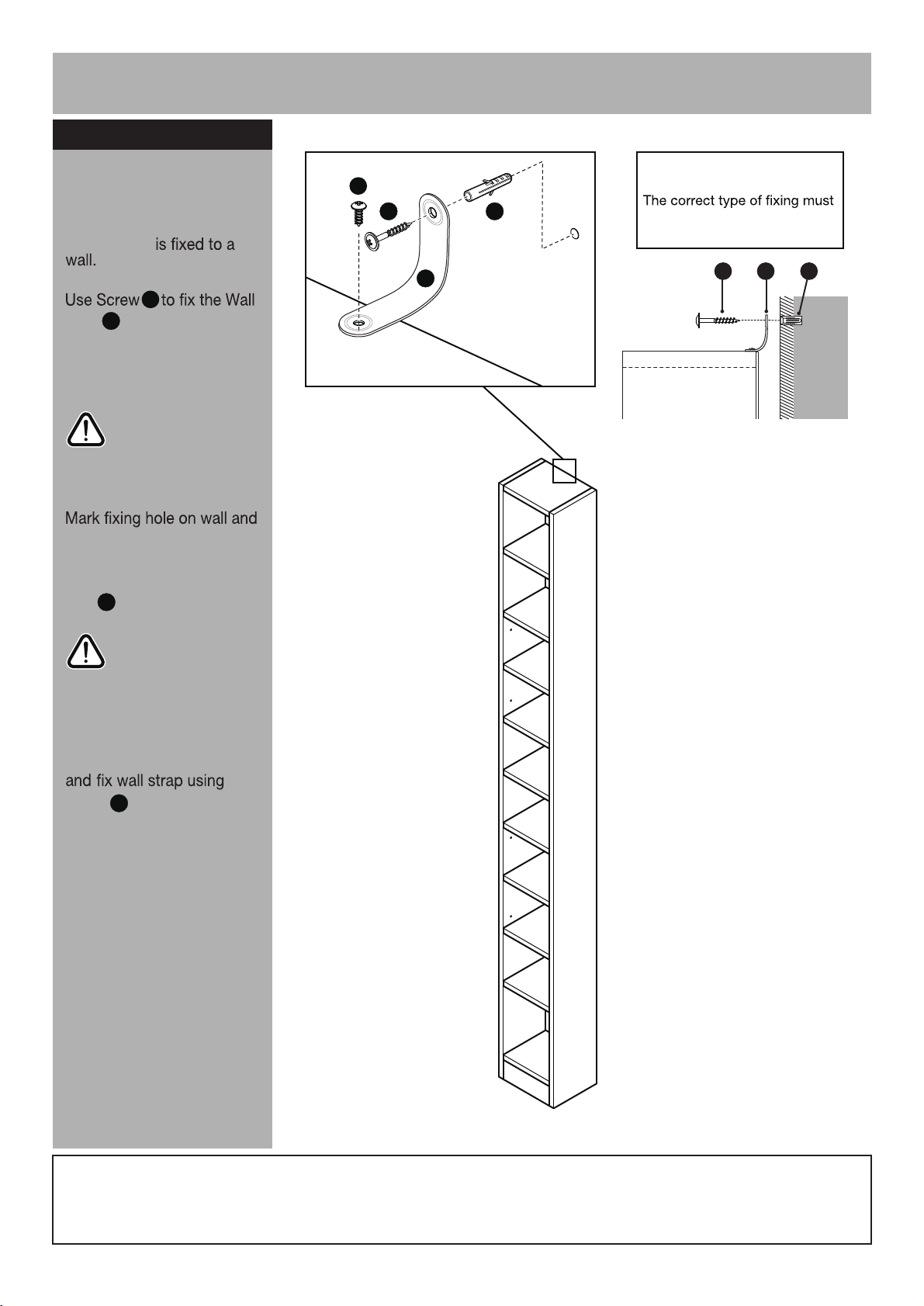

Step 5
Fixing to wall
It is recommended that the
media tower
A
G
strap onto the top panel.
A
G
G
Note:
Wall plugs supplied are
for solid wall only.
H
wall
be used for your wall, seek
professional advice if in doubt
G G H
With help, move
media tower into position.
Warning:
The
media tower
is heavy.
Lift with care.
remove media tower .
Drill a hole and insert Wall
H
plug .
Warning:
Before drilling,
check wall for
hidden pipes and
cables.
Reposition media tower
Screw .
G
Top panel
Assembly is complete.
If you need help or have damaged or missing parts, call the
7
Customer Helpline: 08456 400800
Page 9

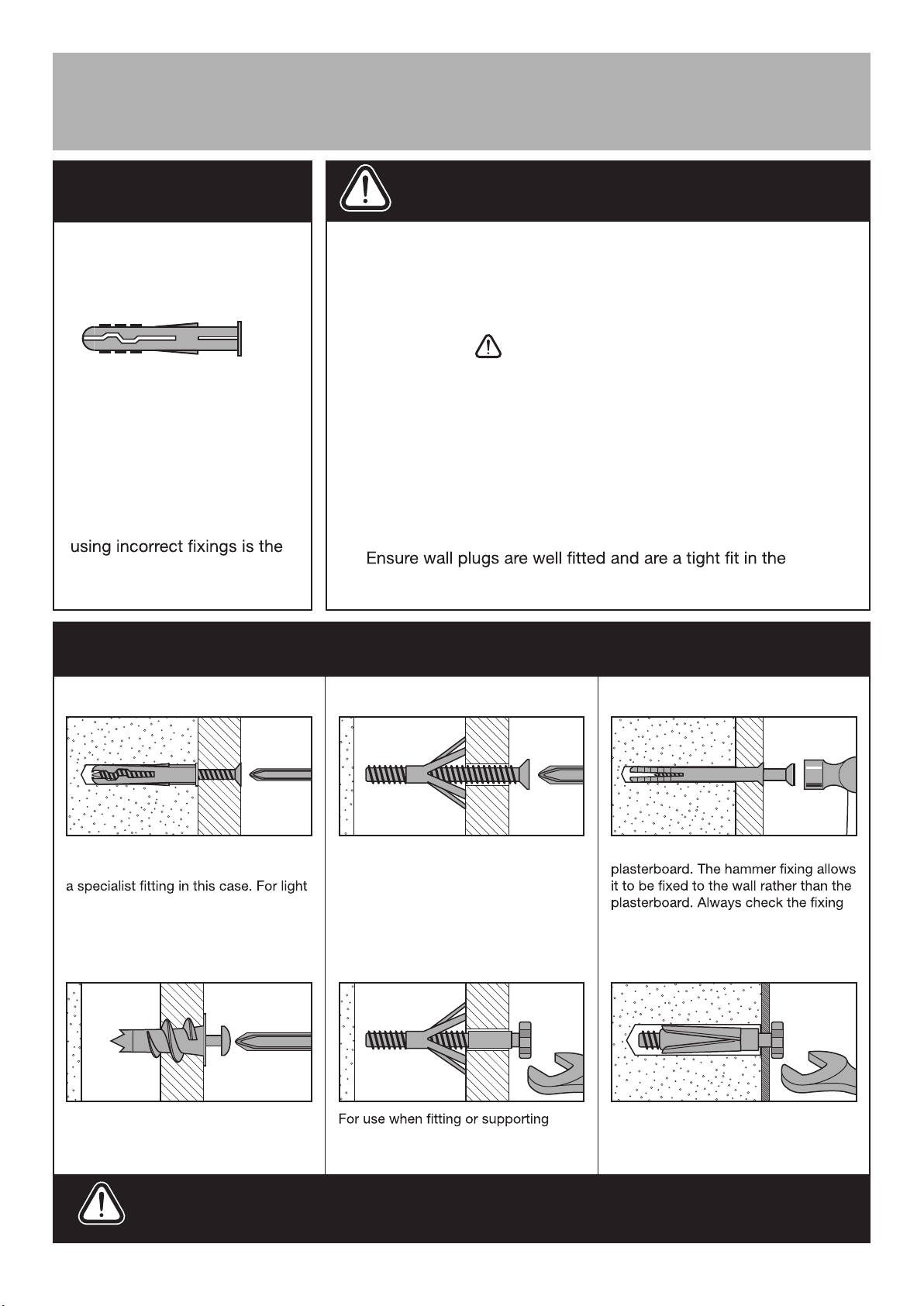

A Guide to - Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5:
drilled hole.
Types of walls
No.1 “General Purpose” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
loads, general purpose wall plugs can
be used.
No.2 “Plasterboard” wall plug
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
No.3 “Cavity Fixing” wall plug
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
For use with walls stuck with
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
