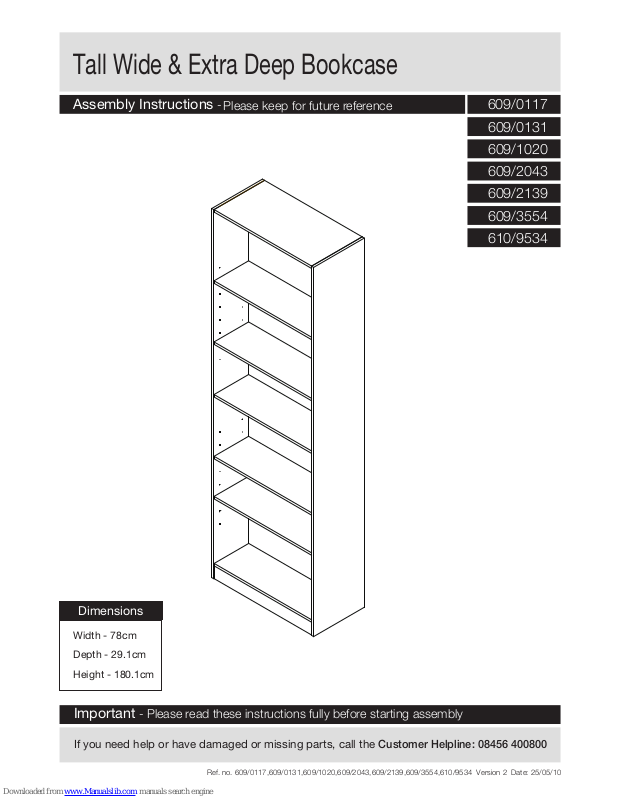

Tall Wide & Extra Deep Bookcase
Assembly Instructions
-
Please keep for future reference
609/0117
Dimensions
Depth - 29.1cm
Width - 78cm
Height - 180.1cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the
Customer Helpline: 08456 400800
Ref. no. 609/0117,609/0131,609/1020,609/2043,609/2139,609/3554,610/9534 Version 2 Date: 25/05/10
609/0131
609/1020
609/2043
609/2139
609/3554
610/9534
Page 2
Glue safety - Take care when using glue, please follow the advice below
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Care and maintenance
• Check you have all the
components and tools listed on
pages 2 and 3.
rom the
plastic bags and separate them
into their groups.
• Keep children and animals away
from the work area, small parts
could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand on the product,
this could cause damage.
• Assemble the item as close to
room) as possible.
• Assemble on a soft level surface
to avoid damaging the unit or your
r.
• Parts of the assembly will be
easier with 2 people.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• Note: Only apply the glue once
you are sure of the assembly.
Skin contact: Remove
contamination by washing with
soap and water. This procedure
should also be followed prior to
eating and drinking.
Eye contact: Rinse immediately
with clean water for 15 minutes
and seek medical advice.
If swallowed: Seek medical
advice immediately.
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household waste.
Take to your local authority waste
disposal centre.
1
Page 3
2

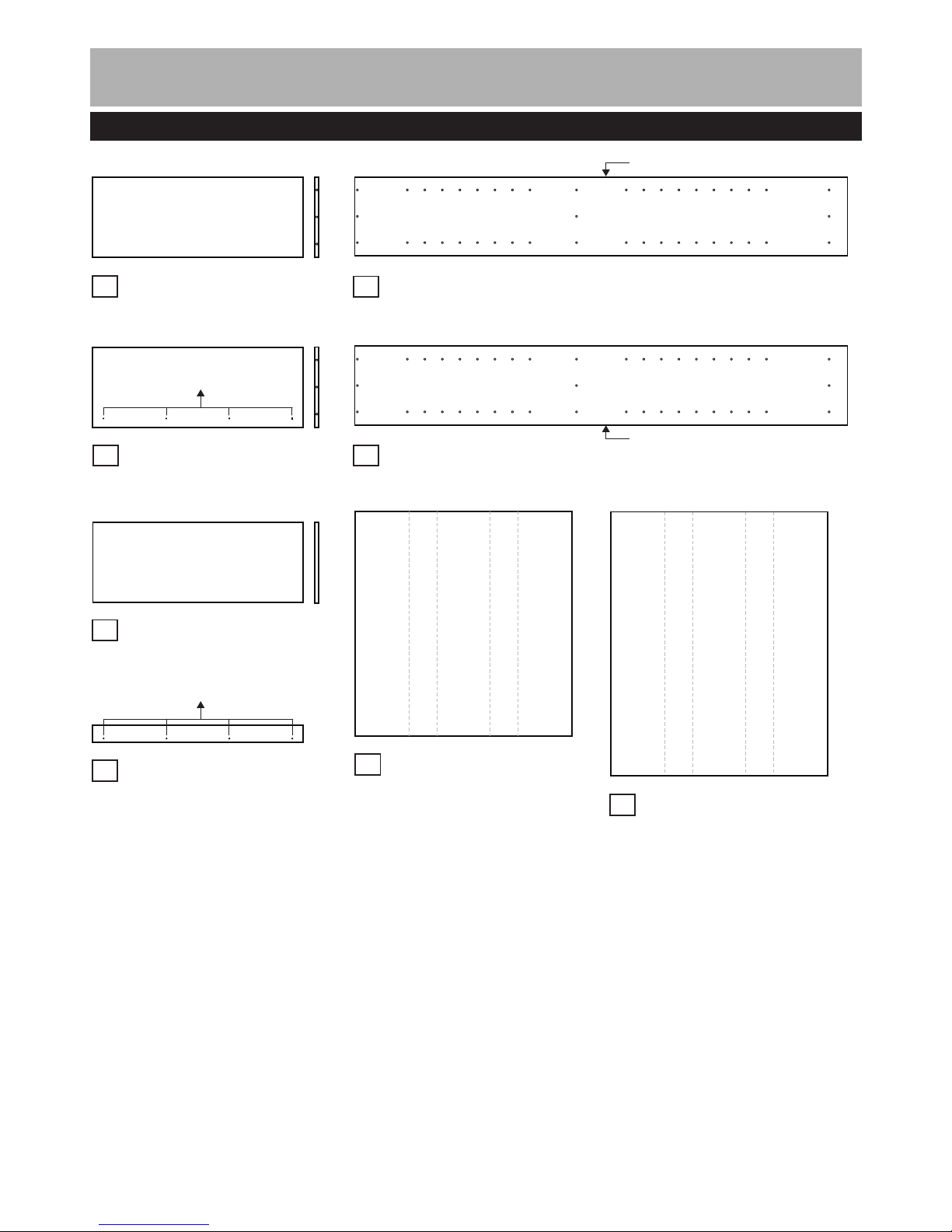

Components - Panels
Please check you have all the panels listed below
Fixed panel x 2 (74.9 x 28.4cm)
1
Bottom panel
(74.9 x 28.4cm)
2
Left side panel
(180 x 28.6cm)
6
Shelf x 4
(74.9 x 28.4cm)
3
Top back panel
(79.8 x 76.7cm)
7
Bottom back panel
(93.6 x 76.7cm)
8
Right side panel
(180 x 28.6cm)
5
Front panel
(74.9 x 5.9cm)
4
If you have damaged or missing components,
call the Customer Helpline: 08456 400800
Finished front edge
Finished front edge
pilot holes for
guidance only
pilot holes for
guidance only
Page 4
3
Note: The quantities below are the correct amount to complete the assembly. in some cases mor
may be supplied than are required.

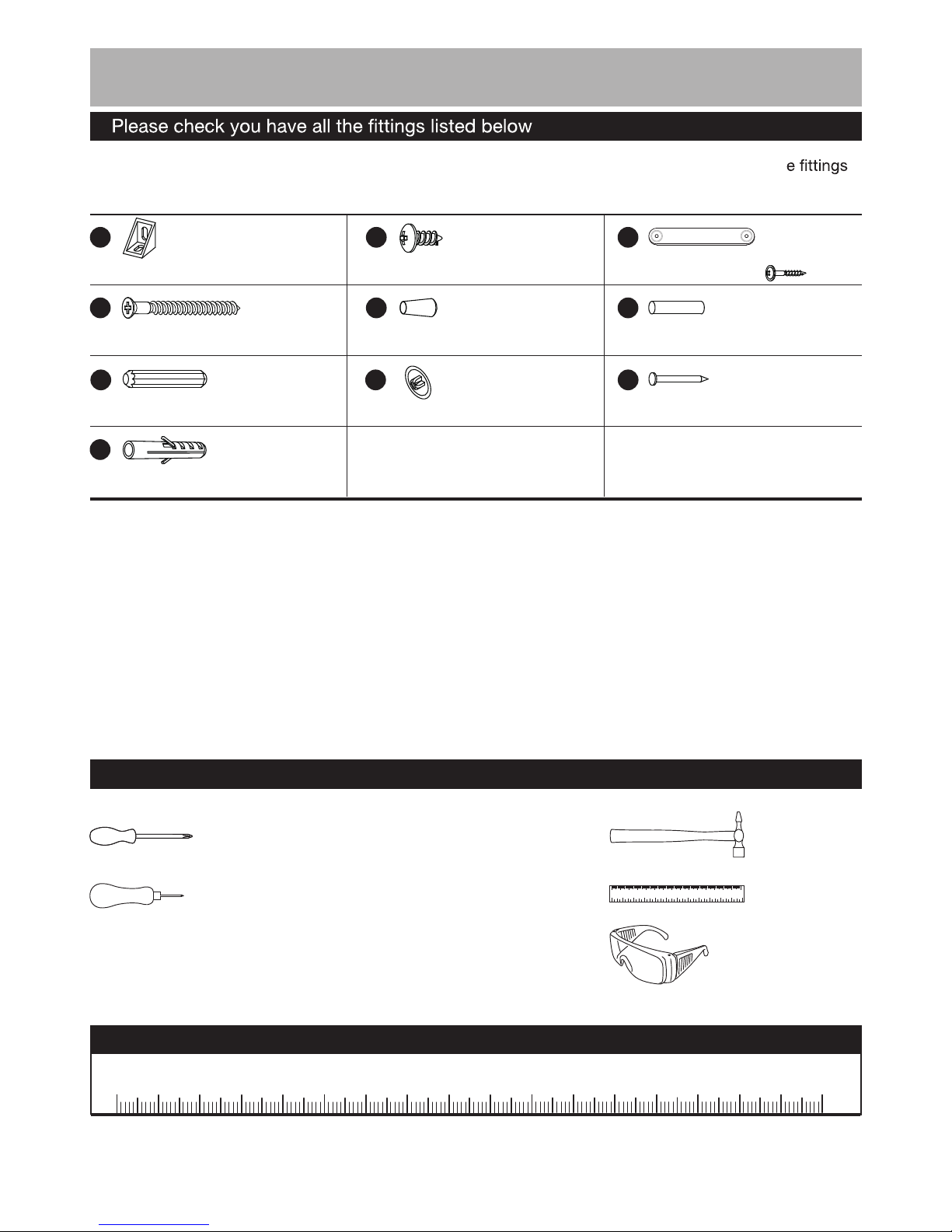

Components - Fittings
110 120 130 140 1500 10 20 30 40 50 60 70 80 90 100
0 1 2 3 4 5 6
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
105
110 115 120 125 130 135 140 145 150 155 160 165 170
Tools required
Phillips screwdriver
(medium & large)
Bradawl
(or sharp point)
Small
hammer
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
Ruler - Use this ruler to help correctly identify the screws
A
D
50mm Screw x 12
Wall plug x 1
Plastic support x 4
G
Wooden dowel x 6
J
B
E
14mm Screw x 9
Nail guide x 1
Support cover x 16
Screw cover x 12
H
K
C
F
I
Shelf support x 16
Wall strap x 1
Glue x 1
Nail x 46
L
(This screw is
included in the
bag of wall strap)
x 1
Page 5
4
Assembly Instructions
Step 1
Step 2
a:
A
back edge
D
Attaching side panels
B
Finished
front edge
Finished
front edge
D
A
B
A
B
A
B
B
B
B
B
b:
D
D
D
D
D
D
D
D
D
G
G
G
G

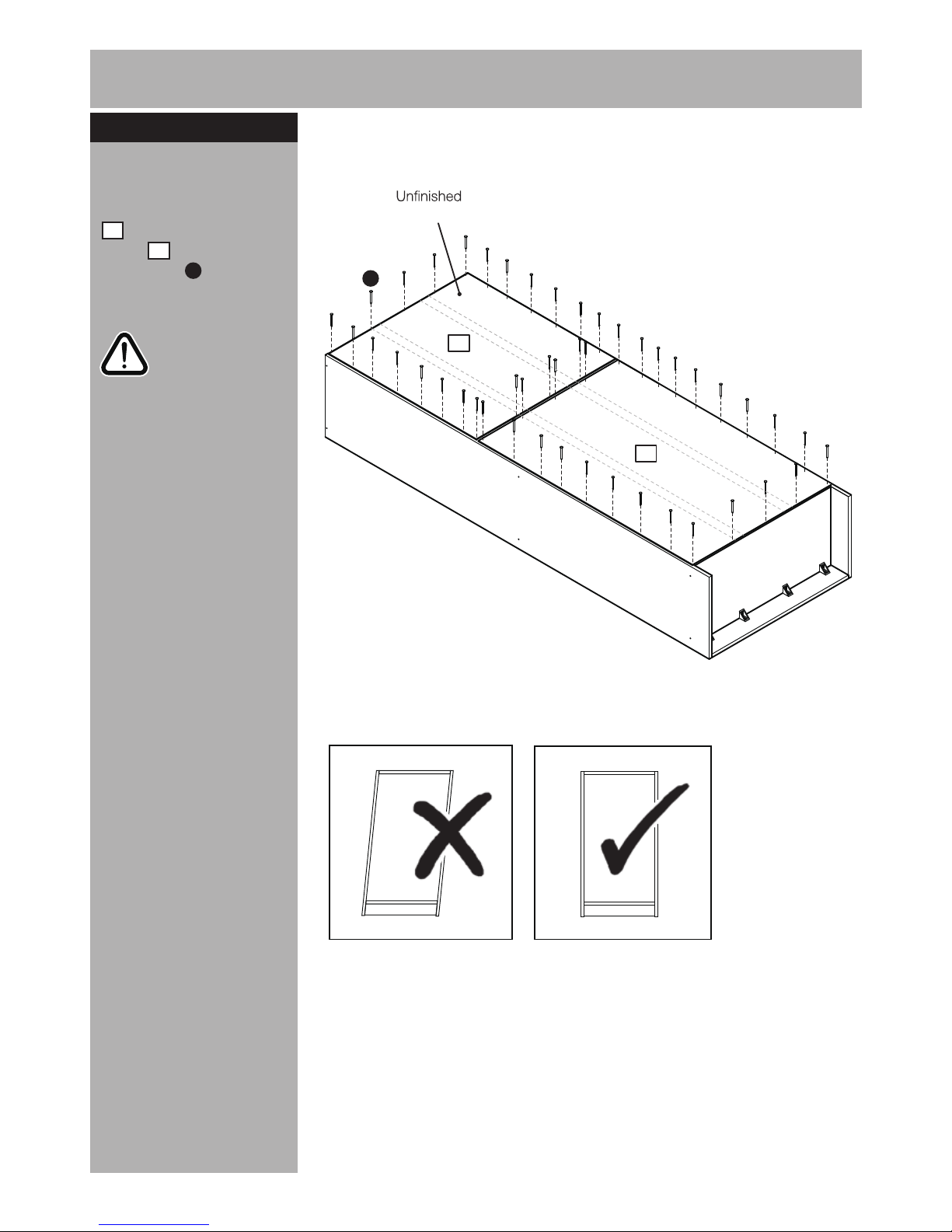

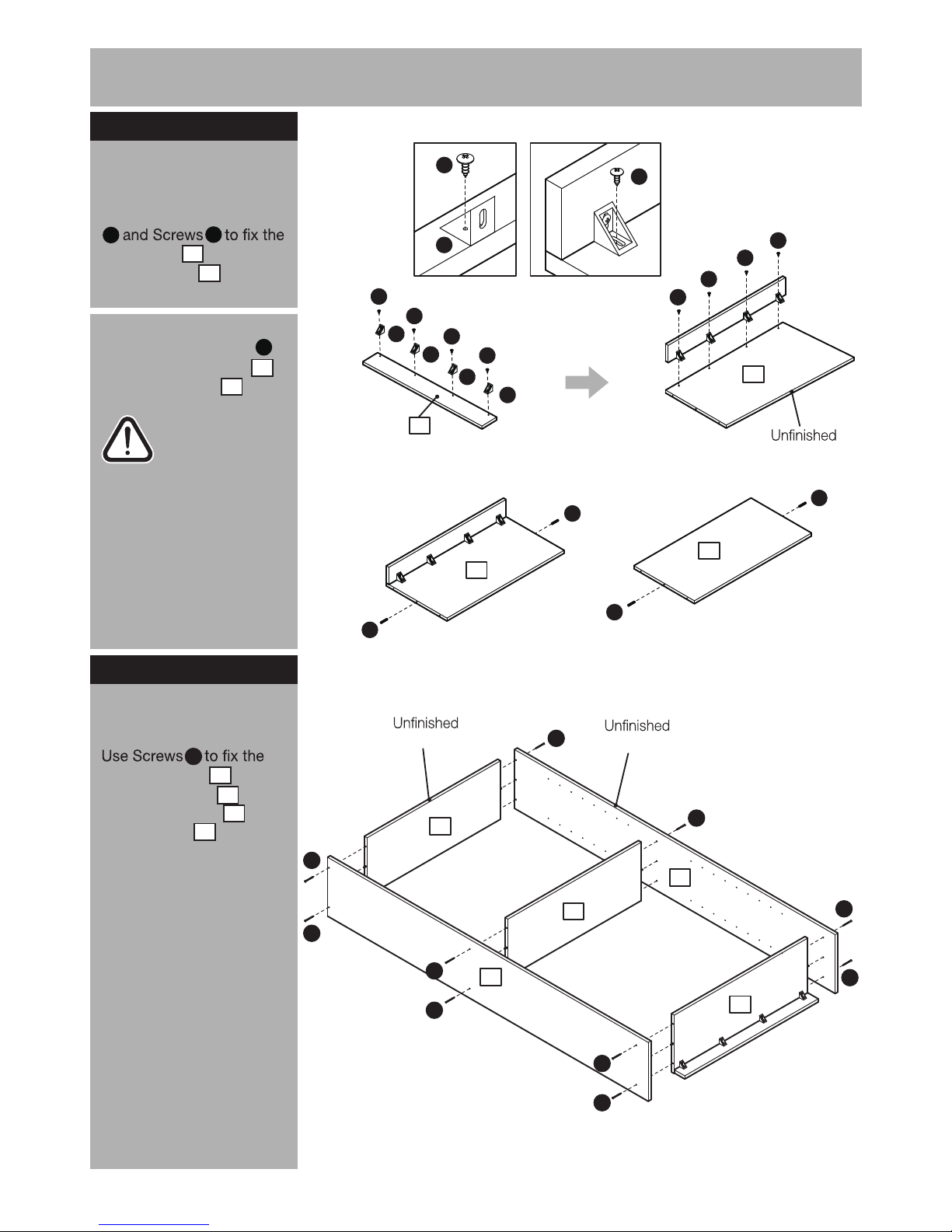

Attaching bottom panel
a:
Use Plastic supports
Front panel onto the
Bottom panel .
A
2
4
B
Left Side panel and
Right side panel onto
the Bottom panel and
Fixed panels .
5
6
2
1
2
4
1
2
1
1
2
5
6
b:
Place a small amount of
Glue into the dowel
holes of the Bottom panel
and Fixed panels .
L
2
1
Then insert Wooden
dowels into the Bottom
panel and Fixed panels
.
G
2
1
G
L
Place a small amount of
Glue onto the joint’s
Wooden dowels .
L
G
G
Caution: Always
check the
assembly method
is correct before
applying glue.
Page 6
5
Assembly Instructions
Step 3
a:
Fixing back panels
Top Back panel and
Bottom Back panel
onto the unit.
Note: Use Nail guide to
keep a constant distance
from the edge.
I
K
a:
7
8
8
7
K
I
Important:
The cabinet MUST
be ‘square’ when
the back is attached.
Page 7

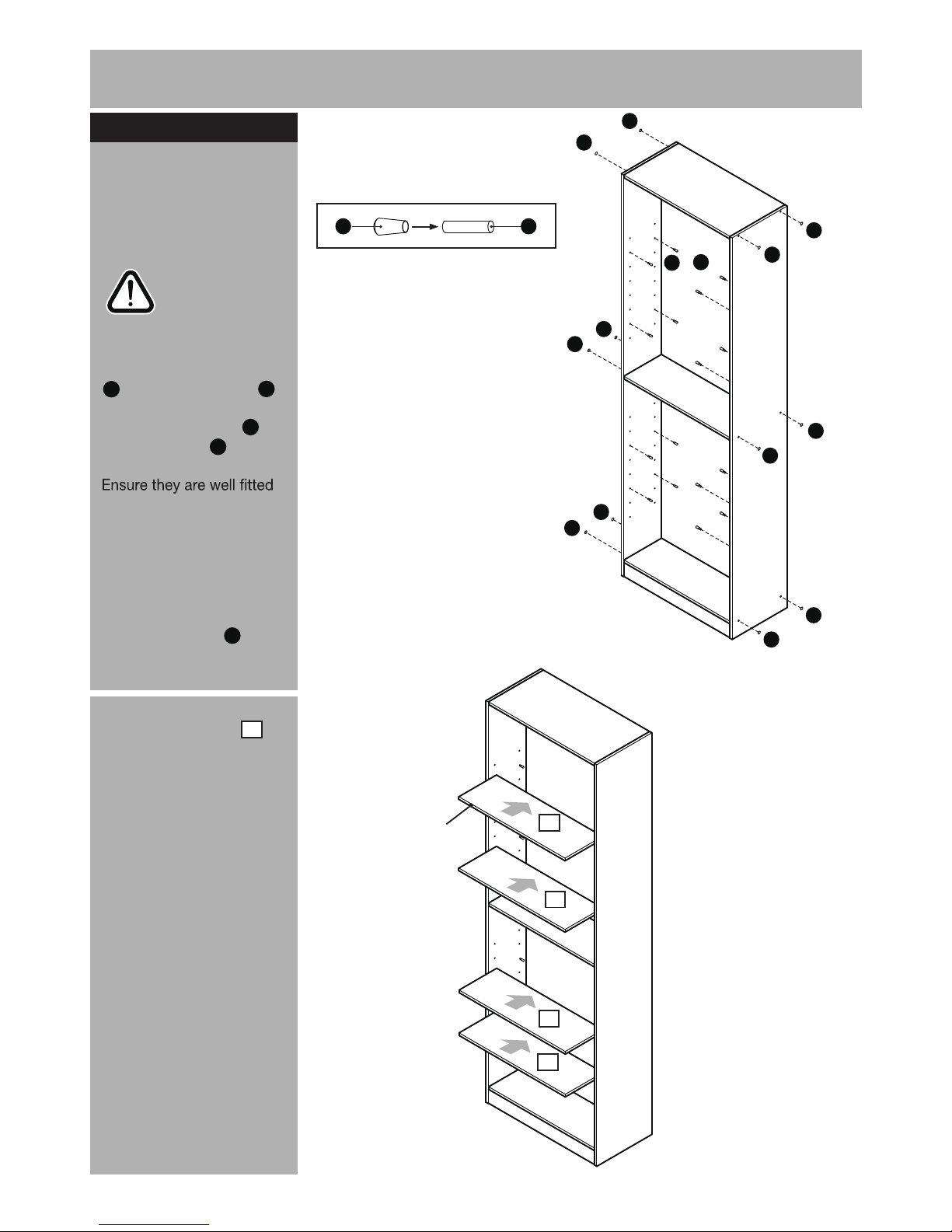

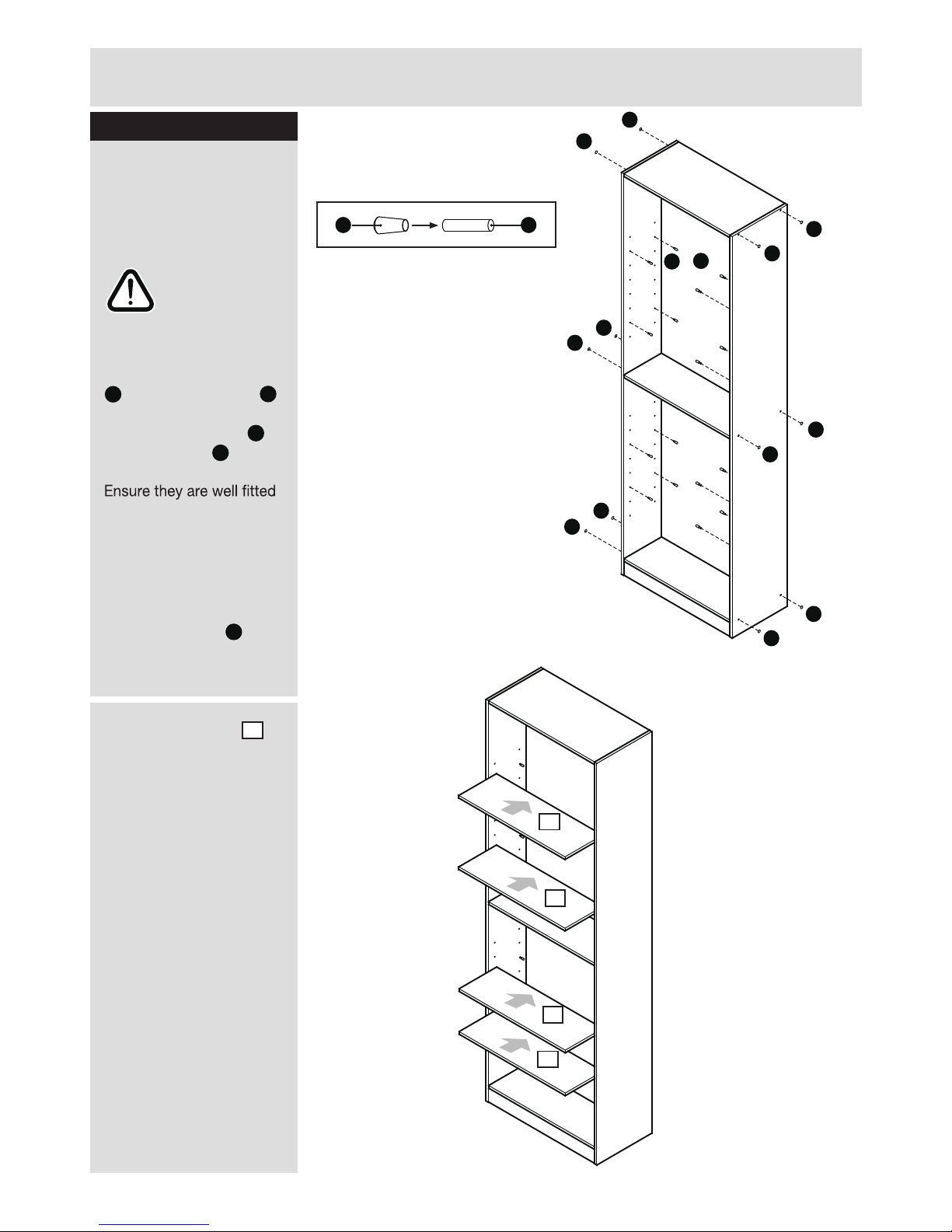

Step 4
Assembly Instructions
b:
Slide the Shelves
into the unit.
3
b:
a:
6
Attaching shelf panel
a:
SIide support covers
onto Shelf supports .
lnsert Shelf supports
(Support covers are
included) into the unit.
before inserting the Shelves.
E
F
F
Note:
Set the shelf
supports to the desired
height.
E
F
E
3
3
3
3
E
+
F
H
H
H
H
H
H
H
H
H
H
H
H
Use Screw covers to
cover the Screw heads.
H
With help, carefully stand
bookcase upright.
Warning:
The bookcase is
heavy.
Lift with care.
Page 8

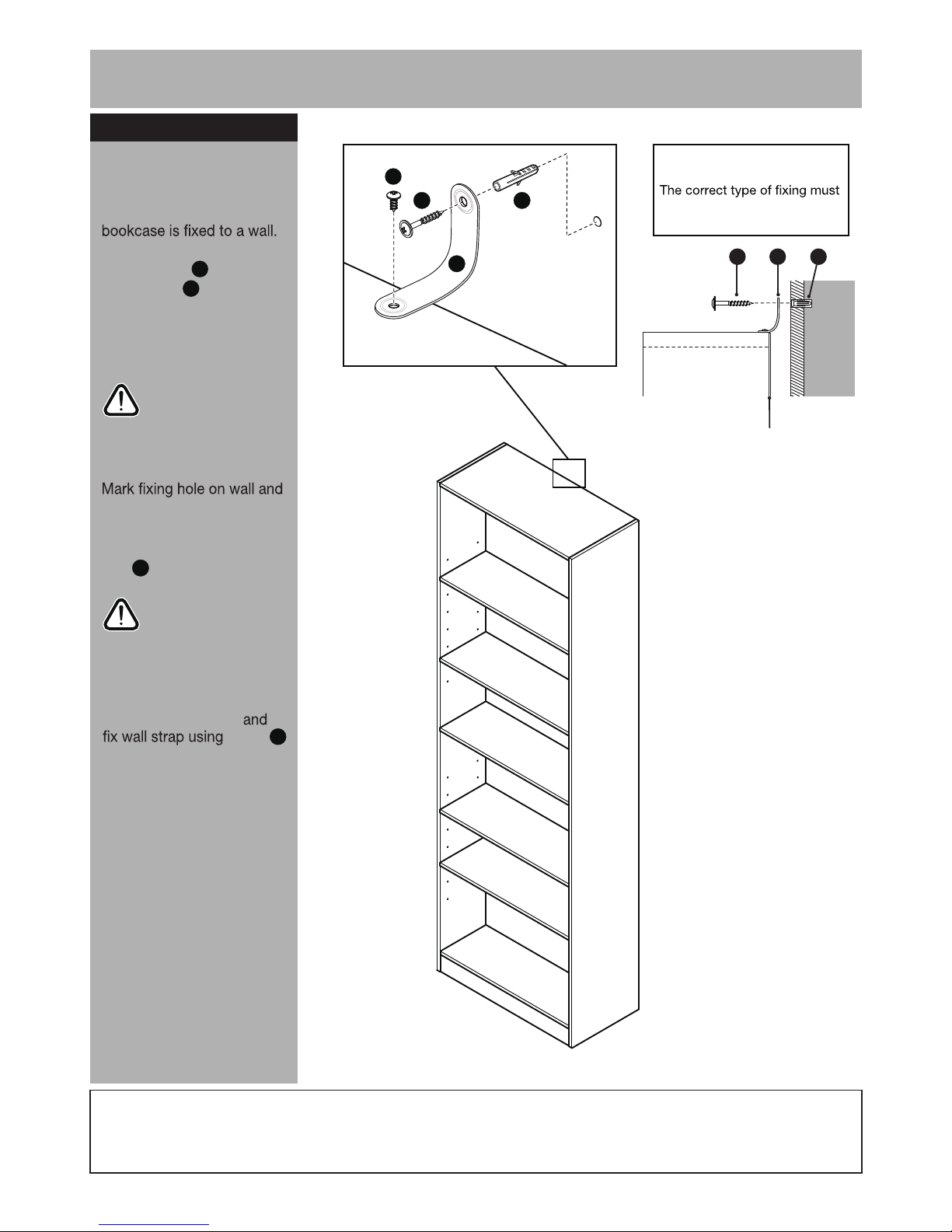

Step 5
Assembly Instructions
If you need help or have damaged or missing parts, call the
Customer Helpline: 08456 400800
Assembly is complete.

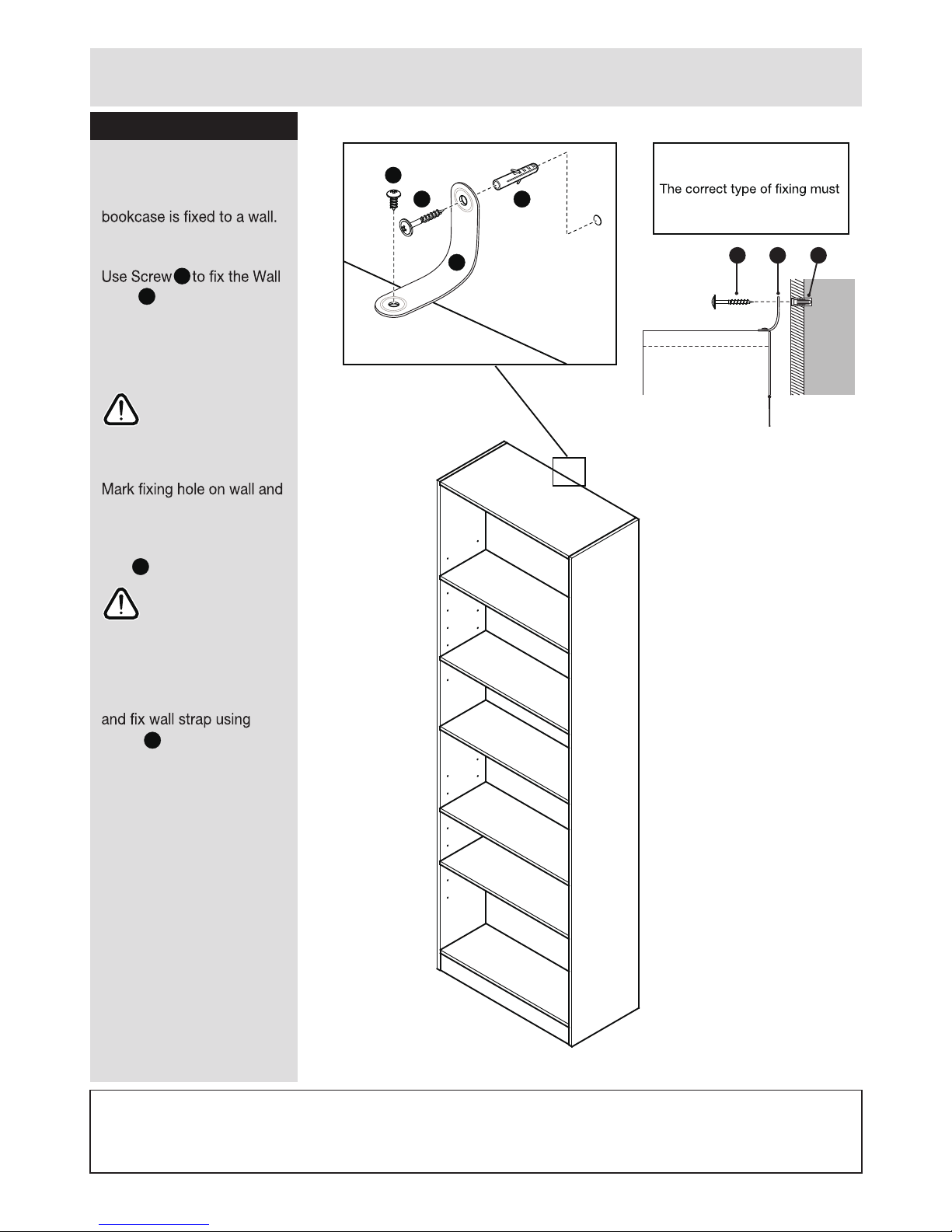

It is recommended that the
strap onto the top panel.
With help, move bookcase
into position.
remove bookcase .
Drill a hole and insert Wall
plug .
Reposition bookcase
Screw .
Fixing to wall
Warning:
The bookcase is
heavy.
Lift with care.
Warning:
Before drilling,
check wall for
hidden pipes and
and cables.
B
C
7
J
C
Note: Before use allow
the Glue to dry for 24
hours and make sure
the unit is secure.
Top Panel
wall
B
J
C
C
C C J
Note:
Wall plugs supplied are
for solid wall only.
be used for your wall, seek
professional advice if in doubt
back panel
Page 9

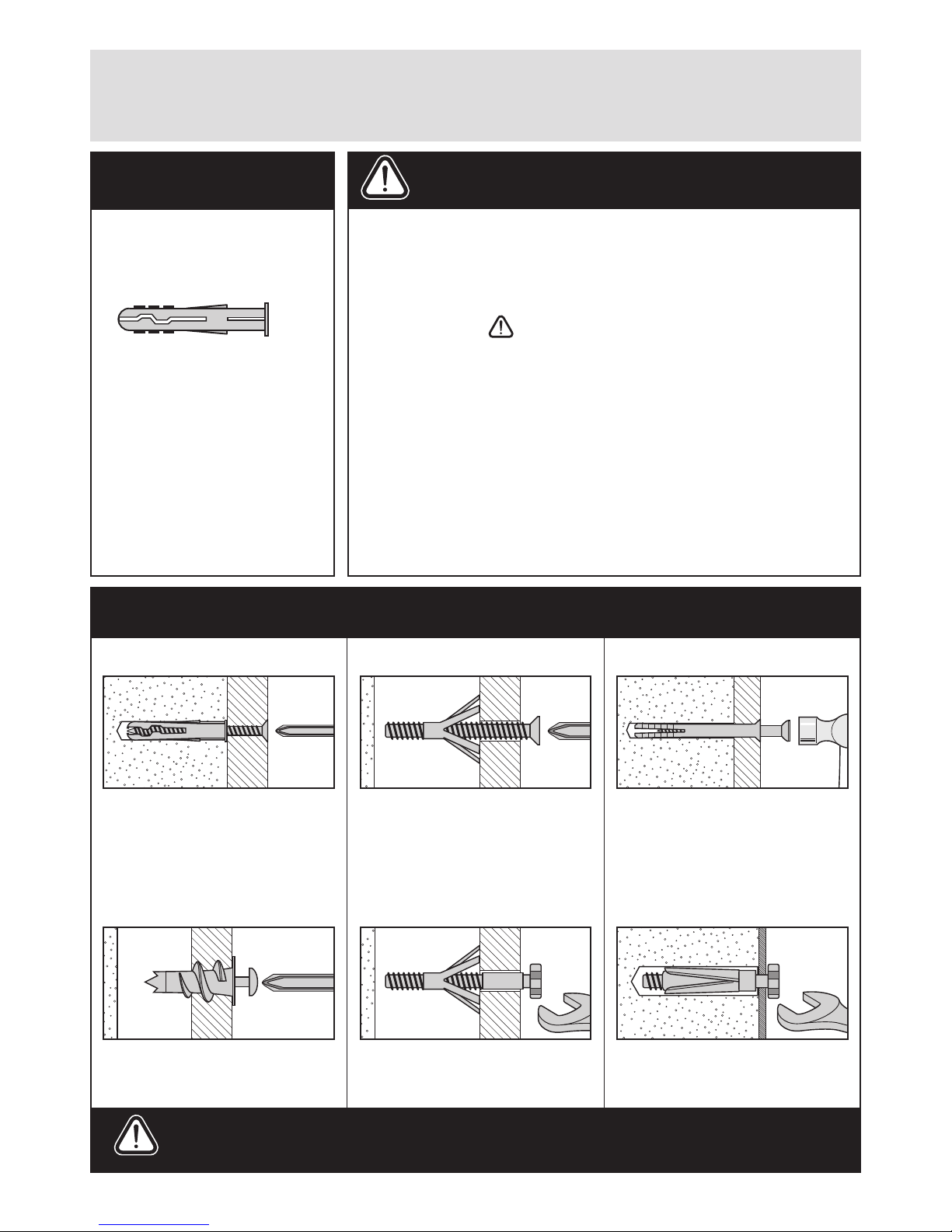

A Guide to - Wall Mounting & Fixings
Revision 2 - 7/10/09
Important note:
Types of walls
Care &
Maintenance
No.1 “General Purpose” wall plug
No.6 “Shield Anchor” wall plug
Heavy loads
No.3 “Cavity Fixing” wall plug
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
No.2 “Plasterboard” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist tting in this case. For light
loads, general purpose wall plugs can
be used.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
For use with plasterboard partitions or
hollow wooden doors.
For use when tting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
For use with walls stuck with
plasterboard. The hammer xing allows
it to be xed to the wall rather than the
plasterboard. Always check the xing
is secure to the retaining wall.
For use when attaching light loads on
to plasterboard partitions.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well tted and are a tight t in the
drilled hole.
If plastic wall plugs
are supplied with your
product:
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect xings is the
responsibility of the installer.
Page 10
Assembly Instructions
-
Please keep for future reference
609/2139
Dimensions
Depth - 29cm
Width - 78cm
Height - 180cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the
Customer Helpline: 08456 400800
Version 2 Date: 22/04/13
609/3554
609/4687
609/2139
609/5772
610/9534
609/5758
Tall Wide Extra Deep Bookcase
Page 11
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do not use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household waste.
Take to your local authority waste
disposal centre.
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
rom the
plastic bags and separate them
into their groups.
• Keep children and animals away
from the work area, small parts
could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand on the product,
this could cause damage.
• Assemble the item as close to
room) as possible.
• Assemble on a soft level surface
to avoid damaging the unit or your
r.
• Parts of the assembly will be
easier with 2 people.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
1
• Do not use this item if any
components are missing or
damaged.
Page 12
2
Components - Panels
Please check you have all the panels listed below
Fixed panel x 2 (74.9 x 28.4cm)
1
Bottom panel
(74.9 x 28.4cm)
2
Left side panel
(180 x 28.6cm)
6
Shelf x 4
(74.9 x 28.4cm)
3
Top back panel
(76.7 x 79.8cm)
7
Bottom back panel
(76.7 x 93.6cm)
8
Right side panel
(180 x 28.6cm)
5
Front panel
(74.9 x 5.9cm)
4
If you have damaged or missing components,
call the Customer Helpline: 08456 400800
Finished front edge
Pilot holes for guidance only
Pilot holes for guidance only
Finished front edge
Page 13
3
Note: The quantities below are the correct amount to complete the assembly. in some cases mor
may be supplied than are required.
sgnittiF - stnenopmoC
110 120 130 140 1500 10 20 30 40 50 60 70 80 90 100
0 1 2 3 4 5 6
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
105
110 115 120 125 130 135 140 145 150 155 160 165 170
Tools required
Phillips screwdriver
(medium & large)
Bradawl
(or sharp point)
Small
hammer
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
Ruler - Use this ruler to help correctly identify the screws
A
D
50mm Screw x 12
Wall plug x 1
Plastic support x 4
G
30mm Dowel x 6
J
B
E
14mm Screw x 9
Support cover x 16
Screw cover x 12
H
C
F
I
Shelf support x 16
Wall strap x 1
Nail x 46
(This screw is
included in the
bag of wall strap)
x 1
Page 14
4
Assembly Instructions
Step 1
Step 2
back edge
Attaching side panels
D
B
B
B
B
b:
G
G
G
G
Attaching bottom panel
a:
Use Plastic supports
Front panel onto the
Bottom panel .
A
2
4
B
Left Side panel and
Right side panel onto
the Bottom panel and
Fixed panels .
5
6
2
1
2
4
1 X 2
2
b:
Then insert Dowels
into the Bottom panel
and Fixed panels
.
G
2
1
Caution: Always
check the
assembly method
is correct before
applying glue.
B
A
A
A
A
B
B
B
B
A
B
a:
back edge
back edge
D
1
1
2
6
5
D
D
D
D
D
D
D
D
D
Page 15
5
Assembly Instructions
Step 3
8
7
back surface
I
Important:
The unit MUST
be ‘square’ when
back is attached.
Fixing back panels
Attach Top back panel
and Bottom back
panel onto the unit
using Nails .
I
7
8
Page 16
Step 4
Assembly Instructions
b:
Slide the Shelves
into the unit.
3
b:
a:
6
Attaching shelves
a:
SIide Support covers
onto Shelf supports .
lnsert Shelf supports
(Support covers are
included) into the unit.
before inserting the
Shelves.
E
F
F
Note:
Set the shelf
supports to the desired
height.
E
F
E
3
3
3
3
E
+
F
H
H
H
H
H
H
H
H
H
H
H
H
Use Screw covers to
cover the screw heads.
H
With help, carefully stand
bookcase upright.
Warning:
The bookcase is
heavy.
Lift with care.
Finished
front edge
Page 17
Step 5
Assembly Instructions
If you need help or have damaged or missing parts, call the
Customer Helpline: 08456 400800
Assembly is complete.
It is recommended that the
using Screw .
With help, move bookcase
into position.
remove bookcase .
Drill a hole and insert Wall
plug .
Reposition bookcase
Fixing to wall
Warning:
The bookcase is
heavy.
Lift with care.
Warning:
Before drilling,
check wall for
hidden pipes and
cables.
C
B
7
J
C
Top Panel
wall
B
J
C
C
C C J
Note:
Wall plugs supplied are
for solid wall only.
be used for your wall, seek
professional advice if in doubt
Back panel
Fix Wall strap to top panel
Screw .
Page 18
A Guide to - Wall Mounting & Fixings
Revision 2 - 7/10/09
Important note:
Types of walls
Care &
Maintenance
No.1 “General Purpose” wall plug
No.6 “Shield Anchor” wall plug
Heavy loads
No.3 “Cavity Fixing” wall plug
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
No.2 “Plasterboard” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist tting in this case. For light
loads, general purpose wall plugs can
be used.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
For use with plasterboard partitions or
hollow wooden doors.
For use when tting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
For use with walls stuck with
plasterboard. The hammer xing allows
it to be xed to the wall rather than the
plasterboard. Always check the xing
is secure to the retaining wall.
For use when attaching light loads on
to plasterboard partitions.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well tted and are a tight t in the
drilled hole.
If plastic wall plugs
are supplied with your
product:
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect xings is the
responsibility of the installer.
Loading...
